Features	Details
Product type	Microwave oven
Capacity	1.2 cubic feet
Power	1000 watts
Cooking modes	Microwave, defrost, quick cook
Dimensions	Width: 20.5 inches, Depth: 15.5 inches, Height: 12.5 inches
Control panel	Digital with LCD screen
Safety feature	Child lock
Weight	35 pounds
Energy consumption	Energy efficient
Included accessories	Turntable, rack
Warranty	1 year

Frequently Asked Questions - DMW12A4BDB DANBY

How to unlock the door of the Danby DMW12A4BDB microwave if it is stuck?

First check if the microwave is plugged in and if there is a power outage. If the door is still stuck, wait a few minutes then try to open it again. If the problem persists, contact customer service.

Why does the microwave not heat food properly?

Make sure the turntable is properly in place and the food is arranged evenly. Also check that the power is set correctly and the cooking time is sufficient.

How to clean the inside of the Danby DMW12A4BDB microwave?

Use a mixture of warm water and mild soap. Wipe the inside with a soft cloth or non-abrasive sponge. Avoid using harsh chemicals.

The microwave makes a strange noise during operation, what to do?

An abnormal noise can be caused by misplaced objects or a poorly installed turntable. Check these items. If the noise persists, it may be necessary to contact a technician.

How to set the timer on the Danby DMW12A4BDB microwave?

Press the timer button, enter the desired time using the numeric buttons, then press the timer button again to start the countdown.

Why does the microwave display not turn on?

Check if the microwave is properly plugged into a working outlet. If the display still does not turn on, there may be a problem with the power cord or internal fuse.

What types of containers can be used in the microwave?

Use glass, ceramic, or plastic containers specifically designed for microwave use. Avoid metals and some plastics that are not heat resistant.

How to adjust the power of the microwave?

Press the power button, select the desired level using the numeric buttons, then confirm to apply the setting.

Is there a defrost mode on the Danby DMW12A4BDB?

Yes, the microwave has a defrost mode. Select the defrost mode and enter the weight of the food for optimal operation.

USER MANUAL DMW12A4BDB DANBY

Grid of eight squares in varying shades of gray, arranged in two rows and three columns (no text or symbols)

White hand symbol inside a black octagonal frame (no text or numbers)

Gray circular icon with a white telephone handset and signal waves (no text or symbols)

1-800-263-2629 (1-800-26-DANBY)

DO NOT RETURN THIS UNIT TO THE RETAILER WITHOUT FURTHER INSTRUCTIONS

Dear valued customer, we hope your Danby product purchase fulfills all your requirements. Your satisfaction is our priority! Please contact us at our toll free consumer service number for any inquiries you may have about your new unit.

NE PAS RETOURNER CET APPAREIL CHEZ LE DÉTAILLANT SANS CONSIGNES SUPPLÉMENTAIRES

This product is factory equipped with a power supply cord that has a three-pronged grounded plug. It must be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances. If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to exchange the existing receptacle in accordance with the National Electrical Code and applicable local codes and ordinances. The third ground prong should not, under any circumstances, be cut or removed. Never use the cord, the plug or the appliance when they show any sign of damage. Do not use your appliance with an extension cord unless it has been checked and tested by a qualified electrician or electrical supplier.

IMPORTANT - MÉTHODE POUR LA MISE À LA TERRE

Owner's Use and Care Guide 2-15

• Welcome
• Important Safety Information
• Features
  • Installation Instructions
  • Operation Instructions
  • Care and Maintenance
• Troubleshooting
• Warranty

FOUR À MICRO-ONDES

Improper connection of the grounding plug can result in risk of £i re, electric shock and/or injury to persons associated with the appliance. Check with a qualified service representative if in doubt that the appliance is properly grounded.

AVERTISSEMENT

Front view of a modern microwave oven with digital display and control buttons (no visible text or symbols on the device body)

Model · Modèle · Modelo
DMW12A4BDB / DMW12A4SDB / DMW12A4WDB / DMW14A4SDB

Thank you for choosing Danby

We know you're excited. We are too! However, the more familiar you are with your new appliance, the better experience you will have. We therefore strongly suggest that you read this Owner's Manual before plugging in your new appliance. It contains important operational information that will help you make full use of the technical features available in your Danby appliance. The manual also contains information designed to enhance operating reliability and safety, as well as tips to maintaining your new appliance so that it brings you happiness for years to come.

Please visit www.danby.com to access self-service tools, FAQs and more. Should you need additional assistance, please call 1-800-26-DANBY (1-800-263-2629).

Note: You will need the below information to obtain service under warranty. To receive service, you must provide the original receipt.

Model Number:

Serial Number:

Date of Purchase:

NEED HELP?

Before you call for service, here are a few things you can do to help us serve you better:

Read this Owner's Manual:

It contains instructions to help you use and maintain your appliance properly.

If you received a damaged appliance:

Immediately contact the retailer (or builder) that sold you the appliance.

Save time and money:

Check the Troubleshooting section at the end of the guide before calling. This section helps you solve common problems that may occur.

If you do need service, you can relax, knowing help is only a phone call away.

Simple black telephone handset icon inside a circle (no text or symbols)

1-800-26-Danby

(1-800-263-2629)

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT (U.S.A. ONLY)

This equipment generates and uses ISM frequencies and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type-tested and found to comply with limits for ISM Equipment pursuant to Part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation.

However, there is no guarantee that interference will not occur in particular installations. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following:

• Reorient the receiving antenna of radio or television.
• Relocate the microwave oven with respect to the receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave into a different outlet so that microwave and receiver are on different branch circuits.

The Manufacturer is not responsible for any radio or TV interference caused by UNAUTHORIZED MODIFICATION to this microwave oven. It is the responsibility of the user to correct such interference.

This ISM device complies with Canadian ICES-001.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or loss of life.

Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

Do not place any object between the oven front face and the door, or allow soil or cleaner residue to accumulate on sealing surfaces.

Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

1. door (bent),
2. hinges and latches (broken or loosened),
3. door seals and sealing surfaces.

The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

IMPORTANT WARNING

This unit needs to operate on its own dedicated 15 amp circuit. PLEASE DO NOT CONNECT ANYTHING ELSE TO THIS CIRCUIT.

IMPORTANT WARNING

To reduce the risk of fire, electric shock or injury to persons or exposure of excessive microwave energy when using your appliance, please adhere to the following instructions:

1. Read all instructions before using the appliance.
2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY."
3. This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS."
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products such as whole eggs and sealed containers -for example, closed glass jars- are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. To reduce the risk of fire in the oven cavity:
9. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
10. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
11. If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord or shut off power at the fuse or circuit breaker panel.
12. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
13. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to the surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:
14. Do not overheat the liquid.
15. Stir the liquid both before and halfway through heating it.

16. Do not use straight-sided containers with narrow necks.

17. After heating, allow the container to stand in the microwave oven for a short time before removing the container.

18. Use extreme care when inserting a spoon or other utensil into the container.
19. Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in a microwave oven.
20. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before cooking.
21. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
22. Cooking utensils may become hot because of heat transferred from the heated food. Oven mitts may be needed to handle the utensil.
23. Do not cover or block any openings on the appliance.
24. Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
25. Do not operate this appliance if it has a damaged cord or a plug, if it is not working properly or if it has been damaged or dropped.
26. Do not immerse the cord or plug in water. Keep the cord away from heated surfaces. Do not let the cord hang over the edge of a table or counter.
27. Use only thermometers, which are specifically designed for use in microwave ovens.
28. Do not operate any heating or cooking appliance beneath this appliance.
29. Be certain that the glass tray and roller rings are in place when you operate the oven.
30. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examinations, repair, or adjustment.
31. When cleaning surfaces of the door and the oven that come together when the door is closed, use only mild, non-abrasive soaps or detergents, applied with a sponge or soft cloth.

SAVE THESE INSTRUCTIONS!

IMPORTANT SAFETY INSTRUCTIONS

SPECIAL NOTES ABOUT MICROWAVING

ARCING

If you see arcing, press the "STOP" button and correct the problem. Arcing is the microwave term for sparks in the oven.

Arcing is caused by:

• Metal or foil touching the side of the oven.
- Foil not molded to food (upturned edges act like antennae).
- Metal, such as twist-ties, poultry pins, or gold-rimmed dishes, in the microwave.
• Recycled paper towels containing small metal pieces being used in the microwave.

FOODS

• Only cook popcorn in your microwave oven using a special microwave popcorn accessory dish, unless you use popcorn labeled for use in microwave ovens.
• Some products- such as whole eggs (with shell), sealed containers, and closed jars - will explode and should not be heated in this microwave oven. Heating these products in the microwave oven could result in injury.
• Do not boil eggs in a microwave oven. Pressure will build up inside egg yolk and will cause it to burst, possibly resulting in injury.
• Operating the microwave with no food inside may cause damage to the oven and could start a fire. It increases the heat around the magnetron and can shorten the life of the oven.
• Foods with unbroken outer “skin” such as potatoes, hot dogs, sausages, tomatoes, apples, chicken livers and other giblets, and egg yolks should be pierced to allow steam to escape before cooking.

SAFETY FACT

• Microwaved water and other liquids do not always bubble when they reach the boiling point; they can actually get superheated and not bubble at all. Superheated liquid can bubble up when it is moved or when something like a spoon or tea bag is put into it. To prevent this from happening and causing injury, do not heat any liquid for more than 2 minutes per cup. After heating, let the cup stand in the microwave for 30 seconds before moving it or putting anything into it.
• Avoid heating baby food in glass jars, even with the lid off. Make sure all infant food is thoroughly cooked. Stir food to distribute the heat evenly. Be careful to prevent scalding when warming formula. The container may feel cooler than the milk really is. Always test the milk before feeding the baby.
• Spontaneous boiling- Under certain circumstances, liquids may start to boil during or shortly after removal from the microwave oven. To prevent burns from splashing liquid, we recommend the following:

Before removing the container from the oven, allow the container to stand in the oven for 30 to 40 seconds. Do not boil liquids in narrow-necked containers such as soft drink bottles and especially narrow-necked coffee cups. Even if the container is opened, excessive steam can build up and cause it to burst or overflow.

- Don't defrost frozen beverages in narrow-necked bottles (especially carbonated beverages). Even if the container is opened, pressure can build up. This can cause the container to burst, possibly resulting in injury.

- Hot foods and steam can cause burns. Be careful when opening any containers of hot food, including popcorn bags, cooking pouches and boxes. To prevent possible injury, direct steam away from hands and face.

- Do not overcook potatoes. They could dehydrate and catch fire, causing damage to your oven.

- Cook meat and poultry thoroughly- meat to at least an INTERNAL temperature of 160°F (71.1°C), and poultry to at least an INTERNAL temperature of 180°F (82.2°C). Cooking to these temperatures usually protects against food borne illness.

IMPORTANT SAFETY INFORMATION

SPECIAL NOTES ABOUT MICROWAVING

PERMISSIBLE MATERIALS

CAUTION: PERSONAL INJURY HAZARD

Tightly-closed containers could explode. Closed containers should be opened and plastic pouches should be pierced before cooking.

This section lists which utensils can be used in the microwave, which ones have limited use for short periods, and which ones should not be used in the microwave.

RECOMMENDED

Microwave browning dish — Use to brown the exterior of small items such as steaks, chops, or pancakes. Follow the directions provided with your browning dish.

Microwaveable plastic wrap — Use to retain steam. Leave a small opening for some steam to escape and avoid placing it directly on the food.

Paper towels and napkins — Use for short-term heating and covering; these absorb excess moisture and prevent spattering. Do not use recycled paper towels, which may contain metal and could ignite.

Glass and glass-ceramic bowls and dishes — Use for heating or cooking.

Paper plates and cups — Use for short-term heating at low temperatures. Do not use recycled paper, which may contain metal and could ignite.

Wax paper — Use as a cover to prevent spattering.

Thermometers — Use only those labeled “Microwave Safe” and follow all directions. Check the food in several places. Conventional thermometers may be used on microwave food once the food has been removed from the oven.

LIMITED USE

Aluminum foil — Use narrow strips of foil to prevent overcooking of exposed areas. Using too much foil can damage your oven, so be careful. You should keep a distance of 1 inch (2.54 cm) between the aluminum foil and the microwave cavity.

Ceramic, porcelain, and stoneware— Use these if they are labeled “Microwave Safe.” If they are not labeled, test them to make sure they can be used safely.

Plastic — Use only if labeled "Microwave Safe". Other plastics can melt.

NOT RECOMMENDED

Glass jars and bottles — Regular glass is too thin to be used in a microwave. It can shatter and cause damage and injury.

Paper bags — These are a fire hazard, except for popcorn bags that are designed for microwave use.

Styrofoam plates and cups — These can melt and leave an unhealthy residue on food.

Plastic storage and food containers — Containers such as margarine tubs can melt in the microwave.

Metal utensils — These can damage your oven. Remove all metal before cooking.

Note:

Should you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH for 30 seconds. A dish which becomes very hot should not be used.

IMPORTANT SAFETY INFORMATION

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

GROUNDING INSTRUCTIONS

DANGER: ELECTRIC SHOCK HAZARD

Touching some of the internal components can cause serious injury or death. DO NOT disassemble this appliance.

WARNING: ELECTRIC SHOCK HAZARD

Improper grounding can result in electric shock. Do not plug unit into an outlet until the appliance is properly grounded.

Three-pronged (grounding) plug

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance comes with a cord that is equipped with a grounding wire and grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceperson if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

Longer cord sets or extension cords are available and may be used if care is exercised in their use.

If a long cord set or extension cord is used:

1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance
2. The extension cord must be a grounding type 3 wire cord, and;
3. The cord should be arranged so that it will not drape over the countertop or tabletop where it could be pulled on by children or tripped over unintentionally.

Model: DMW12A4BDB	/ DMW12A4SDB / DMW12A4WDB
Rated voltage: 120V ~ 60 Hz
Rated output power: 1200W
Rated input power: 1650W
Oven capacity: 1.2 cu.ft.
External dimensions: 539 mm W x 300 mm H x 450 mm D (21.22" W x 11.81" H x 17.72" D)
Net weight: 17.3 kg (38.1 lbs)

Model: DMW14A4SDB
Rated voltage: 120V ~ 60 Hz
Rated output power: 1200W
Rated input power: 1650W
Oven capacity: 1.4 cu.ft.
External dimensions: 553 mm W x 311 mm H x 440 mm D (21.77" W x 12.24" H x 17.32" D)
Net weight: 18 kg (39.7 lbs)

INSTALLATION INSTRUCTIONS

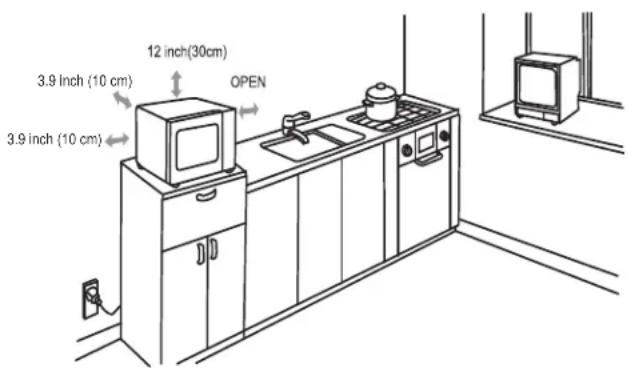

COUNTERTOP INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door or on cabinet surface. Do not remove the light brown mica sheet that is attached to the oven cavity to protect the magnetron.
2. Check the oven for any damage, such as a misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven but contact qualified service personnel
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 30cm of space above the oven, 10 cm at back and 10 cm at both sides (see diagram). Do not cover or block any openings on the appliance. Do not remove feet on which oven stands.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency. The socket must have the same voltage and frequency as the rating label of the appliance.
9. Place the microwave oven away from radios and tvs to avoid interference.

3.9 inch (10 cm) 3.9 inch (10 cm) 12 inch (30cm) OPEN

OPERATING INSTRUCTIONS

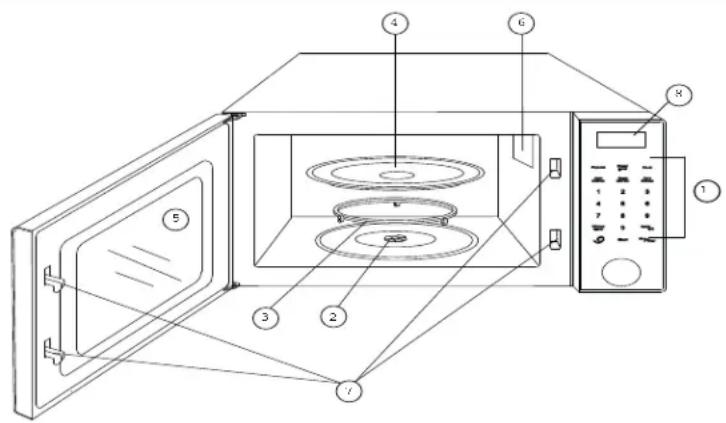

PART NAMES

1. Control Panel
2. Turntable Shaft
3. Roller Ring
4. Glass Tray
5. Oven Window
6. Mica Sheet (Do not remove)
7. Door Safety Lock System
8. Display Screen

Diagram of a microwave oven with numbered components for identification

CONTROL PANEL AND FEATURES

• Popcorn - Use to cook popcorn based on bag size
• Power Level - Use to set power level before or during cooking and to check power level during cooking
• Clock - Use to set the clock
  • Auto Defrost - Use to Defrost based on weight
• Quick Defrost - Will allow you to quickly defrost foods
  • Auto Reheat - Use to reheat food items
• Number Keys
• Kitchen Timer - Use to set a timer
• Quick +30 - Will add 30 seconds to cooking time or cook for 30 seconds at 100% power
• Stop/Clear - Clears all previous settings pressed before the start of cooking. Press once to stop the microwave, press twice to stop and clear all entries.
• Eco Will turn the display on and off during standby
• Start - Starts cooking

Popcorn

Power Level

Clock

Auto Defrost

Quick Defrost

Auto Reheat

1

2

3

4

5

6

7

8

9

Kitchen Timer

0

Quick +30

Start

Stop/Clear

Simple empty circle outline with no text, numbers, or symbols

OPERATING INSTRUCTIONS

AVAILABLE POWER LEVELS

Level 10	9	8	7654	321
Power 1	100%	90%	80%	70%	60%	50%	40%	30%	20%	10%
Display	P100	P-90	P-80	P-70	P-60	P-50	P-40	P-30	P-20	P-10

SETTING THE CLOCK

1. Touch CLOCK pad once to display a 12 hour clock, press CLOCK twice to display a 24 hour clock.
2. Use the number pads to enter the correct time.
3. Touch CLOCK pad again or START.

SETTING THE MICROWAVE TO COOK

1. Enter the amount of cooking time, in minutes and seconds, by touching the number pads. (The maximum time that can be set is 99 minutes and 99 seconds).
2. Press "POWER" once, the display will show "P100." The default power level is 100%. You can adjust the power level pressing the Power button multiple times.
3. Press "START" to start cooking.

SETTING THE TIMER

1. Touch KITCHEN TIMER.
2. Enter the amount of time by touching the number pads (the maximum time is 99 minutes 99 seconds).
3. Touch START.
4. When the timer is done, the unit will beep.

Note: To cancel the timer, press KITCHEN TIMER and then Stop/Clear

QUICK DEFROST

1. Touch QUICK DEFROST, the unit will automatically start defrosting for 2 minutes.
2. To add more time while it is running, use the number pads. The maximum time is 98 minutes.

AUTO DEFROST

1. Touch AUTO DEFROST.
2. Use the number pads to enter the defrosting weight (in ounces). The maximum weight is 90 ounces.

OPERATING INSTRUCTIONS

POPCORN

The popcorn feature has 3 pre-programmed popcorn sizes, Mini, Regular and Bowl.

1. Press POPCORN once for Mini, twice for Regular and 3 times for Bowl.

Press Button: Display (Weight) Time		1.2 cubic ft / 1.4 cubic ft	Power levelP-100
1 time MINI (45g / 1.6 oz) 1:35 / 1:35 minutes
2 times REG (100g / 3.5 oz)		2:00 / 2:10 minutes
3 times BOWL (86g / 3 oz) 1:50 / 2:00 minutes

AUTO REHEAT

1. Press the AUTO REHEAT button based on the below chart, to choose the reheat time.
2. Press START.

Press Button: Weight Time Power level
1 time 12 oz	2:00 minutes		P-100
2 times	1 lb 2 oz	2:45 minutes
3 times	1 lb 14 oz	4:40 minutes
4 times	2 lb 8 oz	6:30 minutes

ECO

To use the ECO function:

1. Press the ECO button once, the display will darken. When you press any button or open the microwave door the ECO mode will be disabled and the display will return to the default setting.

OR

1. Press and hold the ECO button for 5 seconds, the unit will beep, this will activate the ECO button and the default setting will be ECO mode, meaning when you press a button or open the door, after 1-2 minutes of no activity, the unit will default to ECO mode again. To turn off ECO mode, press and hold the ECO button for another 5 seconds, the unit will beep.

CHILD LOCK

The Child Lock prevents children from operating the microwave without supervision.

• To set the lock, while the unit is in standby mode, press and hold the Stop/Clear button for 3 seconds, the unit will beep. The clock will display, but the microwave will not operate.
• To cancel the lock, press and hold the Stop/Clear button for 3 seconds, the unit will beep. The microwave will now operate.

Note: When the child lock is active, after pressing any button, the display will show "LOC" and the unit will beep.

OPERATING INSTRUCTIONS

COOKING TECHNIQUES

Your microwave makes cooking easier than conventional cooking, provided you keep these considerations in mind:

STIRRING - Stir foods such as casseroles and vegetables while cooking to distribute heat evenly. Food at the outside of the dish absorbs more energy and heats more quickly, so stir from the outside to the centre. The oven will turn off when you open the door to stir your food.

ARRANGEMENT - Arrange unevenly shaped foods, such as chicken pieces or chops, with the thicker, meatier parts toward the outside of the turntable where they receive more microwave energy. To prevent overcooking, place delicate items, such as asparagus tips, toward the centre of the turntable.

SHIELDING - Shield food with narrow strips of aluminum foil to prevent overcooking. Areas that need shielding include poultry wing tips, the ends of poultry legs, and corners of square baking dishes. Use only small amounts of aluminum foil. Larger amounts can damage your oven.

TURNING - Turn foods over midway through cooking to expose all parts to microwave energy. This is especially important with large foods such as roasts.

STANDING - Foods cooked in the microwave build up internal heat and continue to cook for a few minutes after heating stops. Let foods stand to complete cooking, especially foods such as cakes and whole vegetables. Roasts need this time to complete cooking in the centre without overcooking the outer areas. All liquids, such as soup or hot chocolate, should be shaken or stirred when cooking is complete. Let liquids stand a moment before serving. When heating baby food, stir well at removal and test the temperature before serving.

ADDING MOISTURE - Microwave energy is attracted to water molecules. Food that is uneven in moisture content should be covered or allowed to stand so that the heat disperses evenly. Add a small amount of water to dry food to help it cook.

CARE AND MAINTENANCE

The interior of this unit is equipped with XpressClean technology. When spills and spatters in your microwave become caked on, simply wet a cloth or sponge, put the cloth over the spill or splatter, apply pressure and wipe clean.

Note: Please make sure that the interior of the unit has cooled before cleaning.

• Turn off the oven and remove the power plug from the wall socket before cleaning.
• Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth, while applying pressure on the cloth or sponge.
• The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
• Wipe the window on both sides with a damp cloth to remove any spills or spatters.
• Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
• It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.
• The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with a damp cloth. The roller ring may be washed in mild soapy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
• Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
• When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
• Please do not dispose of this appliance in a domestic trash bin; it should be disposed of at the appropriate disposal centre provided by the municipalities.
• DO NOT DAMPEN THE MICA SHEET WHILE CLEANING THE UNIT.

POWER OUTAGES

- When the cord is unplugged or the power goes off for more than a few seconds, once power resumes to the unit or the cord is plugged back in, the clock will need to be reset and any timer or cooking time that remained on the unit will have to be reprogrammed.

TROUBLESHOOTING

Occasionally, a minor problem may arise, and a service call may not be necessary - use this troubleshooting guide for a possible solution. If the unit continues to operate improperly, call an authorized service depot or Danby's Toll Free Number for assistance.

Tel: 1-800-26-Danby ^® (1-800-263-2629)

PROBLEM POSSIBLE CAUSE SOLUTION
Microwave will not start • Electrical cord for Microwave is not plugged in• Door is open• Wrong operation is set	• Plug the unit into the outlet• Close the door and try again• Check instructions
Arcing or sparking • Materials to be avoided in microwave were used• The microwave is operated when empty• Spilled food remains in the cavity	• Use microwave safe cook-ware only• Do not operate with an empty oven• Clean the cavity with a wet towel
Unevenly cooked foods • Materials to be avoided in the microwave were used• Food is not defrosted completely• Cooking time or power level are not suitable• Food is not turned or stirred	• Use microwave safe cook-ware only• Completely defrost food• Use correct cooking time and power level• Turn and stir food
Overcooked foods • Cooking time or power level are not suitable	• Use correct cooking time and power level
Under cooked foods • Materials to be avoided in microwave oven were used• Food is not defrosted completely• Oven ventilation ports are restricted• Cooking time and power level are not suitable	• Use microwave safe cook-ware only• Completely defrost food• Check to see that oven ventilation ports are not restricted• Use correct cooking time and power level
Poor defrosting • Materials to be avoided in microwave were used• Cooking time and power level setting are unsuitable• Food was not turned or stirred	• Use microwave safe cook-ware only• Use correct cooking time and power level• Stir or turn food during de-frosting

LIMITED APPLIANCE WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided.

First Year

During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the ORIGINAL purchaser.

To obtain service

It will be the consumer's responsibility to transport the appliance (at their own expense) to the original retailer (point of purchase) or a service depot for repair. Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, or the unit is used for commercial application, all obligations of Danby under this warranty shall be void.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (extremely high or low room temperature).
5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application).

Proof of purchase date will be required for warranty claims; so, please retain bill of sale. In the event warranty service is required, present this document to our AUTHORIZED SERVICE DEPOT.

Warranty Service

Carry-In

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

07/13

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

CONSERVEZ CES INSTRUCTIONS!

INFORMATION DE SÉCURITÉ IMPORTANTE

REMARQUES PARTICULIÈRES CONCERNANT LA CUISSON MICRO-ONDE

FORMATION D'ÉTINCELLES (ARCING)

Diagram of a microwave oven with numbered components for identification and assembly reference.

PANNEAU DE COMMANDES ET CARACTÉRISTIQUES

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Téléphone: [phone] Télécopieur: [phone]

1-800-263-2629

03/14

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Téléphone: [phone] Télécopieur: [phone]

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

1-800-26-Danby

(1-800-263-2629)

Technical diagram of a microwave oven with numbered components for identification

PANEL DE CONTROL Y FUNCIONES

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

07/13

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

NOTES / REMARQUES / NOTAS :

MICROWAVE

All repair parts are available for purchase or special order when you visit your nearest service depot. To request service and/or the location of the service depot nearest you, call the TOLL FREE number.

When requesting service or ordering parts, always provide the following information:

• Product Type
• Model Number
• Part Number
• Part Description

HORNO DE MICROONDAS
