Technical Features	Danby DWC018A1BDB wine cellar, capacity of 18 bottles, thermoelectric cooling, adjustable temperature from 10 to 18 6C.
Dimensions	Height: 33.5 inches (85.1 cm), Width: 19 inches (48.3 cm), Depth: 20 inches (50.8 cm).
Weight	Net weight: 50 lb (22.7 kg).
Usage	Ideal for storing red and white wines, with wooden shelves for easy access.
Maintenance	Regular cleaning of the interior with a soft cloth, checking the sealing gaskets.
Safety	Equipped with a tempered glass door to protect against UV rays, security lock available.
Energy Consumption	Energy class: A, reduced annual energy consumption.
General Information	12-month limited warranty, customer service available for technical assistance.

Frequently Asked Questions - DWC018A1BDB DANBY

Why is my DANBY DWC018A1BDB wine cellar not cooling?

Make sure the device is plugged in and the outlet is working. Also check that the temperature settings are correctly configured and that the door is properly closed.

How do I adjust the temperature of my wine cellar?

Use the control panel located at the front of the wine cellar to adjust the temperature. Press the '+' or '-' buttons to increase or decrease the temperature according to your preferences.

Is it normal for my wine cellar to make noise?

Yes, a slight noise is normal during the operation of the wine cellar, as the compressor and fan can produce sounds. However, if the noise becomes loud or unusual, check that the device is level and that there are no objects touching it.

Can I store bottles of different sizes in the DANBY DWC018A1BDB?

Yes, the wine cellar is designed to accommodate bottles of different sizes, but make sure to organize the space well to prevent bottles from touching each other.

How do I clean my wine cellar?

Unplug the device before cleaning it. Use a soft, damp cloth to wipe the interior and exterior. Avoid using abrasive cleaners that could damage the surface.

What should I do if the interior light does not work?

First check if the device is powered on. If the light is still off, it may be necessary to replace the bulb. Consult the user manual for instructions on replacing the bulb.

How do I prevent vibrations in my wine cellar?

To minimize vibrations, place your wine cellar on a flat and stable surface. Avoid placing it near other household appliances that may cause vibrations.

What is the capacity of my DANBY DWC018A1BDB wine cellar?

The DANBY DWC018A1BDB can hold up to 18 standard 750 ml wine bottles.

How do I know if my wine cellar is in eco mode?

Check the control panel for an eco mode indicator. If the light is on, it means your wine cellar is operating in eco mode to save energy.

Can I place my wine cellar outside?

No, it is recommended to keep your wine cellar indoors in a cool, dry place, away from direct sunlight and extreme temperatures.

USER MANUAL DWC018A1BDB DANBY

This product is factory equipped with a power supply cord that has a three-pronged grounded plug. It must be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances. If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to exchange the existing receptacle in accordance with the National Electrical Code and applicable local codes and ordinances. The third ground prong should not, under any circumstances, be cut or removed. Never use the cord, the plug or the appliance when they show any sign of damage. Do not use your appliance with an extension cord unless it has been checked and tested by a qualified electrician or electrical supplier. Improper connection of the grounding plug can result in risk of fire, electric shock and/or injury to persons associated with the appliance. Check with a qualified service representative if in doubt that the appliance is properly grounded.

IMPORTANT - MÉTHODE POUR LA MISE À LA TERRE

Owner's Use and Care Guide 1-10

Welcome
- Important Safety Information
Installation Instructions
- Features
Operation
Care and Maintenance
- Troubleshooting
Warranty

REFROIDISSEUR A VIN

Read and follow all safety rules and operating instructions before first use of this product.

Welcome to the Danby family. We are proud of our quality products, and we believe in dependable service. We suggest that you read this Owner's Manual before plugging in your new appliance as it contains important operational information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance. Visit www.Danby.com to access self-service tools, FAQs and much more. For additional assistance call 1-800-263-2629.

Note the information below; you will need this information to obtain service under warranty. To receive service, you must provide the original receipt.

Model Number:

Serial Number:

Date of Purchase:

NEED HELP?

Before you call for service, here are a few things you can do to help us serve you better:

Read this Owner's Use and Care Guide:

It contains instructions to help you use and maintain your appliance properly.

If you received a damaged appliance:

Immediately contact the retailer (or builder) that sold you the appliance.

Save time and money:

Check the Troubleshooting section at the end of the guide before calling. This section helps you solve common problems that may occur.

If you do need service, you can relax, knowing help is only a phone call away.

1-800-26-Danby

(1-800-263-2629)

IMPORTANT WARNING

DANGER: Risk of child entrapment. Before you throw away your old wine cooler:

Take off doors or remove the gasket.
- Leave the shelves in place so that children may not easily climb in.

DON'T WAIT! DO IT NOW!

ELECTRICAL REQUIREMENTS

To avoid installation or operation difficulties, read these instructions thoroughly.

• This appliance must be grounded. Connect only to a properly grounded outlet. See "Grounding Instructions" section.
• Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if the appliance has been damaged or dropped. If the power cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified person to avoid hazard.
• Never allow children to operate, play with, or crawl inside the appliance.
• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapors or liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Do not splice the power cord that is equipped with this appliance.
• Keep power cord away from heated surfaces.
• Do not immerse power cord, plug or the appliance itself in water.
• Do not use this product near water for example, in a wet basement, laundry room or near a sink.
• Do not use corrosive chemicals or vapors in this appliance.
• Use this appliance only for its intended use, as described in this manual.
• Do not store open containers in this appliance.
• See door surface cleaning instructions in the Care and Maintenance section of this manual.
• Do not cover or block any openings on the appliance.
• Do not store perishable food items such as (but not limited to) meats and dairy products in your wine cooler. This appliance does not get cold enough to be food safe.
• This appliance is intended for household use only. Do not operate or store this appliance outdoors.
• This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair or adjustment.

SAVE THESE INSTRUCTIONS!

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

If the outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

For best operation, plug this appliance into its own electrical outlet to prevent flickering of lights, blowing of fuse or tripping of circuit breaker

DO NOT USE AN EXTENSION CORD

Use an exclusive 115V wall outlet. Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the cord. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Do not use and adapter plug with this appliance.

SAFETY REQUIREMENTS

Ensure that component parts shall be replaced with like components and that servicing shall be done by factory authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts or improper service.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electrical current. The serial rating plate indicates the voltage and frequency the appliance is designed for.

Risk of fire or explosion due to puncturing of refrigerant tubing. Do not use sharp objects to aid in defrost. Please handle with care. Keep flammable materials and vapors such as gasoline away from the refrigerator. Use nonflammable cleaner.

Disposal of this unit should be in accordance with federal and local regulations.

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

SAVE THESE INSTRUCTIONS!

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

FOR YOUR SAFETY

• Two people should be used when moving the wine cooler.
• Remove interior and exterior packaging prior to installation.
• Before connecting the appliance to a power source, let it stand upright for approximately 4 hours; this will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Place your wine cooler on a floor that is strong enough to support it when it is fully loaded. To level your wine cooler, adjust the front leveling leg at the bottom of the unit.
• Locate the wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit to perform improperly.
• Avoid locating the unit in moist areas.
• Plug the wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service centre.
• Do not cover shelves with aluminum foil or any other material which may prevent air circulation.
• In order for the cabinet to remain efficicnt do not over load it.
• Do not open the door unless necessary.
• Should the wine cooler be stored without use for long periods, it is suggested, after careful cleaning, to leave the door ajar. This will allow air to circulate inside the cabinet in order to avoid possible formations of condensation, mold and odors.

IMPORTANT WARNING

Risk of fire or explosion due to puncturing of refrigerant tubing. Do not use sharp opjects to aid in defrost. Please handle with care. Keep flammable materials and vapors such as gasoline away from the unit. Use non ammable cleaner.

Disposal of this unit should be in accordance with federal and local regulations.

LOCATION

• Select a location with a strong, level floor.
• Remove the exterior and interior packaging.
• Wipe the outside thoroughly with a soft, dry cloth and the inside with a wet, lukewarm cloth.
• Avoid placing the unit in a narrow recess or near any heat source, direct sunlight or moisture.
• Let air circulate freely around the cabinet.
• Keep the rear and sides of the wine cooler at least 12.7cm (5 inches) away from all adjacent walls.
• DO NOT use this appliance outdoors. This appliance is intended for household use only. Do not attempt to operate or store this appliance outdoors.
• DO NOT build this unit into an enclosure. This appliance is designed for a free-standing application only and is not intended to be built-in.

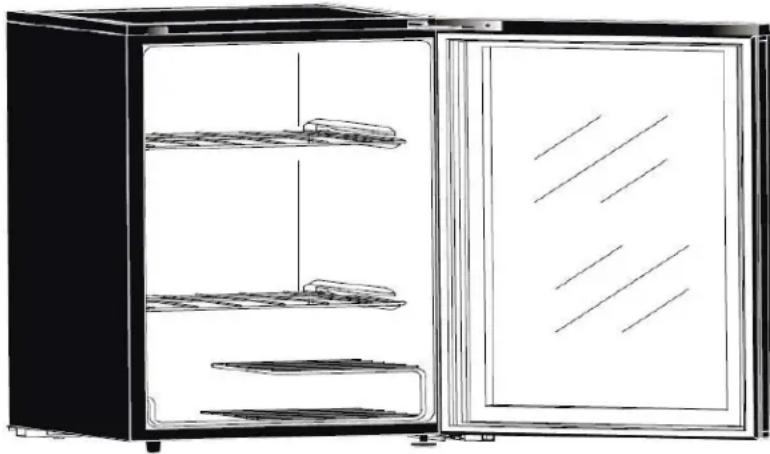

FEATURES

1. Tempered glass door: tinted for UV protection while still allowing for easy interior viewing.
2. Magnetic Door Gaskets: Tight fitting seals retain all the cooling power and humidity levels.
3. Leveling Legs
4. Plastic coated shelves: Odor resistant, rustproof and removable for easy cleaning.
5. Thermostat dial: externally mounted rear wall thermostat. Controls the temperature inside the wine cooler.
6. Interior light (not shown): illuminates the compartment.

LEVELING INSTRUCTIONS

Beneath the wine cooler there is leveling leg on the hinge side of the unit. It is important that your wine cooler is level. To level the unit:

1. Move the wine cooler to its final location.
2. Turn the leveling leg clockwise as far as it will go, until the top of the foot is touching the bottom of the chassis.
3. Slowly turn the leveling leg counter-clockwise until the unit is level.

SETTING THE TEMPERATURE

The temperature of the wine cooler is controlled by adjusting the thermostat control knob on the back of the unit. To achieve maximum cooling temperature quickly:

• Turn the temperature control knob clockwise to the widest, darkest part of the graduated blue control dial.
• Allow the unit to run at this setting for 3 - 4 hours.
• When maximum cooling is achieved, turn the temperature control knob to the middle position on the graduated blue control dial, as per Fig. A.
• To turn the wine cooler off, turn the control knob to the "0" position, as per Fig. B. If the wine cooler will not be used for an extended period of time, it is recommended to unplug the unit and leave the door partially open to avoid possible formation of odors inside the unit.

Note: Wait 3 - 5 minutes before restarting the unit if operation has been interrupted.

Note: On the graduated blue dial, the thicker, darker blue indicates colder temperatures and the thinner, lighter blue indicates warmer temperatures. The wine cooler temperature will vary depending on the quantity of bottles stored in the unit and the frequency that the door is opened.

INTERIOR LIGHT

To manually operate the interior light, press the light switch situated on the right side of the interior light housing on the ceiling of the unit. This will allow the light to remain on while the door is closed.

Note: The light will default to off. It can be turned on to run continually. Due to energy efficiency requirements for a wine cooler in this size, there is no option to have the light turn on when the door opens.

DEFROST

This unit is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the unit is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate.

SHELF INSTRUCTIONS

To remove a shelf from its locked position, lift the rear of the shelf upward and then slide the shelf out of the unit.

To replace the shelf, ensure it is resting securely on the support brackets and then push inward until the shelf locks into place.

WINE STORAGE

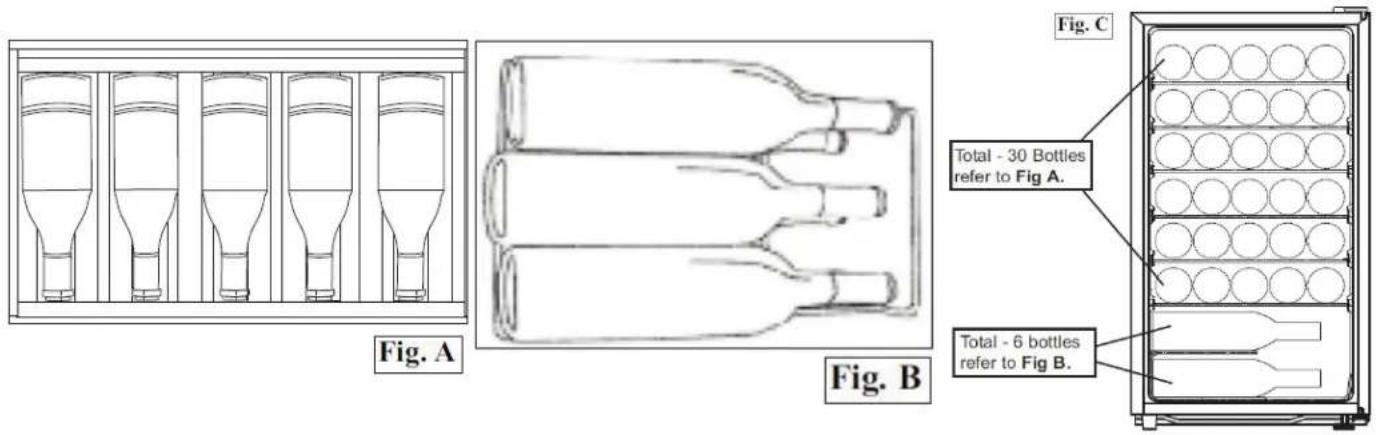

The maximum capacity of this unit is 36 750 ml wine bottles, when stocked as per these instructions.

1. Position 5 bottles across, as per Fig. A.
2. Position 3 bottles staggered on the bottom 2 tiered shelf, as per Fig. B.
3. Full storage capacity is displayed in Fig. C.

DOOR REVERSAL INSTRUCTIONS

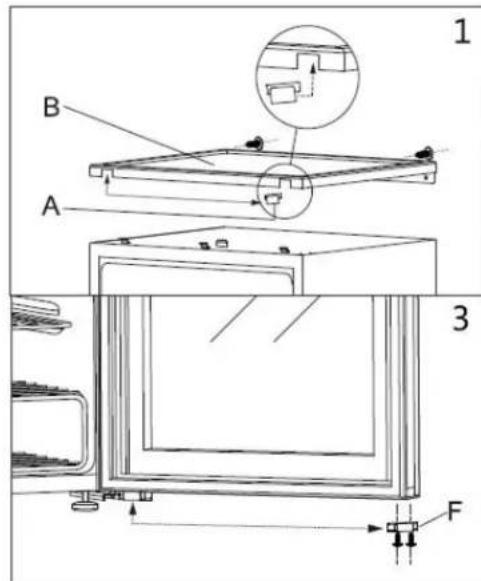

1. Remove the 3 screws from the back of the worktop, lift the back of the worktop slightly and pull the worktop forward to remove the worktop. Figure 1.

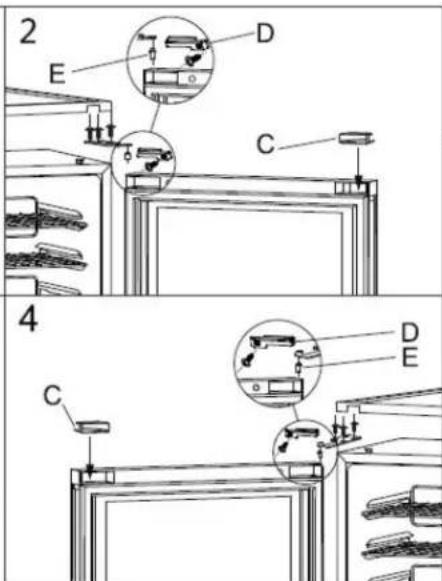

2. Remove the left or right door strip cover (depending on which side you are moving the door to) and the left or right hinge cover, then remove the 2 upper hinge screws and remove the upper hinge. Loosen the upper door spindle and remove the door assembly. Figure 2.
3. Remove the hinge pin from the door, move it to the other side of the door. Figure 3.
4. Install the upper door spindle to the opposite side of the upper hinge, place the upper hinge onto the other side of the cabinet, install the door strip cover and the hinge cover. Figure 4.

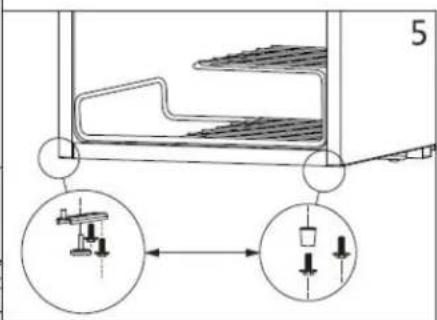

5. Loosen the adjustable foot and remove the 2 screws around it. Remove the 2 bottom hinge screws, remove the bottom hinge. Reinstall the foot and 2 screws where the bottom hinge used to be. Install the bottom hinge where the foot used to be. Figure 5.
6. Make necessary adjustments to the upper and bottom hinge, reinstall the worktop.

Care and Maintenance

CLEANING

• To clean the inside of the unit, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or a mild soap solution or some mild detergent.
• Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.
• Clean the outside with a soft, damp cloth and some mild detergent.

NOTE: Do not use cleaners containing ammonia or alcohol on the wine cooler. Ammonia or alcohol can damage the appearance of the appliance.

NOTE: Never use any commercial or abrasive cleaners or sharp objects on any part of the wine cooler.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents. In the event of a power failure, wait 3 to 5 minutes before restarting.

VACATION

• Short vacations: Leave the wine cooler operating during vacations of less than three (3) weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.

ENERGY SAVING TIP

The unit should be located in the coolest area of the room, away from heat producing appliances, and out of direct sunlight.

MOVING YOUR WINE COOLER

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect the outside of the appliance with a blanket or similar item.

DISPOSING OF YOUR WINE COOLER

This product may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

Occasionally, a problem may arise that is minor in nature, and a service call may not be necessary. Use this troubleshooting guide for a possible solution. If the unit continues to operate improperly, call an authorized service depot or Danby's Toll Free Number 1-800-263-2629 for assistance.

Problem Possible Cause What to do
No power • A fuse in your home may be blown or the circuit breaker tripped. • Power surge. • Plug not fully inserted into the wall outlet.	• Replace fuse or reset circuit breaker. • Unplug the wine cooler, wait a few seconds and then plug it back in • Make sure the 3-prong plug is fully inserted into the outlet.
Cabinet temperature is too high. • Temperature setting. • Door not shut properly or opened excessively. • Recently added a large quantity of warm bottles to the cabinet.	• Verify the temperature control setting. Adjust if neccessary. • Ensure that the door is fully closed and that the gasket is sealing against the cabinets. Open the doors only as needed and for short periods of time. • Limit the quantity of warm bottles being introduced to the cabinet at the same time. Attempt to stagger the load introduction if possible.
Condensation on the cabinet, doors or £100.	• High humidity conditions in the home. • Door not shut properly or opened excessively.	• The condensation will subside once humidity conditions return to normal. • Ensure that the door is fully closed and that the gasket is sealing, against the cabinets. Open the door only as needed and for short periods of time
Wine cooler runs continuously.	• Temperature set too cold. • Door is not closed. • Door opened too long or too often. • Close proximity to heat source or direct sunlight.	• Adjust temperature to warmer setting. • Close door securely. • Minimize door opening duration and frequency. • Do not place unit close to heat sources or direct sunlight.

LIMITED IN-HOME APPLIANCE WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferrable.

TERMS OF WARRANTY

Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided.

12 months

During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the ORIGINAL purchaser.

To obtain service

Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an Authorized Service Depot. Any appliance requiring service outside the limited boundaries of "In Home Service", it will be the consumer's responsibility to transport the appliance (at their own expense) to the original retailer (point of purchase) or a service depot for repair. See "Boundaries of In Home Service" below. Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the units by anyone other than an authorized service depot, or the unit is used for commercial application, all obligations of Danby under this warranty shall be void.

Boundaries of in-home service

If the appliance is installed in a location that is 100 kilometres (62 miles) or more from the nearest service centre your unit must be delivered to the nearest authorized Danby Service Depot, as service must only be performed by a technician qualified and certified for warranty service by Danby. Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following: 1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (extremely high or low room temperature).
5) Use for commercial or industrial purposes (i.e., If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (i.e., building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application). Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our AUTHORIZED SERVICE DEPOT.

Warranty Service

In-home

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

07/14

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

Bienvenue

SAUVE CES INSTRUCTIONS!

SAUVE CES INSTRUCTIONS!

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

07/13

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

WINE COOLER REFROIDISSEUR A VIN

All repair parts are available for purchase or special order when you visit your nearest service depot. To request service and/or the location of the service depot nearest you, call the TOLL FREE number.

When requesting service or ordering parts, always provide the following information:

Product Type
- Model Number
Part Number
Part Description

ENFRIADOR DE VINO
