USER MANUAL GWK2200.1D AFK

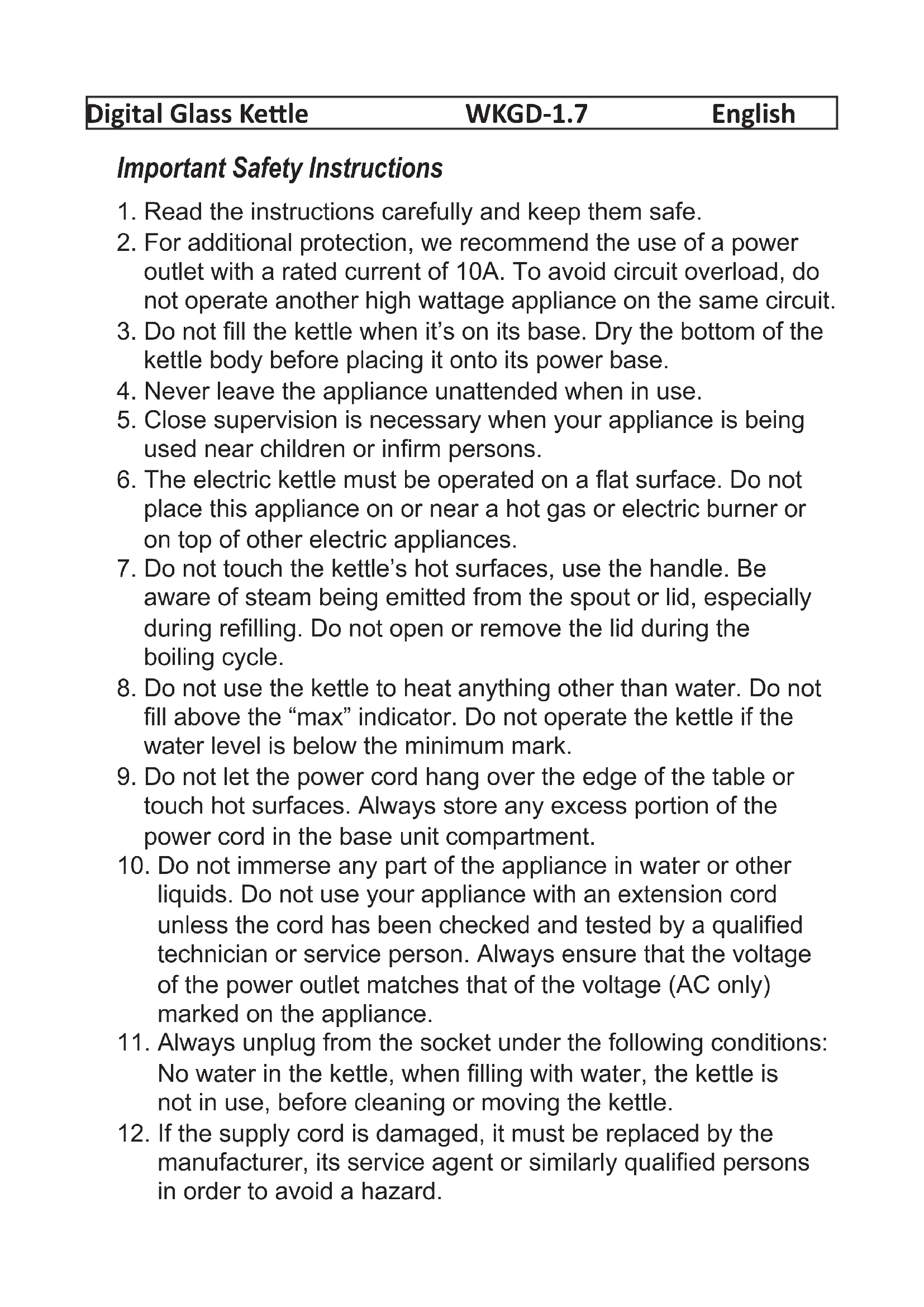

Digital Glass Kele WKGD-1.7 English Important Safety Instructions

1. Read the instructions carefully and keep them safe.

2. For additional protection, we recommend the use of a power

outlet with a rated current of 10A. To avoid circuit overload, do not operate another high wattage appliance on the same circuit.

3. Do not fill the kettle when it’s on its base. Dry the bottom of the

kettle body before placing it onto its power base.

4. Never leave the appliance unattended when in use.

5. Close supervision is necessary when your appliance is being

used near children or infirm persons.

6. The electric kettle must be operated on a flat surface. Do not

place this appliance on or near a hot gas or electric burner or on top of other electric appliances.

7. Do not touch the kettle’s hot surfaces, use the handle. Be

aware of steam being emitted from the spout or lid, especially during refilling. Do not open or remove the lid during the boiling cycle.

8. Do not use the kettle to heat anything other than water. Do not

fill above the “max” indicator. Do not operate the kettle if the water level is below the minimum mark.

9. Do not let the power cord hang over the edge of the table or

touch hot surfaces. Always store any excess portion of the power cord in the base unit compartment.

10. Do not immerse any part of the appliance in water or other

liquids. Do not use your appliance with an extension cord unless the cord has been checked and tested by a qualified technician or service person. Always ensure that the voltage of the power outlet matches that of the voltage (AC only) marked on the appliance.

11. Always unplug from the socket under the following conditions:

No water in the kettle, when filling with water, the kettle is not in use, before cleaning or moving the kettle.

12. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.WARNING: To reduce the risk of fire or electric shock, do not remove the bottom cover of the kettle body or of the power base yourself.

13. Do not use a base unit other than the one supplied. The use

of accessories or attachments not recommended by the manufacturer may result in fire, electric shock or personal injury.

14. Do not insert any object into the slots or holes in the kettle.

15. This appliance is for household use only. Do not use outdoors.

16. “This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

17. Cleaning and user maintenance shall not be made by

children unless they are older than 8 years and supervised.

18. Keep the appliance and its cord out of reach of children less

19. The appliance is not intended to be operated by means of

an external timer or separate remote-control system.

20. The kettle is to be used only with the stand provided.

21. This appliance is intended to be used in household and

similar environments such as: Staff/kitchen areas in shops, offices and other work settings; Farm houses; By clients in hotels, motels and other residential type settings; Bed and breakfast type establishments. Please follow the above safety precautions! 22.If the kettle is overfilled, boiling water may be ejected How to use For first time use or after not using the kettle for a long time, it is recommended that you fill the kettle to the maximum mark withfresh tap water, boil and empty the kettle at least twice, to clear the kettle of any small particles. Do not drink this water, though.

1. Pull the lock device on the lid backwards to open it;

2. Remove the kettle from the base and fill the kettle with the

desired amount of water (between the minimum and maximum marks). Close the lid and replace the kettle on the base unit; 3.Putting the kettle on the base, display screen lit up (Nixie tube show 100, two indicators lit up), and off when move the kettle. 4.NOTE: If not operate after put the kettle, screen will off after 10 seconds. Then press any button will let display start (Nixie tube show 100, two indicators lit up).

Putting the kettle on the base, all indicator lit up, press the button of ON/OFF (the tube show 100), the indicator next button lit up and flicker, heating tube start to work, the water will boil to 100±2゜C, the heating tube will stop to work ( the indicator off), the tube keep 10 seconds working, the power will off after 10 seconds. NOTE:

1) The temperature can be adjust during boiling, the water only

can to the temperature on the tube, then will stop heating.

2) The power should be off after 15 seconds when 98゜C.

6.Select 40-90゜C boiling: a. Putting the kettle on the base, all indicator lit up, press the button ON/OFF (tube show 100), the indicator next button lit up and flicker, corresponding temperature button (up/down)to arrive the temperature, when the tube start to work, the water will boil to 40-90±4゜C, the heating tube will stop to work ( the indicator will stop), The power will off after 10 seconds. 7.The temperature can be adjust during boiling, the water will stop heating until the temperature arrived. 8.If the actual temperature higher than the setting, ON/OFF button will lit up and flicker, but the heating tube will not work, until it’s down to the setting, the indicator will off, the tube keep 10 seconds then off.9.Heat-preserving Function a. Press ON/OFF button first, the indicator will lit up and flicker, then press up/down button to arrive the setting temperature, press KEEP WARM, the indicator will not flicker, the heating tube will start to work, arrive the setting temperature, the boiling indicator off (which next S ON/OFF button), the indicator next KEEP WARM button will flicker, also the tube, keep 30 minutes, then power off. b. Press up/down first, after arrived, press KEEP WARM, the next indicator will lit up, then press ON/OFF button, the next indicator will lit up and flicker, heating tube will start to work ( when the actual temperature lower than setting), after arrived, the boiling indicator off (next ON/OFF), the indicator next KEEP WARM off) c. Press up/down first, after arrived, press KEEP WARM, the next indicator will lit up, then press ON/OFF button, the indicator next KEEP WARM flicker, heating tube not work (when the actual temperature higher than setting), after the water cold to setting, tube flicker, keep 30 minutes, then power off. 10.Please sure the cover is closed enough, in case the hot steam will to handle. 11.When boiling, do not open the cover, in case the steam will scald you. 12.Put on the base (1). After Inject the water, please put the kettle on the base, to sure the connector is fine. (2).The button to “ start”, the power indicator will lit up, the kettle will start to heating (3)Auto-off after boiling After boiling, the heating stop work (the indicator stop flicker), the power off after 10 seconds. (4) Reuse If want to continuous use or re-boiling, it should be let the control a little cold, then press the power button.NOTE: During the working, press ON/OFF to stop working, press again, to off the display screen. Never allow the kettle to boil dry or the water level to drop below the minimum level, or go above the maximum level. CLEANING To prolong the kettle’s life, please clean the mineral deposits in the kettle regularly.Always unplug from the socket and allow it to cool down before cleaning.Do not use harsh chemicals, steel wool, or abrasive cleaners to clean the outside and inside of the kettle, as these will scratch the surface land fade the outside color. Cleaning procedure:

1. Put 0.5l of white vinegar in the kettle and then fill it up with

water, and allow it to stand for at least an hour;

2. Empty the solution from the kettle. Wipe off any remaining

deposits with a damp cloth;

3. Fill the kettle with clean water, bring to the boil and then

discard the water.Repeat, and the kettle will then be ready for use;

4. If necessary, repeat the above steps multiple times;

5. The surface of the kettle can be wiped over with a damp cloth

and polished with a soft, dry cloth;

6. Grasp the top of the scale filter and pull upwards to remove.

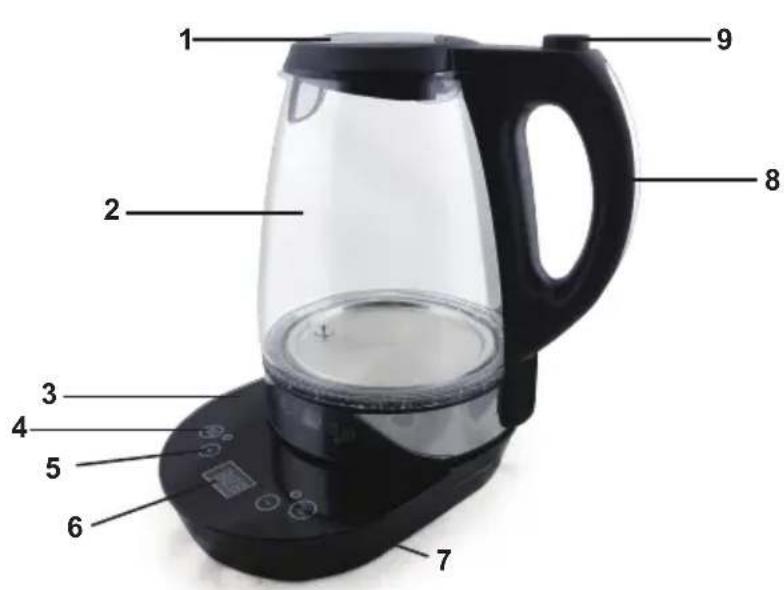

Wash with clean water and dry thoroughly before replacing it in the kettle. 7.The instructions for use for appliances normally cleaned after use and not intended to be immersed in water for cleaning, shall state that the appliance must not be immersedPRODUCT DESCRIPTION

The symbol above and on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The Waste of Electrical and Electronic Equipment (WEEE) Direcve (2002/96/EC) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill. Contact local authories for informaon on the correct disposal of Electrical or Electronic equipment.Bouilloire de verre numérique WKGD-1.7 France Consignes de sécurité importantes
