HD 7880 - Hair dryer GRUNDIG - Free user manual and instructions

Product type	Hair dryer
Brand	Grundig
Model	HD 7880
Power	1850 - 2200 W
Supply voltage	220 - 240 V ~ 50/60 Hz
Electrical insulation class	II
Power cord length	1.8 m
Weight	0.5 kg
Dimensions (L x W x H)	25 x 8 x 8 cm
Number of speeds	2
Number of temperature levels	3 (including cold air)
Cold air function	Yes, via dedicated button
Touch temperature control	Yes
Temperature lock button	Yes
Accessories included	Fine concentrator nozzle
Removable air intake grille	Yes, cleanable
Overheat protection	Yes
Housing material	Plastic
Bathroom use	Unplug after use, do not immerse
Cleaning	Damp cloth, soft brush for grille
Storage	Do not wrap cable around appliance
Minimum age of use	8 years under supervision

Frequently Asked Questions - HD 7880 GRUNDIG

How to use the cold air function?

Hold down the Cold Air button (C) during drying to stop hot airflow and replace it with cold air. Release to return to the selected temperature. Ideal for setting the hairstyle.

How to clean the air intake grille?

Unplug the appliance and let it cool down. Remove the removable grille (B) and gently brush it with a soft brush to remove hair and dust. Replace it before use.

Can I use the hair dryer in the bathtub or under the shower?

No, it is dangerous. Never use the appliance near water (bathtub, shower, filled sink). Even unplugged, it may pose a risk.

What to do if the hair dryer overheats and stops?

The appliance is equipped with overheat protection. Let it cool down completely before reusing. Check that the air intake and outlet grilles are not blocked.

How to lock the selected temperature?

Set the temperature using the touch controls (E), then press the lock button (D). The temperature remains fixed. To change it, press (D) again to unlock, adjust, then relock.

Can children use this hair dryer?

Yes, from 8 years old under adult supervision. Children must not play with the appliance. Cleaning and maintenance must not be performed by children without supervision.

How to properly store the appliance?

Unplug it, let it cool down and make sure it is dry. Never wrap the cable around the appliance. Store it in a cool, dry place out of reach of children.

Can I use the hair dryer with wet hands?

No, avoid handling the appliance with wet hands to reduce the risk of electric shock. Make sure your hands are dry before plugging or using the appliance.

How to change temperature during drying?

Press the lock button (D) to unlock the temperature, then use the touch controls (E) to select a new temperature. Press (D) again to lock.

What to do if the power cord is damaged?

If the cable or appliance is visibly damaged, do not use it. Have it repaired or replaced by an authorized service center to avoid any danger. Do not attempt repair yourself.

USER MANUAL HD 7880 GRUNDIG

Ionic Touch Control Hair Dryer

User Manual

HD7880

DE-EN-TR-ES-FR-HR-PL-SR

DEUTSCH 04-15

ENGLISH 16-25

TÜRKÇE 26-39

ESPANOL 40-51

FRANÇAIS 52-61

HRVATSKI 62-70

POLSKI 71-81

SRPSKI 82-90

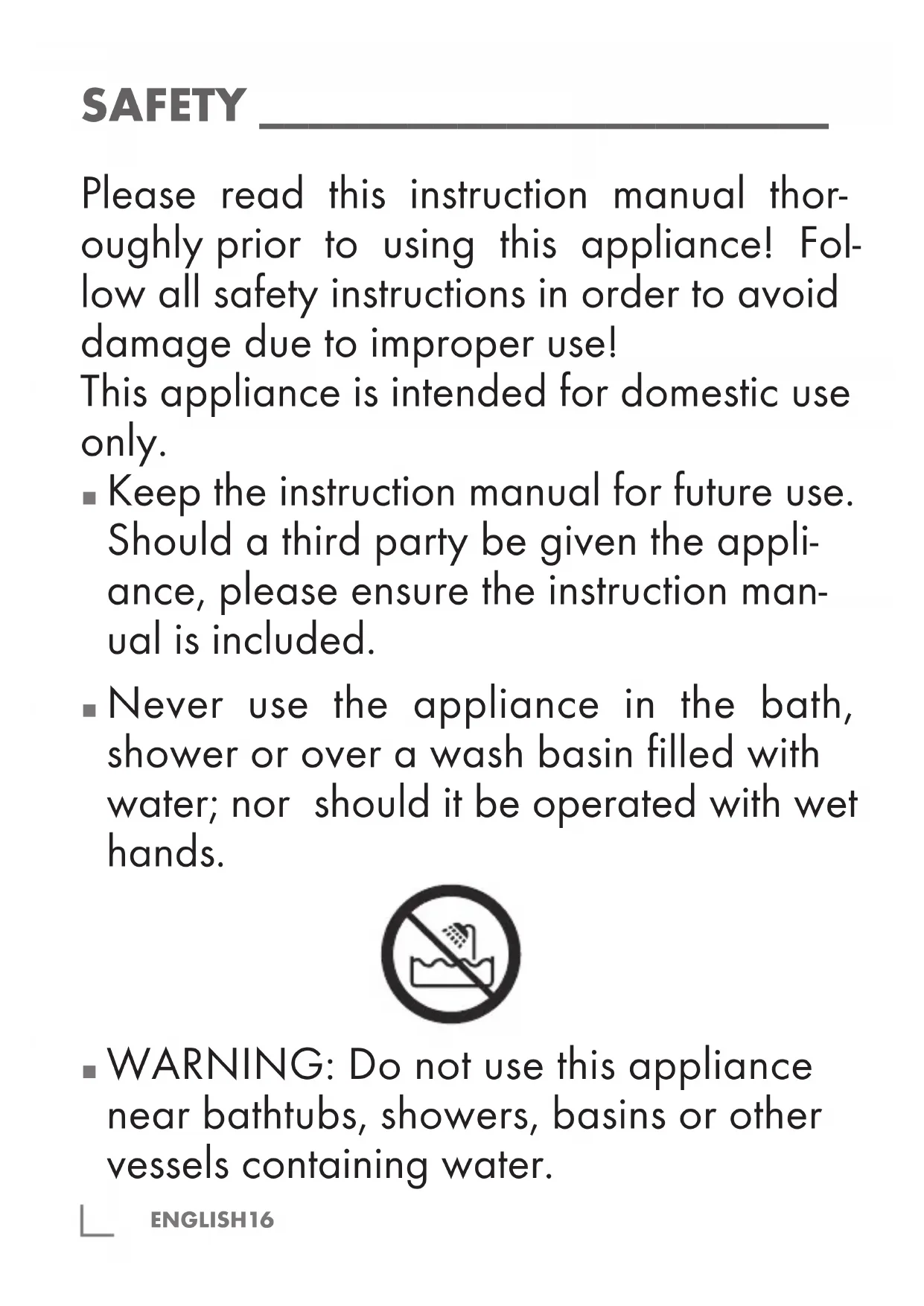

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use!

This appliance is intended for domestic use only.

• Keep the instruction manual for future use. Should a third party be given the appliance, please ensure the instruction manual is included.
• Never use the appliance in the bath, shower or over a wash basin filled with water; nor should it be operated with wet hands.

WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Do not immerse the appliance in water or let it come into contact with water, even during cleaning.
  If the appliance is used in the bathroom, it is essential that the power plug is pulled out after use, as water close to the appliance can still constitute a danger, even if the appliance is switched off.
• For additional protection, It is recommended you to install a residual current device (RCD) having a rated residual operating current not exceeding 30 ~mA in the electrical circuit supplying the bathroom. Ask your installer for advice.
• Never place the appliance on soft cushions or blankets during operation.
• Ensure that the air induction and output openings are not covered during operation.

SAFETY

The appliance is equipped with an overheating protection system.
- Unplug the appliance after use. Do not disconnect the plug by pulling on the cord.
- Never use the appliance if it or the power cord is visibly damaged.
- Never wind the power cord around the appliance, as this can result in damage. Check the power cord and the appliance regularly for visible damage.
- Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by a service centre to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.

Always keep the appliance out of the reach of children.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by incorrect handling.

SAFETY

A warm flow of air is required to achieve a perfect result. Please note that a metallised brush can become extremely hot during prolonged or intensive use. To avoid injury, adjust the usage time of the appliance to the accessory being used.
- Before cleaning or user maintenance operation first plug out.

Dear customer,

congratulations on the pur

chase of your GRUNDIG

Ionic Touch Control Hair Dryer

HD 7880.

Read the following user notes carefully to ensure full enjoyment of your quality Grundig product for many years to come.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING:Warnings

against dangerous situations concerning

the security of life and property.

Electrical insulation class.

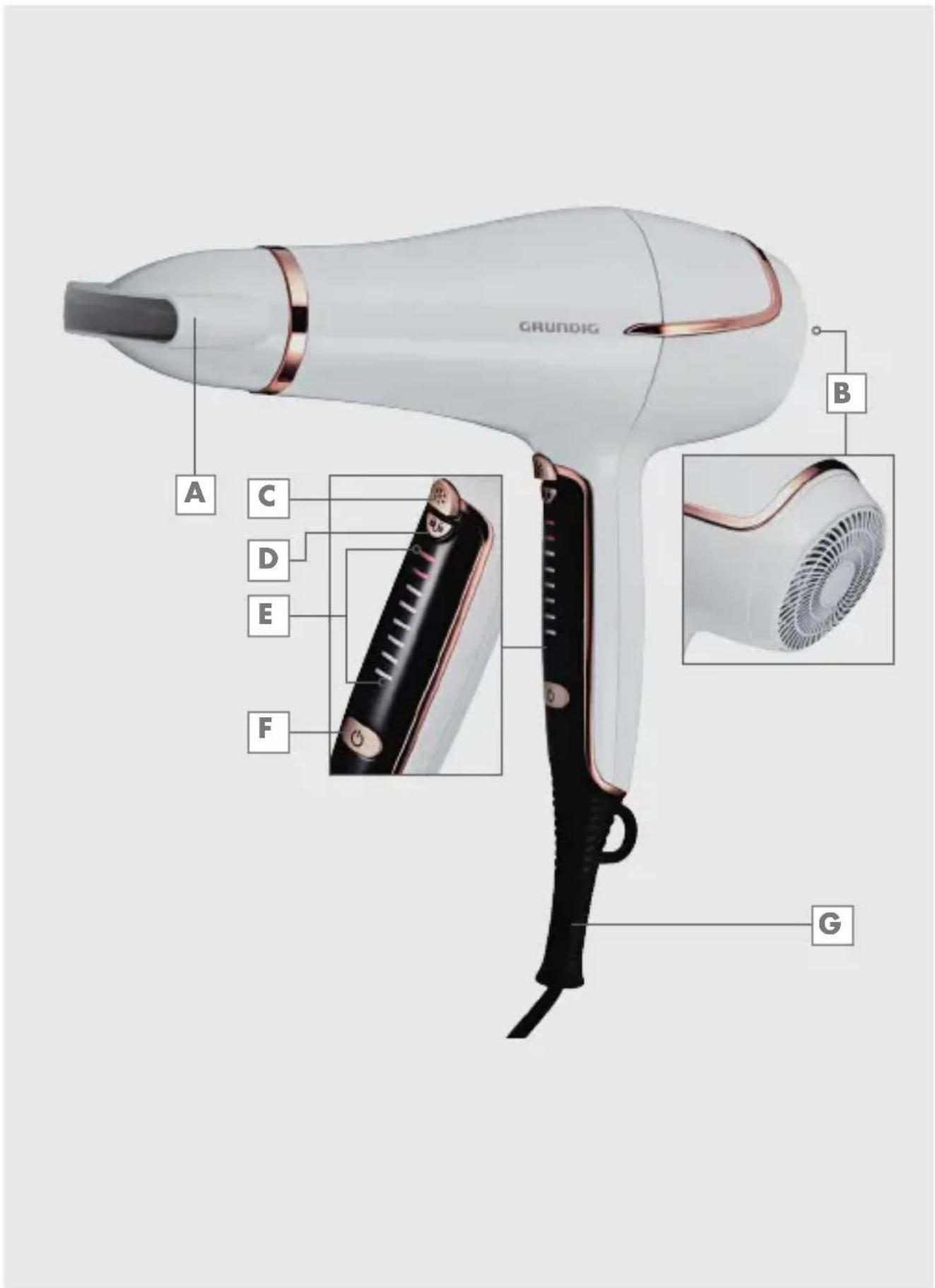

Controls and parts

See the figure on page 3.

A Slim concentrator nozzle
B Detachable air inlet grille
Cool Shot
D Locking Switch
E Touch control temperature selection
F On/Off button
G Power cord

Settings

Your appliance has the following settings:

Cool Shot

• : Disconnects the hot air flow and lets cold air flow out

Locking Switch D

Fixes the set temperature.

Touch control temperature selection

Set the temperature by touch.

Operation

1 Towel dry your hair thoroughly after washing.
2 Plug the power cord into the wall socket.

Note

• Check if the mains voltage on the type plate on the handle of the appliance corresponds to your local mains supply.
  3 Turn on the appliance with On/Off button F.
  4 Set temperature with the touch-control temperature selector E
  5 Fix selected temperature with the key lock D.
  6 During drying, the hot air flow can be temporarily disconnected by keeping the cold setting pressed down.

Note

The Cool Shot interrupts the hot air with a flow of cold air. This allows you to fix your hairstyle better and more lastingly.

To change the temperature during drying, release the key lock and select the desired temperature by touch-control. Then fix it again with the key lock.
7 After use, switch off the appliance with the On/Off button and pull out the power cord from the wall socket.

Caution

• Never wind the power cord around the appliance, as this can result in damage. Check the power cord and the appliance regularly for visible damage.

Cleaning and care

1 Turn the appliance off and unplug the power cord G from the wall socket.
2 Before cleaning, allow the appliance to cool down. The appliance can become very hot.
3 Clean the housing of the appliance only with a soft damp cloth.

Caution

• Never put the appliance or power cord in water or any other liquid. Do not use any cleaning agents.
  Always allow the appliance to cool down on a heat resistant, safe and flat surface.

Note

Before using the appliance after cleaning, dry all parts carefully with a soft cloth or paper towel.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
Make sure that it is unplugged, has completely cooled down and is completely dry.
- Do not wrap the power cord around the appliance.

• Keep the appliance in a cool, dry place.
  Make sure that the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used

device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with

our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply: 220 V-240 V~, 50 Hz/60 Hz

Power: 1850 W - 2200 W

Electrical insulation class: II

Technical and design modifications reserved.

Cher client, chere cliente,

Odabir temperature dodirom E

Postavljanje temperature dodirom.

Rad

1 Dobro osušite kosu ručnikom nakon pranja.
2 Ukljucite kabel napajanja G u. zidnu uticnicu.

Napomena

Provjerite da li napon na tipskoj pločici na rucek i uredaj a odgovara naponu vase lokalne mreze.
3 Ukljucite uredaj sklopkom F.
4 Postavljanje temperature pomocu dodirnog regulatora temperature E
5 Fiksiranje postavljene temperature zakljucavanjem tipki.
6 Tijekom sušenja možete privre-meno prekinuti protok vrućeg zraka ako pritisnete i držite postavku hladnog puhanja c

Napomena

Hladno puhanje prekida topli zrak puhanjem hladnog zraka. To vam omogucuje da bolje i dugotrajnije oblikujete svoj frizuru.
Za promjenu temperature tijekom sušenja pustite zakljucavanje tipki i dodiom odaberite Željenu temperaturu. Zatim je ponovno fiksirajte zakljucavanjem tipki.

7 Nakon uporabe isključite uredaj pomocu gumba F i isključite kabel napajanja G iz uticnice.

Oprez

Nikada nemojte namotavati kabel napajanja oko uredaja, jer to moze rezultirati ostecenjem. Redovito provjeravaje kabel napajanja i uredaj za vidljiva ostecenja.

Cisćenje i održavanje

1 Iskljucite uredaj i iskljucite kabel napajanja G iz uticnice.
2 Prije ciscenja pustite da se uredaj ohladi do kraja. Uredaj moze postati veoma vruc.
3 Redovito očistite resetku za ulaz vraka B mekom Četkom da biste uklonili kosu i prasinu.
4 Cistite kuciiste ureda sa mo vlaznom mekom krpom.

Oprez

Nikada ne stavljaje uredaj ili kabel napajanja u vodu ili u bilo koju tekuci nu. Ne koristite sredstva za ci-scanje.
Uvijek ostavite da se uredaj ohladi na sigurnoj i ravnoj povrsini otpornoj na toplinu.

Napomena

Izbor temperature dodirom E

Postavljanje temperature dodirom.

Rad

1 Dobro osušite kosu peskirom nakon pranja.
2 Ukljucite strujni kabl u zidnu uticnicu.

Napomena

Proverite da li napon na tipskoj plocici na rucek i uredaja odgovara naponu vase lokalne mreze.
3 Ukljucite ureadaj pomocu preki-daca F.
4 Postavljanje temperature pomocudodirnog regulatora temperature
5 Fiksiranje postavljene temperature zakljucavanjem dugmeta D.
6 Tokom sušenja možete da privre-meno prekinete protok vruçeg vazduha ak pritisnete i držite postavku hladnog duvanja C.

Napomena
