Feature	Details
Device type	Tumble dryer
Drying capacity	7 kg
Drying type	Condensation
Energy class	B
Noise level	65 dB
Drying programs	Various programs adapted to textiles
Lint filter	Easy to clean
Dimensions (W x D x H)	60 x 60 x 85 cm
Control panel	Digital screen with selection buttons
Safety system	Overheat protection
Energy consumption	About 4.5 kWh per cycle
Weight	35 kg
Warranty	2 years

Frequently Asked Questions - PCD 7 Electro PROLINE

The PROLINE PCD 7 tumble dryer does not start. What should I do?

Check that the device is properly plugged into a working electrical outlet and that the circuit breaker has not tripped. Also make sure the door is properly closed.

The tumble dryer does not heat up. What could be the causes?

This may be due to a clogged lint filter or a full water tank. Clean the filter and empty the tank. If the problem persists, it may be an issue with the heating element.

Why is my PROLINE PCD 7 tumble dryer making noise?

Noises can be caused by objects stuck in the drum or worn parts. Check the drum for foreign objects and listen to identify the source of the noise.

How do I clean the lint filter?

Open the lint filter cover, remove the filter and remove accumulated lint using a soft brush or by hand. Rinse the filter with lukewarm water and let it dry completely before putting it back in place.

The drying cycle takes too long. What should I do?

Make sure the lint filter and exhaust hose are not clogged. Also check that the load does not exceed the recommended capacity of the tumble dryer.

The water indicator light is on, what does this mean?

The water indicator light means the condensation tank is full. Empty the tank so the tumble dryer can continue to operate.

Can I use dryer sheets in the PROLINE PCD 7?

It is recommended not to use dryer sheets as they can clog the lint filter and affect the device's performance.

How do I adjust the drying level?

Use the program selection button to choose the desired drying level. Options may include 'Ready to wear', 'Ready to iron', or 'Delicate drying'.

My tumble dryer emits an unusual smell. What should I do?

A smell can be caused by a dirty lint filter or excess moisture. Clean the filter and ensure the tumble dryer is well ventilated. If the smell persists, contact a technician.

How can I contact customer service for repairs?

Please consult the user manual for customer service contact details or visit our website for more information on repairs and support.

USER MANUAL PCD 7 Electro PROLINE

Attention, surface chaude.

Darty Plc © UK: EC1N 6TE 11/11/2014

Table of Contents

WARNING 24

IMPORTANT SAFETY INSTRUCTIONS 28

ENERGY SAVING TIPS 29

UNPACKING THE APPLIANCE 29

PRODUCT DESCRIPTION 29

BEFORE INSTALLING THE APPLIANCE 31

INSTALLATION 31

Leveling the appliance 32

32

ELECTRICAL CONNECTION 33

NOTES ON LAUNDRY CARE 33

BEFORE FIRST USE 35

Adding or removing laundry after a programme has started 38

Changing a running programme 39

Delayed start 39

Child lock 39

Drum interior light. 40

CLEANING AND MAINTENANCE 40

Cleaning the lint filter. 40

Cleaning the tumble dryer. 41

Emptying the condenser water tank. 41

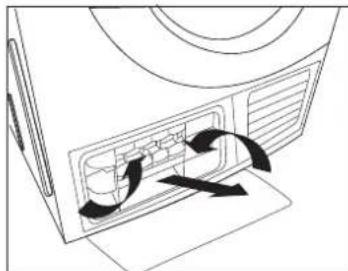

Cleaning the condenser regularly 42

Replacing the drum interior light bulb. 42

TROUBLESHOOTING 42

TECHNICAL DATA SHEET 43

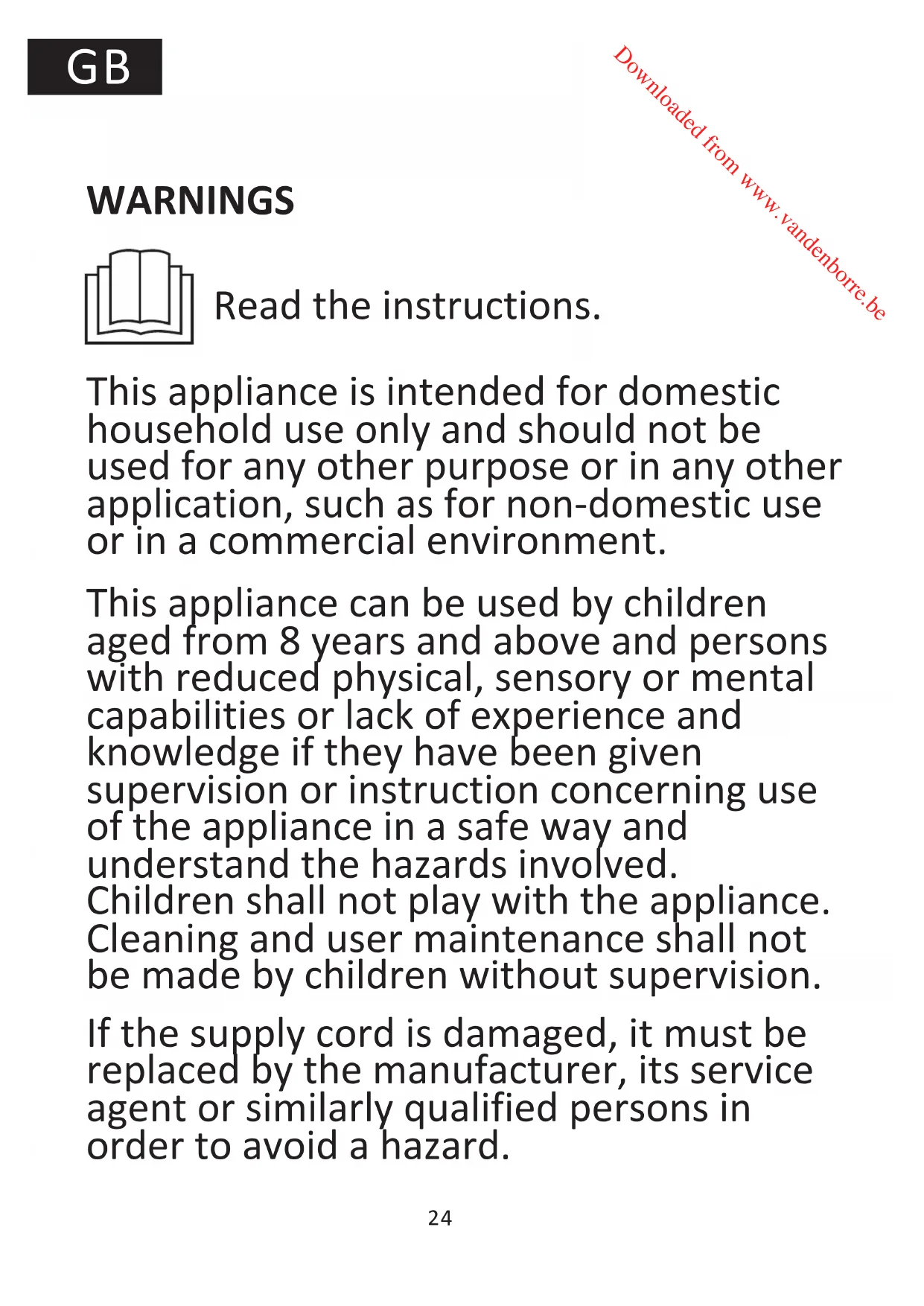

WARNING

Read the instructions.

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

For the details concerning the method and frequency of cleaning, please see section "Cleaning and maintenance" on pages 40 - 42.

The maximum mass of dry textile material in kilograms to be used in the appliance is 7 ~kg .

The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

The lint trap has to be cleaned frequently.

Lint must not be allowed to accumulate around the tumble dryer.

Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

The surfaces are liable to get hot during use.

Do not dry unwashed items in the tumble-dryer.

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

Remove all objects from pockets such as lighters and matches.

WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

A carpet must not obstruct the openings.

Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

This appliance must not be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

Children of less than 3 years should be kept away unless continuously supervised.

IMPORTANT SAFETY INSTRUCTIONS

• It is dangerous to alter the specifications or attempt to modify this appliance in any way.
• Always unplug the appliance after use, before cleaning and maintenance.
• Do not disconnect the plug from the mains socket by pulling the power supply cord. Always hold the plug when disconnecting.
• Do not attempt to disconnect the plug from the mains socket with wet hands.
• Do not use an extension cord or an adapter to connect the power cord.
• Keep the dryer away from cookers, naked flames, or any other inflammable objects.
• Do not install or store the dryer where it will be exposed to the weather.
• Do not place flammable items near the tumble dryer.
• Do not put heavy objects, heating devices, or items containing water or liquid onto the tumble dryer. They may all cause damage.
• Do not put clothes which are dripping wet in the tumble dryer. Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer.
• Clothes that have been in contact with volatile liquids should not be machine dried. Any fluid should be fully removed from the item before it can be dried.
• Do not allow children or pets to play on or inside the dryer. Always check the drum before starting the appliance.
• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into this appliance.
• Do not use the dryer without the filters in place or if the filters are damaged.
• The filter must be cleaned regularly.

ENERGY SAVING TIPS

To avoid unnecessarily long drying times and high consumption of energy:

• Make sure that your laundry is thoroughly spun before drying.
• Load according to the optimum amount of laundry recommended for the programme being used (see Programme chart).
• Make sure the room in which the dryer is located is well ventilated.
• Make sure the filter is clean before using the dryer.

UNPACKING THE APPLIANCE

-This appliance is heavy. Care should be taken when moving it.
- When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.
-All packaging must be removed before use.

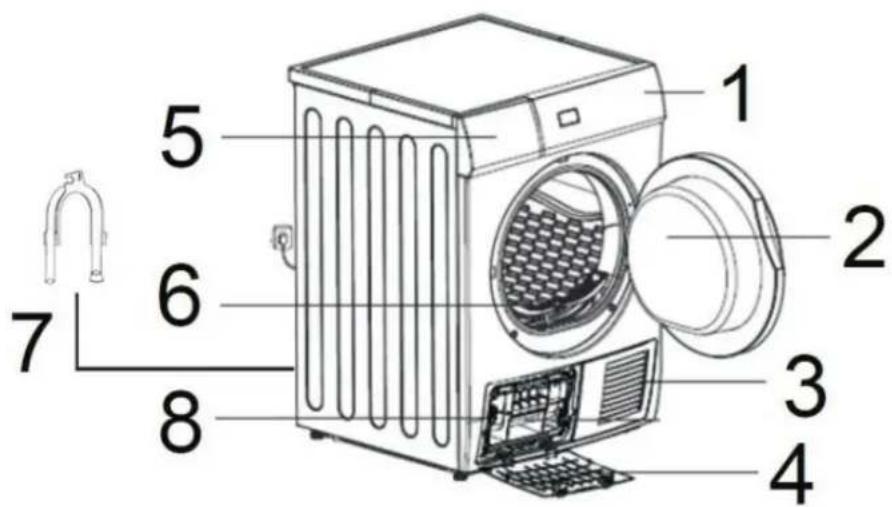

PRODUCT DESCRIPTION

1. Control panel
2. Door
   3.Ventilation grille
3. Lower flap
4. Condenser water tank

6.Lint filter
7. Condensate hose
8. Condenser cover

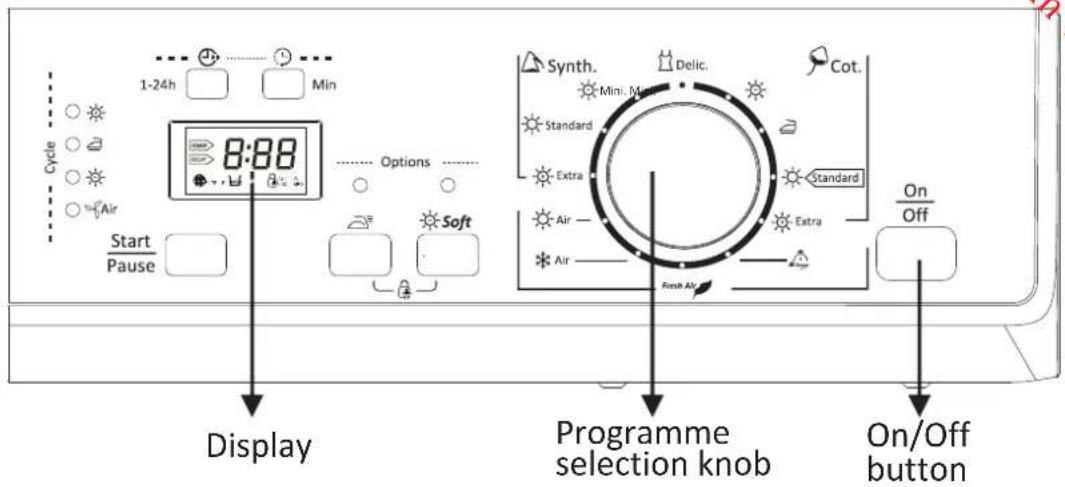

Control Panel

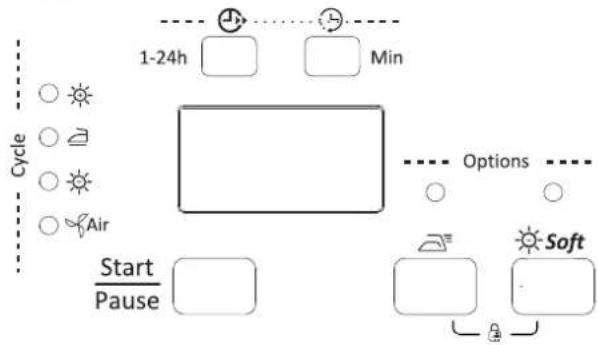

Left part

Buttons

Delayed start:

Time:

Start/Pause:

Anti-crease:

Gentle drying: Soft

Child lock: Soft

Indicator lights:

Drying:

Iron dry:

Normal dry:

Airing: O Air

Additional

anti-crease

function:

Additional gentle

drying function:

Above the button

Above the button

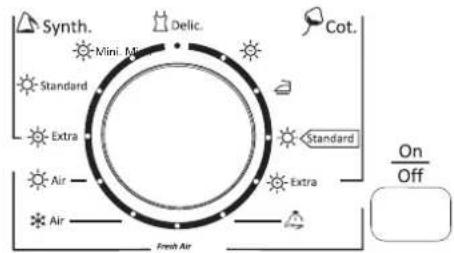

Right part

BEFORE INSTALLING THE APPLIANCE

Before connecting your dryer to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

INSTALLATION

• It is recommended that, for your convenience, the appliance is positioned close to your washing machine.

• The appliance must be installed in a clean place, where dirt does not build up.

• The appliance should not be located near a gas hob, cooker, heater or grill, as flames from the burners could damage it.

• When installing the appliance, make sure that the power cord is not trapped or twisted.

• The appliance is best operated between 5^ C and 35^ C . Outside this temperature range, performances may be affected.

• For better drying performance, keep the rear of the appliance away from the wall.

• The appliance must not be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

• To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface.

Leveling the appliance

The dryer must be perfectly level to ensure safe and proper operation. If the dryer is not properly level, adjust the levelling feet as necessary.

If the appliance is installed on a carpeted floor, please adjust the feet in order to allow air to circulate freely under the appliance.

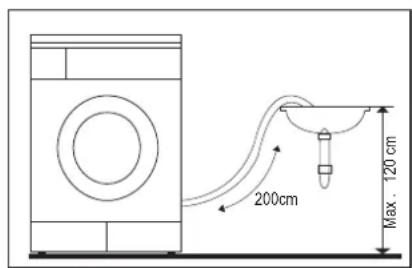

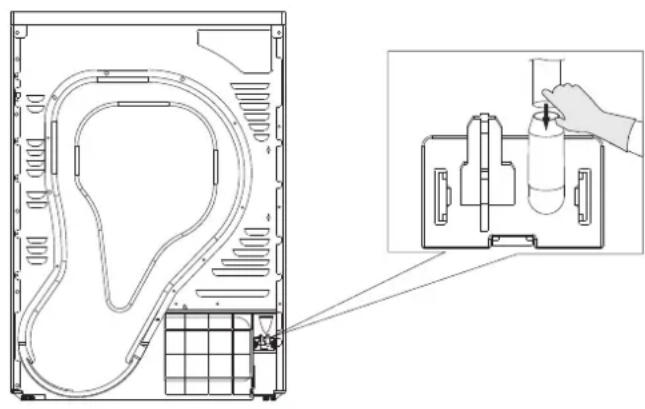

Installing the condensate hose (for direct drainage of condensed water)

To avoid having to empty the condenser water tank every time you use the tumble dryer, you can use the supplied condensate hose for removing the water from the condenser directly into the drain.

1. Remove the inner hose from the hose connector at the rear of the dryer.

2.Insert one end of the supplied condensate hose onto the hose connector.

1. Place and secure the other end of the condensate hose at a nearby sink by using the U-fitting.

Be sure to follow all local codes and regulations in running the condensate to a suitable drain.

ELECTRICAL CONNECTION

Danger:

To make the electrical connection to your appliance:

• The installation to the mains supply must conform to the local standards and regulations.
• Do not use an extension cord, an adapter or the like.
• The plug must be easily accessible after installing the appliance.
• If there is any doubt about the condition of your connection, consult a qualified electrician.

Warning! The manufacturer declines any responsibility for damage or injury through failure to comply with the electrical connection precautions above.

NOTES ON LAUNDRY CARE

Laundry care labels

Clothes have their own wash care labels, so drying according to the wash care label is recommended below.

Dry	Tumble dry	Do not tumble dry	Do not dry
Line Dry / hang to dry	Drip dry	Dry flat	In the shade
Dry clean	Do not dry clean	A Dry clean, any solvent	F Dry clean, petroleum solvent only

New dark coloured garments should be washed and dried separately from light coloured garments to avoid the danger of colours running and discolouring other garments or even plastic components in the dryer. Dark coloured fibres can also settle on light coloured garments and vice versa.

Rubber and plastics

Do not dry any items made from or containing rubber or plastics such as:

a)aprons, bibs and chair covers

b)curtains and table clothes

c)bathmats

Baby clothes and night gowns

Always check the manufacturer's care labels.

Permanent press garments

Take out permanent press garments as soon as the dryer stops to reduce creases.

Loopknit garments

Some loopknit garments such as T-shirts and underwear tend to shrink depending on their quality. Do not over-dry these textiles.

Load capacity

Following weights are given only for reference.

Garments	Approximate weights (g)
Blended coats	800
Cotton Jackets	800
Jeans	800
Cotton undershirts	180
Socks	30

Garments	Approximate weights (g)
Cotton work clothes	1120
pajamas	200
Cotton shirts	300
Cotton underpants	70

Home articles	Approximate weights (g)
Cotton bed sheets (single)	600
Cotton towel quilts	900

BEFORE FIRST USE

In order to remove any residues which may have been left during production, wipe the dryer drum with a damp cloth or carry out a brief drying cycle (approximately 30 minutes) with damp cloths in the dryer.

OPERATING THE DRYER

1.Open the door.

2. Check the filters and drum are clean.

• If not, clean them referring to the section Cleaning and Maintenance.

3. Place laundry loosely into the drum after sorting.

• The clothes should be sorted according to the type of fibres and the drying level required. All the strings and belts of clothes should be well tied and fixed before being put into the drum.
• Do not overload the drum (see the "Programme chart" for recommended loads for each programme).

CAUTION:

Do not dry unwashed clothes in the tumble dryer.

4.Close the door.

• Before you close the door, check the laundry is right inside the drum so that it cannot get trapped or damaged.

5. Turn on the tumble dryer.

• Press
• If no programme is started within approximately 10 minutes, the appliance will switch off automatically.

6. Select a programme by turning the programme selection knob

to the desired position.

• The display will show the remaining time for the programme you have selected.

• If you select the WARM programme (Air), you can set the drying time by repeatedly pressing. The drying time can be set from 20 to 60 minutes in 10-minute increments.

• Select anti-crease/gentle drying additional function(s) when needed.

NOTE: The additional which can be selected depend on the programme you have selected.

Anti-crease:

This function prevents creases from forming in the clothes. Press to select this function. The indicator light above the button will illuminate indicating this function is activated. If a drying programme is finished, the dryer will continue to rotate the laundry at intervals for approximately 2 hours.

To deactivate the function, press again and its indicator light will go out.

Gentle drying:

This function works at a reduced drying temperature for heat-sensitive laundry. Selecting this function will extend the duration of the drying cycle.

Press Soft to select this function. The indicator light above the button will illuminate indicating this function is activated.

To deactivate the function, press Soft again and its indicator light will go out.

The additional functions which can be selected depend on the

1. Press Start Pause

2. During the drying cycle, the status indicator light will flash to indicate current cycle status.

1. After the cycle is finished, you can hear several beeps and the display will show "—".

2. The final part of a drying cycle occurs without heat (cool down cycle) to ensure that the laundry remains at a temperature which will prevent the laundry from being damaged.

3. Anti-crease: If the laundry is not removed at the end of the drying cycle, an automatic anti-crease cycle will operate at intervals for approximately 30 minutes (if you choose anti-crease additional function this time can be extended up to approximately 2 hours).

4. Switch off the appliance by pressing On Off

11.Open the door and remove the laundry.

Careful! The drum inside could still be hot.

Check that all items have been removed from the drum. If items are left in the dryer, they could be damaged by over drying when the dryer is next used.

1. Clean the filters and empty the condenser water tank as described in the section Cleaning and Maintenance.

2. To prevent unpleasant odours and better maintain the door seal, keep the appliance door slightly open until the next drying cycle.

13.Disconnect the appliance from the mains socket if it is not in use for long periods.

Programme chart

Please follow the recommended laundry load when you use the assigned programme. The values in the table below are for information purpose only.

Type of Laundry	Drying setting	Approximate laundry moisture content before drying	Capacity (kg)	Drying time (minutes)	Energy consumption value kWh
Cot. Cotton fabrics such as towels, T-shirts, underwear and bed linen.	Mini.	60%	7	65	2.9
	Standard			95	3.5
				120	4.4
	Extra			130	4.7
Synth. Synthetic fabrics such as shirts, blouses and lingerie	Mini.	40%	3.5	42	1.3
	Standard			57	1.6
	Extra			60	2.0
Delic. For the woolens which can be machine washed.	-	-	1	60	2.0
Air For small loads of laundry, used to re-dry multi-layered fabrics. with warm air.	-	-	3	20	0.67
Air For small loads of laundry, used to re-dry multi-layered fabrics. with cool air.	-	-	3	30	0.1
Chromep For quick drying of heat-sensitive fabrics	-	-	3.5	65	1.9
Fresh Air For freshen air	-	-	3.5	32	0.35

Adding or removing laundry after a programme has started

1. Press Start Pause
   2.Open the door.
   3.Add or remove items as required.
   4.Close the door.
2. Press Start

Changing a running programme

Once a programme has started, you cannot change it to another programme. You will need to cancel the current programme before you can select a new one.

1. Press On Off to cancel the running programme.
2. Press again.
3. Select another programme and start it by pressing

Delayed start

The drying cycle can be delayed by up to 24 hours. To enable this function, select the desired programme, press the delayed start button and then press Start Pause

1. Repeatedly press to increase the delay time by 1 hour, up to 24 hours.
   The display will show the delay time.
2. Press Start to confirm.
   The DELAY text will flash on the display.
   3.Once the delay time has elapsed, the selected programme will start.

To cancel the delayed start

If you want to cancel the delayed start and start the programme, switch off the dryer and then switch it back on.

Child lock

This function is designed to prevent children from operating the tumble dryer while the programme is running.

To activate child lock, press and saft the same time for about 3 seconds. Two beeps will be heard. The indicator light will illuminate on the display.

All buttons except child lock combination buttons and be disabled.

Three beeps will be heard if you press any button or turn the programme selection knob while the child lock is active.

To deactivate this function, press again and the same time for about 3 seconds. Two beeps will be heard. The indicator light will go out from the display.

Drum interior light

When you open the dryer door, an interior light will illuminate, making it easier to assist you while doing the laundry. The interior light will stay on for approximately 1 minute.

CLEANING AND MAINTENANCE

Turn off the dryer and unplug it from the mains socket before cleaning and maintenance. Allow the appliance to cool down before cleaning.

Cleaning the lint filter

The indicator light FILTER will illuminate on the display after a drying cycle is finished to remind you to clean the filter.

Clean the filter after each cycle to optimise the performance of the dryer.

1.Open the tumble dryer door.

2.Pull the filter out and open it.

1. Clean lint, fibre and cotton raveling by hand, if necessary clean the filter under running water and dry it thoroughly.

4 REPLACE the filter.

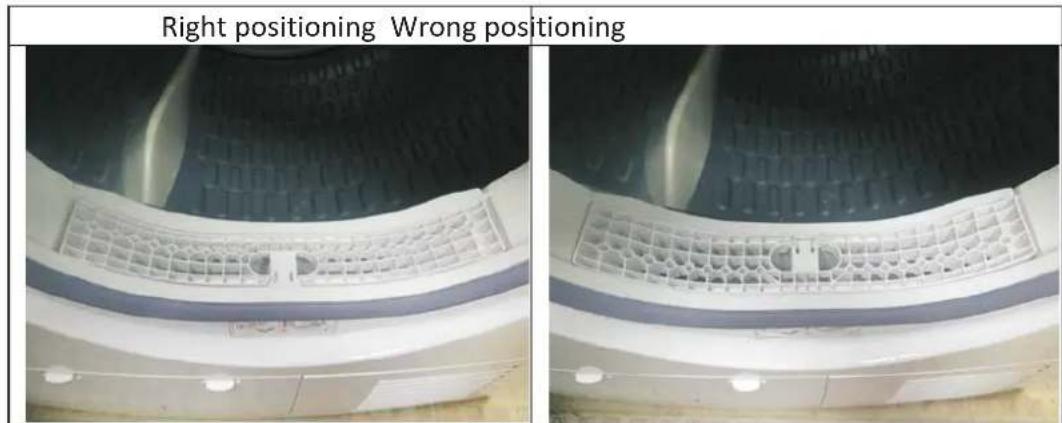

• Push the filter all the way down to avoid interference with the door. Be careful to position the filter correctly.

5.Close the door.

IMPORTANT: Do not operate the dryer without the filter in place.

Cleaning the tumble dryer

Clean the outer surface of the dryer and the drum with a slightly damp cloth. Dry all parts with a soft cloth.

Never immerse the dryer in water.

Do not use any abrasive or chemical cleaning agents.

Emptying the condenser water tank

The condenser water tank is located at the top left corner of the appliance. It collects the water extracted from your laundry as they

are dried.

If you do not install the condensate hose, empty the water tank after each drying cycle or during cycle when the indicator light FANK illuminates on the display.

• Fully remove the water tank. Empty it down a sink and then replace it.

Condensed water is not drinkable!

Cleaning the condenser regularly

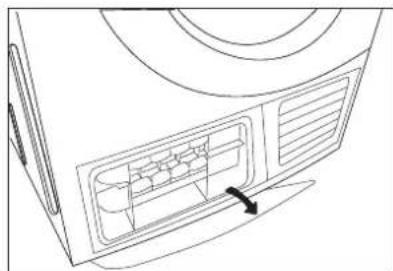

1. Open the lower flap at the front of the appliance.
2. Unlock the 2 locks of the condenser cover and then remove it.

1. Pull out the condenser.
2. Clean the condenser and its cover under running water.
3. Insert the condenser in its housing.
4. Place the condenser cover and lock it in place by fastening the 2 locks.
5. Close the lower flap.

Never operate the tumble dryer without the filter base in place.

Replacing the drum interior light bulb

The light bulb in the drum cannot be replaced by the user. If the light bulb stops working, please contact the authorised after-sales service centre in your area for bulb replacement.

TROUBLESHOOTING

The following will help answer your questions before service call.

Problem Check whether
The appliance does not start.	• the appliance is plugged in. • the appliance is switched on. • a programme is selected and you have pressed Start Pause. • the drum is not overloaded.
The housing is hot or there is a smell of burning.	• the lint filter is clogged with lint and it must be cleaned. • the condenser is clean.
Unusual odours and powerful vibrations	• the appliance is placed on a stable surface. • the levelling feet are aligned.
The laundry is too dry.	• the selected drying programme does indeed correspond to the type of laundry in the drum. • the drum is not overloaded.

Error messages

Error code	Possible Cause	Possible Solution
E30	Heating element fault	Stop the programme and contact a qualified service agent.
E32	Moisture sensor error
E33	Temperature sensor error
E34

TECHNICAL DATA SHEET

Below is the sheet of household tumble dryer according to EU Regulations 392/2012 and 932/2012.

Brand	Proline
Model	PCD 7 ELECTRO
Type	Condenser
Capacity	7 kg
Energy efficiency class 1	B
Annual energy consumption 2	504 kWh/annum
Automatic or non-automatic	Automatic
Standard drying programme 3	Standard Cotton -Standard
Power consumption of off-mode	0.01W
Power consumption of left-on mode	0.6W
Energy consumption of the standard cotton programme at full load	4.24kWh
Energy consumption of the standard cotton programme at partial load	2.3kWh
Duration of the 'left-on mode'	10 minutes
Programme time of the 'standard cotton programme at full load'	120 minutes/cycle
Programme time of the 'standard cotton programme at partial load'	80 minutes
Condensation efficiency class 4	B
The average condensation efficiency of the standard cotton programme at full load	80.1%
The average condensation efficiency of the standard cotton programme at partial load	80.1%
The weighted condensation efficiency for the standard cotton programme at full load	80.1%
The weighted condensation efficiency for the standard cotton programme at partial load	80.1%
Sound power level for the standard cotton programme at full load	69dB
Height	845 mm
Width	595 mm
Depth	615 mm
Rate voltage/frequency	220-240V~50Hz

NOTE:

1 from A most efficiency) to D (least efficiency)
Energy consumption 504 kWh per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
The Standard programme is the standard drying programme. It is suitable to dry normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for drying wet cotton laundry.
4 from A (most efficient) to G (least efficient)

Specifications

Rated power:2700W

Motor input power: 200W

Heating power:2500W

Grade of waterproof: IPX4

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Inhoudsopgave

WAARSCHUWINGEN 46

BELANGRIJKE VEILIGHEIDSINSTRUCTIES 50

ENERGIEBESPARINGSTIPS 51

HET APPARAAT UITPAKKEN 51

PRODUCTBESCHRIJVING 51

VOOR INSTALLATIE VAN HET APPARAAT 53

INSTALLATIE 53

PROBLEEMOPLOSSING 64
