Brand	Proline
Model	VDP620E
Product Type	Vented Tumble Dryer
Capacity	6 kg
Dimensions (H x W x D)	85 x 60 x 50 cm
Weight	35 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	1350 W
Drying Programs	Cotton, Synthetics, Mix, Delicates, Time Drying
Heat Settings	High, Low
Reverse Tumbling	Yes
Anti-Crease Function	Yes (60 min)
Lint Filter	Removable, washable
Door Type	Solid glass, reversible
Cord Length	1.5 m
Noise Level	65 dB
Annual Energy Consumption	562 kWh (based on 160 cycles)
Energy Class	C
Condensation Efficiency	N/A (vented)
Installation Type	Freestanding or stackable

Frequently Asked Questions - VDP620E PROLINE

How to clean the lint filter?

Open the door, pull the filter up, remove lint by hand or with a soft brush, rinse if necessary, and dry fully before reinserting.

What is the maximum load capacity?

The maximum load capacity is 6 kg of dry laundry. Do not overload to ensure efficient drying.

Can the dryer be stacked on a washing machine?

Yes, the VDP620E can be stacked on a compatible Proline washing machine using a stacking kit (sold separately).

Why is the dryer not heating?

Check the power supply, ensure the program is set correctly, and clean the lint filter. If still cold, the heating element may need replacement.

How to reverse the door?

Unplug the dryer, remove the door screws, transfer the hinge to the opposite side, and reassemble. Refer to the manual for detailed steps.

What does the anti-crease function do?

After the cycle, the drum rotates periodically for up to 60 minutes to prevent wrinkles if clothes are not removed immediately.

How often should the condenser (if applicable) be cleaned?

This is a vented dryer, so there is no condenser. Instead, ensure the vent hose is not blocked and clean it periodically.

Why is the drying time longer than expected?

Possible causes: overload, wet clothes not spun enough, clogged lint filter, or low room temperature. Check and adjust accordingly.

Can I dry wool or silk items?

Only if the garment label allows machine drying. Use the Delicates program with low heat, preferably in a mesh bag.

Where to find spare parts?

Spare parts such as filters, belts, and heating elements are available from Proline authorized service centers or online retailers.

USER MANUAL VDP620E PROLINE

The drying programme is selected by turning this knob.

"Start (Pause)" button

The drying programme is started by pressing this button. The indicator lamp flashes during the selection phase and lights up during drying.

Indicator lamps

Filter

The indicator lamp lights up when the filter needs cleaning.

Clean the filter at the end of every cycle.

Overdry protection

The indicator lamp lights up when a humidity controlled program is selected, to indicate the working protection function. Function is not active in time controlled programmes 10', 20', 30', 40', 60', 90' and "Airing" "J".

Programme sequence

Options

Gentle

Reduces drying intensity (recommended for delicate items).

Buzzer

Signals/sounds end of drying cycle.

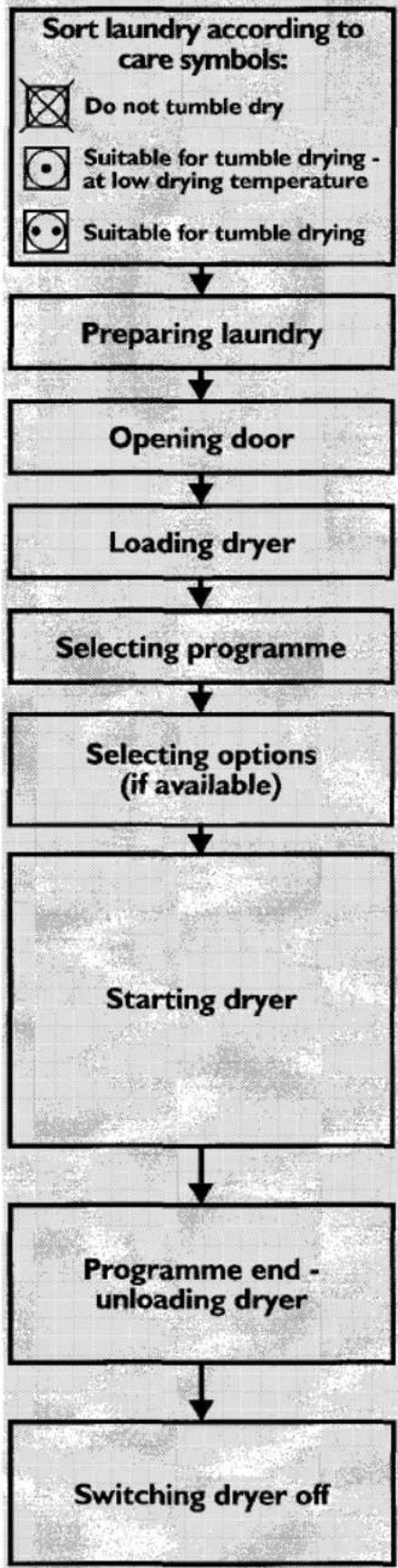

Machine operation

Additional information (including troubleshooting and service) can be found in the individual chapters of the instructions for use.

Sort by:

Material thickness: Whenever there is greater load than the dryer can handle, separate laundry according to weight (e.g. dry towels and thin underwear separately).

Type of material: Cotton (linen); synthetic textiles (easy care).

Degree of drying: Cupboard dry, iron dry etc.

Do not tumble dry: Woollens, silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, bulky items such as sleeping bags, etc.

Check that all fastenings are closed and that pockets are empty. Please ensure that there are no cigarette lighters in the wash. Turn laundry inside out.

Pull the door handle.

Place laundry loosely in the drum to achieve equal drying throughout. Then close the door.

Select the drying programme required by turning the programme selector knob (for information, refer to programme table).

Select the option required by pressing the corresponding button.

The indicator lamp above the relevant button lights up to confirm your selection. A fast blinking led indicates a wrong selection is made (incompatible options). Press the button again to cancel the option.

The drying programme is started by pressing the "Start (Pause)" button. The relevant indicator lamp lights up.

Changing programme selection: If the programme selected is changed during drying, the dryer stops. The "Start (Pause)" indicator lamp flashes. To operate the new programme, again press the "Start (Pause)" button.

Interrupting programme: To interrupt a drying cycle, press the "Start (Pause)" button and open the door. Wait at least 5 minutes, to allow the laundry to cool down, before you unload the dryer. For your safety the drying cycle stops automatically if you open the door. To restart, after door opening, close the door and press the "Start (Pause)" button again.

Warning: Never stop a tumble dryer before the end of the drying cycle, unless all items are quickly removed and spread out so that the heat is dissipated.

The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

End: Take the laundry out of the dryer. The drying process is complete and the anti-crease phase has been reached (active).

Anti-Crease: If the laundry is not removed at the end of the drying cycle, an automatic anti-crease cycle will operate for maximum 60 min. The drum rotates at regular intervals to prevent the laundry from creasing.

Set the programme selector knob to "Off" "O".

Cleaning the lint filter: Open door, pull lint filter up and out of machine and open it. Brush lint using a soft brush or your fingertips. Push lint filter firmly back into place.

How to proceed if ...

...you want to correctly care for and clean your dryer:

Clean the filter at the end of every cycle.

- Open the door.

- Pull the filter upwards.

- Brush lint using a soft brush or your fingertips.

- Push the filter back into place.

Please de-install once a year the air hose and remove the lint inside.

...you want to check the dryer yourself first:

(If your machine is not functioning correctly, please check the following points before phoning for the customer service – also refer to relevant chapter in the instructions for use).

Drying takes too long laundry is not dry enough.

- Has the correct drying programme been selected?

- Was the inserted laundry too wet (washing machine spin speed less than 1000 rpm?)

- Is the lint filter dirty (filter indicator light on)?

• Is the room temperature too high?

- Are the "End" "D|" and "Anticrease" "☐" indicator lamps lighting up? The drying cycle is complete and the laundry can be taken out.

- If the drying result does not meet your expectation, select a more dry programme.

The dryer will not operate (after a power failure, always press the "Start (Pause)" button).

• Is the plug properly inserted into the mains electricity socket?

• Is there a power failure?

- Has the fuse blown?

• Is the door properly closed?

- Has a drying programme been selected?

- Has the "Start (Pause)" button been pressed?

Lint filter indicator lamp on.

• Is the lint filter clean?

• Is the vent hose blocked?

• Is the outside vent hose adaptor blocked?

AFTER-SALES SERVICE

If the fault is still present once the above checks have been undertaken or should the fault occur for a second time, switch the machine off. Please contact your after-sales service representative (for more information, refer to the warranty manual).

Please have the following details ready when calling your after-sales service representative:

• The nature of the fault.
• The dryer type and model.
- The service code (the number after the word Service on the adhesive rating plate) on the right-hand side when the door is open.

SERVICE

0000 000 00000

Overview of programmes					Options		Approximate drying times (in minutes)
Type of textileProgrammes / Drying levels			Fabrics	Volume of load kg	Gentle	Buzzer	Very wet load	Wet load
Cotton		Extra dry	Multi-layered, thick laundry such as: terry towels, dish cloths and dry towels, bed linen, underwear, terry towelling bath robes.	Cotton or linen hot wash / coloured laundry	3.06.0	X	X	105' 160'
	[W7K2]	Cupboard dry *	Similar types of laundry which do not require ironing such as: dry towels, bed linen, underwear, baby clothes, T-shirts, cotton socks.		3.06.0	X	X	80' 130'
		Iron dry *	Laundry which requires ironing such as: bed and table linen, dry towels, T-shirts, polo shirts, work clothes.		3.06.0	X	X	60' 110'
Mixed fabrics	[3KC3]	Extra dry	Laundry with thick, multi-layered areas such as: bed and table linen, track suits, anoraks, blankets.	Synthetic, mixed fibre or cotton easy care (ironing not required) laundry	1.03.0	X	X	45' 75'
	[3CAV]	Cupboard dry *	Laundry which does not require ironing such as: shirts, blouses, T-shirts, sportswear.	Max. 3 kg	1.03.0	X	X	25' 50'
		Iron dry	Laundry which requires ironing such as: trousers, dresses, skirts, shirts, blouses.		1.03.0	X	X	20' 40'
Delicate plus	[5KC2]	Cupboard dry	Low drying intensity for delicates and items labelled with ☐, such as: trousers, dresses, shirts, blouses.	Laundry made from synthetic fibres such as polyamide, nylon, polyacrylic, etc.Max. 2.5 kg	2.5	X	X	70'
Airing	Laundry is aired and refreshed for 30 minutes without heating.			[SCTK]	-	-	X	-
Drying times	Completes drying for min.3-5 full size textiles (suitable for all fabrics).			10' 20' 30'40' 60' 90'	-	X	X	10' 20' 30'40' 60' 90'

* Test programme in accordance with EN 61121.

Gebrauchsanweisung

Instructions for use

Mode d'emploi

Gebruiksaanwijzing

BEKNOPTE HANDLEIDING

PROGRAMMATABEL

WASGOED VOORBEREIDEN

EEN PROGRAMMA EN EXTRA FUNCTIES SELECTEREN

EEN PROGRAMMA STARTEN EN VOLTOOEN

BOEKJE

VEILIGHEIDSADVIEZEN VOORDAT U DE DROOGAUTOMAAT GEBRUIKT /

AANSLUITINGEN

PAG. 26

VEILIGHEIDSADVIEZEN EN ALGEMENE VOORZORGSMAATREGELEN

PAG. 27

BESCHRIJVING VAN DE DROOGAUTOMAAT

PAG. 28

GEHEUGENSTEUNTJE - ONDERHOUD EN REINIGING

PAG. 28

DE AFVOER AANSLUITEN

PAG. 29

OMKEREN VAN DE DEUR

PAG. 30

HET OPSPOREN VAN STORINGEN / KLANTENSERVICE

PAG. 31

VEILIGHEIDSADVIEZEN VOORDAT U DE DROOGAUTOMAAT GEBRUIKT / AANSLUITINGEN

VEILIGHEIDSADVIEZEN EN ALGEMENE VOORZORGSMAATREGELEN

I. Verpakking

Two grayscale images showing a pipe with a hexagonal grid pattern and a coiled pipe, no text or symbols visible.

Close-up of a metallic screw with threaded shaft and rectangular base (no text or symbols visible)

Close-up of a white plastic threaded bolt with visible grooves and fasteners (no text or symbols)

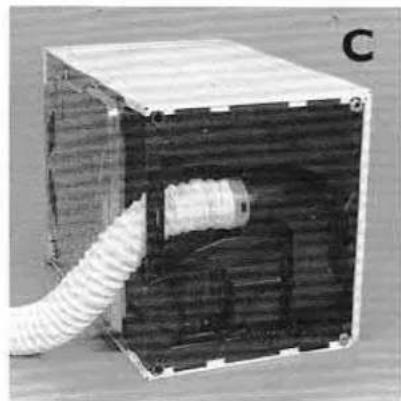

3D rendering of a cube with internal tubing and a central component, no visible text or symbols

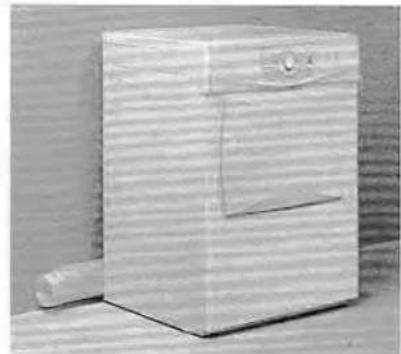

Wooden industrial machine with horizontal insulation and a side panel, no visible text or symbols

Close-up of a curved, textured object with no visible text or symbols

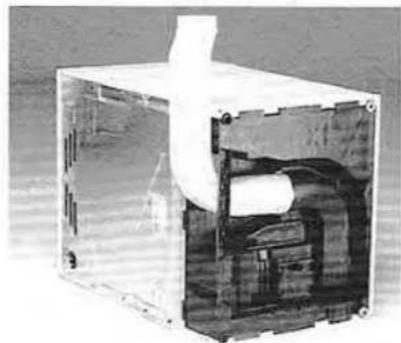

Cross-sectional view of a transparent cube containing internal mechanical components (no visible text or symbols)

OMKEREN VAN DE DEUR

Omkeren van de deur

Close-up of a transparent plastic component with a labeled circular feature 'C' (no readable text or symbols)

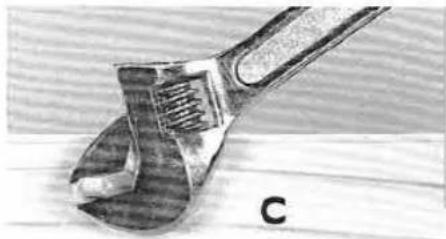

Illustration of an adjustable wrench with a textured handle and a labeled point 'C' (no text or symbols on the wrench itself)

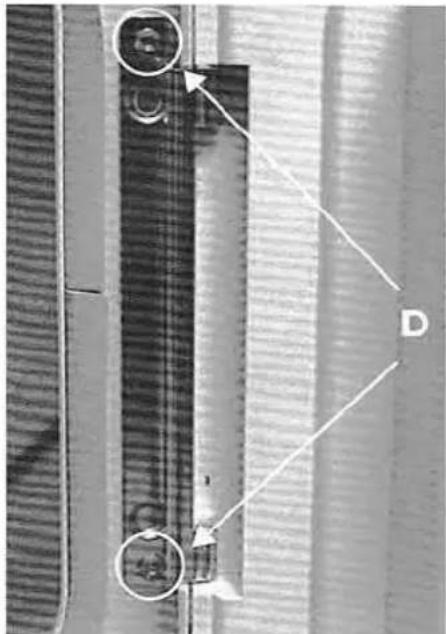

Close-up of a mechanical component with two circular features and a labeled section D (no readable text or symbols)

HET OPSPOREN VAN STORINGEN / KLANTENSERVICE
