TTZ71 - Freezer PROLINE - Free user manual and instructions

Brand	Proline
Model	TTZ71
Product type	Freezer
Number of stars	3 stars (***)
Climate class	N (16 °C to 32 °C), SN (10 °C to 32 °C)
Protection class	I (earthing)
Voltage / Frequency	220-240 V ~ 50 Hz
Input power	90 W
Energy consumption	0.450 kWh/24h
Refrigerant / Quantity	R600a (isobutane) / 40 g
Rated current	0.60 A
Freezer capacity	60 L
Total gross volume	65 L
Freezing capacity	3.0 kg/24h
Net weight	24 kg
Insulation foam	Cyclopentane
Dimensions (W × D × H)	480 × 500 × 850 mm
Energy class	A+
Annual electricity consumption	264 kWh/year
Noise level	41 dB
Power failure autonomy	15 hours
Defrosting	Manual
Reversible door	Yes
Main functions	Storage of frozen food, freezing fresh food, making ice cubes
Care and cleaning	Clean with warm water and mild detergent; defrost regularly
Safety	Earthing, child lock (if lock present), do not use mechanical devices to defrost
Spare parts and repairability	Repair by qualified professional; hotline and after-sales service available

Frequently Asked Questions - TTZ71 PROLINE

How to install the Proline TTZ71 freezer?

Place the appliance on a flat, level floor, in a dry, well-ventilated room, away from direct sunlight and heat sources. Leave at least 10 cm of space around the appliance for ventilation. Adjust the front feet if necessary. Read the Installation section of the manual for more details.

What is the ideal temperature for the freezer?

The thermostat allows you to set the temperature. For optimal storage, set it to a medium position (e.g., 3 to 4). The interior temperature should be at least -18 °C. On first use or after defrosting, set the thermostat to the coldest position for 2 hours before adding food, then return to normal position.

How to reverse the door opening direction?

Unplug the appliance. Follow the steps in order: remove the screws from the top hinge, take off the door, move the bottom hinge and foot. Screw everything back on the opposite side. It is recommended to call a qualified professional. A Phillips screwdriver and a wrench are required (not supplied).

What to do during a power cut?

Do not open the door. Frozen food remains frozen for up to 15 hours if the door stays closed. After a longer outage, check the food; never refreeze fully thawed products without cooking them first.

How to clean and maintain the freezer?

Unplug the appliance and remove food. Clean the interior with warm water and a mild detergent. Do not use solvents or abrasive products. Dry thoroughly. For defrosting, set thermostat to 0 (off), place a pan of hot water inside, soak up condensation water and wipe dry. Plug in again and set temperature.

Why is my freezer making noise?

Normal sounds include: motor hum, refrigerant flow. If the noise is excessive, check that the appliance is stable and level (adjust feet). Ensure it is not in contact with furniture. Unusual noise may also come from defrosting in progress.

How much food can I freeze in 24 hours?

The freezing capacity is 3.0 kg per 24 hours. Do not exceed this amount to ensure rapid freezing and optimal quality.

What foods should not be frozen?

Do not freeze: lettuce, radishes, eggs in shell, grapes, whole apples, pears, peaches, hard-boiled eggs, yoghurts, curdled milk, sour cream, mayonnaise. Previously thawed foods must not be refrozen without prior cooking.

How to save energy with this freezer?

Place the appliance in a cool, well-ventilated place. Let hot foods cool before putting them in. Open the door as little and as briefly as possible. Defrost regularly to prevent thick frost build-up. Check that the door closes properly.

What to do if the freezer does not work?

Check that the plug is connected and the power is on. Is the thermostat set to a position other than 0? Wait 10 minutes after turning off before turning on again. If problem persists, contact after-sales service at 0 978 970 970 (France) or [phone] (Belgium).

USER MANUAL TTZ71 PROLINE

10N(9DCEFC8(E8(K;Hn7(I9;Hd

Emballages possibles:

Hotline Darty France

IMPORTANT SAFETY INSTRUCTIONS 4

NAMES OF PARTS 5

BEFORE INSTALLING THE FREEZER. 5

INSTALLATION 6

AMBIENT TEMPERATURE 6

B*F2.*(+,A-ON3(F22)(ON'H*F.*****************************************************************************************************

POWER FAILURE 7

TEMPERATURE CONTROL. 7

MOVING YOUR APPLIANCE 7

FREEZING AND STORING FOOD 7

MAKING ICE CUBES. 9

DEFROSTING 9

DOOR CONVERSION. 10

TIPS FOR SAVING ENERGY. 10

OPERATING NOISES 11

CLEANING AND MAINTENANCE. 11

TROUBLESHOOTING 11

SPECIFICATIONS 12

W0/232GS

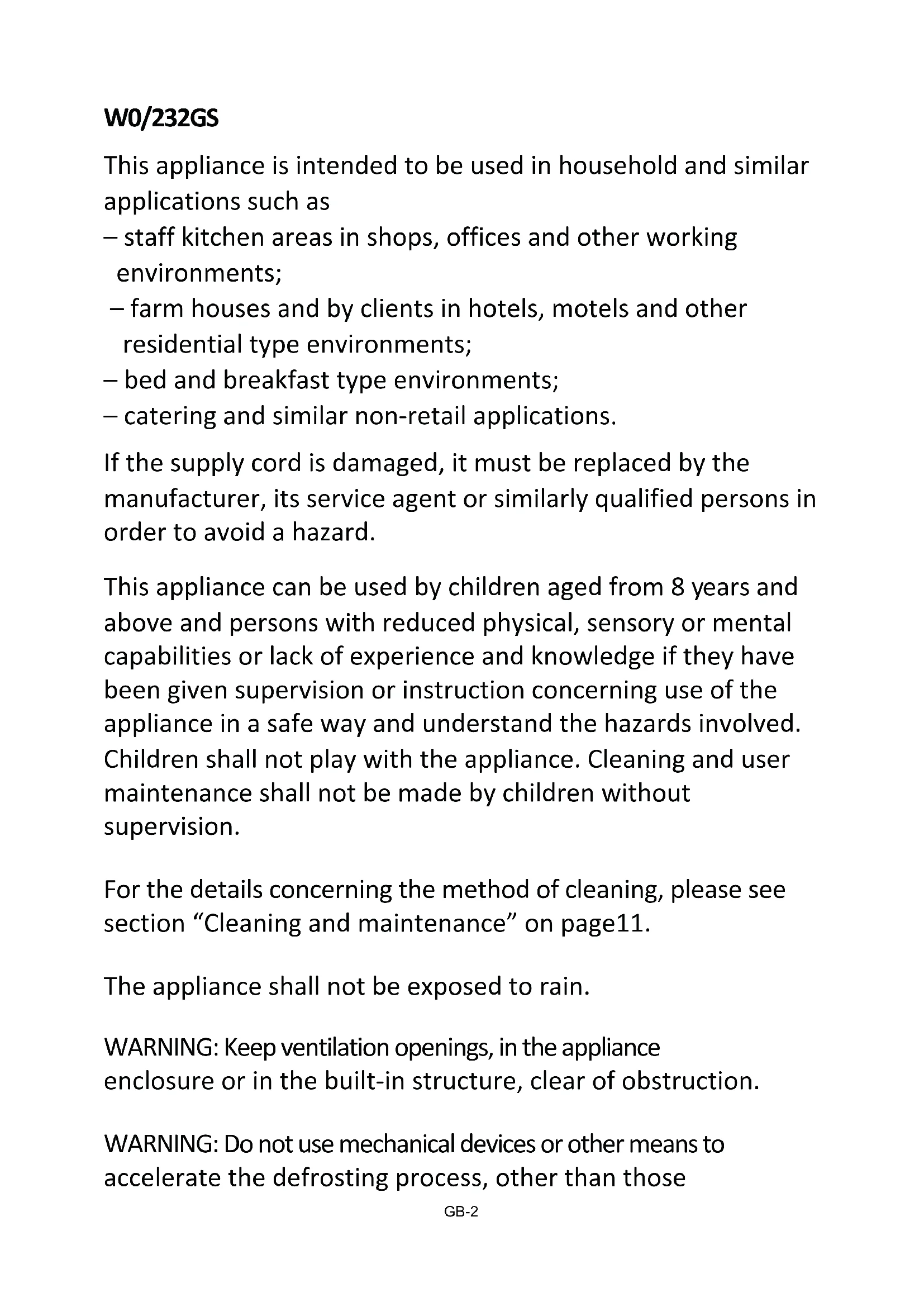

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

For the details concerning the method of cleaning, please see section "Cleaning and maintenance" on page11.

The appliance shall not be exposed to rain.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those

recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: For making ice (ice cubes), use potable water only.

CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.

INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.

Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

For disposal of tLe applia9ce:

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal.

For i9stallatio9, servici9B:

Appliance should be placed on a horizontal floor and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.

For La9dli9B:

Always handle the appliance to avoid any damage.

Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria.

Never refreeze seafood that has been defrosted.

3MA4/T02T SOF1TY 32ST/IDT342S

• If you are discarding an old freezer with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
• Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
• Do not insert oversized food as this could cause incorrect operation.
• Extreme caution must be used when moving the appliance.
• Do not give children ice-cream and water ices direct from the freezer as the low temperature may cause 'freeze burns' on the lips.
• Do not use pointed or sharp-edged tools to remove frost or layers or ice. Use a plastic scraper.
• Do not stand or support yourself on the base or doors, etc.
• Effervescent drinks should not be stored in the freezer.

Dispose of Sour old applia9ce

Freezers contain refrigerant and gases in the insulation.

Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

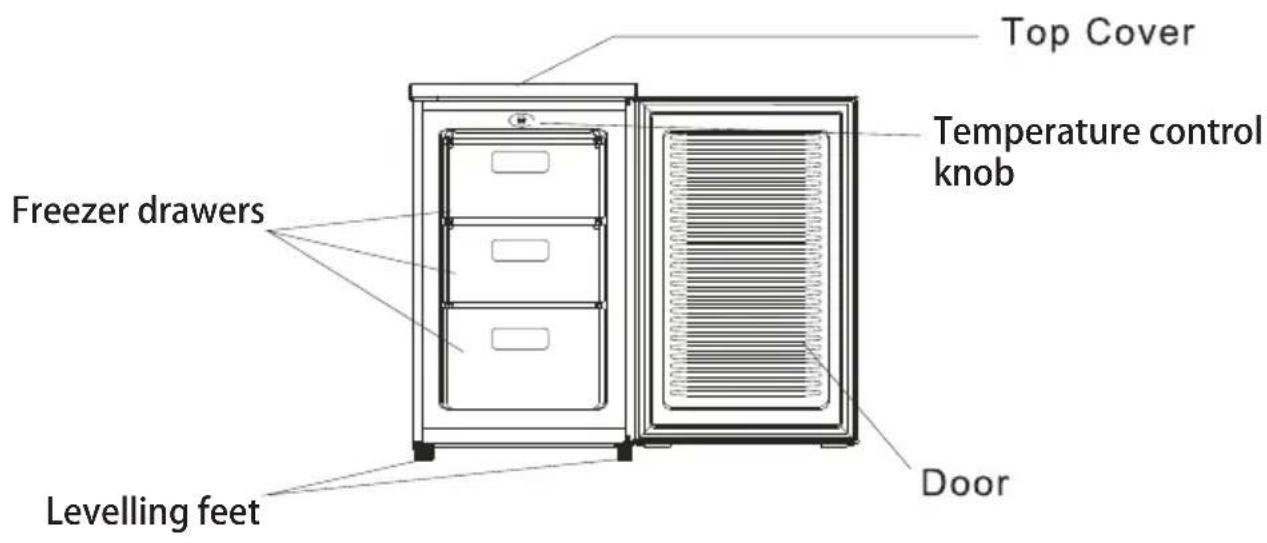

20M1S 4F A0/TS

J1F4/1 32ST0GG32G TH1 F/11Z1/

Before connecting your I988Q89 to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A(dHI898n:=(;E:FC8(B;uEd(dFKFC8(:N8(FLLEHFnB8!

Ensure that the plug remains accessible after installation.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

32ST0GGOT342

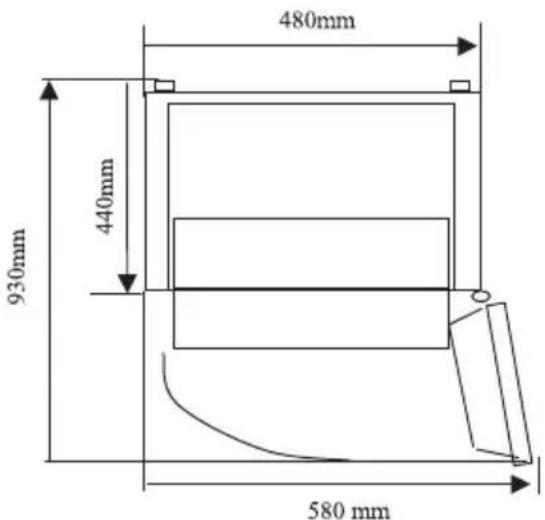

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc.

To ensure adequate ventilation for the appliance, allow a minimum of 10cm of airspace on each side of the cabinet.

For uneven surfaces, front feet can be aligned.

'N8(LEuC(H7(:N8(:;nEO(wFO(:;unLEuC::N8(FLLEHFnB8(Fnd(7N;uEd(:N8981;98(M8(FBB877HME8(F:(FEE(:HK87!));I1(KFHn(Lw89(:;N8(FLLEHFnB8G(u9n(H::II(Fnd(:N8n(d8:FBN(:N8(LEuC19K(:N8);u:E8:

0MJ312T T1MA1/0TI/1

This appliance is designed to operate in ambient temperature between 16^ and 32^ . If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer will rise above -18^ and food spoilage may occur.

J1F4/1 AG0D32G F44D 32 TH1 F/11Z1/

• Remove all packaging.
• Allow the appliance to run empty for 2 - 3 hours so the compartment can cool to the appropriate temperature.
• Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

A4W1/ F03GI/1

If there is a power failure, do not open the door. Frozen food should not be affected if the power failure lasts for less than 15 hours.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

T1MA1/0TI/1 D42T/4G

The freezer is controlled with a temperature control knob located at the ::L(Hn7Hd8(the appliance. Adjust the control knob as desired to suit your individual preference.

10N is E877(B;Ed setting

N2.1A,is(B;Ed setting

1AX(is coldest setting

The running time and temperature are affected by where the freezer is located, how often the door is opened and the temperature of the room the freezer is located in.

When you use the appliance for the first time or after defrosting, adjust the control knob to the coldest setting for at least 2 hours before introducing food to be stored, and then readjust to the middle setting.

M4E32G Y4I/ 0AAG302D1

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your freezer from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

F/11Z32G 02D ST4/32G F44D

• To store deep-frozen food.
• To make ice cubes.

To freeze food.

2ote: Ensure that the freezer door has been closed properly.

AurcLasi9B froOe9 food

• Packaging must not be damaged.
• Use by the 'use by /best before/best by/ date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer.

Stori9B froOe9 food

Store at -18^ or colder. Avoid opening the freezer door unnecessarily.

FreeOi9B fresL food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

2ote: Keep food to be frozen away from food which is already frozen.

The following foods are suitable for freezing:

Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, souffles and desserts.

The following foods are not suitable for freezing:

Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Aacki9B froOe9 food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil.

These products are available from specialist outlets.

/ecomme9ded storaBe times of froOe9 food i9 tLe freeOer

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food StoraBe time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

2ever forBet:

• When you freeze fresh foods with a 'use by /best before/best by/ date, you must freeze them before this date expires.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
  Once defrosted, food should be consumed quickly.

M0a32G 3D1 DIJ1S

Fill the ice cube tray (not supplied) with 34 full of drinking water and place in the freezer.

If the ice cube tray is stuck to the compartment, loosen with a blunt tool only.

To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

D1F/4ST32G

The freezer does not defrost automatically, otherwise the frozen food would start thawing.

A layer of frost in the compartment impairs refrigeration of the frozen food and increases power consumption. Remove the layer of hoarfrost regularly.

Do not scrape off hoarfrost or ice with a knife or pointed object. Doing this may damage the

refrigerant tubes.

1. Remove the frozen food and place temporarily in a cool location.
2. Set the temperature control knob to the off position (10N) and disconnect the mains plug from the mains socket.
3. To accelerate the defrosting process, place a pan of hot water on a stand in the freezer.
4. Wipe up condensation with a cloth or sponge.
5. Wipe dry the compartment.
6. Plug in the appliance and adjust the temperature control knob as desired.
7. Put the frozen food back in the freezer.

D44/D42E1/S342

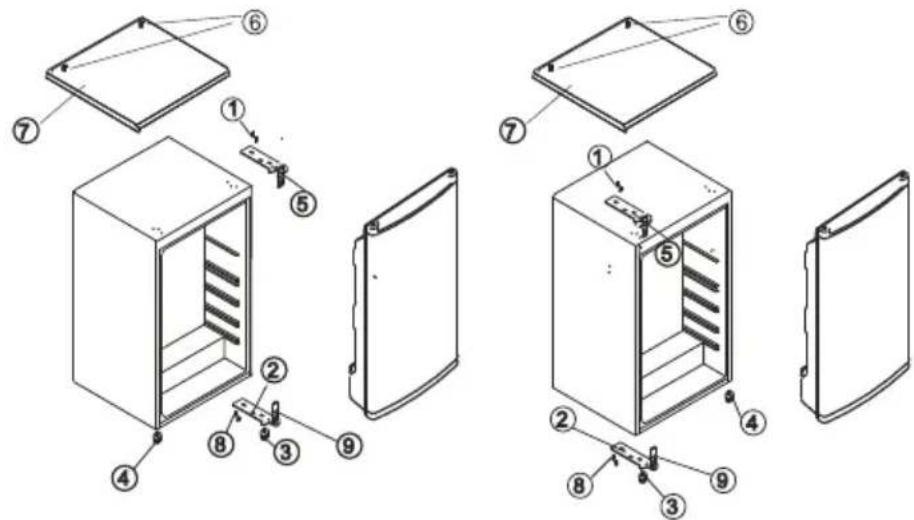

If you need to hinge your door on the opposite side it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied).

1. Remove the two screws (6) and remove the worktop (7) by raising the rear and pushing it forwards.
2. Remove the two screws (1) and remove the upper hinge (5) from the right side of the cabinet.
3. Lift the door off the lower hinge pin and place in a safe location to avoid damaging it.
4. Remove the foot (3) and the two screws (8) and then remove the lower hinge (2) with hinge pin (9).
5. Unscrew the left front foot (4) and transfer to the right side.
6. Unscrew the hinge pin (9) from the lower hinge (2) and screw it into the other side (reversed).
7. Screw the lower hinge (2) into place on the bottom left side with the two screws (8).
8. Re-fit the foot(3) on the bottom left side.
9. Slot the door onto the lower hinge pin and align with the cavity opening in its closed position.
10. Remove the blanking plug from the hole on the top left of the door and transfer to the right side.
11. Screw the upper hinge (5) into place with screws (1) on the top left side of the cabinet.
12. Make sure the hinge pin on the top hinge locates in the hole in the top left of the door.
13. Make sure you have tightened all the screws securely.
14. Re-fit the worktop(7) in reverse order of step 1.

T3AS F4/ S0E32G 121/GY

For the most energy efficient use of your appliance:

• Ensure your freezer has adequate ventilation as recommended in the installation instructions.
• Allow warm food and drinks to cool down before placing in the appliance.
• Keep door openings to a minimum.
• Open the appliance as briefly as possible.
  Regularly defrost the freezer compartment to remove the layer of frost.
• Ensure that the freezer door is always closed properly.

4A1/0T32G 243S1S

2normal 9oises

• Motors are running.
• Refrigerant is flowing through the tubing.

C, EANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents.

1. Set the temperature control knob to the off position (!"N) and disconnect the mains plug from the mains socket.
2. Take out the food and store in a cool location.
3. Clean the appliance with a soft cloth, warm water and detergent.
4. Wipe the door seal with clear water only and then wipe dry thoroughly.
5. After cleaning reconnect and adjust the temperature control knob as desired.
6. Put the food back into the appliance.

T/4IIG1SH44T32G

If there is a problem with your appliance, please check the following points before contacting customer service.

Aproblem	Aossible causes	Aossible solutio9
Appliance does not operate.	No electricity at power outlet. Check that the plug is correctly connected and power switched on.
Noises Cabinet not	stable or level. Freezer is defrosting.	See installation section.
Appliance not cool	Temperature setting not correct. Frequent door openings. Large amount of food recently added.	See temperature control section. Minimise door openings to allow temperatures to stabilise.

SA1D3F3D0T342S

Jra9d	Proline
Opplia9ce tSpe	Freezer
Star rati9B	***
Dclimate class + 0mbie9t ra9Be	N (+16°C ~ +32°C) S" (+&°C~ ++,°C)
1Electric sLock protectio9 class	I
/ated voltaBe a9d freque9cS	220-240V~ 50Hz
39put power 90W
19erBS co9sumptio9	0.450 kWh/24h
/efriBera9t/0mou9t R600a / 40g
/ated curre9t 0.60A
FreeOer storaBe volume	60L
Total Bross volume	65L
FreeOi9B capacitS	3.0(kg/24h)
2et weiBLt 24kg
39sulatio9 blowi9B Bas Cyclopentane
Aproduct dime9sio9 WW R D R H mm)	480x500x850
19erBS class W1) A+
Aower co9sumptio9 W2)	164 kWh/annum
2oise	41dB
Aower failure safe storaBe time	15 hours
(1) Energy class: A+++.....D (A+++=economical D=less economical)
(2) The real power consumption depends on using conditions and appliance location.

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

WAARSCHUWINGEN. NNNNNNNN

BELANGRIJKE VEILIGHEIDSVOORZORGEN 1111111111111114111

BENAMING VAN DE ONDERDELEN 1111111111111111115

V22.)A'(5)(0+V.0Z. (ON/'A, **. !! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ！$！！！！！！

INSTALLATIE. 111111111111111111111

OMGEVINGSTEMPERATUUR 1111111111111111111.6

V22.)A'(5, (\mathrm{V}^{}\mathrm{N}/10)), (\mathrm{N}(0\mathrm{N})()(\mathrm{b}2^{},\mathrm{bA}/(2\mathrm{F})(0^{}+\mathrm{V}.0^{}/(\mathrm{Z}^{*}!!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)!\cdots)

STROOMONDERBREKING 16

TEMPERATUURREGELING 11111111111111111117

UW APPARAAT VERPLAATSEN. 7

LEVENSMIDDELEN IN DE DIEPVRIEZER INVRIEZEN EN BEWAREN. 7

IJSBLOKJESMAKEN 11111111111111191

ONTDOOEN 111111111111111111

DE DEUROPENING OMKEREN. 111111111111111111111120

TIPS OM ENERGIE TE BESPAREN. 1111111111111111111111...20

GELUIDEN VAN UW APPARAAT. 1111111111111111111ZZ

REINIGEN EN ONDERHOUD. 111111111111111111

N2.1A, is de c;ud stand

1AX is de koudste stand

UW APPARAAT VERPLAATSEN
