USER MANUAL WK 3477 SEVERIN

Black and white photo of a modern glass water heater with liquid, no visible text or symbols on the main subject.

WK 3477

GB Instructions for use Tea and water kettle 15

Close-up of a hand pouring liquid into a stainless steel kettle with a mesh lid (no text or symbols visible)

DE

Tee-/Wasserkocher

Tea and water kettle

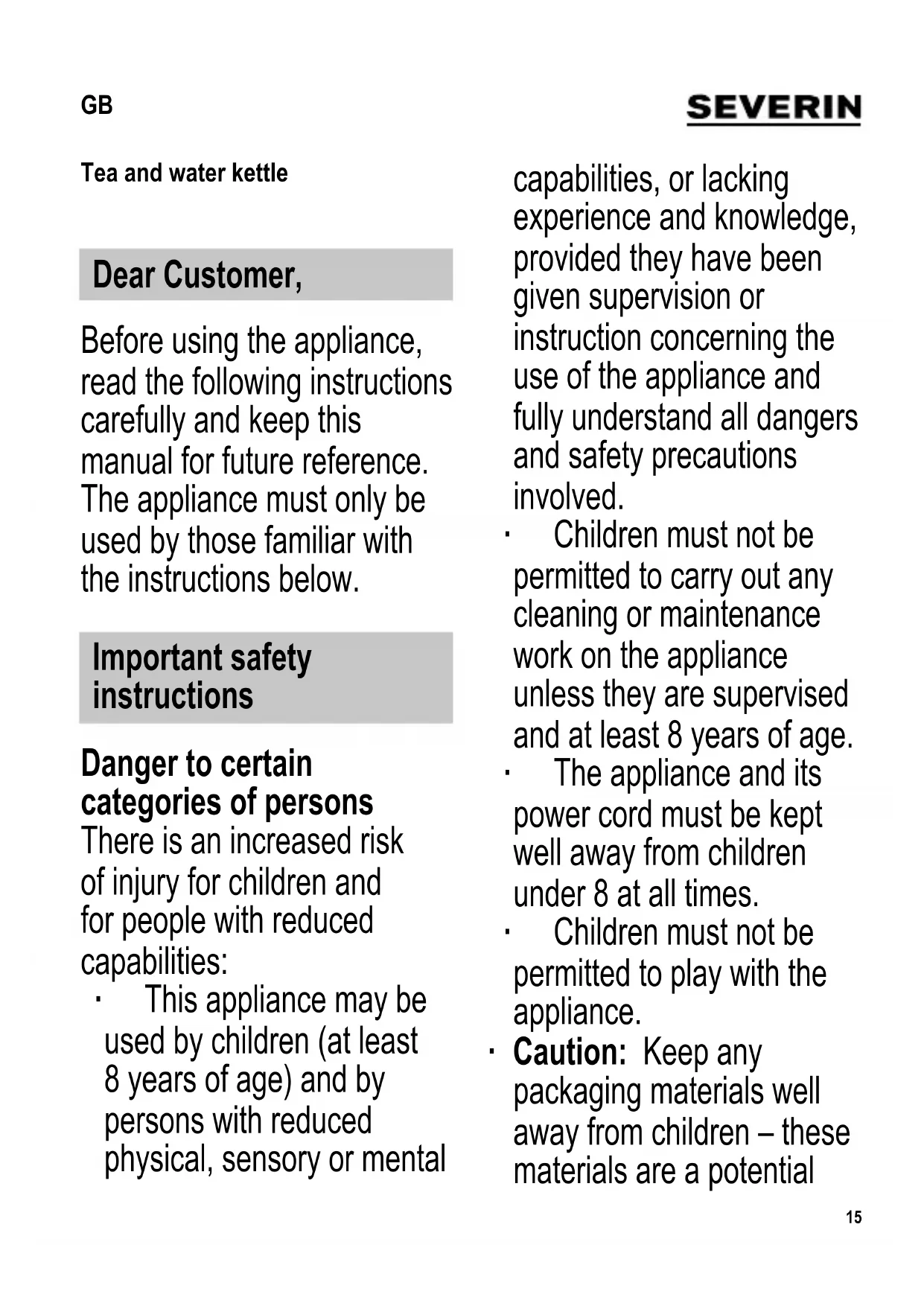

Dear Customer,

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by those familiar with the instructions below.

Important safety instructions

Danger to certain categories of persons

There is an increased risk of injury for children and for people with reduced capabilities:

- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental

capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

• Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.

- The appliance and its power cord must be kept well away from children under 8 at all times.

- Children must not be permitted to play with the appliance.

- Caution: Keep any packaging materials well away from children – these materials are a potential

source of danger, e.g. of suffocation.

Risk of electric shock

The device is powered by electricity, and so there is always a risk of electric shock. The following precautions are therefore to be taken:

- Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the

appliance.

- The appliance should only be connected to a socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label.

- Because the kettle uses high power, it must not be operated with any type of extension cable.

- Always remove the plug from the wall socket - after use, - in case of any malfunction, - before cleaning the appliance.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself. - Do not touch the plug with wet hands.

- The electrical connections in the base must be protected at all times against possible contact with water.

- Do not clean the water container and the base with liquids and do not immerse them; do not clean under running water.

- The kettle may only be operated with the base provided with the appliance.

- Never remove the water container from the base (or replace it) while the appliance is switched on.

Danger of burns and scalding

- The exterior surfaces become hot during use and will remain so for some time afterwards.

- Do not leave the kettle

unattended during operation. Use only pure water when fi lling the container to the desired level, observing the Min. (0.5 l) and Max. (1.5 l for tea or 1.7 l for water only) markings. Overfi lling the container may cause danger if boiling water is forced out.

• For boiling water only, always remove the tea fi iter.
• Do not exceed to 70 °C when re-heating tea.

Caution: Do not bring to a boil, as the liquid may foam over.

• Also beware of the danger of scalding from hot steam being emitted. Therefore, do not touch any parts of the appliance except the handle during use.
• During the boiling process

and when pouring out hot water, the lid must be kept closed at all times.

Lack of hygiene

Lack of hygiene may result in germs forming inside the appliance:

• Clean the appliance thoroughly before using it for the first time.
• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• The appliance must be descaled at regular intervals. Clean the water container as necessary with a damp cloth.
  • Detailed information on cleaning the appliance can be found in the section Cleaning and care.

Danger of damage to the unit

Incorrect handling of the appliance can cause damage:

• Always let the appliance cool down fi rst before re-fi lling with fresh water.
• Always place the unit on a dry, level, non-slip and heat-resistant surface, which is impervious to contact with the rubber feet.
• Do not operate the appliance below a hanging cupboard or similar object; there is a risk that escaping steam may be trapped underneath.

- Do not let the power cord hang free.

- Do not kink or pinch the power cord. Keep both the cord and the appliance

itself well away from heat sources (eg hot-plates, gas flames).

Intended use

• The appliance must only be used for heating clean, fresh water and for making hot beverages.
• Any use other than that described in these instructions must be considered improper and may lead to personal injury or material damage.

• This appliance is intended for domestic or similar applications, such as

• in staff kitchens in shops, offi ces and other similar working environments,

• in agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,

- in bed-and breakfast type environments.

• Do not leave the appliance unattended while connected.
• Caution: Any misuse can cause severe personal injury.

In case of a defective appliance

A defective appliance can cause material damage and injury:

• Check the appliance for damage before every use. Do not operate if the appliance shows any sign of damage.
• In the event that you detect damage, please contact our customer service department by phone or email (see appendix).
• Repairs to this appliance or its power cord must only be

carried out by our customer service.

Overview and parts included

1. Lid insert
2. Lid
3. Water container
4. Handle
5. Power cord with plug
6. Base
7. Tea filter

Control panel

1. On/Off button
2. Indicator light Heating-up
3. Temperature button
4. Indicator light Keeping-warm
5. Selector button Keeping-warm / Heating-up
6. Display

Thermal safety cut-out

The pre-set thermal safety cut-out protects the heating element from overheating should the appliance be erroneously switched on without any water, or if the heating plate is calcified. If the safety cut-out has been activated, the appliance cannot be switched on again. In such a case, the appliance must be allowed to cool down, or must be descaled, before it is switched on again.

Temperature selection

The appropriate temperature for the particular type of tea can be selected using the Temperature button 📄 on the control panel.

Water temperatures for making tea

We recommend the following temperatures:

Green tea : 70-80 °C

White tea : 80 °C

Oolong tea : 90 °C

Black tea : 100 °C

Herbal tea : 100 °C

Note: Please also refer to the tea manufacturer's instructions.

• The current water temperature in the container ( ≥ 20 ^ ) is shown on the display.
• Pressing the Temperature button repeatedly increases the temperature selection in 5-degree steps.
• If the current temperature inside the container exceeds the temperature selected, the appliance cannot be started; in this case, a sequence of three beep signals is heard.
  • Temperatures below 40 °C cannot be selected.

Automatic switch-off

Unless the keep-warm function has been selected, the kettle will switch off automatically around 15 minutes after the last operation.

In the keep-warm mode, it switches off after 30 minutes.

Before using for the first time

• Unpack the appliance completely and remove all packaging materials.
  • To clean the kettle, boil (with the tea filter in place) and discard the first filling of water.

Operation

Heating water

• Remove the water container from its base; then turn the lid insert anti-clockwise (UNLOCK) and take it off.
• Fill the container with water to the desired level, observing the Min (0.5 l) and Max (1.7 l for heating water) markings.
• Replace the lid insert and turn clockwise (LOCK) until it is heard locking into place.
• Place the container back on its base.
• Insert the plug into a suitable wall socket.
• A beep signal is heard and the display shows C, followed by the current water temperature inside the container. The indicator light Heating-up 📊 starts fl ashing. The appliance is now in Stand-by mode.
• Use the Temperature button 🔒 to set the desired temperature, and then confi rm by pressing the On/Off button ⏻. The indicator light 🎨comes on. The display shows the selected temperature, followed by the current temperature.
• The heating process begins. Once the pre-set temperature has been reached, the appliance is automatically switched off; three short beep signals are heard

and the indicator light 📋 goes out.

• The boiling process may be interrupted by pressing the On/Off button ⏻The appliance is now in Stand-by mode.
• To pour hot water, remove the container from its base.
• To prevent hot steam from being emitted, ensure that the lid remains closed while pouring out the water.
• Remove the plug from the wall outlet after use.
• Do not leave any residual water in the container.

Quick-Boil function

When placing the water container onto the base and pressing the button, the water is heated to 100 °C without the need to set a temperature.

Making tea

• Remove the water container from its base, turn the lid insert anti-clockwise (UNLOCK) and take it off. Take out the tea filter.
• Fill the container with water to the desired level, observing the Min (0.5 l) and Max (1.5 l for making tea) markings.
• Heat up the water as described in the section Heating water.
• Put the required amount of tea into the tea filter.

• Once three beep-signals are heard and the indicator light goes out, release the lid insert by turning it anti-clockwise and remove it. Caution: Take special care, as hot steam may be emitted! If necessary, use oven gloves.

• Fit the tea filter in the container, observing the recess in the container lid; the tea fi Iter handle must be aligned with the water container handle.

• Replace the lid insert and allow the tea to steep as desired.
• Once the required steeping time has elapsed, remove the filter and place it carefully on a heat-resistant surface.
• Replace the insert in the container lid and close it by turning clockwise.

Infusion times

The optimal infusion times largely depend on the type of tea used and on personal taste.

We recommend the following times

Green tea : 2-3 minutes

White tea : 2-3 minutes

Oolong tea : 3 minutes

Black tea : 2-5 minutes

Herbal tea : 4-6 minutes

Keep-warm function

• The kettle comes with a keep-warm function.
• To activate this function, first press the button.
• The indicator light Keeping-warm starts flashing.
• Use the Temperature button 📁 to select a temperature between 40 and 95 °.
• Press ☐ to confirm.
  • The indicator lights and come on.
• The appliance heats up the water and switches off automatically once the selected temperature is reached. Three beep signals are heard and the indicator

light goes out.

• The water is kept warm for about 30 minutes.
• This function is automatically cancelled once the water container is removed from the base.

Power cord wind-up storage

The wind-up power cord storage under the base allows the length of the power cord to be limited during use and to be stored.

Descaling

• Depending on the water quality in your area, lime deposits may build up on the heating element. It is advisable to remove any such deposits at regular intervals.
• Any warranty claim will be null and void if the appliance malfunctions because of insufficient descaling.
  • A mixture of 0.5 litres of water and 40 ml of vinegar essence is suitable.
• Pour the descaler in.
• Switch the appliance on and let the solution reach boiling point.
• Leave it to take effect for a short period.
• To clean the container after descaling, rinse thoroughly with clean water.
• During descaling, ensure sufficient ventilation and do not inhale any vinegar vapours.
• Do not pour descalers down enamel-coated sinks.

Cleaning and care

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the water container and the base with liquids and do not immerse them. Do not clean under running water.
• For cleaning, a slightly damp, lint-free cloth may be used.
• The lid can be removed to allow the interior to be cleaned.
• The tea filter may be cleaned under running hot water, or can be left inside the container during descaling.
• Do not use abrasives or harsh cleaning solutions, and do not use hard brushes for cleaning.
• Depending on the type of tea used, certain discoloration and odour may occur from the appliance or tea filter. These effects may be minimised by regular cleaning, but cannot be completely avoided.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase.

Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Trouble shooting

Problem Cause Remedy
Functions cannot be activated.	Appliance is not plugged in.	Connect appliance to mains.
	Socket is defective. Check the socket with a different appliance.
	Appliance is not placed on base correctly.	Position it properly.
	Safety cut-out is activated.	Appliance needs to cool down or be descaled.
Water doesn’t heat up, and beep signals are heard.	The water container temperature is higher than that selected.	Select a higher temperature.
Heating-up takes longer than expected.	Build-up of scale deposits.	Descale the appliance (see Descaling).
Increased noise during heating.	Build-up of scale deposits.	Descale the appliance (see Descaling).
Display shows continuous error code E....	Electrical fault in the appliance.	Contact our Customer Service.

Should you be unable to solve the problem using the table, please contact our Customer Service. The contact data can be found in the appendix to this manual.

Technical specifications

Device category, Art. no. Tea and Water Kettle, glass 3477
Voltage 220-240 V~, 50/60 Hz
Output 1850 - 2200 W
Dimensions (W x H x D) 24 x 26 x 15 cm
Weight 1,4 kg
Special markings
	Do not dispose of in domestic garbage
	This product complies with all binding CE labelling directives.
UNLOCK Lid insert release
LOCK Lid insert lock

FR

Bouilloire eau-thé

Chère cliente, Cher client,

under rindende vand.

1 Angel Kanchev, 5th floor

1000 Sofi a, Bulgaria

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

China

Ningbo Autin Electric Appliance CO.,LTD

B4-061/062 NO,181 Exhibition Road,

Jiangdong District, Ningbo

Tel.: [phone]

Fax.: [phone]

Web: www.nbautin.com.cn

Web: www.autin.com.cn

Czech Republic

BVZ Commerce s.r.o.

Parkerova 618

CZ 25067 Klecany

Tel.: [phone]

Fax: [phone]

Danmark

F&H of Scandinavia A/S

Gl. Skivevej 70

DK-8800 Viborg

Tel.: [phone]

Fax: [phone]

26 Oaktree Business Park

Trim Co., Meath

Tel.: [phone]

Fax: [phone]

Web: www.bluestone.ie

Italia

ASSISTENZA POST-VENDITA

NUMERO VERDE 800224155

E-Mail: [e-mail]

Indonesia

PT. Setai Modern Elektronik

Email.: [e-mail]

Web.: www.severin.co.id

Jakarta

Komp. Glodok Plaza Blok F No. 9, Jl.

Dr.Waleed Maraqa commercial center,

Level 1

Khalda, Amman Zip code: 11953

Tel: [phone]

Fax: [phone]

Mob Jordan : [phone]

Kuwait

Mohammed Abdulrahman Al Bahar

Al Bahar Building P.O. Box 148

Safat 13002 Kuwait

Tel.: [phone]

Latvia

SIA GTCL BALTIC

Piedrujas iela 7

LV - Riga 1073

Tel.: [phone]

Fax: [phone]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Tel.: [phone]

Fax:[phone]

E-Mail: [e-mail]

Internet: www.khouryhome.com

Luxembourg

Ser-Tec

A.A.K & Partners L.L.C.

P.O Box:-1650, Muttrah

Postal Code - 114

Sultanate of Oman

Tel.: [phone]

Fax.: [phone]

E-Mail: [e-mail]

PERU

SEVERIN PERU

Mezzanine 1, South Center Tower

2206 Venture Street, Madrigal Business Park

Alabang, Muntinlupa City

Tel.: [phone]

E-Mail: severinconsumercare@

colombophils.com.ph

Polska

Severin Polska Sp.z o.o.

6 Tagore Drive, #03-04

Singapore 787623

Tel.: [phone]

Fax: [phone]

Web: www.beste.com.sg

E-Mail: [e-mail]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

Slowak Republic

BVZ Commerce s.r.o.

Parkerova 618

CZ 25067 Klecany

Tel.: [phone]

Fax: [phone]

South Africa

AL&CD Ashley (PTY) Ltd.

3rd Floor, Grove Exchange

9 Grove Avenue

Claremont

South Africa

7708

Tel: [phone]

Fax: [phone]

Web: http://www.alcdashley.co.za

Mail: [e-mail]

Svenska

Rakspecialisten HS

Möllevångsgatan 34

214 20 Malmö

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Switzerland

SPC Electronics AG

Mövenstrasse 12

CH - 9015 St. Gallen

Tel.: [phone]

E-Mail: [e-mail]

www.spc.ch

Thailand

Verasu Ltd. part.

83/7 Wireless Rd., Lumpini,

Patumwan, Bangkok 10330

Tel.: [phone]

E-Mail: [e-mail]

Tunisie

GEI

54, rue du Mercure

Zone Industrielle 2013-BEN AROUS

TUNISIE

Ukrayina

Service for Modern Electronics LLC

Sim'i Khokhlovykh Str.8

4119 Kiev

Tel.: [phone]

E-Mail: [e-mail]

United Kingdom

Homespares Centres Limited

Firwood Industrial Estate

Thicketford Road

Bolton, BL2 3TR

Tel.: [phone]

Fax: [phone]

E-Mail: offi [e-mail]

Web: www.homespares.co.uk

Vietnam

BRAND PARTNER

CTY TNHH DOI TAC NHAN HIEU

2/7 NGUYEN THANH Y

DA KAO WARD, DISTRICT 1

HO CHI MINH CITY, VIETNAM

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Stand: 02.2020
