USER MANUAL DO8132 DOMO

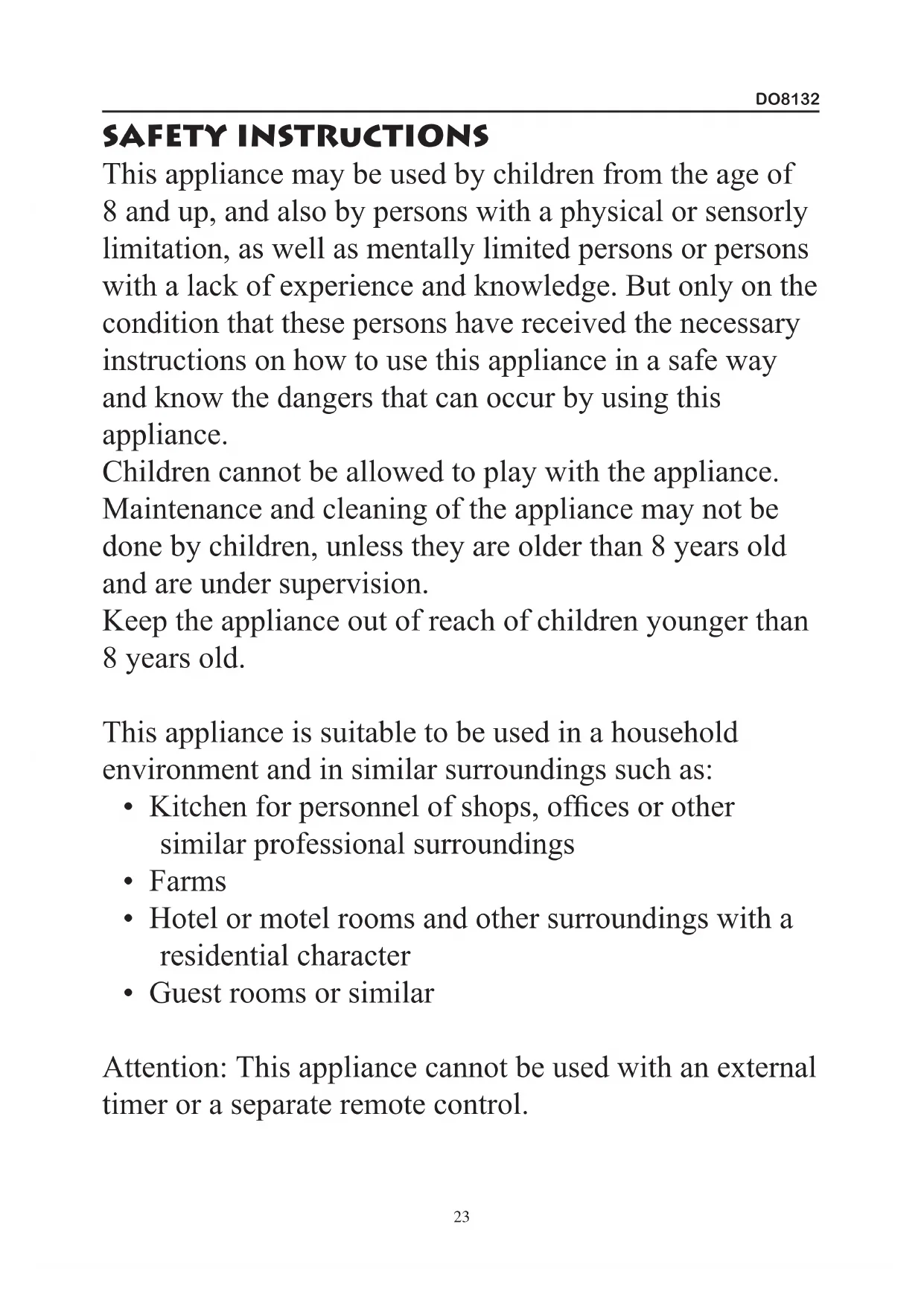

SAFETY INSTRuCTIONS This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance. Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old. This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, ofces or other similar professional surroundings

• Hotel or motel rooms and other surroundings with a residential character

• Guest rooms or similar Attention: This appliance cannot be used with an external timer or a separate remote control.DO8132

• Don’t touch the appliance with wet hands or feet.

• Don’t use the appliance barefoot.

• Do not insert or allow ngers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or re or damage the heater.

• To prevent a possible re, do not block air intakes or exhaust in any manner.

• Always place the appliance on a stable, at, level surface when operating. Do not cover the power cord, do not place any objects on the power cord. Make sure the power cord can not be tripped over.

• Make sure the cord isn’t placed on a hot surface.

• Don’t pull the power cord or the appliance to remove the plug from the socket.

• Don’t expose the appliance to rain, sun, etc.

• Don’t let children or unauthorised persons use the appliance without supervision.

• Don’t immerse the appliance in water.

• Don’t use the appliance near a bath, shower or swimming pool. This appliance is not intended for use in wet or damp locations.

• Before cleaning the appliance always unplug the appliance rst or put the switches in the “off” position.

• When your appliance is damaged, switch it off and unplug the power cord. Don’t try to repair it yourself. Contact an electrician or the after sales service of the manufacturer, to make that original parts will be used.

• When you decide to never again use the appliance, we recommend to cut of the power cord completely, afterDO8132

you have removed the plug from the socket.

• Installation of the appliance must be done according to the specications of the manufacturer. A wrong installation can lead to accidents with people, animals or damage to objects. The manufacturer cannot be held responsible for this.

• The appliance must always be used upright.

• The inlet grill of the appliance must always be left free.

• Make sure that the current is the same as mentioned on the rating label. When in doubt, let it be checked by an electrician.

• Don’t let the appliance operate when it is not necessary. Remove the plug from the socket when you don’t need the appliance.

• Don’t cover up the air inlet and air outlet grill.

• The power cord of this appliance cannot be replaced by the consumer. For the replacement of the cord you can only make an appeal on the after sales service of the manufacturer.

• Do not use the appliance outdoors.

• Do not allow children to use the appliance, unless a supervisor is present and a person who is responsible for their safety has clearly described how the appliance works.DO8132

HOW TO uSE To adjust the speed, move the speed control to the required position : 0 : to stop 1 : slow 2 : medium 3 : fast To make the fan head oscillate, push in the knob on the motor housing. To stop the fan from oscillation, pull up on the knob. To adjust vertical angle, tilt fan head up or down as desired. ASSEMBLY Mount the rear guard onto the front of the motor unit by matching the 4 positioning holes (H) on rear guard to the 4 positioning round pins on the front of the motor unit.

• Push in rmly until the pins protrude through the holes.

• Secure the rear guard to the motor unit with the rear guard lock nut.

• Insert the fan blade onto the motor shaft. Be sure that the pin in the shaft is match with the slot on the fan blade. Press rmly until the fan blade stops. Secure the fan blade with the fan blade screw.

• Test the fan blade operation by rotating it with your hand. There should be no friction with the rear guard lock nut. If the blade does not rotate freely, disassemble and repeat the procedure.

• Attach the front guard to the rear guard by positioning the hook.

• Join the front/rear guards by pressing rmly.

• Secure the two guards by the xing screw. CLEANING Use a soft tissue or cloth to clean. In case dirt or grime does not come off easily, use soapy water. Do not use benzine thinner or other solvents.DO8132
