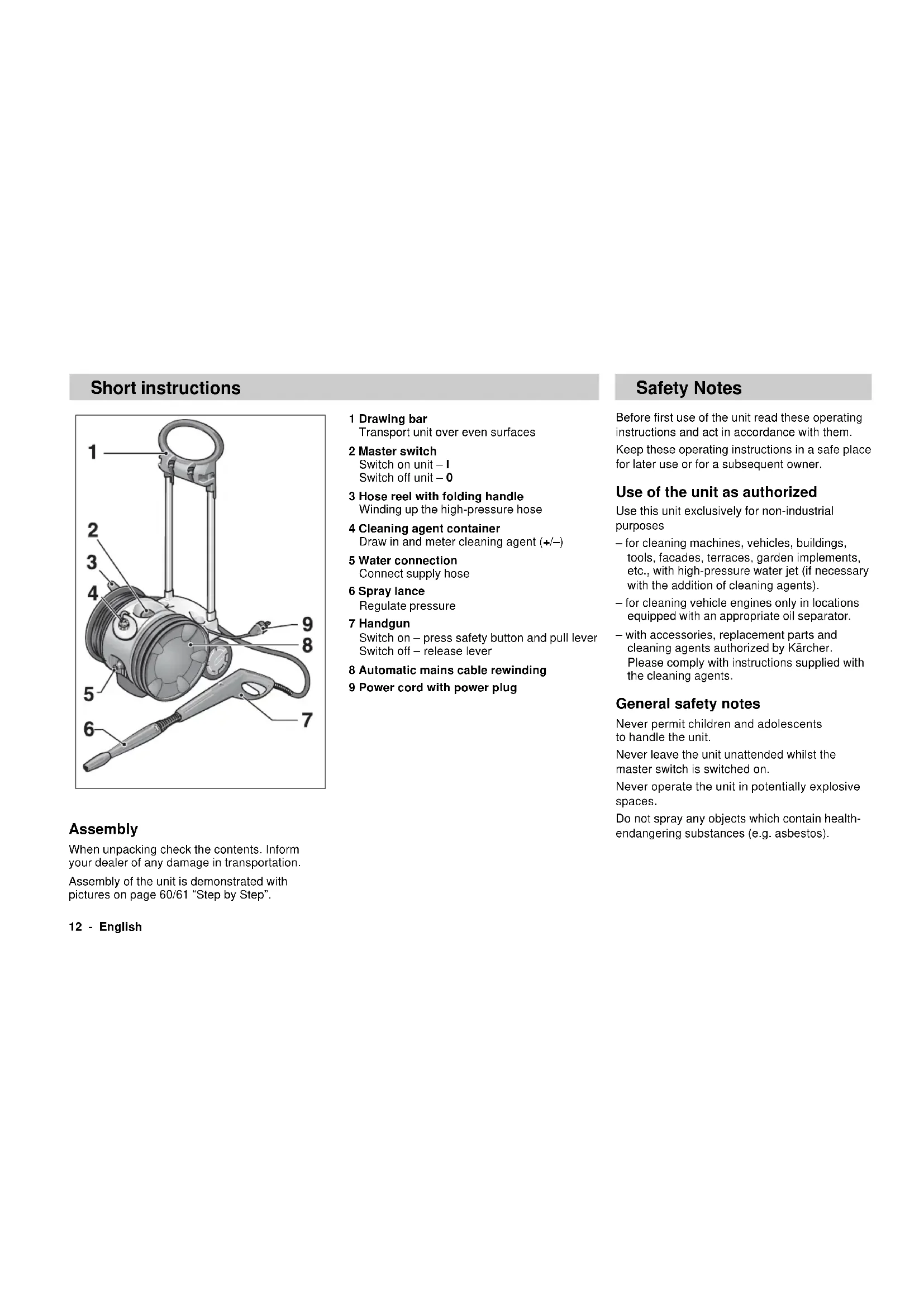

(2000/14/EG) 93 dB(A) Maße Länge/Breite/Höhe 500/410/925 mm Gewicht 21 kg Stromlaufplan C1 Betriebskondensator F1 Thermo-Kontakt M1 Motor S1 Geräteschalter S2 Druckschalter12 - English Short instructions 1 Drawing bar Transport unit over even surfaces 2 Master switch Switch on unit – I Switch off unit – 0 3 Hose reel with folding handle Winding up the high-pressure hose 4 Cleaning agent container Draw in and meter cleaning agent (+/–) 5 Water connection Connect supply hose 6 Spray lance Regulate pressure 7 Handgun Switch on – press safety button and pull lever Switch off – release lever 8 Automatic mains cable rewinding 9 Power cord with power plug Safety Notes Before first use of the unit read these operating instructions and act in accordance with them. Keep these operating instructions in a safe place for later use or for a subsequent owner. Use of the unit as authorized Use this unit exclusively for non-industrial purposes – for cleaning machines, vehicles, buildings, tools, facades, terraces, garden implements, etc., with high-pressure water jet (if necessary with the addition of cleaning agents). – for cleaning vehicle engines only in locations equipped with an appropriate oil separator. – with accessories, replacement parts and cleaning agents authorized by Kärcher. Please comply with instructions supplied with the cleaning agents. General safety notes Never permit children and adolescents to handle the unit. Never leave the unit unattended whilst the master switch is switched on. Never operate the unit in potentially explosive spaces. Do not spray any objects which contain health- endangering substances (e.g. asbestos). Assembly When unpacking check the contents. Inform your dealer of any damage in transportation. Assembly of the unit is demonstrated with pictures on page 60/61 “Step by Step”.English - 13

Warning signs on the unit Never direct the high-pressure jet at human beings, animals, the unit itself or at electrical parts. Safety devices Safety devices serve to protect against injuries and must not be changed or circumvented. Relief valve with pressure switch When the lever on the handgun is released the pressure switch switches off the pump and the high-pressure jet ceases. When the lever is pulled the pressure switch switches on the pump again. Moreover, the relief valve prevents the permissible operating pressure from being exceeded. Safety button The safety button on the handgun prevents inadvertent switching on of the unit. Environmental protection Dispose of packaging The packaging materials are recyclable. Please hand in the packaging for recycling. Dispose of old equipment You can obtain information about environment- protecting disposal from your Kärcher dealer. Save water In comparison to other cleaning methods, by the use of this unit you save up to 85 % of the water otherwise needed. The unit can also be operated with rain-water (use a water filter). Ease the burden on waste water Please use the cleaning agents sparingly. Observe the dosage recommendations which are supplied with the cleaning agents. Before first use Connection requirements See rating plate or Technical Data for connected values. Electrical connection The voltage shown on the rating plate must match the supply voltage. The current source must be properly earthed. We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current. Only use splash-protected extension cable with a sufficient conductor cross-section (10 m: 3 x 1.5 mm², 30 m: 3 x 2.5 mm²) and unwind completely from the cable drum. Connection to water line Supply hose (not supplied). Only use supply hoses with the following dimensions: length at least 7.5 m, diameter at least ½". Dirt in the feed water could lead to the appliance being damaged. To avoid this risk, we recommend fitting a Kärcher water filter (see “Special accessories”). Comply with the stipulations of the water supply company. Safety Notes14 - English Operation

Serious danger! Vehicle tyres and tyre valves can be damaged by the high-pressure jet and become perforated. The first sign of this is a discoloration of the tyre. When cleaning them maintain a distance of at least 30 cm. Never grasp the power plug with wet hands. Before each use check the power cord and power plug for damage. Have a damaged power cord replaced immediately by an authorized Kärcher service point or an electrical specialist. Before each use check the high-pressure hose for damage. Replace a damaged high-pressure hose immediately.

Danger of injury! Owing to the water jet emerging from the high- pressure nozzle a recoil force operates on the handgun. Ensure you have a secure footing and hold the handgun and spray lance firmly. If necessary wear protective clothing for protection against return spray. Water supply The unit can either be supplied from the water main or from water in an open container. Water supply from the water main Connect a supply hose (not included) to the water inlet of the unit and to the water supply (e.g. water tap). Open the water supply. Water supply from an open container Unscrew the coupling part for the water inlet. Screw the suction hose with filter (not included, see “Special accessories”) onto the water connection of the unit. Hang the filter in the container. Vent the unit before operation. – Let the pump run without the spray lance until water comes out of the handgun. Then connect the spray lance again.English - 15

Preparation The mains cable can be unwound to an appropriate length (max. 6,5 m). The cable drum audibly locks into place for every half revolution. Note: If the power cable has not completely unreeled, the cable drum can warm up to 60 °C. This will not cause any impairment to the functioning or safety of the unit. Insert power plug. Turn master switch to “I”. Switching on Press safety button on the handgun and pull the lever. Switching off Release the lever. During breaks in work and when leaving the unit secure it against inadvertent switching on by pressing the safety button. Regulate operating pressure/ flow rate Raise operating pressure: twist spray lance in direction “+”. Reduce operating pressure: twist spray lance in direction “–”. Operation Connect accessories Depending on the model the following accessories are either included in the scope of delivery or are obtainable from specialist dealers (see also “Special accessories”). Exchange the respective accessory with the spray lance. Wash brush for large, smooth surfaces – e.g. on the automobile, caravan or boat. Cleaning agent can be added. Rotating wash brush for gentle and thorough cleaning – e.g. bodywork and glass surfaces. Cleaning agent can be added. Rotary nozzle for stubborn accumulations of grime – e.g. moss-covered promenade tiles or facades. Work without cleaning agent and with the highest operating pressure.16 - English Adding the cleaning agent

• Fill the detergent reservoir with ....... ..... Detergent tablet and water or ..... Detergent concentrate and water. Observe metering recommendations on the packaging label of the detergent. Meter out the cleaning agent (cleaning agent metering valve) – medium quantity: centre-position – large quantity: “+” position – small quantity: “–” position. Twist the spray lance in the “–” direction until the stop. Recommended cleaning method

1. Spray the cleaning agent on the dry surface

sparingly and let it react (but not dry out).

2. Wash off the loosened dirt with the high-

pressure jet. Master switch to “0”. Draw out power plug. Draw out the mains cable until no more unwinding noises can be heard. Then when you release the cable it will be automatically wound up. Operation Finishing operations Cleaning agents For trouble-free operation and for matching to the relevant cleaning task we recommend our Kärcher cleaning agents and care range. Please let us advise you or ask for information about them. Here is a small selection: Universal cleaner Profi RM 555 ULTRA Automobile cleaner Profi RM 565 ULTRA House and garden cleaner Profi RM 570 ULTRA Boat cleaner Profi RM 575 ULTRA When the water has been supplied from the water main Close the water supply tap. Separate the unit from the water connection. When the water has been supplied from an open container Unscrew the suction hose with filter at the water inlet of the unit.English - 17

Pull the lever on the handgun until the unit is without pressure. Press in the safety button to protect the unit against inadvertent switching on. Wind the high-pressure hose on the hose reel. Caution! Frost can destroy an incompletely emptied unit. In the winter keep the unit in a frost-free room. Separate the spray lance from the handgun and place it in its holder. Care and MaintenanceFinishing operations Safekeeping / Transportation Switch off the unit before transporting it. To transport it over stairs or obstacles lift the unit. To transport the unit over even surfaces draw it by the drawing bar. Cleaning Before long periods of storage, e.g. in winter: Pull the cleaning agent metering valve off the cleaning agent suction hose and clean it under running water. Pull out the strainer in the water inlet with flat- nose pliers and clean it under running water. Maintenance The unit is maintenance-free.18 - English Help with faults Fault Cause Remedy Unit does not run Power supply interrupted Draw out power plug! Check power cord, power plug, extension cable and cable connections for damage Unit does not come up to pressure Spray lance set to “–” Set spray lance to “+” In suction operation – unit not vented Vent unit, see “Operation” Strainer in water inlet blocked Clean strainer, see “Care and Maintenance” Water supply quantity too low Check the water supply to the water inlet of the unit for leaks and throughput Strong pressure fluctuations High-pressure nozzle in spray lance blocked Take off the spray lance, clean the hole in the high-pressure nozzle with a needle and rinse through with water again Water comes out of the housing underside Pump leaking 3 drops per minute are acceptable. For greater leakages contact the customer service Cleaning agent is not drawn in Spray lance set to “+” Set spray lance to “–” Cleaning agent valve in the cleaning agent suction hose blocked Clean cleaning agent metering valve, see “Care and Maintenance” Faults often have simple causes which you can rectify yourself with the aid of the following summary. In case of doubt or of faults or remedies not mentioned here apply to the authorized customer service.

Danger of electric shock! Repair work on the unit can only be carried out by the authorized customer service. Customer Service In the case of questions or faults our Kärcher branches will be pleased to assist you further: Replacement parts Use exclusively Kärcher original replacement parts. You will find a replacement parts summary at the end of these operating instructions. Inrush currents cause short-time voltage drops. Under unfavourable power supply conditions other equipment may be affected. If the system impedance of the power supply is < 0,15 Ohms, disturbances are unlikely to occur.English - 19

Special accessoriesTechnical Data Special accessories expand the scope of use of your machine. You can obtain further information from your Kärcher dealer. See page 62 for illustrations. 1 Rotary nozzle 2 Spray guard for rotary nozzle 3 Pipe-cleaning set 4 Rotating wash brush 5 Wash brush 6 Wet blasting set 7 Flexible spray lance 8 Three-way nozzle with spray lance 9 Spray lance for places which are difficult to access 10 Floor spray lance 11 Spray lance extension 12 High-pressure hose 13 Hose extension 14 Large volume suction set 15 Suction hose with filter 16 Water filter 17 Non-return valve 18 T-Racer Guarantee In each country the guarantee conditions issued by our responsible sales company are applicable. We clear any faults occurring in the unit free of charge during the period of guarantee providing the cause is a fault in a material or in the manufacture. In the case of a claim under the guarantee please contact your dealer or the nearest authorized customer service point, accompanying your claim with accessories and purchase voucher. Power supply Voltage (at 1~50 Hz) 220-240 V Connected load 2,5 kW Supply fuses (time-lag) 16 A Safety class 1,IP X5 Water connection Supply temperature (max.) 60 °C Supply volume (min.) 10 l/min Supply pressure (max.) (6 bar) 0,6 MPar Performance data Operating pressure (130 bar) 13 MPa Pump pressure max. (140 bar) 14 MPa Flow rate (530 l/h) 8,8 l/min Cleaning agent metering 0,2 l/min Suction height from open container (20°C)1 m Recoil force of the handgun 21 N Hand-transmitted vibration (ISO 5349) 0,8 m/s² Sound pressure level L
