Dream - Baby bed Babyhome - Free user manual and instructions

Product Type	Baby bed with cradle and rocking function
Brand	Babyhome
Model	Dream
Materials	Metal frame, outer cover in 600D polyester, inner cover and sheet in 100% cotton
Bed Dimensions	Minimum internal height: 200 mm (with provided mattress)
Weight	Not specified in the manual, estimated around 8-12 kg
Recommended Age	From birth until the child can sit, kneel, or stand up unaided
Use Positions	4 wheels, braking, rocking
Main Functions	Cradle with rocking function, wheels for mobility, parking brake
Textile Care	Machine wash at max 30°C with mild soap; do not wring, spin dry, or iron the mattress
Care of Metal and Plastic Parts	Warm water and mild soap; do not use harsh substances, solvents, or bleach
Safety	Use only the provided mattress; do not add pillow, duvet, or other mattress; minimum internal height 200 mm; do not use if child can sit, kneel, or stand up unaided; check locks
Included Accessories	Upper structure, legs, cover, sheet
Spare Parts and Repairability	Use only replacement parts recommended by the manufacturer; repairs by unauthorized personnel void the warranty
Warranty	Compliant with European legislation; does not cover damage due to improper use or failure to follow instructions
Standards	UNE EN 1130:1996
Origin	Made in China
Manufacturer Contact	BABYNOW S.L., Raimon Casellas 28, 08205 Sabadell, Spain

Frequently Asked Questions - Dream Babyhome

How to wash the textile parts of the Dream baby bed?

The outer cover in 600D polyester, inner cover, and 100% cotton sheet can be machine washed at max 30°C with mild soap. Do not wring, spin dry, or iron the mattress. For metal and plastic parts, use warm water and mild soap. Avoid harsh substances, solvents, or bleach.

What are the use positions of the Dream cradle?

The Dream bed has three positions: 4 wheels (to move the cradle), braking (to stabilize it), and rocking (to rock the baby). To switch between positions, use the lever on the side of each leg and rotate the folding foot with your foot.

Until what age can my child use this baby bed?

The Dream baby bed can be used from birth until the child is able to sit, kneel, or stand up alone. At that point, the cradle should no longer be used.

Can we add another mattress or duvet in the cradle?

No, use only the mattress provided by the manufacturer. Never add a pillow, duvet, or other mattress for padding, as this poses a risk of suffocation for the baby.

How to assemble the Dream baby bed?

Place the upper structure (A) on the floor. Install the legs by pressing the buttons on the union parts (illustration 1 in the manual). Put the cover in place by inserting it into the metal frame until the base rests on the leg posts. Close the four zippers to secure the cover to the upper structure. Finally, install the safety locking components under the cover.

What are the essential safety precautions for this bed?

Use only the provided mattress. The internal height (distance between the mattress surface and the top edge of the cradle) must be at least 200 mm. Do not place objects with strings or cords around the child's neck. Do not hang chains or strings from toys. Check that all locking mechanisms are properly closed before use.

Is the Dream baby bed guaranteed?

Yes, Babyhome guarantees the repair of its products in accordance with current European legislation. The warranty does not cover damage due to improper use or failure to follow instructions. Any repair by an unauthorized person voids the warranty.

Can I use spare parts not recommended by the manufacturer?

No, use only replacement parts recommended by the manufacturer or distributor. Using non-approved parts could compromise safety and void the warranty.

How to clean the metal and plastic parts of the cradle?

Wash metal and plastic parts with warm water and mild soap. Do not use harsh substances, solvents, or bleach, as this could damage the materials.

Can the cradle be used without its support?

No, the cradle bassinet must not be used without its support. Ensure all fixing components are correctly installed before each use.

USER MANUAL Dream Babyhome

Line drawing of a simple rectangular basin or pool structure with four legs and a curved side (no text or symbols)

EN USER'S GUIDE / 4
ES GUÍA DE USUARIO / 7
FR GUIDE DE L'UTILISATEUR / 10

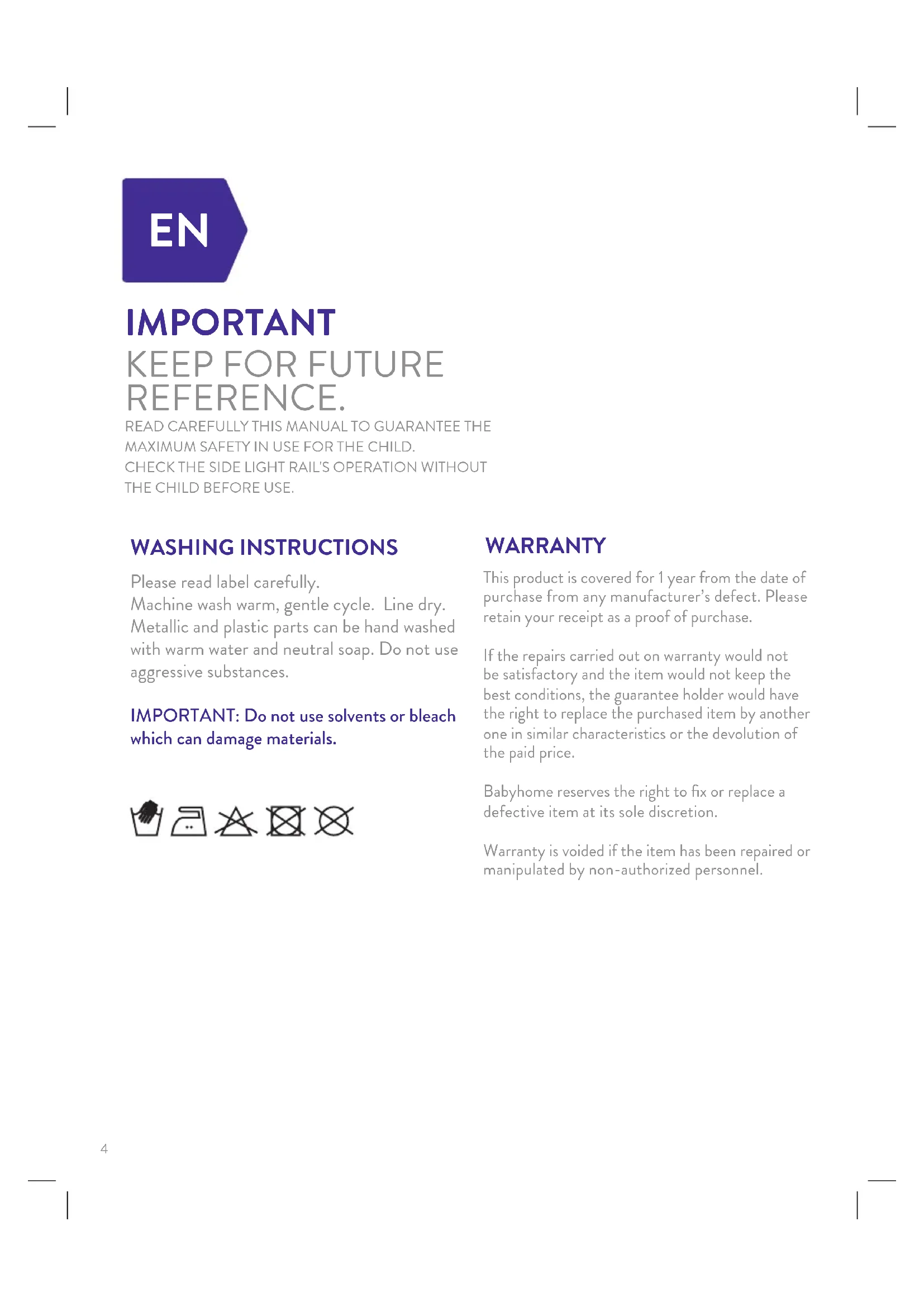

EN

IMPORTANT

KEEP FOR FUTURE REFERENCE.

READ CAREFULLY THIS MANUAL TO GUARANTEE THE MAXIMUM SAFETY IN USE FOR THE CHILD.

WASHING INSTRUCTIONS

Please read label carefully.

Machine wash warm, gentle cycle. Line dry.

Metallic and plastic parts can be hand washed with warm water and neutral soap. Do not use aggressive substances.

IMPORTANT: Do not use solvents or bleach which can damage materials.

WARRANTY

This product is covered for 1 year from the date of purchase from any manufacturer's defect. Please retain your receipt as a proof of purchase.

If the repairs carried out on warranty would not be satisfactory and the item would not keep the best conditions, the guarantee holder would have the right to replace the purchased item by another one in similar characteristics or the devolution of the paid price.

Babyhome reserves the right to fix or replace a defective item at its sole discretion.

Warranty is voided if the item has been repaired or manipulated by non-authorized personnel.

WARNING

SUFFOCATION HAZARD

Infants have suffocated

- In gaps between extra padding and side of the bassinet / cradle.

- On soft bedding

Use only the pad provided by manufacturer.

NEVER add a pillow, comforter, or another mattress for padding.

To avoid any risk, remove the protective plastics before use. They must be destroyed or out of the reach of the baby.

If someone else must take care of the baby, explain him/her the instructions for use and safety.

When the child can sit down, kneel down or stand up by himself, cot must not be used by this child anymore.

Do not use this product if some part breaks or gets lost.

Before using the cot, check that block mechanisms are locked and adjusted correctly.

All assembly fittings should always be tightened properly and that care should be taken that no screws are loose, because a child could trap parts of the body or clothing (e.g. strings, necklaces, ribbons for babies' dummies, etc), which would pose a risk of strangulation.

Product must always be on the floor and over a safe and flat surface.

Do not allow any other children to play nearby the cot without an adult's vigilance. In case of leaving baby without vigilance, it is necessary to use block position.

The thickness of the mattress chosen shall be such that the vertical internal height (surface of the top of the mattress to the upper edge of the bed sides) is a least 200mm in the highest position of the bed base.

Use just sold or approved accessories.

Use just recommended spare parts.

Pay attention to the eventual risk of fire and other important sources of heat, as central heating or gas heaters nearby the cot.

The grey line drawn on the inner wall of the product marks the height of the mattress.

WARNING! Failure to follow these warnings and the instruction could would results in serious injury or death

FALL HÄZÄRD - To help prevent falls, do not use this product when the infant begins to push up on hands and knees or has reached 9 kg. weight, whichever comes first.

To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.

If a sheet is used with the pad, use only the one provided by the bassinet or cradle manufacturer or one specifically designed to fit the dimension of the bassinet or cradle mattress.

Strings can cause strangulation! Do not place items with a string around a child's neck, such as hood strings or pacifier cords. Do not suspend strings over a bassinet or cradle or attach strings to toys.

INSTRUCTIONS FOR ASSEMBLY AND USE

List and description of components:

Main structure (A)

Legs

Textile

Outside fabric: polyester 600D

Inside fabric: cotton 100%

Fitted Sheet: cotton 100%

All the components can be found in the packing To assemble the structure, the most convenient is to put component A on the floor.

Then, join cot's legs to the direction shown in picture 1. To assemble each leg correctly it is necessary to push the buttons situated in both join pieces, according to detail of picture 1. Make sure the unblock systems are as in the picture; after assembling this piece will be situated to the left. The next step is to assemble the fabric. Fabric will be introduced into the metal structure until the base is supported on join axis between legs.

Fabric gets fixed to upper structure closing the 4-zips at the perimeter of the textile, according to picture 3.

Subsequently, you should close the safety locks located under the fabric with the aluminum bar. Image 4 refers to it with more detail.

To take to pieces, remind to remove all the fixation elements and safety locks.

This cot has 3 use positions: 4 wheels, stop and rock.

Stop and rock positions are blocked. To change them, release the safety lock by moving the handle at the leg's upper side. It is shown at the pictures below.

To change from 4 wheels position to stop position, put foot over the revolving legs and spin it following the arrows in picture 5. To change from Stop position to rock position proceed the same way than before (picture 6). Before spinning the leg, make sure block is released by means of each's leg side handle.

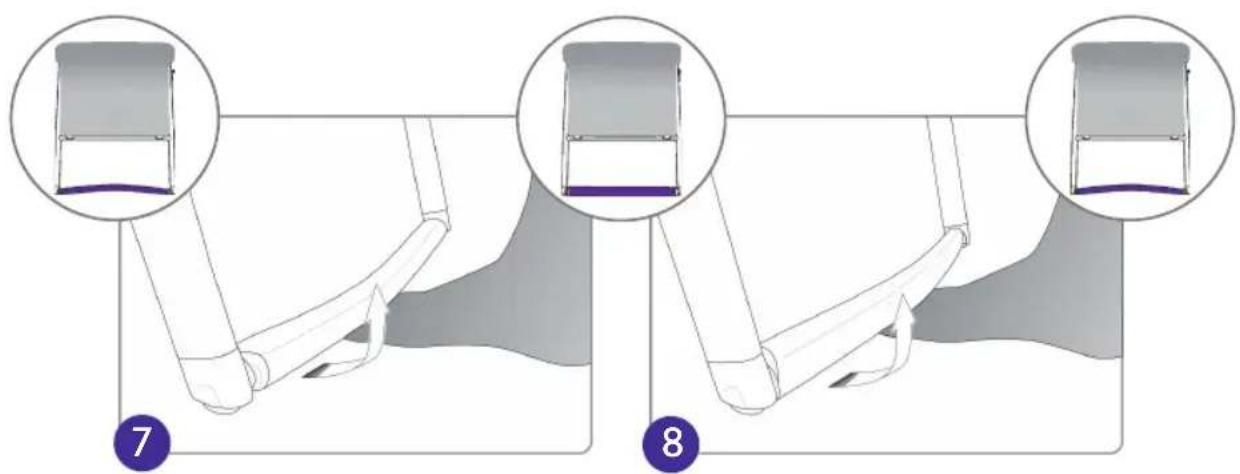

In picture 7 it is shown how to put back the block position, from rock's one. In this case, put foot under the revolving leg and spin it following the arrows in picture. Start position is blocked, so before spinning, lift the handle to release this movement.

To get the 8 wheels position again, proceed in the same way than before (picture 8). Use also the side handle to unlock this position.

NOTE: all movements before described can be done by hand

ES

IMPORTANTE

CONSERVAR PARA FUTURAS CONSULTAS.

Technical line drawing of a mechanical device with a magnified inset showing a component detail (no text or symbols)

Line drawing of a simple chair with legs and backrest, no text or symbols present

Illustration of a person adjusting a garment sleeve (no text or symbols visible)

Diagram showing a mechanical component with a magnified inset highlighting a specific part (no text or symbols present)

Diagram illustrating foot positioning and movement steps with numbered instructions and magnified views

Diagram illustrating a mechanical or fluid system with labeled steps 7 and 8, showing structural changes in a container-like structure.

ASTM F2194-13 / SOR 2010-261

babyhome®
