USER MANUAL CIC642 CANDY

Instruction Manual For Induction Hob ENGLISH

Table De Cuisson Induction FRENCH

Thank you for purchasing the CANDY induction hob. Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference.

By placing the CE C E marking on this product, we declare, on our own responsibility, compliance to all the European safety, health and environmental requirements stated in the legislation for this product. Asapplicable, the parts of this appliance are compliant to:

REGULATION (EC) No 1935/2004 on materials and articles intended to come into contact with food.

Safety Reminding and Maintenance:

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
  Children under 8 Year of age must be kept away from the appliance unless they are continuously supervised.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
• appliance in a safe way and understand the hazards involved. Children must not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• WARNING: Danger of fire: do not store items on the cooking surfaces.

• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Do not use a steam cleaner for cleaning operations
• Metallic objects such as knives, forks, spoons and sauce pan lids must not be placed on the hob surface as they can get hot. Any spillage should be removed from the lid before opening.
• The hob surface must be allowed to cool down before closing the lid.
• After use, switch off the hob element by its control. Do not rely on the pan detector.
• This appliance is not intended to be operated by means of an external timer or separate remote - control system.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

WARNING: Use oly hob guards designed by manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• Always use the appropriate cookware.
• Always place the pan in the center of the unit that you are cooking on.
• Do not place anything on control panel.

• Do not use the surface as a cutting board.

• The means for disconnection must be incorporated in the fi ed wiring in accordance with the wiring rules.- The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the applicance.

• The hob surface must be allowed to cool down before closing the lid. - CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously

Dear Customer:

Thank you for purchasing the CANDY induction hob. We hope it will give many year service.

Please read this instruction manual carefully before using the hob and keep it in a for future reference.

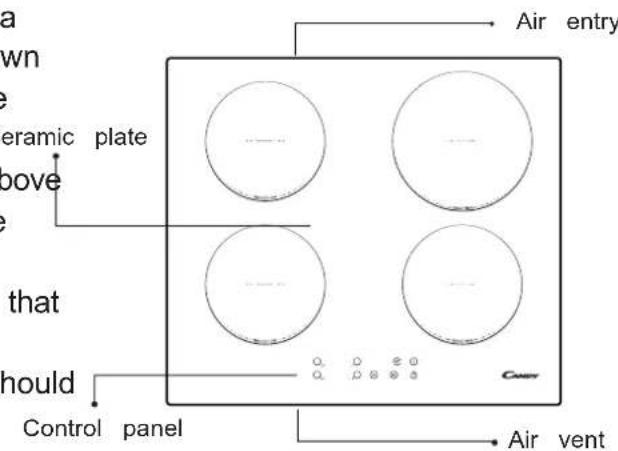

Product Introduction

The induction hob caters for all kind of cooking electromagnetic cookingzones, and its micro-computerised controls and multi-functions, making ideal choce todays family.

Manufactured with specially imported materials, the CANDY induction hob is extremely fit friendly, durable and safe.

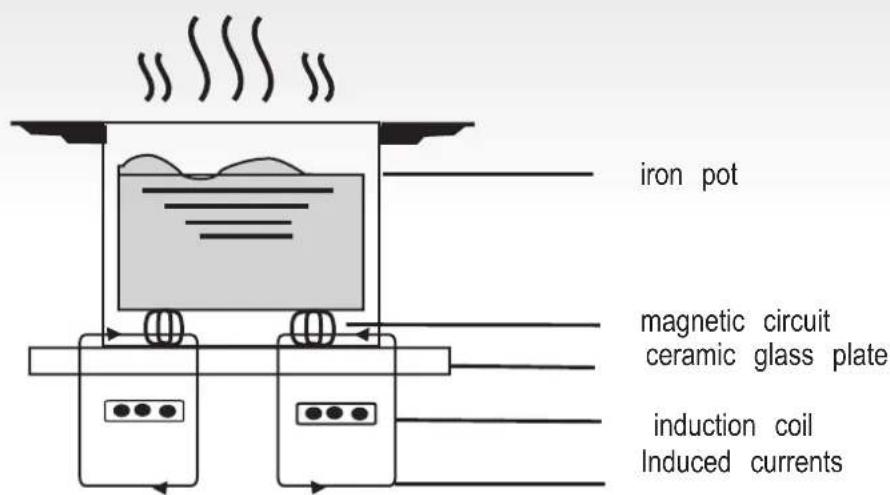

Working Principle

The induction hob comprises a coil, a hotplate made of ferromagnetic material and a system. Electrical current generates a powerful magnetic field through the coil. This produces a large number of vortices which in turn generate heat which is then transmitted through the cookingzone to the cooking vessel.

Safety

Installation

This hob was specially designed for domestic use. In its constant search to improve its product CANDY reserves the right to modify any technical, programme or aesthetic aspects of the appliance at any time.

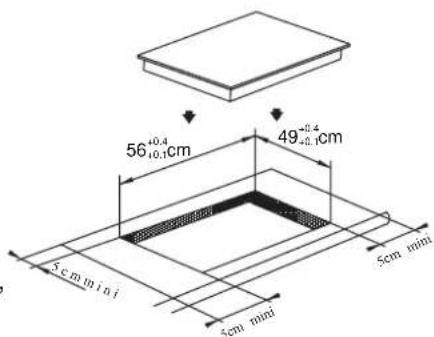

Cut a hole in the worktop of the dimensions shown in the diagram below. A minimum of 50~mm space should be left around the hole. The worktop should be at least 30~mm thick and made of heat-resistant material. As shown in Figure (1)

Protection from over-heating

A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe level, the cooking zone is automatically switched off.

Detection of small or non-magnetic items

When a pan with a diameter of less than 80 mm, or some other small item (e.g. knife, fork, key) or a non-magnetic pan (e.g. aluminium) has been left on the hob, a buzzer sounds for approximately one minute, after which the hob goes automatically on to standby.

Figure (1)

Residual heat warning

When the hob has been operating for some time, there will be some residual heat. The letter 2H"lt appears to warn you to keep away from

It is essential that the induction hob is ventilated and that the air intake and exit not blocked.

Auto shutdown

Another safety feature of the induction hob is a shutdown. This occurs whenever you forget to F switch off a cooking zone. The default shutdown times are shown in the table below:

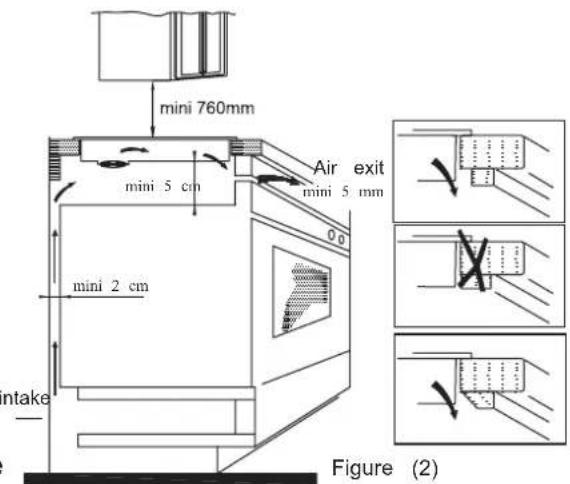

Make sure the hob is correctly installed as shown in Figure 2.

Power level	The heating zone shut down automatically after
1~3	8 hours
4~6	4 hours
7~9	2 hours

When the pan is removed from the cooking zone, it stops heating immediately and switches itself off after the buzzer has sounded for one minute.

Warning: Anyone who has been fitted with NB: For safety, the gap between the hob a heart pacemaker should consult a doctor before cupboard above it should be at least 7 using the induction hotplate. mm.

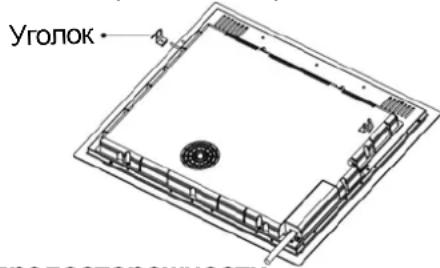

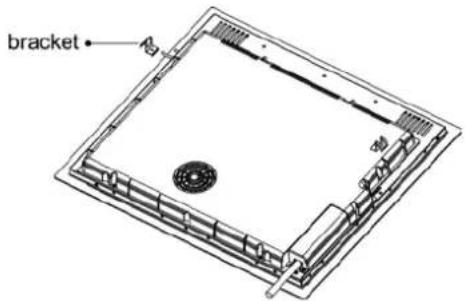

1. Fix the hob to the worktop using the Iffothe appliance is being connected directly brackets on the base of the hob. The positions supply, an omnipolar circuit break of the brackets can be adjusted according to be installed with a minimum gap of the thickness of the top. between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.

The cable must not be bent or compressed. The cable must be checked regularly and only replaced by a properly qualified person.

Warnings:

(1) The induction hob must be installed by a properly qualified person. We have our own qualified installers. Never try to install the appliance yourself. Cera
(2) The induction hob must not be installed above refrigerators, freezers, dishwashers or tumble dryers.
(3) The induction hob should be installed so that optimum radiation of heat is possible.
(4) The wall and the area above the hob should be able to withstand heat.
(5) To avoid any damage, the sandwich layer and adhesive should be heat-resistant. S

4. Connection to power supply

The socket should be connected in compliant with the relevant standard, to a single-pole circuit breaker. The method of connection is shown in Figure 3.

Figure (3)

Voltage	Wire connection
380-415V 3N~	1 2 L1 L2 Black Brown	3 4 N Blue	5 1 Yellow/Green
220-240V~	1 2 L Black & Brown	3 4 N Blue	5 1 Yellow/Green

If the cable is damaged or needs replacing, it should be done by an after-sales technician using the proper tools, so as to avoid any accidents.

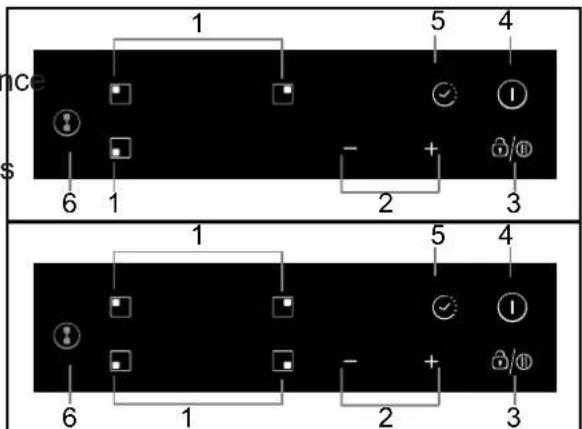

Schematic diagram of the control panel

any Heating zone selection controls 2. Power / Timer regulating key

1. Keylock/Pause control
2. ON/OFF control
3. Timer control
4. Flexible Area control( Some models are without it)

Instructions for Use

Preparation before using:

When the power is switched on, the buzzer will set sound once and all the indicators will come off for one second and then go out. The hob is in standby mode.

Place the pan in the centre of the cooking zone.

decreases the time by one minute. When the
er will
set time exceeds 99 minutes, it will automatica
the on
return to0" minutes. If t'he" and "+" keys are
is now
pressed simultaneously, the indicator will display

Operating instructions

When the ON/OFF key is pressed, all the indicators show-". Select the power level by pressing the"or"-key for the relevant hotplate. To begin with the indicator "Shows Adjust up or down by pressing"dhe"key. If you press and"keys simultaneously, the power setting returns0"and the cooking zone switches off.

See the table on Page for the power speciected zone.

to each cooking zone.

NB: When the ON/OFF key is pressed, the induction hob returns to standby mode if the other operation is carried out within oneminu

1. Select the power level of the cooking zone and then press "thimer"key. The timer can now be set.
   By. When the timing indicator has been flashing for 5 seconds, the settime will be automatically confirmed.
2. After selecting a set time, confirm by press the "Timer" key.
3. Once the "Timer" is confirmed, a dot appears on the bottom right of the power level of the

Timer cancellation

After setting the time again, hold down the timer key for 5 seconds. This will cancel the timer and the indicator will reveal to

Timing function

Press the timing key and the indicator will flashing. Then set the time for between 1 99 minutes, by pressing "t" and "-" keys.

Pressing the + " key once increases the time by one minute; pressing " -thkey once

Safety mode

To ensure the safety of children, the induction hob is fitted with an interlock device.

To lock: hold down"litterlock"; the hob then goes int'nterlock" mode, the timer shows "Lo" and the rest of the keysated except the "ON/OFF" key.

Unlicking

ABD down t'Enterlock" key for 2 seconds andthe hob will return to normal working.

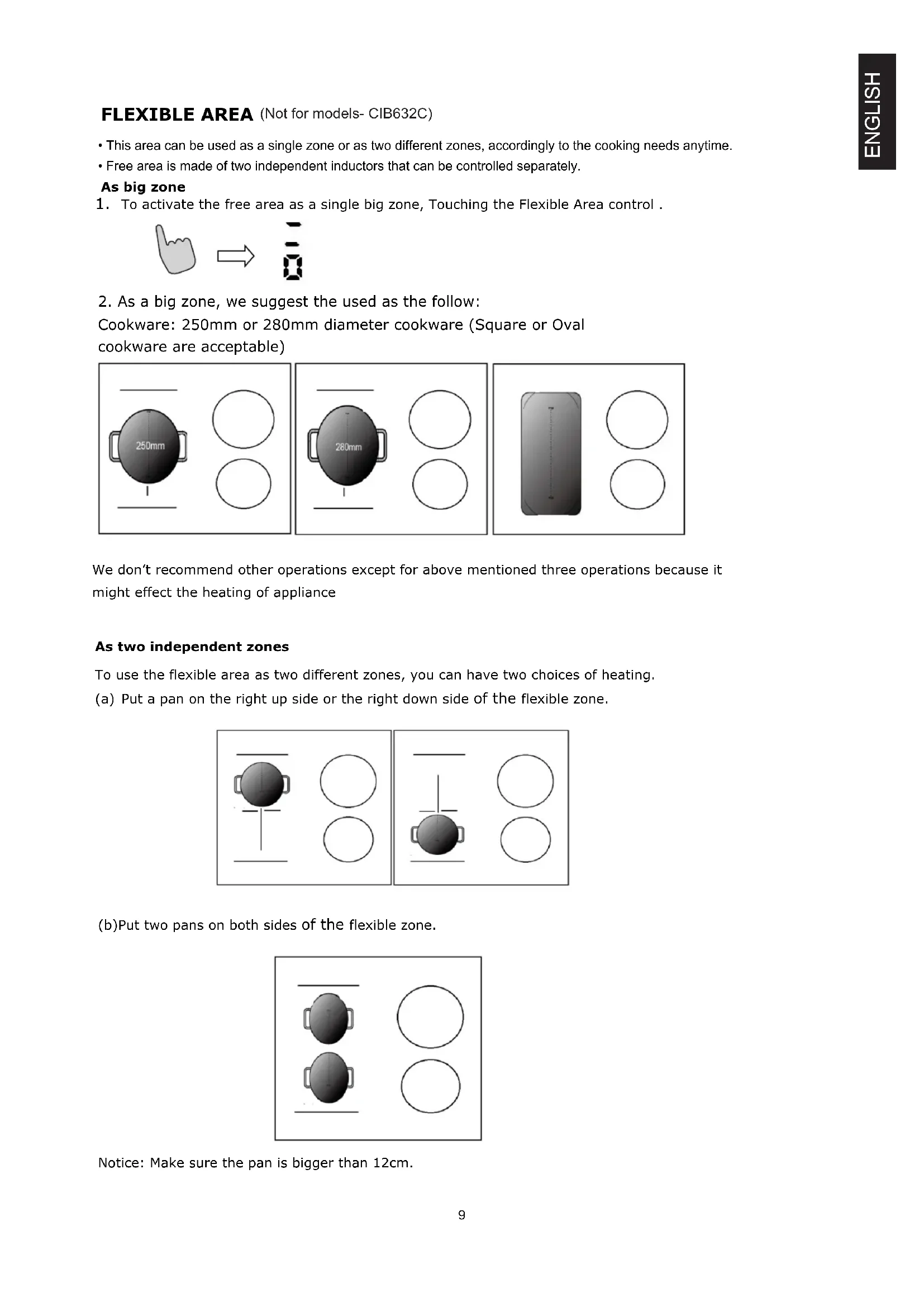

FLEXIBLE AREA (Not for models- CIB632C)

• This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime.
• Free area is made of two independent inductors that can be controlled separately.

As big zone

1. To activate the free area as a single big zone, Touching the Flexible Area control.

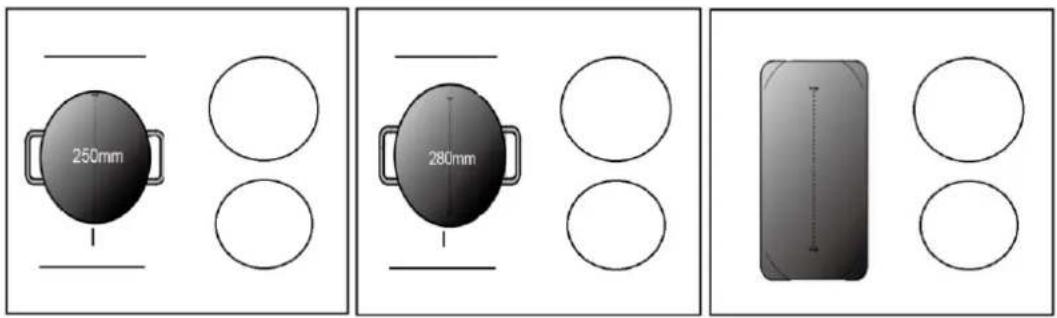

1. As a big zone, we suggest the used as the follow:

Cookware: 250mm or 280mm diameter cookware (Square or Oval cookware are acceptable)

We don't recommend other operations except for above mentioned three operations because it might effect the heating of appliance

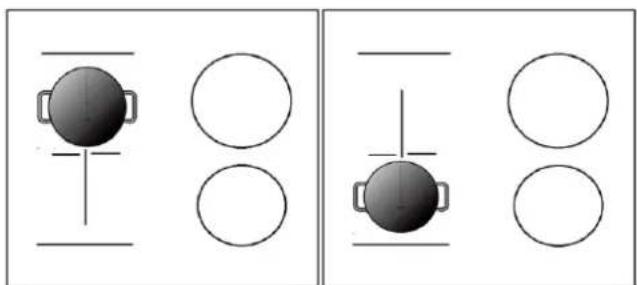

As two independent zones

To use the flexible area as two different zones, you can have two choices of heating.

(a) Put a pan on the right up side or the right down side of the flexible zone.

(b)Put two pans on both sides of the flexible zone.

Notice: Make sure the pan is bigger than 12cm .

Boost mode (Not for models- CIB632C)

Touching the heating zone selection control, then touching "+" . Make sure the display shows "9". Touching the "+" button again, the zone indicator show "b" and the power reach Max

Cancel the Boost mode

Touching the " - " button to cancel the Boost function, then the cooking zone will revert to its original setting. Touching " - " and "+" control together, the cooking zone switch off and the boost function cancel automatically

• The cooking zone returns to its original setting after 5 minutes

Note: It is recommended that the cooker hood suction is switched on few minutes prior to cooking and switched off few minutes after terminating cooking.

Pause Mode

• You can pause the heating instead of shutting the hob off.
• When entering the Pause mode, all the controls except the ON/OFF control are disabled.

To enter pause mode
Touch the lock/pause control.	All the indicator will show " 11"
To unlock the controls
Touch the lock/pause control.

When the hob is in the pause mode, all the controls are disable except the ON/OFF ① , you can always turn the induction hob off with the ON/OFF ① control in an emergency.

Power Management Function

• it is possible to set a maximum power absorption level for the induction hob, choosing up to different power ranges.
• induction hobs are able to limit themselves automatically in order to work at lower power level, to avoid the risk of overloading.

To enter Power Management Function

Turn on the hob, then Press at the same time the "+" (timer) and key lock.

The timer indicator will show " P5" which means power level 5. The default mode is on 7.0Kw/ 7.1Kw.

To switch to another level

press + / - from the timer There are 5 power levels, from "P1" to "p5". The timer indicator will show one of them.

"P1": the maximum power is 2.5Kw.
"P2": the maximum power is 3.5Kw.
"P3": the maximum power is 4.5Kw.
"P4": the maximum power is 5.5Kw.
"P5": the maximum power is 7.0Kw/ 7.1Kw.

Confirmation and Exit Power Management Function

Press at the same time + (timer) and key lock for Then the hob will be turned off. confirmation.

Selection of cooking vessels

Iron oil frying pan

Stainless steel pot

Iron pan

Iron kettle

Enamel stainless steel kettle

Enamel cooking utensil

Iron plate

You may have a number of different cooking vessels

This induction hob can identify a variety of cooking vessels, which you can take one of the following methods:

Place the vessel on the cooking zone. If the corresponding cooking zone disp a power level, then the vessel is suitable for use with the induction hob.

2 Hold a magnet to the vessel. If the magnet is attracted to the vessel, it is for use with the induction hob.

NB: The base of the vessel must contain magnetic material.

It must have a flat bottom with a diameter of more than 14 cm.

3 Use pans whose diameter is as large as the graphic of the zone selected.

Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140mm could be undetected by the hob.

Cleanness and Maintenance

The surface of the induction hob may be easily cleaned in the following way:

Type of contamination	Method of cleaning	Cleaning materials
Light Immersion	in hot water and wipe dry Cleaning	sponge
Rings and lime scale	Apply white vinegar to the area, wipe a soft cloth or use a commercially available product	Special adhesive for ceramic glass
Sweetmeat, melted aluminium or plastics	Use a special scraper for ceramic glass to remove residue (a silicon product best)	special adhesive for ceramic glass

NB: Disconnect the power supply before cleaning.

Failure Display and Inspection

If any abnormality occurs, the induction hob will automatically go into protective mode and one of the following codes:

Fault Possible cause Solutions
F0/F1/F2	Fan failure	Contact the supplier
F3-F8	Temperature sensor failure	Contact the supplier
E1/E2	Abnormal voltage in power supply	Check if power supply is normal. Power on after power sup returns to normal.
E3/E4	Abnormal temperature	Check the pan
E5/E6	Poor heat radiation in cooking zone	Restart when cooking zone cools down

The above table shows how to assess and check common faults.

Do not dismantle the appliance yourself, otherwise you may damage the induction hob.

Customer Care Service

If a fault should occur, before calling After Sales Service, please do the following:

-Check that the appliance is correctly plugged in

-Read the failure and display table above

If you are still unable to resolve the problem, switch off the appliance, do not try to and call

After Sales Service.

Special Declaration

The contents of this manual have been carefully checked. However, the company cannot be held responsible for any misprints or omissions. Also, any technical modifications may be included in a revised version of the manual without notice. The appearance and colour of the appliance in this manual may differ from the actual one.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

This appliance is labelled in compliance with European directive 2012/ IBC for Waste Electrical and Electronic Equipment (WEEE).

By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

Protection anti-surchauffe

JIIO6bIe IepeKbI n3JeNnB, Bbl3BaHhbIe He6peXHoi TpaHCnOpTnpOBKn I XpaHeHem n3JeNnA, He noJneXaT 6ecnNaTHOMy rapaHTnHOMy peMOHTy.

3.YctaHOBka n 3KcnplyaTaunia

BecnIaTHbI rapaHTnHbI peMOHT He npOn3BOIDTCra, ecJI N depeKT n3deJINy Bbl3BaH: HnPaBnIbHbIM NOKIOUeHNEM 3dEJIIN K CETAM 3NEKTPO, BOIO I ra3OChA6KeHHN, a TAKKe HECoOTBeTCTBnEM npaMeTpOB BblweyKa3aHHbIX cTeEN npaMeTpAM, npedYBnEMLM o6r3aTeNbHbIMn FocydapCTBeHHbIMn CtaHdaptAmn INHCTpyKuNei no 3KcPnyatau; INCNoJIb3OBaHHe M3dEJIIN HE B COOTBeTCTBnC INHCTpyKuNei no 3KcPnyatau, a TAKKe He6pexHOJ 3KcPIyatauJe, NOBNEKUnIM BO3HnKHOBEHne MExAHuecknx INI INpyrNX TINOB DepeKToB;

IcNoJIb3OBAHnEM N3eJIy He B COOTBETCTBn C ero npraMbIM Ha3HaueHnEm IJIH He B DOMaUHnx HxKdax.

4. PemOH

BecnIaTHbI rapaHTHbI pEmOHr He npOn3BOIDTcR, ecN n3deJIne:
IMeET CJIeIbI NOCTOpOHHeO BMeUaTeJIbCTBa IIN PemaHTa He yIpONHOmeHHbIMn fIpMOJ
JIuCaM;
IMeET HecAHKcIOHnpOBaHHbIe FInpMoN I3MeHEnra KOHCTpyKcIMN IIN HeNpPmeMJIe
KOMIIeKTyUoUe;
IMeET NOBpeXdEHN, Bbl3BaHHbIe HEPpeDcKa3yEmbIMn YBJIeHNAmN I DeiCTBnAMrN CTUXN;
IMeET NOBpeXdEHN, Bbl3BaHHbIe NCIOJIb3OBAHnEM HeCTaHdApTHbIX N HeNpPmeMJIeMbIX
pacXoNDbIX MaTePnaIOB I PrnHaIaeKHOCTei;
IMeET NOBpeXdEHN, Bbl3BaHHbIe IOnaDaHnEM BHyTpB I3DeJIma NOCTOPOHHX IpEIMTOB,
arpeCCNBbIX BeIeCTB, XIBOTbIX IIN HaceKOMbIX;
HE IMeET CepnHOrO HOMepa IIN eRO HeBO3MOxHO UcTaHOBtB.
Gamma He pacnPoCtpaHareTcRa Ha pacxoIDhble MaTePnaJIb I aKceccyapbl.

5. OTBETCTBEHHOCTb

ΦnnpMa He HecET OTBETCTBEHOCHTa 3a IIO60I npuHHeHHbI Bam n OkpykaIoUm yuep6 r npuHHe HapuWeHn npabIN NcTpyKcNn NO 3KnPyatauNN, B OcObeHocTN Bb3BaHHbI HnPaBnBnIM NODKNIOeHNEM 3DeJIa K CetAM 3NeKTPO, BOo N ra3OCHa6KeHn, IN HeDOnyCTnMbIM OTKIOHEHnA MnpaMeTPOB B BblwepeucNCHeHHbx CTeX, HnPaBnBHOJ 3KnPnyatauNE, HecAHKUnOHUPOBaHHbIM pEmoHTOM, NCNOb3OBAHnEM 3DeJIa N He N Pramomy Ha3NaueHIO.
BBoD n3deJIa B 3KnPnyatauIO u DopabOTKa CeTe 3NeKTPO, BOo N ra3OCHa6KeHn dJa COBMeCTnMOCTn C n3DeJIaEM He YBIAOTcra 3OHo OTBeTCTBEHOCTHn QnPMbl N qIpMoH He ONlauVBaOTcra.
B clyuae Bo3NHKnHOBeHn KaNX-ri6o np6bem C BaUM n3DeJIaM, nepe TcM kak BblBaTb MacTepa, npOBepbTe npabNJbHOCTb yCTaHOBkn N fYHKUnOHPOBaHn B COOTBeTCTBNI C INcTpyKcne no 3KnPnyatauNN. Onnaty Bbl3OBA Bbl 6yTe npou3BOdntb 3a Cboi Cuet, ecnn n3DeJIe 6blno B pa6OeM COCTOARNN nll 6blNo HnPaBnJIbHO yCTaHOBJeHO nll nCnOJIb3OBAHO.

YBaXaEmbl KIneHT,

XOTUM NO6IarOJapITb Bac 3a TO, YTO Bbl OCTaHOBUN CBOB Bbl6Op Ha INdyKUHOHOB BapouHoi NaHeN CANDY - np6ope, KOTOpBI, 6e3 COMHeHn, Ha npOTxKeHN MHorix JET yDobNetBopIT Baun notpe6HocTn.

BHHMaTeIbHO npOHTaIe DaHHOe pyKOBOcTBo npeEd TeM, KaK npNCTyIuNTb K 3KcNJIyaTaUIN npIbopa, H 6epexKHO xpaHnte erO, YTObbl B 6dyuem Bbl MOrJIn O6pATnTbcR K Hemy B MOMENT Heo6xOdIMOCtN.

BVeDeHne

Hndykuohna Bapouhna Naheoc6ha yOBoNTBOpntb MHOrOuNCHeHHbIe HxkbI , CB3aHHbIe C npiroTOBHeHem NnUc cNoCobom 3JeKtpOMarHHTHO HarpeBa 6Naoradap MHorOofyHKUHOHaNbHOcNCTeMe ynpabHeHnRArpoEHhbIM MkPonpoceccopom, YTo DeJaTe ee NdeAusbHbIM peWeHnEM dIra COBpeMeMa

3TOT 3JIeKtpo6bIToB0 npu6op, BblIOJHHeHHbI N3 CneUaJIbHbIX MaTePnaIOB, OTNIuaeTcN pOcTOToB HcNOJIb3OBaHN, IpOCHCTbIO N HaDeJXHOCTbIO.

PpHcnp pa60tbI

PpmeHHe:pacCTOaHHe MeKdY BapOuHOc NaHeJIbIO I paCNoJoxeHHbIM BblIe IpeDMeTOM He DOnJxHO 6bITb MeHee 760 MM.

3.Посл e yctaHOBKn BapOCHNo nAHeJI N 3aФИКСИРОВaTb ee YeTbIPbMЯ yTOIkaMn K ONOPHO NOBepXHOCTN ( KaK NOKa3aHo Ha pncyHke).OTpeRyIINpOBAt b KaJdbi OTdeJIbHbI yTOJOK B 3aBNCIMOCTN OT TOJIUHNbI ONOPHO NOBepXHOCTN.

MepbI npedoctopoxhocTH

(1) MoHTaK INyUkLIOHHO BapOuHOI NaHeJI N OJIXeH OcyUeCTBnTbCRA KBaJIINΦNlUPOBaHHbIM TEXHnueCKIM nepcoHaIOM. He nbITaIteCb npoBeCTN yCTaHOBky CaMOCTOReTJIbHO.
(2) HeIb3a MOHTnpoBaTb INDyKUHOHHyU BapOHyIO NaHeJIb Ha XONODINbHnKax, NOCyIDOMOEuHBIX IIN CYUNJBHbIX MaI
(3) Heo6xOIMO yCTaHOBnTb INdyKmOHHyu BapOCHyIO nAHeJIb TaKIM 06pa3OM, YTO6bl ObecneHTb ONTMaIbHbI OTBOJ TeIIa.
(4)CTeHKn n 30Ha, HaxOJaUneCn POnIHHdyKuHOHHoB BapOCHoN NaHeJIbIO, DOnJXHbI6bITb JxapocToKIMM.
(5)YTo6bI n36eKaTb NOBpeKdEHN, TOHKa PJIeHka, C NOMOuIbIO KOTOpOI BapOuHaN IOBepXHOCTb PrnKlneNBaeTc K OOnOPHOI NOBepxHOCTN, DoJXHa 6bITb JApocToiKOi.

4.ПоdkлioуенkeTи 3ЛeКТрОNTaHЯ

IopKlHcHHe K Cetn 3neKtpoNTaHn IOnJXHO npOBODtbcra KBaINOpNtropOBaHHbIM nepcoHaJIOM B COOTBETCTBn C DeiCTBYOLUMn HopMaTnBaMn.Cxema CoedNHnnaHeJI noka3aHa Ha pncyHke 3.

IoproTOBka nepei nCnoJIb3OBaHHeM:

Cpa3y Xe nocne BKNIOHcHnBapOHa

NOBepxHOCtB NOaet 3ByKOBOI CnHaJI, BCE

CBETOIOIObl MNTAHT B TeueHne 1 MNHyTbI,

063Haay, yTO BapOHHa NOBepxHocTb HaxOHTc

BpeKIMe OXnDaHn.

IocTaBnB KaCTpHJIIO B BBbpaHHyIO

HarpeBaTeNbHy 3OHy.

3KcnnyaTaUna

IocJe HaxatnKaJbHnN "BkJ./BbIKJ." Bce CBeTOnIOJbI NOKa3bIBaHT CmB0J "-. Bb16paTb HarpeBaTeJIbHyU 3OHy, B KOTOpOH HaxoITcR KaCTPHO; CBeTOnIOJ yPOBHR MOUHOCTn Bbl6paHHo 3Ohbl HaHTet MrrAub. HaxaTb KnaBnUy "+" nnn -" , Ha DnCnPeE OTO6pa3NTcR 6a3OBoe 3NaueHne 5, HAcTpOuTB Ha XeJaEMbl IyPoBeHb C NOMUbHO KnaBnUy "+" nnn -". OdHOBpemeHNO Haximma KnaBnUy +" n KnaBnUy "-", 3NaueHn PpeDbUxHACTpOe OShyIOTcN HArpeBaTeJIbHa 3OHa BapOuHOI NaHeJI N BbIKIQUHaETcR.

B Ta6nue Ha Ctp. 89yka3aH MaKcImaIbHbI yPOBeHb MOUHOCTN DIA KAKDOn HApeBaTeIbHOI 30HbI NaHeN.

PnmeHne: Ecn nocJe HkaTna KnaBnJn "BKn./BblKl."Ha naHeJI B TeueHne 1 MmHyT He npOBODTCaKnx-ri6o OepauN, INdyKIOHOHna BapOHNaHnIb nepexOHT B pexIM OxndaHn.

Функця TAIMEP

Pn Haxatnn KnaBnTn TAYMEP, CBeToNDnHa
DnCnnee HaHnHaet MInrTaB, N MoXHO 3aDaBaTb
Bpem nprirotOBHeHn. C NOMOuBo KnaBnU ^ 十 " n
"-" Bpem HAcTpAnBaETcB DnAna3OHe OT 1 Do 99
MnHyT. Pn Haxatnn KnaBnUs " ^+ 3NaueHne
HaCTpoN yBeINuHbAeTcR C WArOM B 1 MNHyT;
Pn Haxatnn KnaBnUs "-" 3NaueHne HAcTPOKn

ymehblaaetcA 3IaromB1MnHyTu.PpeBbcN89 MInHyT, 3HaueHHe HaCTpOiKn TaMepa aBTOMATUHeckn yCTaHaBnBaETcR Ha0. PnOJHOBPeMeHHOM HkaTm KNaBnU “+” n“- "3HaueHHe Ha DnCnIe Bo3BpaLaaetcK0.

IoTBePxJdeHne 0yHKmTN TAIMEP

1. BbIbpaTb ypoBeHb MOUHOCTn HxKHOH HarpeBaTeJIbHOJ 3OHbl, HaKaTb KNaBNUJy "TaIMep" n 3aDaTb BpEMr.
2. Iocne TOrO, KaT TaIeMep MInaet B TeueHne npn6m3ntbHo 5 cekyHd, 3aHaHHoe BpeMa aBTOMaTHueckn IOITBepKdaeTcR.
3. 3aIaB INItePbAN BpemeHn, HaxKaTb KnaBnUy "TAIMEP" nI npOBepKn 3aHaHHoro 3HaueHnA.
4. Пи нахаши Ha «Таймер» Визу спра в появяется Точka обозанец уровая мошноctи BыбpaHHOJ 3OHBJ.

OTmeHaФyHKUIN TAIMEP

HaxaTb ydepKnBaTb HaxaToN KnaBnUy "TaMep" B TeueHne 5 cekHyd dIpy OTMeHbI 3aHaHNo neped 3TmФyHKcH. HaIscnpee OTo6pa3ntc0.

Бezonachoe coCToHne

Дяобсесеня 6e3oNaChocTn DeTei HdKuONHa NaHeIbObOpyDoBaHa 6JOKINPOBkoI DЯ 6JOKINPOBKn: HaxMITE KHOKNY "Interlock", NaHeIb NepeIeT B COCTOHNHe 6JOKINPOBkn "Interlock", Ha TaIMepe NOBNTcR HaIINCb "Lo". Bce KHOKN, 3a NCKJIOnYeHneM ON/OFF pa6oTaTb He 6yDyT.

Pa36JIOKInpOvKa

HaxmTe nydepKnBaIte KhoNky 2ceKyHdbI KhoNky "Interlock", naHeJIb BepHeTcB pa6ooye COCTOHNHe

IbKA OJAACTb (OTcyTCTByET B MoJeIax CIB632C)

• Ho e6xOIMOCn 3Ta o6NaCTb MoKET nCNOJb3OBaTbCk KaEiHa 3OH a Nn KaK DeE 3OHbI npriTOBHeHn
  Cbo6 Onda oobctb coctoNT nDByx He3aBnCmblx INdykTOpHbIX 3IeMe HTOB, KaKdbn N3 KOtOpbIX IMeET CBOHO CNTEmy VnpabHeHH.

IcnoJIb3OBAHne eIN HoN 6oJbwo 3OHBi

1.ДЯВКЛЮЧЕНСБОБД"HОйOBПАCTN B pEXHMe eINHOI 60JIbWOn 3OHbI HEO6XODIMO HAXaTb Ha KhoNky «ГИбКа OБпactь》.

2.ПиИСNOЛьБОВАHIM60JIbSOI3OHI3rTOBITeJIpeKOMeHdyeT: NocyaДиamETpNoCyIbI 250MMnN280MM（OnyCTMkaDpaTHaHnOBaJIbHa）

N3ROBHTJIpeKOMeHdyETNCNoJIb3OBaTbTOJIbKO yKa3AHHbIE TpN BApNaHTa pa3MeUeHn; INHbIe BApNaHTbIMORYT N3MEHHTbHarpeBaTeJIbHyIO CNOCOHOCTb np60pa.

IcnoJb3OBAHnE DByx 3OH

IINCIOBAAHRAI6KOOBaCTN BpeKIMe DBYX 3OH BO3MOXHb DBA BapnaHTA HArpeBa. (a) NocTABTE NOcyDy B BepxHIO UIN HNXHIO pabyIO Obla CTb I6KO30bl.

(b) NocTaBbTe DBe CKBOpOdbI NO O6eHM CTOpOHAM Rn6Ko OBJAcTn.

PnimeuHHe: Nocya He doJnxHa 6bItb MeHee 12 cm.

PexnM 6bIcTporo HarpeBa (OTcyTCTByeT B moJeJax CIB632C)

IOTPOHbTecb DO KHOKN Bbl6opa 30HbI HarpeBa, 3aTeM HaxMMte «+». Ha DnCnnee DoJXHO OTo6pa3Ntbcra «9».

BHObI DToPOHbTEcB Do KHOKN «+», INHdIKaTOp 3OHbI NOKaKet «b» I MOUHOCTb DOCTUNHTMakcImaJIbHoro npedeNa.

Ötmeha pexkma 6bictporo harpeBa

Дя OTmehы Функши 6bICTporo HarpeBa DoTPOHbTecb Do KHONK «-», 3OHa npiroTOBneHnЯ ПИць Вернетсь ИЗHAчальнIM HabToPOMaM.

OndHOBpeMeHHo HaxMnte KHONK N I N --).30Ha npnroTOBneHna NIIu BBIKIOHTcra, npOn3oJTe ABtOMaTnueckar OTMeHa fynKcnn 6bICTpOro HaPepBa.

• Upe3 5 MInHyT 30Ha npnroTOBJeHnI NnIeBepHeTcK n3HaJaIbHbIM HacTpOiKaM.

Приимechан: ИзгOTOBNTeЛь peKOMeHДуeТ BKJIIOUaTb BbITЯЖКу 3a HeCKOЛьКО МИНуТdo НачалapnIgROTOBЛeHЯ ПИЗи, a BbIKJIIOUaTb Yepe3 HeCKOЛьКО MInHyT ПосLE OkOHuaHЯ ГOTOBКИ.

Pay3a

BmeTo BbIKHueHn BapOuHn NaHeN MoXHO NOCTaBtB HArpeB Ha nay3y.
BoBpeMa DeiCTBnpaKIma nay3bI pa6Otae TOnbKO KhoNka BKJI/BblKN,ocTaJIbHbIe - HeT.

Hnue kactpnoI dOJXHO 6bITb nIOCKM, DnaMeTpom 6oJee 14 cm.

• | Kπacc 3aιntbɪ OT nopaxheny TOKOM
• Serial number / CepinHbI Homep: 33800842 - 0920 0001

CepnHbI HOMep COCTOnT n3 16 uΦp. IepBbIe 8 uΦp - kOd moEJI. CJeDyIOUne 4 uΦpbl - daTa npOn3BOcTBA (rO, HeJen). IocNeHne 4 uΦpbl - 3aBOcKne Homepa.

Ynctka n texo6cnyxnbHne

IobepxHocTb BapouHoi naHeJIIM MOXHO YnCTHTb CneDyIOUIm 06pa3OM:

CJYKBA CEPBnCHO OBCJyKBAHN KJINEHTOB

IpeTeM, KaK 3BOHnTb B Cnyx6y cepBnCHoro 06CnyxuBaHHa

B cnyae BO3HKnHOBeHHn HEnoJaOK B pa6Ote np60pa peKOMeHdyTe:

• y6eHtbc8, YTO wTeNceJIb npaBnIbHO NOcOeINHeH K 3JeKtpUeCKoP03ETke;

• npoHTaTb npBBeHHyIO BblSe Ta6NcUy C NO BblBJeHNo HeNCnpaBHOCTeN.

Ecni npuHnHa HncnpaBHOCTn He yctaHOJIeHa:

BbIKIIOHTb npI6Op, He pa36IpaTb erO I IO3BOHITb B cIyK6y cepBnCHOrO 06cIyKINBaHnKJIeHTOB.

CneuaJIbHaJeKnapaun

Bcra HnΦopMaZna, npuBeHnHa B DaHHOM pyKOBoDCTBe, 6bIa TuaTeJbHO npOBepHa. TeM He MeHee, npOn3BOIDTeJIb He He CeT OTBETCTBeHHOCTn 3a OUn6Kn, DOnyUeHNbIe npi NeaTn. Kpome Toro, B cIyae BbIXOda HOBo PeJaKznn pyKOBoDCTBa NO EKcPlyatauN, B Hero MOryt 6bITb BHOceHbI TexHnueckne N3MeHEnr 6e3 PpeBapNTeJbHoro yBeDMJeHn. N3o6paXeHne N3DeJIIn COOTBeTCTByeT DeIcTBtJIbHOCTn.

BHIMAHHE: He BbI6paCbIBaTb DaHHbI npH6Op, KaO obHyBle 6bITOBbl OTxOdbI. OH NOJNeXHT pa3dJIbHOyTUNIN3aUIN.

Hactoian 3eKtpnueckn np6op BbINOHNB COOTBeCTBUN C ebponeckon DupeKTHBOI 2012/19/CE no yTNIIN3aun 3eKtpnueckoro n 3eKtpoHHORO obopydoBaHna.

CobHIOHeHne DnpeKTHB, KacaIoUxCxra yTIN3aun DaHHoro np6opa, NOMORAET PpeDToBpaTbYuep6, KOtOpbIMoKTe 6bItb HaHeceH OKpykaIooJe CpeDe N 3dOpOBbU B pe3yIbTaTe 06bIcHoi yTIN3aun. 3TOT CmBON O3HaayeT, YTO IN3deJIne He NOJNeKHT yTIN3aun B KaueCTBe 6bITOBbIX OTXIOB, a DOJXHO 6bITb HAnpaBNeHO B OprAHN3aUNO, 3aHImaIOUyIOc C6opom 3JNEKTPnuCecknx n 3JNEKTPoHNbIX KOMNOHETOB.

Iyne 60one noopbHn HOpMaun no nepepaOke n ytnn3aun 3TOro n3deJna o6paNTbcB MeHTbI cHTp yTNn3aun OTXoOB INB Maar3NH, rE 6blno npno6peTeHO n3dne.

CepBnC npOdykun Bcex Mapok rpynnbI Candy, opnHnaHbHbIe 3aNaChbIe qactN, paCXoDhble MaTePnAbIb, akCEccyapbl
