USER MANUAL Tone Infinim HBS900 LG

English Français Rev 2.0 CA All rights reserved. LG Electronics Inc., 2014 Note: Please read all information carefully prior to using the HBS-900 in order to prevent damages to the product and to enjoy the best performance. Any modications or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc. ONOFF

Stereo Headset2 ENG Introduction 3 - Included in the package 3 Description of Parts 4 How to Use 5 - Power On / Power Off 5 - Charging 5 - Low Battery 5 - Battery Status Alert 5 - Retractable Earbud Wire 5 - Pairing 5 - Multi-connection 6 - Auto Reconnect 7 - Calling 7

• Transferring a call 7

Summary of Button Functions 11 LED Indicator 12 Troubleshooting 12 Specifications 13 Precautions 13 Declaration of Confirmation 14 Additional Information 14 Limited Warranty 17 Important Safety Information 17 Table of Contents3 ENG Included in the Package The LG TONE INFINIM

(HBS-900) is a lightweight wireless headset that uses Bluetooth technology. This product can be used as an audio accessory for devices supporting either the A2DP or Hands-Free Bluetooth Prole. Ear Gels (2 Sets) *Charger User Manual

• Actual product design may differ from images shown on manual. Introduction HBS-900 ONOFF

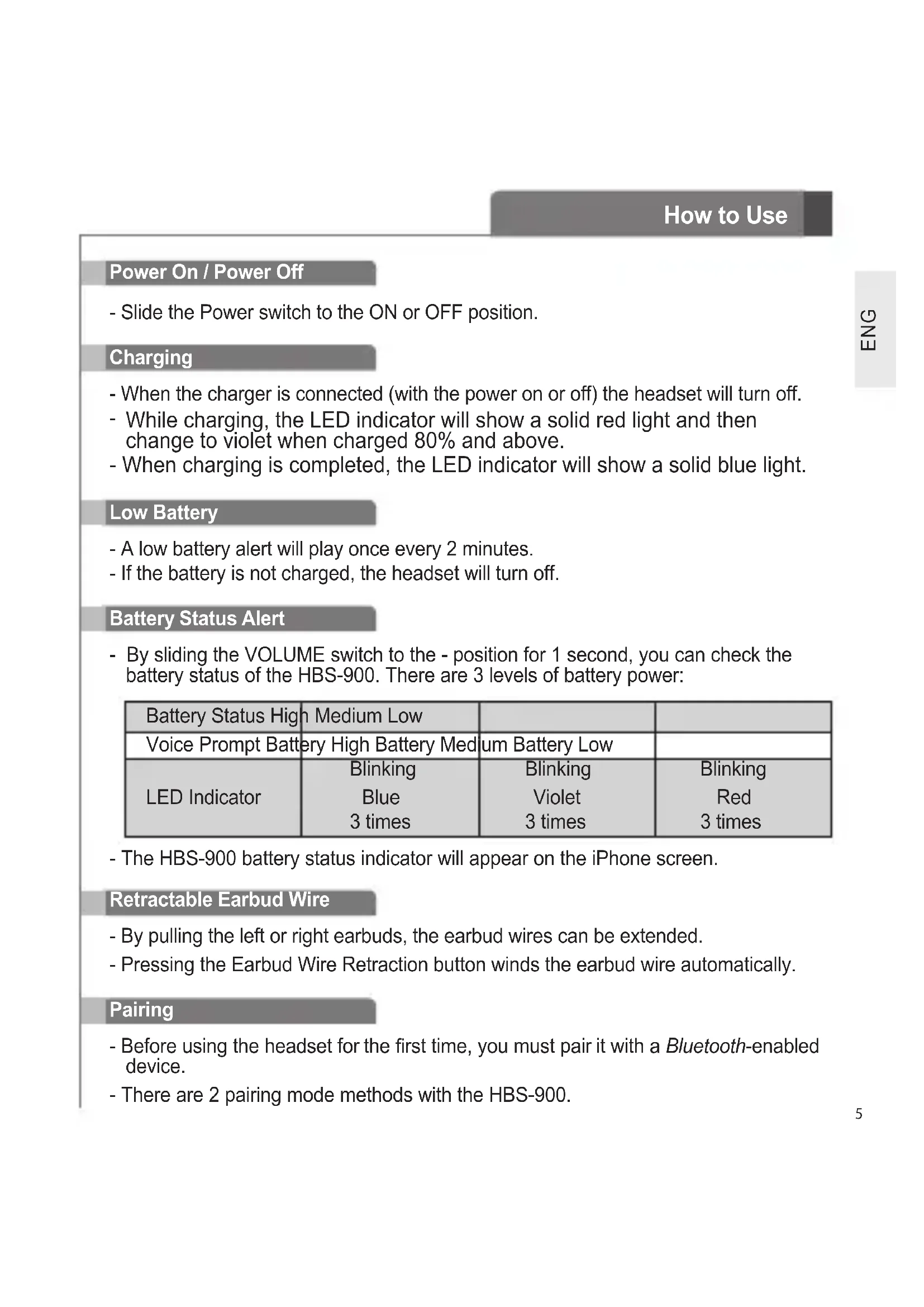

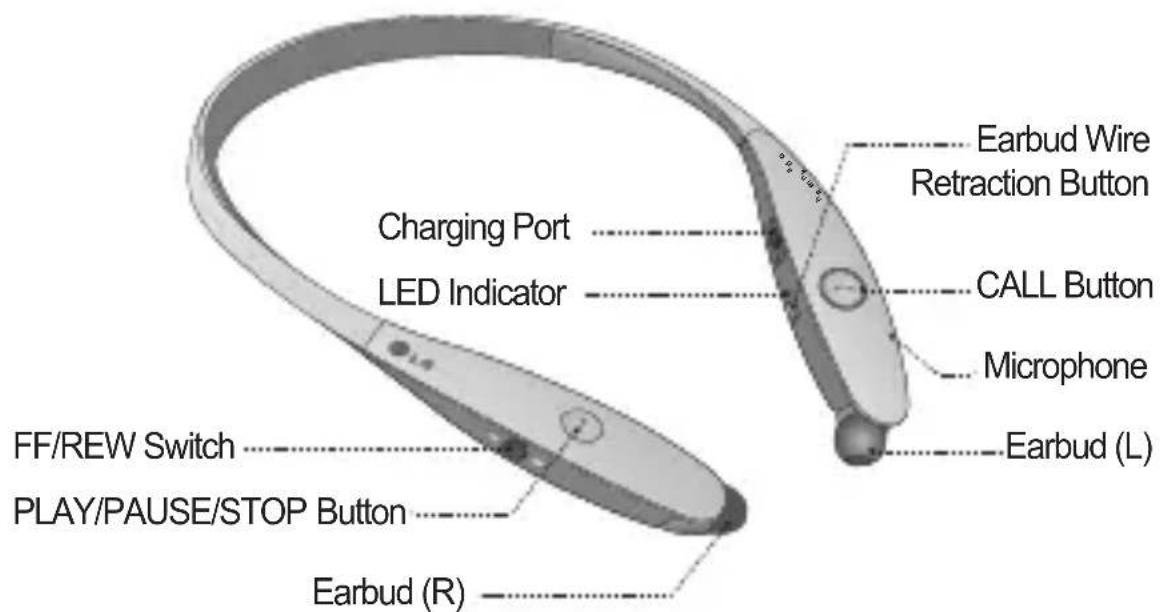

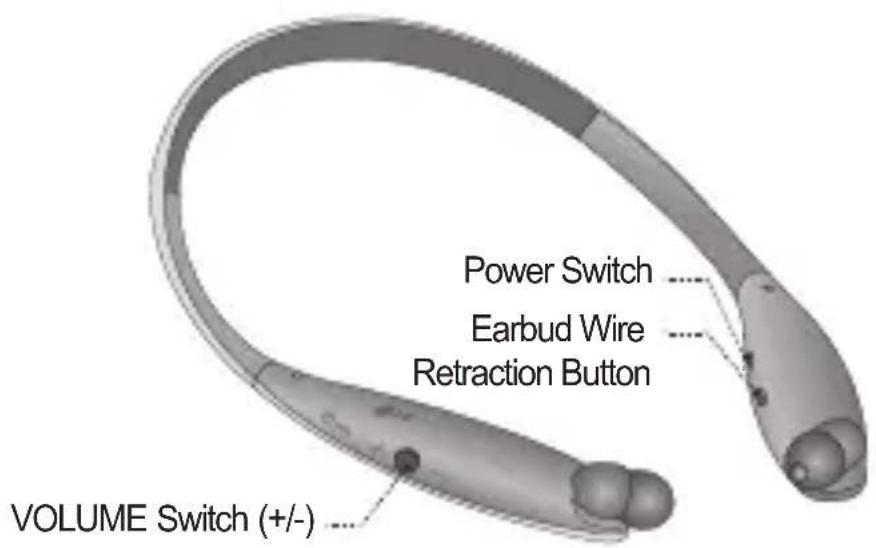

FF/REW Switch Charging Port Microphone Earbud (L) LED Indicator CALL Button Power Switch Earbud Wire Retraction Button Earbud Wire Retraction Button VOLUME Switch (+/-) PLAY/PAUSE/STOP Button Earbud (R)5 ENG Charging - When the charger is connected (with the power on or off) the headset will turn off.

While charging, the LED indicator will show a solid red light and then change to violet when charged 80% and above. - When charging is completed, the LED indicator will show a solid blue light. Low Battery - A low battery alert will play once every 2 minutes. - If the battery is not charged, the headset will turn off. Retractable Earbud Wire - By pulling the left or right earbuds, the earbud wires can be extended. - Pressing the Earbud Wire Retraction button winds the earbud wire automatically. Power On / Power Off - Slide the Power switch to the ON or OFF position. Battery Status Alert - By sliding the VOLUME switch to the - position for 1 second, you can check the battery status of the HBS-900. There are 3 levels of battery power: Battery Status High Medium Low Voice Prompt Battery High Battery Medium Battery Low LED Indicator Blinking Blue 3 times Blinking Violet 3 times Blinking Red 3 times - The HBS-900 battery status indicator will appear on the iPhone screen. Pairing - Before using the headset for the rst time, you must pair it with a Bluetooth-enabled device. - There are 2 pairing mode methods with the HBS-900. How to Use6 ENG

a) Slide the Power switch to the ON position. b) If it is your rst time pairing the device it will automatically enter pairing mode. If it has been paired but no paired device is in range it will enter pairing mode after 10 seconds.

• The LED indicator will be solid blue. c) On the device you wish to pair, nd the Bluetooth menu and search for or add new devices. d) Select LG HBS900 from the list of devices. e) If asked for a Pass/Pin Code enter 0000 (4 Zeros). f) Once the devices are paired, you will hear “Your headset paired.”

• The HBS-900 will automatically turn off if not paired within 3 minutes.

2) Manual Pairing (pairing with another phone or re-pairing)

a) With the power off, press the CALL button and slide the Power switch to the ON position at the same time for 2 seconds. b) When the headset enters Pairing Mode, the LED indicator will show a solid blue light. After the procedure repeat Easy Pairing steps c though f. How to Use Multi-connection Advanced Multipoint The HBS-900 is capable of having two devices connected to the headset at the same time. This will give you the freedom of using call waiting between calls on both of your connected phones. Connection - Pair the headset with one of your Bluetooth-enabled handsets (see the pairing instructions on page 6). - Turn off the headset. - With the power off, press the CALL button and slide the Power switch to the ON position at the same time for 2 seconds to enter Manual Pairing mode. - Pair and connect and connect the headset with your other Bluetooth-enabled handset. (this will be your primary handset). - Once this handset is paired and connected, go back and connect the originally paired handset to the headset. This will now be your secondary handset.

• NOTE: When the HBS-900 is connected to two handsets at the same time (Multipoint), the headset calling functions will work with the primary handset.

• NOTE: In case of failure to connect to the primary phone through Easy Pairing, HBS-900 will enter pairing mode.7 ENG Auto Reconnect - If the HBS-900 is turned off (either accidentally or intentionally) while connected to a handset, the headset and handset will disconnect. The headset and handset will automatically reconnect when the HBS-900 is turned back on while in range. - The secondary handset will need to be connected manually. Select LG HBS900 from the list of devices in the Bluetooth menu and pair. Out of Range - If the paired devices are separated by a range of 33 feet (10 meters) or more, the headset and handset will disconnect and the HBS-900 will vibrate to alert you.

• To turn off device vibration, slide the VOLUME switch to the + position and hold for 2 seconds. - If the headset and handset do not automatically reconnect when they are back within the required range, briey press the CALL button on the HBS-900 to reconnect manually. - While in multi-connection and streaming, the inactive paired device will be disconnected when out of range. The HBS-900 will alert you once with no attempt to reconnect. Calling Function - Voice Dialing and Last Number Redial features work with the primary handset (or handset which made the last outgoing call). Call Waiting - While speaking on an active call, press the CALL button for 1 second to switch to an incoming call. - To switch between 2 active calls, press the CALL button for 1 second. - To end both calls briey press the CALL button. - If both handsets are receiving an incoming call, the headset will default to the primary device. Calling Answering a Call - When there is an incoming call, the headset will ring and vibrate. - Briey slide the VOLUME switch to the - position to stop the vibration.

• HBS-900 will not vibrate if vibration function is on ‘off’. - Briey press the CALL button to answer the incoming call. Transferring a Call - If you make a call from the handset, the call will (depending on the phone settings) automatically transfer to the headset. If the call is not automatically transferred, you can manually transfer the call to or from the headset by pressing the PLAY/PAUSE/STOP button twice on the HBS-900 (handset and headset must be paired). How to Use8 ENG How to Use Volume Control - Slide the VOLUME switch to the + or - position to adjust the speaker volume. - There are 16 levels of speaker volume in Hands-Free mode. - There are 16 levels of speaker volume in Audio Streaming mode. - To prevent hearing loss, which is caused by listening to music for long periods of time, the HBS-900 will emit a long beep tone or two beeps when you use the upper 6 volume levels. Voice Dialing - Briey press the CALL button to activate Voice Command. For best results, record the voice dialing tag through your headset. NOTE: If your handset does not support voice dialing, this action may activate Last Number Redial. Last Number Redial - Press and hold the CALL button for 1 second to activate Last Number Redial. The headset will beep and then call the last number dialed. Ending a Call - Briey press the CALL button. Call Waiting - Answer a second call without hanging up the rst call by pressing the CALL button for 1 second. Press the CALL button for 1 second to return to the original call. - Briey press the CALL button to terminate both calls at once. Rejecting a Call - Activate call reject by pressing the CALL button for 2 seconds when the handset rings.

• These functions may only be used if your handset supports them. For further information about using these features, please consult your handset’s user manual. Mic Mute - Slide the VOLUME switch to the + position and the FF/REW switch to the REW position at the same time for 1 second to mute/unmute the Mic during conversation.9 ENG Vibrate Control - To activate or deactivate the Vibrate function, slide the VOLUME switch to the + position for 2 seconds. You will hear “Vibrate on” or “Vibrate off” when it is activated or deactivated. - When the HBS-900 is set to vibrate off, the headset will not vibrate when receiving an incoming call or when it is out of range. - By powering the unit off and then powering the unit back on, the vibration functionality will be activated. aptX

- The HBS-900 features aptX

technology that ensures audio content transmitted via Bluetooth is instant and crystal-clear. - aptX

is automatically enabled as long as the source device supports it. Equalizer - While playing music, press the PLAY/PAUSE/STOP button twice to switch between Bass Boost (default), Normal, and Treble Boost. - The bass coming from the speakers can vary as a result of the size of the ear gel that is being used. Audio Streaming Play - Briey press the PLAY/PAUSE/STOP button. Pause - While playing music, briey press the PLAY/PAUSE/STOP button. Stop - While playing music, press and hold the PLAY/PAUSE/STOP button for 1 second. Next song - Briey slide the FF/REW switch to the FF position. Previous song - Briey slide the FF/REW switch to the REW position. Fast Forward - Slide and hold the FF/REW switch to the FF position. Rewind - Slide and hold the FF/REW switch to the REW position. How to Use10 ENG Function Action Current time alert Slide the FF/REW switch to the FF position for 1 second. Read latest SMS or MMS Slide the FF/REW switch to the REW position for 1 second. Direct dial Press the CALL button twice (select Direct dial and set the telephone number from Speed Dial menu of Tone & Talk

1. Press the CALL button twice.

2. Select the name to call by sliding the FF/REW switch

3. Press the CALL button twice to call (select Favorite call

and set telephone number from the Speed Dial menu of Tone & Talk

1. Press the CALL button twice.

2. Select the name to call by sliding the FF/REW switch

3. Press the CALL button twice to call (select Call history

and set the telephone number from the Speed Dial menu of Tone & Talk

How to Use Tone & Talk

SMS Reader The HBS-900 Bluetooth headset supports SMS reading on Android

based devices. In Google Play™ search for the LG Tone & Talk

application and install it on your device to use this function.

• The QR code shown here helps you download the LG Tone & Talk

application from Google Play. Google Play is a trademark of Google, Inc.11 ENG Summary of Button Functions Function HBS-900 Status Action Power on Power off Slide the Power switch to the ON position. Power off Power on Slide the Power switch to the OFF position. Volume up Talking / Music on Slide the VOLUME switch to the + position. Volume down Talking / Music on Slide the VOLUME switch to the - position. Transferring a call Talking Press the PLAY/PAUSE/STOP button twice. Answering a call Ringing Briey press the CALL button. Stop incoming call vibration alerting Ringing Briey slide the VOLUME switch to the - position. Vibrate on/off Idle Slide the VOLUME switch to the + position for 2 seconds. Ending a call Talking Briey press the CALL button. Call waiting Talking Press the CALL button for 1 second. Last number redial Idle Press the CALL button for 1 second. Voice dialing (handset must support) Idle Press the CALL button for 1 second. Call reject Ringing Press the CALL button for 2 seconds. Mic mute on/off Talking Slide the VOLUME switch to the + position and the FF/REW switch to the REW position at the same time for 1 second. Pairing mode (Manual) Power off Press the CALL button and slide the Power switch to the ON position at the same time for 2 seconds. Battery status check Idle Slide the VOLUME switch to the - position for 1 second. Play Power on Briey press the PLAY/PAUSE/STOP button. Pause Music on Briey press the PLAY/PAUSE/STOP button. Stop Music on Press and hold the PLAY/PAUSE/STOP button for 1 second. Next song Music on Briey slide the FF/REW switch to the FF position. Previous song Music on Briey slide the FF/REW switch to the REW position. Fast forward Music on Slide and hold the FF/REW switch in the FF position. Rewind Music on Slide and hold the FF/REW switch in the REW position. Equalizer settings Music on Press the PLAY/PAUSE/STOP button twice.12 ENG LED Indicator Troubleshooting Function HBS-900 Status Action Operating Power on The blue LED light ickers 4 times. Power off The blue LED light ickers 4 times and then turns off. Pairing mode The blue LED light stays on. Headset / hands-free prole connected The blue LED light ickers 1 time every 5 seconds. Call connected The blue LED light ickers 1 time every 5 seconds. Charging Charging The red LED light stays on and changes to violet when charged 80% and above. Charging complete The blue LED light stays on. Issue Possible problem Resolution Does not turn on Check whether the battery of the HBS-900 is fully charged. Charge the battery. Unable to communicate with the LG Bluetooth

Headset HBS-900 Check whether the handset supports the headset or hands-free Bluetooth proles. Determine whether your handset supports the headset or hands- free Bluetooth proles. Check whether the battery of the HBS-900 is low. Charge the battery. Unable to pair the HBS-900 with the Bluetooth

device Check and make sure the headset is on. Slide the Power switch to the ON position to turn on the headset. Check and make sure the headset is placed in pairing mode. With the power off, press the CALL button and slide the Power switch to the ON position at the same time for 1 second to manually place the headset in Manual Pairing mode. Low sound (speaker) Check the speaker volume. lncrease the volume level.13 ENG Specications Precautions Item Description Bluetooth

Battery Battery 3.7 V / 220 mAh Li-Polymer Talk Time Up to 17 hours Music play time Up to 14 hours Standby time Up to 550 hours Charging time Less than 2 hours Rated Input Power DC 4.75 V ~ 5.6 V, 400 mA Operation temperature 14°F ~ 140°F (-10°C ~ 60°C) Dimension / weight 155 mm (W) x 178 mm (L) x 15 mm (H)/54 g Do not drop the device. Do not modify, repair, or disassemble. Do not expose directly to water, alcohol, benzene, etc., for cleaning. Do not expose directly to ammables. Do not place or keep the device near ammables. Keep the device away from excessive humidity and dust. Do not place heavy objects on the device. Only charge the headset with an original LG charger, otherwise it may be damaged.

• Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• There is a risk of explosion if the battery is replaced by an incorrect type.

• Dispose of used batteries according to the instructions.14 ENG Declaration of Conrmation Additional Information

1. Radio frequency exposure

Stereo Headset HBS-900 is a radio transmitter and receiver. When in operation it communicates with a Bluetooth

equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic elds (microwaves) in the frequency range 2.4 to 2.4835 GHz. Your Bluetooth

Headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with any compatible LG Electronics mobile phone. FCC NOTICE TO USERS: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. CE NOTICE TO USERS: Hereby, LG Electronics Inc. declares that this HBS-900 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. IC NOTICE TO USER: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

ENG Additional Information

2. Potentially explosive atmosphere

Turn off your electronic device when in any area with a potentially explosive atmosphere. Although this is uncommon, your electronic device could generate sparks. Sparks in such areas could cause an explosion or re resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.

headset and the electronic device connected to the headset operate using radio signals, mobile and landline networks as well as user- programmed functions, which cannot guarantee connection under all conditions. Therefore you should never rely solely upon any electronic device for essential communications (e.g. medical emergencies). Remember, in order to make or receive calls, the headset and the electronic device connected to the headset must be switched on and in a service area with adequate mobile signal strength. Emergency calls may not be possible on all mobile phone networks or when certain network services and/or phone features are in use. Check with your local service provider.

4. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the rst few times it is used. Do not expose the battery to extreme temperatures, never above +60°C (+140°F) or below -20°C (-4°F). For maximum battery capacity, use the battery at room temperature. If the battery is used in low temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures between +10°C (+50°F) and +45°C (+113°F). For your safety, do not remove the battery incorporated with the product. If you need to replace the battery, take it to the nearest authorised LG Electronics service point or dealer for assistance.

5. Recycling the battery in your Bluetooth

headset The battery in your Bluetooth

Headset must be disposed of properly and should never be placed in municipal waste. The LG Electronics service partner who removes the battery will dispose of it according to local regulations.16 ENG Additional Information

- The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the product to be repaired or replaced. LG Electronics reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer. - If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units. Replaced parts or components will become the property of LG Electronics. - This Warranty does not cover any failure of the product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instructions for use and maintenance of the product. Nor does this warranty cover any failure of the product due to accident, modication or adjustment, acts of God or damage resulting from liquid. - This warranty does not cover product failures due to improper repair installations, modications or service performed by a non- LG Electronics authorized person. Tampering with any of the seals on the product will void the warranty. - THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR ORAL, OTHER THAN THIS PRINTED INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL LG ELECTRONICS OR ITS VENDORS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR COMMERCIAL LOSS, TO THE FULL EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.

• Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you. The warranty provided does not affect the consumer’s statutory rights under applicable national legislation in force, nor the consumer’s rights against the dealer arising from their sales/purchase contract.17 ENG Limited Warranty Important Safety Information Subject to the conditions of this Limited Warranty, LG Electronics warrants this product to be free from defects in design, material and workmanship at the time of its original purchase by a consumer, and for a subsequent period of one (1) year. Should your product need warranty service, please return it to the dealer from whom it was purchased or contact your local LG Electronics contact center to get further information. Avoiding hearing damage Permanent hearing loss may occur if you use your headset at a high volume. Set the volume to a safe level. Over time you can become accustomed to a higher volume that may sound normal but can be damaging to your hearing. If you experience ringing in your ears or mufed speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use the headset at high volume.

• Avoid turning up the volume to block out noisy surroundings.
