USER MANUAL Tone Active+ HBSA100 LG

All rights reserved.

© 2016 LG Electronics Inc.

Note: Please read all information carefully prior to using the HBS-A100 in order to prevent product damage and to enjoy the best performance.

Any modifications or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc.

Contents

Safety Cautions....1

HD Speaker....2

Qualcomm® aptX™ / Qualcomm® aptX™ HD Audio....2

Product Components....2

Product Description ....3

Replacing the Stabilizer Tips 4

Battery Charging and Alerts 4

HBS-A100 Pairing and Connecting....5

Indicator Lamp 6

Mobile Calling Functions....7

Playing Music....8

Speaker Mode....8

Vibration Alert Settings....8

Out of Range....9

LG Tone & Talk™ 9

Tracking Physical Activity....10

Summary of HBS-A100 Functions.... 11

Troubleshooting....12

Specifications and Features....13

Declaration of Confirmation....14

Additional Information....16

Limited Warranty....18

Important Safety Information 18

The LG TONE ACTIVE+ (HBS-A100) is a lightweight wireless headset that uses Bluetooth technology.

This product can be used as an audio accessory for devices supporting either the A2DP or Hands-Free Bluetooth Profile.

Safety Cautions

CAUTION

Do not disassemble, adjust, or repair the product arbitrarily.

Do not place the product near excessive heat or flammable material.

Do not arbitrarily replace the battery as it may explode.

The product may be damaged if an incompatible recharger is used.

Make sure that any infant or child does not swallow a magnet or a small component of the product.

Make sure that foreign objects do not enter the charger's connectors (charging port and power plug).

Failing to do so may result in fire or electric shock.

For your safety, do not wear the product while it is being charged.

If you have a medical device implanted, contact your doctor before use.

Do not pull the earphone cable with excessive force.

For your safety, do not remove the battery incorporated in the product.

Lithium-ion polymer Battery is hazardous component which can cause injury.

Battery replacement by non-qualified professional can cause damage to your device.

WARNING

Do not drop the product from a high place.

Make sure there is no alcohol or benzene in contact with the product.

Do not store the product in a wet or dusty place.

Do not place any heavy objects on the product.

Product is sweat and water resistant (IPx4).

It is not waterproof and should not be submerged in water.

NOTE

If the product is exposed to excessive sweat, clean the product.

Keep the earbud of the earphone always clean.

HD Speaker

If the communication network of the device you are connecting to supports HD Voice Calling, you can enjoy making voice calls and listening to music in high definition.

Qualcomm® aptX™ / Qualcomm® aptX™ HD Audio

LG HBS-A100 is powered by Qualcomm aptX / Qualcomm aptX HD audio. Qualcomm aptX / Qualcomm aptX HD audio is Bluetooth wireless technology that provides clearer audio for listening to music and watching movies.

Qualcomm aptX HD audio supports 24-bit audio, so you can wirelessly enjoy studio-quality sound.

Qualcomm aptX / Qualcomm aptX HD audio is automatically enabled when a mobile phone or audio device supports it.

Product Components

Simple line drawing of a curved, segmented object resembling a stylized helmet or ear (no text or symbols)

TONE ACTIVE+ HBS-A100 (Medium ear gels & standard size stabilizer tips installed)

Extra Ear Gels (small & large)

Micro USB Charging Cable

Extra Stabilizer Tips (large) User Manual

NOTE: Actual product design may differ from images shown in manual.

CAUTION

Make sure authentic LG Electronics components are used. Using a non-authentic component may damage the product and thus void the warranty.

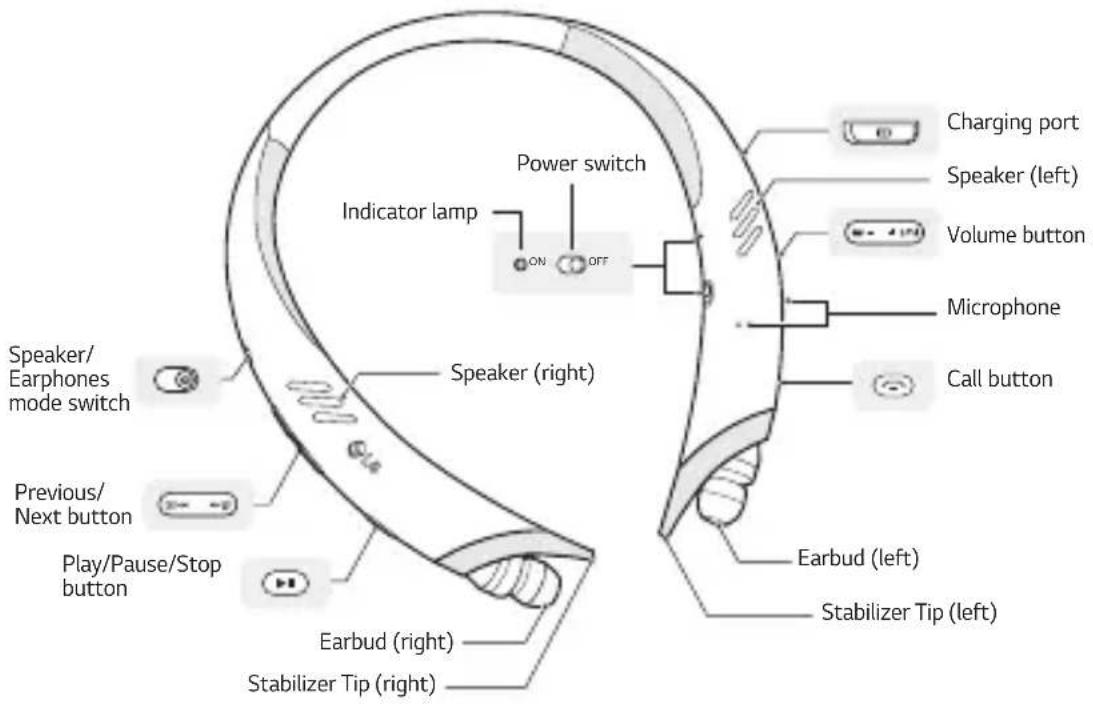

Product Description

Indicator lamp Power switch ON OFF Speaker (right) Speaker/ Earphones mode switch Previous/ Next button Play/Pause/Stop button Earbud (right) Stabilizer Tip (right) Charging port Speaker (left) Volume button Microphone Call button Earbud (left) Stabilizer Tip (left)

NOTE: When you control the volume (level 15), you will hear a control sound two times or as a long sound from volume level 10 and higher.

Replacing the Stabilizer Tips

You can replace the current stabilizer tips with the extra pair if they do not fit by:

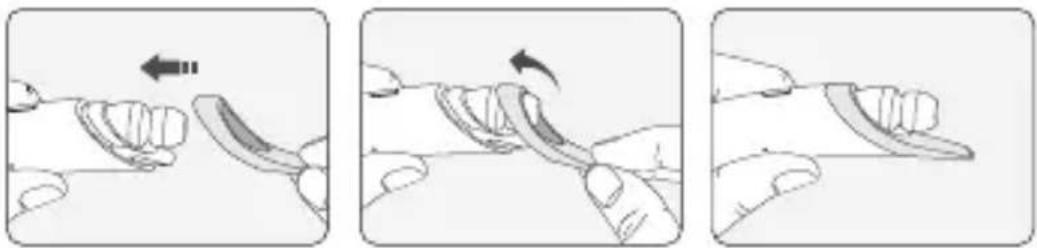

Removing the stabilizer tips

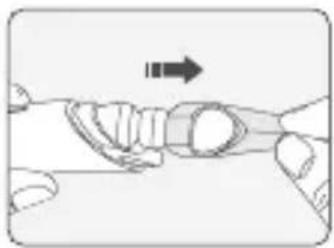

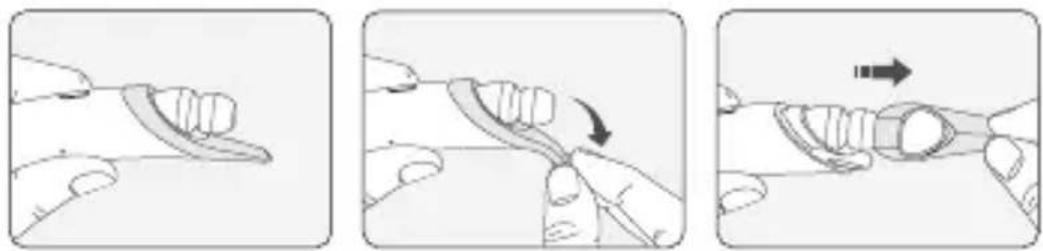

Replacing the stabilizer tips

Battery Charging and Alerts

Open the Charging port cover and connect the charger to the Charging port.

Indicator Lamp Red Purple Blue
Battery Status Charging 80% Completed

Diagram showing a cable or cable connector with labeled components and directional arrows indicating movement or force.

Press and hold the Volume (-) button for 1 second to check the battery level using voice prompts and the indicator lamp.

Battery Status Sufficient Normal Insufficient
Indicator Lamp Blue flashes three times Purple flashes three times Red flashes three times

HBS-A100 Pairing and Connecting

If you start the process after putting in your earbuds, you can easily pair and connect following the voice prompts.

If you hear that the battery is insufficient, recharge the battery before proceeding with pairing.

If pairing is not completed within 3 minutes, the power automatically turns off. When the power automatically turns off, slide the Power switch from the OFF to the ON position to turn the power on.

Simple line drawing of a person's head and shoulders (no text or symbols)

ENGLISH

Connecting Quickly

ONOFF ON OFF

ONOFF ON OFF

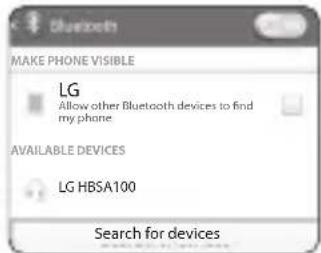

MAKE PHONE VISIBLE LG Allow other Bluetooth devices to find my phone AVAILABLE DEVICES LG HBSA100 Search for devices

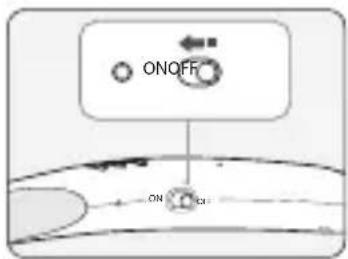

1 Slide the Power switch toward the ON position to turn on the power.

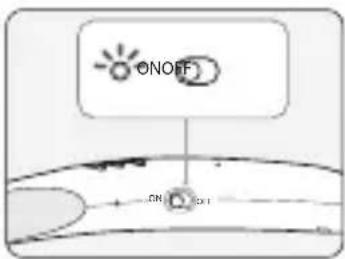

2 The blue Indicator lamp turns on and the HBS-A100 switches to Search mode.
3 From the mobile phone or device list, select LG HBSA100 to connect.
4 A voice message will indicate that the connection is completed.
5 Use the same process to pair the HBS-A100 with other devices.

Connecting Manually

1 Press and hold the Call button and slide the Power switch to the ON position to turn it on.
2 The blue Indicator lamp turns on and the HBS-A100 switches to Search mode.
3 Select LG HBSA100 from the device list to connect.

Multiple Connections

The HBS-A100 can be connected to a mobile phone and a PC simultaneously.

The HBS-A100 can be connected to an additional device while it is already connected to a device.

1 Press and hold the Call button and slide the Power switch to the ON position to turn it on.

2 The blue Indicator lamp turns on and the HBS-A100 switches to Search mode.

3 From the mobile phone or device list, select LG HBSA100 to connect.

4 A voice message will indicate that the connection is completed. This device becomes the "Main Connected Device."

5 Try to connect to HBS-A100 using a previously connected device. This device becomes the "Sub Connected Device."

NOTE: If simultaneously connected to two devices, the device that was connected most recently is the "Main Connected Device." The main functions work based on the "Main Connected Device."

Automatic Reconnection

If you turn on HBS-A100, it will automatically connect to the most recent (main or peripheral) device it was connected to. (If a device cannot be found, Search mode will be activated.)

If the product does not automatically connect to the device you want, Search for your product on the device you want to connect to and connect it manually.

Indicator Lamp

HBS-A100 Status Description
Power On The blue Indicator lamp flashes four times.
Power Off The blue Indicator lamp flashes four times.
Search Mode The blue Indicator lamp is on.
Connected to a device The Indicator lamp will flash blue once every 5 seconds.
LG Health/ LG Tone & Health Feature On	The green Indicator lamp flashes once every 5 seconds.

Mobile Calling Functions

Functions Description
Receiving a Call/Hanging Up	Briefly press theCall button.To turn off the vibration alert, briefly press theVolume (-)button.
Making a Call	If you make a call using a mobile phone, the call is automatically connected to the HBS-A100.For some mobile phones, you should briefly press thePlay/Pause/Stop buttontwo times to switch calls.
Redial	Press and hold theCall buttonfor more than 1 second to place a call to the last number you called.
Voice Dial	Briefly press theCall button.If the mobile phone does not support the Voice Dial function, you can use the Redial function.
Switching Calls	Briefly press thePlay/Pause/Stop buttontwo times during a call.(Every time you press one of these buttons, the call switches to the mobile phone or the HBS-A100.)
Receiving a CallWhile on the Phone	You can receive another call while on the phone by pressing and holding theCall buttonfor 1 second.The existing call switches to a call waiting status. Press and hold theCall buttonagain for 1 second to switch back to the previous call.Briefly press theCall buttonto hang up in the middle of a call or to hang up both calls.(It works differently depending on the mobile phone settings.)
Rejecting a Call Press and hold theCall buttonfor 2 seconds.
Enabling/Disabling Mute	During a call, simultaneously press and hold theVolume (+)buttonand thePrevious( )buttonfor 1 second.

CAUTION: Do not disable/enable the Mute function while driving, as you need to use both hands.
NOTE: The Voice Dial and Redial functions work on the Main Connected Device or on the device on which you made the last call. (The Voice Dial and Redial functions may work differently depending on the mobile phone being used.)

Playing Music

Functions Description
Play	Briefly press the Play/Pause/Stop button.Music will play from the activated player of the connected device.
Pause	Briefly press the Play/Pause/Stop button.
Stop Press and hold the Play/Pause/Stop button for 1 second.
Play Previous/Next Song	Briefly press the Previous (◀◀) button or the Next (▶▶) button.
Fast Rewind/Forward	Press and hold the Previous ( ) button or the Next ( ) button until you reach the desired part.
Change Equalizer Mode	Briefly press the Play/Pause/Stop button twice. The mode will change in the following order.Bass (default) > Normal > Treble.(The Equalizer Mode cannot be changed in Speaker Mode.)

NOTE: To switch to a different music playback device when multiple devices are connected, stop the currently playing music and then play music from the device of your choice.

Speaker Mode

If you slide the Speaker mode switch to the ON position, the device will enter Speaker mode.

(Only the right speaker will work during a voice call.)

Diagram showing a device interface with labeled buttons and an arrow pointing to a circular symbol containing Chinese characters.

Vibration Alert Settings

Press and hold the Volume (+) button for 2 seconds when the HBS-A100 is not in use (for playing music, etc.).

If you turn off the vibration alerts, it will not vibrate even when a call is being received or you are out of communication range.

NOTE: The vibration alert is automatically set to the ON position when you turn on the power.

Out of Range

If the device connected to the product is out of effective communication range (33 feet / 10 meters), the communication signal becomes weak and the communication is lost.

If the device comes back within effective communication range, the product automatically reconnects to the device. If the device is not automatically reconnected, press the Call button on the product to connect to it manually.

If a device that is not in use goes out of communication range when multiple devices are connected, the product vibrates and a voice message indicates that the connection is lost. In this case, the automatic reconnection function is not supported.

LG Tone & Talk

Tone & Talk supports various functions including text and voice directions, and calling. Go to the Google Play™ store and search for "LG Tone & Talk" or scan the QR code on the right to install Tone & Talk.

NOTE: Tone & Talk can be used on Android™ smartphones.

NOTE: The Current Time Alert and the Voice Memo functions cannot be used at the same time. You can only use one function at a time when you make selections in the Tone & Talk app. The Voice Memo and Find Me functions may not be supported on some devices.

Function Action
Current Time Alert	1. Go to Tone & Talk and select Current time alert.2. Press and hold the Next (button) for 1 second.
Voice Memo	1. Go to Tone & Talk and select Voice memo.2. Press and hold the Next (button) for 1 second.
Reading Recent Messages Press and hold the Previous ( ) button for 1 second.
Find Me (Find my phone)	Simultaneously press and hold the Volume (-) button and the Next (button) or the Volume (+) button and the Previous (button) for 1 second.
Using Speed Dial to Make a Call	1. Go to Tone & Talk and select a speed dial contact.2. Briefly press the Call button two times.(The number should be specified in the Tone & Talk app.)
Using Favorites to Make a Call	1. Go to Tone & Talk and select a favorite contact.2. Briefly press the Call button two times.3. Press and hold the Previous (button) or the Next (button) for 1 second to select a number.4. Briefly press the Call button two times.
Making a Call from Call History	1. Go to Tone & Talk and selectCall History.2. Briefly press theCall buttontwo times.3. Press and hold thePrevious (◄◄) buttonor theNext (►►)buttonfor 1 second to select a Call History number.4. Briefly press theCall buttontwo times.
Changing the Voice Prompt Language	1. SelectAdvanced>View morein Tone & Talk.2. SelectVoice prompt languageto change the language.

Tracking Physical Activity

LG Health

You can use the LG Health app on an Android phone to save and manage records of your physical activity tracked through HBS-A100.

Search for "LG Health" in the Google Play Store or scan the QR code on the right to install the app.

Google Play

LG Tone & Health™

You can use the LG Tone & Health app on an iOS phone to save and manage records of your physical activity tracked through the HBS-A100.

Search for "LG Tone & Health" in the App Store® or scan the QR code on the right to install the app.

1 Install the "LG Health" or "LG Tone & Health" app on your phone.
2 Simultaneously press and hold both sides of the HBS-A100's Previous/Next button for 2 seconds to turn on the health feature.
3 Simultaneously press and hold both sides of the Previous/Next button again for 2 seconds to turn off the health feature.

NOTE: For Android smartphones, you must install the LG Tone & Talk app to use the LG Health app features.

LG Health is for Android 4.4 or later and LG Tone & Health is for iOS 8.0 or later. If the LG Tone & Health app cannot find HBS-A100, turn off the device power and then turn it back on.

Results of activity tracking may vary depending on the operating environment.

App Store

Summary of HBS-A100 Functions

Function	HBS-A100 Status	Action
Power On Power off Slide the Power switch to the ON position.
Power Off Power on Slide the Power switch to the OFF position.
Volume Up	Talking/Music on	Press the Volume (+) button.
Volume Down	Talking/Music on	Press the Volume (-) button.
Transferring a Call Talking Press the Play/Pause/Stop button twice.
Answering a Call Ringing Briefly press the Call button.
Stop Incoming Call Vibration Alerting	Ringing Briefly press the Volume (-) button.
Vibration On/Off Idle		Press and hold the Volume (+) button for 2 seconds.
Find Me (Find my phone) Power on		Simultaneously press and hold the Volume (-) button and the Next (▶) button or the Volume (+) button and the Previous ( ) button for 1 second.
Ending a Call Talking Briefly press the Call button.
Call Waiting Talking Press and hold the Call button for 1 second.
Last Number Redial Idle Press and hold the Call button for 1 second.
Voice Dialing (Handset Must Support)	Idle Briefly press the Call button.
Call Reject	Ringing Press and hold the Call button for 2 seconds.
Mic Mute On/Off	Talking	Simultaneously press and hold the Volume (+) button and the Previous ( ) button for 1 second.
Pairing Mode (Manual)	Power off	Simultaneously press and hold the Call button and slide the Power switch to the ON position for 2 seconds.
Battery Status Check	Idle	Press and hold the Volume (-) button for 1 second.
Play	Power on	Briefly press the Play/Pause/Stop button.
Pause	Music on	Briefly press the Play/Pause/Stop button.
Stop Music on Press and hold the Play/Pause/Stop button for 1 second.
Next Song Music on Briefly press the Next ( ) button.
Previous Song Music on Briefly press the Previous ( ) button.
Fast Forward Music on Press the Next ( ) button.
Rewind Music on Press the Previous ( ) button.
Equalizer Settings Music on		Briefly press the Play/Pause/Stop button twice.(The Equalizer Mode cannot be changed in Speaker Mode.)

Troubleshooting

Problems Solutions
The power does not turn on	Check the battery level and charge it.
Cannot make a call with the HBS-A100	If the mobile phone does not support headset and hands-free functions, you cannot use the calling features.Check the battery level and charge it.
Cannot register the HBS-A100 to the mobile phone	Check whether the HBS-A100 is turned on.Check whether the HBS-A100 is in Search mode.- Simultaneously press and hold theCall buttonand slide thePower switchto the ON position and the HBS-A100 switches to Search mode.
The sound is low Control the sound level of the device connected to the HBS-A100.

Specifications and Features

Item Comments
Bluetooth Specifications	V 4.2 (Headset/Hands-Free/A2DP/AVRCP)
Battery Battery 3.7 V / 120 m	Ah * 2, Lithium-ion polymer
Standby Time Up to 430 hours*
Talk Time Up to 13 hours* (When in Speaker mode: 9.5 hours)
Music Play Time Up to 12 hours* (When in Speaker mode: 6 hours)
Charging Time Approximately 2 hours
Rated Input Voltage DC 4.75 V ~ 5.3 V, 400 mA
Operating Temperature -10°C (+14°F) ~ +50°C (+122°F)
Dimensions/Weight 144.8 mm (W) X 147.2 mm (L) X 17.6 mm (H) / 60.5 g
Operating Frequency 2402 MHz to 2480 MHz

*Certain features may use more power and cause actual time to vary.
The actual usage time in external speaker mode may vary depending on the volume.

Declaration of Confirmation

FCC NOTICE TO USERS:

This device complies with part 15 of FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the manufacturer (or party responsible) for compliance could void the user's authority to operate the equipment.

FCC Part 15.105 statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT NOTE:

To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate the device.

DECLARATION OF CONFORMITY :

Hereby, LG Electronics declares that this HBS-A100 is in compliance with the essential requirements and other relevant provisions of Directive1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.lg.com/global/declaration

ISEDC NOTICE TO USER:

This device complies with part 15 of FCC rules and ISEDC license-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotopically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

RF Exposure

This equipment complies with ISEDC radiation exposure limits set forth for an uncontrolled environment.

Bluetooth ^® is a registered trademark of Bluetooth SIG, Inc. worldwide.

Qualcomm® aptX™ / Qualcomm® aptX™ HD audio are products of Qualcomm Technologies International, Ltd.

Bluetooth®

CE 0168

Additional Information

1. Radio frequency exposure

This Bluetooth Stereo Headset HBS-A100 is a radio transmitter and receiver. When in operation it communicates with a Bluetooth-equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2.4 to 2.4835 GHz. Your Bluetooth headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with any compatible LG Electronics mobile device.

2. Bluetooth Connection Precautions

The following environments affect the range and reception of Bluetooth signals:

• When walls, metal, human bodies, or other obstacles exist between the Bluetooth device and the connected device
• When equipment that uses 2.4 GHz frequency signals (Wireless LANs, wireless phones, microwave ovens, etc.) is placed near the devices being used

3. Potentially explosive atmosphere

Power off your electronic device when in any area with a potentially explosive atmosphere. Although this is uncommon, your electronic device could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.

4. Emergency calls

IMPORTANT!

This Bluetooth headset and the electronic device connected to the headset operate using radio signals, mobile and landline networks as well as user-programmed functions, which cannot guarantee connection under all conditions. Therefore you should never rely solely upon any electronic device for essential communications (e.g. medical emergencies). Remember, in order to make or receive calls, the headset and the electronic device connected to the headset must be powered on and in a service area with adequate mobile signal strength. Emergency calls may not be possible on all mobile phone networks or when certain network services and/or phone features are in use. Check with your local service provider.

5. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used. Do not expose the battery to extreme temperatures, never above +50°C (+122°F) or below -10°C (+14°F). For maximum battery capacity, use the battery at room temperature. If the battery is used in low temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures between +10°C (+50°F) and +45°C (+113°F).

6. Recycling the battery in your Bluetooth headset

The battery in your Bluetooth headset must be disposed of properly and should never be placed in municipal waste. The LG Electronics service partner who removes the battery will dispose of it according to local regulations.

7. Conditions

• The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the product to be repaired or replaced. LG Electronics reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer.
• If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units. Replaced parts or components will become the property of LG Electronics.
• This warranty does not cover any failure of the product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instructions for use and maintenance of the product. Nor does this warranty cover any failure of the product due to accident, modification or adjustment, acts of God or damage resulting from liquid.
• This warranty does not cover product failures due to improper repair installations, modifications or service performed by a non-LG Electronics authorized person. Tampering with any of the seals on the product will void the warranty.
• THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR ORAL, OTHER THAN THIS PRINTING INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL LG ELECTRONICS OR ITS VENDORS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR COMMERCIAL LOSS, TO THE FULL EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.

- Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you. The warranty provided does not affect the consumer's statutory rights under applicable national legislation in force, nor the consumer's rights against the dealer arising from their sales/purchase contract.

Limited Warranty

Subject to the conditions of this Limited Warranty, LG Electronics warrants this product to be free from defects in design, material and workmanship at the time of its original purchase by a consumer, and for a subsequent period of one (1) year. Should your product need warranty service, please return it to the dealer from whom it was purchased or contact your local LG Electronics contact center to get further information.

Important Safety Information

Avoiding hearing damage

Permanent hearing loss may occur if you use your headset at a high volume.

Set the volume to a safe level. Over time you can become accustomed to a higher volume that may sound normal but can be damaging to your hearing.

If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected.

Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use the headset at high volume.
• Avoid increasing the volume to block out noisy surroundings.
• Decrease the volume if you can't hear people speaking near you.

Using headsets safely

Use of headsets to listen to music while operating a vehicle is not recommended and is illegal in some areas. Be careful and attentive while driving. Stop using this device if you find it disruptive or distracting while operating any type of vehicle or performing any other activity that requires your full attention.

LG

Life's Good

Guide d'utilisation

LG TONE ACTIVE+™

© 2016 LG Electronics Inc.

Qualcomm® aptX™/Qualcomm® aptX™ HD audio....2

Illustration of a hand holding a curved object (no text or symbols)

Illustration of a hand holding a curved object with an arrow indicating rotation (no text or symbols)

Illustration of a finger pressing a small object with an arrow indicating motion (no text or symbols)

Illustration of two fingers interacting with a curved object, one pointing left (no text or symbols)

Illustration of a hand holding a curved object with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a curved object, possibly a tool or device (no text or symbols visible)

Diagram showing a device with labeled components and an upward arrow indicating direction or movement

Simple line drawing of a human head and shoulders (no text or symbols)

Connexion rapide

ONOFF ON On

ONOFF ON ON

Bluetooth LG VHDEE SANT QUE HAR 191 00:30 APPMENTS DISPORABLES LG HBSA100 RECHERCHER

Diagram showing a device interface with an icon, a numeric input box, and a control panel labeled '25.0'.

Empty white square with black tick marks at corners (no text or symbols)

Empty gray square frame with corner markers (no text or symbols)

Empty gray square frame with corner markers (no text or symbols)

LG Life's Good
