I55ZM 111 W - Freezer INDESIT - Free user manual and instructions

Product type	Freezer
Brand	Indesit
Model	I55ZM 111 W
Climate class	SN, ST, N, T (10°C to 43°C)
Refrigerant	R600a (isobutane)
Supply voltage	220-240 V ~, 50 Hz
Thermostat setting	3 positions (1 = less cold, 3 = colder)
Fast freeze function	Yes, for freezing fresh food in 24 h
Included accessories	Ice cube tray, plastic scraper for frost
Installation type	Free-standing, 50 mm rear space required
Defrosting	Manual, use the plastic scraper provided
Interior cleaning	Baking soda and warm water solution
Condenser cleaning	With a brush, at least twice a year
Safety instructions	Do not damage the refrigerant circuit; do not use steam cleaner
Repairs	Call a qualified technician or authorized after-sales service
Warranty	Refer to the conditions provided with the appliance
Freezing capacity	Not specified, adjust according to packaging indications
Typical storage time	Up to 12 months depending on food (see table in the manual)

Frequently Asked Questions - I55ZM 111 W INDESIT

How to adjust the temperature of the Indesit I55ZM 111 W freezer?

Turn the thermostat knob from position 1 (less cold) to 3 (colder). For long-term storage, set to the middle position. Do not force beyond position 1, as this would stop the appliance. The room temperature, the amount of food and the frequency of door opening influence the internal temperature.

What to do if the freezer is not working?

Check that the appliance is plugged in and that the main house switch is not off. Make sure the thermostat is not set to the off position. Test the socket with another appliance. If nothing works, contact a qualified technician.

How to defrost the freezer?

Unplug the appliance and place the food in insulated coolers. Leave the door open or place containers of warm water inside to speed up. Never use metal objects or mechanical devices. Once the ice has melted, clean and dry before restarting.

What foods can be frozen and for how long?

The 4-star freezer allows freezing fresh food and storing frozen food. Times vary: meat 6-8 months, vegetables 8-12 months, fish 2-4 months, dairy 2-6 months. Respect the dates on the packaging and do not refreeze a thawed product.

How to clean the inside of the freezer?

Unplug the appliance. Clean with a solution of warm water and baking soda. Rinse and dry thoroughly. Do not use abrasive cleaners, solvents or steam cleaners. Clean the condenser at the back twice a year.

What to do in case of abnormal noise?

The bubbling sound of the refrigerant is normal. If the noise is different, check that the appliance is level, that no object touches the back, and that nothing is vibrating inside. A persistent noise may require technical inspection.

Can I change the door opening direction?

On this model, the opening direction is not reversible if the handles are on the front. For models without handles, it is possible. Contact the authorized after-sales service for any modification.

What is the climate class and at what ambient temperature can it operate?

The appliance is certified for classes SN (10-32°C), ST (16-38°C), N (16-32°C) and T (16-43°C). Do not use it below 10°C or above 43°C to ensure optimal operation.

How to use the fast freeze function?

Activate the function 24 hours before placing fresh food. Place them in the lower drawer (fast freeze shelf). After 24 hours, deactivate the function. For small quantities, you can deactivate it earlier to save energy.

What are the important safety instructions?

Do not store explosive substances (aerosols) inside. Do not damage the cooling circuit pipes (contains flammable R600a). Do not consume ice cubes straight out of the freezer (risk of frostbite). Keep children away from the appliance.

USER MANUAL I55ZM 111 W INDESIT

MRAZNIČKA

Návod k použití

GEFRIERSCHRANK

Gebrauchsanweisung

FREEZER

Instructions for use

CONGELADOR

ENGLISH Instructions for use Page 36

Do not store explosive substances such as aerosol cans with flammable propellant in this appliance. Do not place or use gasoline or other flammable materials near this appliance.

Do not use the ice maker (if equipped) while the appliance is in operation. Do not consume ice cubes or ice lollies immediately after removing them from the freezer, as this may cause frostbite. For appliances designed for use with a removable filter, the filter must be in place when the appliance is operating. Do not store glass containers, carbonated liquids, or liquids in the freezer, as they may burst. Do not block the ventilation openings (if any) with food. After placing food, check that the freezer door closes properly. Damaged seals must be replaced as soon as possible. Use the freezer compartment only for storing frozen food, freezing fresh food, and making ice cubes. Avoid storing food that is not suitable for contact with the interior surfaces of the freezer compartment.

Pentane is used as a blowing agent in the insulation foam and is flammable.

The compartments of the appliance are best suited for storing certain types of food, taking into account the optimal temperature distribution in them:

The "4-star zone" is suitable for freezing

fresh food and for storing frozen food, as the temperature is evenly distributed in this compartment. The storage life of frozen food is indicated on the packaging. This period depends on the type of food stored in the freezer, so it should be followed. Fresh food should be stored for the following periods: 1-3 months for sausages, lean meat, poultry, fish, dairy products, fresh pasta; 4 months for steaks or chops (beef, lamb, pork); 6 months for butter or margarine and poultry (chicken, turkey); 8-12 months for fruits (excluding citrus), cooked meat (beef, pork, lamb), vegetables. For food stored in the 2-star zone, follow the storage life indicated on the packaging. To prevent food from spoiling, follow these instructions:

• Leaving the door open for an extended period of time may lead to a significant increase in the temperature in the compartments of the appliance. - Clean the surfaces that come into contact with food and the accessible drainage systems regularly. - Clean the water reservoirs if they have not been used for 48 hours; flush the water system connected to the water supply if you have not used water for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that they do not come into contact with other food or drip onto it. - The compartment for frozen food, marked with two stars, is suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• Do not freeze fresh food in the compartment marked with one, two or three stars. - If the refrigerator is left empty for an extended period of time, switch it off, defrost it, clean it, dry it and leave the door open to prevent the formation of mold inside.

INSTALLATION

The electrical connection of the appliance must be carried out by two or more people - there is a risk of injury. Use protective gloves for unpacking and installing the appliance - there is a risk of injury. Installation, including water connection (if applicable) and electrical connection, and repair must be carried out by a qualified technician. Do not repair or replace parts of the appliance unless explicitly stated in the user manual. Keep the appliance away from the place where installation is carried out. After unpacking the appliance, check that it has not been damaged during transport. In case of problems, contact the retailer or the nearest service center.

After unpacking, dispose of the packaging (plastic bags, polystyrene, etc.) They must be kept away from children - there is a risk of suffocation. The appliance must be disconnected from the power supply before installation - there is a risk of electric shock. During installation, be careful not to damage the power cable - there is a risk of electric shock. Connect the appliance only after installation is complete.

Install the device in a place where it can be easily accessed (e.g., parquet), when the device is in use. Mount the device on a wall that is sufficiently sturdy to support the device, in a place suitable for the size and use of the device. During installation, make sure that the device is not close to a heat source and that the rear part rests completely on the wall, pressing it if necessary, and then check that the device is level using a spirit level. Study the device for two hours before switching it on, to guarantee that the cooling system is fully functional.

To guarantee proper ventilation, leave space on both sides of the device. The distance between the rear part of the device and the wall behind it must be 50 mm, to avoid contact with the rear surface. Reducing this space will increase the energy consumption of the device.

WARNING: When placing the device in its place, make sure that the power cord is not pinched or damaged.

WARNING: To avoid danger, improper installation, installation or fastening of the device must be carried out in accordance with the manufacturer's instructions. It is forbidden to install the freezer such that the metal part of the gas bottle, metal pipes for gas or water, or electrical cables are in contact with the rear wall of the freezer (the condenser coil).

WARNINGS REGARDING ELECTRICAL SAFETY

It must be possible to disconnect the device from the power supply by unplugging it, if it is equipped with a plug, or through a multi-pole circuit breaker installed after the contact, and the device must be grounded in accordance with national electrical safety standards.

Do not use extension cords, multi-socket adapters, or adapters. After installation, the electrical components must not be accessible to the user. Do not use the device when you are wet or barefoot. Do not use this device if its power cord or plug is damaged, if it does not work properly, or if it has been damaged or dropped.

If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person, to avoid a hazardous situation, such as an electric shock.

WARNING: Do not place a multi-socket

adapter or portable power supply devices in the rear part of the device.

CLEANING AND MAINTENANCE

Before performing any cleaning or maintenance on the device, make sure that it is unplugged and not connected to the power supply; never use the device for cleaning with water - there is a risk of electric shock.

Do not use abrasive or harsh cleaning agents, such as scouring pads, scrapers, sharp objects, cleaning solvents, concentrated detergents, bleach, or cleaning agents containing petroleum products, on the plastic parts, the interior, and the insulation of the door. Do not use sharp knives, scrapers, or other harsh cleaning agents.

DISPOSAL OF

PACKAGING MATERIALS

Dispose of the appliance in accordance with the regulations for recycling and marking with the recycling symbol.

The various packaging materials have been selected responsibly in accordance with the requirements of the local authorities for waste disposal.

DISPOSAL OF HOUSEHOLD ELECTRICAL APPLIANCES

This appliance is manufactured with materials that are suitable for recycling or for reuse. When disposing of it, follow the local regulations for waste disposal. For additional information regarding the treatment, recovery, and recycling of household electrical appliances, contact the competent local authorities, the waste collection service, or the store where you purchased the appliance. This appliance is marked in accordance with Directive 2012/19/EC regarding waste electrical and electronic equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will

help prevent potential negative consequences for the environment and

human health. The symbol placed on the appliance or on the accompanying documents indicates that this appliance should not be treated as household waste, but must be taken to a specialized collection point for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

Install the appliance in a dry, well-ventilated room, away from heat sources (e.g., radiator, cooker, etc.) and not exposed to direct sunlight. If necessary, use insulating panels.

To ensure proper ventilation, follow the installation instructions. Insufficient ventilation at the back of the appliance increases energy consumption and decreases cooling efficiency. Frequent opening of the door increases energy consumption. The internal temperature of the appliance and energy consumption can be affected by the ambient temperature, as well as the placement of the appliance. When setting the temperature, these factors should be taken into account. Keep door openings to a minimum. You can increase the storage capacity of frozen food by removing the drawers and using the Frost Free function (if available).

The noises emitted by the compressor during operation are normal and should not cause concern.

Keep the appliance away from heat sources. If necessary, the Fast Freeze function ("Quick Freeze") can be used to ensure optimal performance of the appliance. 24 hours before placing fresh food in the freezer, activate this function.

Follow the instructions in the manual for quick start to activate/deactivate the function.

As a rule, for accelerated freezing, it is sufficient to leave the food for 24 hours after placing it; after this period, deactivate the function with the Fast Freeze button (if available). For appliances where this button is absent, set the thermostat to its initial position.

Caution:

To save energy when freezing small quantities of food, the quick freeze function can be deactivated after a few hours.

DIFFERENCES IN FUNCTIONALITY

Setting the thermostat

The freezer thermostat automatically regulates the temperature inside the compartment. By turning the knob to position 1, the temperature is set to the least cold.

Important: Do not turn the knob past position 1, as the appliance will not switch off.

Setting the freezer thermostat

1. To store food for a short period in the freezer compartment, you can set the knob to a position between minimum and medium.
2. To store food for a long period in the freezer compartment, you can set the knob to the medium position.
3. Position for maximum cooling. The appliance will operate for a longer time.

Note: The ambient temperature, the temperature of freshly stored food, and how often the door is opened affect the temperature in the freezer. If necessary, adjust the temperature setting.

ACCESSORIES

Ice cube tray

• Fill the ice cube tray with water and place it in the freezer compartment. Once the water has frozen, you can twist the tray as shown below to remove the ice cubes.

Plastic scraper

After a certain period of time, frost will form in some areas of the freezer compartment. The frost that accumulates in the freezer must be removed periodically. If necessary, use the provided plastic scraper. Do not use sharp metal objects to remove the frost.

The freezer is designed to maintain the correct temperature for proper food preservation.

Warnings about temperature adjustment

• Before you have completed the adjustment, do not proceed to the next step.
• The ambient temperature, the temperature of the stored food, and the frequency of opening the door affect the temperature inside the freezer. If necessary, adjust the temperature setting. It is not recommended for the freezer to operate in rooms with an ambient temperature lower than 10°C.
• The temperature setting should be adjusted, taking into account how often the freezer door is opened, how much food is stored in the freezer, the working environment, and the placement of the appliance.
• Upon initial startup, it is recommended to leave the freezer to operate for 24 hours without interruption, so that it can cool down completely. During this period, do not open the freezer door and do not place food in it. - The freezer has a function for 5-minute delayed start to prevent damage.

Compressor. When the freezer is turned on, it will start operating normally after 5 minutes.

- The freezer is designed to operate in ambient temperatures within the standards depending on the climate class, as indicated on the information label. It is not recommended for the freezer to operate in ambient temperatures outside the specified range, so as not to impair the cooling efficiency. - The appliance is designed for use in environments with ambient temperatures in the range of 10°C - 43°C

Климатун Клас	OK. Temп. (℃)
SN: 0T 10 do 32°C
ST: 0T 16 do 38°C;
N: 0T 16 do 32°C
T: 0T 16 do 43°C

STORING FOOD IN THE APPLIANCE

• The freezer compartment is used for freezing fresh food, storing frozen food for the period indicated on the packaging, and making ice cubes.
• Do not place fresh and warm food near frozen food, as it may thaw them. When freezing fresh food (e.g., meat, fish, and poultry), divide it into portions so that you can use it for one meal. When storing frozen food, carefully follow the instructions given on the packaging. If no information is given, food should not be stored for longer than 3 months from the date of freezing. When buying frozen food, make sure that it has been frozen at the appropriate temperature and that the packaging is intact. Frozen food should be transported in suitable conditions to maintain quality, and should be placed in the freezer as soon as possible.
• If the packaging of frozen food shows signs of moisture or unusual odor, it is likely that the food has been stored at an inappropriate temperature and the quality has deteriorated. The shelf life of frozen food depends on the room temperature, the thermostat setting, the frequency of opening the door, the type of food, and the time it took to bring it from the store to home. Follow the instructions printed on the food packaging, and do not exceed the maximum recommended shelf life.
• Fast freezing function for quick freezing, set the freezer to freeze fresh food (and any food that needs to be frozen quickly) faster than the normal freezing setting.

The fast freezing function is an auxiliary function of the freezer compartment.

When freezing food, use the full function.

On pages 9, 10 and 11 are given some recommendations for the storage and preservation of food in the freezer compartment.

Storage and preservation of food in the deep freeze compartment.

Mesoи риба Повотовka		Мakсимален срок на съхсане (месуи)
Стек увambaе вьв phолino 6-8
Агнeshko мeso увambaе вьв phолino 6-8
Говекdo пechени Увambaе вьв phолino 6-8
Парчета ровждо Ha малки парчета 6-8
Парчета arhevшико Ha парчета 4-8
КайmaВ опаковки, бez поорравки 1-3
Д_REболи (парчета)Ha парчета 1-3
Болонска наденица/cалam	Тразва да eВ опаковka, дори akо eВ черво
Пиileшко и п ueшko увambaе вьв phолino 4-6
Гьш e пateшко увambaе вьв phолino 4-6
Еlenско, зашко, dinbo пасе На поци OT no 2,5kg и на phилета 6-8
Сладковогни риби (сыомra, shapan, пьстрва, com)	След поиславе на вьтушноctине и лiosспITE на рибatable и Изейtenе и посухete;aco e NeobхODIMO, оtrожete опашка та и гливata.	2
Нетльстри риби; костotyp, калдан, пися		4
Тльстri риби (TOH, skуmprowa, leфер, anshoa)		2-4
Черунесные мекotelli	Почистени и в пликове	4-6
Хайber	В собстVENA опаковka, алуминевinski Пл actmacob sbd	2-3
Охлоби	В собсява вда, в并对 themselves in Пл actmacob sbd	3

WARNING: Frozen meat after thawing must be cooked as fresh meat. If the meat is not

cooked after thawing, do not freeze it again.

Плобови и зеленчци Плodrotовka		Мakсимален срок на съхсане (месци)
Зелен 606 и Фасун	Изmirite, наожete на маликни парета в сравete вв вoda	10 - 13
Бобови	Maxheteшиш光阴ite, Изmirite и сравete вьв вoda	12
Зеле Почистete и сравete вьв вoda 6 - 8
Моркови	Почистete, наожete на рezehи и сравete вьв вoda	12
Плер	О tradebetes CTBona, с tradebetes на дve, римaxhetes cbrpuebinata и сравete вьв вoda	8 - 10
Спанak Изmirite и сравete вьв вoda 6 - 9
Карфол	О tradebetes Лоста, наожete сbrpuebinata на парета и OCTabete на реседи вьв вoda с малко лимонов сok за在其всятно врeme	10 - 12
Патладжан След Изmirbaуне наожete на парета по 2 cm 10 - 12
Цавица	Почистete и с tradebetes в оданobka с коча на лим като саддацацавица	12
Яблки и крushи Obelete и наожete 8 - 10
Кайсни п��кови С tradebetes на половини在其всядота 4 - 6
Я徜и и Кльни Изmirite и почистete 8 - 12
Сrotваимплобов Добавete 10% за вьвдота在其всядота 3a съхсане 12
Черуностин мекotеля	Почистени в пликове	4 - 6
Сливи, чeredи, вшини	Изmirite и почистete от дрьжкITE	12

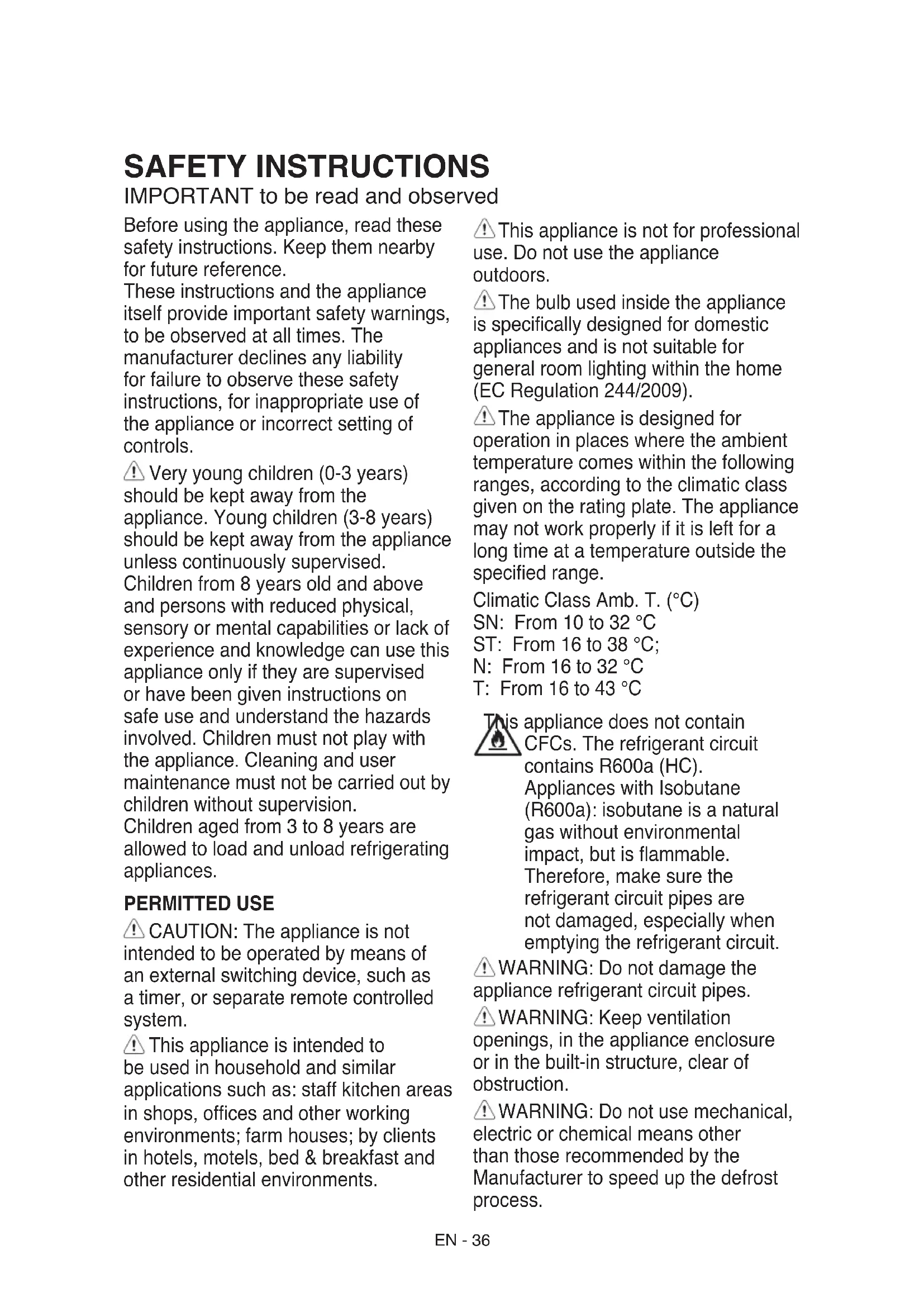

IMPORTANT to be read and observed

Before using the appliance, read these safety instructions. Keep them nearby for future reference.

These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

PERMITTED USE

CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments.

This appliance is not for professional use. Do not use the appliance outdoors.

The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009).

The appliance is designed for operation in places where the ambient temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climatic Class Amb. T. (°C)

SN: From 10 to 32°C

ST: From 16 to 38°C

N: From 16 to 32°C

T: From 16 to 43°C

This appliance does not contain CFCs. The refrigerant circuit contains R600a (HC). Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged, especially when emptying the refrigerant circuit.

WARNING: Do not damage the appliance refrigerant circuit pipes.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.

WARNING: Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer. WARNING: Ice makers and/or water dispensers not directly connected to the water supply must be filled with potable water only. WARNING: Automatic ice-makers and/or water dispensers must be connected to a water supply that delivers potable water only, with mains water pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar). Do not store explosive substances such as aerosol cans and do not place or use gasoline or other flammable materials in or near the appliance. Do not swallow the contents (nontoxic) of the ice packs (provided with some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns. For products designed to use an air filter inside an accessible fan cover, the filter must always be in position when the appliance is in function. Do not store glass containers with liquids in the freezer compartment since they may break.

Do not obstruct the fan (if included) with food items.

After placing the food check that the freezer door closes properly.

Damaged gaskets must be replaced as soon as possible. Use the freezer compartment only for storing

frozen food, freezing fresh food and making ice cubes. Avoid storing unwrapped food in direct contact with internal surfaces of the freezer compartments.

Cyclopentane is used as blowing agent in the insulation foam and it is a flammable gas.

The most appropriate compartments of the appliance where specific types of food are to be stored, taking into account different temperature distribution in different compartments in the appliance, are as follows:

4 star zone (***) compartment is suitable for freezing foodstuffs from ambient temperature and for storing frozen food as the temperature is evenly distributed throughout the entire compartment.

Purchased frozen food has the storage expiration date stated on the packaging. This date takes into account the type of food being stored and therefore this date should be respected. Fresh food should be stored for the following time periods: 1-3 months for cheese, shellfish, ice cream, ham/ sausage, milk, fresh liquids; 4 months for steak or chops (beef, lamb, pork); 6 months for butter or margarine, poultry (chicken, turkey); 8-12 months for fruits (except citrus), roast meat (beef, pork, lamb), vegetables. Expiration dates on the packaging of foods in the 2-star zone must be respected.

To avoid food contamination, please observe the following:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Regularly clean surfaces that may come into contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 hours; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it does not come into contact with or

drip onto other food.

• Two-star frozen food compartments are suitable for storing pre-frozen food, storing or making ice cream and ice cubes.
• Do not freeze fresh food in one, two or three-star compartments.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing inside the appliance.

INSTALLATION

The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.

Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest Aftersales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock.

During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.

Be careful not to damage the floors (e.g. parquet) when moving the appliance. Install the appliance on a floor or support strong enough to take its weight and in a place suitable

for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable and resting on the floor, adjusting them as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.

To guarantee adequate ventilation, leave a space on both sides and above the appliance. The distance between the rear of the appliance and the wall behind the appliance should be 50 mm, to avoid access to hot surfaces. A reduction of this space will increase the Energy consumption of product.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING: To avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions. It's forbidden to place the freezer in such way that the metal hose of gas stove, metal gas or water pipes, or electrical wires are in contact with the freezer back wall (condenser coil).

ELECTRICAL WARNINGS

It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.

Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot.

Do not operate this appliance if it has a damaged power cable or plug, if it is

not working properly, or if it has been damaged or dropped.

If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electric shock. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

CLEANING AND MAINTENANCE

WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock. Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol.

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials.

Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.

The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

Install the appliance in a dry, well ventilated room far away from any heat source (e.g. radiator, cooker, etc.) and in a place not exposed directly to the sun. If required, use an insulating plate.

To guarantee adequate ventilation follow installation instructions.

Insufficient ventilation at the back of the product increases energy consumption and decreases cooling efficiency.

Frequent door opening might cause an increase in energy consumption.

The internal temperature of the appliance and the energy consumption may also be affected by the ambient temperature, as well as the location of the appliance. Temperature setting should take these factors into consideration. Reduce door opening to a minimum.

You can increase storage capacity of frozen food by removing baskets and, if present, the Stop Frost shelf. Do not worry about noises coming from the compressor, which are normal operation noises.

Keep the product away from heat sources.

Fast Freeze (if present) can be used for optimum appliance performance, 24 hours before placing fresh food in the freezer. Please follow the instructions contained in the Quick Start Guide to activate/deactivate the function.

After placing fresh food in the freezer, 24 hours on Fast Freeze function is generally sufficient; at the end of this period, switch off the Fast Freeze button (if provided). For appliances without this button, turn the thermostat to its original position.

Attention: In order to save energy, when freezing small amounts of food, the fast freeze function can be deactivated after a few hours.

The user shall maintain the refrigerating appliance in accordance with the CLEANING AND MAINTENANCE chapter.

THE VARIOUS FUNCTIONS AND POSSIBILITIES

Thermostat setting

The freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 3, colder temperatures can be obtained.

Important note: Do not try to rotate the knob beyond position 1; it will stop your appliance.

Freezer Thermostat Setting:

1. For short-term storage of food in the freezer compartment, you can set the knob between the minimum and medium position.
2. For long-term storage of food in the freezer compartment, you can set the knob to the medium position.
3. Maximum cooling position. The appliance will work longer.

Note that the ambient temperature, the temperature of freshly stored food, and how often the door is opened all affect the temperature in the freezer. If required, change the temperature setting.

Accessories

Ice tray

• Fill the ice tray with water and place it in the freezer compartment.

After the water has completely turned into ice, you can twist the tray as shown below to remove the ice cubes.

Plastic scraper

After a period of time, frost will build up in certain areas in the freezer compartment.

The frost accumulated in the freezer should be removed periodically. Use the plastic scraper provided if necessary. Do not use sharp metal objects for this operation.

They could puncture the refrigerator circuit and cause irreparable damage to the unit.

Warnings about Temperature Adjustments

• Do not move to another adjustment before completing an adjustment.
• The ambient temperature, the temperature of freshly stored food, and how often the door is opened affect the temperature in the freezer. If required, change the temperature setting. It is not recommended that you operate your freezer in environments colder than 10°C.
• The temperature setting should be set by taking into consideration how often the freezer door is opened and closed, how much food is stored in the freezer, and the environment in which the appliance is placed.
• We recommend that when first using the freezer, it should be left running for 24 hours uninterrupted to ensure it is completely cooled. Do not open the freezer door or put food inside during this period.
• Your freezer has a 5 minute built in delay function, designed to prevent damage to the compressor. When power is applied to your freezer, it will begin to operate normally after 5 minutes.
• Your freezer is designed to operate in the ambient temperature intervals stated in the standards,

according to the climate class stated in the information label. It is not recommended that your freezer is operated in the environments which are out of the stated temperature intervals in terms of cooling efficiency.

• This appliance is designed for use at an ambient temperature within the 10°C - 43°C range.

Climatic Class Amb. T. (℃)

SN: From 10 to 32 ℃

ST: From 16 to 38 ℃;

N: From 16 to 32 ℃

T: From 16 to 43 ℃

ARRANGING FOOD IN THE APPLIANCE

• The freezer compartment is used for freezing fresh food, for storing frozen foods for the period of time indicated on packaging and for making ice cubes.
• Do not put fresh and warm food next to frozen food as it can thaw the frozen food.
• While freezing fresh foods (i.e. meat, fish and mincemeat) divide them in portions you will use in a single serving.
• For storing frozen foods, the instructions shown on frozen food packages should always be followed carefully. If no information is provided, food should not be stored for more than 3 months from the purchased date.
• When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.
• Frozen food should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.
• Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf's greater freezing power. Fast freezing shelves are the bottom drawers of the freezer compartment.
• While freezing food use the bottom drawer.

Some recommendations have been specified on pages 9, 10 and 11 for the placement and storage of your food in the deep freeze compartment.

Meat and fish Preparation		Maximum Storing time (month)
Steak Wrapping in a foil 6 - 8
Lamb meat Wrapping in a foil 6 - 8
Veal roast Wrapping in a foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packages without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami	Should be packaged even if it has membrane
Chicken and turkey Wrapping in a foil 4 - 6
Goose and Duck Wrapping in a foil 4 - 6
Deer, Rabbit, Wild Boar	In 2.5 kg portions and as fillets	6 - 8
Fress海水ater fishes (Salmon, Carp, Trout, Siluroidea)	After cleaning the bowels and scales of the fish, wash and dry it; and if necessary, cut the tail and head.	2
Lean fish; bass, turbot, flounder		4
Fatty fishes (Tunny, Mackarel, bluefish, anchovy)		2 - 4
Shellfish	Cleaned and in bags	4 - 6
Caviar	In its package, aluminium or plastic container	2 - 3
Snail	In salty water, aluminum or plastic container	3

NOTE: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it should never be frozen again.

Vegetables and Fruits Preparation		Maximum Storing time (month)
String beans and beans	Wash and cut to small pieces and boil in water	10 - 13
Beans Hull and wash and boil in water	12
Cabbage Cleaned and boil in water	6 - 8
Carrot	Clean and cut to slices and boil in water	12
Pepper	Cut the stem, cut into two pieces and remove the core and boil in water	8 - 10
Spinach Washed and boil in water	- 9
Cauliflower	Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while	10 - 12
Eggplant Cut to pieces of 2cm after	washing 10 - 12
Corn	Clean and pack with its stem or as sweet corn	12
Apple and pear Peel and slice 8 - 10
Apricot and Peach	Cut into two pieces and remove the stone	4 - 6
Strawberry and Blackberry Wash and hull 8 - 12
Cooked fruits Adding 10 % of sugar	in the container 12
Shellfish	Cleaned and in bags 4 - 6
Plum, cherry, sourberry	Wash and hull the stemsr	12

Dairy Products	Preparation	Maximum Storing time (month)	Storing Conditions
Packet (Homogenize) Milk	In its own packet	2 - 3	Pure Milk – In its own packet
Cheese-excluding white cheese	In slices	6 - 8	Original package may be used for short storing period. It should be wrapped in foil for longer periods.
Butter, margarine	In its package	6

	Maximum Storing time (months)	Thawing time in room temperature (hours)	Thawing time in oven (minutes)
Bread	4 - 6	2 - 3	4-5 (220-225 °C)
Biscuits	3 - 6	1 - 1,5	5-8 (190-200 °C)
Pastry	1 - 3	2 - 3	5-10 (200-225 °C)
Pie	1 - 1,5	3 - 4	5-8 (190-200 °C)
Phyllo dough	2 - 3	1 - 1,5	5-8 (190-200 °C)
Pizza	2 - 3	2 - 4	15-20 (200 °C)

CLEANING AND MAINTENANCE

• Disconnect the unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• Make sure that no water enters the lamp housing and other electrical components.
• The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water. Do not clean them in the dishwasher.
• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.
• Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

!! The power supply must be disconnected.

Defrosting Your Freezer

• Small amounts of frost will accumulate inside the freezer, depending upon the length of time for which the door is left open or the amount of moisture introduced. It is essential to ensure that no frost or ice is allowed to form in places where it will affect the close fitting of the door seal. This might allow air to penetrate the cabinet, encouraging continuous running of the compressor. Thin frost formation is quite soft and can be removed with a brush or plastic scraper. Do not use metal or sharp scrapers, mechanical devices or other means to accelerate the defrosting process. Remove all dislodged frost from the cabinet floor. It is not necessary to switch off the appliance for the removal of thin frost.
• For the removal of heavy ice deposits, disconnect the appliance from the mains supply and empty the contents into cardboard boxes and wrap in thick blankets or layers of paper to keep cold. Defrosting will be most effective if carried out when the freezer is nearly empty and should be carried out as quickly as possible to prevent undue increase in temperature of the contents.
• Do not use metal or sharp scrapers, mechanical devices or other means to accelerate the defrosting process. An increase in temperature of frozen food during defrosting will shorten the storage life. If the contents are well wrapped and placed in a cool area they should keep for several hours.
• Dry the inside of the compartment with a sponge or a clean cloth.
• To accelerate the defrosting process, place one or more bowls of warm water in the freezer compartment.
• Examine the contents when replacing them in the freezer and if some of the packages have thawed out they should be eaten within 24 hours, or be cooked and re-frozen.
• After defrosting has finished, clean the inside of the appliance with a solution of warm water with a little bicarbonate of soda and then dry thoroughly. Wash all removable parts in the same way and reassemble. Reconnect the appliance to the mains supply and leave for 2 to 3 hours on setting number 3 before introducing the food back into the freezer.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and changing of Installation position

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope.

The instructions written on the corrugated box must be followed while transporting.

• Before transporting or changing the installation position, all the moving objects (ie, drawer, Ice trays, ...) should be taken out or fixed with bands in order to prevent them from getting damaged.

!! Carry your freezer in the upright position.

Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door. It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge can be changed, you should contact the nearest Authorised Service to have the opening direction changed.

BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not operating as expected, check the solutions listed below before calling an electrician or the after-sales service.

What to do if your refrigerator does not operate:

Check that:

• Your freezer is plugged in and switched on,
• The mains switch in your home is not switched off,
• The thermostat setting is in the “·” position,
• The socket is no longer functioning. To check this, plug in an appliance that you know is working into the same socket.

What to do if your refrigerator performs poorly:

Check that:

• You have not overloaded the appliance,
• The freezer thermostat setting is in the "1" position (if so, set the thermostat dial to a suitable value),
• The door is closed properly,
• There is no dust on the condenser,
• There is enough space for air circulation at the rear and side of the appliance.

If there is noise;

The cooling gas which circulates in the cooling circuit may make a slight noise (bubbling sound) even when the compressor is not running. This is normal. If these sounds are different, check that:

• The appliance is well levelled,
• Nothing is touching the rear,
• Nothing on or in the appliance is vibrating.

Recommendations

• If the appliance is not used for a long time (for example during holidays), defrost and clean the refrigerator, leaving the door open to prevent the formation of mildew and smell.
• To stop the appliance completely, unplug it at the mains socket (for cleaning and when the doors are left open).
• If the problem persists after you have followed all the instructions above, please consult the nearest Authorised Service.
• The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use.

If the consumer uses the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair or failure within the guarantee period.

Tips for saving energy

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2. Allow warm food and drinks to cool down outside the appliance.
3. Cover drinks or other liquids when placing them in the appliance. Otherwise humidity increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.
4. Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
5. Keep the covers of the different temperature compartments (crisper, chiller, etc.) closed.
6. Door gasket must be clean and pliable. Replace gaskets if worn.
7. It is possible to store more food by removing the freezer shelf. Energy consumption is declared with maximum load and without the freezer shelf.

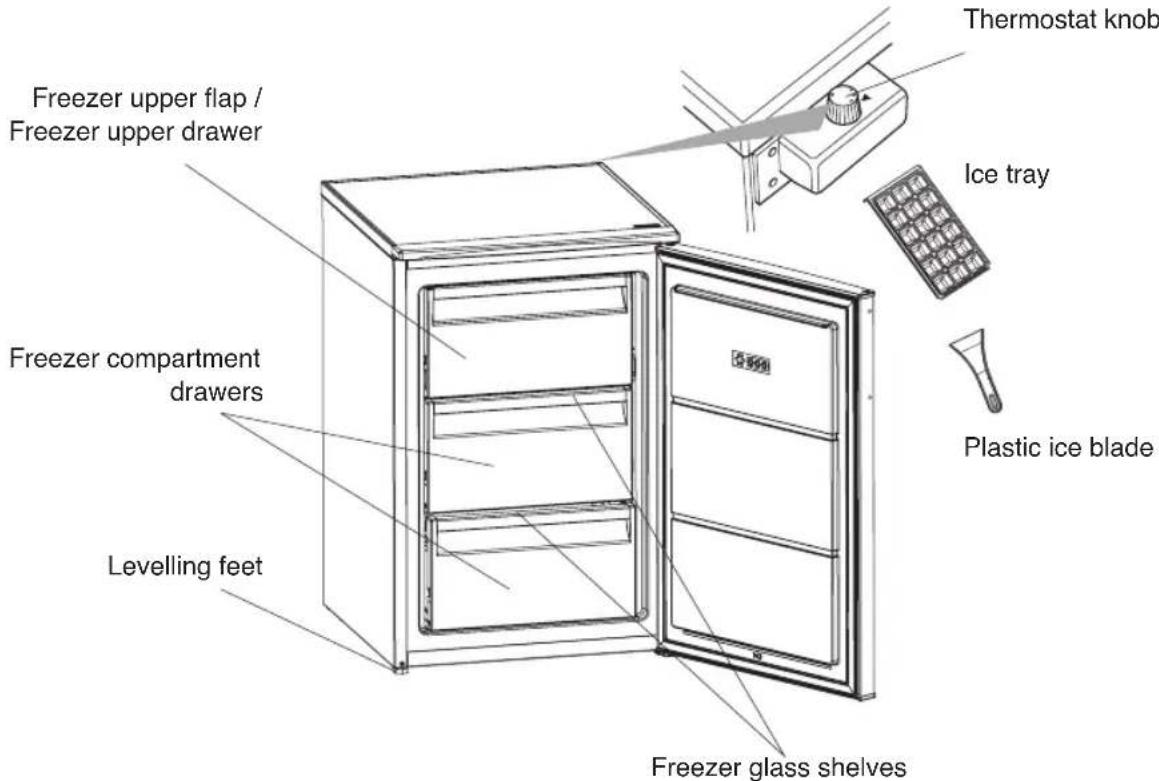

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

About freezer glass shelves: When the freezer is unpacked, both of the freezer glass shelves may be in the lower shelf position. In this situation, remove the bigger shelf and place it on the upper shelf position.

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

Climatic Class Amb. T. (℃)

SN: From 10 to 32 ℃

ST: From 16 to 38 ℃;

N: From 16 to 32 ℃

T: From 16 to 43 ℃

!! Carry your freezer in the upright position.

Frequent door opening might cause an increase in energy consumption.

The internal temperature of the appliance and the energy consumption may be affected also by the ambient temperature, as well as the location of the appliance. These factors should be taken into account when setting the temperature. Open the door as little as possible.

SN: Annual temperature range 10 to 32 °C

RECYCLING OF THE APPLIANCE

The materials of the appliance are 100% recyclable and bear the recycling symbol.

The different parts of the appliance should therefore be disposed of in accordance with local regulations and in an environmentally friendly manner.

RECYCLING OF HOUSEHOLD APPLIANCES

This appliance has been manufactured with recyclable or reusable materials. Dispose of it in accordance with local regulations. For further information on the treatment, recovery, and recycling of electrical household appliances, contact your local authorities, the waste collection service, or the store where you purchased this product. This appliance bears the mark in accordance with European Directive 2012/19/EU regarding Waste Electrical and Electronic Equipment (WEEE). By ensuring proper disposal of this product, you will help prevent potential negative consequences for the environment and human health.

Improper use of the product may cause damage to the environment and human health.

The product or its packaging indicates that it should not be treated as household waste but must be taken to an appropriate collection center for recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

Install the appliance in a dry, well-ventilated place, away from any heat source (e.g., radiator, cooker, etc.) and protected from direct sunlight. If necessary, use a protective cover.

For adequate ventilation, follow the installation instructions. Insufficient ventilation on the back of the product increases energy consumption and reduces performance.

Frequent opening of the appliance door may cause an increase in energy consumption. The internal temperature of the appliance and energy consumption are also affected by the ambient temperature and the location of the appliance. These factors should be taken into account when setting the temperature. Open the doors as little as possible.

You can increase the storage capacity of frozen foods by removing the drawers and, if present, the Frost Stop shelf. Do not remove the shelves that come with the appliance; they are for normal operation.

Keep the product away from heat sources. The Fast Freeze function (if provided) can be used to improve the performance of the appliance 24 hours before placing fresh food in the freezer. Follow the instructions in the Quick Start Guide to enable/disable this function.

Fast freezing usually takes about 24 hours after placing the food. At the end of this period, disable the Fast Freeze button (if provided). For appliances without this button, return the thermostat to its original setting. Caution:

To save energy, when freezing fresh food, the fast freeze function can be disabled after a few hours. Maintenance of the appliance by the user should be carried out as described in the CLEANING AND MAINTENANCE chapter.

VARIOUS FUNCTIONS AND POSSIBILITIES

Temperature regulator

The thermostat automatically regulates the internal temperature of the compartments. By turning the knob from position 1 to position 3, lower temperatures can be achieved.

BEFORE CALLING AFTER-SALES SERVICE

If your appliance does not work as expected, check the points listed below before calling an electrician or the after-sales service.

Check the freezer and the food items:

Check that:

The appliance is properly connected and switched on. The general switch at your home is not turned off. The thermostat is set to the correct position. The fuse is not blown. To check this, connect an appliance that you know works to the same socket.

What to do if the freezer does not work properly:

Check that:

• The door is not opened too frequently. The thermostat is set to a lower temperature (if this happens, adjust the thermostat to a higher temperature or the opposite). The fuse is not blown; ·There is no dust on the condenser. There is enough space for air circulation around the appliance and the condenser.

There is no vibration.

The air circulating in the appliance may cause frost (ice formation) on the evaporator. This is normal. If the frost is excessive, proceed as follows:

The appliance is well leveled. Nothing touches the back of the appliance, - There is nothing on the top of the appliance that could cause vibration.

Noise

If the appliance is not used for a long period of time (e.g., during holidays), remove and clean the freezer, leaving the door open to avoid the formation of odors and mold. To disconnect the appliance completely, unplug it from the socket (for cleaning and when the doors are left open). If the problem persists after following the instructions above, contact the nearest authorized service. The appliance you purchased is designed for household use and can only be used at home and for the purposes mentioned above. It is not suitable for commercial or industrial use.

If the consumer uses the appliance in a way that does not comply with these characteristics, the manufacturer and the retailer are not liable for any damage or failure within the warranty period.

Climatic Class Amb. T. (℃)

SN: From 10 to 32 ℃

ST: From 16 to 38 ℃;

N: From 16 to 32 ℃

T: From 16 to 43 ℃

Some recommendations have been specified on pages 9, 10 and 11 for the placement and storage of your food in the deep freeze compartment.
