Sumario Manual de instrucciones,1 Descripción del aparato-Vista de conjunto,2 Descripción del aparato-Panel de control,2 Instalación,38 Puesta en funcionamiento y uso,40 Uso del horno,41 Uso de la encimera,42 Precauciones y consejos,43 Mantenimiento y cuidados,44 Asistencia,44 HI 150.A IX/1 HI 20.A/1 HI 20.A IX/1 WARNING ATTENTION PAS OP ZUR BEACHTUNG , ATENCIÓN ΠΡΟΣΟΧΉWARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a

hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not

store items on the cooking surfaces.

WARNING: If the surface in glass-

ceramic is cracked, switch off the appliance to avoid the possibility of electric shock. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. The internal surfaces of the compartment (where present) may become hot. Never use steam cleaners or pressure cleaners on the appliance. Remove any liquid from the lid before opening it. Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.

WARNING: Ensure that the appliance is

switched off before replacing the lamp to avoid the possibility of electric shock. English

Description of the appliance Control panel

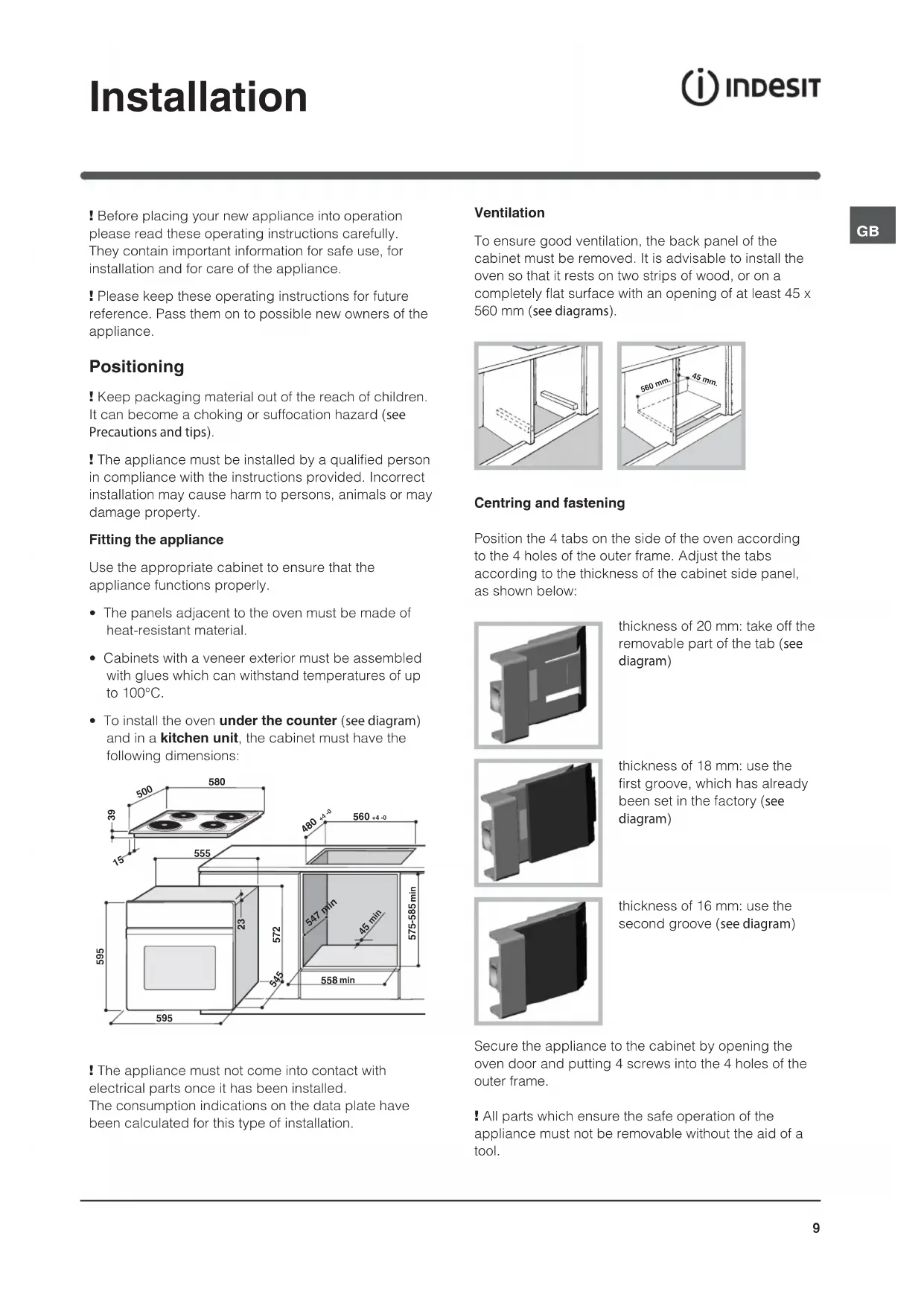

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. Positioning ! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips). ! The appliance must be installed by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property. Fitting the appliance Use the appropriate cabinet to ensure that the appliance functions properly.

• The panels adjacent to the oven must be made of heat-resistant material.

• Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

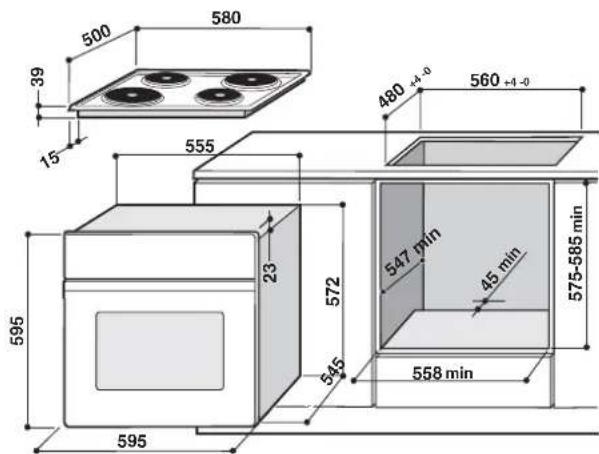

• To install the oven under the counter (see diagram) and in a kitchen unit, the cabinet must have the following dimensions: ! The appliance must not come into contact with electrical parts once it has been installed. The consumption indications on the data plate have been calculated for this type of installation. Ventilation To ensure good ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams). Centring and fastening Position the 4 tabs on the side of the oven according to the 4 holes of the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below: thickness of 20 mm: take off the removable part of the tab (see diagram) thickness of 18 mm: use the first groove, which has already been set in the factory (see diagram) thickness of 16 mm: use the second groove (see diagram) Secure the appliance to the cabinet by opening the oven door and putting 4 screws into the 4 holes of the outer frame. ! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.

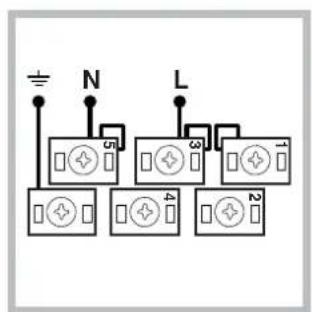

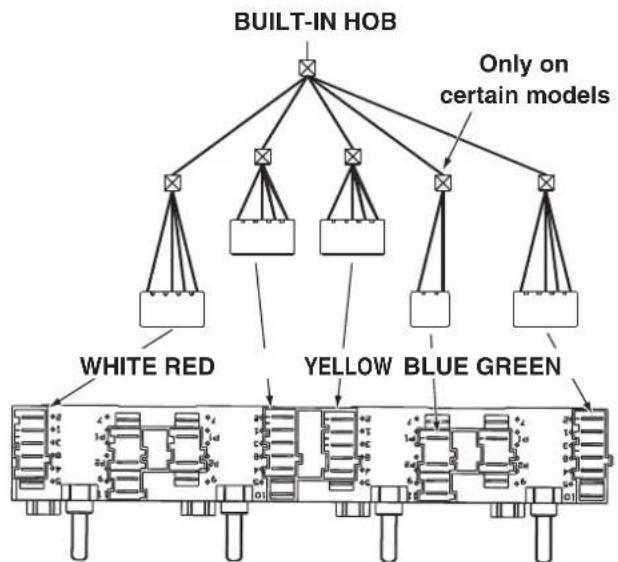

Electrical connections The cooker must be connected to the mains electricity supply. It is designed to operate with alternating current at the voltage and frequency indicated on the data plate (see the following page).The hob is connected to the cooker using a special connector.BUILT-IN HOBBUILT-IN COOKERWHITE REDYELLOWBLUE GREENOnly on certain modelsReplace the metal protection after performing all the necessary hob connections. If the hob is removed from its position, the red cap which was originally protecting the red connector must be replaced.Fitting the power supply cable1. Open the terminal board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram).2. Install the power supply cable by loosening the cable clamp screw and the wire contact screws L-N-. Connect the wires to the corresponding terminals: the Blue wire to the terminal marked (N), the Brown wire to the terminal marked (L) and the Yellow Green wire to the terminal marked The terminal board is designed for a 400 V three-phase connection (see diagrams below).If the electrical system has other characteristics (see diagrams below), carry out the electrical connection using the connection supports provided in the box P.3. Secure the power supply cable by fastening the clamp screw.4. Close the cover of the terminal board. NL1L3L2

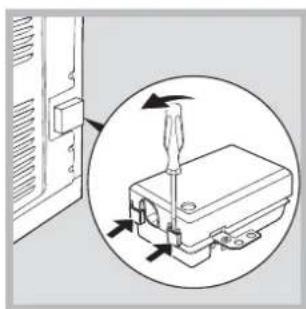

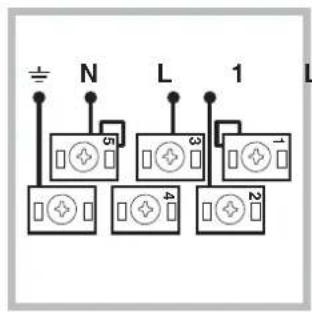

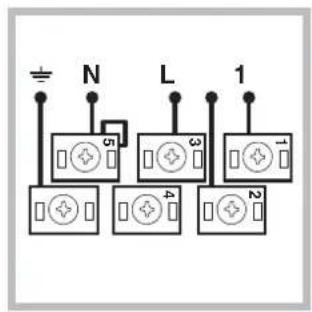

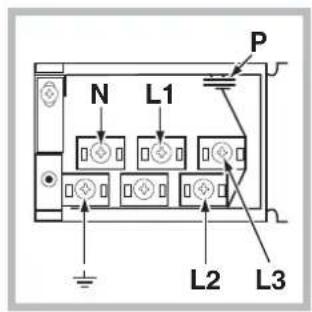

Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate (see side). The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains, suitable for the load indicated and complying with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C. ! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations. Before connecting to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate (see below).

• The voltage must be in the range between the values indicated on the data plate (see below).

• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed. Start-up and use ! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may produce a slightly unpleasant odour caused by the burning away of protective substances used during the manufacturing process. Starting the oven

1. Select the desired cooking mode by turning the

2. See the Cooking advice table for cooking modes

and the suggested cooking temperatures (see Cooking Modes).

3. You may do the following during cooking:

- change the cooking mode by turning the SELECTOR knob - stop cooking by turning the SELECTOR knob to the “0” position ! Never put objects directly on the oven bottom to avoid damaging the enamel coating. ! Always place cookware on the rack(s) provided. DATA PLATEDimensionswidth 43.5 cmheight 32 cmdepth 43,5 cmVolumelt. 57Electricalconnectionsvoltage: 230V/400V~ 3N 50/60Hzmaximum power absorbed 8400WENERGY LABELDirective 2002/40/EC on the labelof electric ovens.Standard EN 50304Energy consumption Classcertification Natural convectionheating mode: TRADITIONAL This appliance conforms to thefollowing European EconomicCommunity directives:73/23/EEC of 19/02/73 (LowVoltage) and subsequentamendments;- 89/336/EEC of 03/05/89(Electromagnetic Compatibility) andsubsequent amendments;- 93/68/EEC of 22/07/93 andsubsequent amendments.- 2002/96/EC12

Oven light When selecting with the SELECTOR knob the oven light goes on. It remains on when a cooking mode is selected. Cooking modes TRADITIONAL OVEN mode Both the top and bottom heating elements will come on. With this traditional cooking mode, it is best to use one cooking rack only; if more than one rack is used, the heat will be distributed unevenly. The oven will automatically reach the temperature set, and the thermostat, which is controlled by the SELECTOR knob, will keep it constant. TOP OVEN mode The top heating element comes on. This mode can be used to brown food at the end of cooking. Always cook in this mode with the oven door closed. Cooking modes Practical cooking advice ! In the GRILL cooking mode, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). GRILL

• Insert the rack in position 3 or 4. Place the food in the centre of the rack.

• The top heating element is regulated by a thermostat and may not always be on. PIZZA

• Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan (prevents crust from forming by extending cooking time).

• If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process. Cooking advice table FoodsWeight(in kg)Rack positionPre-heating time(min)RecommendedtemperatureCooking time(minutes)PastaLasagneCannelloniTagliatelle

Hob Type of hob The oven is combined with a hob that can be made up of two types of heating elements: cast-iron electric plates (see diagram 1) or glass ceramic hobs (see diagram 2). Switching on the glass ceramic hob Traditional cooking zones Traditional cooking zones are made up of circular heating elements. They turn red approximately ten seconds after they have been turned on.Each cooking zone is fitted with a control knob allowing you to select from 6 different temperature settings from a minimum of 1 to a maximum of 6. Residual heat indicator lights* The indicator lights (C) indicate that the temperature of the corresponding cooking zones have exceeded 60°C, even after the heating element has been switched off. Recommended power levels for various types of cooking: Practical advice on using the glass ceramic hob ! The glue that is applied on the gaskets leaves some traces of grease on the glass. Before using the appliance, we recommend you eliminate these with a special non-abrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly.To obtain the best results with your hob:• Use flat-bottomed pans to ensure that they adhere to the cooking zone perfectly.• Always use pans with a diameter that is large enough to cover the hotplate fully, in order to use all the available heat.• Make sure that the bottom of the cookware is always dry and clean to guarantee correct adherence and long life, not only for the cooking zones but also for the cookware itself.• Avoid using the same cookware that is used on gas burners: the heat concentration on gas burners may deform the base of the pan, causing it not to adhere correctly.• Never leave a cooking zone on without cookware on it because as it heats up and rapidly reaches the maximum level, it could damage the heating elements.diagram 2diagram 1

• Only on certain models Setting Normal or Fast Plate

Cooking vegetables, fish

Cooking potatoes (using steam) soups, chickpeas, beans.

Continuing the cooking of large quantities of food, minestrone

For roasting (above average)

For browning and reaching a boil in a short time.14

Precautions and tips ! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• When handling the appliance, always use the handles provided on the sides of the oven.

• Do not touch the appliance with bare feet or with wet or moist hands and feet.

• The appliance must be used to cook food by adults only and according to the instructions in this manual.

• Do not touch the heating elements and parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from the appliance.

• Ensure that the power supply cable of other electrical appliances does not come into contact with the hot parts of the oven.

• The openings used for ventilation and dispersion of heat must never be covered.

• Always grip the oven door handle in the centre: the ends may be hot.

• Always use oven gloves to place cookware in the oven or when removing it.

• Do not use aluminium foil to line the bottom of the oven.

• Do not place flammable materials in the oven: if the appliance is switched on by mistake, it could catch fire.

• Always make sure the knobs are in the “”/“

” position when the appliance is not in use.

• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

• Never carry out any cleaning or maintenance work without having unplugged the plug from the mains.

• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).

• Do not rest heavy objects on the open oven door.

• The glass ceramic hob is resistant to mechanical shocks, but it may crack (or even break) if hit with a sharp object such as a tool. If this happens, disconnect the appliance from the electricity mains immediately and contact a Service Centre.

• Remember that the temperature of the cooking zones remains relatively high for at least thirty minutes after they have been switched off.

• Keep any object that could melt away from the hob, for example plastic and aluminium objects, or products with a high sugar content. Keep plastic or aluminium objects away from the hob: if you forget them on surfaces that are still hot, they may cause serious damage to the hob.

• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

• Do not let children play with the appliance. Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes. Observe existing legislation when disposing of the old appliance.

• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Respecting and conserving the environment

• By using the appliance in the hours between late afternoon and early morning, you can help reduce the work load placed on electrical companies.

• Always keep the oven door closed when using the GRILL mode to attain best results and to save energy (approximately 10%).

• Regularly check the door seals and wipe clean to ensure they are free of debris so that they stick properly to the door and do not allow heat to disperse.15

Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance

• The stainless-steel or enamel-coated external parts as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. If these stains are difficult to remove, use only specialised products. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.• Ideally, the inside of the oven should be cleaned after each use, when it is still lukewarm. Use hot water and detergent, rinse and dry with a soft cloth. Do not use abrasive products.• The accessories can be washed like everyday crockery (even in your dishwasher).! Never use steam cleaners or pressure cleaners on the appliance. Cleaning the oven door Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack.To clean more thoroughly, you can remove the oven door.1. Open the oven door fully (see diagram).2. lift up and turn the small levers situated on the two hinges; (see diagram).3. Grip the door on the two external sides and close it approximately half way. Unlock the door by pressing on the clamps F, then pull the door towards you lifting it out of its seat (see diagram).To replace the door, reverse this sequence.Inspecting the sealsCheck the door seals around the oven periodically. If the seals are damaged, please contact your nearest After-sales Service Centre (see Assistance). We recommend not using the oven until the seals have been replaced. Replacing the light bulb To replace the oven light bulb:1. Remove the glass cover of the lamp-holder.2. Remove the light bulb and replace it with a similar one: Wattage 25 W, cap E 14.3. Replace the glass cover (see diagram). Assistance Communicating:• appliance model (Mod.)• serial number (S/N)This information is found on the data plate located on the appliance and/or on the packaging.

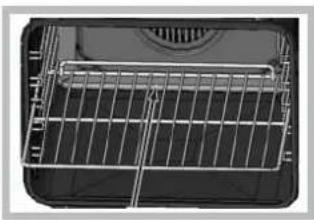

Maintenance and care ! Do not use the oven lamp as/for ambient lighting.! When inserting the shelf make sure the backstop is at the rear of the cavity (see image).16
