USER MANUAL IAN 279381 AURIOL

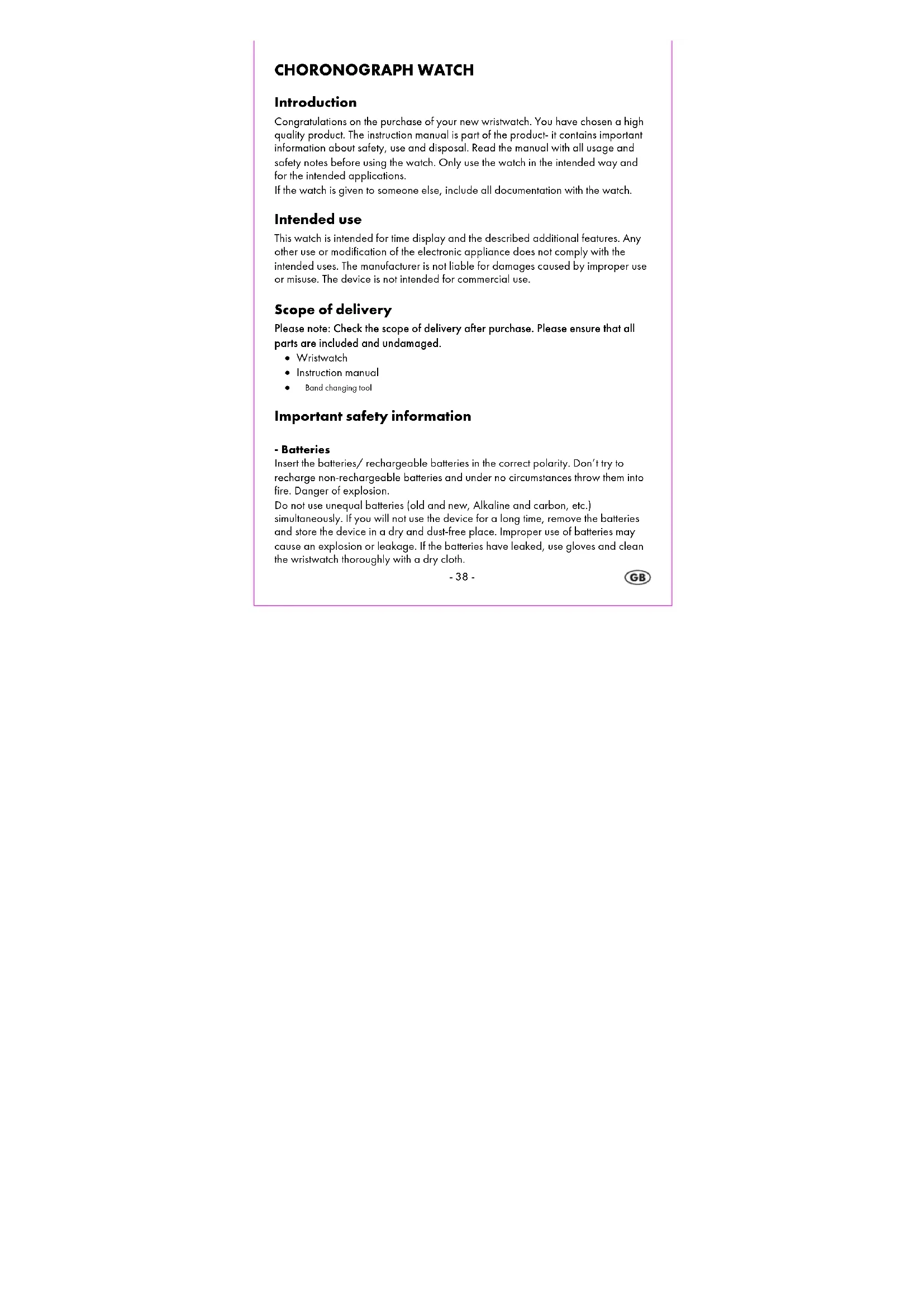

CHORONOGRAPH WATCH Introduction Congratulations on the purchase of your new wristwatch. You have chosen a high quality product. The instruction manual is part of the product- it contains important information about safety, use and disposal. Read the manual with all usage and safety notes before using the watch. Only use the watch in the intended way and for the intended applications. If the watch is given to someone else, include all documentation with the watch. Intended use This watch is intended for time display and the described additional features. Any other use or modification of the electronic appliance does not comply with the intended uses. The manufacturer is not liable for damages caused by improper use or misuse. The device is not intended for commercial use. Scope of delivery Please note: Check the scope of delivery after purchase. Please ensure that all parts are included and undamaged.

Important safety information - Batteries Insert the batteries/ rechargeable batteries in the correct polarity. Don’t try to recharge non-rechargeable batteries and under no circumstances throw them into fire. Danger of explosion. Do not use unequal batteries (old and new, Alkaline and carbon, etc.) simultaneously. If you will not use the device for a long time, remove the batteries and store the device in a dry and dust-free place. Improper use of batteries may cause an explosion or leakage. If the batteries have leaked, use gloves and clean the wristwatch thoroughly with a dry cloth.

- The wristwatch should not be in the hands of children Never let children use electrical devices unsupervised. Children can’t always recognize the possible dangers properly. Batteries/ rechargeable batteries can be life threatening when swallowed. Store the batteries where they cannot be reached by small children. If a battery is swallowed, medical aid must be sought immediately. Also keep the packaging foils away from children. Danger of suffocation. Features

Setting the normal time Before setting the time, ensure that all stopwatch hands are at the "0" position and do not push the buttons as this will change the position of the stopwatch hands. Pull the crown out to the 2

stop when the second hand reaches the 12 o'clock position. Set the time by turning the crown clockwise. Press the crown back to the initial position. Date

Setting the date Pull the crown out to the 1

stop- turn the crown clockwise to set the correct date. Press the crown back to the initial position. The date will change between 23:30 and 24:00. If the date changes between 11:30 and 12:00, adjust the time by 12 hours.

Do not set the date between 9:00 pm and 1:00 am as this can cause damage to the movement. Stopwatch feature The stopwatch can measure a duration of up to 60 minutes in 1/10 second intervals. Start: Press button A- the 1/10 second hand will start to rotate. The 1/10 second hand will run during the first minute of the measured time period- after this the movement will continue counting internally to conserve battery power. The second and minute hands will continue to run. Press button A again to stop the stopwatch. The measured time can now be read. Press button B to move the hands back to the "0" position. Lap time measurement Press button A to start the stopwatch- press button B to stop the stopwatch and read the lap time, the stopwatch will continue to count internally. Press button B again to show the running stopwatch time. This process can be repeated as often as desired. Press A to stop the stopwatch and read the stopped time. Adjusting the stopwatch hands If the small stopwatch hands are not exactly in the "0" position (12 o'clock position) they must be adjusted manually. Pull the crown out to the 2

stop – repeatedly press button A (1/10 seconds) or button B (seconds) to move the hands back to the "0" position. The minute hands of the stopwatch can be adjusted by pressing and holding B for a longer duration. Press the crown back to the initial position.

Water resistance Water resistant up to 10 bar. The bar value specifies the atmospheric overpressure which is applied during testing (DIN 8310).

Strap Shortening Instructions Your wristwatch strap may be shortened in two ways.

Unlock the safety cover (if applicable) and open the buckle. The strap is held in position by a spring bar. The spring bar can be compressed with a pointed tool to enable shortening of the strap. Move the strap to the desired position and allow the spring bar to lock into place.

2. At the strap (see fig. 2 + see fig. 3)

Shortening of the strap can also be achieved by removing segments. Open the buckle and remove the spring bar as described in part Fig. 1.

Place the wristwatch on a soft surface with the dial facing downward. Fig. 2: The segments that can be removed are marked with an arrow. Fig. 3: Place the band in the band changing tool in such a way that the pointed end of the tool points directly at the metal rod. Turn the screw in the direction of the arrow until the metal rod is pushed out a small distance. The rod can now be pulled out (use tweezers if necessary). The strap can now be disassembled. Remove as many segments as necessary in the described fashion and reassemble the strap by pushing the bolt inwards in the opposite direction of the arrow. Reassemble the buckle with the spring bar. Replacement of battery (SR920SW) Battery replacements must be performed by an expert to avoid damaging the case or gaskets. Cleaning instructions Clean the wristwatch with a soft, dry and lint-free cloth. A glasses cleaning cloth is ideal. Disposal of the watch This wristwatch may not be disposed of with normal household waste. Dispose of the wristwatch at an approved disposal facility or at your local recycling centre. Please observe the current rules and regulations when disposing of the watch. Contact the disposal system if in doubt. Disposal of the batteries Please dispose of your batteries properly in containers especially set up at retailers. Batteries do not belong in household waste. Dispose of the batteries at an approved disposal facility or at your local recycling centre. Contact the disposal system if in doubt.

digi-tech gmbh warranty This wristwatch includes a 3 year warranty starting on the day of purchase. In case of defects of this wristwatch you have, by law, certain rights regarding the vendor of the watch. These rights are not changed by the warranty which is described in the following paragraphs. Warranty conditions The warranty duration starts on the date of purchase. Please keep the original receipt in a safe place. The receipt is needed as a proof of purchase. If a defect occurs in the wristwatch within 3 years, the wristwatch will be repaired or replaced (according to our choice) free of charge. This warranty requires that, within the 3 year warranty period, the wristwatch and the receipt can be made available to us along with a short written description of the defect and when it occured. If the defect is covered by the warranty, you will receive the repaired wristwatch or a new watch. Repair or replacement does not cause the warranty period to restart. Warranty period and defects liability The warranty period is not increased by the defect liability. This also applies to repaired or replaced parts. If defects are noticed at the time of purchase they must be reported immediately upon unpacking the item. Paid repair may be available after the end of the warranty period. Scope of the warranty The wristwatch was manufactured according to strict quality guidelines and was carefully inspected before delivery. The warranty does not include parts that experience normal wear and tear and can thus be seen as wear parts or fragile parts that are damaged. Examples include Switches, Batteries or parts made of glass. This warranty becomes void if the wristwatch is damaged, is not used in the recommended way or is improperly repaired. For proper use of the wristwatch all instructions in this manual must be adhered to exactly. Use of the wristwatch in a way that is discouraged in the manual must be avoided. The wristwatch is not intended for commercial use. Abusive or improper use, excessive force and changes that are made by non-authorized repair centers will void the warranty.

Warranty claim procedure To ensure that your call is processed in a fast and efficient manner please note the following directions:

• Have your receipt (as proof of purchase) and the article number (91926) handy.

• The article number can be found on the type label, an engraving, the front page of the manual (bottom left) or a sticker on the back side or bottom side of the case.

• In case defects occur, please first contact the service center (see below) by phone or email.

Visit www.lidl-service.com to download this and many other manuals, product videos and software.

Supplier Please note that the following address is not a service address. Please first contact the service address (see above). Name: digi-tech gmbh Street: Valterweg 27A Town: Eppstein 65817 Country: German yIAN 91926
