OHT 103 - Beard trimmer OK - Free user manual and instructions
Find the device manual for free OHT 103 OK in PDF.
User questions about OHT 103 OK
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Beard trimmer in PDF format for free! Find your manual OHT 103 - OK and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. OHT 103 by OK.
USER MANUAL OHT 103 OK
EL:2011.09(2012)
EN 1990 MANUL 11
ES MANJAL DE INSTRUCIONE 18
FR VENTURE
HU FLHASSZKALÓREZHŐNÝV 28
IT MANIALE DELL'UTENTE 31
NL GUHSS55WJING 38
PL INSTALLED ACROSSING
PT MANUAL DE UTILIZAÇÃO 48
SV. ILLUSANVSWING ST
TR KILLANIS KLA/U2U 5B
E3_CH104_100716_V28.mdb 1-4 70564 'CUI AN
Diagram illustrating document processing steps with arrows indicating direction of movementThanks for your purchase of this ok. product.
ImpORTANT SAfeTy INSTRUCTIONS. ReAD CARefULLy AND Keep fOR fUTURE RefeReNCe.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a danger or injury.
- When the appliance is used in a bathroom,
unplug it after every use as the proximity of water presents a hazard even when the appliance is switched off.
- Warning! Do not immerse the electrical parts of
the appliance in water or other liquids. Never hold the appliance under running water.
EN
- Warning! The cutting head is extremely sharp. Be careful when handling the appliance. Risk of injury!
- Warning! Do not touch the blades while the appliance is switched on.
-
Warning! Keep the appliance dry.
-
Observe all safety instructions to avoid damage through improper use! Follow all safety warnings on the appliance and in this instruction manual.
- Keep this instruction manual for future use. Should this appliance be passed on to a third party, then this instruction manual must be included.
- No liability will be accepted for damage resulting from improper use or non-compliance with these instructions.
- Only use this appliance for its intended use. The appliance is not suitable for commercial use. This appliance is only suitable for indoor and household use.
- Before connecting the appliance to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label.
- Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact your supplier if it is damaged.
- To avoid damaging to the power cord, do not squeeze, bend or rub it on sharp edges. Keep it away from hot surfaces and open flames as well.
- Place the cord in such a way that no unintentional pulling or tripping over it is possible. Keep the appliance and its cord out of reach of children.
- If an extension cord is used, its capacity needs to be suitable for the power consumed by the appliance.
- Do not operate the appliance with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands.
- Do not open the appliance casing under any circumstances. Do not insert any foreign objects into the inside of the casing.
- Never use accessories which are not recommended by the manufacturer. They could present a safety risk to the user and might damage the appliance. Only use original parts and accessories.
- Do not place heavy objects on top of the appliance. Do not place objects with open flames, e.g. candles, beside the appliance. Do not place objects filled with water, e.g. vases, near the appliance.
-
Keep the appliance away from any hot surfaces and open flames. Protect the appliance against heat and cold, dust, direct sunlight, moisture, dripping and splashing water.
-
Do not pull the power plug out of the electrical outlet by the power cord and do not wrap the power cord around the appliance.
- Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the appliance. Use the power plug as the disconnection device.
- For additional protection, we recommend the use of a residual current device (RCD) with a tripping current not exceeding 30 mA in the electrical circuit supplying power to your appliance. The installation should be done by an experienced electrician.
- Disconnect the power plug from the electrical outlet when not in use and before cleaning.
- Should the appliance fall into water, unplug the power plug first before reaching into the water.
- Danger to life! Make sure that no objects like hair clips or hair pins are inserted into the appliance. These can cause a short-circuit.
- Do not use the appliance barefoot.
- Do not leave the appliance unattended, if it is in use or the power plug is connected to an electrical outlet.
- During use, do not use hairspray, water vaporisers or other vaporisers close to the appliance. Only use them when the appliance is switched off and the power plug is disconnected.
- Do not use the appliance if you are sleepy or if there is a possibility that you will fall asleep.
- Store the lubricating oil in a place that is inaccessible to children. Should a child swallow the oil, contact a doctor immediately.
- The small parts can be extremely dangerous if swallowed. Therefore, keep the appliance and its accessories out of the reach of infants.
INTENDED USE
The appliance is only intended for shaving and trimming natural head hair and beards of humans. Every other type of use can lead to damage to the product or injury. Do not use it to trim pet fur.

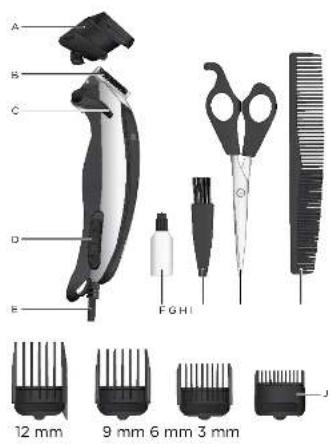

COMPONENTS
Fold out front and rear page for product illustrations.
B. Blades
C. Cutting length adjustment lever
D. ON/OFF switch
E. Power cord with plug
Accessories
F. Lubricating oil
G. Cleaning brush
H. Scissors
I. Comb
J. Attachment combs (3, 6, 9, 12 mm)
EN
BEFORE FIRST TIME USE
• After unpacking, clean the product (→Cleaning and care).
- Run the product 2 or 3 times. Then switch off the product and let it cool completely.

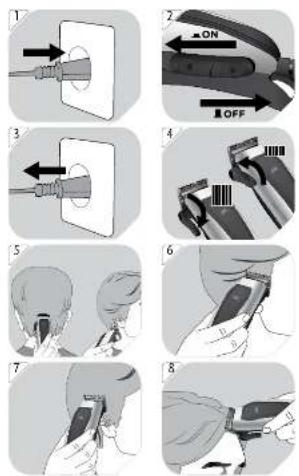

OPERATION
1 Connecting to power: Connect the power plug to a suitable electrical outlet.
2 Switching appliance on: Slide the ON/OFF switch to the ON position. Switching appliance off: Slide the ON/OFF switch to the OFF position.
3 After use: Unplug the appliance and place it on a heat-resistant surface to let it cool.
4 Shorter cutting length: Press the lever upwards. In the upmost lever position, you can obtain the closest cut that leaves the hair very short.
Longer cutting length: Press the lever downwards.
Warning!
- Set the ON/OFF switch to the OFF position when connecting the power plug to the power outlet.
- Do not touch the blade during operation.
Hints for cutting hair
5 Hold the appliance with the cutting edge facing upwards. Start on the bottom of the neck and work towards the middle of the head. Gently put the appliance on the skin and move it in an up and outwards direction. Repeatedly lift the appliance away from the head. Cut only a small amount of hair each time.
6 Hold the appliance at the desired angle to trim the hair on the sides.
7 Move the appliance around the side hair in the angle desired to finish side cutting.
8 With the blade teeth of the appliance flat against the hair on top of the head, slowly cut the hair against the direction of hair growth.
9 Adjust the blade to a close-cut position (Cutting length). Trim the hair on the neck, sides and around the ears to outline the hair.
Using the attachment combs
With the different attachment combs (3, 6, 9, 12 mm), you can achieve desired cutting length.
10 Select desired attachment comb. Attach it to the clipper head in place.
CLEANING AND CARE
Warning! Before cleaning, switch off the appliance and disconnect it from the electrical outlet and let it cool completely.
11 Warning! Never wash the appliance under running tap.
- Clean the appliance with a soft, slightly damp cloth. Make sure that no moisture is entering the appliance during cleaning.
- Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp implements to clean your appliance.
• Dry the appliance thoroughly after cleaning.
• Store the appliance in a cool, dry location, away from children and pets.
Lubricating and cleaning the blades
12 Put 1 to 2 drops of lubricating oil onto the blades. Allow the appliance to run for a few seconds to distribute the oil. Switch off the appliance again and wipe off the excess oil with a cloth.
13 If the blade is not aligned well, put a few drops of lubricating oil onto the blades. Allow the appliance to run for a few seconds. Then switch it off and disconnect it from the power outlet. Loosen the screws slightly and adjust the blades. Tighten the screws afterwards.
TECHNICAL DATA
Rated voltage: 230/240 V\~, 50 Hz
Rated power: 7 W
Protection class: Class II
DISPOSAL
The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
