USER MANUAL KS 9769 SEVERIN

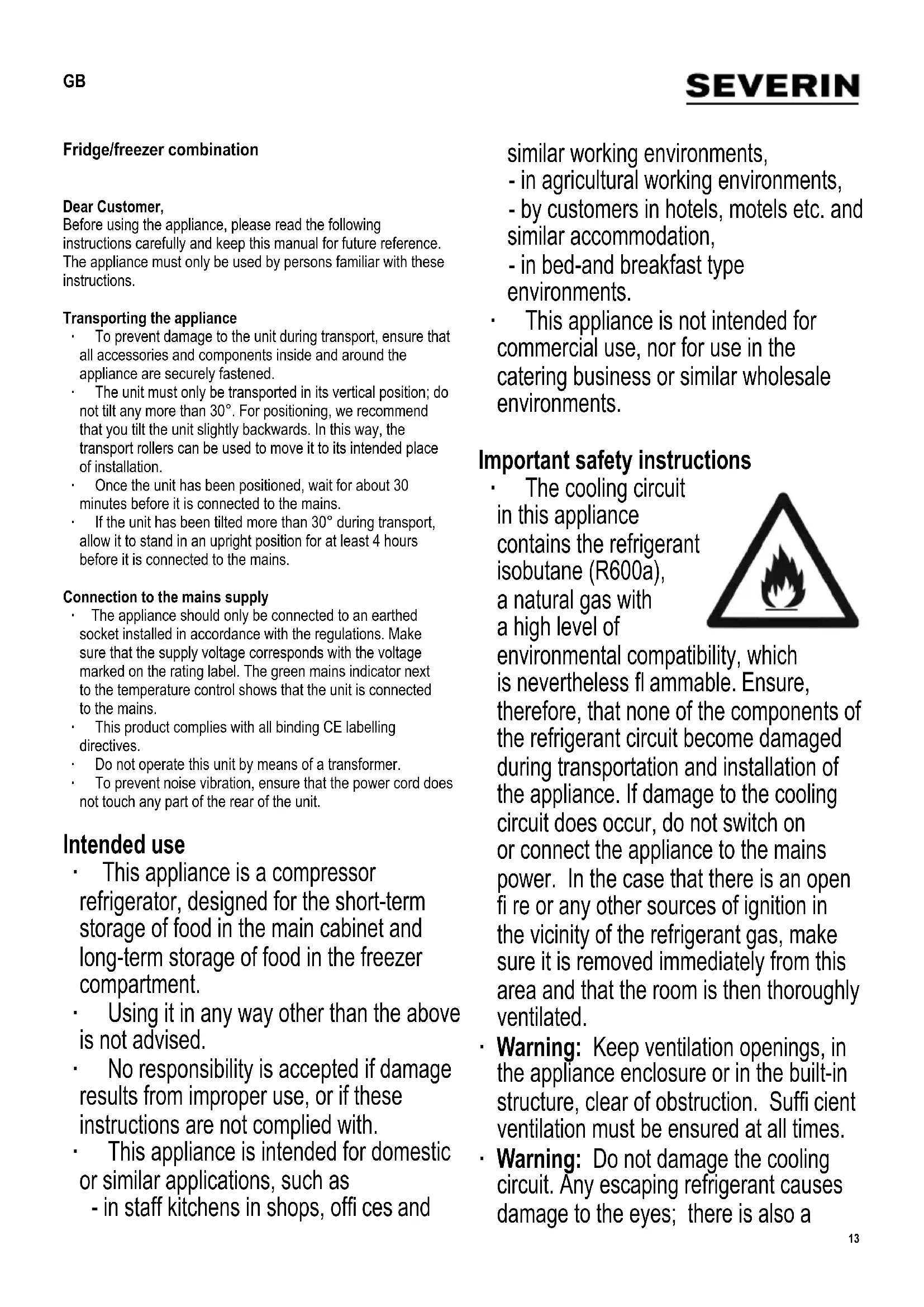

• Gemäß Verordnung (EU) Nr. 1060/2010 Anhang III ** Der tatsächliche Verbrauch hängt von der Nutzung und vom Standort des Gerätes ab13 Fridge/freezer combination Dear Customer, Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions. Transporting the appliance ∙ To prevent damage to the unit during transport, ensure that all accessories and components inside and around the appliance are securely fastened. ∙ The unit must only be transported in its vertical position; do not tilt any more than 30°. For positioning, we recommend that you tilt the unit slightly backwards. In this way, the transport rollers can be used to move it to its intended place of installation. ∙ Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains. ∙ If the unit has been tilted more than 30° during transport, allow it to stand in an upright position for at least 4 hours before it is connected to the mains. Connection to the mains supply ∙ The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. The green mains indicator next to the temperature control shows that the unit is connected to the mains. ∙ This product complies with all binding CE labelling directives. ∙ Do not operate this unit by means of a transformer. ∙ To prevent noise vibration, ensure that the power cord does not touch any part of the rear of the unit. Intended use ∙ This appliance is a compressor refrigerator, designed for the short-term storage of food in the main cabinet and long-term storage of food in the freezer compartment. ∙ Using it in any way other than the above is not advised. ∙ No responsibility is accepted if damage results from improper use, or if these instructions are not complied with. ∙ This appliance is intended for domestic or similar applications, such as - in staff kitchens in shops, offi ces and similar working environments, - in agricultural working environments, - by customers in hotels, motels etc. and similar accommodation, - in bed-and breakfast type environments. ∙ This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments. Important safety instructions ∙ The cooling circuit in this appliance contains the refrigerant isobutane (R600a), a natural gas with a high level of environmental compatibility, which is nevertheless fl ammable. Ensure, therefore, that none of the components of the refrigerant circuit become damaged during transportation and installation of the appliance. If damage to the cooling circuit does occur, do not switch on or connect the appliance to the mains power. In the case that there is an open fi re or any other sources of ignition in the vicinity of the refrigerant gas, make sure it is removed immediately from this area and that the room is then thoroughly ventilated. ∙ Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Suffi cient ventilation must be ensured at all times. ∙ Warning: Do not damage the cooling circuit. Any escaping refrigerant causes damage to the eyes; there is also a GB14 danger of the gas igniting. ∙ Warning: Do n ot use any external device (e.g. heaters or heating fans) to accelerate de-frosting; follow only the methods recommended in this manual. ∙ Warning: Do not operate any electrical appliances (e.g. ice makers) inside the storage compartment that are not specifi cally permitted in these instructions. ∙ Before it is connected to the mains power, the unit must be thoroughly checked for transport damage, including its power cord. In the event of any such damage being found, the appliance must not be connected to the mains. ∙ This appliance is not designed for the storage of explosive substances such as aerosol cans with a fl ammable propellant. ∙ If the unit is sold, handed over to a third party or disposed of at a suitable recycling facility, attention must be drawn to the presence of the insulation agent ‘cyclopenthane’ as well as to the refrigerant R600a. For additional information on correct recycling please refer to the Disposal section. ∙ In order to comply with safety regulations and to avoid hazards, any repairs or modifi cations to this unit must be carried out by our authorised service personnel, including the replacement of the power cord. ∙ This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved. ∙ Children must not be permitted to play with the appliance. ∙ Children must not be permitted to carry out any cleaning or maintenance work on the appliance. ∙ For frequent cleaning we recommend the use of warm water with some mild detergent. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning. ∙ Caution: Do not remove the cover of the interior LED light. If there should be any malfunction, please contact the customer service for assistance (see appendix). ∙ To prevent the risk of personal injury or damage to the unit, it must only be transported while in its original packaging. Two people are required for unpacking and installation. ∙ Caution: Keep any packaging materials well away from children: there is a risk of suffocation. ∙ The ice removed from the unit during de-frosting or cleaning is not suitable for human consumption. ∙ The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used. ∙ To avoid the risk of fi re, do not place any electric appliances on top of the unit. Do not place liquid containers on top of the unit, to prevent any leaking or escaping liquid damaging the electrical insulation. ∙ This unit is designed for storing food only. ∙ Alcoholic substances may be stored only in properly sealed containers and in upright positions. ∙ Do not store any glass bottles containing liquids, especially carbonated ones, which are liable to freeze in the freezer compartment: such bottles may burst during the freezing process. ∙ To avoid the risk of food poisoning, do not consume food after its storage time has expired. Thawed foods must not be frozen a second time. ∙ Do not lean or put undue weight on the shelves, compartments, door etc. ∙ Protect the inside of the refrigerator at all times from open fl ames and any other sources of ignition. ∙ Remove the plug from the wall socket - in case of any malfunction, - before de-frosting, - during cleaning,15 - before maintenance or repair work is carried out. ∙ When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself. ∙ If the unit is not used for an extended period of time, we recommend keeping the door open. ∙ We reserve the right to introduce technical modifi cations. Familiarisation ∙ The components of your refrigerator-freezer unit may differ in quantity and design from those described here. This description refers to a unit of the group of two-compartment refrigerator-freezer combinations. The unit consists of two parts: Refrigerator (A) and Freezer cabinet (B). ∙ The quick-freeze compartment inside the freezer cabinet carries the symbol Fast Freeze.

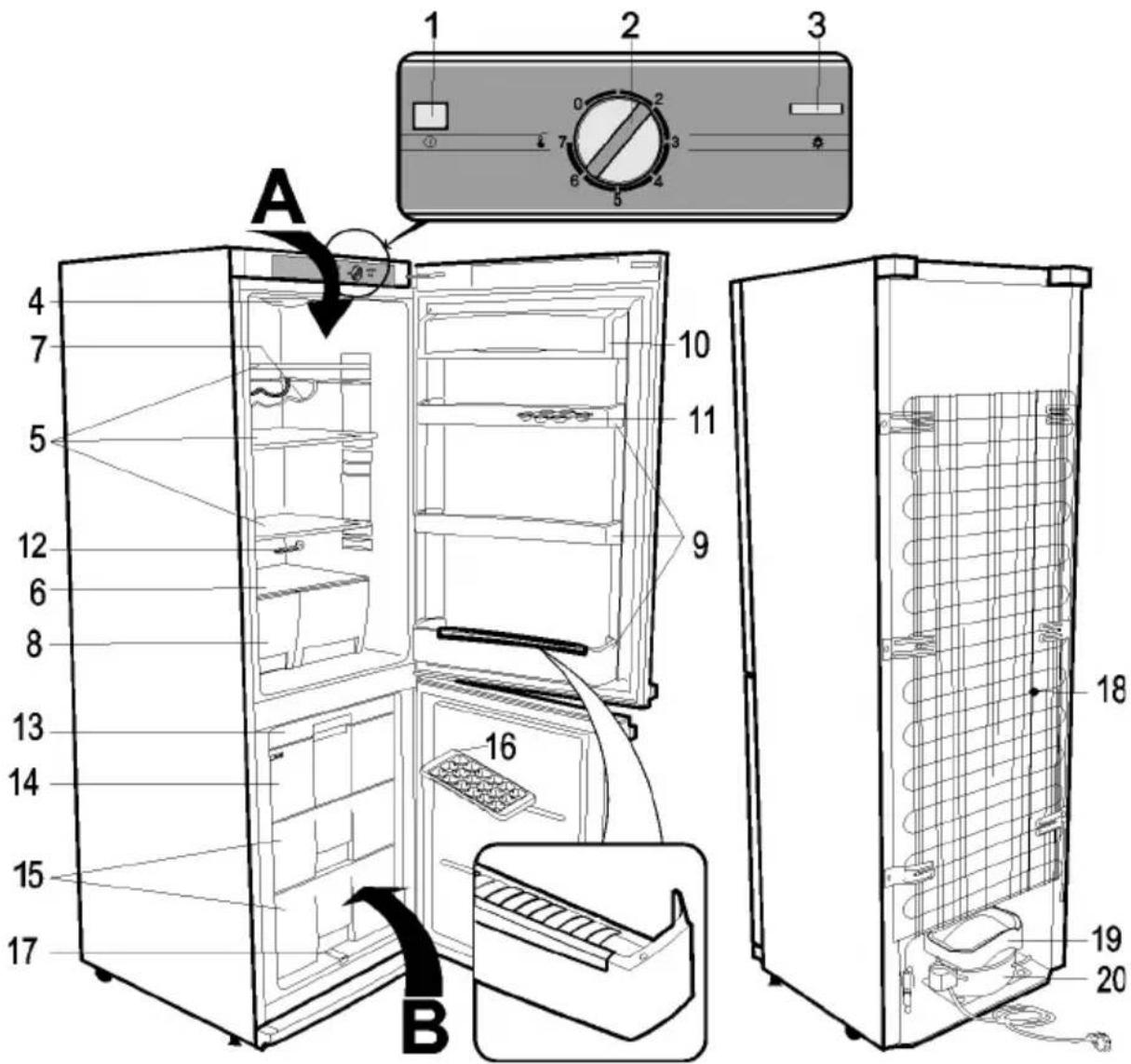

1. Mains indicator light (green)

2. Temperature control

3. On/Off switch for interior light

5. Storage shelves (height-adjustable)

8. Vegetable/fruit fresh storage compartment

10. Butter/cheese storage compartment

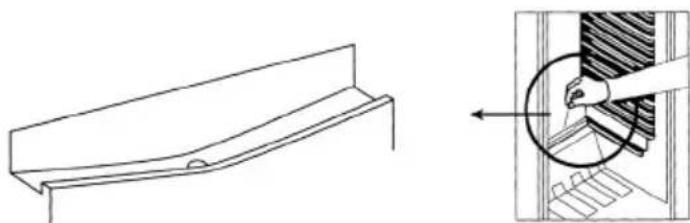

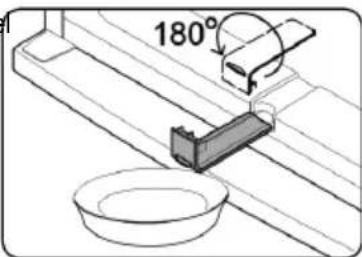

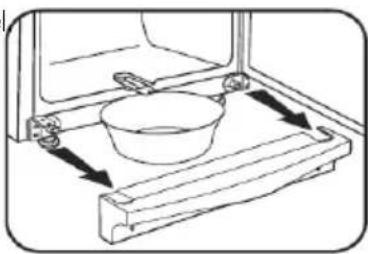

12. Drain channel cleaning tool

14. Quick-freeze compartment

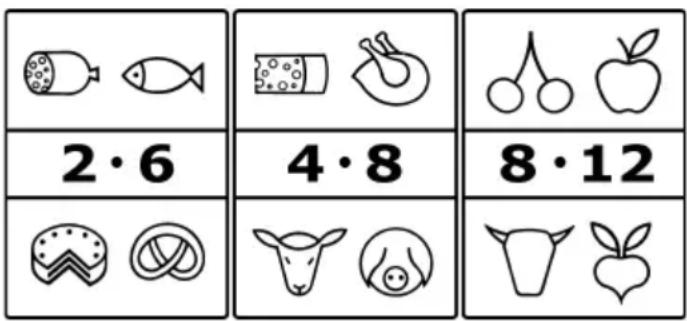

15. Freezer compartments

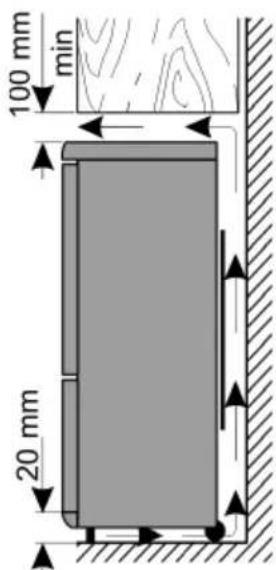

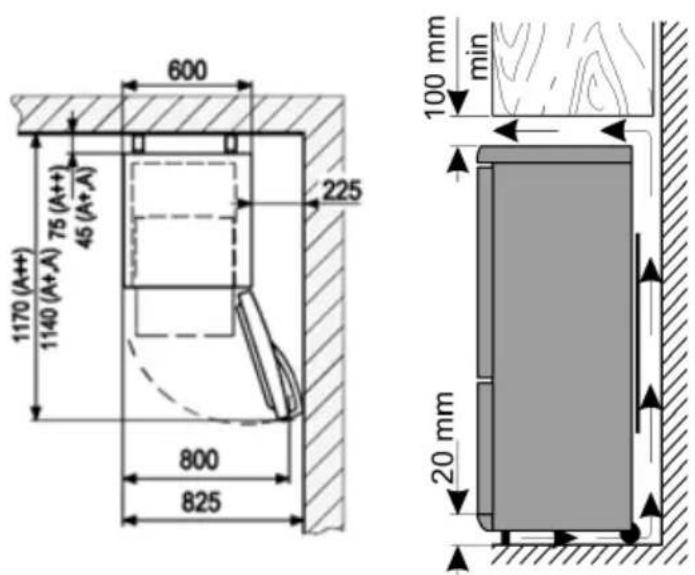

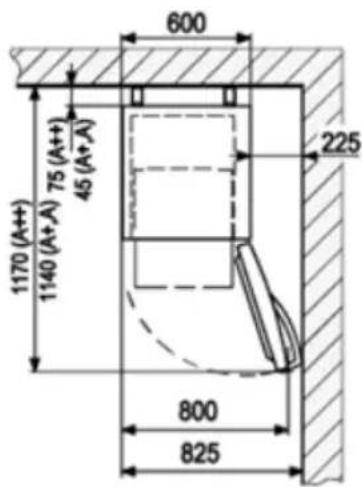

Before using for the fi rst time ∙ Remove any exterior and interior packaging materials completely, including the red transport securing devices. ∙ The packaging materials must be properly disposed of. ∙ NOTE: When the door to the freezer unit is opened, a small red component will fall out; this is for transport only and can be disposed of.16 ∙ Fit the two spacer elements (1, provided) into the corresponding guide slots (2) on the rear. ∙ Before it is connected to the mains, the unit must be thoroughly checked for transport damage, including its power cord. ∙ Clean the unit as described in the section De-frosting and cleaning. ∙ When the unit is fi rst switched on, a slight ‘new’ smell may be noticed. However, this will disappear once the cooling process has begun. Installation ∙ The appliance should be set up in a well-ventilated, dry room. ∙ It should be operated in conditions where the relative humidity is no more than 70 %. ∙ Refrigeration appliances are classifi ed into certain climate classes. This classifi cation indicates the ambient temperature at which the device can be operated. Please refer to the product data sheet for information on the classifi cation for this unit; the data sheet can be found at the end of this manual. ∙ Do not use the appliance outdoors. ∙ Ensure that the plug is accessible and can be removed from the wall socket at any time. ∙ Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be in installed between the heat source and the unit. ∙ The unit must not be installed inside a cabinet, nor directly below a hanging cupboard, shelf or similar object. ∙ In the case of uneven fl oors, the adjustable front feet on the unit can be used to compensate and ensure optimum stability. ∙ If the unit is installed next to a wall, a minimum lateral distance of 225 mm is necessary, so that the doors can open wide enough for the drawers to be taken out. Set-up dimensions Ventilation Ensure that there is enough space around the unit so that the air circulation round and behind it is not obstructed. (Rear, sides and top 100 mm.) Temperature control ∙ The unit is re-activated by connecting it to the mains. It is only switched off completely when the plug is removed from the wall socket. In position ‘0’, the cooling function is switched off, though the appliance is still connected to the mains. ∙ The temperature in the refrigerator cabinet can be adjusted by setting the temperature control. Turning the control clockwise will decrease the temperature, while turning it anti- clockwise will increase it. ∙ The medium settings are usually most suitable for home use. ∙ We recommend using a thermometer to check the actual temperature inside the cabinet and make adjustments as necessary. ∙ Following a power interruption, or if the unit has been switched off on purpose, it may take around 5 minutes before it switches on again. Interior lighting Caution: Do not remove the cover of the interior LED light. If there should be any malfunction, please contact the customer service for assistance. Storing and freezing food The temperatures inside the refrigerator cabinet and freezer compartment depend mainly on the ambient temperature, the temperature control setting and the amount of food stored. It should also be noted that the interior temperature may increase every time the door is opened. Main cabinet ∙ Different areas of the refrigerator cabinet are affected differently by the cooling effect. The warmest area is around the door in the higher part of the cabinet, the coldest around the rear wall and in the lower part of the cabinet. ∙ The food should therefore be stored as follows: ∙ On main cabinet shelves (from top to bottom): bakery items, ready meals, dairy products, meat, fi sh and cold meats/ sausages. ∙ In the vegetable compartment: vegetables, salad and fruit. ∙ In the door (from top to bottom): butter, cheese, eggs, tubes (eg mustard), small bottles, large bottles, milk and fruit-juice tetra-packs. ∙ Liquid or strong-smelling food, or food which is likely to absorb strong odours (e.g. cheese, fi sh, butter), should be stored separately or in hermetically sealed containers. ∙ Warm food should be left to cool down to room temperature before being placed in the refrigerator. ∙ Always ensure that the door is properly closed and that the seal is not obstructed by food stored inside the cabinet or door.17 Freezer compartment: ∙ The freezer compartment is designed for deep-freezing and long-term storage of frozen food, and for making ice cubes. ∙ To ensure that nutritious elements such as vitamins are not lost, fresh food should be deep-frozen right through as quickly as possible. For this reason, prepared food should be put in the quick-freeze compartment, spaced out in one or two rows. The quick-freeze area inside the freezer compartment is marked Fast Freeze, where we recommend you fi rst put the food to be frozen for quick-freezing, before moving it to other compartments (as appropriate) after 24 hours. ∙ To ensure suffi cient distribution of cold air, keep a minimum distance of 3 cm between the vapouriser assembly and the tray containing the food to be frozen. ∙ Do not allow unfrozen food to come into contact with food that is already frozen. ∙ Caution: Do not exceed the maximum freezing capacity per day. The product data sheet at the end of this manual contains details of the maximum daily freezing capacity. ∙ For quick-freezing, set the temperature control to Max. After 24 hours, once the food is well frozen, the temperature control can be set back to its original position. ∙ The time required to freeze food may be shortened by dividing it into smaller portions. ∙ Suitable packaging materials for frozen food are transparent (i.e. non-coloured) plastic wrap or bags, or aluminium foil. The packaging materials should be well aired before use; check that the package is air-tight before freezing the food. We strongly recommend that you label every item stored in the freezer with all relevant information such as type of food, freezing date and use-by date. ∙ Do not attempt to deep-freeze carbonated beverages, warm food or any kind of bottled liquids. ∙ Frozen food can be defrosted in the refrigerator. This way, the food is defrosted at a slower rate, retaining its taste. Furthermore, the frozen food helps to keep the temperature inside the refrigerator at its intended level. Use-by dates for frozen food are specifi ed (in months) in the table below. ∙ Do not exceed these storage times. ∙ However, always observe the manufacturer’s use-by dates for the frozen food. ∙ If the unit remains switched off for an extended period (eg during a power failure), the door should be kept closed; this will help to maintain the lowest possible temperature in the cabinet. The product data sheet contains detailed information of the maximum safe storage time in case of malfunction. Even a slight rise in the inside temperature will shorten the storage life of the food. Freezer tray The freezer tray allows for gentle freezing of delicate foods such as herbs and fruit, while preventing them from sticking together. Place the goods to be frozen onto the tray individually and freeze them. After 8-10 hours, remove the frozen items and put them into suitable containers. Making ice cubes A special ice-cube tray is provided for making ice cubes. Fill the tray up to ¾ with drinking water and place it in the freezer compartment for a few hours. The ice cubes are easier to remove from the tray if the tray is left standing at room temperature for 5 minutes. De-frosting and cleaning ∙ Always remove the plug from the wall socket before cleaning. ∙ Do not pour water over or inside the unit. ∙ For frequent cleaning we recommend the use of warm water with some mild detergent. To prevent any unpleasant odour within the refrigerator, it should be cleaned about once a month. ∙ Any accessories should be cleaned separately with soapy water. Do not put them in a dishwasher. ∙ Do not use abrasives or harsh cleaning solutions or any cleaning agents that contain alcohol. ∙ After cleaning, thoroughly clean all surfaces with fresh water before wiping them completely dry. ∙ When re-inserting the plug into the wall socket ensure that you have dry hands. ∙ Take care not to remove or damage the rating plate inside the cabinet during cleaning. De-frosting the freezer compartment ∙ After a certain period of operation and depending on several factors (e.g. how often the door has been opened), a layer of ice will form on the evaporators located below the drawers and on the drawer fronts themselves. Once the build-up of ice has reached a thickness of 3 to 5 mm, the unit must be de-frosted, as the build-up of ice increases the power consumption of the appliance. ∙ The freezer should be thoroughly cleaned at least twice a year. ∙ Always remove the plug from the wall socket before cleaning. ∙ Remove all food from the compartment and store it in a cool location, eg together with pre-frozen freezer-packs in a closed plastic container. Note that, even with a slight increase in temperature, the storage life will be shortened and the food should be used as soon as possible.18 ∙ Keep the door open. ∙ Remove the cover panel. ∙ Pull out the drain channel from the freezer cabinet, turn it 180° and secure it (see diagram). Place a suitable container underneath the channel outlet. ∙ To accelerate defrosting, one or several containers with hot (but not boiling) water may be placed inside the freezer compartment. Do not pour water over or inside the unit. ∙ Warning: Do not use any external device or other means (e.g. heaters or heating fans) to accelerate de-frosting. ∙ Clean the unit with a damp cloth and a little detergent. Wipe thoroughly dry afterwards. ∙ Replace the drain channel and cover panel. ∙ Set the temperature control to its maximum position. After 24 hours, it may turned back to its normal setting. Defrosting the refrigerator cabinet : ∙ The refrigerator cabinet does not require de-frosting, but only proper cleaning. ∙ The integral vapouriser is sealed in foam in the rear wall; you may therefore notice a build-up of frost around the rear area. This layer of frost will start melting when the compressor is not working. Through a system of hoses, the melt-water drains into the collection tray below the compressor, where it will be absorbed into the surrounding air. ∙ To enable the melt-water to drain freely, always ensure that the channel and discharge opening in the cabinet are free of any blockage. ∙ Any water collecting in the bottom should be removed. Energy saving tips ∙ The appliance should be set up in a well-ventilated, dry room. ∙ Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc.). If this cannot be avoided, however, suitable insulation must be installed between the heat source and the unit. ∙ Ensure suffi cient air circulation around the sides of the unit. ∙ The compressor (at the rear) should be cleaned at regular intervals. Accumulated dust causes an increase in energy consumption. ∙ Warm food should be allowed to cool down before it is stored inside. ∙ To prevent an increased build-up of ice, do not leave the doors of the unit open for too long when loading or taking out food. ∙ Frequent de-frosting helps to save energy. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning. ∙ Do not set a lower-than-necessary temperature. For detailed information on the temperature settings, please refer to the section Temperature control. Operating noise ∙ Certain typical sounds can be heard when the appliance is switched on. These sounds are: ∙ caused by the electrical motor within the compressor assembly; during compressor start-up the sound level will be slightly higher for a limited period of time. ∙ caused by the cooling agent fl owing through the circuit. Trouble-shooting The following table lists possible malfunctions and their probable causes and solutions. In the event of operational p roblems, check fi rst whether a solution can be found using this table. If the problem persists, disconnect the appliance from the mains power and contact our Customer Service Department.19 Problem Possible cause and solution The appliance is not working at all. ∙ The temperature control is set to ‘0’. → Use a higher temperature setting. ∙ The wall socket is defective. → Check the fuse. If necessary, have the wall outlet checked by a qualifi ed electrician. The temperature inside the refrigerator cabinet or freezer compartment is not low enough. ∙ Too much food has been stored in the appliance. → Do not store excessive food (see product data sheet). ∙ The doors are not properly closed. → Ensure that the doors are properly closed. ∙ The door seals are defective. → Check the door seals and contact our Customer Service if necessary. ∙ There is too much dust on the condenser. → Clean the condenser regularly. ∙ Insuffi cient ventilation: the unit is too close to a wall or other structure or object. → see section ‘Ventilation’. ∙ The temperature control is set too low. → Use a higher setting. The normal operating sound changes or becomes louder. ∙ The unit is not fi rmly set on the fl oor. → Use the adjustable front feet to align the unit properly. ∙ Adjacent furniture or objects are affected by the running of the cooling unit (i.e. causing them to vibrate). → Keep the stated clearances. ∙ Any objects on top of the unit might be vibrating → Remove such objects. Water is collecting on the bottom of the unit. ∙ The melt-water drain system is blocked. → Remove the blockage and clean the system. Excessive build-up of frost on the rear of the main cabinet. ∙ Hot food has been stored inside the cabinet. → Let the food cool down before putting it in. ∙ The door seals are defective. → Check the door seals and contact our Customer Service, if necessary. ∙ The temperature control is set too high. → Use a lower temperature setting. Excessive build-up of frost inside the freezer compartment. ∙ It is necessary to de-frost the freezer compartment manually. → See ‘De-frosting and cleaning’ ∙ See ‘Excessive build-up of frost on the rear of the main cabinet‘ (above). Reversible door ∙ If required, the door may be reversed, i.e. from right-hinged (default installation) to left. ∙ To avoid the risk of personal injury or damage to the unit, two people are needed to reverse the door. ∙ Warning: Always disconnect the unit from the mains before any maintenance or repair work is carried out. ∙ Before you start, please note the following: ∙ Always ensure that the correct number of washers is used on all hinge bolts and screws. ∙ So that the doors can close tightly against the frame, take the utmost care that they are properly aligned during re- assembly.

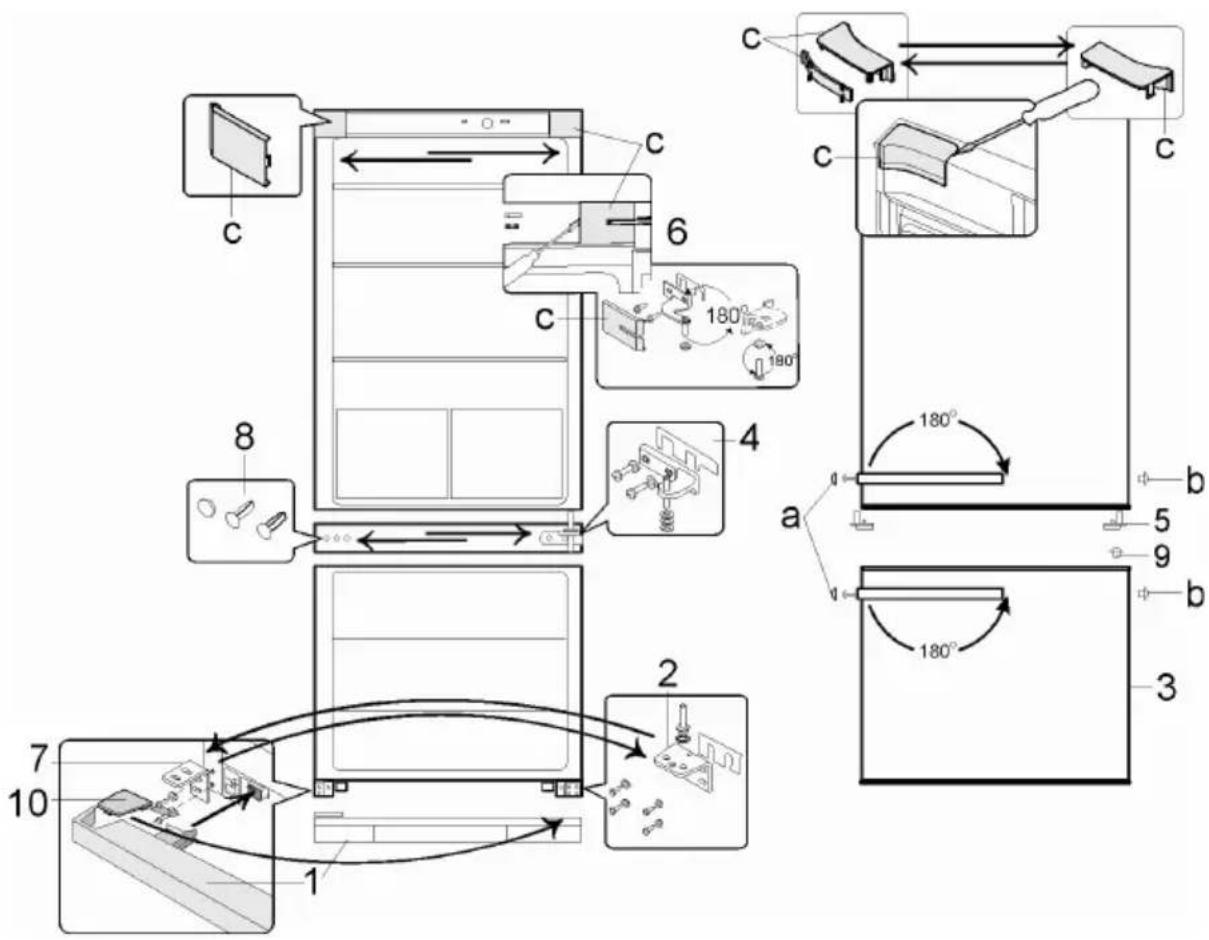

1. Remove the four covers C from the housing and inside of

2. Unscrew the hinge bolt on the inside of the door in the

area C/6. Caution: Support the door.

3. Take off the refrigerator door.

4. Take out the fi xing screws and remove the upper bracket

6. Note the small plastic plate underneath the bracket.

5. Turn the bracket 6 including the small plastic plate through

180° and replace it on the other side of the refrigerator, using the two screw holes adjacent to each other.

6. Place the refrigerator door on a soft surface. Remove the

hinge support 5 from the underside of the door and fi t the hinge support provided on the opposite side.

7. Take out the covering caps and then remove the hinge

support in the middle 4. Note the small plastic plate underneath the bracket. Caution: Support the door.

8. Take off the freezer door 3.

9. Remove the lower panel 1 by lifting it up slightly.

10. Take out the fi xing screws and remove the bracket 2 with

its hinge bolt. Note the small plastic plate underneath the bracket.

11. Unscrew the hinge bolt, together with the washers, from

the bracket, and fi t it into the corresponding opening on the opposite side of the bracket.

12. Remove the bracket 7 and replace it with the holding

bracket 2 with its hinge bolt.

13. Now install the holding bracket 7 in the previous position

14. Take out the sealing plugs 8 from the partition separating

the refrigeration and freezer compartments and replace them in the openings on the opposite side.

15. Take out sealing plugs 9 from the freezer door and replace

it in the opening on the opposite side.

16. Place the freezer door onto the hinge bolt on holding

bracket 2. Caution: Support the door.

17. Turn the holding bracket 4 with its hinge bolt and plastic

18. Replace the bracket bolt on the opposite side of the

freezer door and secure it with the screws.

19. Replace the covering caps over the screw heads.20

20. Place the refrigerator door onto the hinge bolt on holding

bracket 4. Caution: Support the door.

21. Re-insert the hinge bolt of the bracket 6 into the

refrigerator door and secure it with the screws.

22. Fit the four covers C over the bracket and the openings.

handle slightly towards the side with the screw and then pull the handle off to the front.

25. Fit the handles on the opposite side, using the fi xing

screws to secure them (note that the screws need to go through the sealing plugs b). Push the sealing plugs provided (b) into the now empty openings in the door and replace the covering caps (a) on the screw heads.

26. Take out the cover 10 from the lower panel 1 and replace

it on the opposite side.

27. Replace the panel 1 on the appliance.

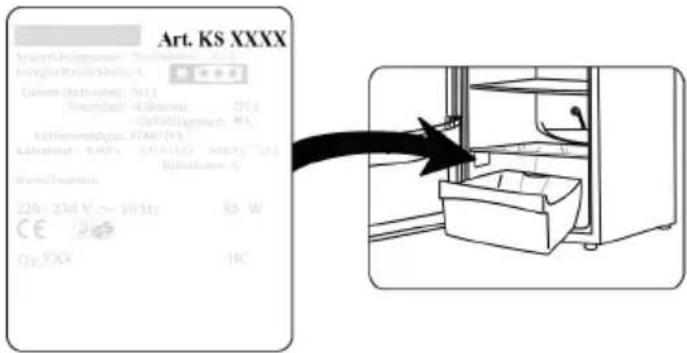

Disposal Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter. The refrigerant and the chemical agent in the insulation foam must be disposed of through a competent agency. Take special care not to damage the cooling circuit before the unit is handed over for such disposal. Guarantee This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modifi ed, repaired or interfered with by any unauthorised person, or damaged through misuse. This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.21 Product data sheet for refrigerating appliances * Art. no. KS 9769 Household refrigerating appliance category 7 - Fridge/freezer Energy effi ciency classifi cation A++ Energy consumption in kWh/year ** 179 Usable capacity - Refrigerator (litres) 173 Usable capacity - Zero-degree zone compartment (litres) --- Usable capacity - Freezer unit (litres) (without drawers)

Frost-free : refrigeration unit yes Frost-free : freezer unit no Safe storage time in case of malfunction, hrs. 18 Freezing capacity, kg/24h 6 Climate classifi cation ST Ambient temperature range, °C 16-38 Noise emission in dB(a) 40 Dimensions (H x W x D) in mm 1500 x 600 x 650 Weight (kg) 55 Electrical specifi cations See rating plate
