USER MANUAL DLX900 BLACK & DECKER

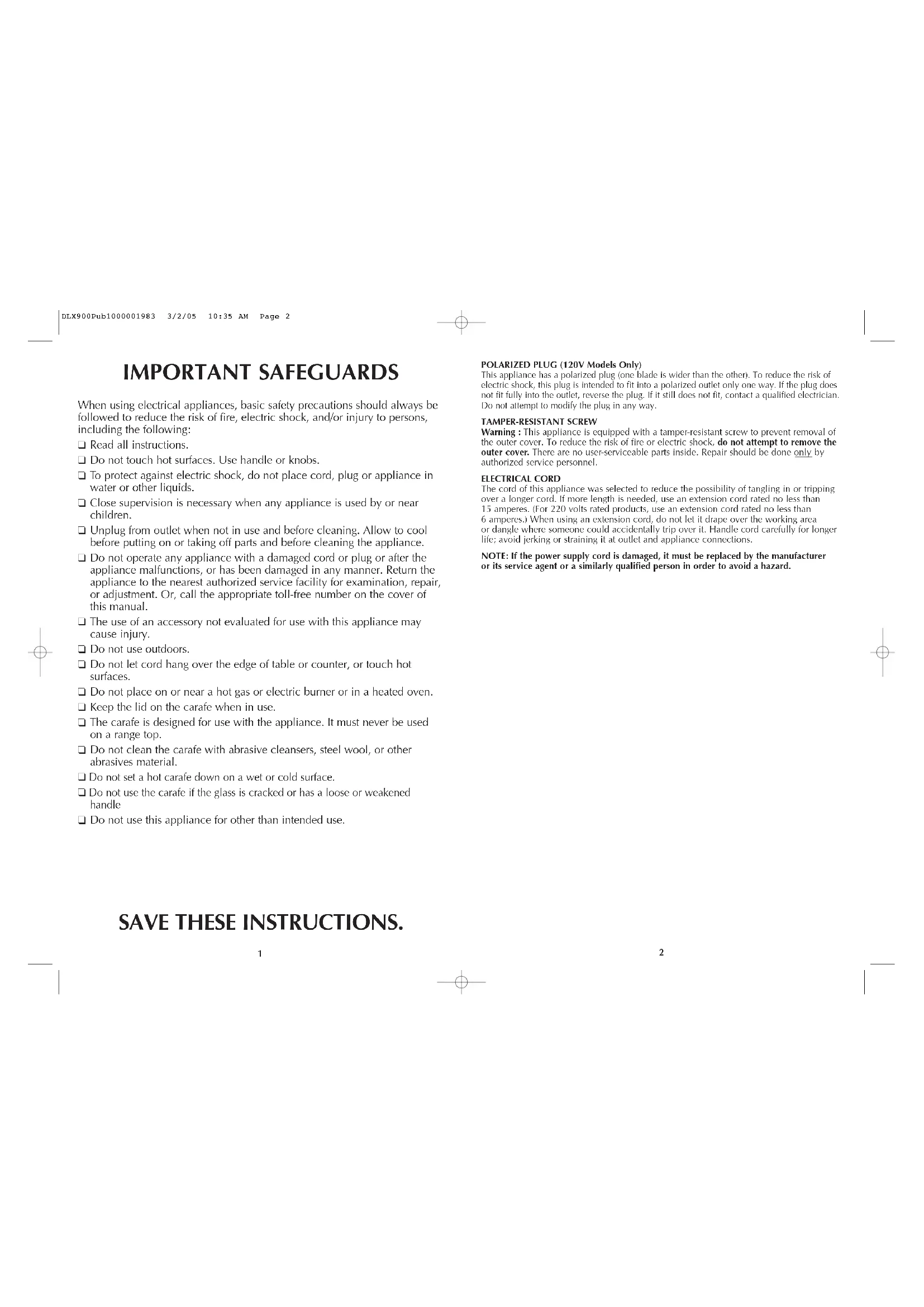

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

Read all instructions.

To protect against electric shock, do not place cord, plug or appliance in water or other liquids.

Close supervision is necessary when any appliance is used by or near children.

Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment. Or, call the appropriate toll-free number on the cover of this manual.

The use of an accessory not evaluated for use with this appliance may cause injury.

Do not use outdoors.

Do not let cord hang over the edge of table or counter, or touch hot surfaces.

Do not place on or near a hot gas or electric burner or in a heated oven.

The carafe is designed for use with the appliance. It must never be used on a range top.

Do not clean the carafe with abrasive cleansers, steel wool, or other abrasives material. ❑ Do not set a hot carafe down on a wet or cold surface. ❑ Do not use the carafe if the glass is cracked or has a loose or weakened handle

Do not use this appliance for other than intended use. SAVE THESE INSTRUCTIONS. POLARIZED PLUG (120V Models Only) This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. TAMPER-RESISTANT SCREW

Warning : This appliance is equipped with a tamper-resistant screw to prevent removal of

the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only

authorized service personnel. ELECTRICAL CORD The cord of this appliance was selected to reduce the possibility of tangling in or tripping over a longer cord. If more length is needed, use an extension cord rated no less than 15 amperes. (For 220 volts rated products, use an extension cord rated no less than 6 amperes.) When using an extension cord, do not let it drape over the working area or dangle where someone could accidentally trip over it. Handle cord carefully for longer life; avoid jerking or straining it at outlet and appliance connections. NOTE: If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. DLX900Pub1000001983 3/2/05 10:35 AM Page 24 How to Use This product is for household use only. GETTING STARTED

1. Remove all stickers, packing material, and literature.

2. Wash the carafe, carafe lid and brew basket in warm sudsy water—rinse thoroughly. These

parts are also top rack, dishwasher safe.

CLEANING BEFORE FIRST USE

Cycle the unit once with water to help remove any sediment.

1. Open lid and pour cold water into water reservoir up to the

8-cup level mark on the water window (A). Do not overfill.

2. Close the reservoir lid.

3. Insert brew basket pivoting hinge into brew basket holder (B).

4. Place a standard paper filter into the brew basket (do not add

5. Grasp brew basket by small handle and use it to swing the brew

6. Plug in the coffeemaker.

7. Place the carafe with carafe lid into coffeemaker and push the

8. When cycle is finished, turn the coffeemaker off and discard

used filter and the water from the carafe. BREWING COFFEE You do not have to set the clock or program the coffeemaker to brew coffee.

1. Open water reservoir lid.

2. Use the carafe to fill the water reservoir with cold water. Watch

water window for the desired level. Close the reservoir lid.

3. Grasp brew basket by small handle and swing open (D). Insert

a standard paper filter into the brew basket, add ground coffee into filter (we recommend one heaping tablespoon for every two cups).

4. Grasp small handle and swing the brew basket closed (C).

5. Place the carafe into the coffeemaker.

6. Plug in the coffeemaker.

7. Push switch/button to "ON" and the light comes on, or for

delayed brewing (Clock model DLX900) see "SETTING THE CLOCK/ TIMER."

8. Replace the carafe on the "Keep Hot" plate when not serving to keep coffee hot.

Important: Do not swing open brew basket while brewing.

9. Switch the control to “OFF” when finished brewing. For model DLX900 the coffeemaker

shuts off automatically after 2 hours, or you may press the "OFF" button to instantly turn off the coffeemaker. At any time prior to auto shut off, pressing the “OFF” button and then the “ON” button will reset the auto-off mode to 2 hours.

Product may vary slightly from what is illustrated.

1. Water window with cup level markings (not shown)

2. Water reservoir with flip up lid

You can pour a cup of coffee while coffee is brewing without leaking from the brew basket. When finished pouring coffee, place the carafe under brew basket. The brewing process continues (E). Important: To avoid possible overflow after removing the carafe, be sure to replace the carafe under the brew basket within one minute or less.

SETTING THE CLOCK/TIMER & AUTO BREW

(Model DLX900, only) (F) You do not have to set the clock or program the coffeemaker to brew coffee.

1. To set the current time of day:

Plug in the coffeemaker. The display will flash 12:00 a.m. until the time is set. a. Press the HOUR button until you see the correct A.M. or P.M. hour. The Red dot in the top left corner of the display indicates P.M. time b. Press the MIN button to select the correct minutes. The clock is set and will continue to keep correct time. Note: Unplugging the unit will reset the clock to 12:00.

2. To program the coffeemaker for Auto Brew

a. Be sure clock is set for the current time of day. b. Press and continue to hold down the PROG button with one finger while you press the HOUR, then MIN buttons until desired brew time is reached. Be sure to watch for the P.M. indicator in the digital display. c. When you let go of the PROG button, the auto time is set.

3. Prepare the coffeemaker for brewing as instructed in “BREWING COFFEE” (steps 1-6)

4. Press the AUTO button. Auto dot in bottom right corner of the display illuminates,

indicating the timer is activated.

5. To check your preset auto brewing time, press PROG and view display. When you release

the PROG button, the clock displays the current time of day.

6. To automatically repeat brewing at the same pre-set auto-on time, prepare your

coffeemaker for brewing again and press the AUTO button. The auto dot in bottom right corner of the display will illuminate. Note: The auto-brew function can be cancelled at any time by pressing the OFF button. The auto dot goes out Care and Cleaning

CLEANING YOUR COFFEEMAKER

This product contains no user serviceable parts. Refer service to qualified service personnel Caution: The control panel is not waterproof. Do not overexpose the control panel to water. Water may cause permanent damage and make the coffeemaker inoperable. CLEANING

1. Be sure the unit is unplugged and cooled.

2. Grasp the small handle on the brew basket and swing basket

3. Remove the brew basket by lifting the basket straight up and

off of pivot hinge (G)

4. Discard the paper filter with the grounds.

5. Clean parts as follows:

• Brew basket, carafe and lid are all top rack dishwasher safe; or they may be hand washed in warm, sudsy water.

• Wipe the exterior and the "Keep Hot" plate with a soft damp cloth. Do not use abrasive cleansers or scouring pads. Never immerse the coffeemaker in water.

6. Insert brew basket onto pivot hinge and swing closed.

CARING FOR YOUR CARAFE

A damaged Carafe may result in possible burns from a hot liquid. To avoid breaking:

• Do not allow all liquid to evaporate from the carafe while on the "Keep Hot" plate or heat the carafe when empty.

• Discard the carafe if damaged in any manner. A chip or crack could result in breakage.

• Never use abrasive scouring pads or cleansers, they will scratch and weaken the glass.

• Do not place the carafe on or near a hot gas or electric burner, in a heated oven, or in a microwave oven.

• Avoid rough handling and sharp blows.

MINERAL DEPOSITS AND CLOGGING

Mineral deposits left by hard water can clog your coffeemaker. Excessive steaming or a prolonged brewing cycle are signs that a cleaning is needed. Cleaning is recommended at least once a month.

1. Pour white vinegar into the water reservoir up to the 6-cup level on the water window.

Add fresh water up to the 10-cup line, and close the reservoir lid.

2. Grasp brew basket by small handle and swing open.

3. Put a new paper filter in the brew basket, swing the basket closed and be sure it latches.

Set the empty carafe on the "Keep Hot" plate.

4. Turn the coffeemaker on and let half the cleaning solution brew into the carafe. Turn the

coffeemaker off and let it soak for at least 15 minutes to soften the deposits.

5. Turn the coffeemaker on and brew the remaining cleaning solution into the carafe.

6. When the cleaning solution has finished brewing, discard the paper filter empty the carafe

and rinse with clean water.

7. Refill the reservoir with cold water to the 10-cup line, replace the empty carafe, put a

paper filter in the brew basket, then turn on the coffeemaker and run another brew cycle to flush out the remaining cleaning solution.

8. Wash the brew basket and carafe and carafe lid as instructed in "Care and Cleaning."

NEED HELP? For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual. One-Year Limited Warranty (Applies only in the United States and Canada) What does it cover?

• Any defect in material or workmanship; provided; however, Applica’s liability will not exceed the purchase price of the product. For how long?

• One year after the date of original purchase. What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished. How do you get service?

• Save your receipt as proof of the date of sale.

• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.

• If you need parts or accessories, please call 1-800-738-0245. What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

• Products that have been modified in any way

• Products used or serviced outside the country of purchase

• Glass parts and other accessory items that are packed with the unit

• Shipping and handling costs associated with the replacement of the unit

• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.) How does state law relate to this warranty?

DLX900Pub1000001983 3/2/05 10:35 AM Page 24The lightning symbol refers to “dangerous voltage”; the exclamation symbol refers to maintenance instructions. See below.
