USER MANUAL PW1400TDK Plus BLACK & DECKER

m = 311
m = 311

8
9

E

3

H

4

5

Volt	1÷25 m	25÷50 m
230 2 x 1,5 mm	2	2 x 2,5 mm2

1

ENGLISH

Safety instructions

The appliance you have purchased is a technologically advanced product designed by one of the leading European manufacturers of high pressure pumps. To obtain the best performance from your unit, read this booklet carefully and follow the instructions each time you use it. We congratulate you on your choice and wish you successful operation.

Safety rules/residual risks

Safety "must nots"

• Do not use the appliance with inflammable or toxic liquids, or any products which are not compatible with the correct operation of the appliance. Explosion or poisoning hazard
• Do not direct the water jet towards people or animals. Injury hazard
• Do not direct the water jet towards the unit itself, electrical parts or towards other electrical equipment. Electric shock hazard
• Do not use the appliance outdoors in case of rain. Short circuit hazard
  Do not allow children or incompetent persons to use the appliance. Injury hazard
• Do not touch the plug and/or socket with wet hands. Electric shock hazard
• Use the appliance if the electrical cable is damaged. Electric shock and short circuit hazard
• Do you use the appliance if the high pressure hose is damaged. Explosion hazard
• Do not jam the trigger in the operating position. Accident hazard
• Check that the data plates are affixed to the appliance, if not, inform your dealer. Units without plates must not be used as they are unidentifiable and potentially dangerous. Accident hazard
• Do damper with or adjust the setting of

the safety valve or the safety devices. Explosion hazard

• Do not alter the original diameter of the spray head nozzle. Hazardous alteration of operating performance
• ! do not leave the appliance unattended. Accident hazard
  Do not move the appliance by pulling on the electrical cable. Short circuit hazard
• Make sure that cars do not drive over the high pressure hose.
• Do not move the appliance by pulling on the high pressure hose. Explosion hazard
• When directed towards tyres, tyre valves or other pressurised components, the high pressure jet is potentially dangerous. Do not use the rotating nozzle kit, and always keep the jet at a distance of at least 30~cm during cleaning. Explosion hazard

Safety "musts"

All electrical conductors must be protected against the water jet. Short circuit hazard
The appliance MUST ONLY BE CONNECTED to an adequate power supply in compliance with all applicable regulations. Electric shock hazard
- Use of a safety residual current circuit-breaker (R.C.C.B.) will provide additional protection for the operator (30mA) . Models supplied without plug must be installed by qualified staff. Use only authorized electrical extension leads with suitable conductor gauge.

A 10

High pressure may cause parts to rebound: wear all the protective clothing and equipment needed to ensure the operator's safety. Injury hazard

Before doing work on the appliance, remove the plug. Accidental start-up hazard
Before pressing the trigger, grip the gun firmly to counteract the recoil. Injury hazard

• Comply with the requirements of the local water supply company. According to EN 12729 (BA), the appliance may only be connected to the mains drinking water supply if a backflow preventer valve with drain facility is installed in the supply hose. Contamination hazard
• Maintenance and/or repair of electrical components must be carried out by qualified staff. Accident hazard
  DISCHARGE residual pressure before disconnecting the unit hose. Injury hazard
  Before using the appliance, CHECK every time that the screws are fully tightened and that there are no broken or worn parts. Accident hazard
• Only use detergents which will not corrode the coating materials of the high pressure hose/electrical cable. Explosion and electric shock hazard
• Ensure that all people or animals keep a minimum distance of 16 yd. (15m) away. Injury hazard

General information (fig.1)

Use of the manual

This manual forms an integral part of the appliance and should be kept for future reference. Please read it carefully before installing/ using the unit. If the appliance is sold, the Seller must pass on this manual to the new owner along with the appliance.

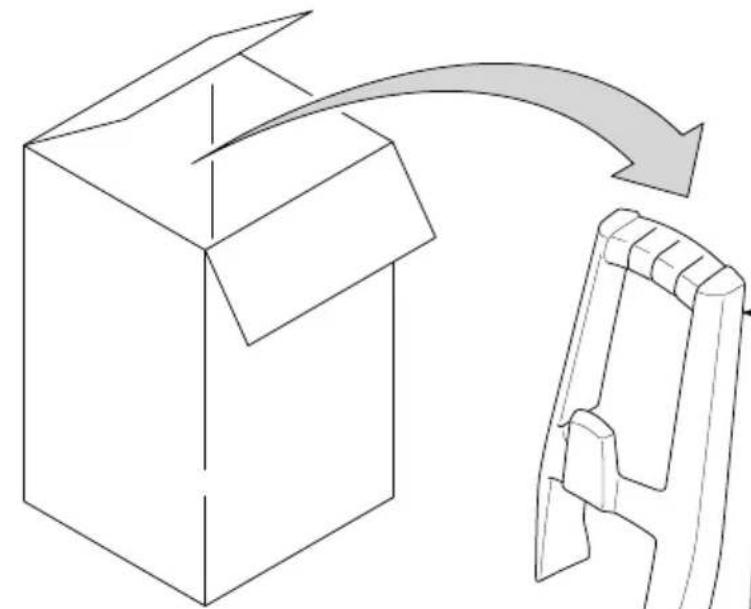

Delivery

The appliance is delivered partially assembled in a cardboard box. The supply package is illustrated in fig.1.

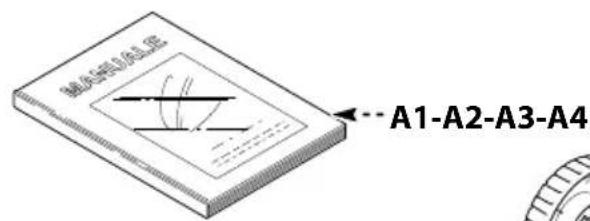

Documentation supplied with the appliance

A1 Use and maintenance manual
A2 Safety instructions
A3 Declaration of conformity
A4 Warranty regulations

Disposing of packaging

The packaging materials are not environmental pollutants but must still be recycled or disposed of in compliance with the relevant legislation in the country of use.

Safety signs

Comply with the instructions provided by the safety signs fitted to the appliance.

Check that they are present and legible; otherwise, fit replacements in the original positions.

E1 sign - Indicates that the appliance must not be disposed of as municipal waste; it may be handed in to the dealer on purchase of a new appliance. The appliance's electrical and electronic parts must not be reused for improper uses since they contain substances which constitute health hazards.

Symbols

2 symbol - Indicates that the appliance is intended for professional use, i.e. for experienced people informed about the relative technical, regulatory and legislative aspects and capable of performing the operations necessary for the use and maintenance of the appliance.

E3 symbol - Indicates that the appliance is intended for non-professional (domestic) use.

Technical information (fig.1)

Envisaged use

This appliance has been designed for individual use for the cleaning of vehicles, machines, boats, masonry, etc, to remove stubborn dirt using clean water and biodegradable chemical detergents. Vehicle engines may be washed only if the dirty water is disposed of as per regulations in force.

• Intake water temperature: see data plate on the appliance.
• Intake water pressure: min. 0,1MPa-max 1MPa.
• Operating ambient temperature: above 0^ .
• The appliance is compliant with the EN 60335-2-79/A1 standard.

Operator

The symbol on the front cover identifies the appliance's intended operator (professional or non-professional).

Improper use

• Use by unskilled persons or those who have not read and understood the instructions in the manual is forbidden.

ENGLISH

• The introduction of inflammable, explosive and toxic liquids into the appliance is prohibited.
• Use of the appliance in a potentially inflammable or explosive atmosphere is forbidden.
• The use of non-original spare parts and any other spare parts not specifically intended for the model in question is prohibited.
• All modifications to the appliance are prohibited. Any modifications made to the appliance shall render the Declaration of Conformity null and void and relieve the manufacturer of all liability under civil and criminal law.

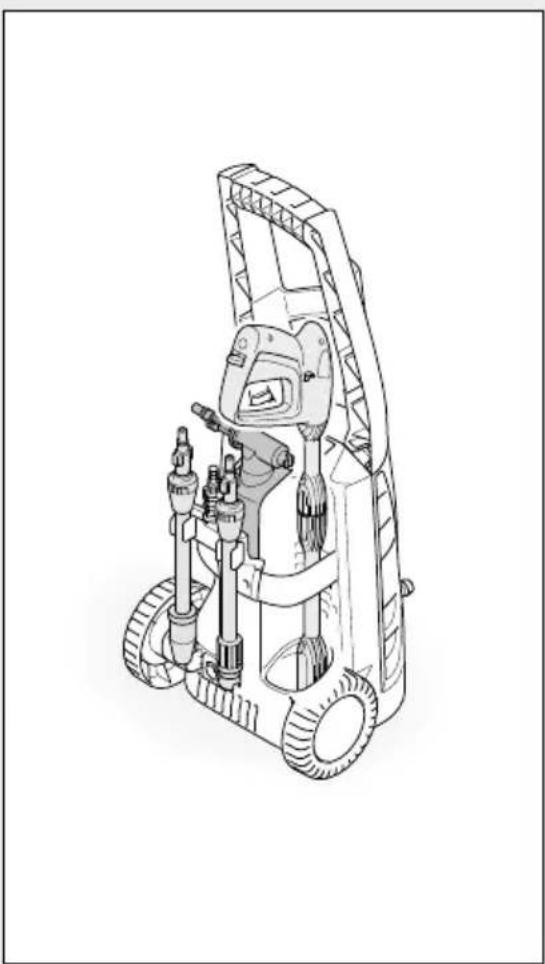

Main components

B1 Adjustable spray nozzle
B2 Lance
B3 Gun with safety catch

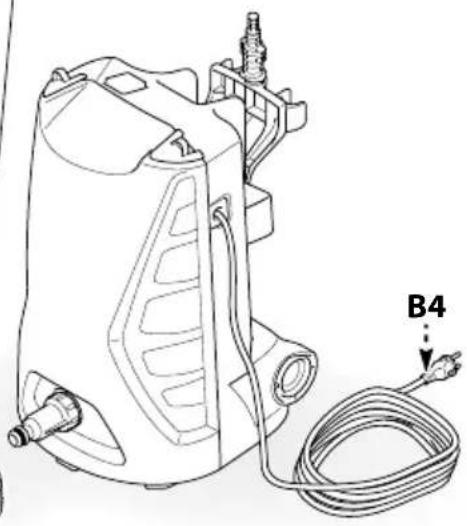

B4 Power supply cable with plug

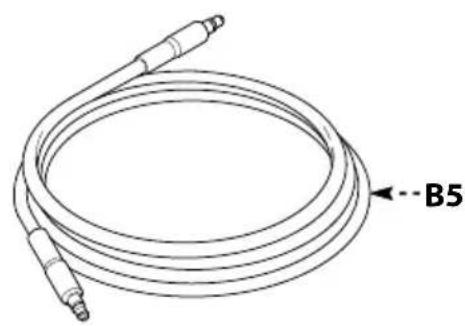

B5 High pressure hose

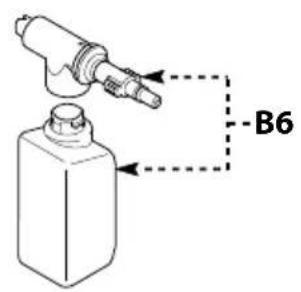

B6 Detergent tank (on models with this feature)

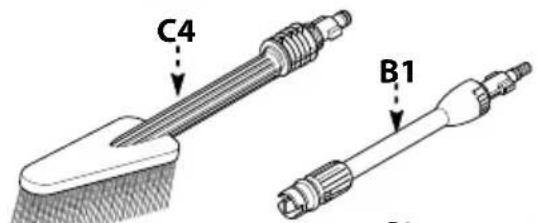

Accessories (if included in the supply package - see fig.1)

C1 Nozzle cleaning tool
C2 Rotating nozzle kit
C3 Handle

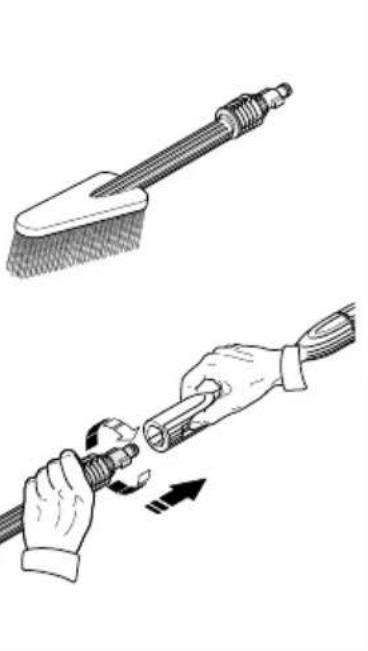

C4 Brush
C5 Hose reel

Safety devices

Caution - Danger!

Do not tamper with or adjust the safety valve setting.

• Safety valve and/or pressure limiting valve. The safety valve is also a pressure limiting valve. When the gun trigger is released, the valve opens and the water recirculates through the pump inlet or is discharged onto the ground.
• Thermostat valve (D1 where fitted). If the water temperature exceeds the temperature set by the manufacturer, the thermostat valve discharges the hot water and draws in an amount of cold water equal to the amount of water discharged, until the correct

temperature is restored.

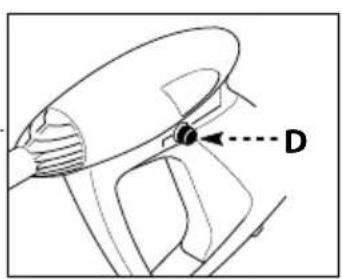

• Safety catch (D): prevents accidental spraying of water.

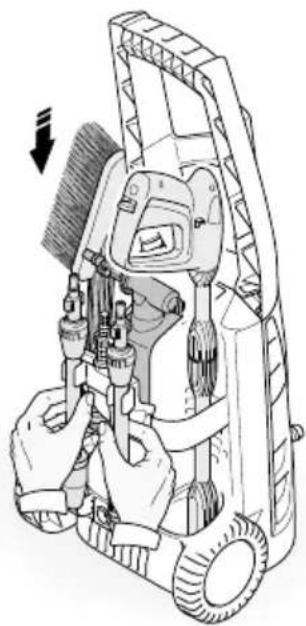

Installation (fig.2)

Assembly

Caution - Danger!

All installation and assembly operations must be

performed with the appliance disconnected from the mains power supply.

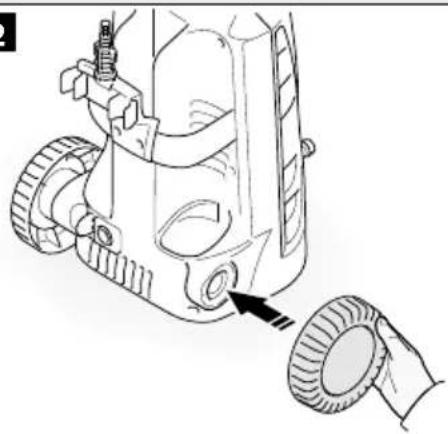

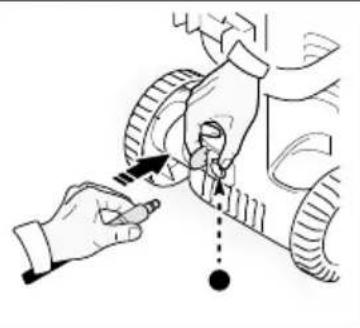

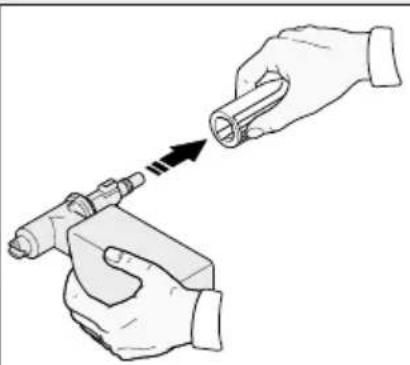

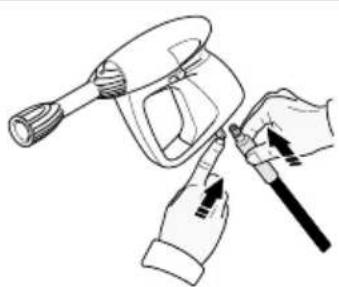

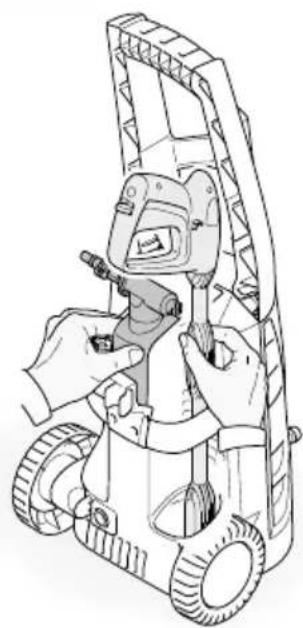

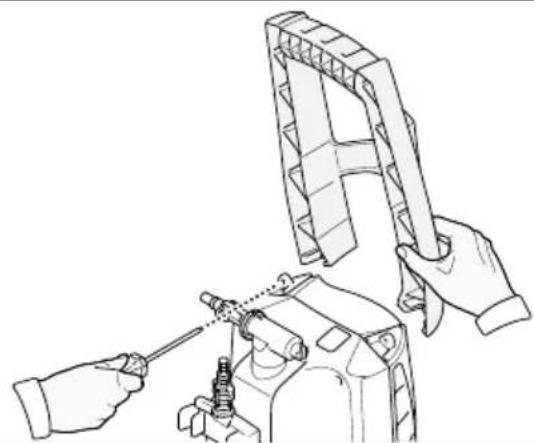

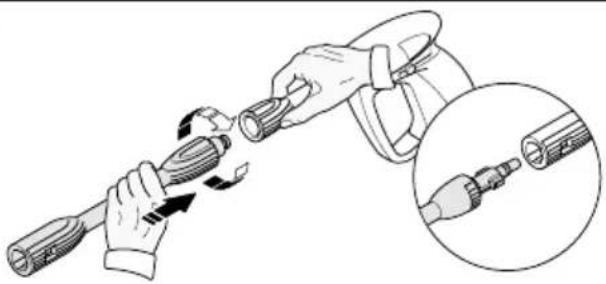

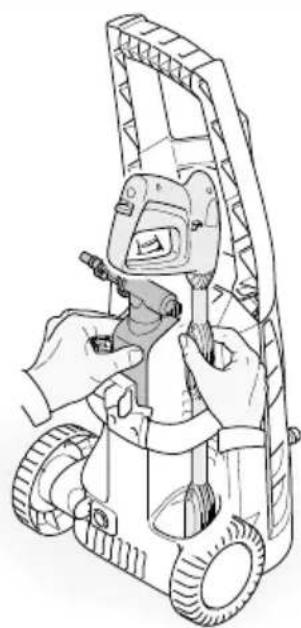

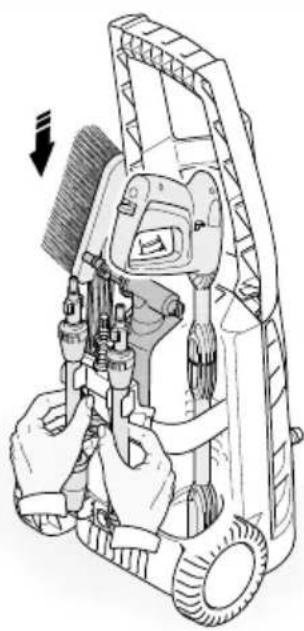

The assembly sequence is illustrated in fig.2.

Assembling the rotating nozzle

(For models with this feature)

The rotating nozzle kit delivers greater washing power. Use of the rotating nozzle may cause of reduction in pressure of 25% compared to the pressure obtained with the adjustable nozzle. However, the rotating nozzle kit delivers greater washing power due to the rotation of the water jet.

Electrical connection

Caution - Danger!

Check that the electrical supply voltage and frequency (V-Hz) correspond to those specified on the appliance data plate (fig.2). The appliance should only be connected to a mains power supply equipped with an adequate earth connection and a differential security breaker (30 mA) to cut off the electricity supply in the instance of a short circuit.

Use of extension cables

Use cables featuring "IPX5" protection level. The cross-section of the extension cable should be proportionate to its length; the longer it is, the greater its cross-section should be. See table I.

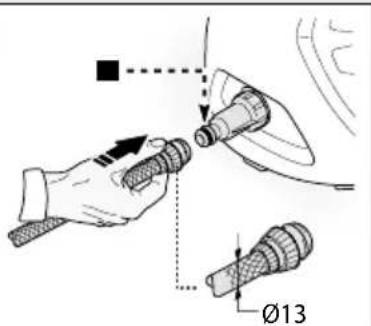

Water supply connection

Caution - Danger!

Only clean or filtered water should be used for intake. The delivery of the water intake tap should be equal to that of pump capacity.

Place the appliance as close to the water supply system as possible.

Connection points

Water outlet (OUTLET)
Water inlet with filter (INLET)

Connection to the mains water supply

The appliance can be connected directly to the mains drinking water supply only if the supply hose is fitted with a backflow preventer valve as per current regulations in force. Make sure that the hose is at least 0.13mm and that it is reinforced.

Adjustment information (fig.3)

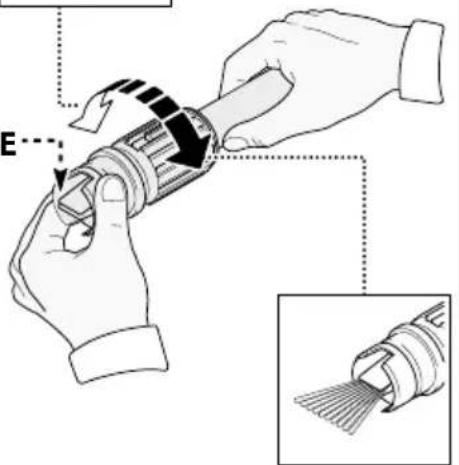

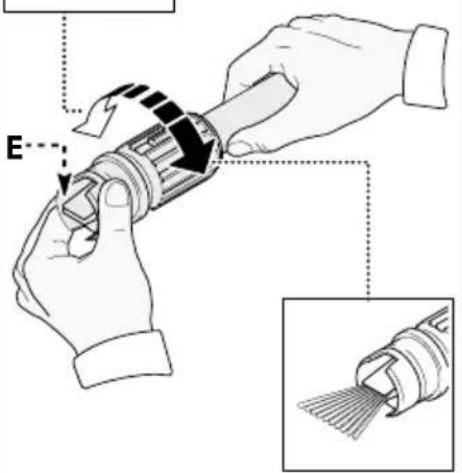

Adjusting the spray nozzle (for models with this feature)

Water flow is adjusted by regulating the nozzle (E).

Adjusting the detergent (on models with this feature)

• Detergent flow is adjusted using the regulator (F).

Adjusting the detergent pressure

Set the adjustable nozzle (E) on " - " to deliver detergent at the correct pressure (on models with this feature).

Adjusting the pressure (on models with this feat)

• The regulator (G) is used to adjust the working pressure. The pressure is shown on the pressure gauge (where fitted).

Information on use of the appliance (fig.4)

Controls

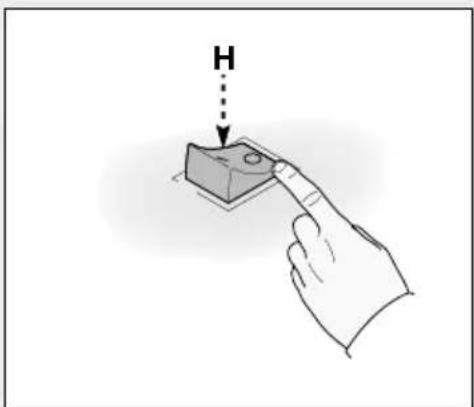

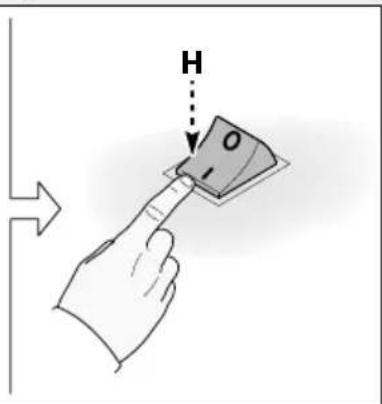

• Starter device (H).

Set the starter switch on (ON/1) to:

a) Start the motor (in models without TSS device);

b) Set the motor ready to start (in models with TSS device).

• If there is a pilot light on the starter device, it should light up.

• If the "low/high" settings are available, use them as follows:

• Low: low pressure washing

• High : high pressure washing

• Set the starter device switch on (OFF/0) to shut down the appliance.

• If there is a pilot light on the starter device, it should go out.

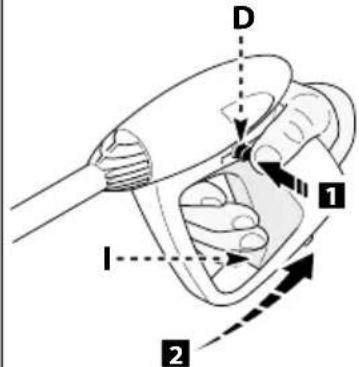

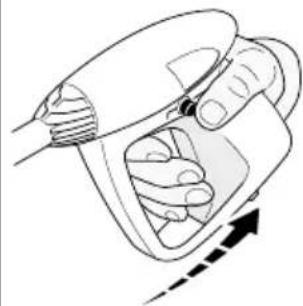

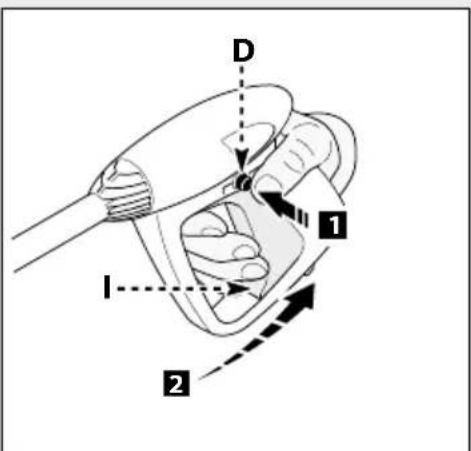

  Water jet control lever (I).

Caution - Danger!

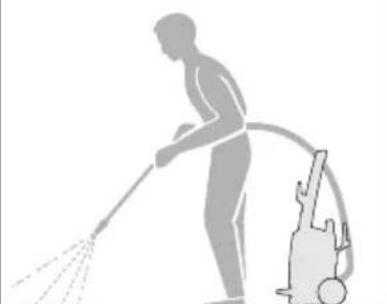

During operation the appliance must be positioned as shown in fig. 4 on a sturdy, stable surface.

Start-up

1) Turn on the water supply tap fully.
2) Release the safety catch (D).
3) Depress the gun trigger for a few seconds and start up the appliance using the starter device (ON/1).

Caution - Danger!

Before starting up the appliance check that the water supply hose is connected properly; use of the appliance without water will damage it; do not cover the ventilation grilles when the appliance is in use.

TSS models - In TSS models with automatic delivery flow cut-off system:

• When the gun trigger is released the dynamic pressure automatically cuts out the motor (see fig.4);
• When the gun trigger is depressed the automatic drop in pressure starts the motor and the pressure is restored after a very slight delay;
• If the TSS is to function correctly all gun releasing and depressing operations must be performed at intervals of less than 4-5 seconds.
• On three-phase models for professional use, at first use start the appliance for a very short time to check that the motor is running in the correct direction. If the motor fan is turning anti-clockwise, exchange two of the three phase wires (L1, L2, L3) in the electrical plug.
• To prevent damage to the appliance, do not allow it to operate dry and when running do not stop the water jet for more than 10 minutes at a time (for models without TSS device).

Stopping the appliance

1) Set the starter device switch on (OFF/0).
2) Depress the gun trigger and discharge the residual pressure inside the hoses.
3) Engage the gun safety catch (D).

ENGLISH

Restarting

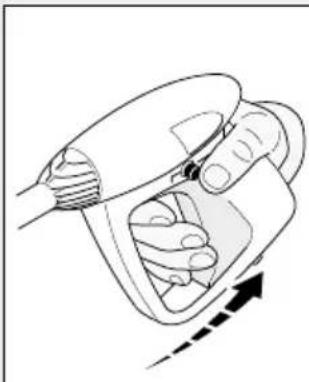

1) Release the safety catch (D).
2) Depress the gun trigger and discharge the residual air inside the hoses.
3) Set the starter device on (ON/1).

Storage

1) Switch the appliance off (OFF/0).
2) Remove the plug from the socket.
3) Turn off the water supply tap.
4) Discharge the residual pressure from the gun until all the water has come out of the nozzle.
5) Drain and wash out the detergent tank at the end of the working session. To wash out the tank, use clean water instead of the detergent.
6) Engage the gun safety catch (D).

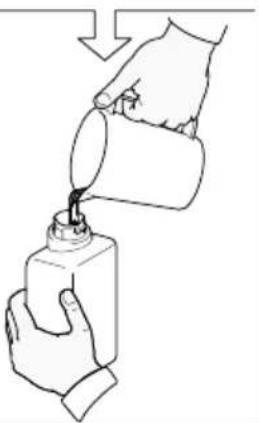

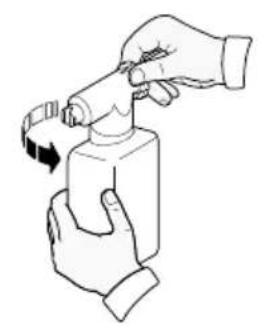

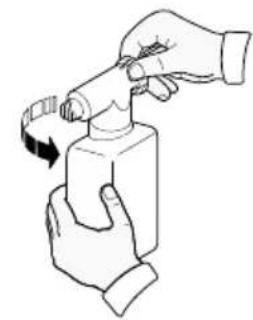

Refilling and using detergent

When using detergent, the adjustable nozzle must be set on "-" (on models with this feature).

Use of a high pressure hose longer than the one originally supplied with the cleaner, or the use of an additional hose extension, may reduce or completely halt the intake of detergent.

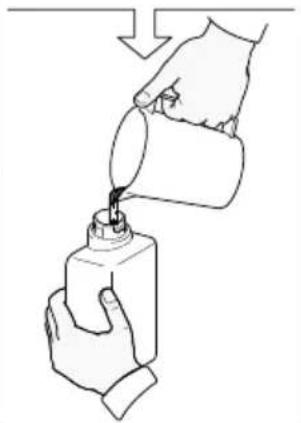

Fill the tank with highly degradable detergent.

Recommended cleaning procedure

Dissolve dirt by applying the detergent mixed with water to the surface while still dry.

When dealing with vertical surfaces work from the bottom upwards.

Leave the detergent to act for 1-2 minutes but do not allow the surface to dry. Starting from the bottom, use the high pressure jet at a minimum distance of 30~cm . Do not allow the rinse water to run onto unwashed surfaces.

In some cases, scrubbing with brushes is needed to remove dirt.

High pressure is not always the best solution for good washing results, since it may damage some surfaces. The finest adjustable nozzle jet setting or the rotating nozzle should not be used on delicate or painted parts, or on

pressurised components (e.g tyres, inflation valves, etc.).

Effective washing depends on both the pressure and volume of the water used, to the same degree.

Maintenance (fig.5)

Any maintenance operations not covered by this chapter should be carried out by an Authorized Sales and Service Centre.

Caution - Danger!

Always disconnect the plug from the power socket before carrying out any work on the appliance.

Cleaning the nozzle

1) Disconnect the lance from the nozzle.
2) Remove any dirt deposits from the nozzle hole using the tool (C1).

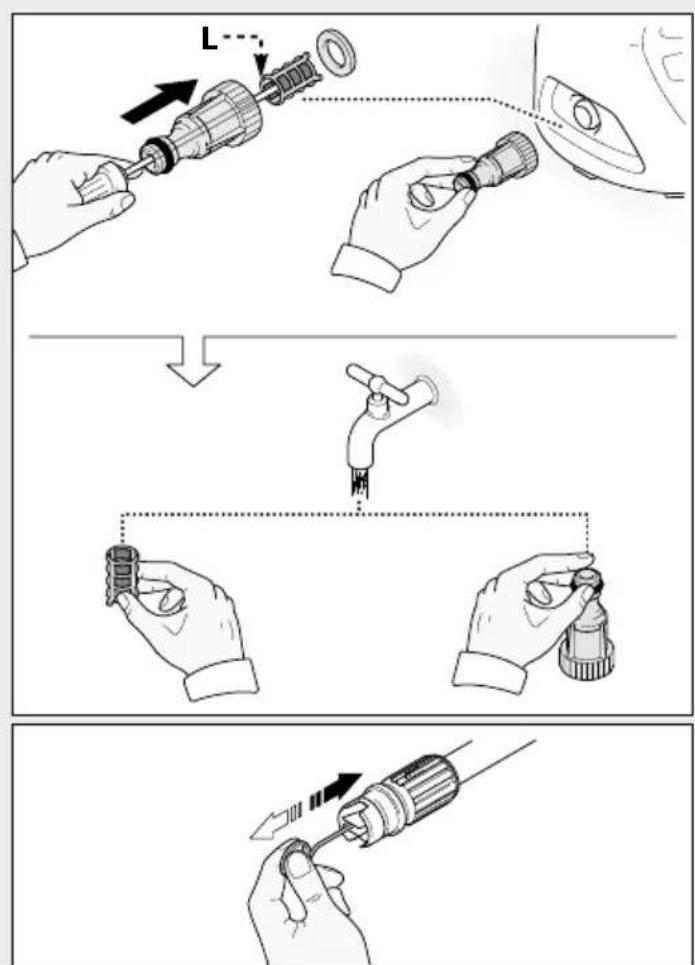

Cleaning the filter

Inspect the intake filter (L) and detergent filter (if fitted) before each use, and clean in accordance with the instructions if necessary.

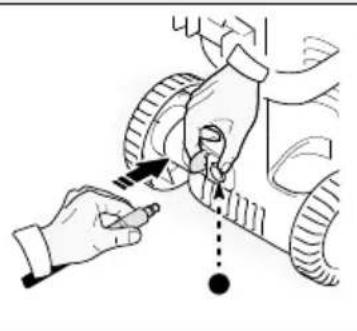

Unjamming the motor (on models with this feature)

In case of lengthy stoppages, limescale sediments may cause the motor to seize. To unjam the motor, turn the drive shaft with a tool (M).

End-of-season storage

Treat the appliance with non-corrosive, non-toxic antifreeze before storing it away for winter.

Put the appliance in a dry place, protected from frost.

Mains plug replacement (U.K. & Ireland only)

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
• Connect the brown lead to the live terminal in the new plug.
• Connect the blue lead to the neutral terminal.

Warning! No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 5 A.

Troubleshooting

Problem	Possible causes	Remedy
Nozzle worn Replace nozzleWater filter fouled Clean filter (fig.5)Water supply pressure low Turn on water supply tap fullyAir being sucked into system Chock tightness of hose fittingsPump does not reach Air in pump working pressure releasing the gun a steady flow. Switch the appliana dAdjustable nozzle not Turn the a positioned correctly nozzle (E) (+) (fig.3)Thermostatic valve tripped Wait for correct water temperature to be restored	Switch off the appliance and keep depressing andgun trigger until the water comes out in ice back on again.
	adjustable (fig.3)
	for correct water temperature to be restored
Water intake from external tank Connect appliance to the mains water supplyPressure drops during use Intake	water too hot Reduce temperature
	Clean nozzle (fig.5)
Intake filter (L) dirty	Clean filter (L) (fig.5)
Insufficient power supply check that the voltage of the mains voltage loss due to use of Check motor "sounds" but fails to start	the plate (fig.2) characteristics of extension cable extension cable
Appliance not used for a long period of time	Contact your nearest Authorized Service Centre
Problems with TSS device	Contact your nearest Authorized Service Centre
No electrical power check that the plug is firmly in the	is present (*)	socket
and that the mains voltage supply	Problems with TSS device	Contact your nearest Authorized Service Centre
Motor fails to start	Using the tool (L) unjam the motor from the hole at the rear of the appliance
Appliance not used for a long period of time	Have the seals replaced at your Nearest Authorized Service Centre
(in models with this feature) (fig.5)
Seals worn	Authorized Service Centre
Water leakage
Safety valve tripped and discharging	Contact an Authorized Service Centre
Appliance noisy	Water too hot	Reduce temperature (see technical data
Oil leakage	Seals worn	Contact your nearest Authorized Service Centre
Nozzle clogged	Clean nozzle (fig.5)
TSS versions only: motor starts even with gun trigger is released hydraulic circuit not watertight	High pressure system or pump	Contact your nearest Authorized Service Centre
TSS versions only: no water delivery when gun trigger is depressed (with supply hose connected)	Nozzle clogged	Clean nozzle (fig.5)
Detergent too dense	Adjustable nozzle on high pressure setting	Set nozzle on "-" setting (fig.5)
No detergent taken in	Dilute with water
If the problem persists, contact an	High pressure hose extension being used	Fit original hose
	Deposits or restriction in detergent circuit	Flush with clean water and eliminate any restrictions.
	An Authorized Service Centre

(*) If the motor starts and does not restart during operation, wait 2-3 minutes before repeating the start-up procedure (overload cutout has been tripped). If the problem recurs more than once, contact your nearest Authorized Service Centre.

Declaration of conformity

CE

We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents

EN 60335-1 - EN 60335-2-79; EN 55014-1; EN 55014-2;

EN 61000-3-2;EN 61000-3-3; EN 61000-3-11; EN 60704-1

In accordance with the regulations:

2006/42/CE, 2006/95/CE, 2002/95/CE, 2002/96/CE, 2004/108/CE, 2000/14/CE

For more information, please contact Black & Decker at the following address or refer to the back of the manual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

Kevin Hewitt

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

04/02/2013

Technical Data

Unit PW1400TDK
Output L/min 6,2
Pressure MPa 8
Maximum pressure MPa 11
Power kW 1,4
T° input °C 50
Maximum input pressure MPa 1
Repulsive force of the gun to the maximum pressure N 9,3
Motor Insulation	-	Class F
Motor Protection	-	IPX5
Voltage	V/Hz	230/50
Sound level (K=3 dB(A)): LPA (EN 60704-1) LWA (EN 60704-1)	dB (A) dB (A)	75,8 84
Unit vibrations (K=1,5M/s2)	M/s2	2,74
Weight	kg	6,4

Protecting the environment

ate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with other household waste. Make this product available for separate collection.

• Black & Decker provides a facility for recycling Black & Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
• You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorized Black & Decker repair agents and full details of our after-sales service and contact are available on the Internet at: www.2helpU.com.

Warranty

Black & Decker is confident of the quality of its products and offers an outstanding warranty.

This warranty statement is in addition to and in no way prejudices your statutory rights.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker warranty to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

• The product has been used for trade, professional or hire purposes;
• The product has been subjected to misuse or neglect;
• The product has sustained damage through foreign objects, substances or accidents;
• Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the warranty, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual.

Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

1

2

3

4

56

8

9

3

4

5

Volt	1÷25 m	25÷50 m
230 2 x 1,5 mm	2	2 x 2,5 mm2

1

FRANÇAIS

Informations techniques (fig.1)

Utilisation prévue

Installation (fig.2)

Montage

Attention - danger!

2006/42/CE, 2006/95/CE, 2002/95/CE, 2002/96/CE, 2004/108/CE, 2000/14/CE

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Royaume-Uni

04/02/2013

Données Techniques

i dLdLgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRg

cull lall cjjaaal alalal gagg a

Jaw 1e Jao JaoJIgai jai aai Jai Jai Jai Jai

j11p11i11i11a2glll0k

TSS -TSS

L

LgSolilalbllp 1 Juaa aie

(4K)

slll lssy

4j jai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

5

iie gaiy

Sllss

a 1

a 1

L(L1.L2.L3)

10 1

(TSS jgj gaiy y all jlll bla) a

JlJI JJIJI

(OFF/0)

giiiai biai aiey iip yj jn jie bi 2

1

(D) joloo Joa 3

J

(D)

2

a#blzll

(ON/1)

(3)

aagb

（aalssgaaagaaaljlll

(E)

skil

（aalllgddgjolloljlll

(F) pbioll plaiw lkiill biol biobio

biolb bue buo

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

aai jll

Jzll 21111111111111111111111111111111111

B2

Joloo B3

B4

B5

（aallgssyjollxjogall）abiall jB6

• 1 (1 k)

2gall sbis 1C1

aJgJJIgJIJIgJIc2 C2

C3

C4·

C5

jla 1

1

Jllo1 plao 1o! Juaa j aally

jbs. jbiall biallp bgs jgll jbs

J 30 J 30

aalll"

1

Lai Lio 1000000000000000000000000000000000000000000

Names & Addresses for Black & Decker Service Concessionaries

ALGERIA: SARL Outillage Corporation, After Sale Service Center-08, Rue Mohamed Boudiaf - Cheraga, Algiers, Algeria, Tel: [phone], Fax: [phone]. BAHRAIN: Alfouz Services Co. WLL, P.O. Box 26562, Tubli, Manama, Tel: [phone], Fax: [phone]. EGYPT: Anasia Egypt for Trading S.A.E, P.O. Box 2443, 9, Mostafa Refaat Street, Sheraton Heliopolis 11361, Cairo, Tel: [phone], Fax: [phone]. ETHIOPIA: Seif Sherif Trade PLC -Arada Sub City, Kebele 01-02, Global Insurance Bldg., 2nd Flr. Room 43, P.O.Box 2525, Addis Ababa, Ethiopia, Tel: [phone], Fax: [phone]. IRAQ: Financial Links, Kazzaz Building Arasat Al-Hindia Block No: 629 Street: 31Building No: 1 Baghdad - Iraq, Tel: [phone] /+ 964 (0)781 3763044. JORDAN: Bashiti Hardware, 93 King Abdullah 2nd St., Opp ELBA House, P.O. Box 3005, Tel: [phone] ext.11, Fax: [phone]. KENYA: Leading Concepts, P.O. Box: 40877-00100, Nairobi, Kenya. Tel: [phone], Fax: [phone]. KUWAIT: Al Omar Technical Co., P.O. Box 4062, Safat 13041, Kuwait, Tel: [phone], Fax: [phone]. LEBANON: Aces Service Centre, P.O. Box 90-102, Nahr El Mot, Seaside Highway, Pharaon Building, Beirut. Tel: [phone], Fax: [phone]. LIBYA: Homeworld Co., Building No.5, Senidal St., Amr Ibn Elaa's Road, Benghazi, Libya. Tel: [phone]. Service Center1 - Benghazi; Tel: [phone], Fax: [phone], Service Center2 - Tripoli; Tel: [phone], Fax: [phone]. MALTA: John G Cassar Ltd. 36-Victory Street Qormi QRM 06, Malta. Tel: [phone], Fax: [phone]. MAURITIUS: J.M. Goupille & Co. Ltd., Rogers Industrial Park 1, Riche Terre, Mauritius, Tel: [phone], Fax: [phone]. MOROCCO: UATS, No. 37, Lotissement KADIRIA, km 10 Route Eljadida - LISASSFA, Casablanca, Morocco, Tel: [phone], Fax: [phone]. NIGERIA: Dana Electronics Ltd. (Lagos) 116/ 120, Apapa Oshodi Express Way, Isolo, Lagos, Nigeria. Tel: [phone]. (Abuja) 18, A.E. Ekukinam Street, Off Obsfemi Awolowo Road Utako, Abuja, Nigeria. Tel: [phone]. (Kano) 9A - Mai Malari Road, Bompai, Kano, Nigeria. Tel: [phone]. OMAN: Oman Marketing & Service Co. (Omasco), P.O. Box 2734, Behind Honda Showroom, Wattayah, Oman, Tel: [phone], Fax: [phone]. Oman Marketing & Service Co. (Omasco) Sanaya Salalah, Oman, Tel: [phone], Fax: [phone]. Oman Marketing & Service Co. (Omasco) - Sanaya Salalah, Oman, Tel: [phone], Fax: [phone]. PAKISTAN: Ammar Service & Spares - 60-Bank Arcade Serai Road Karachi Pakistan Tel: [phone] Fax: [phone]. QATAR: Al Mufah Service Centre Al Wakrah Road, P.O. Box 875 Doha QatarTel: 00974-4650880/ 4650110/ 4446868,Fax: [phone] SAUDI ARABIA: (Dammam) Al Bawardi Tools & Hardware, P.O. Box 112 Dammam Tel:[phone] Ext.24 / 8348585 Ext. ^+ / 966-3-8335555 Fax:[phone].Fawaz Ebrahim Al Zayani Trading Est.P.O.Box 76026Al Raka #31952 Tel:[phone],Fax:[phone].Al Hassa) Al Bawardi Tools & Hardware,P.O.Box 16905,Jeddah 21474Tel:[phone],Fax:[phone].(Jeddah) Banaja Trading Co.Ltd,P.O.Box 366 Jeddah-214l; Tel:[phone]lll; Fax:[phone].(Riyadh) Al Bawardi Tools & Hardware,P.O.Box 68,Riyadh I1l; Tel:[phone],Fax:[phone].Banaja Trading Co.Ltd,P.O.Box 566,Riyadh-1142;Tel: O966-1-412444;Fax:[phone].SOUTH AFRICA: Benray Tool Wholesalers C.C., 460 Koeberg Road Cape Town South Africa,Tel: [phone]Fax: [phone].Stanley Black & Decker - RSA; Inver Drive Stormill Ext 9 Roodepoort; Tel:(27l) 472 O454Fax:(27l) 472 O48Z.TUNISIA:Societe Tunisienne De Manutention - Rue de la Physique,Nouvelle Zone Industrielle de Ben Arous-2O13 TunisieTel:[phone] Fax:[phone] ext 216. UGANDA: Anisuma Investment and Services Ltd., J R complex,Ware House No.5, Plot No 1o1, 3rd Street Industrial Area Jinja Road,Kampala,Tel:[phone]Oc.UAE:Abu Dhabi Galaxy Equipment Trading,Madinath Zayed Baada Zaid), Abu Dhabi,P.C.589lO;Tel:+97l-2-88A4FZ79Fax:+97l-2-8BAAFZP.Light House Electrical,P.O.Box 12o Abu DhabiTel:+97l-2-67ZbSODC(Al Ain) Zillion Equipment and Spare Parts Trading LLC,P.O.Box 1974Opp.Bin Sadal/Trimix Redymix Sanaiya,Ai Ain.Tel:+97l-3-721669o,Fax:+97l-3-72161Oph (Dubai Black & Decker (Overseas) GmbH,P.O.Box 542oDubaiTel:+97l-4-8IzTTO/IBIZTTOFDCFox ABOx BDOxHbHnDhBtTeTAtuHdHnTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtUHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTeTAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuHdTe TAtuH dTe TAtuH dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe TAtu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dTe T Atu H dToe T Atuu H dToe T Atuu H dToe T Atuu H dToe T Atuu H dToe T Atuu H dToe T Atuu H dToe T Atuu H dToe T Atuu H dToe T Atuu H dToe T Atuu H dToe T Atuu H dToe T Atuu H dToe T Atuu H dToe T Atuu H dToe T Atuu H

BLACK&DECKER

WARRANTY REGISTRATION CARD

YOUR NAME/

YOUR ADDRESS

POSTCODE

DATE OF PURCHASE

DEALER'S NAME & ADDRESS/
