Product type	Television
Brand	Sony
Model	Bravia KD75XG8588
Screen size	75 inches (diagonal)
Compatible wall mount	SU-WL450 (supplied with instructions)
Wall mount weight (base only)	0.8 kg
Distance from wall (standard mounting)	Approximately 60 mm
Distance from wall (slim mounting)	Approximately 20 mm
Wall mounting hole pitch	400 x 300 mm
Required wall mounting screws	At least 4 screws of 8 mm diameter (not supplied)
Additional screw for belt	1 screw of 5 mm diameter (not supplied)
Required tool	Phillips screwdriver
Installation precautions	Do not install on unstable wall, under air conditioner, or in vibrating area
Minimum wall load capacity	Must support at least 4 times the weight of the TV

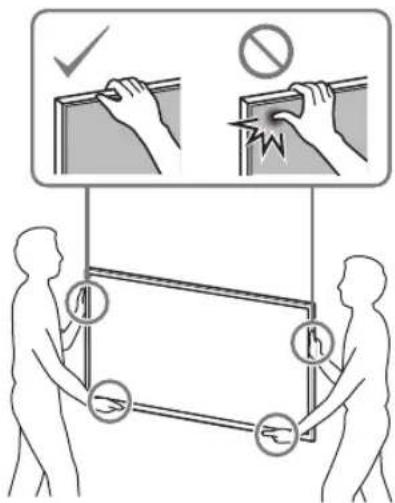

Recommended number of people for installation	At least 2 (3 or more for 75 inches and above)
Warranty	Specifications subject to change without notice

Frequently Asked Questions - Bravia KD75XG8588 SONY

What is the recommended wall mount for the Sony Bravia KD75XG8588?

The Sony SU-WL450 wall mount is recommended. Refer to the instructions for installation.

Can I install the TV myself?

It is strongly recommended to have installation performed by Sony authorized installers for safety reasons. Incorrect installation may cause injury.

Which screws should I use to attach the mount to the wall?

Use at least four 8 mm diameter screws (or equivalent) suitable for the wall material. Screws are not supplied.

What should I do if the TV is unstable after installation?

Check that the pulleys are properly engaged in the base and that the belt is tight. If the TV moves, tighten the belt.

Can I use a wall mount other than the SU-WL450?

No, this mount is specifically designed for the listed models. Using other mounts may cause falls.

How can I prevent the TV from falling?

Ensure the wall can support at least four times the weight of the TV, securely fasten the belt, and do not lean on the screen.

Is slim mounting possible? What are the drawbacks?

Yes, but slim mounting limits access to the rear ports. Make sure to connect all cables before installation.

What precautions should I take for children?

Keep young children away during installation. Do not allow them to climb on the TV.

What should I do if I need to disassemble the TV?

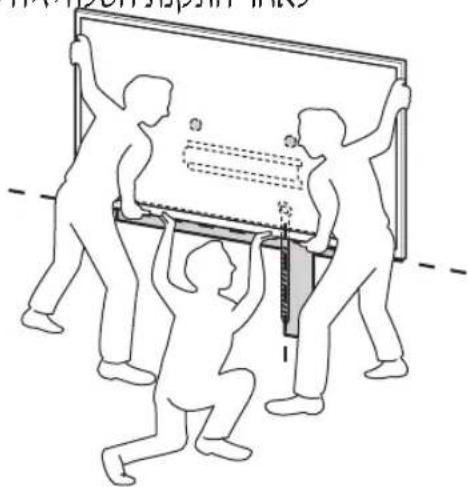

Follow the reverse procedure. At least two people (three for 75 inches and above) must support the TV.

Where can I find the exact dimensions for drilling?

Refer to the table in the manual (page 6) for installation dimensions according to the model.

USER MANUAL Bravia KD75XG8588 SONY

• In the actual model names, the "□□" indicates numbers and/or characters specific to each model.

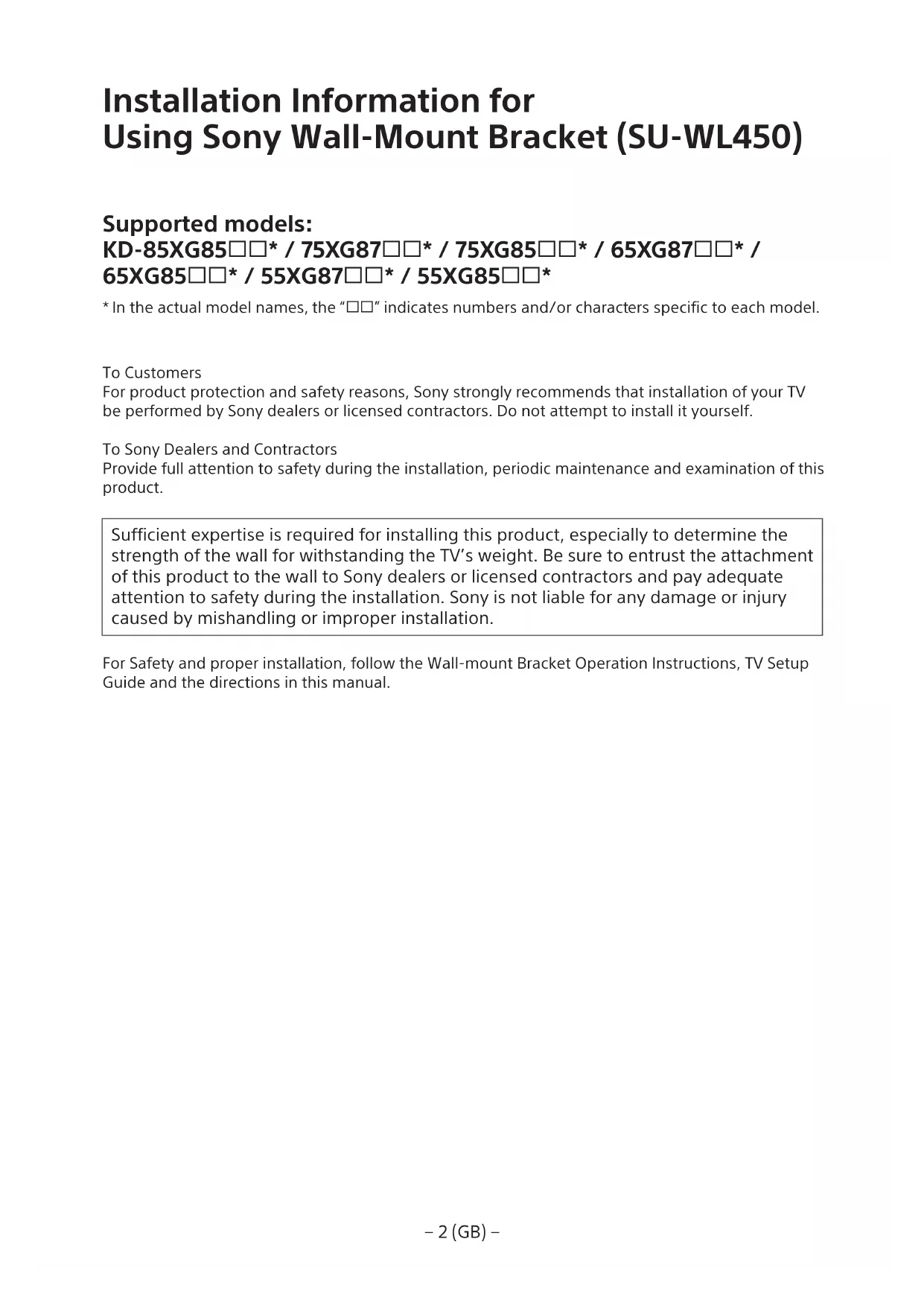

To Customers
For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV's weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

For Safety and proper installation, follow the Wall-mount Bracket Operation Instructions, TV Setup Guide and the directions in this manual.

On Safety

Thank you for purchasing this product.

To Customers

Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation. Sony is not liable for any damages or injury caused by mishandling or improper installation, or installing any other than the specified product. Your Statutory Rights (if any) are not affected.

To Sony dealers

Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or improper installation. Please give this manual to the customer after installation.

This instruction manual shows the correct handling of the product and important precautions necessary to prevent accidents. Be sure to read this manual thoroughly and use the product correctly. Keep this manual available for future reference.

Products by Sony are designed with safety in mind. If the products are used incorrectly, however, it may result in a serious injury through fire, electric shock, the product toppling over, or the product dropping. Be sure to observe the precautions for safety to prevent such accidents.

CAUTION

Specified products

This Wall-Mount Bracket is designed for use with the products specified TVs. For TVs, refer to their Reference Guide to verify that the Wall-Mount Bracket can be used.

To Customers

WARNING

If the following precautions are not observed, serious injury or death through fire, electric shock, or the product dropping can result.

Be sure to subcontract the installation to licensed contractors and keep small children away during the installation.

If the Wall-Mount Bracket or the TV is not installed correctly, the following accidents may occur. Be sure licensed contractors carry out installation.

The TV may fall and cause a serious injury such as a bruise or a fracture.
- If the wall on which the Wall-Mount Bracket is installed is unstable, uneven, or not perpendicular to the floor, the unit may fall and cause injury or property damage. The wall should be capable of supporting a weight of at least four times the TV weight. (Refer to your TV's Reference Guide for its weight.)
- If the installation of the Wall-Mount Bracket on the wall is not sufficiently sturdy, the unit may fall and cause injury or property damage.

Be sure to subcontract moving or dismounting of the TV to licensed contractors.

If persons other than licensed contractors transport or dismount the TV, it may fall and cause injury or property damage. Be sure that two or more persons (three or more persons for 75 inches and above TV set) carry or dismount the TV.

Do not remove screws, etc., after mounting the TV.

If you do so, the TV may fall and cause injury or property damage.

Do not make alterations to the parts of the Wall-Mount Bracket.

If you do so, the Wall-Mount Bracket may fall and cause injury or property damage.

Do not mount any equipment other than the specified product.

This Wall-Mount Bracket is designed for use with the specified product only. If you mount equipment other than specified, it may fall or break, and cause injury or property damage.

Do not apply any load other than the TV on the Wall-Mount Bracket. Do not shake the TV left/right, up/down.

If you do so, the TV may fall and cause injury or property damage.

Do not lean on or hang from the TV.

Do not lean on or hang from the TV as it may fall on you and cause serious injury.

CAUTION

If the following precautions are not observed, injury or property damage may occur.

Do not handle the product with excessive force during cleaning or maintenance.

Do not apply excessive force on the topside of the TV. If you do so, the TV may fall and cause injury or property damage.

Precautions

• If you use the TV installed on the Wall-Mount Bracket for a long time, the wall behind or above the TV may become discolored or the wallpaper may come unstuck, depending on the material of the wall.
• If the Wall-Mount Bracket is removed after installing it on the wall, the screw holes are left.
• Do not use the Wall-Mount Bracket in a place where it is subjected to mechanical vibrations.

Installing the WallMount Bracket

To Sony Dealers

WARNING

The following instructions are for Sony dealers only. Be sure to read safety precautions described above and pay special attention to safety during the installation, maintenance and checking of this product.

Do not install the WallMount Bracket on wall surfaces where the corners or the sides of the TV protrude away from the wall surface.

Do not install the Wall-Mount Bracket on wall surfaces such as a pillar, where the corners or the sides of the TV protrude away from the wall surface. If a person or object happens to hit the protruded corner or side of the TV, it may cause injury or property damage.

Do not install the TV over or under an air-conditioner.

If the TV is exposed to water leaks or air current from an air conditioner for a long time, it may cause a fire, an electric shock or a malfunction of the TV.

Be sure to install the Wall-Mount Bracket securely to the wall following the instructions in this instruction manual.

If any of the screws are loose or fall out, the Wall-Mount Bracket may fall and cause injury or property damage. Be sure to use the appropriate screws for the material of the wall and install the unit securely using four or more screws of 8mm diameter (or equivalent).

Be sure to use the supplied screws and attachment parts properly following the instructions given in this instruction manual. If you use substitute items, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to assemble the bracket properly following the instructed procedure explained in this instruction manual.

If any of the screws are loose or fall out, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to tighten the screws securely in the designated position.

If you fail to do so, the TV may fall and cause bodily injury to someone or damage to the TV.

Be careful not to subject the TV to shock during installation.

If the TV is exposed to shock, it may fall or break apart. This may cause injury.

Be sure to install the TV on a wall that is both perpendicular and flat.

If you fail to do so, the TV may fall and cause injury.

After proper installation of the TV, secure the cables properly.

If people or objects get tangled with cables, this may result in injury or damage to the TV.

Do not allow the mains lead or the connecting cable to be pinched.

If the mains lead or the connecting cable is pinched between the unit and the wall or is bent or twisted by force, the internal conductors may become exposed and cause a short circuit or an electrical break. This may cause a fire or an electric shock.

The screws needed to secure the Wall-Mount Bracket to the wall are not supplied.

Use the appropriate screws for the wall material and structure when mounting the Wall-Mount Bracket.

Table of Contents

Preparing for installation. 5

Checking the parts. 5

Deciding on the installation location 6

Installing the Base on the wall 8

Preparing for the installation of the TV. 9

KD-85/75XG85□□，KD-75XG87□□

KD-65/55XG87□□，KD-65/55XG85□□.11

Installing the TV on the wall 13

KD-85/75XG85□□，KD-75XG87□□.13

KD-65/55XG87□□，KD-65/55XG85□□.15

Confirming the completion of the

installation 18

Other information. 18

Specifications. 18

Installing the TV onto the wall

Installation procedure differs, depending on your TV.

Use the Wall-Mount Bracket SU-WL450 to install the TV to the wall.

Note

• Be sure to store the removed screws in a safe place, keeping them away from children.

Preparing for installation

• Have the TV's Reference Guide and Setup Guide at hand before installation.
• Be sure to have a Phillips screwdriver that fits the screws prior to the assembly.
• Confirm the installing position of your TV.
• Prepare four or more screws of 8mm diameter and one screw of 5mm or equivalent (not supplied). Select screws suitable for the material of the wall.

Checking the parts

Supplied with SU-WL450

• Verify that all the parts are included.

A Base (20) (1) B Pulley (2)
◎ PSW 6x20 (4)◎ PSW 4x20 with Bush (2)
◎ Spacer (20) (2)◎ Belt (1)
◎ Bush (20) (M4) (2)◎ PSW 4x20 (2)
① Base Adaptor (2)①	PSW 4x10 (8)
◎ Spacer (60) (2)◎ PSW 6x50 (2)
◎ Bush (M4) (2)◎ PSW 4x50 (2)

Deciding on the installation location

1 Decide on the installation location.

Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least four times that of the TV.

Refer to the following table on installing the TV to the wall. Refer to your TV's Reference Guide for the TV's weight.

Standard mounting Slim mounting
Screen centre point

Unit: mm

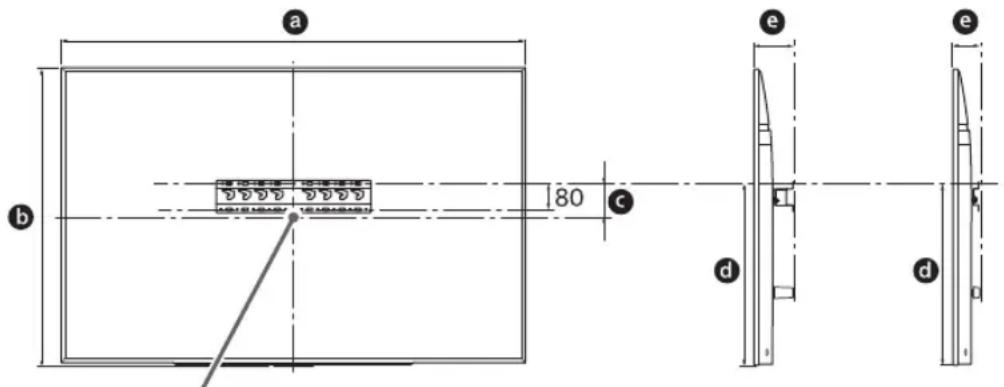

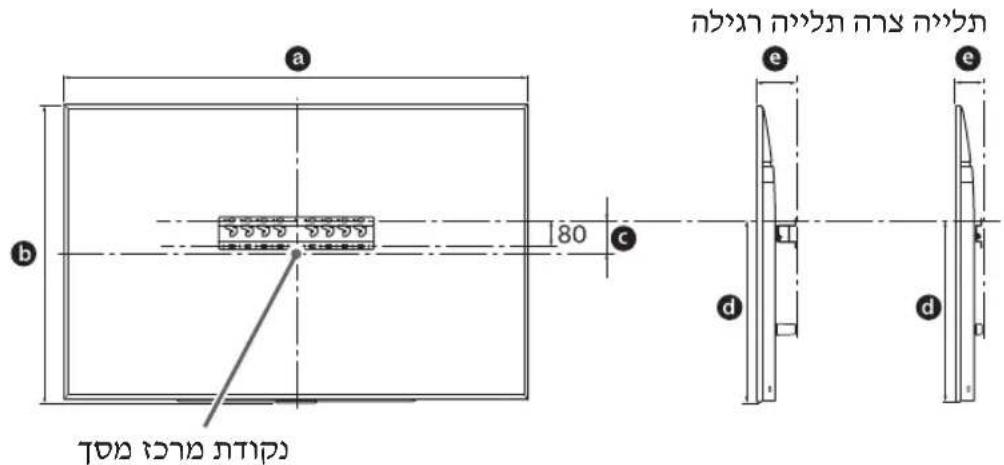

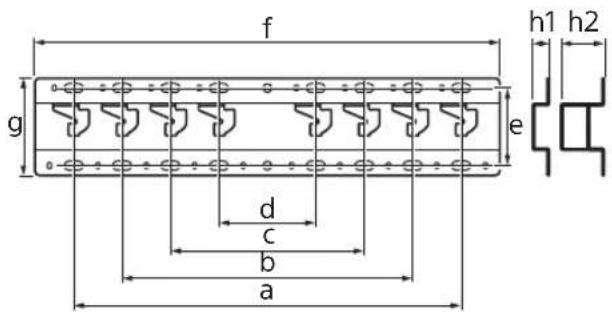

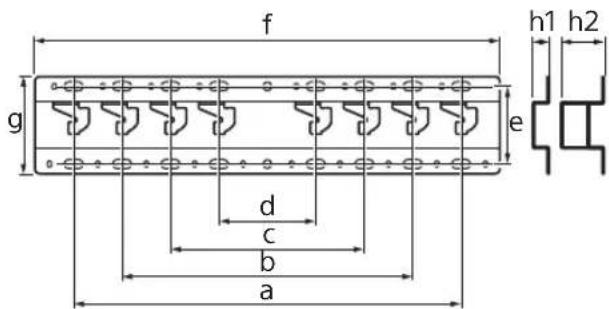

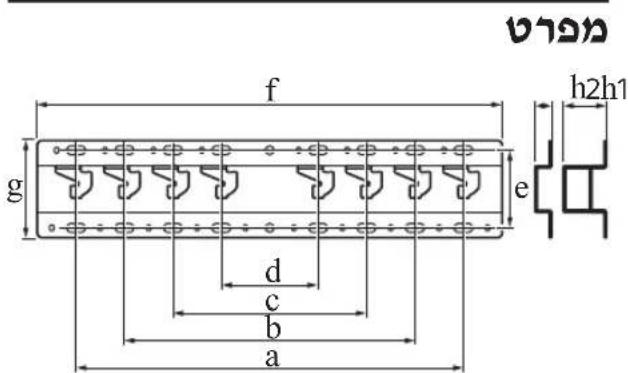

Model Name	Display dimensions		Screen centre dimension		Length for mounting
	a	b	c	d	e
					Standard mounting	Slim mounting
KD-85XG85□□	1,909	1,097	251	803	142	100
KD-75XG87□□ KD-75XG85□□	1,673	963	107	595	116	75
KD-65XG87□□ KD-65XG85□□	1,450	836	99	523	115	73
KD-55XG87□□ KD-55XG85□□	1,231	713	106	468	115	73

Note

• Figures in the table may differ slightly depending on the installation.
• When your TV is installed on the wall, the upper side of the TV slightly leans forward.

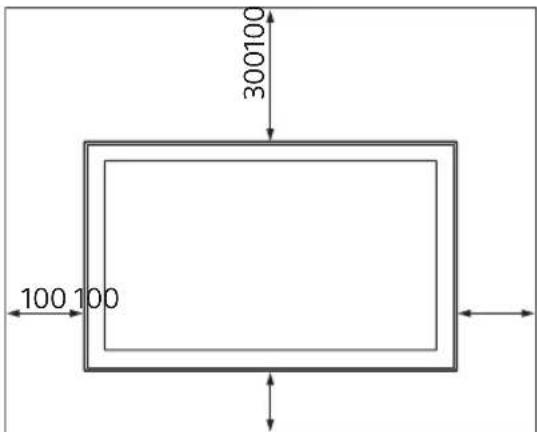

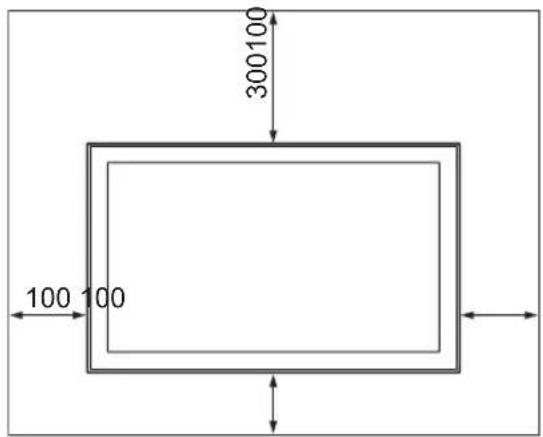

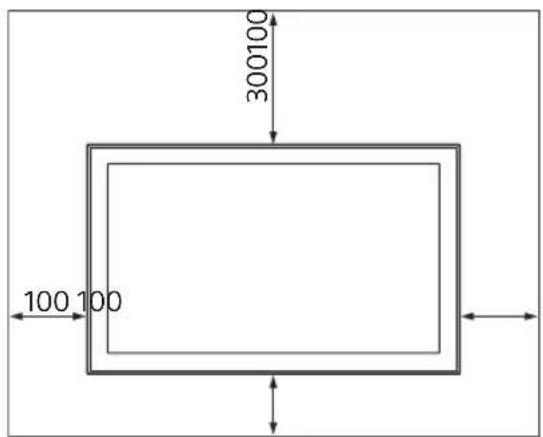

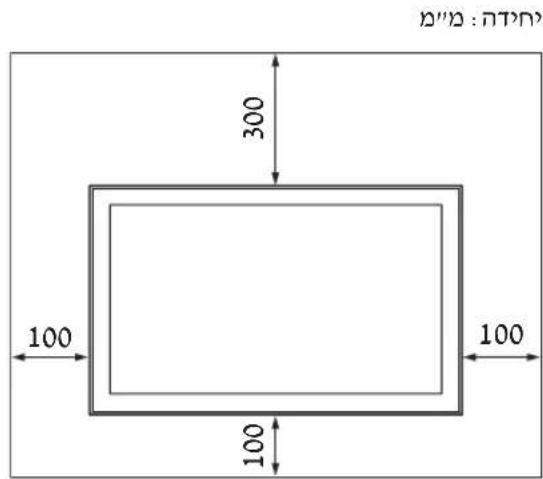

Allow for suitable clearance between the TV and the ceiling and protruding parts of the wall as shown below.

Unit: mm

To ensure proper ventilation and prevent the collection of dirt or dust:

Do not lay the TV set flat, install upside down, backwards, or sideways.
- Do not place the TV set on a shelf, rug, bed or in a closet.
- Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.
- Do not install the TV set as shown below.

Air circulation is blocked.

Note

• If you intend to route the cables in the wall, make a hole in the wall to insert the cables before beginning the installation.

To prevent pinching the cables, prepare a hole in the wall somewhere outside the perimeter of the Base (20) A,Base Adaptor 1 and Spacer (20) E, Spacer (60) K.

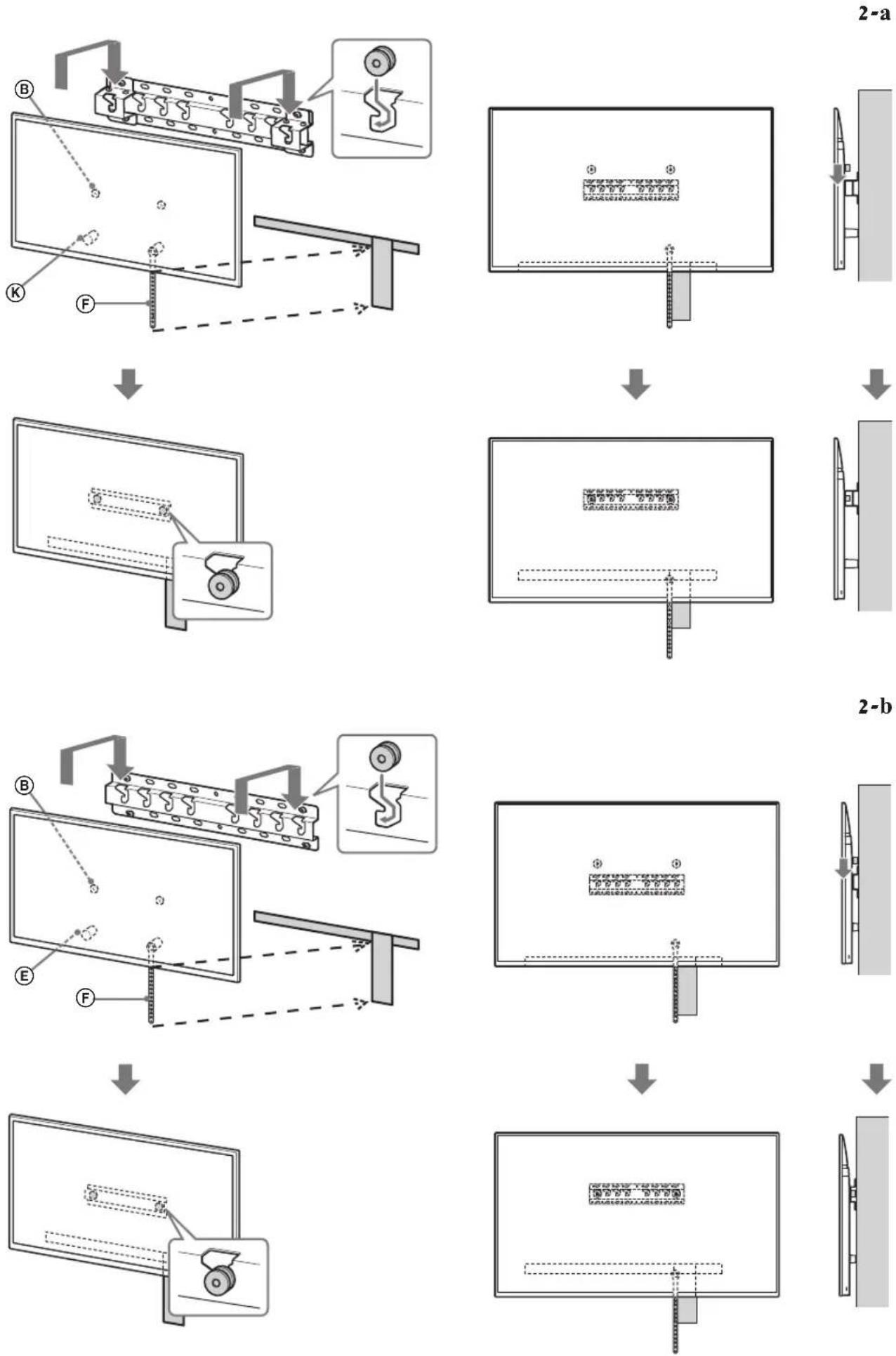

2 Select Wall mounting style. It is selectable as shown below.

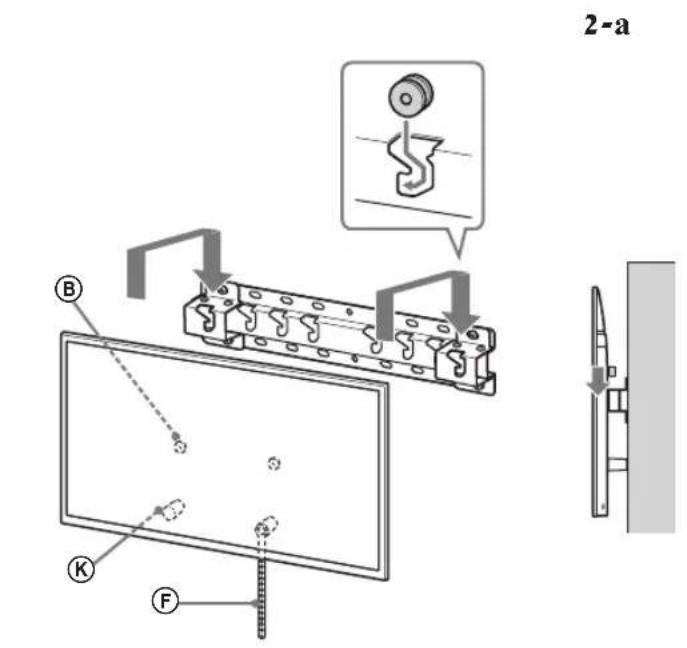

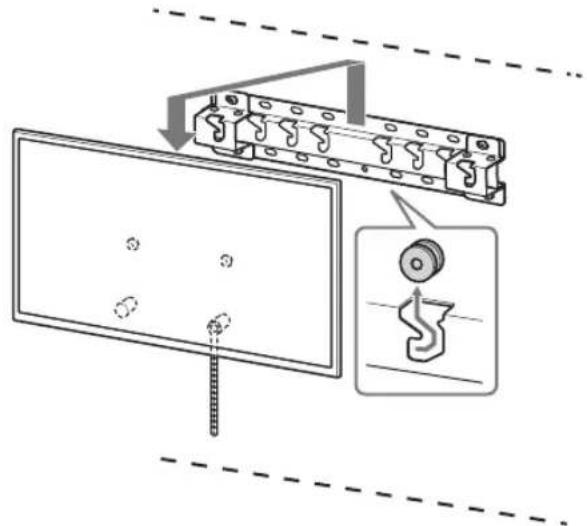

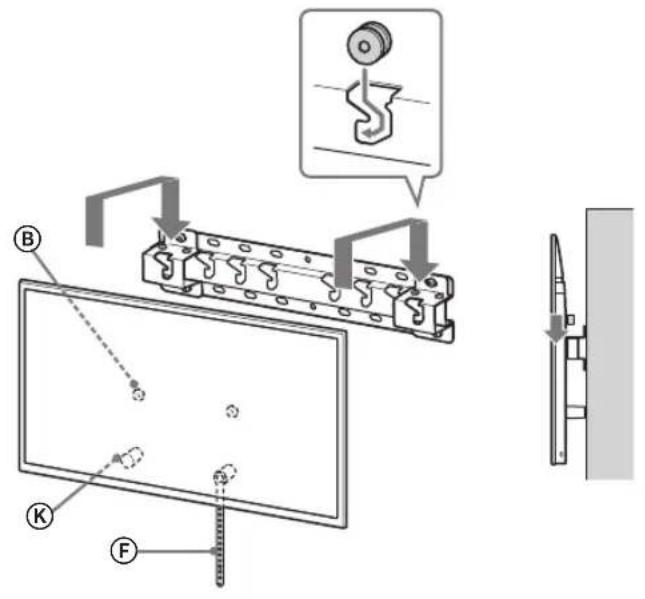

2-a Standard mount

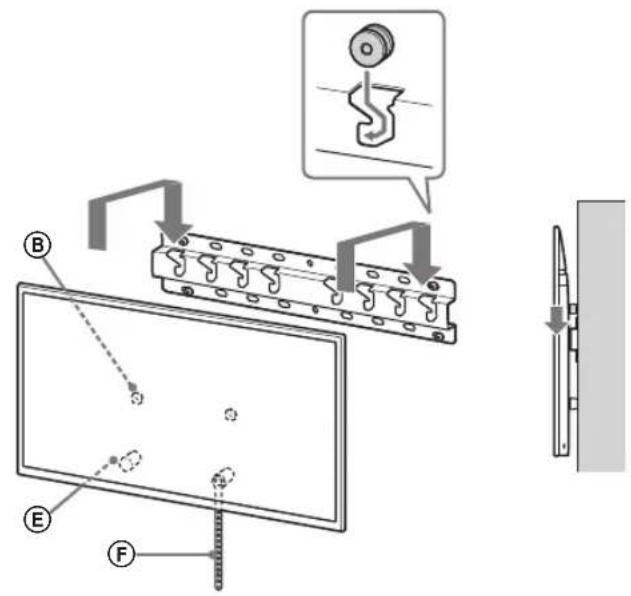

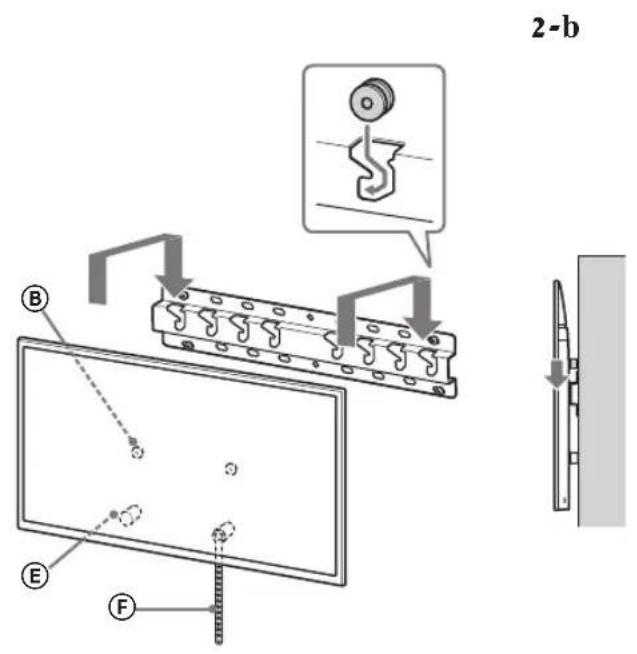

2-b Slim mount

Refer to the table of step 1.

WARNING

• When 2-b is selected, rear terminal access is limited.

2-a 2-b

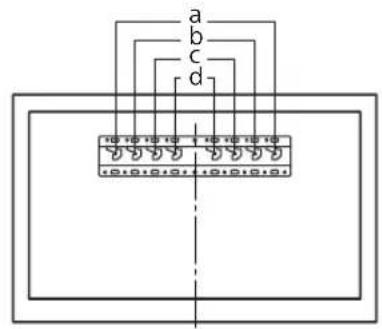

3 Refer to the below table about the Base Adaptor fitting location. In case of selecting 2-b, then skip this step.

Model Name Hook location
KD-85XG85□□
KD-75XG87□□	a
KD-75XG85□□
KD-65XG87□□
KD-65XG85□□	b
KD-55XG87□□
KD-55XG85□□

Fit Base Adaptor ① by using Screw (PSW 4x10) ② to Base (20) ④ when selecting 2-a.

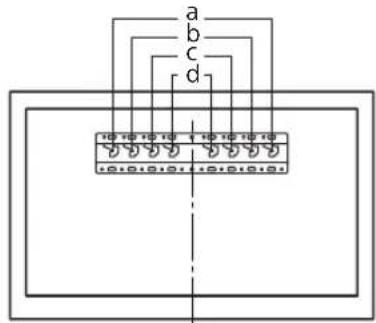

4 Decide the positions of the screws for installing the Base (20) A.

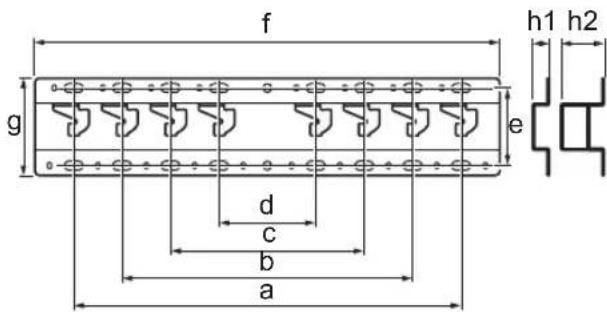

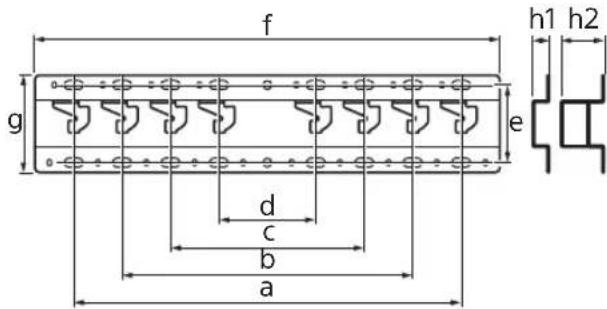

Refer to the specifications on page 18. When selecting 2-a, please use the hole positions of Base Adaptor ①

WARNING

The wall that the TV will be mounted on should be able to support a weight of at least four times that of the TV (Refer to your TV's Reference Guide for its weight.).
- Determine the strength of the wall the TV will be mounted on. Reinforce the wall sufficiently, if necessary.

Installing the Base on the wall

• Use four or more screws of 8mm diameter or equivalent (not supplied).

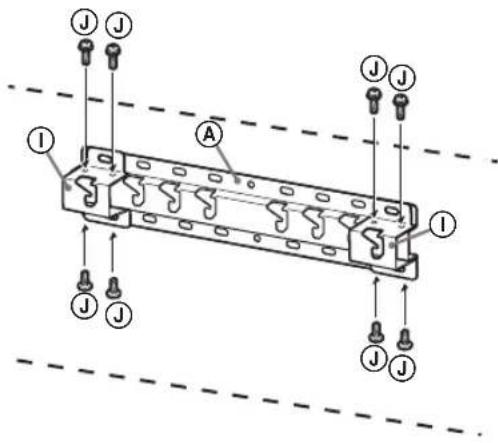

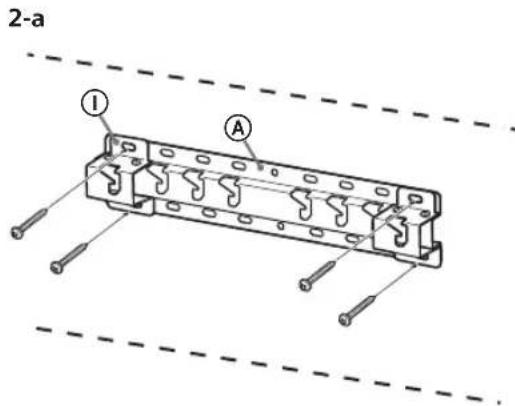

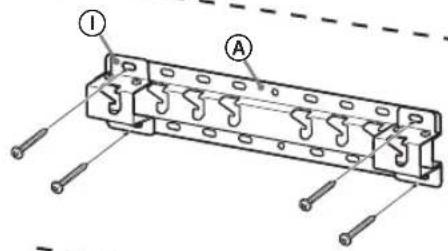

• Fit four screws to the holes of Base Adaptor ① with Base (20) A (2-a only).

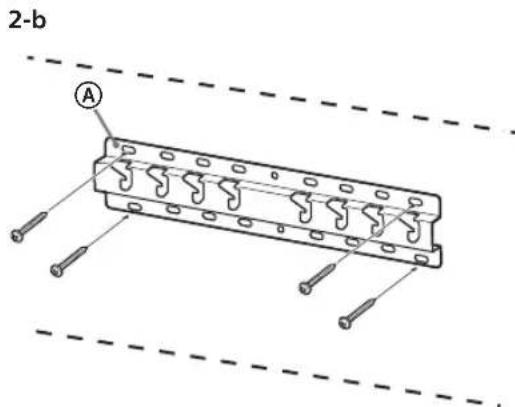

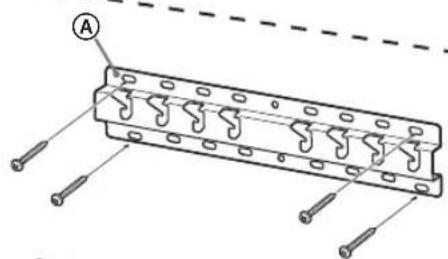

  Install the Base (20) A on the wall horizontally.

Preparing for the installation of the TV

Refer to the Setup Guide for stand installation.

KD-85/75XG85□□，KD-75XG87□□

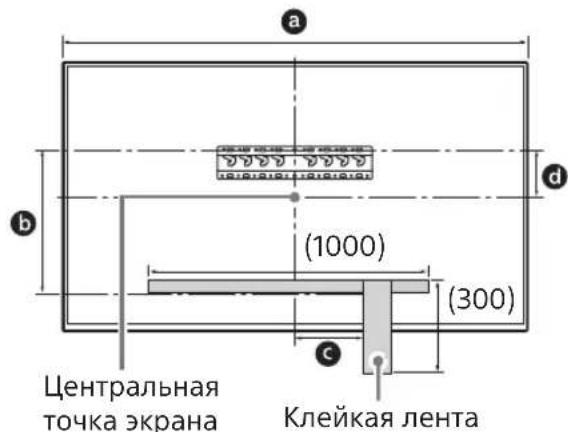

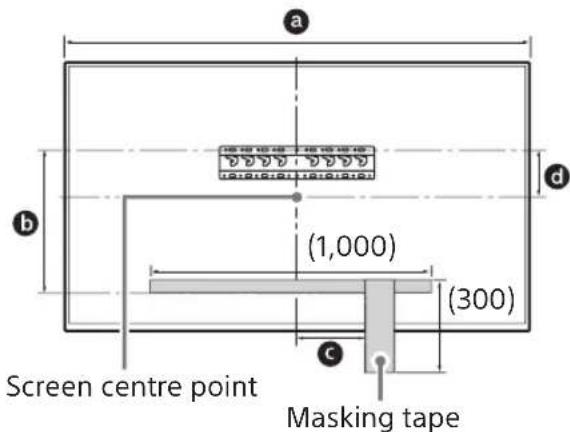

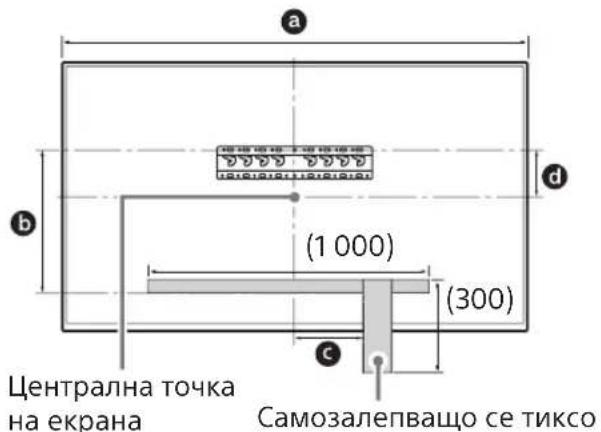

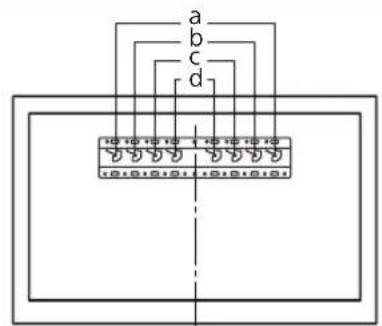

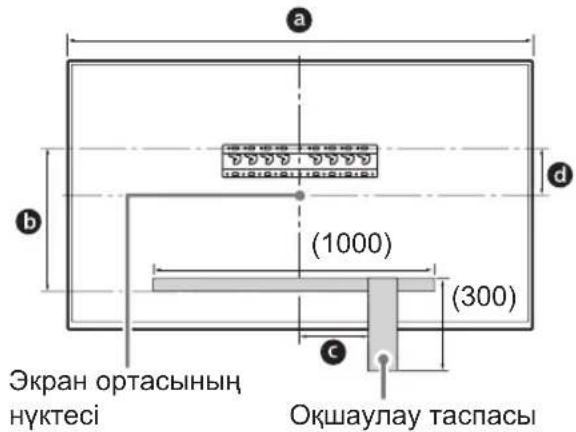

1 Mark the installation location on the wall.

• Use masking tape, etc. (not supplied) to mark the location of the TV near the Base or Base Adaptor. Refer to the following table.

Model Name	Length for marking			Screen centre dimension
	a	b	c	d
KD-85XG85□□	1,909	683	200	251
KD-75XG87□□ KD-75XG85□□	1,673	468	200	107

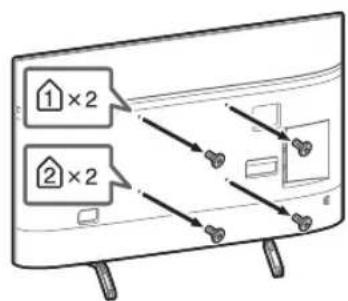

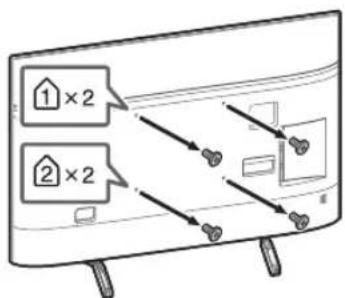

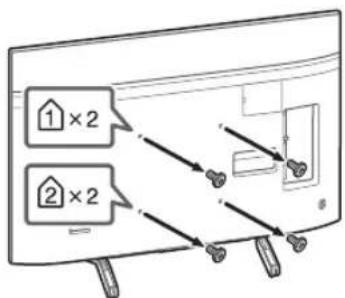

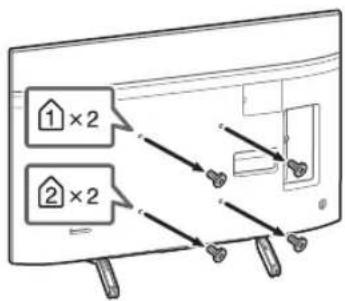

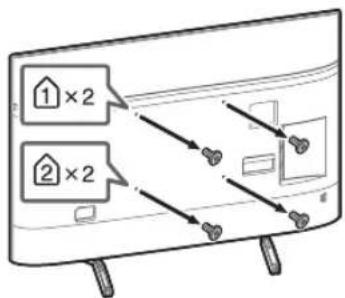

2 Remove the screws from the rear of the TV.

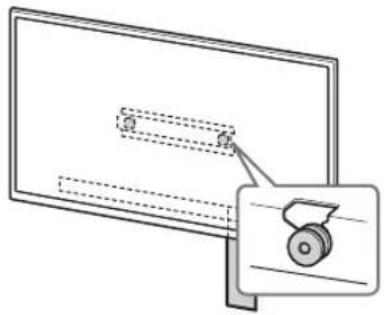

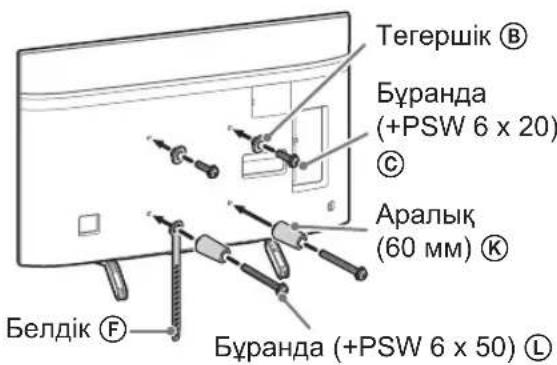

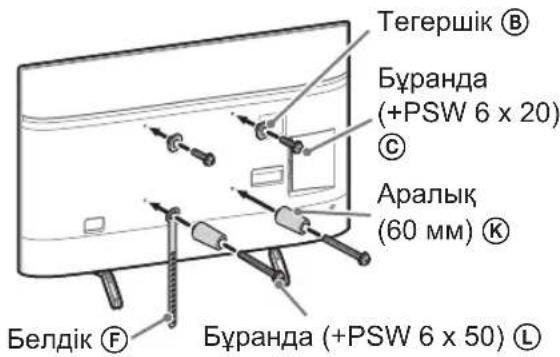

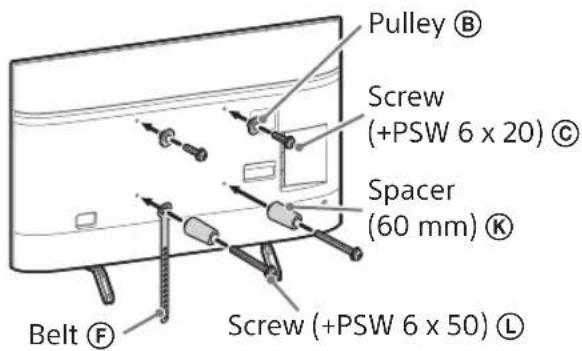

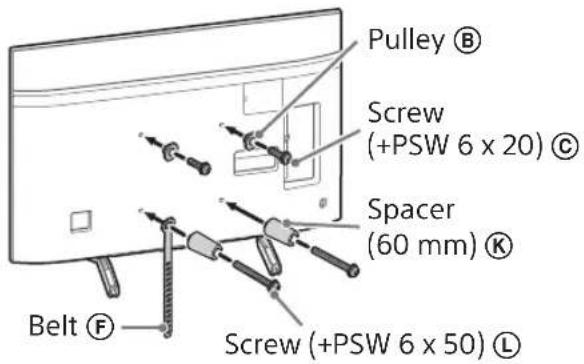

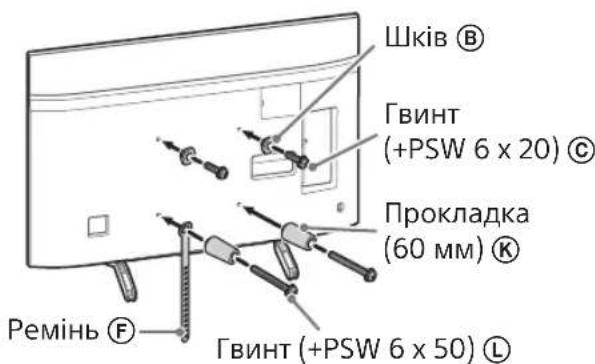

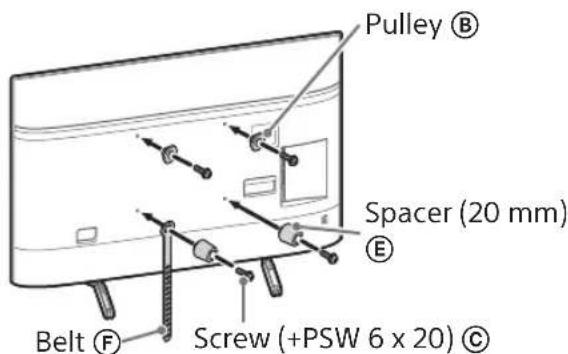

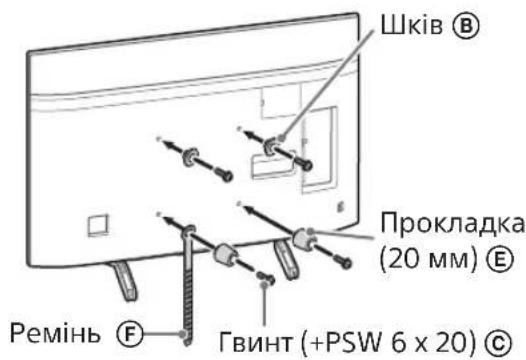

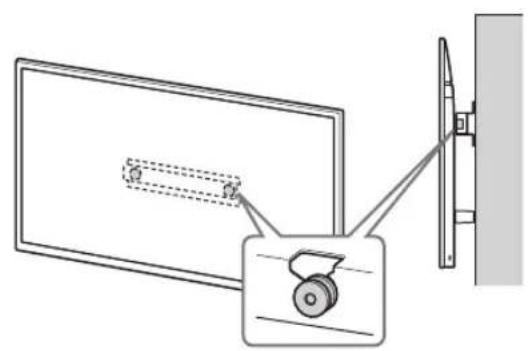

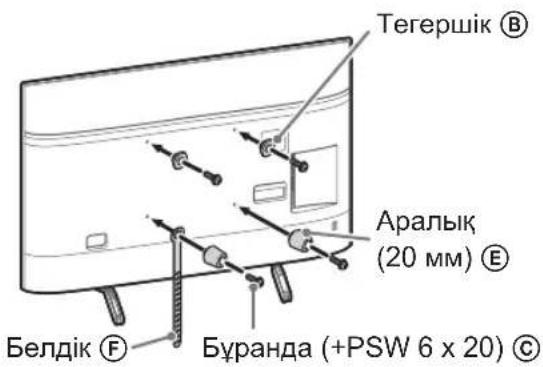

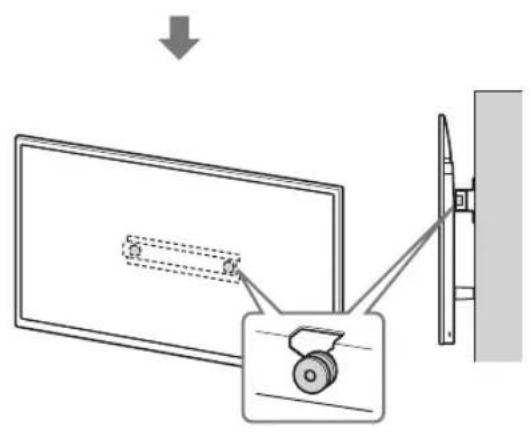

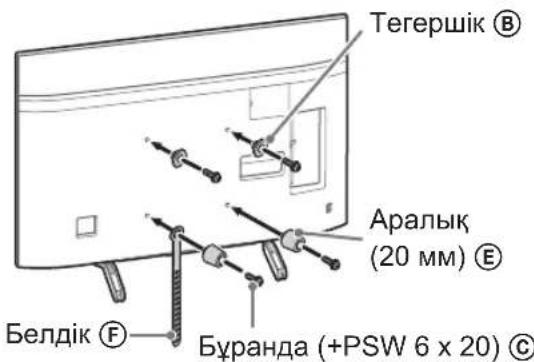

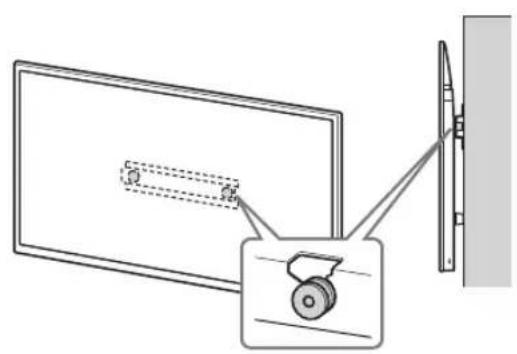

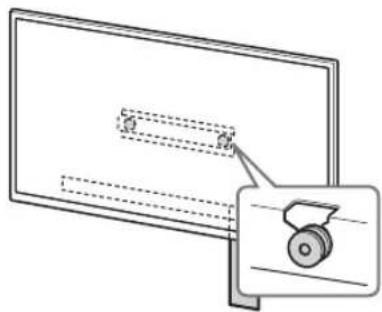

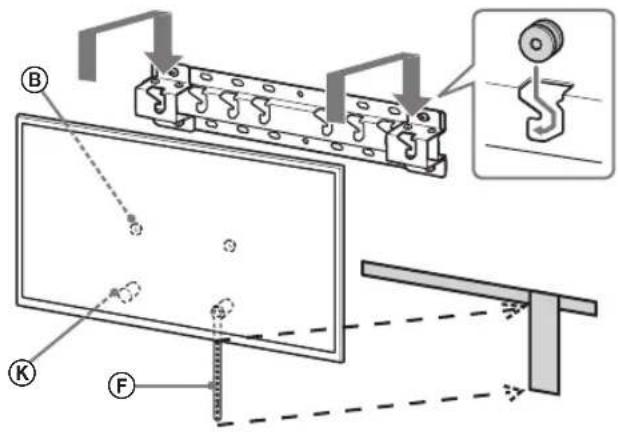

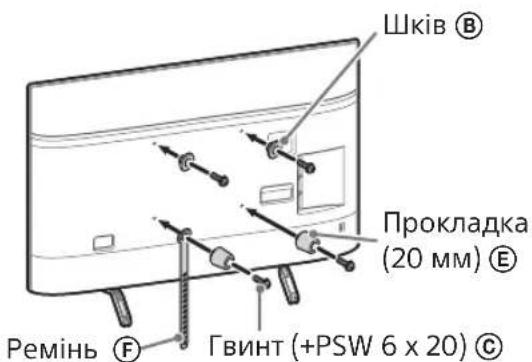

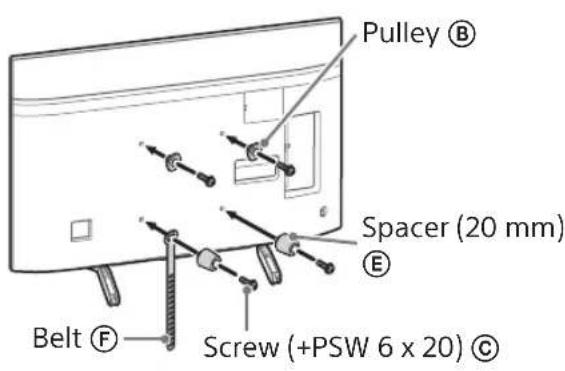

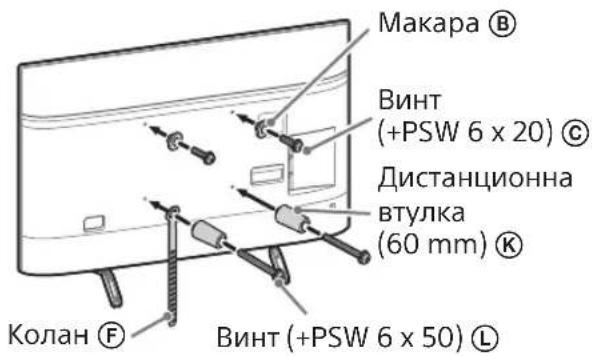

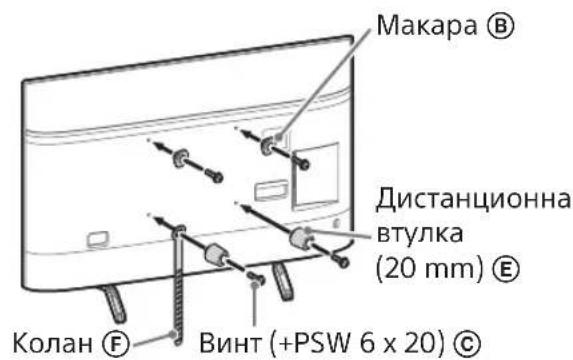

3 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

• Firmly secure the Attachment parts using screws.
• When using an electric screwdriver, set the torque setting to approximately 1.5N· m {15 kgf·cm}.
• Be sure to store the used or unused parts in a safe place for future use. Retain this manual for future reference.

Standard mounting (2-a)
Slim mounting (2-b)

Note

• You cannot use some of the terminals on the rear of the TV when using this mounting style.

4 Connect the necessary cable(s) to the TV.

Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed. Refer to the Reference Guide supplied with your TV.

Note

• Subcontract the cable routing in the wall to a licensed contractor.
• Bundle the connecting cables to prevent stepping on them before wall mounting.

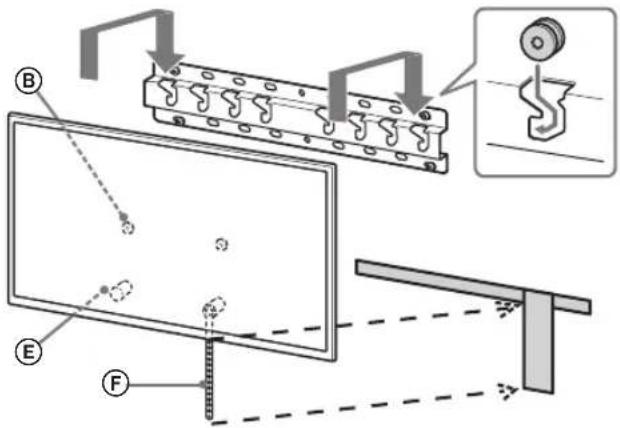

5 Detach the Table-Top Stand from the TV.

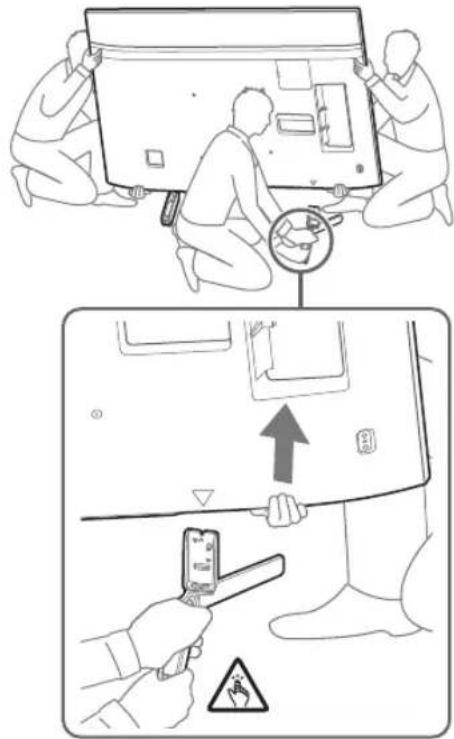

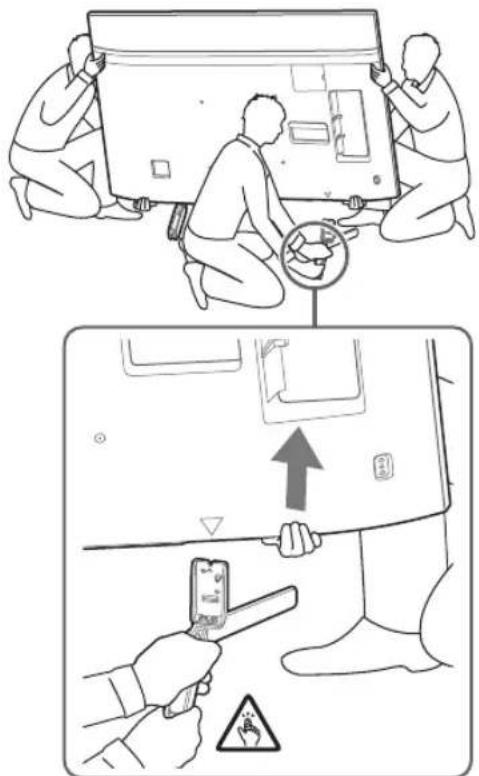

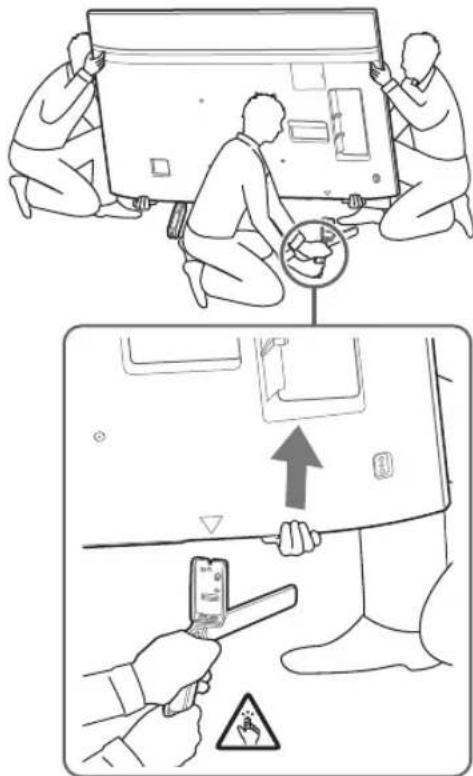

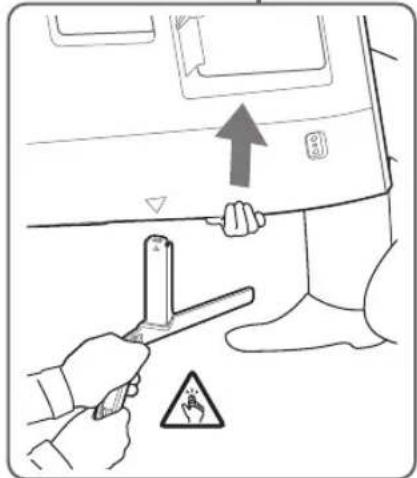

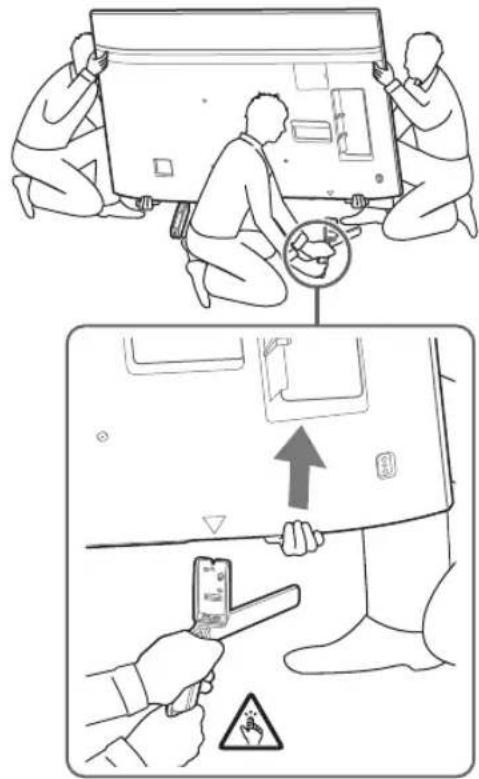

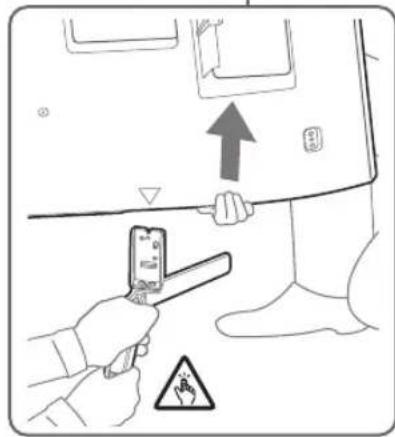

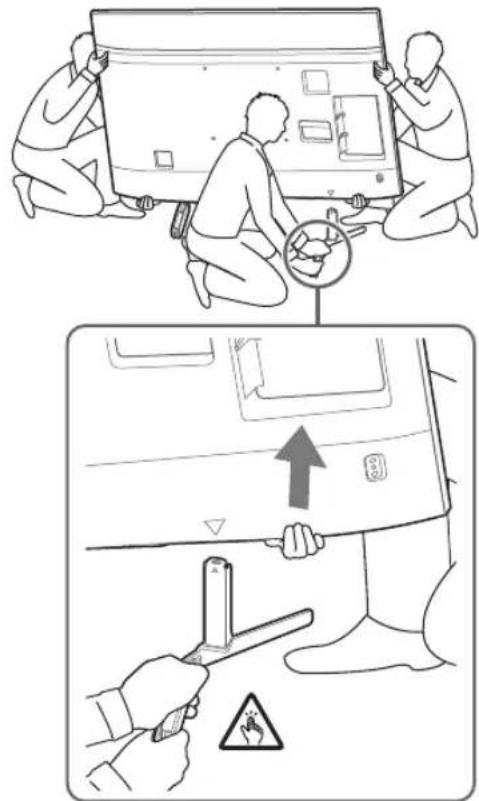

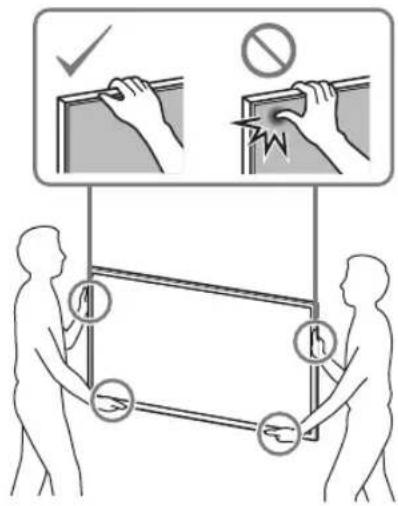

• Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

KD-85XG85□□

KD-75XG87□□，KD-75XG85□□

• Repeat the previous step and remove the other side of the Table-Top Stand.

Note

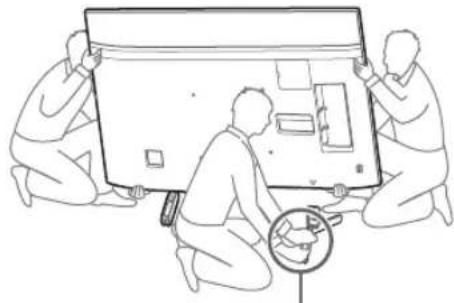

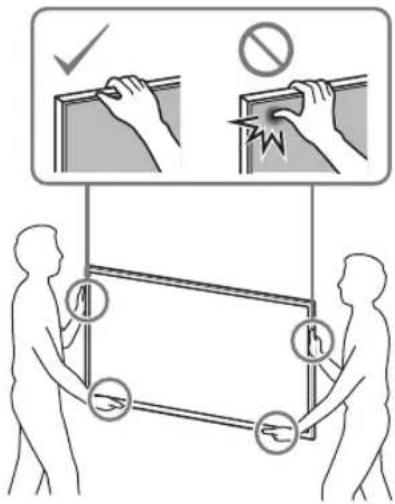

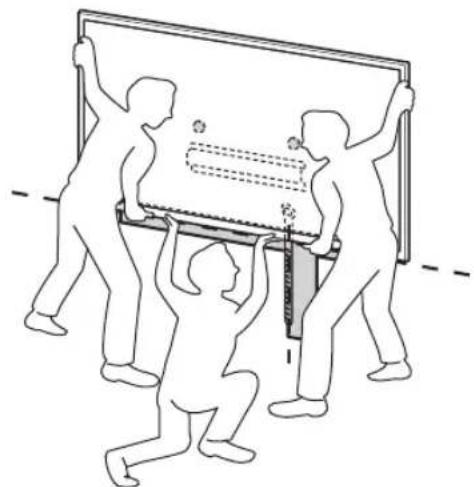

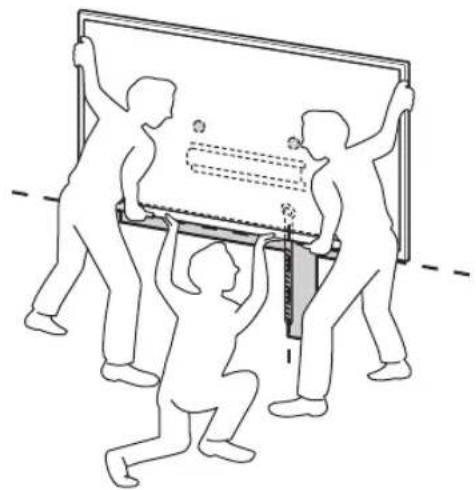

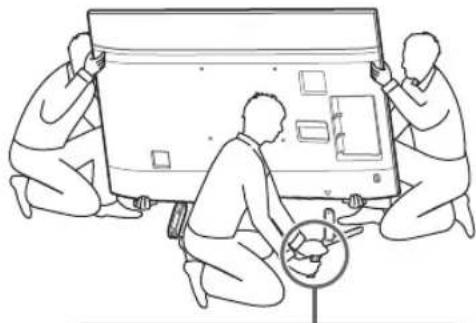

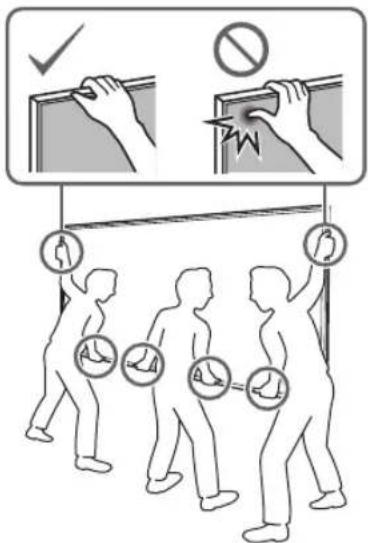

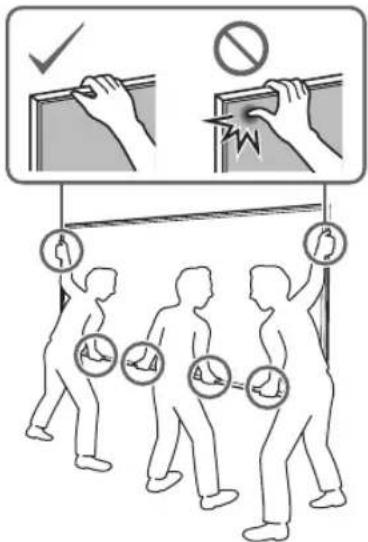

• Three or more people are required to detach the Table-Top Stand.
• Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.
  Take care when handling the Table-Top Stand to prevent damage to the TV.
• Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury.
  Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

1 Remove the screws from the rear of the TV.

2 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

• Firmly secure the Attachment parts using screws.
• When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}.
• Be sure to store the used or unused parts in a safe place for future use. Retain this manual for future reference.

Standard mounting (2-a)

Slim mounting (2-b)

Note

• You cannot use some of the terminals on the rear of the TV when using this mounting style.

3 Connect the necessary cable(s) to the TV.

Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed.

Refer to the Reference Guide supplied with your TV.

Note

• Subcontract the cable routing in the wall to a licensed contractor.
• Bundle the connecting cables to prevent stepping on them before wall mounting.

4 Detach the Table-Top Stand from the TV.

• Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

• Repeat the previous step and remove the other side of the Table-Top Stand.

Note

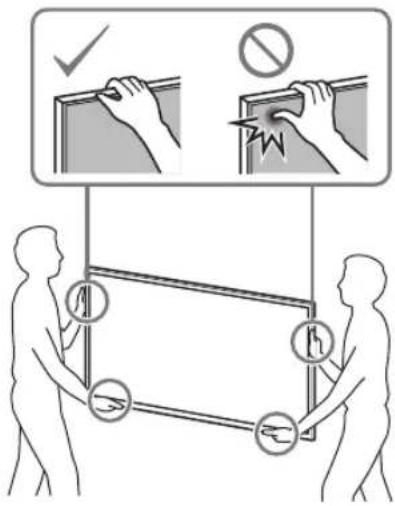

• Three or more people are required to detach the Table-Top Stand.
• Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.
  Take care when handling the Table-Top Stand to prevent damage to the TV.
• Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury.
  Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

Installing the TV on the wall

KD-85/75XG85□□，KD-75XG87□□

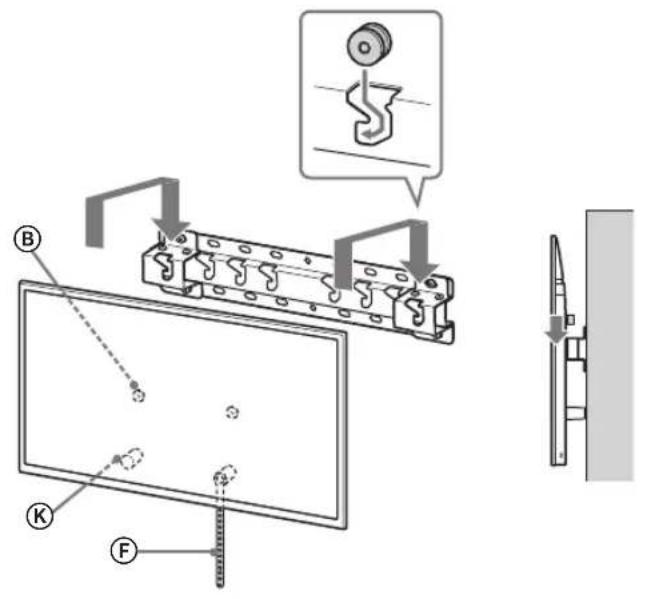

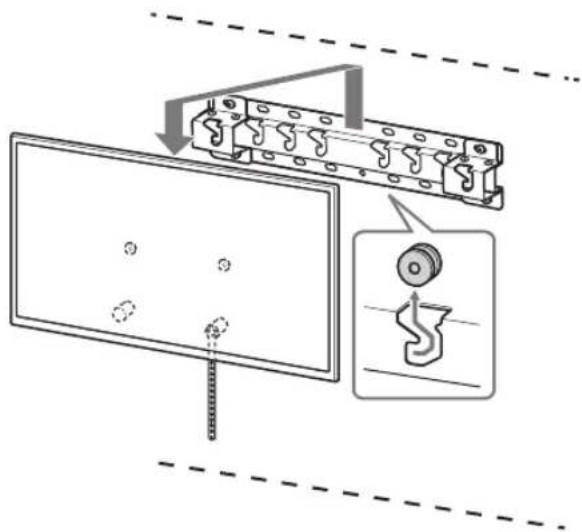

1 Lift the TV.

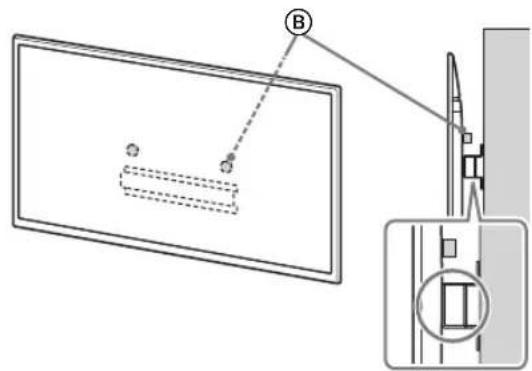

• For the location of the Pulleys (B) to the hang on the Base or Base Adaptor, refer to the table of step 3 in "Deciding on the installation location" on page 7.
• Make sure that the rear of the TV touches the Base or Base Adaptor when holding the TV.

Note

• Hold the TV securely with both hands and make sure the Belt (F) and the bottom of the TV align with the masking tape.
• Carry the TV with three people and the person who is in front of the TV leads the others to adjust the position.

Take great care when installing the TV to the wall especially for the person who is supporting the TV from below, the television set may fall, causing serious bodily injury or even death.

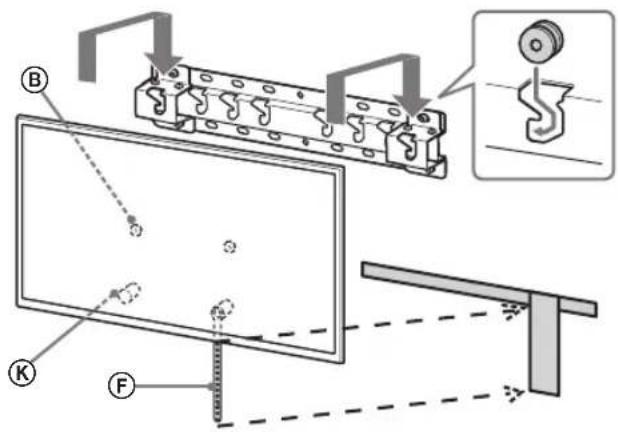

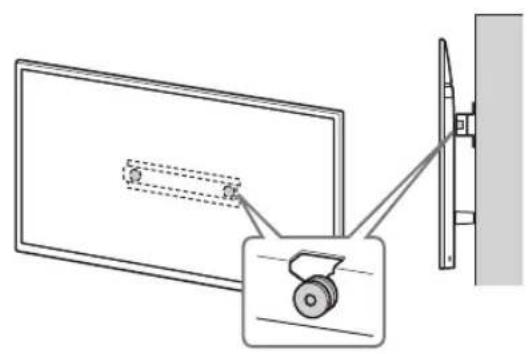

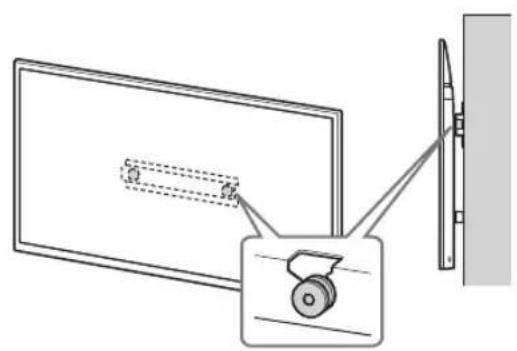

2 Install the TV onto the Base or Base Adaptor.

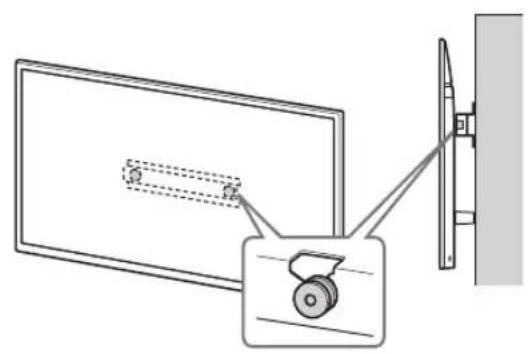

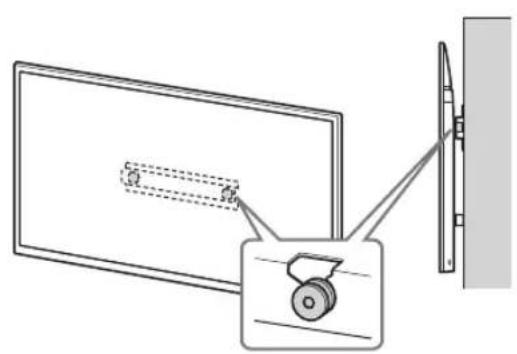

Gently slide down the TV and hang the Pulleys ⑧ attached to the rear of the TV to the Base or Base Adaptor, making sure to confirm the shape of the holes.
After installing the TV on the wall, confirm the Pulleys are firmly latched into the Base or Base Adaptor.
- Release both hands slowly to ensure that the TV does not fall.

After installing the TV on the wall, remove the masking tape, etc. from the wall.

2-a

2-b

WARNING

• Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when carrying it.

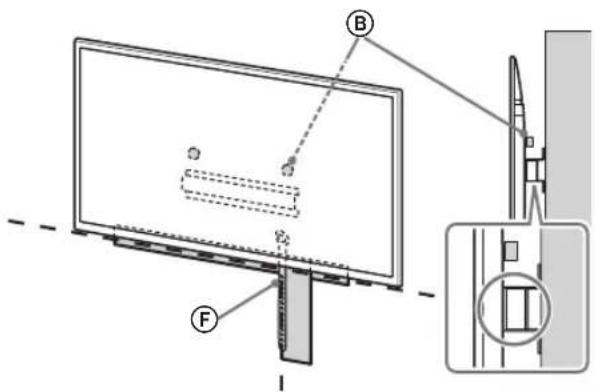

3 Preventing the bottom of the TV from shifting.

Take up the slack of Belt F and attach it to the wall tightly.

• Use a 5mm diameter screw or equivalent (not supplied).

Note

Try to pull the bottom of the TV towards yourself slightly, to make sure that it does not move forward. If there is any movement, it is not fixed correctly, and the Belt should be secured firmly again.

KD-65/55XG87□□

KD-65/55XG85□

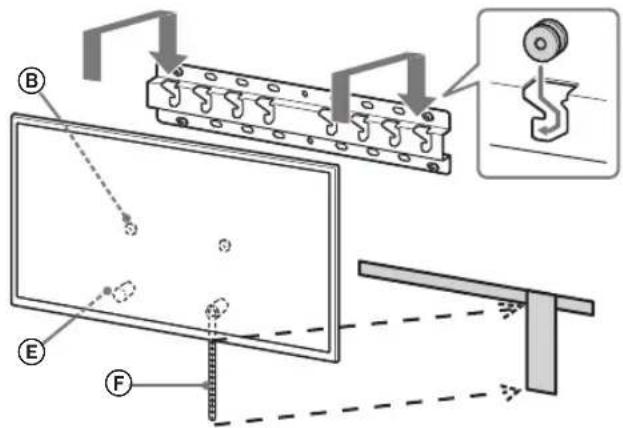

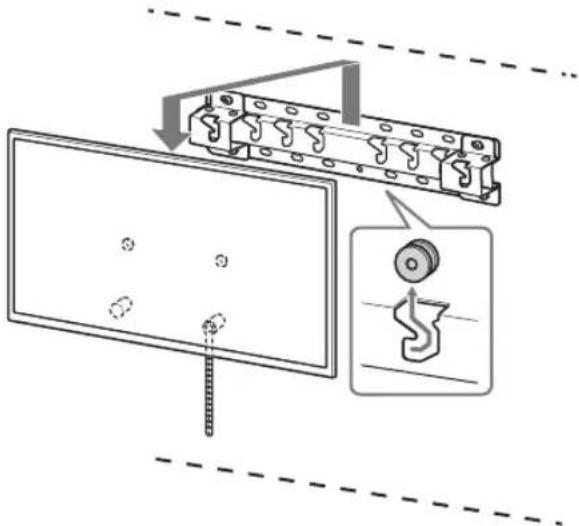

1 Lift the TV.

• For the location of the Pulleys to the hang on the Base or Base Adaptor, refer to the table of step 3 in "Deciding on the installation location" on page 7.
• Make sure that the rear of the TV touches the Base or Base Adaptor when holding the TV.

Note

• Hold the TV securely with both hands.

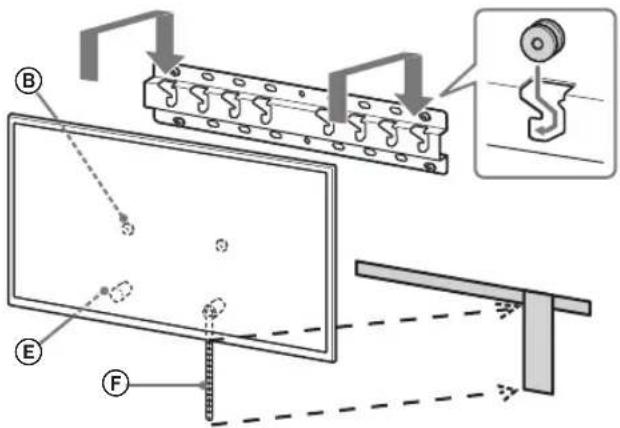

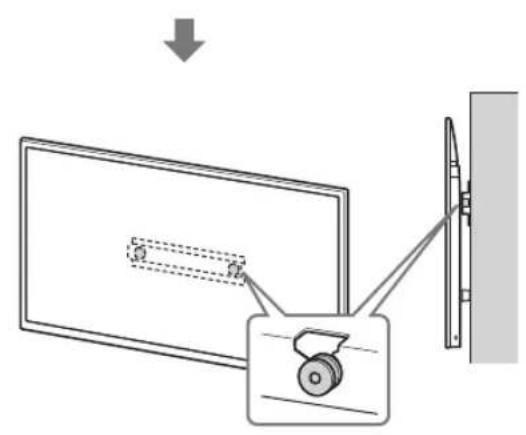

2 Install the TV onto the Base or Base Adaptor.

Gently slide down the TV and hang the Pulleys ⑧ attached to the rear of the TV to the Base or Base Adaptor, making sure to confirm the shape of the holes.
After installing the TV on the wall, confirm the Pulleys are firmly latched into the Base or Base Adaptor.
- Release both hands slowly to ensure that the TV does not fall.

2-a

2-b

↓

↓

WARNING

• Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when carrying it.

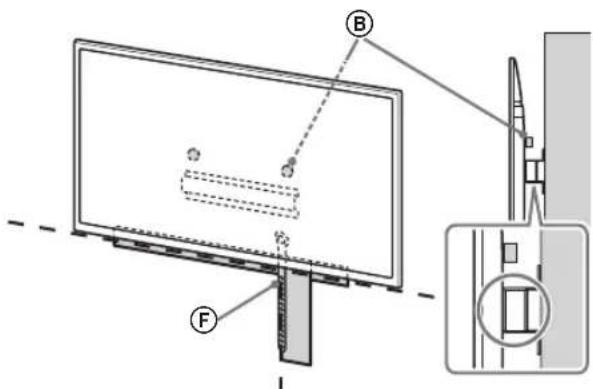

3 Preventing the bottom of the TV from shifting.

Take up the slack of Belt F and attach it to the wall tightly.

• Use a 5 mm diameter screw or equivalent (not supplied).

Note

Try to pull the bottom of the TV towards yourself slightly, to make sure that it does not move forward. If there is any movement, it is not fixed correctly, and the Belt should be secured firmly again.

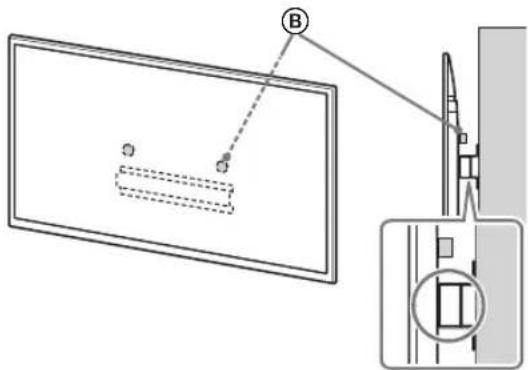

Confirming the completion of the installation

Check the following points.

• The Pulleys (B) are firmly hung onto the Base or Base Adaptor.
• The cord and the cable are not twisted or pinched.
• The Belt (F) is tight with no slack.

WARNING

• Improper placement of the mains lead, etc. may cause fire or electric shock through a short circuit. Be sure to confirm the completion of the installation for safety.

Other information

When removing the TV, reverse the previous installation procedure.

WARNING

• Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when removing it.

Specifications

Dimensions: (Approx.) [mm]

a:400

b : 300

c:200

d:100

e:80

f:480

g : 100

h1 : 20 (case 2-b)

h2:60(case 2-a)

Weight (base only): (Approx.) [kg]

0.8

Design and specifications are subject to change without notice.

Dimensions : (Environ) [mm]

a:400

b : 300

c:200

d:100

e:80

f:480

g : 100

h1:20 (cas 2-b)

h2:60 (cas 2-a)

Dimensoes: (Aprox.) [mm]

a : 400

b : 300

c:200

d : 100

e:80

f : 480

g : 100

h1 : 20 (caso 2-b)

h2:60 (caso 2-a)

Peso (apenas base): (Aprox.) [kg]

0.8

Klargoring for installation. 5

Kontrol af dele 5

Find en placering 6

Klargøring for installation

1 Find TV'ets placering.

PpOeToIaOia yia tooTheTnO

• Na éxete ková Šaç tov Ośnyó avaφopac
• kal tov Ośnyó ekatáσtaoç nts
• tnaεópaoc πριν aπο tnv ekatáσtao.
• Pniv ano tnv tootheon fpovtioe va exte eva kaotalphai Phillips nou v taipiae i otic biides.
• Eπαληθεύστε τη θέση τοῦθέτησις της τηλεόρασκ.
  Etoiaote teoepic n nepioootepc bi8e c
  diapetpu 8 mm kai iia bi8a diapeptou
  5mmniooovauan (ev npexovtai).
  EnlaTe biEc nou eiva kaataaAaN8c yi ta
  uliko kataaKeunc tou toixou.

'EAeyxoc twv eXapntmuatwv

Rozmery: (pribl.) [mm]

a:400

b : 300

c:200

d : 100

e:80

f:480

q : 100

h1:20(pripad 2-b)

h2:60(pripad2-a)

KbM TbproBunTe Ha Sony

3a MoHTnpaHToHa npOdyKTA ce
n3NCKBa ONIT. IpOcTeTe BHMaTeJIHO
TOBa pKBoDCTBO, 3a Ja N3BbPjWte
6e3OnaCHO mOToXaHTNe DeIOCTNI. Sony
He HOCI OTROBOPHOCT 3a NOBpeDN IINI
HapaJIraBHNA, PpUHHeHNOT
HePaBUNHa yNoTpe6a IIINI MOHTax.
PiPeAte TOBa pKBoDCTBO Ha
KNHeNTCNEMOHTaKa.

Toba pBkoBODCTBO NOKa3Ba NpaBnHnna HauHH 3a pa6Ota c npOdyKa n BaxHNTe PpeNa3Hn MepKn, KOIO TpA6Ba Da ce npEePnEmaT 3a da Ce N36BerHaT 3IOnOJyKn. PpoUeTe BNMaTeNHO Toba pBkoBODCTBO n 3n013BaTte npOdyKa npBnHn. 3ana3eTe pBkoBODCTBOTo 3a 6bDeu n CnpBKn.

IpoDyKTnTe Ha Sony ca npoeKtupaHc MncbJ 3a 6e0NaChocTHa. Ho aKO n3NOJ3BATE npOyKTA HnpePabuHIO,TOBa MOKe Da IOBeDe Do cepNo3HO HapAraBaHe BCNEcTBNe Ha Nopae, eNeKtpueckn ydAp, NaDAHE nn3NpyCKaHe Ha npOyKTA. CnaBaJIte MepeKNTe 3a 6e0NaCHCTa IpeDoTbPaTaBAHe Ha TaKbA INUdEHTN.

BHIMAHVE

YToUHЯBaHe Ha npOdyKTnTe

Ta3N KOH3OJa 3a MOHTax Ha CTeHa e
PnoeKtnpHa 3a 3nIOI3BaHe cAmO C
yKa3aHInTe TeteBn3Opn. BnXte CnpaOChInTe
pbKOBoDcTBa 3a TeBn3OpnTe, 3a Da
PnoBepInTe DAnl MoXe Da Ce IINoI3Ba Ta3N
KOH3OJa 3a 3kpenBaHe KbM CTeHa.

KbM KIneHTnTe

PPEyPPEKDEHNE

Ako He ce cna3BaT CneHnTe PpeDn3Hm
MepKN, TOBA MOKeJa DOBeJe Do
cepno3Ho HapaHbAe NnCMBpT O
Noxkap, EneKtpuYeCKn Ydap NnNpaDaHe
Ha npOyKaT.

Bb3IOxKeTe MOHTaJaHa JIuIeH3npaHn N3NbHnTeJIu I dpbXTe DeaTa HaCTpaHn No BpeMe Ha MOHTaJa.

Ako KOH3OJaTa 3a MOHTaK Ha CTeHa He e MOHTnpaHa NpaBvHNo,MOKe Da Bb3HKnKHAT CJIeHNHe HnUdEHTN. YBepeTe Ce, Ye MOHTaKbTcNbBpWbAOTIuCEH3nPaHn NIIbJHInTeJi.

TeNeB3OpT MoKe Da NaHe N Da npEnBnBaK cepno3Ho HapaHbAe, KaTo KOHTyNIM CYNBaHe.
AkoCTeHaT,HaKOJTo eMOHTnpaHa KOH3OJIATA 3a MOHTax HA CTHe, e HeCTabUNHa, HepBaHn HnHe e nepNeHHKUyIpaHa Ha NOpda, KOHCTpyKUyIra MoKeJa da NaIHe n Da npuHn HapaHbAhe MIn NobpeDa Ha mMyuSeCTBO. CTeHaTa Tp6Ba Da e cncoc6Ha Da N3DbpxN TeKcT, NOHe qETnpNKpTaHO pBeBnWabaTa Ta3n Ha TeJeBn3Opa. (BnxTe CnpaBOHOTo pbKOBoCTBO Ha TeJeBn3Opa OTHOCHO TerlTO My.)
AkoMOHTaXbTHa KOH3OJaTa 3a MOHTaX HaCTeHa He eIOCTaTbHcHO 3dpaB, KOHCTpyKunrTa MoKe Da NaDHe N da npuHHn HapaRaBaHe NnN NobpeDa Ha NMUYsctBO.

YBepTeCe,YeCTe Bb3IOXnI INpeMeCTBaHETO NJ DeMOHTaKa Ha TeJIeBN3OpaHa JNueH3nPaHN N3NbHHTeJI.

AkoDpyrNlNiCa,OCBENIINeH3npaHn H3NbJHNTeTI TpaHCnOpTnpaT Nn IDeMOHTnPaTeJIeBu3Opa,ToM OMeKe Da NaHe N Da npuHHN HapAHBaHe Nn NOBPeDaHa NmUyecToB.YBepeTe ce,Ye DbMaE NnIOBeeDuN (TPMa Nn NOBee dyuN 3a KOMnKeT TEeBu3Op c pa3MepOnOT75nHu) npEnacrt Nn DEMoHTnPaTeJIeBu3Opa.

He cBaJnTe BnHTObe n DpyrN CJeD MOHTaKa Ha TeLeBu3opa.

Ako ro HanpaBnte, TeneBn3OpbT MoKe Da naHe n da npuHn HapaRbAne nn NOpeBaHa NmUcECTBO.

He npomehnyte yactnte Ha KOH3OJaTa 3a MOHTaX Ha CTeha.

Ako Ro HapnabITE, KOH3OJATA 3a MOHTax Ha CTeha MoKeJa NaJdHe N da npuynHn HapahBaHe nn NobpeHa HAIMyCECTBO.

He MoHTnpaIte npyro o6OpyDbaHe,ocBeH yKa3aHnI npOdyKT.

Ta3n KOH3OJa 3a MOHTax Ha CTHe a e npoeKtnpHa 3a 3IIOJI3BaHe cMo C yKa3AHn IPOyKT. Ako MOHTnapTe o6OpYBaHe, pa3NmuHO O TYKa3AHOTo, T0 MoKe Da NaHe Nn Da Ce Cyyn N da pInuHN HapAraBaHe Nn NobpeDa Ha mMyueCTBO.

He noJaraTe KOH30JaTa 3a MOHTaX Ha CTeHa Ha HnKaKbB Dpyr TOBap,OCBeH Ha To3n Ha TeJeBu3Opa. He KlaTeTe TeJeBu3Opa HaJIyBO/HaIЯCHO, Harope/HaDony.

Ako ro HanpaBnTe, TeneBn3OpBT MoKe Da naDHe N da npuHnH HapaHbAe nn nobpeHa HmMyIecTBO.

He ce oBlaraTe n He ce BnCeTe Ha TeLeBu3Opa.

He ce 0bIraIte Hc yBncBaIeOT TeIeBn3Opa,3aIoTO MoKe da naDHe I da npuHnH cepno3HO hapaHbaHe.

BHIMAHNE

Ako CneIeHnTe NpeDn3Hm MepKn He ce cnaBAt,MOKe Da Bb3NkHe HapHaBaHe Nn NobPeDa Ha mMyuIeCTBOTo.

He TpeTnpaIte npOdykTa c npeKaIeHa cnla no BpeMe Ha noUcTbaHe IINn pOdRpKka.

He npinarai Te npekaihe cui Bpxy RopHATA qacnHa TEJIeBn30pa.Ako ro HapnBaTe,TeJIeBn3OpbT MoKe Da naHe I da npuHn HapaHraBe NIn nobPeDa Ha NMUyIeCTBO.

PpePn3HmepKn

• AkoNbIro BpeMe N3NON3BaTe TeNeBn3Op, MOHTInpaH Ha KOH3OJa 3a MOHTaxK Ha CTeHa,CTeHaTata 3aNII HA HeFo M0ke Da ce Obe3uBeTu INI TaTeTb T Da ce Pa3JIENI, B 3aBNCIMoCT OT MaTEpNJa HA CTeHaTaa.
  Ako KOHONaIa 3a MOHTaK HA CTeHa 6bJe CBAJIeHa O T CTeHaTc NeD MOHTaKa, Ie OCTAHATOTBOPNOT BHTOBETe.
  He n3nO3BaIe KOH3oJATA 3a MOHTaK Ha CTeHa Ha MCTO, KbTeTO MoKe JdaBde NOdnoXeHa MExaHmHn BInbpaunu.

MOHTAX Ha KOH30Ja 3a MOHTAX Ha CTeHa

KbM TbproBunTe Ha Sony

PNEyPPEKDEHNE

CneHnTe HNCTpyKuIN Ca cAmO 3a TbpROBNTe Ha Sony. PnpoTete MepKte 3a Be3oNaCHocT, OINCAH No-TOpe n O6bPHTe CNEUAnHO BHIMAHHe Ha Be3oNaCHocCTTa No BpEm HA MOHTXa, NODpBXkTa I NHcNEKUYTA Ha npOyKta.

He MoHTnpaIte KOH3OJaTa 3a MOHTaJx Ha CTeHa Ha CTeHHN IOBbpxHOCTn, KbDeTo bTInTe NIn CTpaHnTe Ha TeJIeBu3Opa Ce N3DaBaT HaCTpaHn OT NOBbpxHOCTTa Ha CTeHaTa.

HEMOHTpApTe KOH3oNaTa 3a MOHTax Ha CTeHa HA CTEHNIOBbpxHOCTn, HANPMep KONOHa,KbTeTO bTnIte NtCTpaHITHe TNeBUN3Opa CE n3DaBaT HAcTpAHn OT NOBbPxHOCTTa HA CTeHaTa.AkO IINCe IIN PpeIMET YdApn INaDeHnBfN IIN CTpaHa Ha TEJIbEN3Opa TOBa MoKeJa IpnuHHn HapAHBaHe INI NobpeHa HmUyIecTB0.

He montupaTe TeIeBn3opa NaD nJN nOd KInMaTnK.

Ako TeIeBn3OpbTe n3IIOKeH npOJbJnxTHeNo Ha TeUObe NnBb3DyWHO TeUeHne OT KInMaTn, TOBa MoKe Ja npEaBn3BnKa NoKap, eNeKTPnuYeCKu YdAp nn HEn3npaBHoCT Ha TeIeBn3Opa.

MOnTnpaIte 3dpaBO KOH30JaTa 3a MOHTaK Ha CTeHa KbM CTeHaTa KaTO CJIeDbATE NHCTpyKcNITe B TOBa pBKOBoDCTBO 3a pa6ota.

Ako HKOJ OT BNTOBeCe ce paxna6n nI npaHHe, KOH30JaTa 3a MOHTaK Ha CTeHa MOKe Da PaHne I Da npuHHn HapAHBaHe nIIN NOpeHa Ha IMyUeCTBO. N3NOJ3BaTe NOxOJaUN 3a MaTePunAna Ha CTeHaTa BNTOBe IN MOHTpaJIte KOHCTpyKUnrta 3dPaBO KaTO IN3NONBATE YeTIPN INIIN NOBEue BNTa C dAmEtbp 8 mm (Inn ekBnBaJIeHTHi).

I3noJI3BaIte
npaBnIHO
IOCTaBeHnte BnHTObe
N OKaUBaIu Yactn
KaTO CJIeDBATe
INCHTPyKcIInTe B TOBa
PbKOBOcTBO 3a
pa6Ota.Ako
N3NoJ3BaTe
3aMeCTBaIu
eJeMeHTn,
TeJIeBn3OpbT MoKe Da
PaIdHe N Da npuHHN
TeJIecHa NOBpeDa IJI
Da Ce NOBpeN.

YBepTe ce, ye crIIO6BaTe KOH3OJaTa npaBnHNO KaTO CLEdBATE npoueDypaTa, ONICAHa B TOBa pBKOBOCTBO 3a pa6ota.

Ako Hkaoko ot BnHTObTe ce pa3xna6n nn NaHne, TeneBn3OpbT MoKe da naHne n da npuChy Tenecha nobPeDa nn da ce NopeDi.

3aTeHHeTe 3dpaBO BnHTOBeTe B yKa3aHOTO NIOJoxKeHne.

Ako He ro Hanpabnte, TeneBnOtpb MoKe da naHe n Da npuynHn TeneCha NobpeDa nn da Ce nobpeDn.

BnMaBaTe Da He ydapnte TeJeBn3opa no BpeMe Ha MOtaja.

Ako TeneBn3OpBT 6bDe NpOAnKeH Ha yIap, ToT moKe Da naHe nHa Ia ce Cuynu. ToBa MoKeJa doBeJe Do hapArBaHe.

MOnTnpaIte TeJeBn3Opa Ha CTeHa, KOrTo e nepNeHdNkUyIrpHa n paBaHa.

Ako He HapnabNTe TOBa,TeJIeBUN3OpbT MoKe Da naHne N da npuHHn HapaHbaHe.

Cnei npabunHnmoHTaX Ha TeJeBn3opa,06e3OpacTe npabUNHo Ka6eIte.

Ako xopa unn npdeMeTu ce 3aJIeTAT Ba6eJInte,TOBa MoKe Da npuHH HapaHbAHe unn NobpeDa Ha TeENB3Opa.

He donyckaia Te npTnCKaHe Ha 3axpaHbAunKa6eI nIHa CBbp3BaunKa6eI.

Ako 3axpaHbauNt Ka6eI IIN CbBp3Baunr Ka6eI BbDat npTnCHaTN MeKdy KOHTpyKUInra TcTeHATA IIN AKO 6bDat OByHaTN IIN ycKaHN CbC CuNA, BbTpEHNTE npBODNI MOn Ja Ce OOrJr N da pNnHr KbCo CbeDInHeHne IIN eKeTPruecku Ynap. TOBA MoKeJa npNnH noXap IIN eKeTpruecku Ynap.

BnHTOBeTe,Heo6xOdIMN 3a 3aKpenBaHe Ha KOH30JaTa 3a MOHTaX Ha CTeHa KbM CTeHaTa, He ca BKJIIOUeHN B KOMJIeKTa.

M3noN3BaIteNoDxOJaUNBHTObeCnopeMaTePnAHa HA CTeHAta N KOHCTpyKlIraT, KOrato MOHTnPate KOH3oNaTa 3a MOHTaX HaCTHa.

CbDbpxkHne

IoproTOBka 3a MoHTax. 5

ПоверкаHaчacntTe.5

OnpeIeJIHe Ha MrcTOTO Ha MoHTax 6

MOHTaK Ha OCHOBaTa Ha CTeHaTa 8

IoproTOBka 3a MOHTaX Ha TeNeBn3opa...9

KD-85/75XG85□□，KD-75XG87□□

KD-65/55XG87□□，KD-65/55XG85□□.11

MOHTaK Ha TeIeBn3opa Ha cTeHaTa.13

KD-85/75XG85□□，KD-75XG87□□.13

KD-65/55XG87□□，KD-65/55XG85□□.15

PpOBepKaHa npKJIIOUbaHeTo Ha

MOHTaxa 18

Dpyra uHΦopMaun 18

Cneunphiauu.. 18

Mоntак Ha TeJIeВиЗopa Ha CTeHaTа

IpoueypaTa 3a MoHTaK e pa3nUHa cnopei TeJeBn3opa.

ИЗПОЛЗВайтЕ KOH3ОЛаТа 3a 3aКрпВаHe КБМ CTeHa SU-WL450, 3a Дa мontираTe TEлевиЗopa на CTeHATA.

3a6eJekka

He nponyckaIte da cbxpaHTE cBaJIeHTE BnHTOBe Ha cnrypho MRCTo, KaTo rna3NTe OT Deua.

Повтовka 3a мотаж

CnpaBOOHOTpkoBOOCTBO npkoBOCTBOTO3aHaCTpoiKaHa TeJeBn3opa Tpr6Ba Da caNoD pka npei 3aIOuBaHe Ha MOHTaKa.
- Ppei crno6BaHTo OcnHypeTe OTBepTKa Phillips, KOrTo OTRObApHa 6oNTOBeTe.
- Поберете положенeto 3a мотаж на Телевизopa.
- Pnirrotbete cheTnpu nn noBce BnHTa c DnAmetbp 8 mm n eDIn H BuHT C dNaMeTp6 5 mm nn ekBnBaIeHTHn (He ca BKIOueHn B KOMNKeTa). N36peTe BnHTOBe, NOxOJaun 3a MaTePnaJHa cTeHaT.

Поберка на частпт e

DocTaBeHo c SU-WL450

• Поберета дал BCNчкн ча налчн.

A Oснова (20) (1) B Мakара (2)
◎ PSW 6x20 (4)◎ PSW 4x20 c Втулka (2)
E Дистанционна Втулka (20) (2)	F Колан (1)
◎Втулka (20) (M4) (2)	H PSW 4x20 (2)
◎Aдантетер на Оснobата (2)	◎J PSW 4x10 (8)
◎Дистанционна Втулka (60) (2)	◎L PSW 6x50 (2)
◎Втулka (M4) (2)◎PSW 4x50 (2)

OnpejeIHe Ha MrcTOTO Ha MOHTaK

1 N36epete MrcTOTO Ha MOHTaX.

YBepTe Ce, Ye Ha CteHaTnMa DoCTaTbUHO MxCTO 3a TeLeBn3Opa Nye TRe cNoCo6Ha Da
N3DbpxN TeXeCT, NOHe YetnpNKpaTHo PpeBnAbaUa Ta3n Ha TeLeBn3Opa.
BnxTe CneHaTaNbIuca OTHOCHO MOHTaXa Ha TeLeBn3Opa Ha CteHaTa. BuxTe cnpabOuyHOTo
pbkoBOdCTBO Ha TeLeBn3Opa OTHOCHO TErIoto My.

CTaHdapTeH MOHTaK TeceH MOHTaK
LentpalaToKaHaekpaHa

Mepn einnu: mm

Иme на морел	Размери на ekранa		Размер на цentьра на ekранa		Дылжина на моHTах
	a	b	c	d	e
					Стоцартын MOHTах	Teсен MOHTах
KD-85XG85□□	1909	1 097	251	803	142	100
KD-75XG87□□ KD-75XG85□□	1673	963		107	595	116
KD-65XG87□ KD-65XG85□□	1450	836	99	523	115	73
KD-55XG87□ KD-55XG85□□	1231	713	106	468	115	73

3a6eJekka

• Yncnata B Ta6nnta MoKe IeKO Da Ce pa3nuyabT B 3aBcIMoCT OT HaUNHa H3BbPWBaHe Ha MOHTaxa.
  Korato Baunr TeneBn3Op e MOHTnpaHa CTeHaTa, rOpHaTa My aCt IeKO Ce HaKlaHaH HanpeI.

OcTabete noDxOJaPo pa3CToHne MeJy TeIeBn3Opa, TaBaHa n N3daJeHnte YaCTn Ha CTeHaTa, KaKTo e NOKa3aHO NO-DOJY.

Mepn eDHHu: mm

3a da noctnHHeT npabnHa BeHTnlaUmaI Da npedotbpaTne C6bnpaHETo Ha npax mPbcOTna:

He cnaarTe TeBnOpa Da JLeKu Ha NIOCKaTa Cn CTpaHa, He ro MOHTnpaTe O6bPhAT C rOpHna Kpa HADONY, HaONAKU INCTpaHNUHO.
He cnaaTe TeneBn3opa Bbpxy paTOBe,KnIMM, Ierno nnB DpeWHNK.
He nokpnbAaTe TeneBn3opa C TBkaH, KaTo HAnnpMep nepDeTa, INI C npEaMeTu KaTo BEcTHNUND.
He MoHTnpaIe TeIeBUN3Opa, KaKTo e NOKa3aHO NO-DOV.

BnKHeHneTo Ha Bb3DyXa e 6JIOknpaHO.

3a6eJexKka

AkoBb3HaMepeBaTe da npekapate KaBeNte B CTeHaTa, HAnpaBete OTBOP B CTeHaTa, 3a Da BMbKHeTe KaBeNte npEn HaHauIOTo Ha MOHTaKa. 3a Da npeDoTbpaTne 3aunnBaHe Ha KaBeNte, HAnpaBete OTBOP B CTeHaTa N3BbH nepmEtpa Ha OCHOBaTa (20) A, aanTep Ha OCHOBaTa 1 I dNCTaHNoHHa Ta BtYka (20) E, DnCTaHNoHHa Ta BtYka (60) K.

2 N36epeTe Bn MoHTaJHa cTeHa. Pa3cToHnEto OT 3aHaTa YacT Ha TeJeBn3Opa Do CTeHaTa MoKe Da Ce N36epe, KaKTo e NOKa3aHo NO-DoJy.

2-a CtaHdapTeH MOHTaX 2-b TeceH MOHTaX

BnKTe Ta6JnUcaTa OT C7bNka 1.

PNEyUNPEKDEHNE

Korato e n36paHO 2-b,doCTbNbT do 3aHnTe KneMn e orpaHnueH.

2-a 2-b

3 BuxTe Ta6nUcaTa No-dOly 3a MeCTOnOLOXKeHneTo Ha aAnTePnHaΦNTnHr 3a OCHOBaTa. Ako cTe n36paIi 2-b, IpnOyChTe Ta3n CTbNka.

Име на мodyел Мecтоноожени На Кукatinga
KD-85XG85□□
KD-75XG87□□	a
KD-75XG85□□
KD-65XG87□□
KD-65XG85□□	b
KD-55XG87□□
KD-55XG85□□

MOnTnpaIte aIaITepaHa OCHObAta ① KaTO n3NoJ3BaTe BnHT (PSW 4x10) J KbM OCHObAta (20) A, aKO cTe n36paJIu 2-a.

4 OnpeJeIeTe MeCTaHa BInHTOBeTe 3a MOHTaX Ha OCHOBaTa (20) A.

BnKTe cneuNfNkauNTe Ha cTpaHnca 18.

Korato n36epete 2-a, n3noJ3BaIte cIeHNITE no3nUHa OTBOpHTe 3a aAnTepa Ha OCHObATA ①

PNEyNPEKDEHNE

CTehata,HaKoTOnuebdeMOHTnpaHTeJeBn3OpbT, Tp6Ba da MoKe Da noDlbpxKa Hain-MaNko Yetnpn Bttn TerIto My (BxTe CnpaBOHOTo pKOBODCTBO Ha TeJeBn3Opa OTHOCHO TerIto MY.).

• OnpeJeIeTe 3dpaBnHaTa Ha CteHaTa, Ha KOrTo Ie 6bJe MOHTnpaH TeNeBn3OpbT. AKe e Heo6xoJIMo, ycJIeTe CteHa Ta DoCTaTbUHO.

MOHTaK Ha OCHOBaTa Ha CTeHaT a

• IN3NoJ3BaIte YeTnp NIN NOBuee BnHTa C DaNaMeTp 8 mm NIN eKBNBaJIeHTHn (He ca DOCTaBeHN).
  3aKpeNeTe YeTnpNTe BNHTa B OTBOpNTe Ha aAnTepa Ha OCHObata ① C OCHObata (20) A (camo 2-a).
• MoHTnpaInTe OCHOBaTa (20) A XOpN3OHTaJIHO Ha CTeHaTa.

ПодгOTOBka 3a MOHTaЖ Ha TeJIeВиЗopa

IpnMOHTaXHaCTOaBnKTe pkoBOcTBOTo 3a HactpoKa.

KD-85/75XG85□□，KD-75XG87□□

1 OtbeJexKeTe MrcTOTO 3a MOHTaX Ha CteHata.

• I3noI3BaIte cAmO3aJIeNBAUc Ce TUKCO n np. (He e npedocTaBeHc KOMnIeKtA), 3a Da OT6eJekTe MrcTOTO Ha TeJIeBn3Opa, B 6JIu3OCT Do OCHOBaTa NII aJaITepa 3a OCHOBaTa. BuxTe CJIeDbaUcaTa Ta6JIuCa.

Мернейнци: mm
Име на м odeл	Дыжина 3a otбелязвае	Размер на центьра на ekранa
	a b c d
KD-85XG85□□	1909 683 200 251
KD-75XG87□□	1673 468 200 107
KD-75XG85□□

2 Cbane BnHToBete OT 3aHaTa CTpaHa Ha TeJIeBn3Opa.

3ПикpenTe OKaUbaunTe Yactn 3a KOH30JaTa 3a 3aKpeNbaHe KbM cTeHa. ПроветeЧаNTe 3a OKaUbaHe, KaTO cpaBHnTe C "ДocTaBeHo c SU-WL450"В "Проветka Ha ChaTnte"Ha cTpaHnua 5.

3a6eJexKka

3akpenete yactnte 3a OKaYBaHe c NOMOHTa H BnHTOBe.
Korato n3non3BaTe eNEktpnuecka OTBepKa, 3aadte HacptpoKaTa Ha BbPTaMOMeHT npu6IIN3NTeJHO Ha1,5N·m{15kgf-cm}.
3ana3eTe m3no3BaHnTe nn HeN3no3BaHnTe YaCTNa 6e3oNaCHO MRCTO 3a 6bdeu yNoTpe6a.3ana3eToBa pkoBOcTBO 3a 6bdeua cnpabka.

CTaHdapTeH MoHTaX (2-a)

TeceH MOHTaX (2-b)

3a6eJexKka

Korato N3NOJ3BaTe TO3n CTnI 3a MOHTaK, HMa Da MoXKeTe Da N3NOJ3BaTe HAKON OT TepMNHaJIte Ha Tbp6a Ha TeNeBUN3opa.

4 CbpyKeTe Heo6xOdHmHTe Ka6eIN KbM TeJIeBn30pa.

YBepTe Ce, Ye CTE CBbp3aJIN Ka6eJIHTe
IpeJn Da MOHTnpaTe TeJEBn3Opa Ha
CTeHata. HMa Da MOKeTe Da Tn CBbpKKeTe,
CJeI KATO TEJEBn3OpbT e MOHTnpaH.
BnKTe CNpaBOuHOTo PbKOBoDCTBO,
DOCTaBeHo C BaIIHr TEJEBn3Op.

3a6eJexkka

Bb3IOKeTe IPOkApBaHTo Ha Ka6eJIte B CTeHATA HAnHeH3PAn POnH3NbHHTeI.
YBnIe CbpyBaIIrTe Ka6EINIpeHMOHTnpaHETO KBMCTeHATA,3aJaHE CTbHITe BpXyTAX.

5 CbaJIeTe IIOCTaBkaTa 3a Maca OT TeJIeBN3Opa.

• OTePaHeTe eHaTa CtpaHa Ha CToiKaTa 3a Maca. IpbKTe 3paBO CToiKaTa 3a Maca Cta6HIO C DBeTe CN Pbue, DOKaTO dpyrN IOBnHrAT TeIeBu3Opa.

KD-85XG85□□

KD-75XG87□□，KD-75XG85□□

• IOBTOpeIpeHnHaTa CTbIIKa H OTcPaHETe Dpyrata CTPaHa Ha CTOnKaT a MaCa.

3a6eJexkka

CBAJIHETO HAIOCTABKATA 3a Maca CIEBaJaCe H3BbPnO T DA BAMA NIN NOBEc dyuN.
BHHMabHte Da He npHiarate NpekOmePHa Cnla, KORATO CBAIaTe NOCTABKATA 3a MAcA OTe TELEBN3Opa, TBI KATO TELEBHN3OpBT MOKe Da HAdHe IJa PnPHNN TELECHO HApAHBaHE HIN CAMHRT TELEBN3Op Ja CE IOBPeH.
- BHTeBHHMATEJHINKORATOpa0OTHTCIOCTABKATA 3a Maca,3aJaN36ERHTeIOBpeKaHeHa TEIEBnOpa.
BHHMaBaIte, KORATO NOBIMrare TeJIeBn3Opa, TbIKATO CToIKATA 3a MAcA He e 3aKaUeHa H CToIKATA 3aMaca MoKe Da Ce I3CIne N Ja IIpHUNH HApAHBaHe.
BHHMaBaHTe, KORATO INPEMaxBATE CTOHKAta 3a Maca OTeTEBEH3Opa, 3a Da INPeDToBpArNTHe NaDaHETO H HapaHBAHETo HA IOBbPxHOCTTa, BbPxy KOrTO CTOI TEEBH3Opa.

KD-65/55XG87yy,

KD-65/55XG85yy

1 CbaleTe BnHTOBeTe OT 3aHaTa CTpaHa Ha TeIeBn3opa.

2ПикpenTe OKaUbaunTe yactn 3a KOH30JaTa 3a 3aKpePbAne KbM cTeHa. ПрOBepTe yactnte 3a OKaUbaHe, KaTO cpaBHTe C "OocTaBeHo c SU-WL450"В "ПрOBepKa Ha yactnte"Ha cTpaHnua 5.

3a6eJekka

BakpenTe YactNTe 3a OKaYBaHe C NOMOHTa HbNHTOBe.
Korato n3non3BaTe eNeKtpnuecka OTBepTka,3aadTe HacptpoKaTa Ha BbPTaMmEHT npu6IIn3nteJHo Ha1,5N·m{15kgf·cm}.
、Bana3eTe N3NO3BaHInTe NIN HeN3NO3BaHInTe YaCTNa 3a6bdeaa ynoTpe6a.3aana3eToBa pkoBOcTBo 3a6bdeaa cnpabka.

CtahdapTeH moHTax (2-a)

TeceH MOHTaX (2-b)

3a6eJexKka

KoratoN3NOJ3BaTeTO3nCTNJaMOHTax,HMaJaMOXeTeJaN3NOJ3BaTe HAKONOTepMNHaNTeHaTbp6aHa TeneBUN3opa.

3 CbpxKeTe Heo6xOIMnTe Ka6eI N KbM TeJIeBn3opa.

YBepTe ce, ye cTe Cbbp3aN Ka6eNITe
Ipei Da MOHTnpate TeJeBN3Opa Ha
CTeHata. Hma Da MoKTe Da rCbPKeTe,
Cnei KaTO TeJeBN3OpBT e MOHTnpaH.
BnKTe cnpabOCHOTo pkoBOdCTBO,
IOCTaBeHO C Baunr TeJeBN3Op.

3a6eJexKka

Bb3noKTe npokpBaHTo Ha Ka6eIte BCTeHa HJIuEHNpaH NOIN3bJHHTeI.
BnTe CbP3BaNTe Ka6en npEn MOHTnpaHTo KbM CTHeTAta, 3a Da He CTbNITe Bpxy Tx.

4 CbaIeTe nocTaBkata 3a Maca OT TeJIeBu3Opa.

• OtctpaHete eHaTa CtpaHa Ha CTOnKaTa 3a Maca. IpbXTe 3npaBO CTOnKaTa 3a Maca cTa6nIHO C DBeTe CN Pbue, DOkATO npytn NOBdnrAT TeNeBu3Opa.

-Повторе пешнота CTынka n OTсразене Дугата CTраHa Ha CTойКаТа 3a МаСа.

3a6eJekka

CbaHrTo Ha NoCTaBkata 3a Maca CneIbDa da ce H3BbPmOT DbMa Mnn NIOBEye DYuIN.
BHMabaTe Da He npilarate npekomepHa cnla, KOraTO CBaJIe TIOCTaBkata 3a Maca OT TeLEBn3Opa, Tb KaTO TELEBn3OpbT MoKe Da NaHHe N da npuHHn TeLecHO HapaHbAe nn CamnT TeLEBn3Op da Ce NOBpeN.
-Будente BHIMATEHIN, KORATO pa60TNE C NOCTaBkata 3a Maca, 3a Da N36eHHe T nobpeXdaHe Ha TEJIEBN3Opa.
BHMabaTe, KOrato NOBnIraTe TeneBn3Opa, TbN KaTO CToIKaTa 3a Maca He e 3aKaueHa N CToIKaTa 3a MaCa MoKe Na Ce U3CunE Na PnPsHn HapaHbaHe
BHMmabAte, KORATO npemaxBaTe CTOKaTa 3a MacaOT TeneBn3Opa, 3a Da npeoTbPaTne naHaTeo HapaHbAHeTo Ha NOBbPxHocTTa, Bbpxy KOrTO CTOnTEneBn3Opa.

Mоntаж Ha TeJIeВиЗopa Ha CTeHaTа

KD-85/75XG85□□，KD-75XG87□□

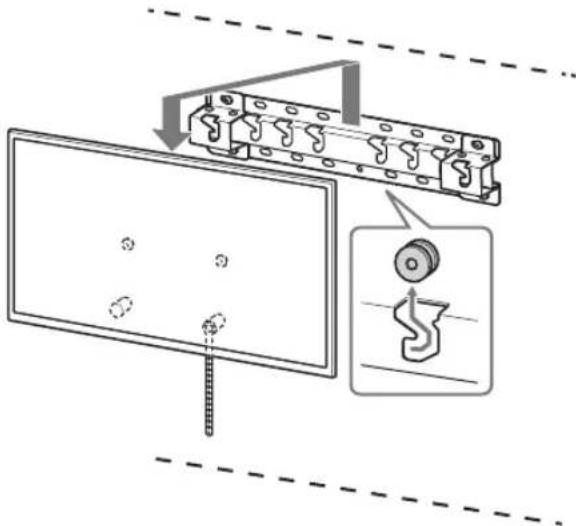

1 NOBdInrHeTe TeJeBn3opa.

3a MeCTOnONoXeHHeTo Ha MaKapnte ⑧ 3a OKaUBaHe BbPxy OCHOBaTa NnnaTepa 3a OCHOBaTa, BnKTe TaBnIuata B CTbnka 3 B "OnpeJeIHa MRCTO Ha MOHTaX"OT CTpaHnua 7.
- YBepete ce, Ye 3aHaTa CtpaHa Ha TeJIeBn3Opa IOKOCBa OCHOBaTa NII aIaITepa 3a OCHOBaTa, KOraTO IbpxNTE TeJIeBn3Opa.

3a6eJekka

-ДьжTe 3npaBo TeNeBnOpa C dBe pBu e Nce yBepeTe, Ye KOnaHbT F nDOnHaTa CTpaHa Ha TeNebu3Opa Ca HapabHO CbC CaMO3aJIenBaUTo Ce TUKCO.
TpmaDyuHOCTe TeneBn3opa,nto3N KOTo e nped TeJeBn3opa Da BOIN OCTaHaNTe, 3a da perynpa no3nIOHOHPaHeTo.

MHOROBHIMBaTe, KORATo MOHTnPaTe TEeBu3Opa KbMCTeHaTa,OCo6eHa 3a YOBeKa,KoITo rO DbpxN OTdony,Tb KaTO TeBUN3Opa MoKe Da NaDHe N da npuHHcepNo3Ha KOHTy3N JIN DOpN Cmbpt.

2 MoNTpaIte TeIeBn3Opa B OCHOBaTa IJIaIaITePa 3a OCHOBaTa.

BHHMaTeHNO NJIb3HeTe HaOJy TeJeBn3Opa n 3aKaayTe MaKapnte B, 3aKpeHn KbM 3aHaTa CtpaHa Ha TeJeBn3Opa, KbM OCHOBaT aAnTepa 3a OCHOBaTa, KaTo npOBepnte fOpMaTa Ha OTBOpTe.
Cne MoNTax Ha TeJeBu3opa npOBepTe DaIIM MaKApITE B ca 3dpaBO 3aKaueH NbM OCHOBaTa IIN aAnTepa Ha OCHOBaTa.
Babno npchete n DBeTe cn pbce, 3a da cte cnpyn, ye TeJeBn3OpbT HMa da naHe.

CneI KaTo MOHTnPaTe TeJIeBn3Opa KbM CTeHaTa, IpemaxHete Camo3aJIeNBAUcOTO CE TIKCO IN p. OT CteHaTa.

2-a

2-b

PNEyIpyEKdEHNE

• YBepete ce, ye Dbama nn noBee dyu (TPma nn noBee duw 3a KOMnKeT TeeBu3Op c pa3MePn OT 75 nHa) dbpxat TeeBu3Opa, koraTo ro Hocnte.

2 MoHTnpaIte TeIeBn3Opa B OCHOBaTa IJIaIaNTepa 3a OCHOBaTa.

BHHMaTeHNO NJIb3HeTe HaOJy TeJIeBn3Opa n 3aKaueTe MaKapnte B, 3aKpeNeHn KbM 3aHaTa CtpaHa Ha TeJIeBn3Opa, KbM OCHOBaTaNn aAnTepa 3a OCHOBaTaNkTO npOBepNTe fOpMaTa Ha OTBOpTE.
Cne MoTack Ha TeJeBn3opa npOBepTe dAn MaKapnte 8 ca 3dpaBO 3aKaueH NbM OCHOBaTa nn aanTepa Ha OCHOBaTa.
- BaBHO nCyHete N DBeTe Cn PbCe, 3a Da CTe CNrpyH, Ye TeJIeBn3OpbT HMa Da naHe.

2-a

2-b

↓

↓

PNEyIpyEKdEHNE

• YBepete ce, ye Dbama nnno Boeye dyu (TPma nn noBoeye duw 3a KOMnKeT TeNeBn3Op c pa3Mepu OT 75 nHa) dbpxat TeneBn3opa, koraTo ro Hocnte.

3 PpeoTbpaTaBaHe

IpeMeCTBaHeTo HaДоЛHaTa ЧаСТ Ha TeJIeВиЗОпа.

• N3dbpnaIte pa3xla6eHaTa qact Ha KOJahF IЯ 3aKaYeTe PJIbTHO KbM CTeHaT.

• I3noJ3BaIte BnHT c DnaMeTp5 mm NII eKBuBaJIeHTeH (He e BKIOueH B KOMnJIeKTa).

3a6eJexKa

-OnntaTe IeKo Da n3dbpnte KbM c6e cn dOJHaTa Ha TeBn3opa, 3a Da CE yBepuTE, He He Ce npemecTba Happei. Ako ce DnKn, ToH e 3akpenen npabunHO N KOanH F TprBa OTHOBo Da ce 3akpen 3dpabo.

Поберка на

PondepkInBaemble MoeIeN:

KD-85XG85□□*/75XG87□□*/75XG85□□*/65XG87□□*/ 65XG85□□*/55XG87□□*/55XG85□□*

^* B Φaktnuecknx Ha3BaHnax MoJeN "□□" o6o3Haayet uΦpbI N/IIIN CUMBOJIbI, xapaKTePbIe IJNA KOHKpeTHoN MoJeN.

K cbeHIO nokynteJe

Дя obecneuehenia coxpaHnoCTn n3deJnIy nI3 COO6paXeHn 6e3OnaCHocTn KOMnaHnry Sony NaCToTeJIbHO peKOMeHnyET npINBLeKaTb IJy UCTaHOBKn TeJIeBN3Opa TOLbKO dIJnePob NII INIeH3NPOBaHHbIX NOprdAnKOB Sony. He nbTaTaeTcB BbINOHNHTb YCTaHOBky cMoCToTeJIbHo.

K cBeHeHnIO dIJIePoB n IOJaYnIKOB Sony

YdJIyTe NOBbIeHHoe BHMaHHe 6e3OnaCHocTN BO BpeM yCTaHOBKn, nepNoDnueCKoR O6cLyKuBaHn I OCMOTpa DaHHoro n3deJInr.

Для паразильно установки данноюн здени hyобхODIMdoCTaTOHь ONblT,В OOCobeHHocTNпгОпpeДеленToRO,B COCTOЯнл nI CTeHa BbldepKaTb BeC Teleвзора.Oba3aTeьно рпвБлесКТЕДЯ USTAHOBKN 3TOrO n3delenna Ha CTeHy DInIepOB nII nIuCEH3nupOBaHHbIX nOДрЯДчИKOB Sony n Ctporo co6JIOnaIte texHnky 6e3OnaNacHOCTn рng BblONHeHn pa6OT no yctahOBKe. KompaHnra Sony He Hecet OTBeTCTBENHOCTb 3a IIObIe NOJOMKn nII TpaBMbl, Bbl3BaHHbIe HEnpaBUNbHbIM 6OpaUSeHneM c n3delenm nII erO HePpAByNBHoY uCTaHOBKOJ.

Дя 6e3oNaCHOи nHaJIeXaUeYcTaHOBKn cM. INHCTpyKuIN NO 3KcnIyatauN KpoHHTeHaДЯ NaHCTeHHOуCTaHOBKn, pyKOBOdTBo NO yCTaHOBKe TeJeBu3Opa N yka3aHn DaHHoro pyKOBOdCTBa.

БezonaCHOCTb

Blaorapum 3a nokykny 3TOro n3dennr.

Для nokунател'

Дя yCTaHOBK DaHHORO n3dEJIINNA Tpe6yeTcdoCTaTOHbONbIT.
O63aTeBbHO o6paTnTEcB K dIepey IINIuIeHNPOBaHNOHYoNpDpyUKNky SONY, a TaKke cO6bIOaTe He O6xOHNbIe MEPbI ppeoCTopoxHoCTN BO BPeMBOYCTaHOBKn n3dEJIINNA. KomNaHry SONY He HecET OTBeCTBeHNOCTn npHaHeceHNILOBO YUepeBa NII INBpeDa, Bb3BAHHOro HnnpaBnblbIM
O6paJeHem mN yCtHaHOBKO JIOBO
yCTaHOBKo He npedHa3NaueHHO rJr 3TOrO n3dEJIIN. 3To He BnIReT Ha BAUN 3aKOHbIe npaba (ecn TaKOBbIe NMeOTc).

Длгдиелеров Sony

Длу yctahOBkn DaHORO n3dEINNA Tpe6yETcdoCTaTOHbOnbIT.Длу 6e3oNaChOH yCTAHOBKn YCTPOIcTBa O6BaTeNbHO BHIMaTeNbHO pOHTnTE HAcTOnuee pyKOBODCTBO.Sony He Hecet OTBeTcBeHHocTN B Cnyae NOBPEkDHeN INI NIOJYeHnRA TpaBM B pe3yIbTaTe HEnpAIBHoRHO o6paHnEN INI HeHaJIeXaUeY cTAHOBKn.I0 OKOHAnHN yCTAHOBKn NEpeJaTe 3To PYKOBOCTBO NOKyNaTeNIO.

B 3TOM pykoBOdCTBe no yCTaHOBKe
npBBeDeHb BaxKbIe Mepbl
ppeOcTOPOKHO INHOpMaUNI NO
06ecneueHIO HAJIeXaJUero BOpaUeHHN C
n3dJeM, KOTOpBE HeoBXODIMBI DnA
npEoTBoPAeHNE HecAcTHbIX CNyuaEB.
OBs3aTeNbHO BHNMaTeNbHO npOHTnTe
HaCTOuee pyKOBOdCTBO INCnONb3yInTe
n3dJeNn O Ha3NaueHIO. CoxpaHNTe
HaCTOuee pyKOBOdCTBO DnA
NCNOB3OBAHNO B6yUeM.

N3dennr Sony pa3pa6oTaHb C yueTOM Tpe6oBauHn no 6e3oNaChOCTn. Ondako HnepaBnHoe nCOnlB3oBaHne n3denn MoKet CTaTb npuHHo NOnyHeHc Cepe3bHX TpaBM BCJIeCTBHe NOPaxHeHn 3JeKTPnueckm TKOM, Bo3RopaHn, OnpoknDlbAHHn nn PAnEHHn n3denn.Bo n36ExAHne BO3HNKHOBeHn TaKHX HeCuaCThIX cNpyaeOBs3aTeNbHO coBIOaIte COOTBeTCTBYUoMe MpeI npEOCTOPOKHOCTn.

DaTaN3rTOBnEHHaKa3aHa Ha N3dEHNu YNAKOBKe HA TtKeTKe CO WTPNX-KoDOM B CNeIyUoEMΦopMaTe:YYHYY/MM, rIe YYHYY -roD, MM-MecraN3rTOBnEHHa

PonBDoTEnb: CoHn BnKyAn PpOaKTc INHK., 2-10-1 OcaKn IUnHarabaKa Ky ToKno, 141-8610 RaNoHr CpeNaHO B Krtae

Opran3aun,ynonHomouenHna pinnMaTb
npTeHnOT nTopeBnteNeHa TeppuTopn
Ka3axCTHa
AO COHN 3neKTPoHnKc
PepctabnteBCTBO Ka3axCTaHe,
050010,Pecny6nka Ka3axCTaH, r.AmTabl,
np.Doctbk,dom 117/7

IMnpTeHapeTtOpTNCTpaH TaMoxeHHoro c0o3a:AO《COnn 3JKeTPOHnKc, Pocsn,123103,MockBa, KapamblweBckn npoe3d,6

BHIMAHNE

Yka3aHHbIe n3dJIIna

DaHHb KpOHHTeH nI HaCTeHHORO
KpenJIeHn IpeH3aHauH cI nI OTJeHbIX
MoIeNe TcEBu3OpOB. Cm. CnpabOchoe
pyKOBOCTBO K TeBUN3OpAM nI npOBepKn
BO3MOXHOCTN IcONJb3OBAHn KpOHHTeHa
dI HACTeHHoYCTaHOBKn.

Для nokуразелей

PNEUINPEKDEHNE

HecobJIOeHne npBBeHbIX HNKe
Mep npeoCTopOxHOCTn MOKeT CTaTb
npuHNO CmEPtn NNN NOyueHnE
cep3HbIX TpaBM BCNeDCTBNE
nopaeHnE 3JeKTPnueCKn TOM KOM,
BO3rOpAHn, OpOKnDbHaBHn NNI
naDeHn N3dEIn.

063aTeIbHo 06paTntecb K JIuceH3nPoBaHHOMy IOpRAnky,a TaKKe He DOnyckaIte TORO,HTo6bl DeTN HaxOdnCb B6JIn3m MeCTa YCTaHOBKn N3dEInr.

HenpaBnBnaYcTaHObKa KPOHtTeHa nIa
HacteHHOy cTaNOBKn IIN TeJIeBN3Opa
MOKeT cTb npuNNoN nepeuNCHeHHbIX
HnKe HeCuaCTbX CNYaeB. DnA
BbIOJIneHnY cTaNOBKn O83aTeNbHO
06pATNTecb K NlueEHNpOBaHHbIM
NoDpAqNKam.

TeIeBIMoP MoXeT NpAChbN CTaBnpuHNOI npUeyENn cepBe3hBx TpaBM, HanpImep YUnOBoNnnpeNoNOMOB.
EcNCTeHa,HaKOTopoB BbINONHReTc8 YCTAHOBKa KPOHTeHaJnHAcTeHHoH YCTAHOBKn,HeCYTOUHBA,HepOBHnI IN HeBePTNKaJIbHa,N3dJIneMOKeYnAcb T NIOUYHTb NOpeXdHnI INI CTAb PpHHOITpaBM INI NOBpeXdHnIMyUeCTBa.CTeHa DOJXHa BbIDepXNBaT Be,Cno KpaHmEpe,BYeTbpe paa TpeBbIaIooNt BEcTeNeB3Opa. (YTO6bl y3HaTb Bec TEeBn3Opa, CM. CnpabOuHoe pykoBOOCTBO.)
- EcnYcTaHOBKa KpOHUTeHa dIa HAcTeHHOY cTbAHOBKn BblIOJIHReTc Ha HeoCTaTOHOp NpOHyO CTeHe, N3dJeHMe MoKeT yNaCTb NNoJyNTb NOBpeXDeHn IIN CTa TpNHyO TpaBm INI IOBpeXDeHn IMyUeCTBa.

Mepbl npedeoctopoXHOCTN B OTHOWeHn DeTei

He no3B0JaTe TeTbMaB36npaTbcHaTeJIeBUN3Op.
XpaHnTe MeKnKe DetaJIb BHe DocraeMoCTn DeTe, TcObI OH He MOrJIc CnyaHIO nPOrIOTnb NX.

Для поемецени nln demoHTaxa TeJeBn3opa 6braTeJbHo 6paTntecb KЛицeh3ИрOBaHHbIM NOdprAnKam.

Ecn TpaHcnpTnOBKa NnN DEmoHTax TeBn3Opa BbNoJIHReTcH He NIeH3nPOBaHbIMN NOpRdUKNaMn, OH MOKeT yNaCTb N CTb NpuHNO TpAMN NIOBpeXeHnN MnyeCTBa. Y6eNiTeCb, YTO nepeHoc NnN DEmoHTax TeBn3Opa OcyuectBnaTc DByMaN NnB0ee NuaaM (Tpi NnB0nee YenOBek nN TneBn3Opa C dnaorHaIbIy 75 duMoB n 6bnSe).

Iocne MoTaxa TeLeBn3opa He BbIHMa'Te BNHTbl N T. D.

B npOTHNOM CNYaE TeneBn3Op MoKET yNaCTb N CTaTb PNpHNOH TpaBM NIN NOBpeJdEHN MmUeCTBa

He pa36bpaaiTe n He MeHnTe DeTaJI N KPOHSTeHa dJa HaCTeHHoY yCTaHOBKn.

B npotmbHOM cnuyae kpoHtTeHH nla
HaCTeHHOYcTAHOBKM MoKeT YNaCTb N CTaTb
npuHHoTpaBMnnnOBpeKdEHHNMyUeCTBa.

He yctaHaBnBaIte Ha KpOnuTeH KaKoe-Jn6o Dpyroe o6OpyObaHne, Kpome yKa3aHHoro.

3TOT KPOHHTEIN DIA HACTEHHOYCTAHOBKN
PpEHa3HaueHEN IINCIOJIb3OBAHNI TONBKO C
yKa3aHHbIMN 3DJeIINMAI. ECIN HA DAHHOM
MOHTAXHOM KPOHHTeHNE KPeNTTC
OBOPyDObAHne, He npEHa3HaueHHe OJ
TAKOn YCTAHOBKN, OHO MOKeT yNaCTb NIN
NOyUHTb NOBpeXdEHNA, a TAkKe MoKeT
CTaB pRnHuHOH TpaBM NIN NOBpeXdEHNA
mYUecTBa.

Bo n36exkHe peperpy3KN KPOHtTeHa dIy HAcTeHHoH YCTaHOBKn He YCTaHaBJIbBaIte Ha HeM HnueRo, KpOme TeJeBu3Opa. He Tpcnte TeJeBu3Op BLeBO/BnpaBO,BBepx/ BHn3.

B npoTnBHOM cnYae TeJeBn3Op MOKeT yNaCTb N CTaTB npuHNO TpaBM nIN NOBpeKdEHHN MMyIeCTBa.

He onnpaTecb Ha TeIeBn3Op n He depXHTecb 3a Hero.

He OnnpaTecb Ha TeLEBn3Op n He DepeXtEc b 3a Hero, TAK KAK OH MOKeT yNaCTb N CTb PnPHINONIPOyehnIe Cepbe3HbIX TpaBM.

BHIMAHNE

PnHec6bIeHN CJeDyUOxN MeP npDeTOpOxHOCTN CyueCTByET BepoTHOCb NOpUyeHn TpaBM nNn NOBpeXeHn IMUeCTBa.

YXOD3aHMM Heo6xOIMO OcyuieCTBnTb,He npNKlaIbIBa Qpe3MepNbIX yCNI.

He neperpykaTe BepxHIOU qactb
TelenB3Opa.B npOTNBOM Cnyuae
TelenB3Op MOKeT yNactb N CTaTb pNHyHOI
TpaBM INI NOBpeXdEHHM MMyueCTBa.

Mepbl npedoctopoxknoctn

EcnTeneBn3Op,yCTaHOBHeHHbHa KPOHHTeHNe DnI HaCTeHHO YCTaHOBKn INCNOJIByETcB T TeCHHe NdITeBHorO BPEMeHN,TO B 3aBNCIMoCTOn OT MaTePnaJa CTeHbIO3aDN Hero HNAD HNM MORYT BBILBEcTB CTeHbI INOTCTaTb O60N.
-Посné Демотраха Кронштейна Дпя Н acteHноусТановКВ СTeHe OcTaHyTcR OTBepCTN.
He nCnoJb3yTe KPOHJTEHN Jnla HAcTeHHOYcTaHOBVKN BMeTax C mExAHuYeCKMm BVpAuaRMn.

He yctaHaBnBaIte KPOHHTeH DJI HaCTeHHoY UCTaHOBKN Ha TaKHX CTeHax, rKe Kpa TeneBn3opa 6ydyT BbICTyNaTb 3a Kpa CTehbl.

He yctaHaBnBaIte KPOHtEnH nIa HAcTeHHoYCTaHOBKN Ha TaKNX NOBepxHocTAX CTEN (HaNPIMep, Ha KOLOHnax), rJe Kpaar TEJEBN3Opa 6ydyT BbICTyNaTb 3a Kpaar NOBepXHOCTn CTHebl. 3aDeB 3a BlcTynauIe Kpaar TELEBN3Opa, MOxHO NOLyUHTb TpABMy IINIOBpeDnITb IMyIeCTBO.

He yctaHaBnBaITe TeIeBn3Op nOd KOHdNcNoHepOM nIn HaD Hm.

EcnnB TeueHne npoJOnKnteIbHorO npomExyKa BpeMeHN TeJeBn3Op NOBpeXeH Bo3JeCTBnIO KOHeHCATA NnN NOtOKa BO3Dyxa N3 KOHNuOHepa, 3TO MOKeT CTbPnpuHNO B03RopAHH TEeBn3Op, NPopaHEHa 3JIeKTPnuCeKNM TOKOM NIN HEnCnPaHBnCTNe TBeBn3Op.

O63aTeIbHo HaJeKHO npKpeNte KPOHSTeH dJa HAcTeHHo YcTaHOBKn K CTeHe, CLeDy INCTpyKcNm, PnVBedeHHbIM B HaCToAeM pyKOBOdCTBe.

ECNI KAKO-NI60 N3 BINTOB OCLa6JeH UINBbINAN, KPOHTEIN DnA HCTEHNOYCTAHOBKNMOKET YNaCTbN CTaTBnPHUHOITPbAM INN NOBPEXDEHNA MUYueCTBA.PINBbIOJIHEHMI MOHTaKa OB3aTeNbHO NCNOL3yTE BNTBt, KOTopbe COOTBeTCTBYOTMaTePNAYCTeHb, IN HAdEXHo YcTAHOBNTYCTPOINCTBO, INCNOL3yHe Me HeMeee YtebipexBINTOB 8 MM (ININ aHaONrHyhIX).

O6a3aTeIbHo
NcNoIb3yIte
BXoJaUne B KOMnJIeKT
BnHTbI N DeTaJIu DJIa
KpeJIeHnI N CTpOro
CleDyIte
NHCTpyKzIaM,
PnIBeDeHHbIM B
DaHHOM pYKOBoDCTBe
no yCTaHOBKe. Ecln
PnYCTaHOBKe 6bln
NCIOJb3OBAHbI INHbIE
KpeIeXHbIe
MaTePnaJIbI,
TeJIeBn3Op MoKeT
yNaCTb N NOJyHTb
NOBpeJdeHnI NJIu
CTaTb PnUHHoN
TpaBM.

063aTeIbHo
BbIOJIHryTe c6OpKy
KPOHHTeHa,TOUHO
CJeDyI INCTpyKcIyM,
N3IOKeHHbIM B
HaCTOJsem pyKOBOdCTBe
No yCTaHOBKe.

Ecnn KaKoJ-Ni6o n3 BnHToB ocna6JeH nn BbInan, TeneBn3Op MOKeT yNaCTb NONYuHTb NOBpeXDeHnN nN CTaTb npuHHo NOnyueHn TpaBM.

Haedekho 3aTaNHTe BnHTbIB npedHa3NaueHHbIX JI HNX KpeNexKhbIX OTBepCTnX.

B npotnbHOM cnyyae, TeJeBn3Op MoXeT ynaCTb NnOlyuNTb NOBpeXdeHmN nIIN cTaTb npnHHoT TpaBM.

CneITe 3a TeM, YTo6bI BO BpeMa yCTaHOBKn TeLeBn3Op He NOdBepraJcR BO3eICTBnIO TOJNUKOB.

TOnyMnMOrY Bb3BaTb naJeHne n nopuy TeEnBn3opa.3To MoKet npNBeCTN K TpaBME.

YcTaHaBnBaIte
TeJIeBn3Op Ha CTeH eTOLbKO B TOM Clyuae,
ecn OHa IIOCKa N
pacNoJoxKeHa nOd
npAmbIM YrIOM K NOy.

B npotnbHOM cnyae TeNeBn3Op MOKeT ynaCTb nCTaB npuHNO TpaBM.

IocneHaJekkaueyCTaHOBKnTeJIeBN30paObeCneuBte 6e3OpacHoepacNoJoxKeHne Ka6eJe.

KabEn, npedTaNIOUne npenrTCTBnIa IIOeN ObEeTOB, MOryT CTb PnHNO nOlyeHn cepbe3hIx TpaBM NnN NOBpeXeHn TeneBnOpa.

He donyckaite 3aueemJIeHnKa6eJnNTaHnIcoeINHnTeIbHbIX Ka6eJeI.

EcnN KabeB NITaHIN NIN COeHNHTeBnB HbI KabeB 6yTe 3aXat MeKdy YCTPOCTBOM IN CTEOH NNN CNIJNO N3ORHY NIN nepeKpyeH, TO I3OJIaCIN BHYTpEHHIX npoBOIOB MOKeT 6bTIb HapUWeHa, YTO MOKeT cTAb PnPNHO HO KOPOTKO T 3aMbKaHIN NIN O6pbIbA. 30 To MOKeT Bb3BaTb BO3RopaHHe NIN pPnBEcTN K nopaxHeHIO 3NeKTpUeCKM TOKOM.

BnHbI, KpeneJnne KpoHHTeHbI dJa HAcTeHHoY UCTaHOBKn K CTHe,BKOMPJIeKT NocTabKn He BXOJrT.

IpiMoHTaKe KpoHHTeHa IJn HaCTeHHOYCTAHOBKINCNOB3yTe BHTbI, COOTBeTCTByUoMe MaTePmAny n CtpkTypeCTHei.

M3dJIINr DOJXHbI XpaHHTbcB KAPTOHHoYyAOKOBKe B TEMHom,CYXM, YICCTOM INxopoWBeHTnInpyeEMOM NOMEeHNBYdaHeHNOT MecT XpaHeHNKNCLOTNIeOJeN. TempeTaTypXpaHeHNr:ot-20°Cdo+60C.BnaXHoCTbXpaHeHNr:<80%.

Copepkane

IoproTOBka K yCTaHOBke. 6

PpOBepKa KOMnJIeKTAuN 6

OnpeJeHne MeToNoJoxHeNn yCTaHOBKn 7

YcTaHOBka OCHOBaHHa Ha CTeHy 9

IoproTOBka K yCTaHOBKe TeJeBu3opa...10

KD-85/75XG85□□，KD-75XG87□□ 10

KD-65/55XG87□□，KD-65/55XG85□□.12

YcTaHOBka TeJIeBn3Opa Ha cTeHy.14

KD-85/75XG85□□，KD-75XG87□□ 14

KD-65/55XG87□□，KD-65/55XG85□□ 16

PpOBepKa BbINOJIHeHn yCTaHOBKn 19

IpoouaHΦopMaun 19

Texnueckne xapaKtepcntkn. 19

4 OnpeJeIte MeCTOnOJIOxHne BnHTOB IJIa YCTaHOBKn OCHOBaHn (20) A.

Cm. cneuФнkaun Ha ctp. 19.
Pn BbI6pe nyHKta 2-a nCnoJb3yTe
NoLoXeHnO TBepCTn aAnTepa
OCHOBaHn ①.

PNEyNPEKDEHNE

CTeHa,HaKOTopoB6yDcTcHOBJIeH TeLEBn3Op, DOJIXHa BbIdepXNBaTb Bec,PipeBbIaIOUm BEc TELEBn3Opa,No KpaHHeMpe,BYeTBpe pa3a (YTO6bI y3HaTb BEcTeLEBn3Opa,cm.CnpabOuHoe pyKOBOcTBo.)

• OnpeJeInte npOuHocTb cTeHbI, Ha KOTopyo 6yIET yCTaHOBJIe HTeNEBn3Op. Ipn Heo6xOAnMOCtn yKpeIInTe cTeHy.

YctaHOBka OCHOBaHnHaCTehy

• IVcnoIb3yIte yeIbepe nn 60Jee BnHTOB dnaMetpOM 8 MM nnn aHaIOnuHbIX NM (B KOMnJIeKT NOCTaBKn He BXoJrT).
  BCTaBnB YeTbIpe BNHTa B OTBepCTna aanTepa OCHOBaHn ①, npKpeNte ero K OCHOBaHnO (20) A (ToJbKO 2-a).
• YctaHOBNTe OCHOBaHne (20) A Tropn3OHTaJIbHO Ha CTeHy.

1 OTMeTbTe MeCTO yCTaHOBKn Ha CTeHe.

• Icnoj3yIte KJIeKkyIO JIeHTy I. d. (He BXoJNT B KOMNJIeKT), YTObI OTMeTITb MeCTOJNOJoxHne TeJIeBn3Opa prdOM C OCHOBAHNEM NII aJaANTepOM OCHOBAHnA. CM. cJeDyUOuYIO Ta6JNuY.

EduHnucbui3MepeHHa:MM

3 PoiKJIIOUHTe Heo6XoIMbIe Ka6eI N K TeJIeBn3OpY.

Ipepe yctahOBKO TeleBn3opa Ha cTeHy
06aTeNbHO NOKIOUHTe Ka6enn.
Pocne yCTAHOBKn TELEBn3opa
NOKIOUHeHne Ka6en CTaHET
HEBO3MOXHBIM.

Cm. CnpabOohoe pykoBoIDCTBO, npnlaeraemoe K TeJeBn3Opy.

PpmeaHne

-Длпрoklaадк kabelaВстен haHmnteJIINUEHINPOBaHHORO NOpRdUka.
-Пелед Креленем устpoCTBa Ha CTeHy CBЯкNTe coeINHITeIbHbIe Ka6eN, YTO6bl ClyuHaNo He HAcTyIINrB Ha HnX.

4 OToCoeHnHte HactOJIbHyIO nOCTaBky OT TeJIeBn3Opa.

• IV3BVeKaIe CTOpOHbHaCTOJIbHOI NOICTaBKn NooUpeEiHo. KpeKo yIepXnBaIte HAcTObHyIO NOCTaBKy IByM pyKaMn, Noka dpyrne npINoHNMaIOT TeJeBuN3Op.

• IOBtopuTe yka3aHHoe DeiCTBne n 13BNeKnTe DpyryO CTOpOHy HAcToJbHOI NOCTaBKn.

PpMueaHne

-ITRAOTCOEINHEHNACTOJIbHOI NOCTABKN Heo6xOIMTO TPNNN 60Jee YeNoBeka.
- Bydte octopokhbln He nCnoB3yIte ype3mepHyO cnny npn OTCoEINHEHN HAcTOnbHOH NOCTaBKNO TTeEBN3opa, TaK KaK 3TO MOXET PnIBecTN K NaDeHHIO TeEBN3opa IN TpaBMnPOBaHN KORO-JINBO NIN NOBpeXJDEHNTO TEEBN3opa.
- Bydte ocToPOxHbI npn o6paueHN n HacToJbHO nOCTaBko, YTO6bI npedOTbPaTnTb NOBpeXeHne TeneBn30pa.
- Bydte octopoxhbl npn noHrtn TebeN3opa, TaK KaHacToBHaNoCTaBkAMoKeT OTCoeHNHTbcn UyNaCTb, yTO MoKeT pNBecTn K TpaBMe.
- Bydte octopoxhbl npn OToeHHeHHn HactoBHOI NOCTaBKn OT TeLEBn3Opa BO n36ExKaHne ONpOKnDbBaHNy yCTpoNCTBa n NOBpeXJeHNn NOBepxHOCTN, Ha KOTopo paCNoLoXeH TeLEBn3Op.

YctaHOBka TeJIeBn3opa HaCTehy

KD-85/75XG85□□，KD-75XG87□□

1ПоднIMITE TeJIeBn3Op.

PacnoJoxeHne 6KnBOB 8 nI KpeJIeHnO OCHOBaHn IaI aIantepa OCHOBaHn CM. B TaInce WaIra 3 B pa3Je "OnpeJeHne MeCToNOJoxeHn Iy YCTaHOBKn" Ha cTp.8.
- Y6eIntecb, yTO 3aHnra naHeIb TeJIeBn3Opa cOpnKacaetcC OCHOBaHnem nIi aIaTepom OCHOBaHnI npu yIepXaHn TeJIeBn3Opa.

PpimueaHne

• YdepknBaIte TeNeBn3Op oBeIMn pykAmn y6eIntecb, yTO IeHTa F HIXKHa qAcTb TeBn3Opa BbIPOBHeHb IO KneKoJ NeHTe.
• IpeHoc TeENBn3Opa DOJXeH OcyuEcTBnTbC TpEmraIOdbMn:YeNoBek, KOtOpbHaXoDHTcra CnpepaTeENBn3Opa,DOJXeH HApBaNtB OCTaIbHbIX IOJeDNy YCTaHOBKn TeENBn3Opa B HaJIeKaUee NOJoxKeHne.

-Пи установке телевизopa Ha CTeHy Heo6xOДИМО co6IIOaTb OCTopoxKHOCTb, Oco6eHNO YeIOnBeky, KOTOpBn NODepXKNBaET telEBN3OP CHN3Y, TAK KaK OH MOKeT yNaCTb n CTaTb PnUHON cepbe3HbIX TpaBM mIu daxke CmepTN.

2 YctaHOBnte TeJIeBu3Op Ha OCHOBaHne IIn aIaNTep OCHOBaHn.

• Octopoxho onyctnte TeJeBn3Op n HaBeCbTe uKnBbl (B, yCTaHOBJIeHHbIe Ha 3aHHe NaHeJIMoHITopa,Ha OCHOBaHne IIN aJaTep OCHOBaHnA, co6IIOda fOpMy OTBepCTn.
• Iocne yCTaHOBKn TeJIeBn3Opa Ha CTeHy y6eIInTEcB B TOM, YTO UKNBbl B HApExKHO 3aΦNkCnpOBaHbI B OCHOBaHN Nnn aadantpe OCHOBaHna.
  MeJHeHNo y6epnte oBe pyKn u y6eIInTeCb, YTO TeJIeBn3Op HAnEKeHNO UCTaHOBneH.

• Nocle yctaHOBKn TeIeBu3Opa Ha CTeHy ydaJIte KneIkyJeHTy n T. D. CO CTeHbI.

2-a

↓

↓

↓

2-b

RU

↓

↓

↓

PNEyIpyEKdEHNE

• Y6eDntecb,уTo TeBn3Op yIepKnaBoT dBa nnn 60onee chOBek (Tpnn nn Bonee chOBek nTneBn3Opa c DnaRoHaNbIO 75 IIOIMOB n BoJIbWe) npn ero nepeHoce.

3 PpeoTbpaueHne cmeeHn HxKHeuactn TeJeBn3opa.

• YctpaHnTe cnaBnHy JeHTa E n HaJeKHO npuKpeHnTe erO K CteHe.

• NcnoIb3yIe BnHT dIaMeTpom 5 MM nnn erO kBnBaIeHt (He npunaraetc).

PpimueaHne

Clerka NotaHnTe HxNHO Yoactb TeEnBn3Opa Ha ce6y, YTO6bl y6eNTBCr, TTo OHa He DnKcTc Bnepe. EcnEctb He6oJbwo NIOFT, To TeENBn3Op He 3akpenHe HAnEkaumm Obpa3OM, aJeHTa F CNeDyET 3akpenITb HAdexKhee.

KD-65/55XG87□□，KD-65/55XG85□□

1ПОДнIMITE TeJIeBn3Op.

PacnoJoxeHne 6KuBOB Bdny KpeJIeHnO OCHOBaHnI aAnTepa OCHOBaHnCm.B Ta6Nue Wara 3B pa3DeJe "OnpeJeHne MeCTOnoJoxeHnI dIy UcTaHOBKn"Ha cTp.8.
- Y6eIntecb, yTO 3aHnra naHeIb TeJeBn3Opa cOpnKacaetcC OCHOBaHnem nIi aAnTepom OCHOBaHnI npu ydepXaHn TeJeBn3Opa.

PpmeaHne

• YdepeKuBaIeTeTeLeBn3Op 6eMm pyKaMM.

2 YctaHOBnte TeIeBn3Op Ha OCHOBaHne IJIaIaITeP OCHOBaHnI.

• Octopoxho onyctnte TeJeBn3Op n HaBeCbTe 5KNBbl (8, yCTaHOBJIeHHbIe Ha 3aHHeI NaHEJIMOHTopa,Ha OCHOBaHne IIN aAnTep OCHOBaHn, CO6IIOJa oOpMy OTBepCTn.
• Iocne yCTaHOBKn TeJIeBn3Opa Ha CTeHy y6eIInTEcB B TOM, YTO UKNBbl ⑧ HAnExKHO 3aΦNkCnPOBaHbI B OCHOBaHN nn aanTepe OCHOBaHna.
  MeJHeHNo y6epnte oBe pyKn n y6eInTeCb, YTO TeIeBn3Op HAnEKeHNO yCTaHOBneH.

2-a

2-b

↓

↓

RU

PNEyIpyEKdEHNE

• Y6eDntecb,уTo TeBn3Op yIepKnaBoT dBa nnn 60onee yelOBek (Tpnu nn 6oonee yelOBek nny TeBn3Opa c DnaRoHaNbIO 75 IIOuMoB u BoIbSe) npn erO nepeHoce.

3 PpeIoTbpaueHne CMeueHn HxKHeuactn TeJeBn3opa.

• YctpaHnTe cnaBnHy IeHTa F n HaJeKHO npNKpeNITe erO K CteHe.

• NcnoB3yIe BnHT dNaMeTpom 5 MM nIeero KBuBaJIeHT (He npJnaeraTc).

PpmeaHne

Cnerka NotrHnTe HnKHO Yo Acb TeNeBn3Opa Ha ce6y, YTO6blY6eDntBCa, YTO OHa He DnHexTcB BnepeE. Ecn ECTb He6oJbWOn IIOFT, To TeneBn3Op He 3akpenHe HAdNExKaUIM Obpa3OM, aJeHTa F CneIyET 3akpenNTb HaJeXHee.

• WKNBbI ⑧ HaJExKHO HaBeWeHbI Ha OCHOBaHHe NnN aDanTeP OCHOBaHn.
• Hyp n KaebIb He nepekpyeHb I He 3aueMneHbl.
• JeHtA F HAnExKHO npNkpePnneH 6e3 Cna6nHbI.

PNEyNPEKDEHNE

• HenpabnIbHoe paonnoXeHne Ka6eI npTaHn I T. d. MoKET PnBecT N K03rOpAHIO INN NopaxHeHIO 3JIeKTPuYeCKM TOKOM B pe3yIbTaTe KOPOTKO r 3aMbKaHn.IJRA oEocneueHn 6e3oNaChOCTn y6eINTEcb B TOM, YTO BCE NYKtbl YCTaHOBKn BbINOJIHeHbl.

Почая Информацья

Pn cHrTn TeIeBn3Opa BbInOnHnTe OINcaHHyO BblSe IpoceDpy B o6paTHo NocJeIOBaTeJIbHOCTN.

PNEyIpyKdHne

Y6eNTecb,TO MOHOTOp ydepKuBAoT DaBa nnboJee yeNoBek (Tpnnn 60Jee yenOBek dIa TeJeBu3Opa C daRaHOHaJIbIO 75DIOIMOB 60JbIe) npn erO CHaTIu.

TexHnueckne xapakTepncTkNk

Pa3mepb:(npn6J.)[MM]

He BnKpyuYTe rBnHTn, Too, nCJMa MOHTyBaHHa TeIeBi3opa.

Kkuo 3poobntu ce, TeneBizop MoKe BnactTa 3aBdaTc Cepno3Hx TpaBM Nn npN3BeCTNu NOIOWKOJKeHHMaHa.

He 3miHouTe deTaJI KPOHHTeHa dJa HAcTIHHOro KpinJeHHra.

Kkto 3pObTuN Ce, KPOHTeH DnA HACTHNO KpIJIeHN M0Xe Bnactn Ta3aBdATCepo3Hnx TpaBM Yn Pn3BcETn Do N0KWQJxEHHaMaHa.

He BCTaHOBJIouTe HiaKnx iHmX npncTpoIB, Kpim 3a3NaueHOro Bnpo6y.

Ley KPOHHTN DIA HACTIHORO KPIINENH
Pn3HaueHO DIA BUKOPCTAHN IINIE 3
3aHaueHIM BNPoBOM.Y BUNADKY
BCTAHOBENHH INHX PnCtPOIB,KpIM
3aHaueHBOHNMOKytBnactuY
3naMaTNA Ta 3aDaTAt CEPNOHx TPABM Y
Pn3BeCTNo NO WKOJKeHH MaHa.

He 3actocobyTe do KpoHwTeHa dJa HactiHHoro KpinIeHHa IHwi HabaHTaXeHHa OKpIM TeJIeBi3opa. He po3xITyIte TeJIeBi3Op yIbO/BnpaBO qN Bropy/ BHn3.

Kkuo 3pObntu ce,TeeB1Op MoKe Bnactu Ta 3aBdaTc Cepno3Hux TpaBM Nn PnpNBeCTNu NOIWOKOJKeHHMaHa.

He cnpuaTecna TeleBizop i He yinJaTec3a Hboro.

He cnnpaTecHa TeLeB3Op I He cinnnTeCe 3a HbOro, OCKInbKn BiH MoKe Bnactn Ha Bac Ta 3aBdAn CepNo3HNx TpaBM.

PONEPEJXEHH

Kkuo He DOTPmMyBaTnca HabeDeHnx HNxue 3aCTepeXHHx 3axoDIB, CE MoKe npi3BcTn Do cepno3HN TpaBM NnNoKKdxEHHa MaHa.

Пд часочишениаобocnyrobyBaHЯВИробу He пнКладаitedo HbOrHaMipHoiCnI.

He npknadaTne HaidmipHOi CnIN Do
BepXhBoJtAHnH TeneB1Opa.JKUO
3pOuNTnCe,TeNEBiOp MOKe Bnactn Ta
3aBdATn cepoNHX TpaBM Nn PnPn3BeCTn Do
NoWKoDKxEHMaHa.

3acTepeKHi 3axoDi

Kkuo TeBcIOp,ycTaHOBneHnHa KPOHHTeIN DnH NaCTIHHO KpINHeHH, 6yde BnKOpNCbOByaTInc npOTAROM TpMaNo rO Oacy,3AnExHo BiD MaTePiaNy, kIMM BkPuTc CTiHa, NoBPxHr CTiHn 3aTeBcIOpOM Hn HaHMM MoKe 3He6apBUTnc a60 BiD CTiHn MOKytB BiKnEITncs Wnaepn.

KpOHNHTINHOro KpIeHHN3HnTNIcToro,AKNoroBNO BCTAHOBHeHO H CTHi, B CTHi 3aJIuWbTaBCr OTBOPu Bid WypnIB.
He BnKOpNCTOBYTe KPOHUITeHN DnA HactiHHOrO KpInJIeHHB MicX, De BiIDbYaBaTcBcMEXAHUHa B6paIa.

BcTaHOBLeHnKpOnuTeHnA dIHa nactiHHoro KpInJeHHa

Oybarn dInepiB komnaii Sony

3ACTEPEXEHH

HabeDeni HnKcye IHCTpykui npu3NaheHo
Iuue, dner nneprip KOMnHaHl Sony.
Oob'raKoBO npouTaNte 3aCtepeXHi
3axOuN, BnKnaDeHri BnUe, i 3BepHtB
OCoBnBy yBary Ha 6e3Neky niJ vac
MOHTaKy, o6CnyroBvBaHNr Ta nepeBipKn
Cboro Bnpo6y.

He BCTaHOBJIouTe KPOHHTeIN DnA HAcTIHHORO KpinIeHNr B MicxHa CTIni, De KpaI cy 6okn TeLeBi3opa BuCTyNaIOb 3a MeKi NOBepXHi CTIn.

He bCTaHOBIOJIte KpOHUITeH dIa
HaCTIHORO KpinneHH Ha TaKIN NOBepxHAX,
KJ KOLOHOU, OCKIBKN BUX MIX ACX KpaI YN
6OKN BNPO6IB BVCTyNAIOb 3a MEkIX NOBEPXHi
CTHN. JAKUIOINHA NNpeDMET BNAIDKOBO
BdAPNTNo KYTu 6OKOBII CTOPOH
TeteBI3OpA, KI BVCTyNAIOb 3a KaPai CTiHN,
Ce MoXE CNPIUHNITn TpABMy a60
npIN3BeCIn Do NNOKODKeHH MaHa.

He BCTaHOBJIouTe TeIeBi3Op HaI cy NiI KoHNiZIOHepOM.

KaIO TeNEB3Op npTgrom TpNBALORO yacy 3aHaNc BnNBy BOIN, IO BNTIka,a6o NOToKy NOITPRA KOHNIOHepa,ue MoKe CnpNCHHT NOnkexy,ypaxHeHHeEKETpNCHIM CTpyMOM ABO HecnPABHOCTi BO60TI TEJIb3Opa.

HaichiHO BCTaHOBIOH Te KPOHHTeIN DnA HAcTIHHORO KpINJIeHNHa CTiHi BiIDNOBIDHO Do IHCTpyKciI yCbOMy Noci6HNU 3 ekCnLyataui.

KkUo rBnHTn cna6 3akpinnehi a60
Bnnaiaotb, KpOHTeH nIHa HactiHoro
KpInHeHH MoKe BnActn I cTaTn npuHNOHO
TpaBMBAHH a6o NIOKOxHeHH MaHa.
TBnHTn MaToB BiINOBiAtn MaTePiaJy, kIMN
BKpNTa CTHa. Uo6 3a6e3NeHTn HadiHe
BCTaHOBBHeHH, BIKOPNCOTByte npHAAhMI
YoTHn pRnBHTn dAmETpOM 8 MM (a6o
ekBbaJeHT).

BnKOpNCToByTe
TbHNTa DOnomixkHi
YactHH3 KOMPJIeKTy
NoCTauaHHa
HaJeXHM YINOM
BiNobiDHO Do
IHCTpyKciI y cboMy
Noci6Hnky 3
ekCnlyatauii.
BnKOpNCtAHn
DeTaJIe-3amIHnKIBMOKe npNZBeCTn Do
NaiHH TeleBizopa Ta
Nooro NpOKoJKeHHa
a6o TpaBMvBaHHa
JIoJe.

36npaTe KpOHTeH HaJIeXHM YINHOM, DOTPmMyOuNCb IPOUeDpyN, OINcAHOI B CbOMy Noci6Hnky 3 eKcnPyataui.

JaIO TBnHTN cIa6o 3akpiNehi aO BnTnAaIOb, TelebiOPO MOnE Bnactn Ta noKoDDNcA NO pTaBmYBaTn IIOeJ.

HadiiHo 3aTyrHiTb rBnHTn y 3a3HaueHOMy noJoxKeHHi.

KuO He 3pObTu, TeJIeB1Op MoKe BnactTa NOnkOHTNcA6o TpaBMyBaTn IIOJe.

IiD yac MOHTaKy cIid YHnKaTn NOwTOBxIB y HAnpMaKy TeJIeBi3opa.

Ypa3i noTOBxTyenebiOPO MoKe Bnactn a6o po3bntnc. LcMoKe cTaN pInuHIO TpaMByBaHHa.

BctaHOBIOIte TeJIeBI3Op Ha nepneHdkyIapHi CTHI 3 pIBHO NOBepxHeIO.

KuOyMOBA He BnKOHOYcBc,TeNBe3Op MOKe BnACTn Ta 3aBdTu CepNo3Hx TpaBM.

Пися монтaxy Telebi3opa 3aфikcuyTe ka6eni haJexKHM YHHOM.

Kkuo JIOa 160 abo o6'KTn 3anlytaTbCBA Ka6eJnx, ce moKe npVBectn do NOWKOxHHe TeneBisop a 160 TpaBMyBaHH.

CniikyuTe 3a TmM, 0o6 Hyp KINBHeHH 3MinHO rO CTpyMy a6o 3'EDHyBaJIbHN Ka6eJb He 6yB 3aTnCHyTNI.

Kuio shyop jNbHnH 3miHoro cTpyMny a60
3'EDhyBaIbHn Ka6eB 3aTHcHEn MIX
Bnpo6oMa Ta CTIOHO a6O 3IRHTM N CkpyeHNI i3 npNKlaDAHHm CnN, Noro
BHTpiHi npoiBDnKn MOxTy bOrNTncn
CnpuHNHTK KOPOTKe ZAMKaHHa a60
npobMaBHnEneKTPnuHOro cTpyMny. Lc
MeKe npni3BeCTn Do NoXekx a60 ypaXeHHa
eEeKTPnuHm cTpyOM.

TbHn, 3a DoNOMOIOJ KxKPOHwTeH dJa HactiHHoro KpinJeHHa KpInTbcra Ha CTiHi, He BXoJaTb DO KOMPKeKTy NOCTaayHHa.

IiHcMOHTyBaHHKPOHHTeHa DnHaCTiHOrO KpInJIeHHB NKOpNCTOByTeBnHTN BiINOBiHO Do CTpykTpyn CTHN TaMaTepiAly, kIM MOBA BkPNTa.

36epiraTe BnBnB KAPToHHI KopoBcU, y TEMHOMY,CXYOMY,NCTOMy NpMIiueHHi 3 do6poHO BEHTNIAIEO, OKPEmo BiD MlCtB 36epiraHHa KNCLOT I lyrib.TemnepaTpya 36epiraHHa:BiD-20°C Do+60°C.Bonorictb 36epiraHHA: <80%

3mict

PiIroTOBka Do BCTaHOBJeHHra 5

Ipebeipka deTaJei 5

Bn3haeHHMaicBCTaHOBJIeHH.6

YctaHOBJIeHHBa3Ha cTIHi 8

ПиД�Товka ДО ВСТаНовЛЕнь ТелевиЗopa......9 KD-85/75XG85□□,KD-75XG87□□......9 KD-65/55XG87□□,KD-65/55XG85□□......11

YCTaHOBJIeHHaTeJIeBi3OpaHa CTiHi.13 KD-85/75XG85□□,KD-75XG87□□ 13 KD-65/55XG87□□,KD-65/55XG85□□ 15

Ipebeipka nicra 3aBepweHnB BCTaHOBLeHHn 18 IHI BiOMocTi 18

TexhiyihapaKtepcntnki 18

BcTaHOBJIeHHaTeJIbI3opaHa cTiHi

Iopraok yctaHOBJeHHa 3aJIeKHTb BiD MoJeJI TeJIeBi3Opa.

Uo6 BCTaHOBtN TeJIeBi3Op Ha cTIHi, BnKOpNCTOByTe KPOHHTeIN dIra HAcTIHHOrO KpInJIeHHr SU-WL450.

PnIMtka

TpmaTe BnKpyeHrBnHTN B6e3neHOMy, HeOcXHOMy DnI dTeMicui.

Пидrostовkado

BCTaHOBJIeHHJ

• IpepeBCTaHOBHeHHyYBaXHo O3HaHOMTecb i3 DOBiHNKOM Ta Noci6HNKOM i3 HalaHTyBaHHr TeIeBi3opa.
  -Перед 3биразням поpekeонайтеся,юMaTe xpectoby BnKpyTKy,Як niДхоДNTьДя ГИNTIb.
• IpepeBipTe NOIOXeHHB BCTaHOBJIeHHN TeJIeBi3Opa.
  PiIroTuYe npHaMHi QOTnpu rBnuHTn diAmetpOM 8 MM i OAnH rBnuHT diAmetpOM 5 MM a6o ekBbAJIeHTHi (He BXOJaTb Do KOMNJIeKTy NOCTaHaHH).PiIbepiTB rBnuHTu BiINOBiIDHO DO MaTePiaJy,AKIM BkPITa CTiHa.

Ipebeipka deTaJIeN

Noctaeta3SU-WL450

• Ipepebipte, uBci deTaJI BKIOUeHO DOKOMNJIeKtY NOCTaHaHH.

AБаза(20)(1)ВШК	В(2)
CГВИNTPSW6x20(4)	DГВИNTPSW4x20i3Втулков(2)
EПрокадka(20)(2)	FРемиь(1)
GВтулka(20)(M4)(2)	HГВИNTPSW4x20(2)
IПерекдддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳баши(2)	JГВИNTPSW4x10(8)
KПрокадka(60)(2)	LГВИNTPSW6x50(2)
MВтулka(M4)(2)	NГВИNTPSW4x50(2)

Bn3haeHHa Micra BCTaHOBJIeHHa

1 Bn3haute Micce BCtahOBJIeHHra.

IpekeohaiTecra, 0cStHa Mae doCTaTHi po3mipn i B 3MO3i BNTpMaTu Bary, 0oHaaiMeHwe BVOTnp pa3n 6ilbuy 3a Bary TeleBizopa.

IaHI, Heo6xIDHI Iy BCTaHOBHeHH TeJeBi3Opa Ha CTiHi, MoXHa 3HaHTu B HabeJeHINHXue Ta6nci. Bary TeJeBi3Opa MoXHa 3HaHTu B IObIDHNKy Do TeJeBi3Opa.

CtaHdapTHe KpInnHnToHKe KpInnHnH

LentpaIbHa ToyKa ekpHa

OdHnIy BmIpOBaHH:MM

3 Miche BCTaHOBHeHHaAnTepa OCHOBn DnBiTbcra TabNci HxKue. KaO Bn6paHo 2-b, npOnyctiTB ceH KpOK.

Назва модени Розташуванни raков
KD-85XG85□□	a
KD-75XG87□□
KD-75XG85□□
KD-65XG87□□	b
KD-65XG85□□
KD-55XG87□□
KD-55XG85□□

Bn3HaTcMIuHCTb CTiHn,Ha kYbYE BCTaHOBNEHO TeneB1Op.3a Heo6xIDHOCTI 3MiUHTb CTHy HAnExHM MHHOM.

YctaHOBJIeHHa3nHa cTiHi

BukopncOBynte npHaMHi QOTnPn TBnHTn diametpom 8 MM a6o ekBbaIeHTHI (He BXoJrTb Do KOMJIeKTy NOCTaHaHH).
Bkpyitb yotnpn TBnHTn B OTbOpn Ha nepexiHnky dny 6a3n ① 3 6a3o10 (20) A (Tilbkn 2-a).
BCTaHOBIOJTe 6a3y (20) AROPn3OHTaJIbHO Ha CTiHi.

Y pa3i 3actocyBaHH TaKOro Tnny KpInJIeHH He MoXHa BnKOpNCTOBByBaTn OKpeM i po3'EMn Ha 3aHi nAneI TeJIeBi3opa.

4Пдклочьdo TeleBizopa Heo6xidiKa6eJI.

Ipebeipte niknueHHKa6enib nepeyCTaHOBHeHHMaTeLeBi3OpaHa ctiHi. Picna BCTaHOBHeHH TaJIeBi3Opa 6yHe HEmoXJINBO nIKnIOHTu Ka6eni.

IINB. OoiHnK Do TeJIeBi3opa.

PnpMItka

Ka6eIb y cTIH MaE npoklaaTn IiueH3oBaHn nIDPAHnK.
- YnpaKyTe Ka6eni, He HactynHn Ha Hx, nepu HIX MOHTyBaTH Ha CTHI.

5 Bi'ειηαίte hactiβHy πiδnopy Bi TeileBi3opa.

3HimaTe OndHy CTOpOHy HactIbHOi nIa np 3a pa3. MiuHo TpMaTe HactIbHy IINOPy DbOMa pykAm, B Toi Yac k IHwi OcO6n NiIMaOTb TeJIeBi3Op.

KD-85XG85□□

KD-75XG87□□，KD-75XG85□□

• NOBTOPiB nonepeHnKpOK Ta 3HIMiTb IHwY CTOpOHy HactIbHOI NiOpn.

Pnpimtka

-ⅢoHaHMeHHe TPNOC6nNotpi6Ho，OoB BID'EDHaTn HactiIbHy nDnOpny TeeneB3opa.
OctepiraTecra 3actocyBaHHHaMipHcNIN, BID'EDHyOuH NACTIbHny NiDnOpby BiD TeneB3Opa, OMOKe Pn3BecTu Do NaiHHr TeneB3Opa i CtaTN npuHIO TpaBMyBaHH JIOeJ a6o NooKoJKeHHr TeneB3Opa.
-ObepexHo NOoBbTec3 HactiIbHOIO niNnopoIO, 06 He noWkoDIT TeJeBi3Op.
-ПиДИМанTe TelenBizOp ObepeKHo, OCKINbKN BiI'cHHaHa HAcTINbHa ПДINOPa MOnKe NepeKHyTnCra Ta CnpuHHTn TpaBMn IIOdeN.
- BydTe Bkpa ObepeXHMM, KOJI 3HImaTmMeTe HactInbHy nIINpOy 3 TeNeBI3Opa. KaIO nIINopa BnaIe, BOHa MOKe NOUKOHTN NOBepxHO, Ha kIITPmaCTbCg TENeBI3Op.

KD-65/55XG87□□

KD-65/55XG85□

1 BnkyiTb rBnHTn i3 3aHboi naHeI TeJIeBi3opa.

2 3aФICyIe KpINJIbHi eIemENTKPOHHTeHaДЯ NaHactiHHOrO KpInJIeHHa. IpeBipTe HaABHicTb ycix KpINJIbHnx eIemEHtIB, KOpNCTUOuNCb CnNcKOM «ПocTaUaCtbc3 SU-WL450» y po3dJIi «IpeBipka Detalne» Ha cTOp.5.

PpIMtka

HaIiHo 3aΦikCyIe KpInuIbHi eJIeMeHTn 3a DOnOMOrOIO rBnHTIB.
-Дя eнгтпунови КУРТКВCTAHOBITb MОмeH 06eptaHHN pN6n3Ho 1,5 H-M {15 Krc-cM}.
-ObOB'3KOBO 36epeXitb BnKOpuctaHia 60 HeBnKOpuctaHi KOMNoHEHTN B 6e3neHOMy MiCiHa BUNaOk, kUo BOH 3HaIO6JIbTbcra B MaIbYTHbOMy. 36epeXitb uei NociHn DnBnKOpuctaHHa Mm6yTHbOMy.

CtaHdapThe KpinneHHa (2-a)

ToHke KpinJIeHHa (2-b)

PpimItka

Y pa3i 3actocyBaHH TaKOro Tnny KpInJIeHH He MoXHa BnKOpNCTOBByBaTn OKpeM i po3'EMn Ha 3aHi nAneI TeJIeBi3opa.

3Пдклочьdo Telebi3opa Heo6xidi Ka6eni.

Ipebeipte niknueHHKa6ebiib nepeyctahOBHeHHMaTeLeBi3opaHa ctiHi.IicnaBCTaHOBHeHHaTeLeBi3opa 6ydeHemoxNIBo nKIOuHTNa Ka6eni.1NB.DobiHNKdo TeleBi3opa.

Ppimrka

KaebIyCTIHMaEPnpoKlaaTNIueH3oBaHNIiPraHk.
- YnpaKyTe KaBenI, He HactyntHa Hx, nepHIX MOHTyBaTn Ha CTHI.

4 BiD'eHaHTe HaCTiBHy NiDnopy BiD TeLeBi3opa.

3HimaTe OndHy CTOpOHy HactIbHOi nIa np 3a pa3. MiuHo TpMaTe HactIbHy IINOPy DbOMa pykAm, B Toi Yac k IHwi OcO6n NiIMaOTb TeJIeBi3Op.

• Nobtopitb nonepedni Kpok Ta 3HIMITb iHw cytoPOHy hactiNbHOi niDnOpN.

PnpMItka

• OohaHMeHHe Tpu Ooc6n Notpi6Ho, 0o6 BiD'eHaTn HactiBHy niDnpy TeNeBi3opa.
  OctepiraTecra 3actocyBaHH HaMipHcNIN, BID'EDHyOnn HAcTInbHy NiDnOpny BiD TeneBi3Opa, MoMe npn3BecTN Do naHHr TeneBi3Opa i CtaTN npuHIO TpaBMyBaHH JIOeJ a6o NooKoJXeHHr TeneBi3Opa.
  -ObepexHo NOOBbTec3 HactiNbHOI iINopoIO, 06 He noWKoDIT TeEbi3Op.
  PiHimaTe TeneBizop ObepeKHO, OCKINbBiEHaHa HactIbHaPiNopaMOKe nepeKHyTcTa CnpuHHHT TaPBMn IIOe.
• BydTe Bkpa ObepeKHMn, KOJI 3HIMaTmMeTe HactiIbHy nIINpOy 3 TeNeBizOpa. JkIo nIINopa BnaJe, BOHa MoKe NOuKOJNTn NOBepxHIO, Ha kIITpuMaCTbcra TneBIZOp.

YctaHOBJIeHHaTeJIeBi3opaHa CTiHi

KD-85/75XG85□□，KD-75XG87□□

1Пидимить телевизр.

• ⅢHaTnca po3aWbHn HaKIB ⑧, 3a Jki TeJIeBI3Op NiDiBiWyEcBaHa 6a3i a6o nepexiHnky dny 6a3n, nB. Ta6JnIu Ira eTany 3 B po3diI i «Bn3HaueHHa Micra BCTaHOBHeHHa Hcstop.7.
• Tpmaou TeIeBi3Op, nepeKoHaNTecra, 3aHn6iK TeIeBi3Opa TopKaETbC8 6a3n a6o nepexiHnka dna 6a3n.

Pnpmitka

HaHIO TpMaTe TeIeB1Op O6oma pykAm. PemHb F y HxKHi YaCTnHi TeEbi3opa Ma6 6yTu BnPIBHn3a MaJIArPHoO CTpiKoO.
- Tpumatu Telebi3op nobHHI troe IIOJe. To, xTo po3TaUOByTbcra Cpepey BiHocHO Telebi3opa, Ma DaBAtu Bka3iBk iHMM, 06BupiBHnTn noIOxehn TaTelebi3opa.

-6yDBe Bkpa ObepeXHmN, KOIN BCTaHOBIOeTe Tenebi3Op Ha cTIi. OocblnBO obepeXHM cnid 6ytu TOMy, xTO niTpmye Tenebi3Op 3HN3y. PaHHa Tenebi3opa MoKe npu3BecTu DO TAAKnx TpaBM Ta HABiTb CMEptI.

2 YctaHOBITb TeIeBi3Op Ha 6a3y a6o nepexiHNK IJIg 6a3N.

• O6epexHo onyctiB TeJIeBI3Op Ta nIDbcIte uKIBu ⑧, npNKpINLeHi 33aNy TeJIeBI3Opa, Ha 6a3i a6o nepexiHky dJa 6a3N (BOHn NOBHHI BiINOBiDaTu PO3Mipam OTBOpIB).
• IicJRA BCTaHOBHeHHaTeJIeBi3OpHa CTiHi nepekoHaItecra, 10 WkIBn HADInHO 3aikcoBaHo B 6a3i a6o B nepexIDHnky nn6a3n.
• NobilbHO BiDnyckaIte TeIeBi3Op 6Oma pykam, uo6 nepecBIDHITnC, uo BIn He BnaJe.

-ПисяВCTaHOBHeHHaTeNeBi3OpaHa CTiHi 3HIMITb MaJIpy CTriPyKy (u aHaIorUHm MaTepiJ) 3i CTiH.

2-a

2-b

3ACTEPEKEHH

Пд ус посясень телевизору моровни Тримати сонаименше дболдд (хонаимeнше Tpoe,якwo diarohalb telvebizopa ckna dae 75 Дюмib ab6 bile).

3 3anobirahnra 3miueHHIO HxHbOi yactnHn TeJeBi3opa.

PiD6epiB npOBnCy yactHy peMeHraHaIINHO npKpiniTb NOrO Do CTInH.

BukopncOByTe rBNHT iAmetpom 5 MM a6o eKBiBaJIeHTHn (He BXoNTb Do KOMNKeKTy NOCTaHaHH).

Ppimtka

Cnpo6yTe NERKO NOYHHTN HXKHO qactHy TeB3Opa Ha Ce6e, 06 NepeKoHaTncs, 0o BOHa He pyxaetbca Bnepe. JaKIO TeneB3Op pyxaetbc, Ioro 3akpInHe HnPaBnIbHo i Heo6xIDHO ue pa3 HadiH No 3akpinntpeMihb F

1ПiДнИмТьТeЛeВi3Op.

• ⅢHaTnca po3aWbHn HaKIB ⑧, 3a kI TeNeBi3Op NiDbiUyEcTbcn Ha 6a3i a6o nepexiHnky dny 6a3n, nB. Ta6nIu dny etany 3 B po3di I «Bn3HaueHHn Micu BCTaHOBHeHHn» Ha cTOp.7.
  Tpmaoun Telebi3op,nepekoHaTece, 3aHn6ik Telebi3opa TOpKaTbC8 6a3n a6o nepexiDnka nla 6a3n.

Ppumitka

• HadiiHOTpMaTeTeleBizOp o6oma pykam.

2 YcTaHOBITb TeIeBi3Op Ha 6a3y a6o nepexiHNK IJRA 6a3N.

• O6epexHo onyctiTb Telebi3op Ta nIDBicBe 8, npKpInIeHi 33aNy Telebi3opa,Ha 6a3i a6o nepexiHky dna 6a3n (BOHNIOBVHI BiINOBiDaTu PO3Mipam OTBOpIB).
• Picra BCTaHOBHeHH TaJIeBi3Opa Ha CTiHi nepekoHaITeC, 10 WkIBn HADInHO 3aikcoBaHo B 6a3i a6o B nepexiHnky dna 6a3n.
• NobilbHO BiDnyckaIte TeneBi3Op o6oMa pykamu, u6 nepecbiHHTncr, uO BIn He Bnane.

2-a

2-b

↓

↓

3ACTEPEXEHH

Пдчспересенгтелевизорио nobHHITPIMATU OHaHMeHWe DBOEЛIODEI（OHaHMeHWeTPOE，KIOO diarOHaNbTeelvBizopa CknaJa75IIOIMiB abo 6ibwe).

3 3anobiraHHa3MiueHHIO

HNXHbOi YactnHn TeJeBi3opa.

PiD6epiB npOBnCy yactHy peMeHra HADINHO npKpiniTb NOrO Do CTInH.

BukopncOByTe rBnHT diameTpom 5 MM a6o eKBiBaJIeHTHn (He BXoNTb Do KOMnIeKTy NoCTaHaHH).

Ppimitka

Cnpo6ynte neroKo notHHTn HxNHO qactHy TeBisopHa hcebe, 06nepekoHaTncs, 00BOHa He pyxaetbca Bnpeep. kIoo TeBisop pyxaetbcra, Ioro 3akpinHe HnppaunbHo i Heo6xInHO ue pa3 HaJINHO 3akpinTu peMHb F

Ipebipka nicla 3aBepseHnBCTaHOBJIeHHN

Ipepeipte 3a3Nauehi HnXyne nyHKnT.

• Wkibn B HajiHo BCTabNeHO B 6a3y a6oB nepexiHnk Jn8 6a3n.
• Hyp i ka6eIb He nepekpyeHi He 3aTncheHi.
• Pemihb F MiUHO 3aKpinneHo 6e3 npOBucaHHa.

3ACTEPEKEHH

• Henpabnlbhe po3miueHHH uHypa XNBHeHHH 3miHHOro CTpyMTOOMOXeCTATN npuHHO NOKexi a60 ypaKeHH H eEkeTpHUM CTpyMOM yHacnIOK KopoTko 3AMnKaHH.3 MeTOO 6e3NeKn OOB'3KOBO nepeBipTe BCE nICr 3aBepWeHH BCTaHOBHeHH.

IHHI BiIDOMOCTI

Пд ус 3нимпя Телевизора ДOTрмуТecьВka3aHoi ПpoцEDуРи BCTahOBлeHHЯ Y3BOPOTHOMY NOPRky.

3ACTEPEKEHHJ

PiJac3HIMAHnTeJIeB3OpaNoroNOBHHI TpIMaTNIohAmHeHneDBoEIOJe（UoHaMeHWeTPOc，KIODiarOHaHbTeJIeB3OpaCKnaJaE75IOiMIBabo6Inbwe).

Texhihi xapaKtepncnkn

Po3mipn: (npu6n.) [MM]

a:400

b : 300

c:200

d:100

e:80

f:480

g : 100

h1:20（BunaDOK2-b）

h2:60(Bunapok 2-a)

Bara (Tilbkn 6a3a): (npn6J.) [Kr]

0,8

KoHCTpykui Ta texHiXapaKTepnTKMOKyTb 6yTN 3MiHeHi 6e3 nonepeJKeHH.

Ohuke paigaldus (2-b)

Markus.

Ohuke paigaldus (2-b)

Markus.

Mass (ainult alus): (umbes) [kg]

0.8

KypbIINfbIHbTa3aJay He OraH KYTIM Xacay Ke3iHde KaTbI KYW CaImHaB13.

Teneiapdbh korapb beneriH kattbkyu mamahbi. Erep coaI cTeHTIH 60ncabhi, Teneiapbp Knyalb Hemece Myniktih 3aKbIMDaHybl MYMkiH.

AldbH any shaapanapbl

Ka6biprafa 6eKty KpOnHteHiHe opnatbnfA TeneiHaapbl y3ak YaKbT 60bl nnaDnAnhcaHb3, Ka6bprAhB MaTePnAblaHa 6aIbnHcTb TeneiHaap aptbHnAr He yctHderI Tyc3epyI MeMece Tyckara3dbH TYCI KEty MyMKH.
Ka6bprara 6kty kpoohuetaHH opHaTkaHHaH KeiHa KaIaTa aCaHa3, Ka6bprada 6ypaHa cBaHaIaynapbla Kaala.
Kabipara 6kity kpoHtTeHH
mexankanbTep6eic acep eTeIH opbHa
naiDanaHaB13.

Ka6biprafa 6ekity kpoHwTeHH opHaTy

Sony dnilnepepi ywiH

ECKEPTY

Keneci Hcykaynap Tek Sony dinyepnepine
aphanrah. Korfapbda 6epinreH andbin
any wapanapabH bIN nbIbIFbH3 xHe
ocby KpyblfBbOpHaTy, oFAH KYTIM
Xacay, OHb Tkepey Ke3iHde aca Ha3ap
aydpabHb3.

Ka6biprara 6ekity kpoHwTeHH

TeIeIuIapdbIH

6ypbIHTapbI He KaNTaJIbI Ka6bIpra 6eTIHeH WbIFbIN TypaTbIH OpbIHApFa opHaTNaHbI3.

Ka6biprafa 6eKity KPOHtTeHHIN TepeiAapdbin BypbiuTapbl He KaNTanbl Ka6bipra 6eTIHeH uBbl Tpyatbl GaraH cekindiOpbHApFroOpHaTnHb.4Am Hemece BaCa 3aT TepeiAapdbin Ubbln Tyfah BypbiuHa He KaNTanbla CoKca,On Xkapatanyhmece MyNk 3akBmDahybl MYMKH.

TeJeIaApbIH caKbIHDaTkbIHTbIH ycTiHe He acTbHa opHaTnaHbI3.

TeneiDapFa caKbIH DAkBHTAH yakyt BokCy taMbIaPbI aKa He cAnBHa ayacocka, ON eptke, ToK coryfa Hemece TeneiDapBdH Dpybc XyMbic IcTeMeYiHe ekenyMYMKH.

Ka6biprara 6ekity kpoHHTeHH OcbI

naindaanhy HcayIbIbHa cyneHe OTbIPbIMMbIKtan 6ekiriH3.

Bpyanapabih6piKofanbinHeTycin Kanran
60nca,Kabipfara6eKity KPOHHTeH Kyanan,
XkapaktaHEmece MyNIKTIN 3aKbIMDaHbHa
Eeknyi MymkH.KabipraHbMATEpnaIbHa
cainbpyanapabn naIaNanahb13 XeHe
DnAmetpi8MM (HEmece YKcac)6ONaTbH Tep
He ODA HAN KEN Bpyanapabn naIaNanah
OTbPbN KpyanblMbIKTan6eKITIH3.

BepinreH 6ypaHdaIap
meh 6ekity
6eIweKTePin OcbI
HyckayIbIKTaftbl
HyckaynapFa cyneHe
OTbIPbIN dypbc
naindaHaHbIHb13.
KocankbI 3JeMeHTTepdi
naindaHaHcaHb13,
TepeiHap Kynan,
6ipeyre Dehe
XapaKaTbIH canybl
Hemce TeJeIaHapDbI
3aKbIMDaaybl MymkiH.

HcyaynbkTa 6epiReh npoceDypanapra cyneHe OTbIPBn KPOHwTeHdi DypbICTa

KypactbipbiHbl3.

Bypanapapb6ipjxorfancaHemeceTcin
Kanfahbonca,TeneinapKynan,bipeyre
DeHeJkapakatbnCanbyiHemece
Tepeiadpbl3akbIMdayblMymkiH.

Бураздалар корсетин reн opьИда мьiktанбекитиу kepek.

OcbnaiopbHdalmaca，TepeuapKylan, 6ipeye dehe kapaKaTabh canyib Hemece Tepeuadpa3akmbday MykH.

OpHaTy Ke3iHdTeNeIaDapbI COfbIn aImaHbI3.

Teneiapdbcofbin ancahbi, on knyaybI Hemece cbHybMyMkiH. ByaH xapaKaT anybHbM MyKhi.

TeJeIaIapbI Ka6bIpra MeH eDeHre nepEnHKyIrp 6oNaTbIHdai etin opHaTy KepeK.

Erep conai 6oImaca, Teneiupap KnyaybI Hemece xapaKaT anyBIsMMyKIn.

Tepeiap dypbc opHaTbIraHHaH KeiH Ka6eJIbdeepdi dypbc 6ekitiHi3.

Aamap HeMece 6acka 3attap KaebIe opanatbH 60nca, xapaKaTka He TeEniDapdbH 3akBIMdAhybHa eKeyi MymKiH.

AinHbImaJIbI TOK cbIMbl HeMece Kocy Ka6eni KbICbIJbn KaJmaybl KepeK.

Ainbimab Tok cbmbi Hemece Kocy ka6eni
KpaJI MeH Ka6bipra apacBHa KaCbIbn
KaIcA, MaBICaH Hemece KyuTEN opaIraH
Bonca, Iki KaBITTaftap 3aKbIMDaHIn,
KbIcKa TybIKaTnyra Hemece 3neKtp Ke3IHH
y3inyHe ce6en 6onyb MyMkh. ByeptTih
naJa bOmyHa Hemece Tok coryr Akenyi
MyMKH.

KpoHtTeHdi Ka6bipfara 6ekityre kaxeTTI 6ypaHaJap 6epiImereH.

Ka6bipfara 6eKity KPOHHTeHH 6eKITy Ke3iHe Ka6bipraHH MaTepnaJIbMeH KpyblmbHa caBypaHdaanapDb naDaanahbHb3.

Ma3MyHbI

OpHaTyfdaaibHbIK 5

OpHaTbIaTbIH opBHdbI aHbIKay 6

Ka6bipfara TyfbipDbl opHaTy 8

TeleNiIapIbI opHaTyfRa daIbHday 9 KD-85/75XG85□□,KD-75XG87□□.9 KD-65/55XG87□□,KD-65/55XG85□□.11

Ka6bipfara Telendapdbi opHaTy 13 KD-85/75XG85□□,KD-75XG87□□ 13 KD-65/55XG87□□,KD-65/55XG85□□ 15

OpHaTydbH aayTaNfRaHdbfBbH TeKcepy 18 BaKa aKnapat 18

TexHnKaIbIK cInaTTaMaIapbl 18

TeJeIaIapIbI ka6bIpraFa oPHaTy

TeneiapdbH Typhe 6aHaNbICTbOpHaTy npoedypacbi e3rewe 60ana.
TД-нbl Ka6bipfara opHaTy ywiH SU-WL450 Ka6bipfara opHaTaTBH KPOHHTeHiH
naiDanaHbIHb3.

Hycay

• AnbIHrAn 6paHdIaIapDbI 6anaIapdaH anbc, Kayinc3 opbIHra KoibHbI3.

Ophatyfa daHbIHdbIK

OpHaTy aIbHda Td aHbIKaMaJIbIK HcayIbIFbIH XHe opHaTy HcKayIbIFbIH aIbHbI3.
Kypactbipmac 6ypbH 6paHdaapra cai Keletin Phillips 6ypaybiu 60nyi kepek.
TeJeIaIap 6ekitineiH opbIHbI aHbIKTaHbI3.
Диамет pi 8 MM 60nataBH Tep Hemece OdaH da KEN 6ypaHaJa XHe 5 MM-Nik Hemece YKcac (6epiImereH) 6ypaHa DaBbIHdAhl3. Ka6bipraHbH MaTePnaJIbHa cai KeJenTin 6ypaHaJaIapDbI TaHaHbI3.

БелшекердTekcepy

SU-WL450 KypbIrfbcBImeH 6epinei

BapIbIK 6eJIWeKTePdIH 6ap eKeHdiIRiH TeKcePiH3.

A Heri3 (20) (1) B Terepušík (2)
◎ PSW 6x20 (4)◎ TbIFbIH PSW 4x20 (2)
E Apaŋbɪk (20) (2) E	Bénpáík (1)
◎ TbIFbɪH (20) (M4) (2)	H PSW 4x20 (2)
① Herižrì aðanptep (2)	J PSW 4x10 (8)
K Apaŋbɪk (60) (2) L	PSW 6x50 (2)
M TbIFbɪN (M4) (2) N	PSW 4x50 (2)

OphaTbIaTbIH opbIHdbi aHbIKtay

1 OpHaTbIaTbIH opbIHdbI aHbIKTaHbI3.

Ka6bipfada TД ywiH keTkiNtiopbIH 6ap ekeHH kHe TД-DbIH KEMiHc TePTE cea aybipIbIFbIH KeTepe aNaTbIHdaFAn TEKcepH3.

TeeIaapbKa6bipraFaOpHaTyTypaBKeNeciKcTeHiKapaHb3.TeneIaapbIHcaMaFbH TeKcepywIH TeneIaapbIH AHBkTaMaBikHyckay6JIIMH KapaHb3.

CTaHdapTTbI opHaTy KaKbIH opHaTy

3KpaH opTacbIHbIH HykTeci

Kypan:MM

Ynliri hemipi	экразецемерi	экразецьим элшемi	Орнату узbingьгы
	a	b	c	d
				Стондантсы орнату	Жа KBIN орнату
KD-85XG85□□	1909	251	803	142	100
KD-75XG87□□	1673	963	107	595	116 75
KD-75XG85□□
KD-65XG87□□	1450	836	99	523	115 73
KD-65XG85□□
KD-55XG87□□	1231	713	106	468	115 73
KD-55XG85□□

HycKay

KecTeDipeKeTep opHatyra 6aIaNahbictb a3dAn e3eweeneHyi MymKin.
TД ka6bIPfA OF OPAHbINFaHd TД JxOFApFBi 6eNiri a3d an aHaEKeIeI.

Teeneiap MeT Te6e XaHe Ka6bipraHbIH WbIFbIKbl 6JIikTepi apacbIHda TeMeHde KepcetilreHdien aWbIK opbIH KaIbIHbI3.

Kypan:MM

Tnicti xenety khe Kip MeH wahhbH XnHaanybH 6oNdbpMay yuH:

• TД-ды Калларын КйmaHbI3,Жorapfbl KaftbH TeMeH Kapa apKa KapTaBn Hemece KblpImeH opHaTnaHbI3.
• TД-дbl cepere, kIeMRe, TeceKKe Hemece WkaΦKa KOnMaHbI3.
  TД-ды nepденер сяктшубepkeн HeMece ra3etTeP T.6.CNkTbI 3JIeMeHTTepeMn KaHNaHbI.
  TД-дытemeнда КерсTiHReHdO opHaTnAbI3.

Aya aHaHaNbIMbI 6nOKTaNfAH.

HycKay

Ka6eBnepi Ka6bipra iWine caNtH 6oNcaHb3, opHaTnac 6ybpH Ka6eB caNbHaTbH Ka6bipraHb Tecin anybHb3 KepeK.

KaBeIbIep KbcIbIbn KaMnac yIiH Heri3 (20) A, Heri3ri aIaIaTep ① MeH apaIbIK (20) E, apaIbIK (60) K nepuMeTpIHeH Tbc KaBipFaHaH CaHbIay DaIbIHDaHbI3.

2 Ka6bipfara opnaty ctniH TaHaH3. TeJeIaDapdbIH apTKbl XaftMeH Ka6bipfa apakaawbIKtbfbIH TEmHeKepcetinreHdenn TaHdayFa 6oNaDbpeTteNeDi.

2-a CtaHndapTTbOpHaTy
2-b KaKbIH opHaTy

1-Kaam KecTecIHe KapaHbI3.

ECKEPTY

-2-b TaHdaIraH Ke3e, ApTkbl TepMHaIra KaTbHac WeKteyni 60anaB1.

3 Heri3ri aanTepdi 6eKity opHbI TypaJIbI TeMeHderi KeCTeDeH KapaHbI3.2-b TaHaJFaH XaFdaNda, OcbI KaaAMdbI eTKi3in Xi6epiHi3.

Yürgi Hagemi p IJMEK opHBi
KD-85XG85□□
KD-75XG87□□	a
KD-75XG85□□
KD-65XG87□□
KD-65XG85□□	b
KD-55XG87□□
KD-55XG85□□

AanTop ① Heri3iH (PSW 4x10)
② BypaHdaIapbImeH 2-a
TaHdaIraH Ke3de (20) A Heri3iHe
6ekity.

4 Heri3di (20) @ opnaty ywiH 6ypaHaIapdbIH opHbIH aHbIKTaHbI3.

18-6eTteri cinnatamanaapbI kapaHbI3. 2-a TaHdAnFaH Ke3De, ① AanTop Heri3iHIn Tecik opHbIn naJaHaHBHbI3.

ECKEPTY

TeJeIaIap OPhaTbIaTbIH Ka6bIpFa TeNeIaIap caMaftbHaH TopEce aybip CaIcAktbI KeTepe aNybl Tnic (CaMaftbH TKCEpy YwH TeNeIaIapDbH AhkTaMaIbIK Hcyay 6eJIIMiKapaHbI3.).

TeJeIaap 6ekITineH Ka6bipFaHbH 6epiKiriH aHbIKTaHb3. KaXeT 6oNca, Ka6bipFraHbI XeTKinKiTi TypDe KyweTIH3.

Ka6bipraFa TyfblpIbI opHaTy

-Диametpi 8 MM 60nA TbH He yKcac TeP T Hemece OdaHa KeN 6ypaHdaHb I naIdaIaHbIb3 (6epiJmereH).
① AaantOpbIHbH Heri3iHe TepT 6ypaHaJaIapbl (20)A Heri3imEn 6ekitii3 (Tek 2-a).
Tfbypbl (20) ka6bipraFA KeIeHeH etin opHaTbIHb3.

TeJeIaIopHaTyFa daIbIHday

Tipek opHaTy HxckaynbIFbIH KapaHbI3.

KD-85/75XG85□□，KD-75XG87□□

1 Ka6bipfadaftbOpHaTy opHbIH 6enrineHi3.

Heri3 Hemece Heri3 aadantepi XaHbIHdafte TeneiIapdbinOpHbIN 6enriney yuHn Okwaynay TaacnacBn, T.6.(6ipre 6epimere) naDanaHbHb13.Keneci kecteni KapaHb13.

Kypan:MM

Yntri hemipi	Белriney Узblдыflы			Зкран optacblblн элшемi
	a	b	c	d
KD-85XG85□□	1909	683	200	251
KD-75XG87□□	1673	468	200	107
KD-75XG85□□

2 TeIeIaIapbIH apTbIHdaftbl 6ypaHaapdbI aIbIN TaCTaHbI3.

3 Ka6bipfara opHaTaTbIn KPOHHTeIN YwIH TIPKey 6eIweKTePIn TIPKeHi3. 5-6eTTeri «BolweKTePdi TekcepY» 6eImiHderi «SU-WL450 KpypbIJIbICbIMeH 6epinei» TapMaftbIN Kapay apKbIbI MoHTaXday 6eIweKTePIn TekcepPi3.

HycKay

-6ekity 6eIeKTePiH 6ypaHdAnap apkblbMbIKtan 6ekit13.
-3NeKtp 6bybIbTb naIaIaHaHda, aHany 15 KkCm opHaTbHb3.
- NaДананынган HeMece naДананынмаганбишктет apdars kOJaHbIC yWIn Kayinci opbHra caKaTaNFaHbI TEKCEpiH3. Byn HcckaybIKtB 6onaaKaTa Kapay ywIH cKaTaHbI3.

CTaHdapTTbI opHaTy (2-a)

XaKbIn opHaTy (2-b)

HycKay

-5yI opHaty CTNIH naIaIaNHaHaTaTe TENEiIapDbIH apTKbI XaFbIH DaFBI KOHTAKTTap Kei6ipeYIH naIaIaNHa aImaiCb13.

4 KaKeTTi Ka6eNbDi (Ka6eIbIepdi) TeJeNIdapra Kajray.

Teneiapbka6bpifaopHaTnac 6ypbH kaebdeepinKaIraHraHBIn TeKcepH3. TeeneiapdbOpHaTKaHHaKeIH KaebdepjkanfayMymiH 6oMaJbI. Teeneiapmen 6epineiTAnbIKtamaJIbIK Hcckay6enimHkapaH3.

HycKay

Ka6bipfara Ka6en b kypri3ydi nuehenracbi 6ap Meepirepre 6epin3.
Ka6bipfaraMOHTaXday aIbIHda,6acBIn Ketney yuH, XanFactbpyu bKa6enbepdi KocbHb3.

5 TД-дан YcteI TyfblpH aXbIpaTbIHbI3.

• YcTeJin yCTiHri TaKTaBbHbH 6ip Jxak 6aHaacbH 6ipDeH aNbIn TAcTaHbI3. BaKa aAamdap TeJeNDapDbI KeTepeRHe We YcTeJin YcTIHri TaKTaBbHbH 6aFaHaCbH KaTbI YCTaHbI3.

KD-85XG85□□

KD-75XG87□□,KD-75XG85□□

AnbHbKaamMbKaTaNbI3XHe yTeNdIHyCTIHrTaKaTaNbIHnEkiHwJxak 6araHaacbH anbIn TaTaHbI3.

HycKay

• YCTEN TyfbipbH WEEWY YUIN YU H OdaH KEN aam KaKET 60nabbl.
• YcTeN TyfblpHbTeneiDapAn WeuKeH Ke3Je Wamaan KEN KYW CaMMayra TblpcBhl3,ce6e6i 6yn TeNeiDapBbH Kylan, DeHe XapaKaTbHa HeMece TeEniDapBbHn3KaNbIK 3aKbMbHa eKeJyIMyKiH.
  TeIeIaIapbH 3aKbIMdaNybiH 60nblpMAY yuH yCTeTyfbpbH a6aian KOnDaHbHb3.
  TeIeIaapblkotepeHneabai6oJIbH3,eiTkeHi yCTeTIyfBipAlxkbipaTbIN，kapamcbI3bIKKa yubpaybiMymKIn.
  TeIeIaIapAnyCTeTyrbIbHanyKe3InDeKynaTbI anyaanXeHe TeIeIaIapOpHaTbINFaH6Etke 3aKbIM KeTIpyEnCaTbIKwapanapabHKonfaanbHbI3.

1 TeIeIaIapbIH apTbIHdaFbl 6ypaHaIapDbI aIbIN TaCTaHbI3.

2 Ka6bipfara opHaTaTbIn KPOHHTeIN yWIn TIPkey 6eIWeKTePIn TIPKeHi3. 5-6eTTerI «BeIWeKTePdi TekcepY» 6eImiHderi «SU-WL450 KypblfbcimEn 6epinei» TapMaTbIn Kapay apKbIbIMOHTaXday 6eIWeKTePIn TekcepH3.

HycKay

-6ekity 6enwekepiH 6ypaHdaanap apkblb MblkTan 6ektiH3.
3NeKtp6pyaybIITbnaIaIaNHaHda,aHany 1515KcMOPHaTbHbI3.
- NaIaHaHbIraH HeMeCe naIaHaHbIMaFaH 6eep aandafo kOndaHbc yiwin KayinciOpbHa cKaTaNfHaH TeKcepiH3. Byn HcykaynbIKtbi 6onaawKaTa Kapay yiwicKaTaHbI3.

CTaHdapTTbI opHaTy (2-a)

XaKbIn opHaTy (2-b)

Hycay

-5y npHaTy cTnH naIaIaNHaHaDa TeNeIuapDbH apTKbI XaFbIHdaB KoHTAKTTap Kei6ipeYH naIaIaNHa anMaIcbl3.

3 KaKeTTi KaBeIbI (KaBeIbIepI) TeJeIaIapFa XaIraY.

Teneiapbl ka6biprafopaHataNac 6ypbH Ka6ebJdeepinKaIraHaRaHbIH TeKcepiH3. Tepeiapbl opHaTKaHHaKeiH Ka6eJbpki KaNFay MymiH 6oMaIbI. TepeiapMeH 6epineH AnbiktamaNbIK Hcyckay 6enimH kapaH3.

HycKay

Ka6bipfara Ka6eBxJypr3ydi NmueH3nrcbl 6ap Meepirepre 6epiH3.
Ka6biprafmoTaxkdayaIbHda,6acbnKeTneyyuih, KaIfactbpyu b Ka6enbdepni Kocbl3.

4 TД-дан Yстел Tyfblpbln axblpaTbIHbI3.

• YcTeIiH yCtiHi TaKtaiBihBn 6ip Jxak 6aFaHaCbIH 6ipDeH anBn TactaHb3. BacKa aamap TeNeiApDbl KTePreHwe YcTeIiH yCtiHi TaKtaBihBn 6araHaCbIH KaTbI YCTaHb3.

AaHbIbI KaamdbI KaTaNbI3 XHe yCTeINIH YCTIHr TaKtaBihE eKHHJ KAK 6araHacbIH anbIn TactaHbI3.

HycKay

YCTEN TYfblpBH WEEW YWIN YU H OAn H KEn aam KaKeT 6oana.
YcTeI TyfblpIH TeEiNapdAn WeUkeH Ke3Je WAMaHaH KEN KYU cAmlMayFa TbIPbcIbH3,ce6e6i 6yTeneiDapdbH KyJaan, DeHe XapaKaTaHa HeMece TeneiDapdbH Fm3nKAbIK 3aKbIMHa eKejIy MyMkiH.
TeEniapb3aKbIMdanybH60nDipmay yuH yTeTfBpBH aabnn KOnDaHbHbI.
TeneiapblkTepeHneabai6oJIbIbI3,eiTkeHi yTeT LyfblpAlxkbipTaBbIn, kapaMcbI3bIKKa ylbpayMiMKIH.
- TeNeiIapAn YcTeN TyfblpIH any Ke3IHne KyNaTbIN anyDaH KHe TeNeIaIapOpHaTbJFaH 6eTke 3aKbIM KentTipyEn CaTbIK WapanapBn KOJa aNbHbI3.

Ka6bipfara TeIeIiIapIbI opHaTy

KD-85/75XG85□□，KD-75XG87□□

1 TepeiapdbI KeTeepiH3.

Heri3deri Hemece Heri aanTepihderi imekteri TerepukkTe 8 opbH 7-6Tteri «OpHaTbIaTbH opbIHbI aHbIKay» iwiHderi 3-Kaam keCTecHeK kapaHbI3.
TeeneiapdbI yctaraH Ke3e TeJeiap apTbI Hei3re HemeCHe Hi3 aanTepiHe TneTIiHe Ke3 XeTKi3iHi3.

HycKay

TeNepiapbki konmeh 6epik yctan,6en6ey F xane Tepeiap actbi OKwaynay TacnacbImeH TypanaHaHbHa Ke3 XeTKi3iHi3.
TeIeINapbl yu aam BoNbIn TacbImaHaB3KeHe TeNeINap anDbHafbl aam BackanapbHaOpbH peTey boHbIHwHcykay bepy KepeK.

TeeneiapblKa6bIprafae6eKITyKe3Hneabai 60nblb3 (acipece, Teeneiapbl acTBHaH yCTaTbH aam), c6e6ti Teeneiap KINHArly Kynan, aybp DeHe JapaKaTaBHn Hemece Tiinti EInmre eKenyi MyMKIH.

2 TepeiapIbI Herizre Hemece Heriz aanTepiHe opHaTbIbI3.

TeeneiIapabiaakbpihTMeHcbipfblIN, TeeneiIap apTbHa TipKeIreH terepwikTepdi 已 heri3re Hemece Heri3 aanTepine inin, cahbnaynap niwiin paCTaHbI3.
TД-ды ka6bipfara opHaTKaHHaKeiH TereepwikTeP ⑧ Herizre Hemece Herizri adanTepre 6ekem iinHreHdirH TeKcepH3.
TeIeIaIapDbIH KJlAmaHTbIHbHa Ke3 XeTki3y ywiH eKi KOJIbIHbI3dbI 6aay 6ocatblbI3.

Tepeiapbl Ka6bipfara opHaTKaHHaH KeiH, Ka6bipraHaN Okuaynay TacnacbiH, T.6. WewiH3.

2-a

↓

↓

↓

2-b

↓

↓

↓

ECKEPTY

TeIeIaIapblTacbImaIayKeiHneEkiHemeOdaH KAn aam (75IOHMdiXHe OaH YIKeH TeIeIaIap XHaFbI yIH YH Hemece OaH KeI aAM)YCTaFaHbIH Tekcepip3.

3 TepeiapbH TeMeHri 6eJIiriH Xblkbln KeTyH 6oJbIpMay.

• BeNDiKi (F) aIbIn, OHbl Ka6bIpfara MblTan 6ekTiH3.

-Диametpi5MM60nataBHHeMeceYKcac 6ypaHdaHbI naDanaHbIHbI3 (6epimereH).

Hyckay

TeEniDapbH anFa Kapai KblkbimauTbHbH TeKcepy yuiH TeneDuapdbH TemeHri 6enirih e3iH3re Kapai akbpH TaTpBn KePiJ3. KblknTuH 6onca, dyplic 6ekitimeren 6onfaHbXeHe 6enikTI KaTa 6ekitih3.

KD-65/55XG87□□，KD-65/55XG85□□

1 TepeiapdbI KeTepiH3.

Heri3deri Hemece Heri3 aanTepihderi imMeKteri TerepikTep 8 opHbH 7-6eTTeri «OpHaTbIaTbIH opbIHbI aHbIKay» iwiHderi 3-Kaam keCTecHeH KapaHbI3.
TepeiapbI yCTaFAn Ke3De Tepeiap apTbI Heri3re Hemece Heri3 aanTepiHe TneTIiHe Ke3 XeTki3iH3.

HycKay

TeJeIaIapIbI eki KJIbHbI36eH TbIFbI3 YcTaHbI3.

2 TeIeIaIapIbI Heri3re Hemece Heri3 aIanTepiHe opHaTbIbI3.

TeeneiIapdbiaakbpihTemeHcbipfblIN, TeeneiIap aptbHa TipKeJreH terepwikTepdi 已 Heri3re Hemece Heri3 aanTepine inin, cahbnaynap niwiHn paCTaHbI3.
TД-ды ka6bipfara opHaTKaHHan KeiH TereepwikTeP ⑧ Herizre Hemece Herizri adanTepre 6ekem iinHreHirH TeKcepij3.
TepeHapdbIH KyaMaHbHbHa Ke3 KETki3y yuiH eki KOJIbHbI3dbl 6aay 6ocatbHbI3.

2-a

2-b

↓

↓

ECKEPTY

TeIeIaIapIbI TaIbMaIay Ke3iHne eKHe Hemece OaH KEN aAM (75IOHMdi XeHE OaH YNKeH TeJeIaIap KINHaFbI YWIn YW Hemece OaH KEN aAM) YCTaFaHbIH TEKcepH3.

3 TeIeIaapbH TEmehri 6enirinH Xblkbln KeTyIH 6oIbIpMay.

• Beiikti F anbIn, OHbl Ka6bIpara MbiKtan 6ekitiH3.

-Диametpi 5 MM 60nataBH HeMece yKcac 6ypaHdaHbI naDanaHbIHb3 (6epimereH).

HycKay

TeIeIaIapbH anFa Kapai KblKbMaTbIHbH TeKcepy yuiH TeIeIaIapbH TemHri 6enirH e3iH3re Kapai akbpH TApTbIN KePiH. XblNkTuBn Bocca, Dypic 6ekITIMereH BonFaH bKeHe 6enDikTI F KaTa 6ekITIH3.

OpHaTydbIH aKaTaNfAHDbIFbIH Tekcepy

Kenecinepei TekepiHiz.

TerepuikTepeHemerceHerizirandepre aantepihe bekem iniHdi.
- CbIM MeH Ka6eNb opaImaFaH Hemece KbICbIImaHaH.
- BeNDiK (F) MbIKtan 6ekitijreH.

ECKEPTY

AinHbImaIbTOKcbIMbIHHeMece T.6.KateOpHaJIacBykBICKaTybIKaTYCaIaDapbIHAnepTTiNnaiDa6OlybHAhemece TokcofYKayniHEeKeJyIMykH.OpAtyKMybICTapbIHhKayinc3dk TaIaNtApbHa caOpbHdaIraHbHaKe3XeTK3iH3.

Backa aknapaT

TeneiapbI anFaH Ke3e aIbIHfI opHaTy npoeDypacbIH KepiciHwe opbIHdaHbI3.

ECKEPTY

TeIeIaIapbIweuYKe3Hde eKHeMeceOaHKeN aam (75IOHMdiXaHEoAHyIKHeTeneIaIapKHaHbIyWInYH Hemece OaH KeaAM) YCTaFaHBiTEKcepiH3.

TexHnKaJIbIK cHnTaTamaJapbl

,yn by npnnn nn n npnnn nn n nn n nn n nn n nn n nn

nni nni nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

ybynnn,ynynn

IN nnnn nn nn

ynnn nn nnnn bn ynnn nn

#

Dn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

n nn nn nn nn nn nnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

yyn pnn by nno nyon bnbynwn,nyon on.ynbn ypn in nyob on

177

DINNNN NNNN BYNPN INN NNNN NNNN NNNN NNNN NNNN NNNN NNNN

ybn npnnv topn

07712 0316 7-5y 1310777777 .

IN pnn nnnn nn nnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn

n

n nn n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

ybnynnnn nnnn pnnn

y 107

100000000000000000000000000000000000000000000

NNN 107

yhy nybn,nyyn ON

yyn yyn

yhy npn nny on

7777777777777

ybn by pwn yynn np nnn nnynnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

mno 2y

y

mmppb

yipnnn npnnn npn n nn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn

Sony

y 1000000000000000000000000000000000000000000000000000000000000000000000

ynnn nn nnnn nn nnnn

nnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

in nnnn nn nnnn nn nnnn

NNPnnpn TINNp bynnn.

ybnbynnbnynnynn

5vnnn nnN 107 p7n,

，

IN nn an 7vannn .

Onnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

yDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDy

ywnn nnynnnn nn nnnn

IN OIN NIN INN ON
NIN,NNN NNNNNNN
NIN IN NINNNNN,NNN

NNnnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nna, n 1000000000000000000000000000000000000000000000000000000000000000000000

ywnynn 10
nnnynn 10
nnnnn nn n
n. ninnn nn
pynnnn nn n
nnnnn, pynnnn
nnnnn nn nn
pnnnn nn nn

nppnnn

0

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

N 5 100

• nyn nn nn nn nn, npnnn 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• 6
  ·
  8 9 KD-65/55XG87□□11 KD-65/55XG85□□
• 1. KD-85/75XG85□□,KD-75XG87□□ KD-65/55XG87□
     . KD-65/55XG85□

#

SU-WL450 1

(1)(20) (A)(2) 防火手B

18
18. 0792

PSW 4x20 (2)

(4)PSW6x20

(2) (20) nnnn

(2)PSW4x20 H

(2) (M4) (20) ⑥

(2) D

E(1)

F

nnuuun nnnn nn nnnn nnnn Su-WL450 npnnnwnn nn

.075v07vnnopnnn

，

(2) (60) nnnn

①⑧)PSW4x10 ⑥

(2) (M4)

M(2)PSW4x50 N

nppnn npny noyn

1.nppnn

yNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnN

：

	\( \mathrm{n} \)	\( \mathrm{y} \)	\( \mathrm{z} \)	\( \mathrm{w} \)	\( \mathrm{h} \)
	e	d	C	b	a
n	n	n
n	n	n
					1,9091,097KG
					KD-75XG87□□
					KD-75XG85□□
					KD-65XG87□□
					KD-65XG85□□
					KD-55XG87□□
					KD-55XG85□□

.
.

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

2-a

npt nvn 2-b

12y

77

nnn nn nyn,2-b nna

nnn

.0000000000000000000000000000000000000000000

a	KD-85XG85□□KD-75XG87□□KD-75XG85□□
b	KD-65XG87□□KD-65XG85□□KD-55XG87□□KD-55XG85□□

2 Pn7P 7

n:n
7n + 5 = 10
- by in Tn,
-NNnNn
-，
m : x = 1 或 3x + 4y + 1 = 0

.

7n7n

nnpnn nn nnnn 0000000000000000

ynnn nn nnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

(20) nnnn ① v nn, (20) v nn

(60) nnnn

7pn 2x-5y 0oan npnn

（p）

.（2-a）④（20）VVA ① V

.

2-a

2-b

ONnnn,2-a nno ny

· 87

ONN BY IN O'ON BY NIBN W

NTN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7T

nnnnnnnnnnnnnnn

INO

nunbn nn nnnn pnnn F nywnny

-

07NNN 1111111111111111111

DTNTOVON

• non, np by np bn npnn nn

by monbbon n

nynnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

nnn by n nn by n nn wnn 3 27777777777777777777777777777777

nnnnnnnnnnnnnnn

1. nnnn nn nn
2. ⑧ mòn nòu nòu

IN 022 ynnn nnnnnt N

3nnn

.

• nnnn（

. npnna

.

n nn n nn nn 8 nn nn nn np by npnn , nn nn

T 17 T NNNN NNNN NNNN 8 NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN

niv 5 vip nn . (pov) Tv

Nn. nnn nn nnnn nn nnnn nn nnnn nn nnnn nn

72x mmbv

#

·INOW

75 75

3nnn

.

• nnnn（

.

niv 5 vip

(pan)

#

• 72x mnnn

nON. nN NNNNnNnNnNnNnNnNn

[1]（7y）：

400:a

300:b

200:c

100:d

80:e

480:f

100:g

(2-b nppn) 20:h1

(2-a nnp) 60 : h2

[1]（7y）：（v）

0.8

y

nppnn nnuyn

nynnnnnnnnnn

.07070

S APQ = S AQP + S_ PQR

.01

.

77

·n

nn Dn np n nn nn nn

mivan yn npnn

77

nppnn nn nyn yy, npbn nn ny

PB BA

77

-

75

.
