USER MANUAL DSXB700 SONY

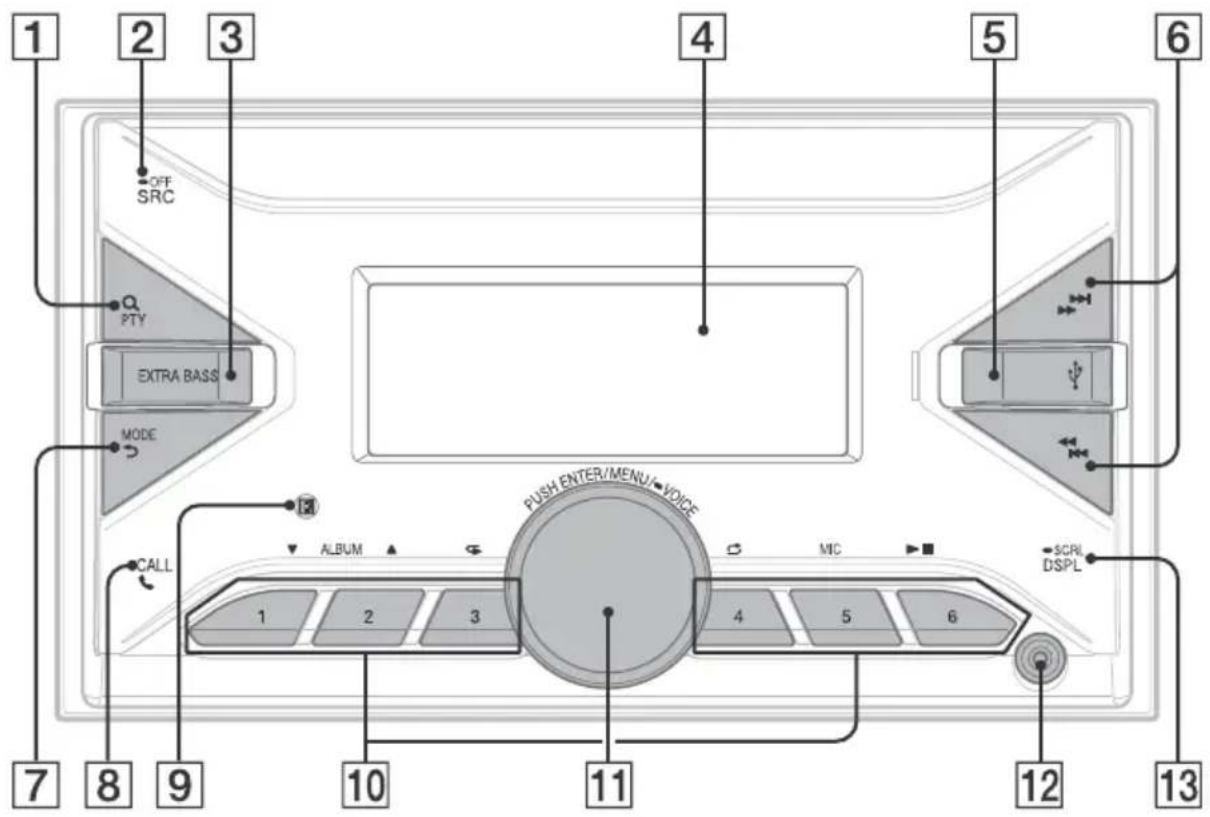

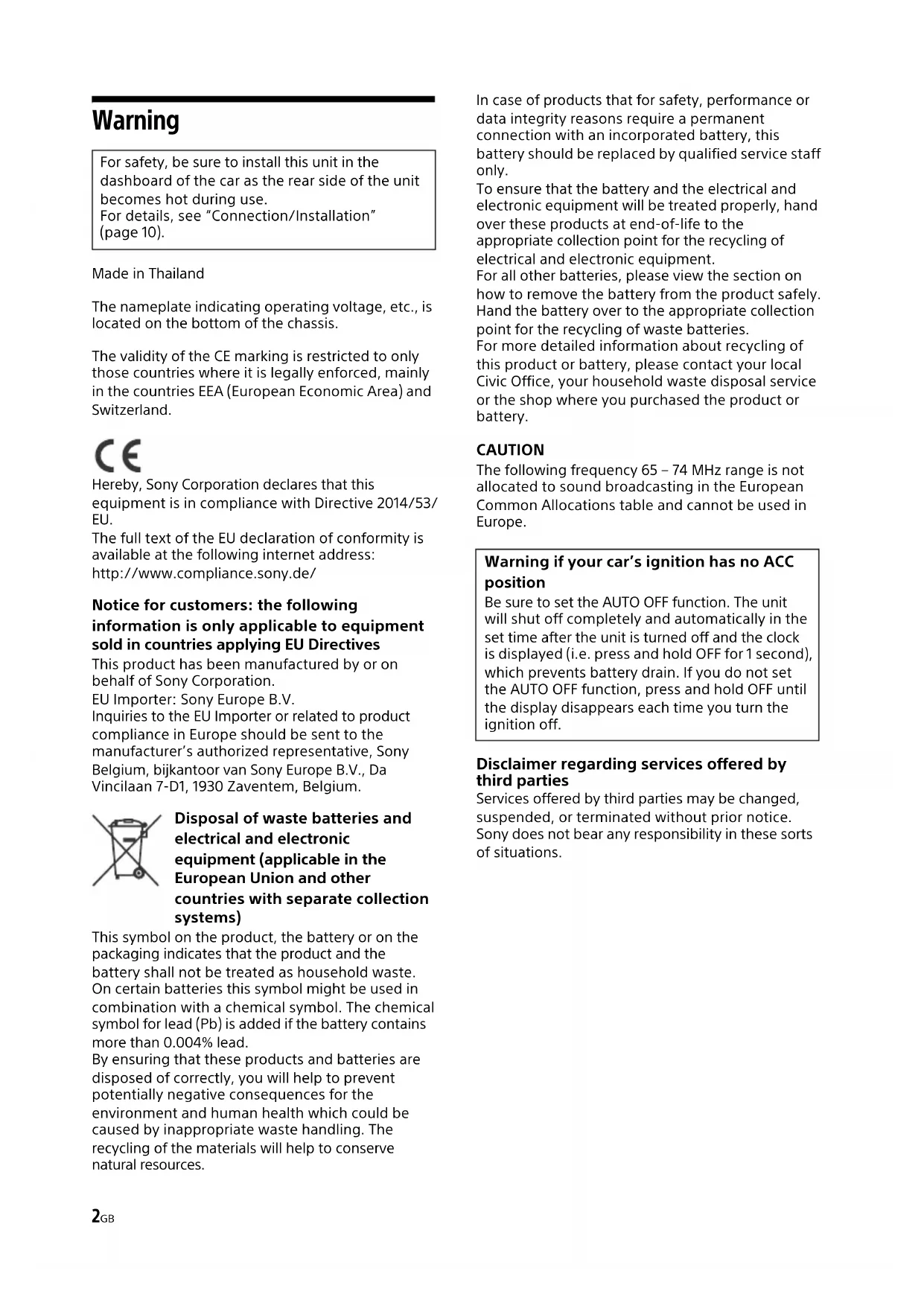

To cancel the demonstration (DEMO) display, see page 6. For the connection/installation, see page 10. Pour annuler la démonstration (DEMO), reportez-vous à la page 6. Pour le raccordement/l’installation, reportez-vous à la page 10. Zum Deaktivieren der Demo-Anzeige (DEMO) schlagen Sie bitte auf Seite 6 nach. Informationen zum Anschluss und zur Installation finden Sie auf Seite 10. Para cancelar la pantalla de demostración (DEMO), consulte la página 6. Para la conexión/instalación, consulte la página 10. Om de demonstratie (DEMO) te annuleren, zie pagina 6. Raadpleeg pagina 10 voor meer informatie over de aansluiting/ installatie. Se sidan 6 för att avbryta demonstrationsvisningen (DEMO). Se sidan 10 för anslutning/installation.2GB Warning Made in Thailand The nameplate indicating operating voltage, etc., is located on the bottom of the chassis. The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area) and Switzerland. Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/ EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.de/ Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives This product has been manufactured by or on behalf of Sony Corporation. EU Importer: Sony Europe B.V. Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer’s authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium. Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other countries with separate collection systems) This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbol for lead (Pb) is added if the battery contains more than 0.004% lead. By ensuring that these products and batteries are disposed of correctly, you will help to prevent potentially negative consequences for the environment and human health which could be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the appropriate collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the appropriate collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery. CAUTION The following frequency 65 – 74 MHz range is not allocated to sound broadcasting in the European Common Allocations table and cannot be used in Europe. Disclaimer regarding services offered by third parties Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations. For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use. For details, see “Connection/Installation” (page 10). Warning if your car’s ignition has no ACC position Be sure to set the AUTO OFF function. The unit will shut off completely and automatically in the set time after the unit is turned off and the clock is displayed (i.e. press and hold OFF for 1 second), which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.3GB Caution IN NO EVENT SHALL SONY BE LIABLE FOR ANY

INCIDENTAL, INDIRECT OR CONSEQUENTIAL

DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE. Dear customer, this product includes a radio transmitter. According to UNECE Regulation no. 10, a vehicle manufacturers may impose specific conditions for installation of radio transmitters into vehicles. Please check your vehicle operation manual or contact the manufacturer of your vehicle or your vehicle dealer, before you install this product into your vehicle. Emergency calls This BLUETOOTH car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies). On BLUETOOTH communication Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off this unit and other BLUETOOTH devices in the following locations, as it may cause an accident. where inflammable gas is present, in a hospital, train, airplane, or petrol station near automatic doors or a fire alarm This unit supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection when the BLUETOOTH wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using BLUETOOTH wireless technology. We do not take any responsibility for the leakage of information during BLUETOOTH communication. If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer. Important notice4GB Main Unit (browse) During playback: Enters the browse mode. (Not available when a USB device in Android™ mode or iPod is connected.) PTY (program type) During FM reception: Selects PTY in RDS. SRC (source) Turns on the power. Changes the source. OFF Press and hold for 1 second to turn the source off and display the clock. Press and hold for more than 2 seconds to turn off the power and the display. EXTRA BASS Reinforces bass sound in synchronization with the volume level. Press to change the EXTRA BASS setting: [1], [2], [OFF]. Display window USB port / (SEEK –/+) During radio reception: Tunes in radio stations automatically. Press and hold to tune manually. / (prev/next) / (fast-reverse/fast-forward) MODE (back) Returns to the previous display. CALL Enters the call menu. Receives/ends a call. Press and hold for more than 2 seconds to switch the BLUETOOTH signal. Receptor for the remote commander Number buttons (1 to 6) Receives preset radio stations. Press and hold to preset stations. ALBUM / Skips an album for audio device. Press and hold to skip albums continuously. (Not available when a USB device in Android mode or iPod is connected.) Guide to Parts and Controls5GB (repeat)(Not available when a USB device in Android mode is connected.) (shuffle)(Not available when a USB device in Android mode is connected.) MIC (play/pause) Control dialAdjusts the volume.PUSH ENTEREnters the selected item.Press SRC, rotate then press to change the source (timeout in 2 seconds). MENU Opens the setup menu.VOICEPress and hold for more than 2 seconds to activate voice dial, voice recognition (Android smartphone only), or the Siri function (iPhone only). AUX input jack DSPL (display)Changes display items.SCRL (scroll)Press and hold to scroll a display item. Resetting the Unit Before operating the unit for the first time, after replacing the car battery, or changing the connections, you must reset the unit. 1 Press and hold DSPL and CALL for more than 2 seconds. Note Resetting the unit will erase the clock setting and some stored contents. Setting the area/region After resetting the unit, the area/region setting display appears. 1 Press ENTER while [AREA] is displayed. The area/region currently set appears. 2 Rotate the control dial to select [EUROPE] or [RUSSIA], then press it. 3 Rotate the control dial to select [YES] or [NO], then press it.If the setting area/region is changed, the unit is reset, then the clock is displayed.This setting can be configured in the general setup menu. Basic Operations6GB Pairing with a BLUETOOTH Device When connecting a BLUETOOTH device for the first time, mutual registration (called “pairing”) is required. Pairing enables this unit and other devices to recognize each other. This unit can connect two BLUETOOTH devices (two mobile phones, or a mobile phone and an audio device). 1 Press MENU, then rotate and press the control dial to select [BLUETOOTH] [PAIRING] [DEVICE 1]/[DEVICE 2]*. flashes while the unit is in pairing standby mode.

• [DEVICE 1] or [DEVICE 2] will be changed to the paired device name after pairing is complete. 2 Perform pairing on the BLUETOOTH device so it detects this unit. 3 Select your model name shown in the display of the BLUETOOTH device*. When pairing is made, stays lit.
• If passkey input is required on the BLUETOOTH device, input [0000]. Canceling the Demonstration Mode You can cancel the demonstration display which appears when the source is off and the clock is displayed. 1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [DEMO], then press it. 3 Rotate the control dial to select [DEMO- OFF], then press it. The setting is complete. 4 Press (back) twice. The display returns to normal reception/play mode. Updating the Firmware To update the firmware, visit the support site on the back cover, then follow the online instructions. Notes Using a USB device (not supplied) is required for updating the firmware. Store the updater in the USB device, and connect the device to the USB port, then perform the update operation. Updating the firmware takes a few minutes to complete. During the update, do not turn the ignition to the OFF position, nor remove the USB device.7GB Precautions Cool off the unit beforehand if your car has been parked in direct sunlight. Do not leave audio devices brought in inside the car, or it may cause malfunction due to high temperature in direct sunlight. Power antenna (aerial) extends automatically. To maintain high sound quality Do not splash liquid onto the unit. You can connect to the following iPod models. Update your iPod devices to the latest software before use. Compatible iPhone/iPod models Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance. If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer. Additional Information Playback order of audio files Folder (album)Audio file (track) About iPod Compatible Model Bluetooth® USB iPhone XR iPhone Xs max iPhone Xs iPhone X iPhone 8 iPhone 8 Plus iPhone 7 iPhone 7 Plus iPhone SE iPhone 6s iPhone 6s Plus iPhone 6 iPhone 6 Plus iPhone 5s iPhone 5c iPhone 5 iPhone 4s iPod touch (6th generation)

iPod touch (5th generation)

Tuning range: When [AREA] is set to [EUROPE]:

87.5 MHz – 108.0 MHz

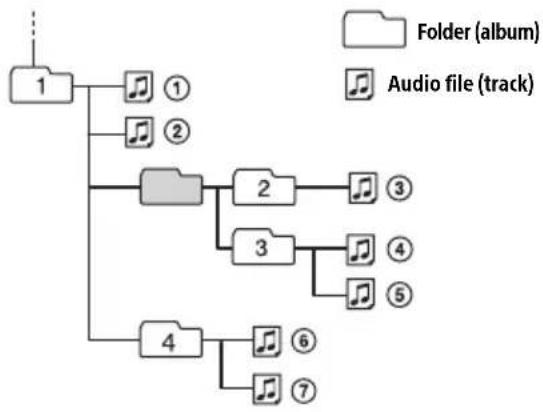

When [AREA] is set to [RUSSIA]: FM1/FM2: 87.5 MHz – 108.0 MHz (at 50 kHz step) FM3: 65 MHz – 74 MHz (at 30 kHz step) Usable sensitivity: 7 dBf Signal-to-noise ratio: 73 dB Separation: 50 dB at 1 kHz AM/LW Tuning range: 531 kHz – 1,602 kHz (AM), 153 kHz – 279 kHz (LW) Sensitivity: AM: 26 μV, LW: 50 μV USB Player section Interface: USB (Full speed) Maximum current: 1 A Maximum number of recognizable folders and files: Folders (albums): 256 Files (tracks) per folder: 256 Compatible Android Open Accessory protocol (AOA): 2.0 Corresponding codec: MP3 (.mp3) Bit rate: 8 kbps – 320 kbps (Supports VBR (Variable Bit Rate)) Sampling rate: 16 kHz – 48 kHz WMA (.wma) Bit rate: 32 kbps – 192 kbps (Supports VBR (Variable Bit Rate)) Sampling rate: 32 kHz, 44.1 kHz, 48 kHz AAC (.m4a, .mp4) Bit rate: 16 kbps – 320 kbps (stereo) Sampling rate: 8 kHz – 48 kHz FLAC (.flac) Bit depth: 16 bit, 24 bit Sampling rate: 44.1 kHz, 48 kHz Supported file system: FAT16, FAT32 Wireless Communication Communication System: BLUETOOTH Standard version 3.0 Output: BLUETOOTH Standard Power Class 2 (Max. Conducted +1 dBm) Maximum communication range*

Line of sight approx. 10 m (33 ft) Frequency band:

A2DP (Advanced Audio Distribution Profile) 1.3 AVRCP (Audio Video Remote Control Profile) 1.3 HFP (Handsfree Profile) 1.6 PBAP (Phone Book Access Profile) SPP (Serial Port Profile) Corresponding codec: SBC (.sbc), AAC (.m4a) *1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna (aerial)’s performance, operating system, software application, etc. *2 BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices. Power amplifier section Output: Speaker outputs Speaker impedance: 4 Ω – 8 Ω Maximum power output: 55 W × 4 (at 4 Ω) General Power requirements: 12 V DC car battery (negative ground (earth)) Rated current consumption: 10 A Dimensions: Approx. 178 mm × 100 mm × 177 mm

/8 in × 4 in × 7 in) (w/h/d) Mounting dimensions: Approx. 182 mm × 111 mm × 159 mm

/8 in) (w/h/d) Mass: Approx. 1.0 kg (2 lb 4 oz) Package contents: Main unit (1) Parts for installation and connections (1 set) Optional accessories/equipment: Cable for steering wheel remote input: RC-SR1 Ask the dealer for detailed information. Design and specifications are subject to change without notice.9GB The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners. Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary. Apple, iPhone, iPod, iPod nano, iPod touch, and Siri are trademarks of Apple Inc., registered in the U.S. and other countries. Android is a trademark of Google LLC. Copyrights10GB Cautions Run all ground (earth) leads to a common ground (earth) point. Do not get the leads trapped under a screw, or caught in moving parts (e.g., seat railing). Before making connections, turn the car ignition off to avoid short circuits. Connect the power supply leads to the unit and speakers before connecting it to the auxiliary power connector. Be sure to insulate any loose unconnected leads with electrical tape for safety. Choose the installation location carefully so that the unit will not interfere with normal driving operations. Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts. Use only the supplied mounting hardware for a safe and secure installation. Note on the power supply lead (yellow)When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component’s fuse amperage rating.Note on installing in cars with a start-stop systemThe unit may restart when starting the engine from start-stop. In this case, turn off the start-stop system of your car. Mounting angle adjustment Adjust the mounting angle to less than 30°. Parts List for Installation This parts list does not include all the package contents. The mounting sleeve is attached to the unit before shipping. Before mounting the unit, use the release keys to remove the mounting sleeve from the unit. For details, see “Removing the mounting sleeve” (page 13). Keep the release keys for future use as they are also necessary if you remove the unit from your car. Connection/Installation

Mounting screws(5 × max. 8 mm

/32 × max. /16 in)) (4) Microphone (1) Double-sided tape (1) Power supply leads (1)

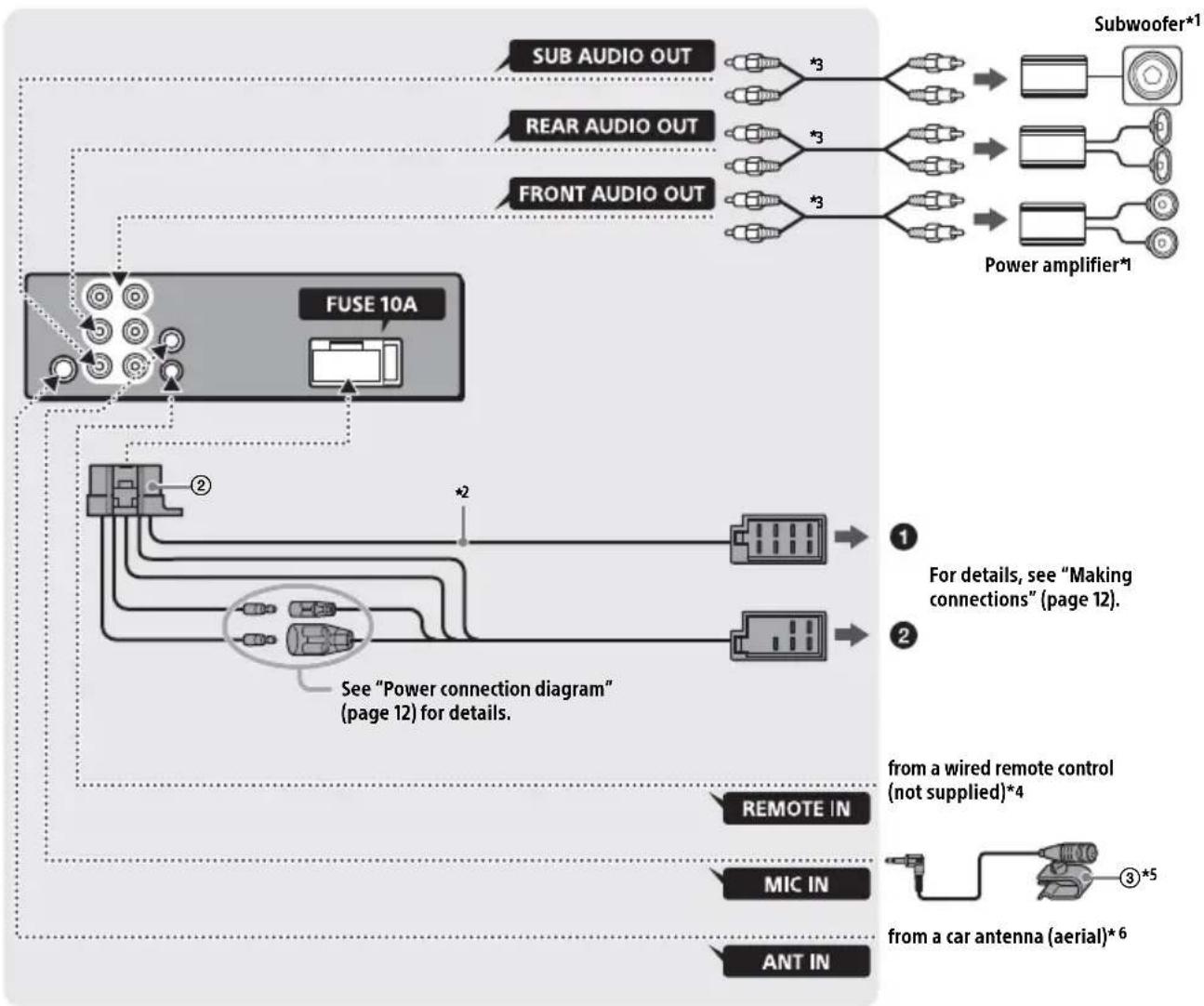

Mounting sleeve (1)Release keys (2)Trim ring (1)11GB Connection *1 Not supplied *2 Speaker impedance: 4 Ω to 8 Ω × 4 *3 RCA pin cord (not supplied) *4 Depending on the type of car, use an adaptor for a wired remote control (not supplied). For details on using the wired remote control, see “Using the wired remote control” (page 13). *5 Whether in use or not, route the microphone input cord such that it does not interfere with driving operations. Secure the cord with a clamp, etc., if it is installed around your feet. For details on installing the microphone, see “Installing the microphone” (page 13). *6 Depending on the type of car, use an adaptor (not supplied) if the antenna (aerial) connector does not fit.

from a car antenna (aerial)*

For details, see “Making connections” (page 12).

from a wired remote control (not supplied)*

See “Power connection diagram” (page 12) for details.

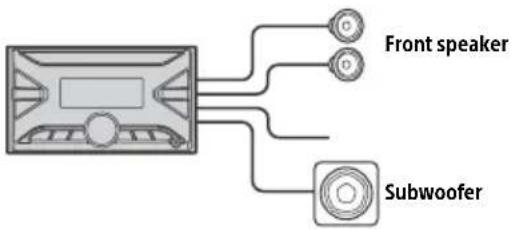

212GB If you have a power antenna (aerial) without a relay box, connecting this unit with the supplied power supply leads may damage the antenna (aerial). To the car’s speaker connector To the car’s power connector Subwoofer Easy Connection You can use a subwoofer without a power amplifier when it is connected to a rear speaker lead. Notes Preparation of the rear speaker leads is required. Use a subwoofer with an impedance of 4 Ω to 8 Ω, and with adequate power handling capacities to avoid damage. Memory hold connection When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off. Speaker connection Before connecting the speakers, turn the unit off. Use speakers with an impedance of 4 Ω to 8 Ω, and with adequate power handling capacities to avoid damage. Check your car’s auxiliary power connector, and match the connections of leads correctly depending on the car. Common connection When the positions of the red and yellow leads are inverted Making connections

Rear speaker (right) Purple

Front speaker (right) Gray

Front speaker (left) White

Rear speaker (left) Green

continuous power supply Yellow

power antenna (aerial) / power amplifier control (REM OUT) Blue/white striped

switched illumination power supply Orange/white striped 15 switched power supply Red 16 ground (earth) Black Front speakerSubwoofer Power connection diagram

continuous power supply Yellow 15 switched power supply Red 12 switched power supply Yellow

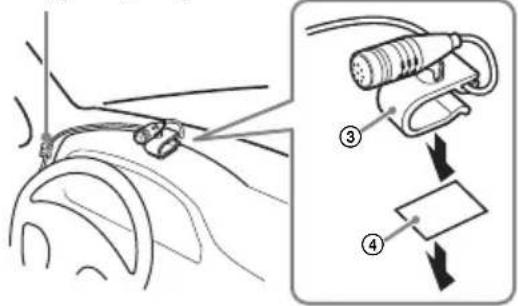

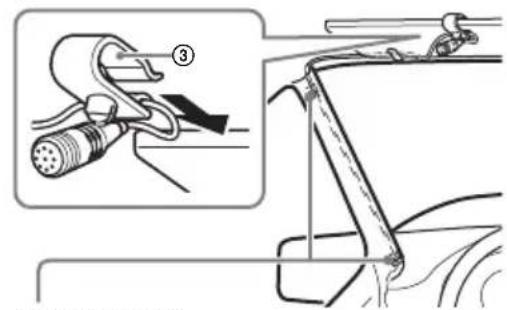

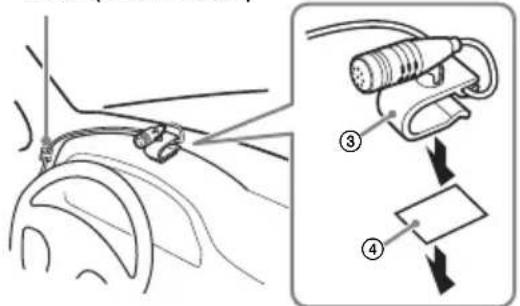

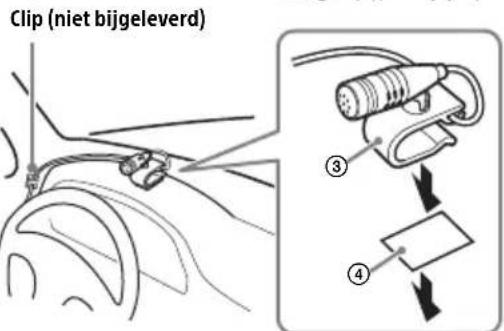

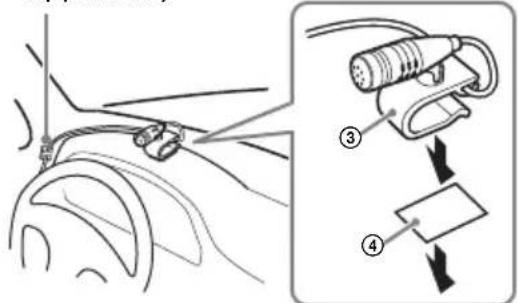

continuous power supply Red Auxiliary power connector Red RedYellow Yellow Red RedYellow Yellow13GB When the car without ACC positionAfter matching the connections and switching power supply leads correctly, connect the unit to the car’s power supply. If you have any questions and problems connecting your unit that are not covered in this manual, consult the car dealer.To capture your voice during handsfree calling, you need to install the microphone .Cautions It is extremely dangerous if the cord becomes wound around the steering column or gearstick. Be sure to keep it and other parts from interfering with your driving operations. If airbags or any other shock-absorbing equipment is in your car, contact the store where you purchased this unit, or the car dealer, before installation. Note Before attaching the double-sided tape , clean the surface of the dashboard with a dry cloth. 1 To enable the wired remote control, set [STR CONTROL] in [STEERING] to [PRESET]. Installation Before installing the unit, remove the mounting sleeve from the unit. 1 Insert both release keys until they click, and pull down the mounting sleeve , then pull up the unit to separate. Installing the microphone Red Red Ye l l owYellow

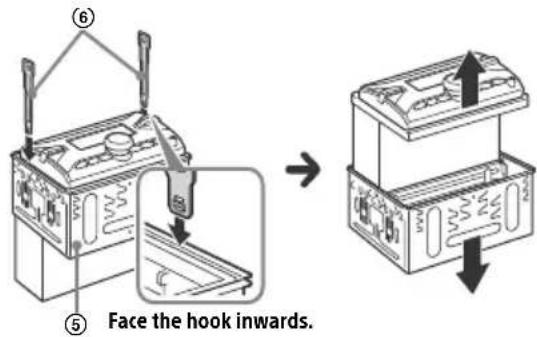

Using the wired remote control Removing the mounting sleeve

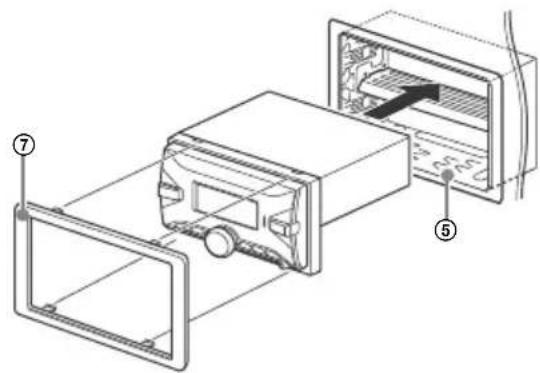

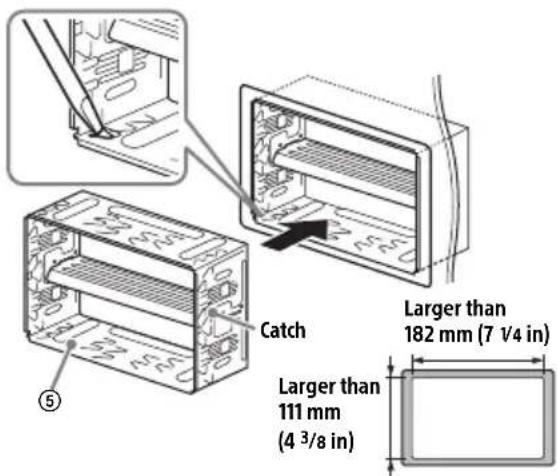

Face the hook inwards. 14GB For Japanese cars, see “Mounting the unit in a Japanese car” (page 14). Mounting the unit with the supplied mounting sleeve Before installing, make sure the catches on both sides of the mounting sleeve are bent inwards

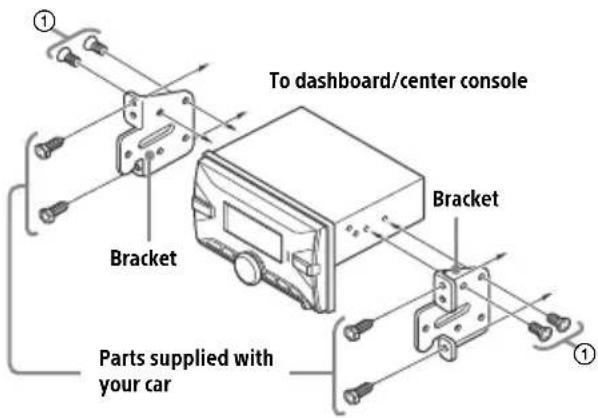

/32 in). 1 Position the mounting sleeve inside the dashboard, then bend the claws outward for a tight fit. 2 Mount the unit onto the mounting sleeve . Note If the catches are straight or bent outwards, the unit will not be installed securely and may spring out. Mounting the unit in a Japanese car You may not be able to install this unit in some makes of Japanese cars. In such a case, consult your Sony dealer. When mounting this unit to the preinstalled brackets of your car, use the mounting screws in the appropriate screw holes based on your car: T for TOYOTA and N for NISSAN. Note To prevent malfunction, install only with the mounting screws . For details, see “Resetting the Unit” (page 5). When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer. Mounting the unit in the dashboard Larger than 182 mm (7 /4 in)Larger than 111 mm

Resetting the unit Fuse replacement
