USER MANUAL CK 1601 ADE

Close-up of a white analog wall clock showing time approximately 10:30 (no text or symbols beyond 'ADE' and numbers)

Bedienungsanleitung

CK 1601

Operating instructions | Instrucciones de operación | Mode d'emploi

Icon of a person reading a document inside a circle (no text or symbols)

Diagram of an electronic device with labeled components, showing battery, switch, and fan assembly

22089 Hamburg, Germany

22089 Hamburg, Germany

Garantie

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. With this wall clock, you always have the accurate time in view. The many years of experience of the brand ADE ensures a high technical standard and proven quality.

We wish you easy timing at any time!

Your ADE Team

General Information

About this manual

This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well.

Failure to observe the recommendations in this operating manual can lead to injuries or damage to your products.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

Table of Contents

General Information......8

Intended Use....10

Safety 10

At a glance (reverse)....11

Cleaning....12

Fault/Remedy....12

Technical Data 12

Declaration of Conformity 12

Guarantee ....13

Disposal 13

Scope of delivery

• Analog wall clock
• 1 Battery type LR6, 1,5 ¥
• Operating Manual

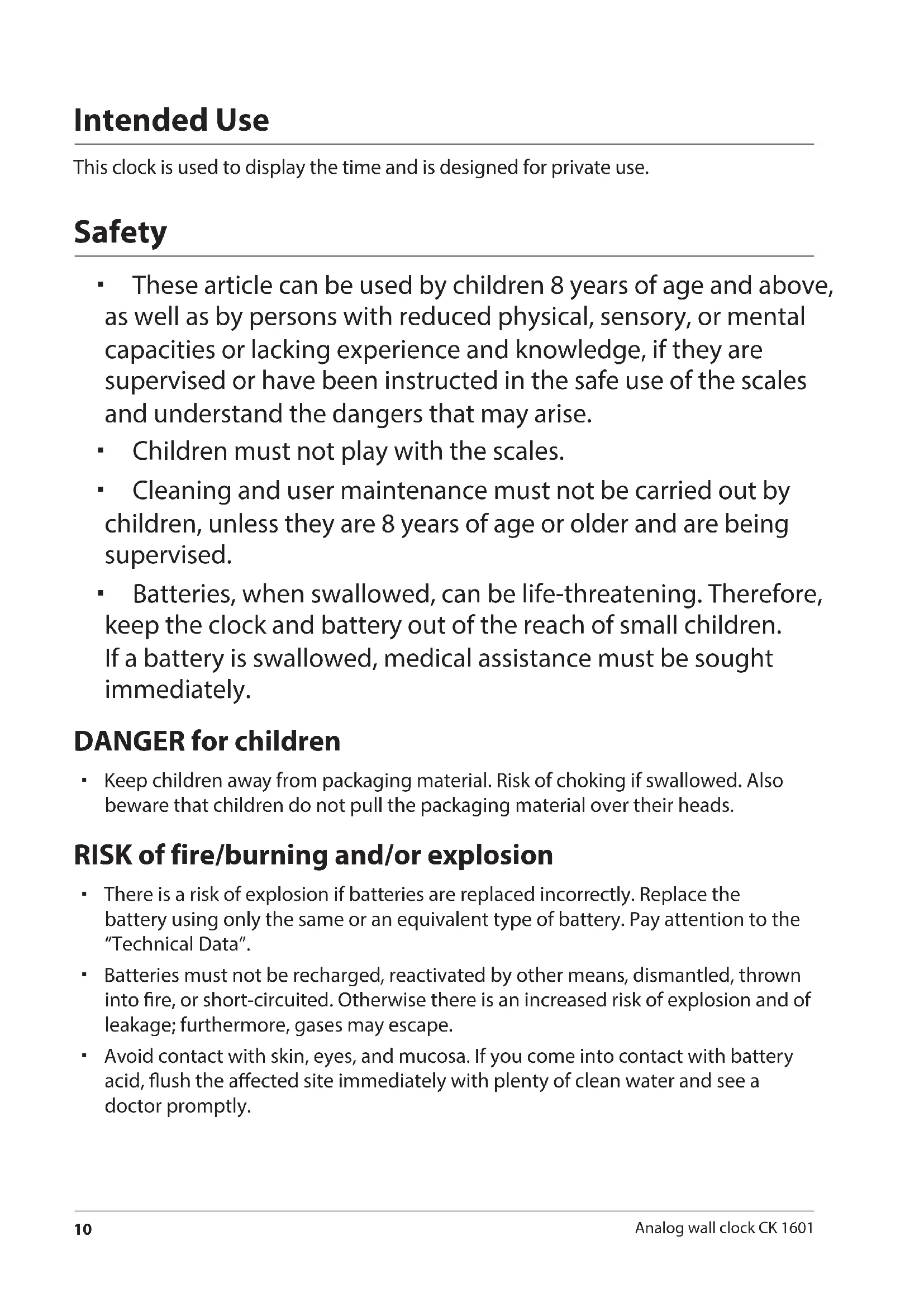

This clock is used to display the time and is designed for private use.

Safety

These article can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the scales and understand the dangers that may arise.
- Children must not play with the scales.
- Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
- Batteries, when swallowed, can be life-threatening. Therefore, keep the clock and battery out of the reach of small children. If a battery is swallowed, medical assistance must be sought immediately.

DANGER for children

- Keep children away from packaging material. Risk of choking if swallowed. Also beware that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

- There is a risk of explosion if batteries are replaced incorrectly. Replace the battery using only the same or an equivalent type of battery. Pay attention to the "Technical Data".

- Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and of leakage; furthermore, gases may escape.

- Avoid contact with skin, eyes, and mucosa. If you come into contact with battery acid, flush the affected site immediately with plenty of clean water and see a doctor promptly.

BEWARE of material damage

• Protect the clock from strong impacts and vibrations.
• Remove the battery from the product if it is exhausted or if you will not use the clock for an extended period of time. You will thus avoid damage that may result from the leakage of battery acid.
• Pay attention to the correct polarity (+/-) when inserting or changing the battery.
• Do not expose the battery to any extreme conditions, e.g., by storing it on a heater or in direct sunlight. Increased risk of leakage!
• Clean the battery and device contacts, as needed, before inserting the battery.
• Do not make any modifications to the scales. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.

At a glance (reverse)

Diagram of an electronic device with labeled components, showing internal wiring and battery casing

1 Dial

2 Battery compartment

You need an LR6 (AA), 1.5 V battery to use the product.

1. Place the battery on the bottom of the battery compartment as shown. Pay attention to the correct polarity (+/-).
2. Hang the clock, if desired, on a nail or a screw. For this purpose, a hanging loop is located on the back of the clock.
3. Hang the clock, if desired, on a nail or a screw. For this purpose, a hanging loop is located on the back of the clock.

Maintain a secure attachment so that the clock does not fall off and become damaged.

• The battery must be changed when the hands stop moving.
• Only use the type of battery that is specified in the "Technical Data".
• Dispose of batteries in an environmentally appropriate way (see "Disposal")

NOTE on material damage

- Do not immerse the clock in water or other liquids.

- Never use harsh or abrasive cleaning agents or the like to clean the clock. If you do, the surface could be scratched.

- Dust the clock if necessary with a soft, dry cloth. The glass can also be cleaned with commercially available glass cleaners.

Fault/Remedy

Fault Possible Cause
No function	• Is the battery empty or has it been inserted incorrectly?

Technical Data

Model: Analog wall clock CK 1601

Battery: 1x LR06 (AA), 1,5 V=

Rated current: 220 mA

Distributor (no service address): Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

This clock was manufactured in accordance with the harmonised European standards. It conforms to the provisions of the EC directives cited below:

• EMC Directive 2004/108/EC regarding electromagnetic compatibility
• RoHS Directive 2011/65/EU in the currently valid versions.

This declaration loses its validity if modifications are made to the products without our approval.

Guarantee

The company Waagen-Schmitt GmbH guarantees for 3 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of their life, the products must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Recyclable and disposable batteries do not belong in household waste.

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.
