USER MANUAL DEHS101UB PIONEER

Türk:Burada. Pioneer radyo ekipmani turunun [*] 2014/53/EU direktiflerine uyumlu oldugunu beyan eder.Avrupa uyumluluk beyaninin tam metni belirtilen internet sitesinde mevcuttur: http://www.pioneer-car.eu/compliance Thank you for purchasing this PIONEER product To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGs and CAUTIONs in this manual. Please keep the manual in a safe and accessible place for future reference. Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For countries not mentioned above, please contact your local authorities for the correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. WARNING

• Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.

• Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the device. CAUTION

• Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids.

• Always keep the volume low enough to hear outside sounds.

• The Pioneer CarStereo-Pass is for use only in Germany.

• This product is evaluated in moderate and tropical climate condition under the Audio, video and similar electronic apparatus - Safety requirements, IEC 60065. Before You Start If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. CAUTION This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.4En If you experience problems Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service Station. DEH-S100UB/S100UBG/S100UBA/S100UBB/S101UB/S101UBG/ S010UB Remote Control NOTE Remote control is supplied only for DEH-S101UB/S101UBG. Getting Started Basic operation Detach buttonDisplay windowM.C. (multi-control) dialBAND/DISP (display)SRC (source)/OFFUSB port (eject)AUX input jack (3.5 mm stereo jack)Disc loading slot

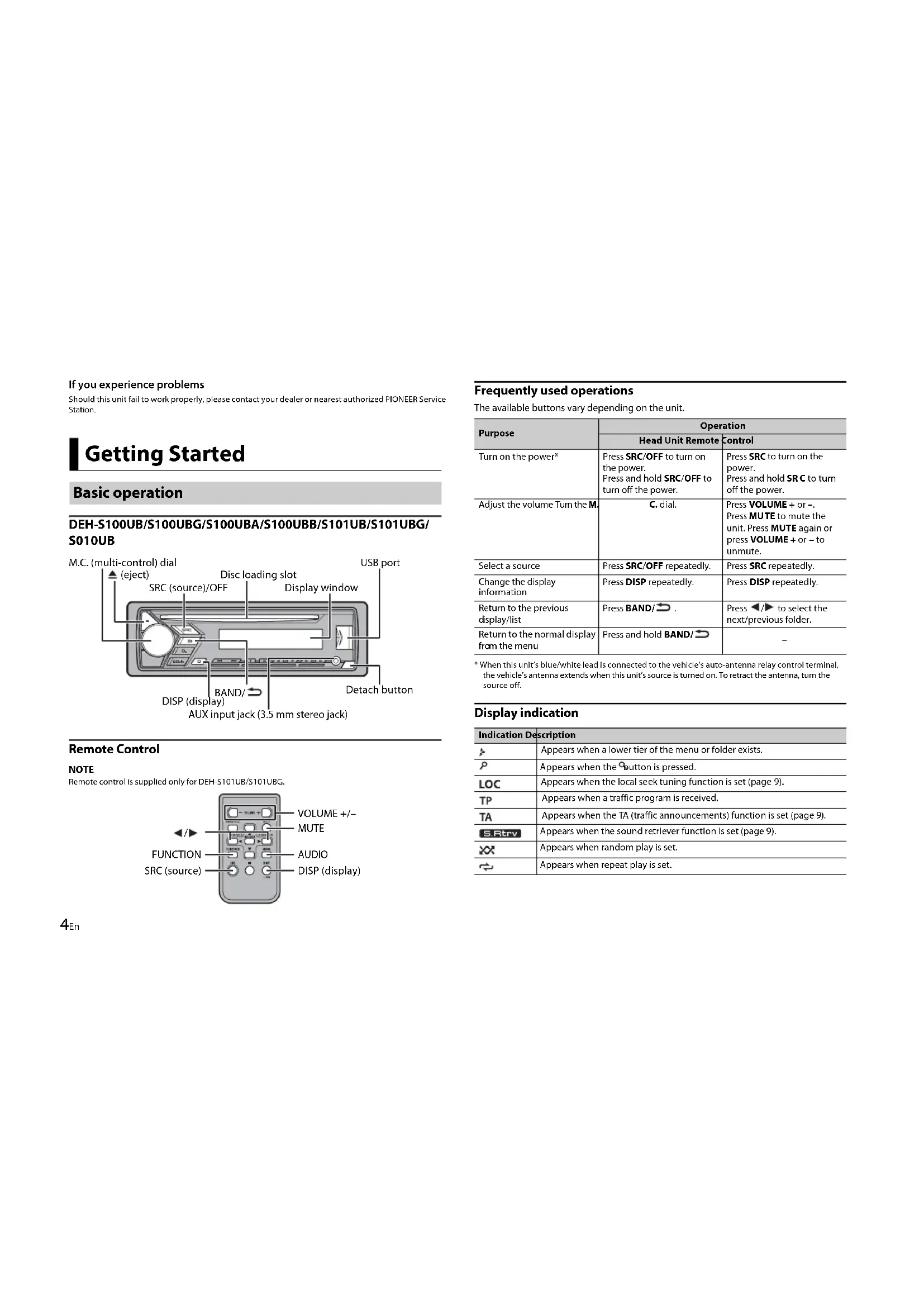

SRC (source)VOLUME +/– MUTE DISP (display)FUNCTIONAUDIO Frequently used operations The available buttons vary depending on the unit.* When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off. Display indication PurposeOperationHead Unit Remote Control Turn on the power* Press SRC/OF F to turn on the power.Press and hold SRC/OFF to turn off the power.Press SRC to turn on the power.Press and hold SRC to turn off the power.Adjust the volume Turn the M. C. dial. Press VOLUME + or –. Press MUTE to mute the unit. Press MUTE again or press VOLUME + or – to unmute. Select a source Press SRC/OF F repeatedly. Press SRC repeatedly. Change the display info rmation Press DISP repeatedly. Press DISP repeatedly. Return to the previous isplay/list Press BAND/ . Press / to select the next/previous folder.Return to the normal display fro m the menuPress and hold BAND/ . Indication Description Appears when a lower tier of the menu or folder exists.Appears when the button is pressed. Appears when the local seek tuning function is set (page 9). Appears when a traffic program is received. Appears when the TA (traffic announcements) function is set (page 9). Appears when the sound retriever function is set (page 9). Appears when random play is set.Appears when repeat play is set.5En English Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it. Important

• Avoid subjecting the front panel to excessive shock.• Keep the front panel out of direct sunlight and high temperatures.• Always store the detached front panel in a protective case or bag. Remove the insulation sheet before use. WARNING

• Do not ingest the battery, Chemical Burn Hazard. (The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. Detaching the front panel Preparing the remote control Detach Attach How to replace the battery Insert the CR2025 (3 V) battery with the plus (+) and minus (–) poles orientated properly. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Do not expose the battery or remote control to excessive heat such as direct sunlight or fire. CAUTION

• There is a potential danger of explosion if the battery is incorrectly replaced. When replacing the battery, replace it with the same type.• Do not handle or store the battery with metallic tools or objects.
• If the battery leaks, remove the battery and wipe the remote control completely clean. Then install a new battery.
• When disposing of used batteries, please comply with governmental regulations or environmental public institutions’ rules that apply in your country/area. Important

• Do not store the remote control in high temperatures or direct sunlight.
• Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal. When you turn the ignition switch to ON after installation, [SET UP :YES] appears in the display. 1 Press the M.C. dial. The setup menu disappears after 30 seconds of no operation. If you prefer not to set

t this time, turn the M.C. dial to select [NO], then press to confirm. 2 Turn the M.C. dial to select the options, then press to confirm. To proceed to the next menu option, yo u need to confirm your selection. 3 [QUIT :YES] appears when all the settings have been made. To return to the first item of the setup menu, turn the M. C. dial to select [QUIT :NO], then press to confirm. 4 Press the M.C. dial to confirm the settings. Setup menu Menu Item Description LANGUAGE Select the language to display the text information from a

mpressed audio file. [ENG](English),

](Russian), [TUR](Turkish) CLOCK SET Set the clock. FM STEP Select the FM tuning step from 100 kHz or 50 kHz. [100], [50]6En NOTES

• You can cancel the menu setting by pressing SRC/OFF.

• These settings can be made at any time from the SYSTEM settings (page 10) and INITIAL settings (page 6). 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [SYSTEM], then press to confirm. 3 Turn the M.C. dial to select [DEMO OFF], then press to confirm. 4 Turn the M.C. dial to select [YES], then press to confirm. 1 Press and hold SRC/OFF until the unit turns off. 2 Press and hold SRC/OFF to display the main menu. 3 Turn the M.C. dial to select [INITIAL], then press to confirm. 4 Turn the M.C. dial to select an option, then press to confirm. NOTE The options vary depending on the unit. Canceling the demonstration display (DEMO OFF) INITIAL settings Menu Item Description FM STEP Select the FM tuning step from 100 kHz or 50 kHz. [100], [50] SP-P/O MODE Select when there is a full-range speaker connected to the rear

peaker output leads and there is a subwoofer connected to the RCA output.

[SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to

he rear speaker output leads and there is a subwoofer connected to the RCA output. [REAR/REAR] Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR]. The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations. 1 Press SRC/OFF to select [RADIO]. 2 Press BAND/ to select the band from [FM1], [FM2], [FM3], [MW] or [LW]. 3 Press a number button (1/ to 6/ ). TIP The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 9). The six strongest stations are stored on the number buttons (1/ to 6/ ). 1 After selecting the band, press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [FUNCTION], then press to confirm. 3 Turn the M.C. dial to select [BSM], then press to confirm. S/W UPDATE Select to confirm the latest system information on the unit. [SYSTEM INFO] [SYSTEM UPDATE] Select to update the unit to the latest software and initialize the unit settings. For details on the latest software and updating, visit our website. SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be

estarted automatically. (Some of the settings may be retained even after resetting the uni t.) [YES], [NO] Radio Receiving preset stations Best stations memory (BSM) Menu Item Description7En English To seek a station manually 1 After selecting the band, press / to select a station. Press and hold / then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press / . NOTE [SEEK] needs to be set to [MAN] in the FUNCTION settings (page 9). To store stations manually 1 While receiving the station you want to store, press and hold one of the number buttons (1/ to 6/ ) until it stops flashing. The unit searches for a station by PTY (program type) information. 1 Press during FM reception. 2 Turn the M.C. dial to select a program type from [NEWS/INFO], [POPULAR], [CLASSICS] or [OTHERS]. 3 Press the M.C. dial. The unit begins to search for a station. When it is found, its program service name is splayed. NOTES

• To cancel the search, press the M.C. dial.
• The program of some stations may differ from that indicated by the transmitted PTY.
• If no station is broadcasting the type of program you searched for, [NOT FOUND] is displayed for about two seconds and then the tuner returns to the original station.Disconnect headphones from the device before connecting it to the unit.

1 Insert a disc into the disc loading slot with the label side up. Using PTY functions

Playing back To eject a disc, stop playback first then press . USB devices (including Android™) 1 Open the USB port cover. 2 Plug in the USB device using an appropriate cable. NOTE To automatically switch to [USB] source when a USB device is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 11). CAUTION Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.Before removing the device, stop playback.AOA connectionsFor details on AOA connection, see page 8.MTP connectionA device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device and the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV and FLAC file formats. NOTE If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the SYSTEM settings (page 10). AUX 1 Insert the stereo mini plug into the AUX input jack. 2 Press SRC/OFF to select [AUX] as the source. NOTE If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 10). You can make various adjustments in the FUNCTION settings (page 9). Note that the following operations do not work for an AUX device. To operate an AUX evice, use the device itself. Operations Purpose Operation Select a folder*1 Press 1/ or 2/ . Select a track/song (chapter) Press or .8En *1 Compressed audio files only*2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct. You can operate the unit from Pioneer ARC APP installed on an Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit. For details on what operations are available on the application, see the application’s help sec tion. Fast forward or reverse*2 Press and hold or . Search for a file from a list 1 Press to display the list.2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts.View a list of the files in the selected folder/ cat egory*1Press the M.C. dial when a folder/category is selected.Play a song in the selected folder/ cat egory*1Press and hold the M.C. dial when a folder/category is selected.Repeat play Press 6/ .Random play Press 5/ . Pause/resume playback Press 4/PA USE. Sound retriever*1 Press 3/S. Rtrv.[1]: Effective for low compression rates[2]: Effective for high compression rates Return to root folder (CD/USB only)*1 Press and hold . Switch between compressed audio and CD- (CD only)Press BAND/ .Change drives in USB device(Devices that support the USB mass storage device class protocol only)Press BAND/ . Using Pioneer ARC APP Purpose Operation WARNING Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application. For Android device users This function is compatible with devices that have Android OS 4.1 or later installed and also sup port AOA (Android Open Accessory) 2.0. You can download Pioneer ARC APP on Google Play™. NOTE Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version. 1 Connect this unit with the mobile device.

• A ndroid device via USB (page 7) 2 Press the M.C. dial to display the main menu. 3 Turn the M.C. dial to select [SYSTEM], then press to confirm. 4 Turn the M.C. dial to select [ANDROID WIRED], then press to confirm. 5 Turn the M.C. dial to select [APP CONTROL] for an Android device connected via USB. If [ON] is selected in [P.APP AUTO ON] (page 10), Pioneer ARC APP on the Android device starts automatically, and all the steps are finished. NOTE If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to clear the message (page 10). 6 Press SRC/OFF to select any source. 7 Launch Pioneer ARC APP on the mobile device. 1 Press SRC/OFF to select [ANDROID]. Making a connection with Pioneer ARC APP Listening to music on Android9En English Basic operations You can adjust various settings in the main menu. 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• ILLUMINATION settings (page 11) 3 Turn the M.C. dial to select the options, then press to confirm. The menu items vary according to the source. Purpose Operation Select a track Press or . Fast forward or reverse Press and hold or . Pause/resume playback Press 4/PA USE. Sound retriever Press 3/S. Rtrv. [1]: Effective for low compression rates [2]: Effective for high compression rates Settings FUNCTION settings Menu Item Description FM SETTING [TALK], [STANDARD], [MUSIC] Match the sound quality level with the broadcast

ignal conditions of the FM band signal. (Available only when FM band is selected.) BSM Store the six strongest stations on the number but tons (1/ to 6/ ) automatically. REGIONAL [ON], [OFF] Limit the reception to the specific regional programs when AF (alternative frequencies search) is selected. (Available only when FM band is selected.) LOCAL FM: [

OFF], [LV1], [LV2], [LV3], [LV4]

MW/LW: [O FF], [LV1], [LV2] Restrict the tuning station according to the

[ON], [OFF] Receive current traffic information if available.

Available only when FM band is selected.)

[ON], [OFF] Allow the unit to retune to a different frequency pro viding the same station. (Available only when FM band is selected.) NEWS [ON], [OFF] Interrupt the currently selected source with

ews programs. (Available only when FM band is selected.) SEEK [MAN], [PCH] Assign or buttons to seek the stations one by one (manual tuning) or select a station

rom the preset channels. S.RTRV [1] (effective for low compression

tes), [2] (effective for high

mpression rates), [OFF] Enhance compressed audio and restore rich

und. Not available when:

• C D-DA/CD-TEXT is played back.

• T he FLAC file is played back. AUDIO settings Menu Item Description FADER*1 Adjust the front and rear speaker balance. Menu Item Description USB10En *1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 6). *2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 6). *3 Not available when [OFF] is selected in [SUB.W]. BALANCE Adjust the left and right speaker balance. EQ SETTING [SUPER BASS], [POWERFUL], [NA TURAL], [VOCAL], [CUSTOM1], [CUSTOM2], [FLAT] Select an equalizer band and level for further customising. Equalizer band: [80H Z], [250HZ],

[800HZ], [2.5KHZ], [8KHZ]

Equalizer level: [+6] to [–6] Select or customise the equalizer curve. [CUSTOM1] can be set separately for each source.

owever, each of the below combinations are set to the same setting automatically. [CUSTOM2] is a shared setting used for all

urces. You can also switch the equalizer by pressing repeatedly. LOUDNESS [OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume. SUB.W*2 [NOR], [REV], [OFF] Select the subwoofer phase.

Cut-off frequency: [50 HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Output level: [–24] t o [+6] Slope level: [ –12], [–24] Only frequencies lower than those in the selected range are output from the subwoofer. BASS BOOST [0] to [+6] Select the bass boost level. HPF SETTING Cut-off frequency: [O FF], [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Slope level: [ –12], [–24] Only frequencies higher than the high-pass filter

HPF) cutoff are output from the speakers. SLA [+4] to [–4] Adjust the volume level for each source except FM. Menu Item Description You can also access to these menus when the unit is turned off. SYSTEM settings Menu Item Description LANGUAGE [ENG](English), [РУС](Russian), [TUR](Turkish) Select the language to display the text information from a compressed audio file. CLOCK SET Set the clock (page 5). 12H/24H [12H], [24H] Select the time notation. AUTO PI [ON], [OFF] Search for a different station with the same pro gramming, even if using a preset station. AUX [ON], [OFF] Set to [ON] when using an auxiliary device

nnected to the unit. MUTE MODE (Not a vailable for DEH-S100UBA) [MUTE], [20dB ATT], [10dB ATT] Mute or attenuate sound automatically when a sign al from equipment with a mute function is received. PW SAVE* [ON], [OFF] Reduce the battery power consumption. Turning on the source is the only operation all owed when this function is on. ANDROID WIRED [MEMORY], [APP CONTROL] Select the appropriate connection method for an

ndroid device. P. A P P AU T O O N [ON], [OFF] Select [ON] to automatically launch Pioneer ARC APP when an Android device is connected to the unit via AOA. (Not available when [MEMORY] is selected in [ANDROID WIRED].)11En English

• [PW SAVE] is canceled if the vehicle battery is disconnected and will need to be turned back on once the battery is reconnected. When [PW SAVE] is off, depending on connection methods, the unit may continue to draw power from the battery if your vehicle’s ignition does not have an ACC (accessory) position. USB AUTO [ON], [OFF] Select [ON] to automatically switch to [USB]

ource when a USB device is connected to the unit. Select [OFF] when a USB device is being

nnected to the unit just for charging. ILLUMINATION settings Menu Item Description DIM SETTING [SYNC CLOCK], [MANUAL] Change the display brightness. BRIGHTNESS [1] to [10] Change the display brightness. The available setting ranges differ depending on

• When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.

• Use of this unit in conditions other than the following could result in fire or malfunction. –Vehicles with a 12-volt battery and neg ative grounding. –When speaker output is used by 4

annels, use speakers over 50 W (maximum input power) and between 4 Ω to 8 Ω (impedance value). Do not use 1 Ω to 3 Ω speakers for this unit. –When rear speaker output is used by 2 Ω of subwoofer, use speakers over 70 W (maximum input power).

• Please refer to connections for a

• T o prevent a short-circuit, overheating or malfunction, be sure to follow the directions below. –Disconnect the negative terminal of the bat tery before installation. –Secure the wiring with cable clamps or

hesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring. – Place all cables away from moving parts,

ch as the shift lever and seat rails. – Place all cables away from hot places, suc h as near the heater outlet. – Do not connect the yellow cable to the bat tery by passing it through the hole to the engine compartment. – Cover any disconnected cable

nnectors with insulating tape. – Do not shorten any cables. – Never cut the insulation of the power

ble of this unit in order to share the power with other devices. The current capacity of the cable is limited. – Use a fuse of the rating prescribed. – Never wire the negative speaker cable

rectly to ground. – Never band together negative cables of

• When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle’s auto-antenna relay control terminal (max. 300mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.

• N ever connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.

• T he black cable is ground. Ground cables for this unit and other equipment (especially, high-current products such as power amps) must be wired separately. If they are not, an accidental detachment may result in a fire or malfunction.

• Th e graphical symbol placed on the product means direct current. Connections/Installation Connections ACC position No ACC position12En This unit Power cord inputRear output or subwoofer outputAntenna inputFuse (10 A)Wired remote input (Not available for DEH-S100UBA)Hard-wired remote control adapter can be connected (sold separately). Power cord To power cord inputDepending on the kind of vehicle, the function of and may be different. In this case, be sure to connect to and to .Yell owBack-up (or accessory)Yell owConnect to the constant 12 V supply rminal. Red Accessory (or back-up) Red Connect to terminal controlled by the igni tion switch (12 V DC).Connect leads of the same colour to each other.Black (chassis ground)Blue/whiteThe pin position of the ISO connector ill differ depending on the type of vehicle. Connect and when Pin 5 is an antenna control type. In another ype of vehicle, never connect and Blue/whiteConnect to the system control terminal the power amp (max. 300 mA 12 V DC). Blue/whiteConnect to the auto-antenna relay ontrol terminal (max. 300 mA 12 V DC).Yellow/black (Not available for DEH-S100UBA)If you use equipment with a Mute unction, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections.Speaker leadsWhite: Front left White/black: Front left Gray: Front right Gray/black: Front right Green: Rear left or subwoofer Green/black: Rear left or subwoofer Violet: Rear right or subwoofer Violet/black: Rear right or subwoofer ISO connectorIn some vehicles, the ISO connector y be divided into two. In this case, be sure to connect to both connectors. NOTES
• Change the initial menu of this unit. Refer to [SP-P/O MODE] (page 6). The subwoofer output of this unit is mon aural.• When using a subwoofer of 2 Ω, be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads. Power amp (sold separately) Perform these connections when using the optional amplifier.System remote controlConnect to blue/white cable.Power amp (sold separately)Connect with RCA cables (sold separately)To rear output or subwoofer outputRear speaker or subwoofer Important
• Check all connections and systems before final installation.• Do not use unauthorized parts as this may cause malfunctions.• Consult your dealer if installation requires drilling of holes or other modifications to the vehicle.• Do not install this unit where:–it may interfere with operation of the hicle.–it may cause injury to a passenger as a resu lt of a sudden stop.• The semiconductor laser will be damaged if it overheats. Install this unit away from hot places such as near the heater outlet.• Optimum performance is obtained when the unit is installed at an angle of less than 60°.• When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents. DIN mount installation 1 Insert the supplied mounting sleeve into the dashboard. 2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.DashboardMounting sleeve• Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions. When not using the supplied mounting sleeve 1 Determine the appropriate position where the holes on the bracket and the side of the unit match. Installation Leave ample space 5 cm 5 cm13En English 2 Tighten two screws on each side. Tapping screw (5 mm × 9 mm, not supplied with product)Mounting bracketDashboard or consoleRemoving the unit (installed with the supplied mounting sleeve) 1 Remove the trim ring. Trim ringNotched tab• Releasing the front panel allows easier access to the trim ring.• When reattaching the trim ring, point the side with the notched tab down. 2 Insert the supplied extraction keys into both sides of the unit until they click into place. 3 Pull the unit out of the dashboard. The display automatically returns to the normal display.→ No operations have been made for about 30 seconds.– Perform an operation.The repeat play range changes unexpectedly.→ Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing.– Select the repeat play range again.A subfolder is not played back.→ Subfolders cannot be played when [FLD] (folder repeat) is selected.– Select another repeat play range.The sound is intermittent.→ You are using a device, such as a cellular phone, that may cause audible interference.– Move electrical devices that may be causing the interference away from the unit. Common AMP ERROR→ This unit fails to operate or the speaker connection is incorrect.→ The protective circuit is activated.– Check the speaker connection.– Turn the ignition switch OFF and back o ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.NO XXXX (NO TITLE, for example)→ There is no embedded text information.–Switch the display or play another tra ck/file. CD player ERROR-07, 11, 12, 17, 30→ The disc is dirty.–Clean the disc.→ The disc is scratched.–Replace the disc.ERROR-07, 10, 11, 12, 15, 17, 30, A0→ There is an electrical or mechanical error.–Turn the ignition switch OFF and back o ON, or switch to a different source, then back to the CD player.ERROR-15→ The inserted disc is blank.–Replace the disc.ERROR-23→ Unsupported CD format.–Replace the disc.FORMAT READ→ Sometimes there is a delay between the start of playback and when you start to hear any sound.– Wait until the message disappears and ou hear sound.NO AUDIO→ The inserted disc does not contain any playable files.–Replace the disc.SKIPPED→ The inserted disc contains DRM protected files.–The protected files are skipped. Additional Information Troubleshooting Error messages14En PROTECT

• All the files on the inserted disc are embedded with DRM. – Replace the disc. USB device FORMAT READ

• Sometimes there is a delay between the start of playback and when you start to hear any sound. – Wait until the message disappears and

• There are no songs. – Transfer the audio files to the USB

• T he connected USB device has security enabled. – Follow the USB device instructions to

isable the security. SKIPPED

• The connected USB device contains DRM protected files. – The protected files are skipped. PROTECT

• All the files on the connected USB device are embedded with DRM. – Replace the USB device.

• The connected USB device is not supported by this unit. – Disconnect your device and replace it

• The USB device connected via a USB hub is not supported by this unit. – Connect the USB device directly to this uni t using a USB cable. CHECK USB

• The USB connector or USB cable has short-circuited. – Check that the USB connector or USB

able is not caught in something or damaged.

• T he connected USB device consumes more than maximum allowable current. – Disconnect the USB device and do not

e it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices. ERROR-19

• Communication failed. – Perform one of the following

perations, then return to the USB source.

• T urn the ignition switch OFF and back to ON.

• Dis connect the USB device.

• C hange to a different source. ERROR-23

• USB device was not formatted properly. – Format the USB device with FAT12, FAT 16 or FAT32. STOP

• There are no songs in the current list. – Select a list that contains songs. Discs and player

• Use only discs that feature either of the following two logos.

• Use o nly conventional, fully circular discs.

• T he following types of discs cannot be used with this unit: –DualDiscs Handling guidelines – 8-cm discs: Attempts to use such discs with an adaptor may cause the unit to malfunction. –Oddly shaped discs –Discs other than CDs –Damaged discs, including discs that are crack ed, chipped or warped –CD-R/RW discs that have not been fin alized

• D o not write on or apply chemicals to the surface of the discs.

• T o clean a CD, wipe the disc with a soft cloth outward from the center.

• C ondensation may temporarily impair the player’s performance. Let it rest for about one hour to adjust to a warmer temperature. Also, wipe any damp discs off with a soft cloth.

• W hen using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.

• Do n ot attach commercially available labels or other materials to the discs. –The discs may warp making the disc unplay able. –The labels may come off during

ayback and prevent ejection of the discs, which may result in damage to the equipment. USB storage device

• Connections via USB hubs are not supported.

• F irmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.

• D epending on the USB storage device, the following problems may occur. –Operations may vary. –The storage device may not be reco gnized. –Files may not be played back properly. –The device may cause audible int erference when you are listening to the radio.

• O nly the first 32 characters can be displayed as a file name (including the file extension) or a folder name.

• T he unit may not work properly depending on the application used to encode WMA files.

• T here may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.

• Russia n text to be displayed on this unit should be encoded in one of the following character sets: –Unicode (UTF-8, UTF-16) – A character set other than Unicode that is us ed in a Windows environment and is set to Russian in the multi-language setting CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.

• Do not leave discs or a USB storage device in any place that is subject to high temperatures. WMA files Compressed audio compatibility File extension .wmaBit rate 48 kbps to 320 kbps (CBR), 48 kbps to 384 kbps (VBR)15En English MP3 files WAV files
• WAV file formats cannot be connected via MTP. FLAC files
• FLAC file formats cannot be connected via MTP.• FLAC files may not be playable, depending on the encoder. Disc
• Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs. USB device
• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.The user cannot assign folder numbers and pecify playback sequences with this unit. Sequence of audio file depends on the connected device.Note that the hidden files in a USB device nnot be played back.Sampling frequency 32 kHz, 44.1 kHz, 48 kHz Windows Media™ Audio Professional, Lossless, Voice/DRM Stream/Stream with videoNot compatibleFile extension .mp3Bit rate 8 kbps to 320 kbps (CBR), VBRSampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)Compatible ID3 tag version1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.)M3u playlist Not compatibleMP3i (MP3 interactive), mp3 PRONot compatibleFile extension .wavQuantization bits 8 and 16 (LPCM), 4 (MSADPCM)Sampling frequency 16 kHz to 48 kHz (LPCM), 22.05 kHz and 44.1 kHz (MS ADPCM)File extension .flacSampling frequency 8/11.025/12/16/22.05/24/32/44.1/48 kHzQuantization bit rate 16 bitChannel mode 1/2 chPlayable folder hierarchyUp to eight tiers (A practical hierarchy is less than two tiers.)Playable folders Up to 99Playable files Up to 999File system ISO 9660 Level 1 and 2, Romeo, JolietMulti-session playbackCompatiblePacket write data transferNot compatiblePlayable folder hierarchyUp to eight tiers (A practical hierarchy is less than two tiers.)Playable folders Up to 500Playable files Up to 15 000Playback of copyright-protected filesNot compatiblePartitioned USB deviceOnly the first partition can be played. Sequence of audio files Example of a hierarchy WMA Windows Media is either a registered rademark or trademark of Microsoft Corporation in the United States and/or other countries.This product includes technology owned Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. FLAC Copyright © 2000-2009 Josh CoalsonCopyright © 2011-2013 Xiph.Org undationRedistribution and use in source and nary forms, with or without modification, are permitted provided that the following conditions are met:–Redistributions of source code must tain the above copyright notice, this list of conditions and the following disclaimer.–Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.–Neither the name of the Xiph.org oundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.THIS SOFTWARE IS PROVIDED BY THE PYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, Russian character chart FolderCompressed audio file to : Playback sequence01 to 05: Folder number D: Display C: Character Copyright and trademark16En

INCIDENTAL, SPECIAL, EXEMPLARY, OR

CONSEQUENTIAL DAMAGES (INCLUDING,

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Android & Google Play Android, Google Play, and the Google Play log o are trademarks of Google Inc. General Power source: 14.4 V DC (10.8 V to 15.1 V allowable) Grounding system: Negative type Maximum current consumption: 10.0 A Dimensions (W × H × D): DIN Chassis: 178 mm × 50 mm × 165 mm Nose: 188 mm × 58 mm × 17 mm

50 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for subwoofer) Continuous power output: 22 W × 4 (50 Hz to 15 000 Hz, 5 %

D, 4 Ω load, both channels driven) Load impedance: 4 Ω (4 Ω to 8 Ω allowable) Preout maximum output level: 2.0 V Loudness contour: +10 dB (100 Hz), +6.5

/125 Hz/160 Hz/200 Hz Slope: –12 dB/oct, –24 dB/oct Gain: +6 dB to –24 dB Phase: Normal/Reverse CD player System: Compact disc audio system Usable discs: Compact disc Signal-to-noise ratio: 94 dB (1 kHz) (IEC-A
