USER MANUAL VEKS4025 VESTEL

Cartoon illustration of an electric plug with a sad face and plug, emitting exhaust smoke (no text or symbols)

Illustration of three hands performing a knotting or wire repair technique (no text or symbols present)

Technical line drawing of a mechanical component with internal channels and mounting features (no text or symbols)

Illustration of a hand holding a small container and a smiling face with a magnifying glass, next to another hand reaching toward it (no text or symbols)

Simple line drawing of a structural beam or support with a notch (no text or symbols)

Diagram showing a hand pressing down a mechanical component with a circular arrow indicating direction (no text or symbols present)

Line drawing of a mechanical tool with internal components (no text or symbols)

Technical diagram of an 8'- refrigerator with numbered parts for identification

Diagram of a refrigerator with labeled parts and an inset showing internal structure with arrows and symbols

DE -14-

Abb. F Abb. G

Technical diagram of a cabinet with labeled components and assembly steps, showing internal components and mounting details.

Abb. H

14

Abb. J

a 16 15 c b 14 18

Abb. K

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a recycling symbol (three chasing arrows) inside a square frame, no text or labels present.

Old and out-of-order fridges 21

Safety warnings....21

Installing and operating your fridge 22

Before Using your Fridge 22

USAGE INFORMATION 23

Thermostat Setting 23

Warnings for Temperature Settings.... 23

ARRANGING FOOD IN THE APPLIANCE 24

CLEANING AND MAINTENANCE 25

Defrosting 26

Replacing The Bulb 26

SHIPMENT AND REPOSITIONING 27

BEFORE CALLING SERVICE 27

Tips for saving energy 28

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 29

Product fiche 30

Product part list 30

CHAPTER 1. BEFORE USING YOUR FRIDGE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

• If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and similar applications such as;

- staff kitchen areas in shops, offices and other working environments

- farm houses and by clients in hotels, motels and other residenti type environments

• bed and breakfast type environments;

• catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

Old and out-of-order fridges

- If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

Symbol of a trash bin crossed with diagonal lines, no text or labels present

- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.

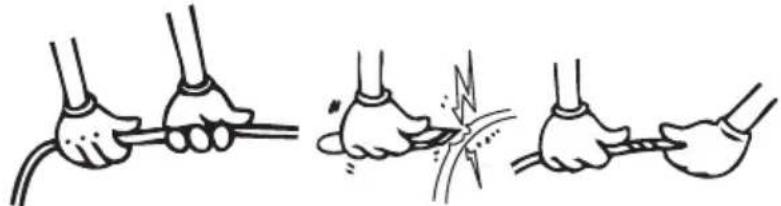

• Do not pull, bend or damage the cord.

Illustration of three hands performing a rope knotting technique (no text or symbols present)

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge.
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

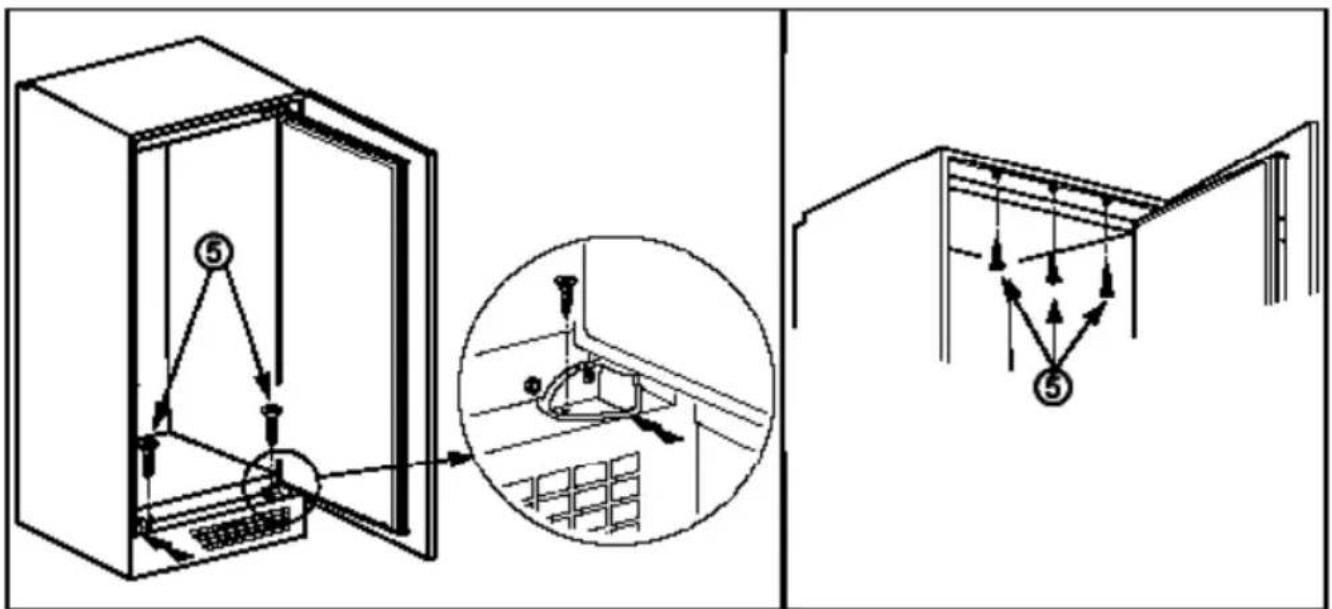

• Fix the accessories in the fridge during transportation to prevent damage to accessories.

Cartoon illustration of a character climbing a door, with a smiling face and no text or symbols present.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

- Operating voltage for your fridge is 220-240 V at 50Hz.

- We do not take the responsibility of the damages that occur due to ungrounded usage.

- Place your fridge in a place that it would not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

- Your fridge should never be used outdoors or left under the rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 ~cm between them to prevent humidity on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.

- The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

- Before using your fridge, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

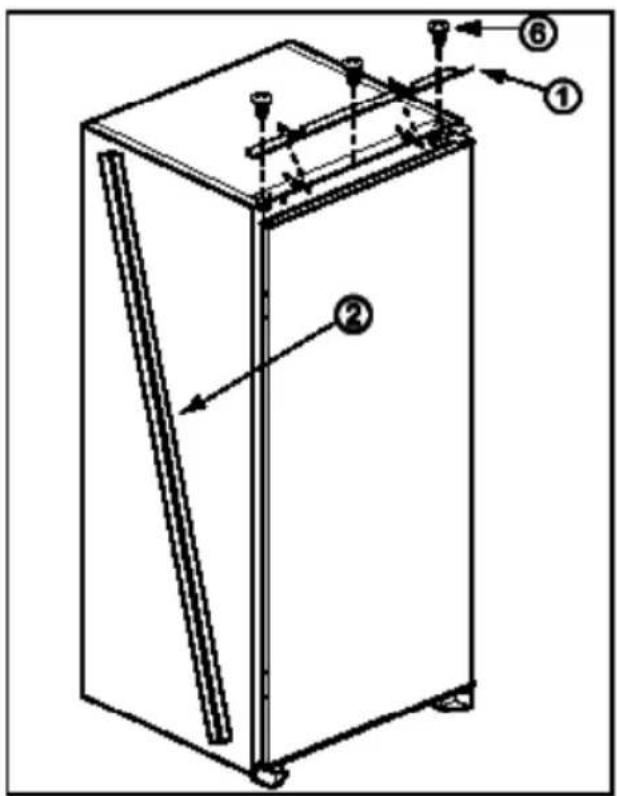

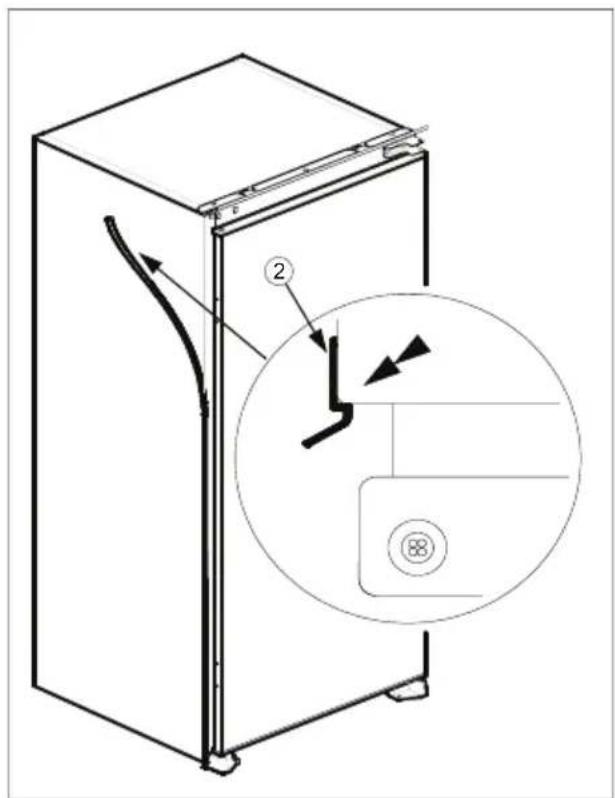

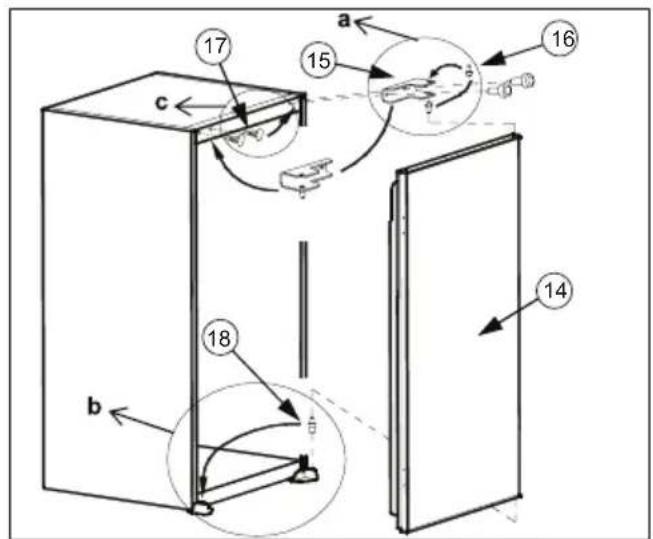

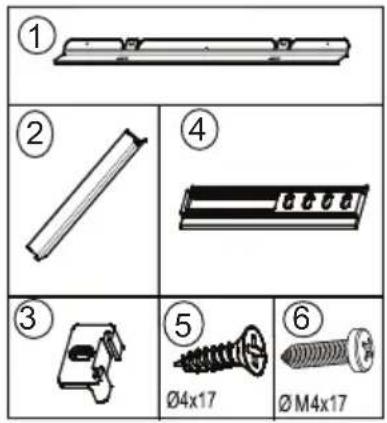

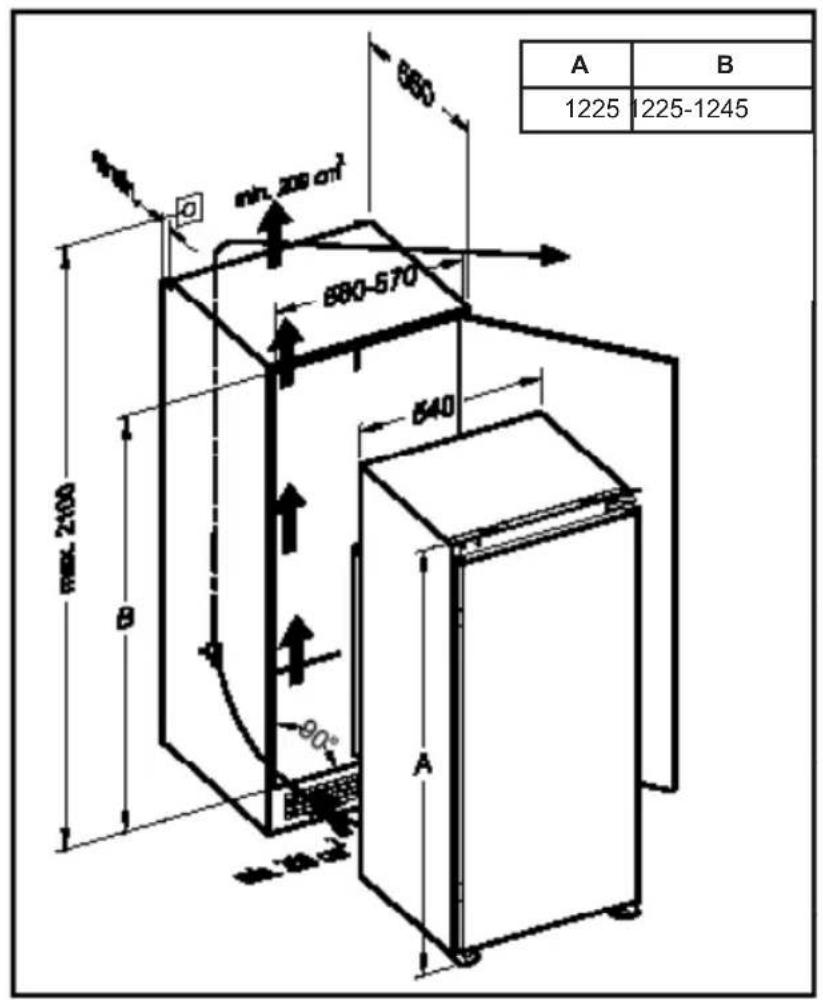

• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.

Cartoon illustration of a distressed container character holding a box labeled 'KG', with no readable text or symbols beyond the label.

Diagram showing two curved arrows pointing to a mechanical component inside a coiled spring (no text or symbols)

Before Using your Fridge

- When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.

- Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

Simple line drawing of a hand holding a smiling square character (no text or symbols)

CHAPTER 2. USAGE INFORMATION

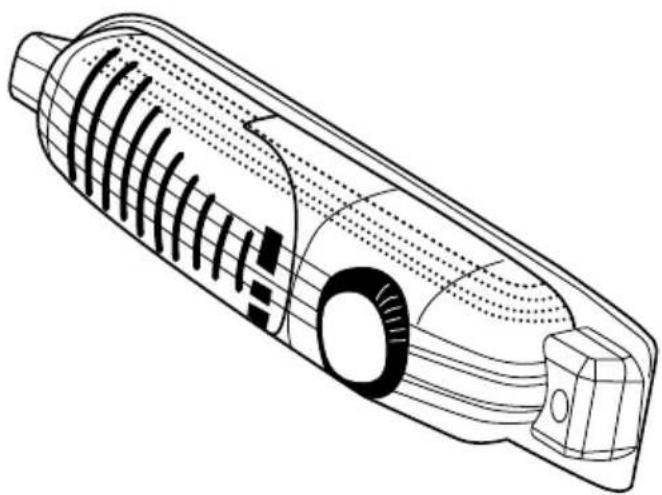

Thermostat Setting

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Larders (coolers) have not any freezer compartment but can cool below 5°C.

- Thermostat automatically regulates the inside temperature of the refrigerator compartment. By rotating the knob from position « 1 » to « 5 », colder temperatures can be obtained.

- « • » position shows thermostat is closed and no cooling is available.

- For short-term storage of food in the refrigerator compartment, you can set the knob between minimum and medium position.(1-3)

- For long-term storage of food in the refrigerator compartment, you can set knob to medium position.(3-4)

- Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

- Larders (coolers) have not any freezer compartment but can below 5^ .

Warnings for Temperature Settings

- The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator. If required, change the temperature setting.

- It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency.

- The thermostat setting should be done by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.

- Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.

• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are out of the stated temperature intervals in terms of cooling efficiency.
• This appliance is designed for use at an ambient temperature within the 16°C - 32°C range.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

CHAPTER 3. ARRANGING FOOD IN THE APPLIANCE

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.

CHAPTER 4. CLEANING AND MAINTENANCE

- Make sure to unplug the fridge before starting to clean it.

- Do not wash your fridge by pouring water.

Cartoon illustration of a hand using a tool to interact with a doorbell (no text or symbols present)

Simple line drawing of a hand holding a smiling square emoji (no text or symbols)

- You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a small bottle and cup (no text or symbols)

- Remove the parts individually and clean with soapy water. Do not wash in washing machine.

- Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food (no text or symbols)

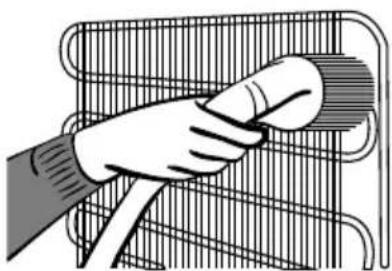

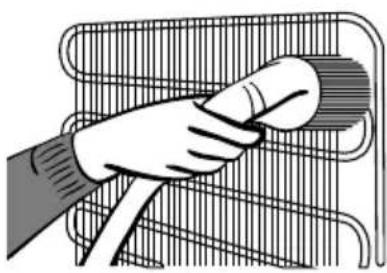

- You should clean the condenser with broom at least twice a year in order to provide energy saving and increase the productivity.

Illustration of a hand cleaning a metal rack with a circular object on top (no text or symbols)

- Make sure that your fridge is unplugged while cleaning.

Defrosting

Technical line drawing of a mechanical component and its magnified cross-section showing internal components (no text or symbols)

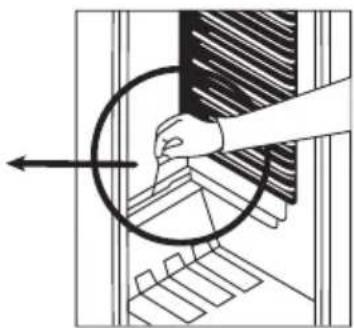

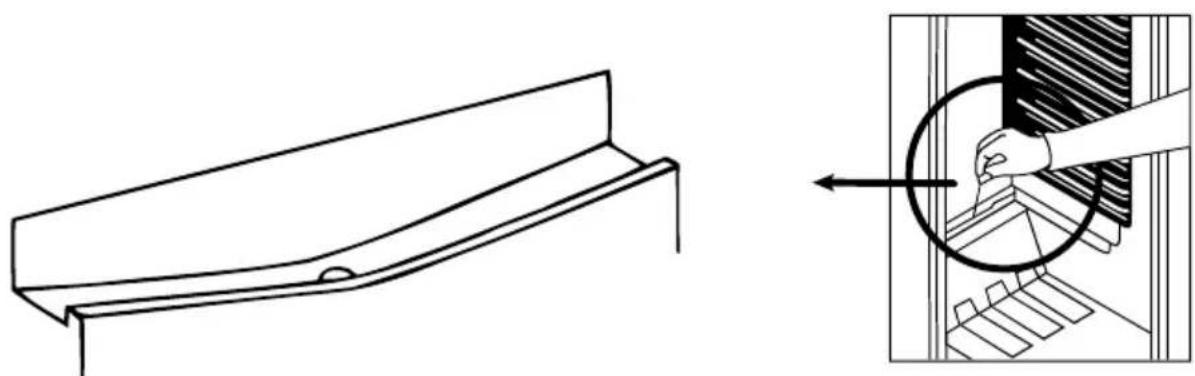

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evoparates automatically.

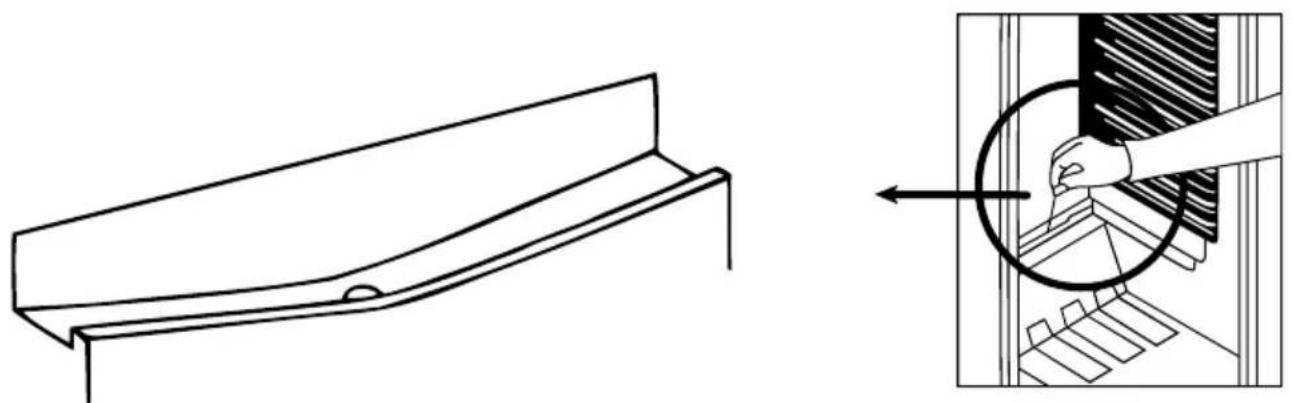

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

- You can also pour 12 glass of the water to drain hole to clean inside.

Replacing The Bulb

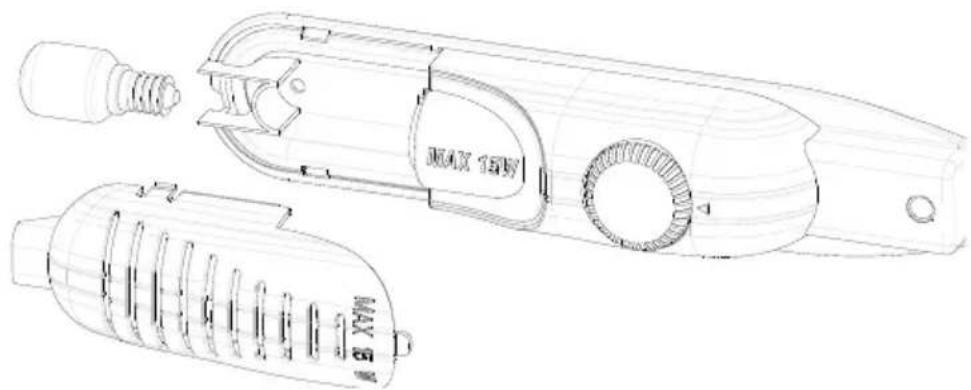

MAX 15W MAX 20

To replace the bulb in freezer and fridge departments;

1- Unplug your fridge.

2- Remove the cover of the box from the claws using a screwdriver.

3- Replace with a bulb of maximum 15 Watts.

4- Install the cover.

5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

CHAPTER 5. SHIPMENT AND REPOSITIONING

- Original package and foam may be kept for re-transportation (optionally). - You should fasten your fridge with thick package, bands or strong cords and follow

the instructions for transportation on the package for re-transportation.

- Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

- Carry your fridge in the upright position.

Simple line drawing of two children playing a game with a large block (no text or symbols)

CHAPTER 6. BEFORE CALLING SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ;

Check that ;

• There is no power,
• The general switch in your home is not disconnected,
• The thermostat setting is on « • » position,

- The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ;

Check that ;

• You have not overloaded the appliance,
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that;

• The appliance is well leveled,
- Nothing is touching the rear,
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

Recommendations

• In order to increase space and improve the appearance, the « cooling section » of refrigerators is positioned inside the back wall of the refrigerator compartment. When the appliance is running, this wall is covered with frost or water drops, when the compressor is running. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick ice layer forms on the back wall.
• If the appliance is not used for a long time (for example during the summer holidays). Set the thermostat knob to « • » position. Defrost and clean the refrigerator leaving the door open to prevent the formation of mildew and smell.

Tips for saving energy

1- Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc.). Otherwise use an insulating plate.
2- Allow warm food and drinks to cool down outside the appliance.
3- When placing, drinks and liquids they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and liquids helps preserve the smell and taste.
4- When placing food and drinks, open the appliance door as briefly as possible.
5- Keep the covers closed of any different temperature compartment in the appliance (crisper, chiller ...etc.).
6- Door gasket must be clean and pliable. Replace gaskets if worn.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Technical diagram of an 8'- refrigerator with numbered parts and internal components labeled

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

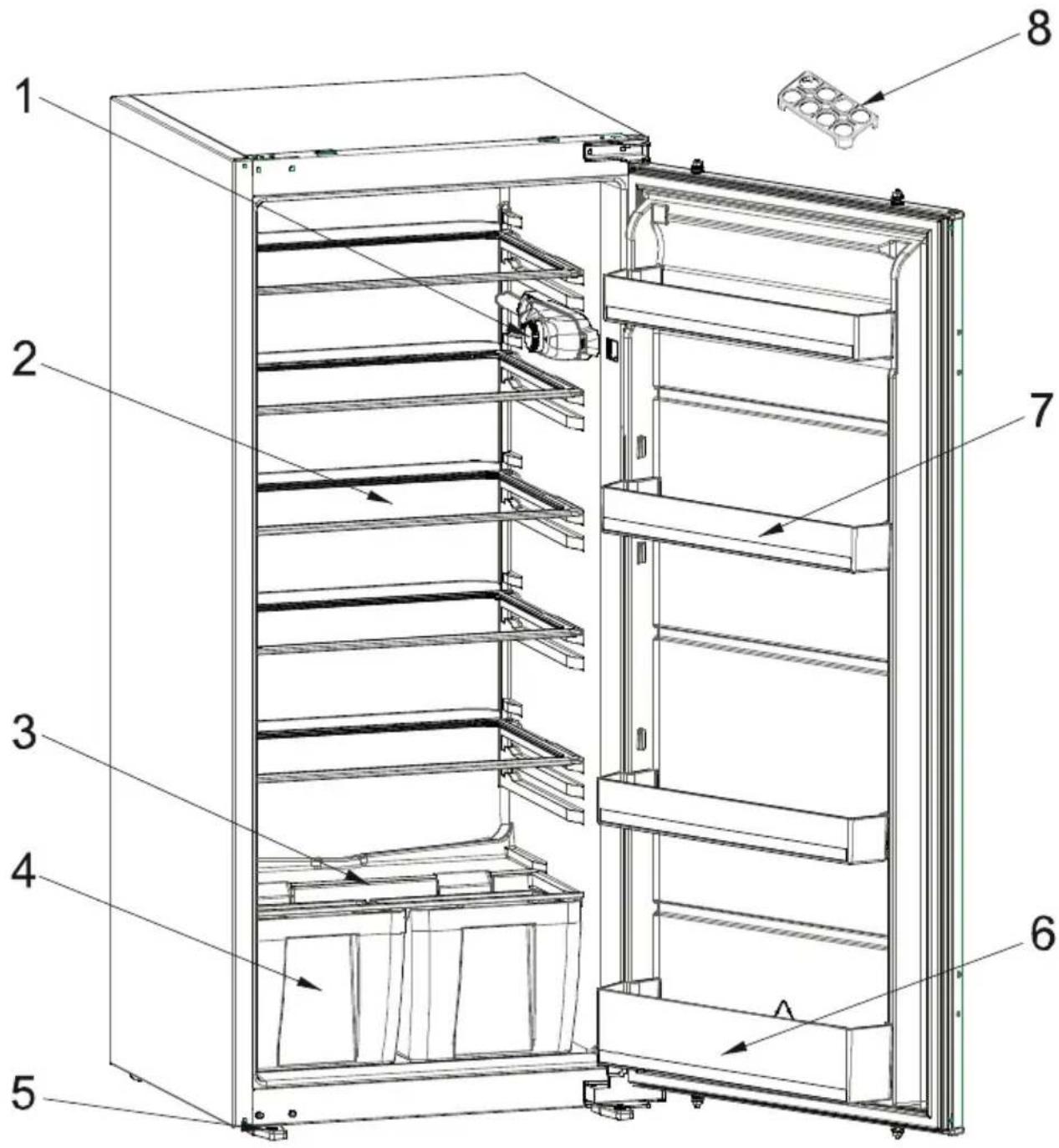

1) Thermostat box
2) Refrigerator shelves
3) Crisper cover (Safety glass)
4) Crisper
5) Left & Right feet
6) Bottle shelf
7) Door shelf
8) Egg holder

Product part list

Mark / Model	VESTEL
	Fridge
Glass shelves	5
Crisper	2
Door shelves	4
Egg tray	1
Ice tray	-
User manual / Installation booklet	Yes
Warranty documents	Yes

Product fiche

Brand	VESTEL
Model	VEKS4025
Product category	1 (Fridge)
Energy class	A+
Annual energy consumption *	126 kWh / year
Total gross volume	206 l
Total net volume	204 l
Refrigerator gross volume	206 l
Refrigerator net volume	204 l
Freezer gross volume	- l
Freezer net volume	- l
Star rating	-
Refrigeration system	Static
Temperature rise time (-18°C) - (-9°C)	-
Freezing capacity	-
Climate class **	N (16°C - 32°C)
Noise emission	39 dB(A)

1. Between A(low consumption) to G (high consumption)

2. Energy consumption of 126 kWh per year, calculated on the basis of results obtained in 24 hours under normalised test conditions. Real energy consumption depends on the conditions in which the equipment is used as well as where it is placed.

3.

(*) One Star storage is for the frozen food which keeps the inner temperature lower than -6 °C.

(**) Two Star storage is for the frozen food which keeps the inner temperature lower than - 12 °C.

(***) Tree Star storage is for the frozen food which keeps the inner temperature lower than - 18 °C.

(****) FOUR Star storage is for the freezing the food from +18 TO - 18 °C. It also keeps the foods under 3 star storage conditions.

1. Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

Installation instructions

! Before installation, read the instructions carefully.

! Fit the refrigerator/freezer in stable kitchen units only.

! If necessary, reverse the door according to instructions.

1. See fig.A for the necessary attachment components.

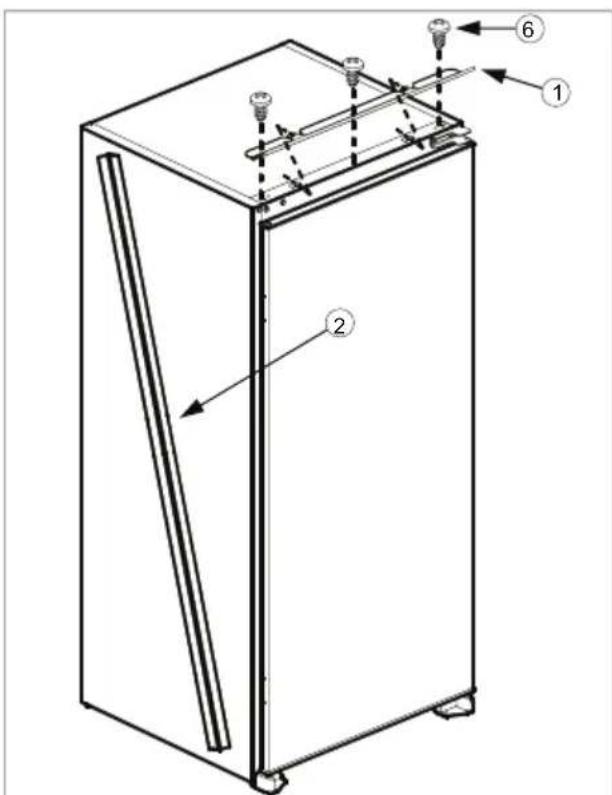

2. Insert trim flap ^1 into slot and screw by screws ^6 . (fig.D)

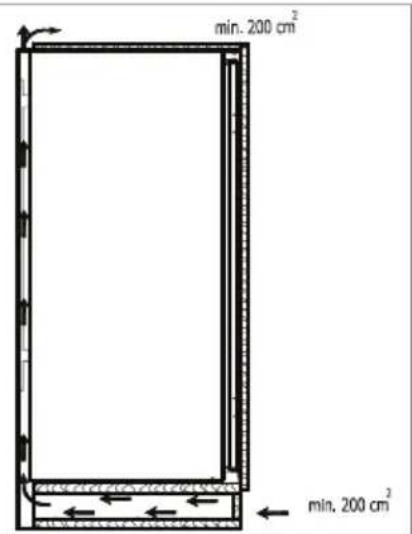

3. Pass the power cord through ventilation shaft and position it so that the appliance could be easily plugged in once it has been installed. (fig.B - fig.C)

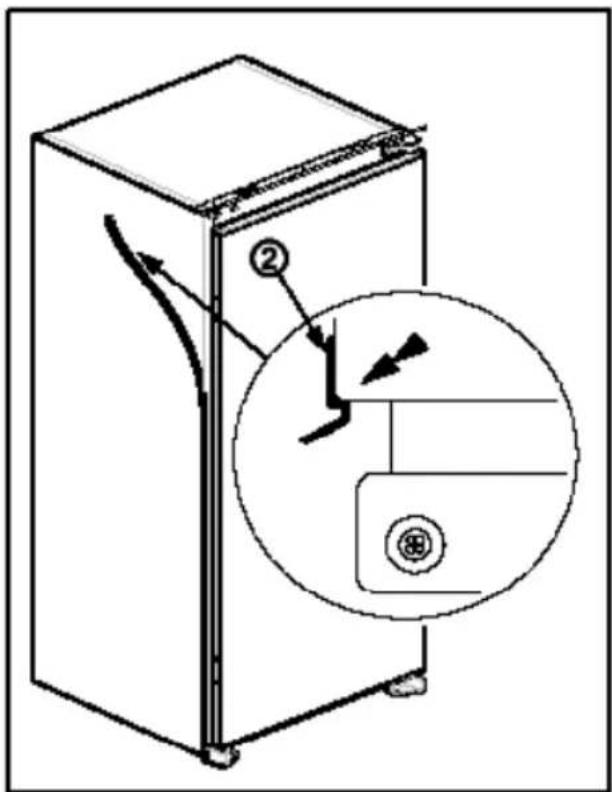

4. Take out the trim gasket located on the side panel of the appliance and stick it on reverse side of the door hinges of the appliance. (fig.D - fig.E)

5. Raise the appliance and slide into the kitchen unit.

6. Push the appliance to the reverse side of the door hinges providing that the trim gasket covers the space between the appliance and the kitchen unit.

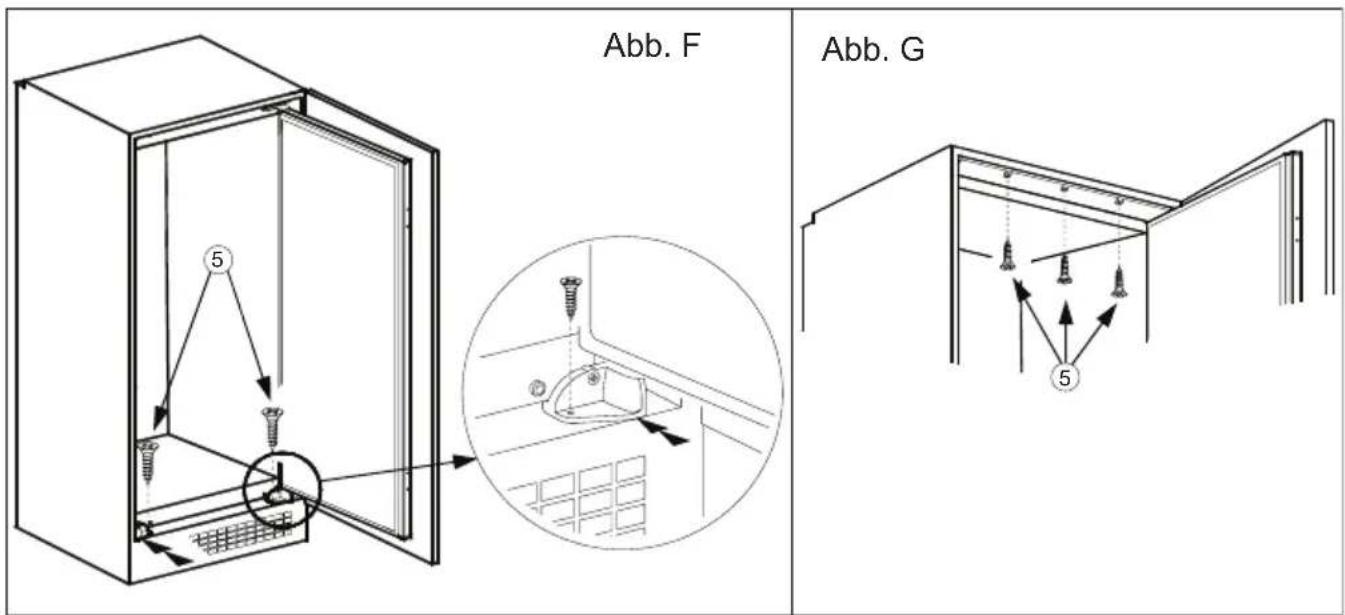

7. Align the front feet with front surface of the kitchen unit. (fig.F)

8. Screw the front feet by using screws ^5 . (fig.F)

9. Screw trim flap ^1 to kitchen unit using screws ^5 . (fig.G)

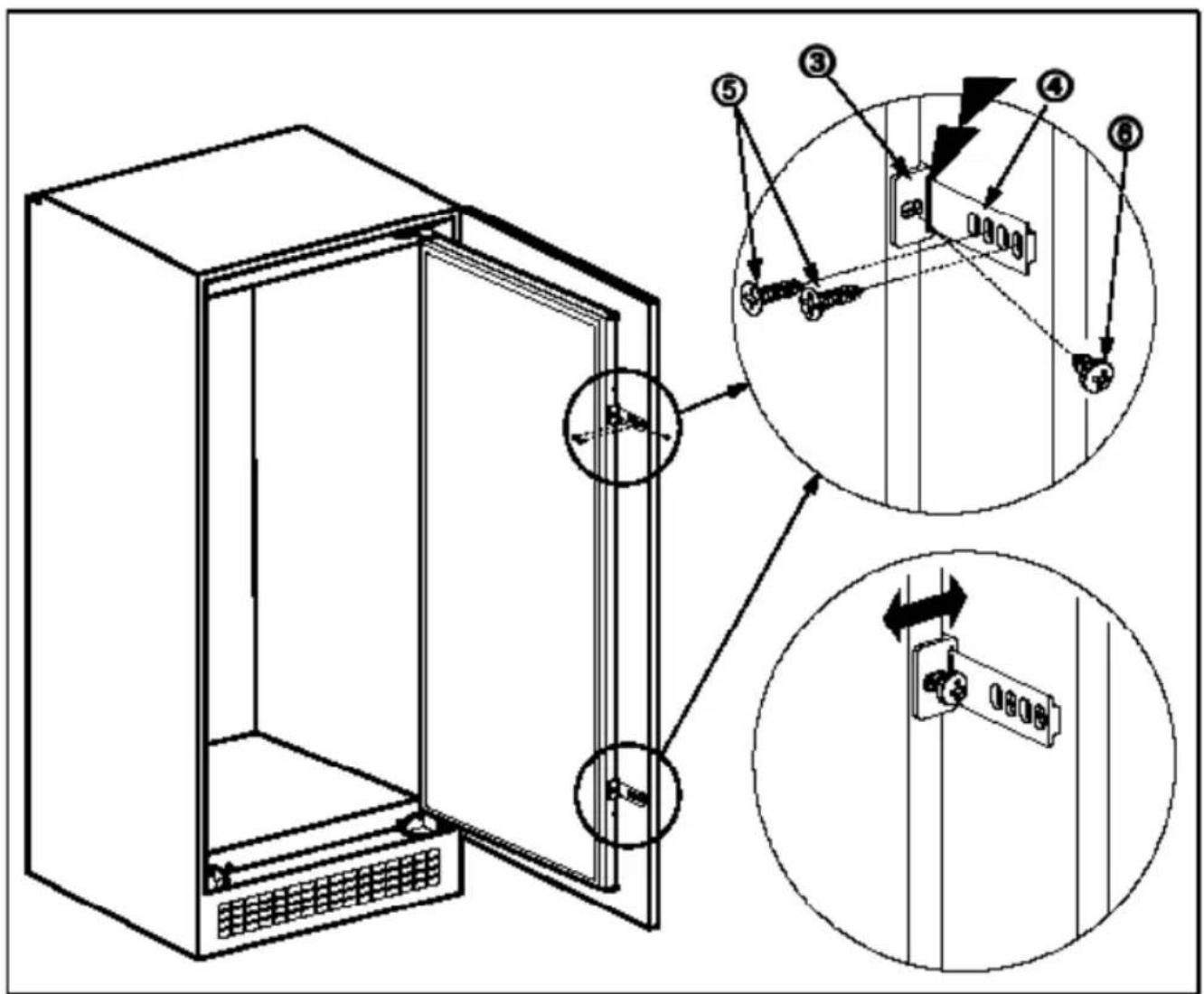

10. Screw guides ^3 to appliance door with screws ^6 . (fig.H)

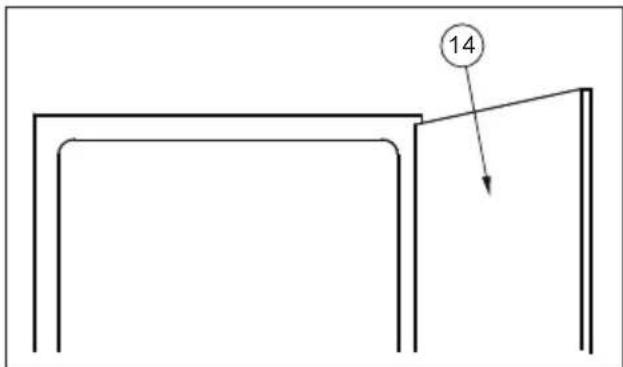

11. Lean appliance door to unit door as it is opened at right angle.

12. Slide rails ^4 into guides ^3 aligning the groove. (fig.H)

13. Screw the rails ^4 to the unit door with screws ^5 . (fig.H)

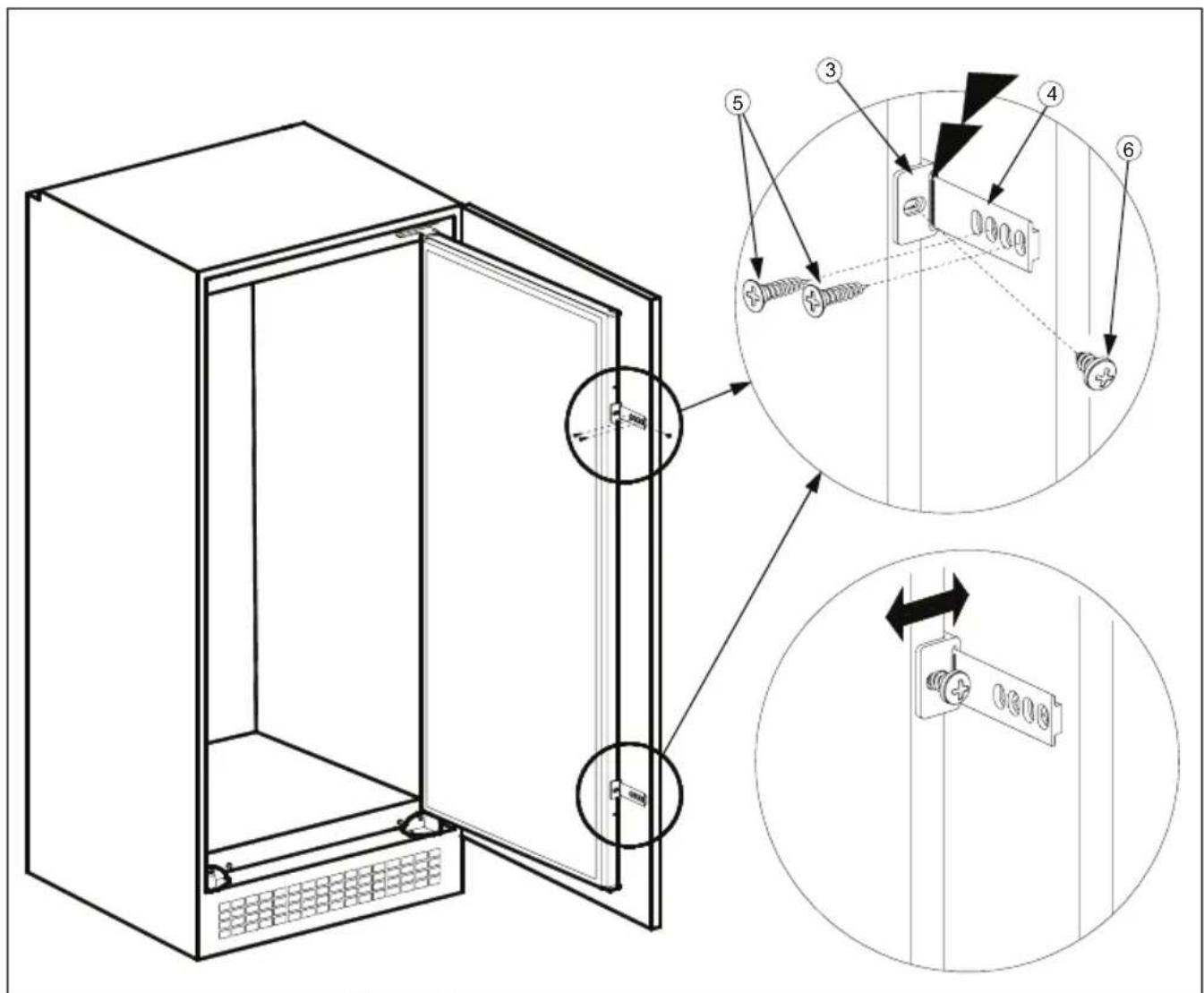

14. Set 1\~2 mm gap on handle side between unit itself and unit door by adjusting guides ^3 . That is vital for appliance performance. (fig.H)

Diagram showing six labeled mechanical parts with numbered annotations and specifications

Figure A

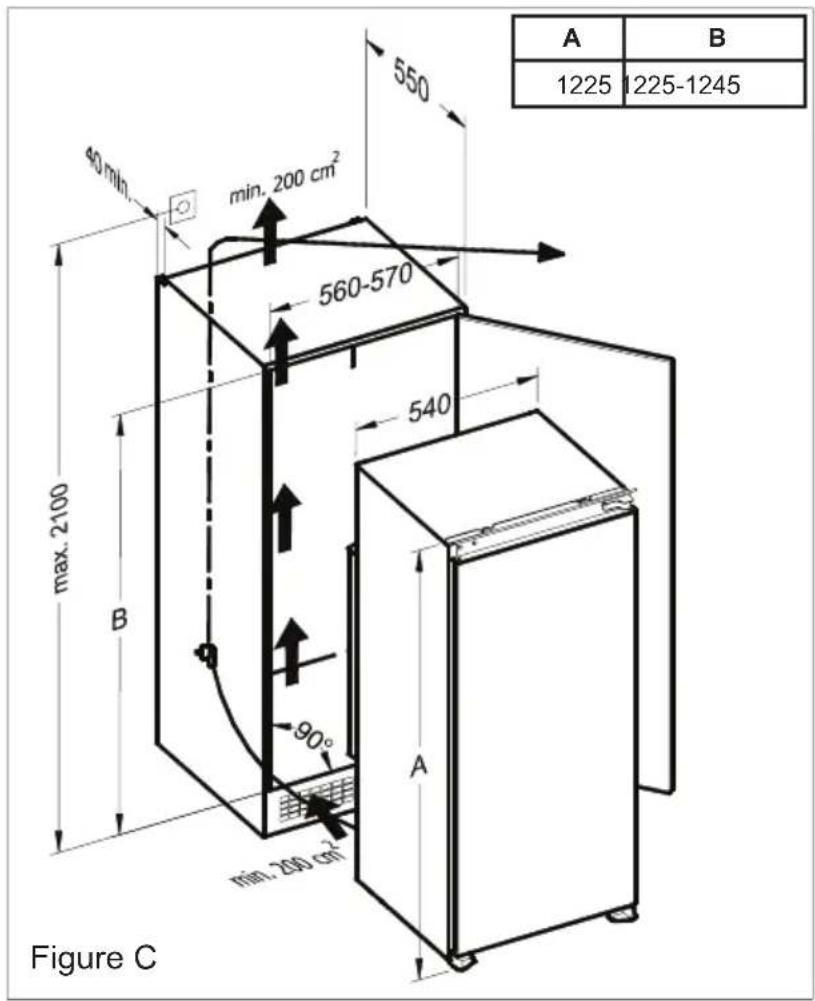

550 40 min min. 200 cm² 560-570 540 max. 2100 B 90° min. 200 cm² A Figure C A B 1225 1225-1245

min. 200 cm² min. 200 cm²

Figure B

Technical diagram of a refrigerator with labeled parts and structural components

Figure D Figure E

Technical diagram of a refrigerator with labeled parts and an inset showing internal structure, likely for assembly or labeling.

Figure F Figure G

Technical diagram of a cabinet with labeled components and assembly steps, showing internal components and mounting details.

Figure H

14

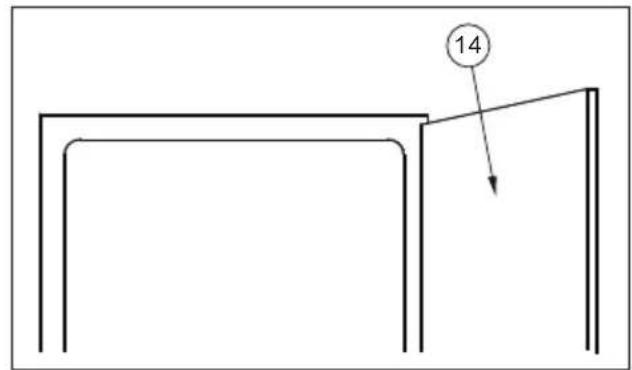

Figure J

17 15 a 16 c 18 b 14

Figure K

Door reversing

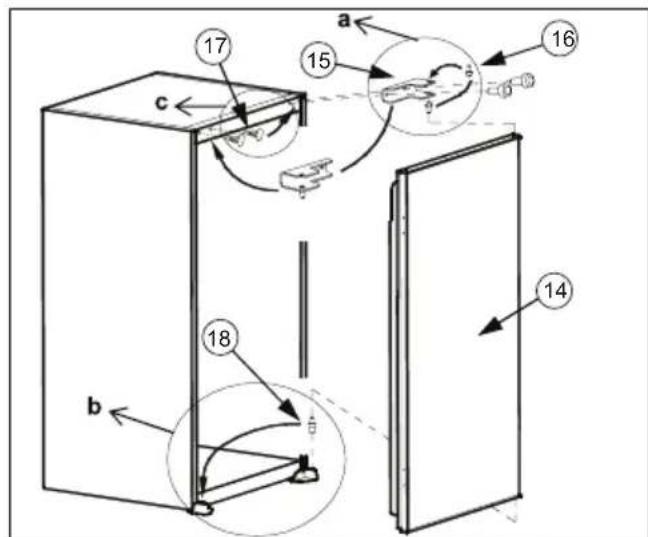

1. Open appliance door ^4 . (fig.J)
2. Disassemble door hinge ^15 and take appliance door ^14 to safe place. (fig.K)
3. Unscrew door hinge pin ^16 and screw it to opposite side firmly and take to safe place. (fig.K.a)
4. Take door lower pin ^8 to opposite side. (fig.K.b)
5. Take hole plugs ^4 to opposite side. (fig.K.c)
6. Place appliance door ^14 over door lower pin18 and insert door hinge pin ^16 into hinge hole on appliance door ^14 and then screw door hinge ^15 firmly onto opposite side of original position. (fig.K)

Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of the device

Pure electrical circuit lines without any symbols

Old devices cannot be placed in the household waste!

If the device can no longer be used, every consumer is legally obliged to hand in devices separately from household waste e.g. at a collection site of their local authority / borough. This ensures that the devices are properly recycled and negative effects on the environment are avoided. Therefore, electrical devices are marked with the symbol depicted.

Recycling

Simple line drawing of a recycling symbol (three chasing arrows) inside a square frame, no text or labels present.

Our packaging is made of environmentally-friendly, recyclable materials:

External packaging made of cardboard Moulded parts made of CFC-free polystyrene (PS)

Films and bags made of polyethylene (PE) Wrapping straps made of polypropylene (PP).

If you have sufficient space to permit it, we recommend you retain the

packaging, at least during the warranty period. If the device must be returned for repair or brought into a repair drop-off centre, the device is only adequately protected in the original packaging.

If you want to no longer retain the packaging, please dispose of this in an environmentally friendly manner.

Sommaire

AVANT D'UTILISER CET APPAREIL 38

FONCTIONS DIVERSES 42

TRANSPORT ET DEPLACEMENT 44

AVANT D'APPELER LE SERVICE APRES-VENTE 45

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Illustration of hands using a tool to draw or break a wire, showing different motion states (no text or symbols present)

Cartoon illustration of a character peeking out of a door, with expressive gestures and no text or symbols present.

Illustration of a hand holding a smiling face next to a crossed-out prohibition symbol (no text or numbers present)

Cartoon illustration of a distressed container character holding a box labeled 'KG', with arms and facial expressions (no text beyond label)

Simple line drawing of a hand holding a smiling square with a smiley face (no text or symbols)

SECTION 2. FONCTIONS DIVERSES

Technical line drawing of a mechanical component with internal gear and housing (no text or symbols)

Cartoon illustration of a hand brushing teeth with teeth near a wall-mounted device (no text or symbols)

Simple line drawing of a smiling emoji on a square object held by a hand (no text or symbols)

Cartoon illustration of a refrigerator with a hand cleaning it, accompanied by a small bottle and cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a mortar, giving thumbs up (no text or symbols)

Diagram of a refrigerator with a red X symbol crossed out, indicating no text or symbols present.

Illustration of a hand cleaning a wire rack with a circular object (no text or symbols)

LA PRISE DOIT ETRE DEBRANCHEE.

Technical line drawing of a mechanical component with an inset showing a hand holding a circular object (no text or symbols present)

Line drawing of a mechanical device with internal components and a dial (no text or symbols)

SECTION 4. TRANSPORT ET DEPLACEMENT

Simple line drawing of two children playing a board game (no text or symbols)

Technical diagram of an 8'- refrigerator with numbered parts and internal components labeled

Technical diagram of a rectangular enclosure with labeled components and directional arrows indicating assembly or movement.

Figure D

Diagram of a refrigerator with labeled parts and a magnified inset showing internal structure, likely illustrating appliance or appliance assembly.

Figure E

Technical diagram showing structural components and airflow directions in a cabinet, with numbered annotations indicating assembly steps.

Figure F
Figure G

Technical diagram of a refrigerator with labeled components and directional arrows indicating assembly or installation steps.

Figure H

14

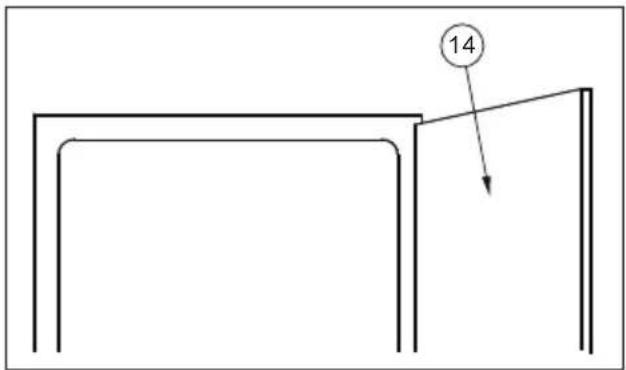

Figure J

a 16 15 17 c b 18 14

Figure K

INVERSEMENT DU SENS D'OUVERTURE DES PORTES

Pure electrical circuit lines without any symbols

Simple line drawing of a three chasing recycling symbol (no text or labels)

Pure electrical circuit lines without any symbols

Illustration of three hands performing a knot break operation (no text or symbols)

Cartoon illustration of a distressed container character holding a box labeled 'KG', with arms and facial expressions (no text or symbols beyond the label)

Simple line drawing of a hand holding a smiling square with a smiley face (no text or symbols)

Line drawing of a handheld hair dryer with spiral ventilation slots and a circular button (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and thumbs up, next to a bowl of food (no text or symbols)

Illustration showing various food safety behaviors: a smiling refrigerator, hand gestures, cleaning bottle, washing machine, and a sad refrigerator with a bandage.

Cartoon illustration of a smiling book character and two baby pumpkins (no text or symbols)

Illustration of a hand cleaning a metal rack with a circular object on top (no text or symbols)

Ontdooien

Technical line drawing of a structural component and its magnified cross-section showing internal components (no text or symbols)

Simple line drawing of two children playing a large block together (no text or symbols)

DEEL 5. VOOR U DE DIENST NA VERKOOP BELT

Technical diagram of an open refrigerator with numbered parts for identification and assembly reference.

Diagram showing six numbered mechanical parts with corresponding labels and specifications: a rectangular component, a cylindrical rod, a tray, a screw with diameter specification Ø4x17, and a threaded screw with M4x17.

Figure A

A B 1225 1225-1245 min. 209 cm² 680-570 640 max. 2100 B 90° A

dn. 200 cm³ dn. 200 cm³

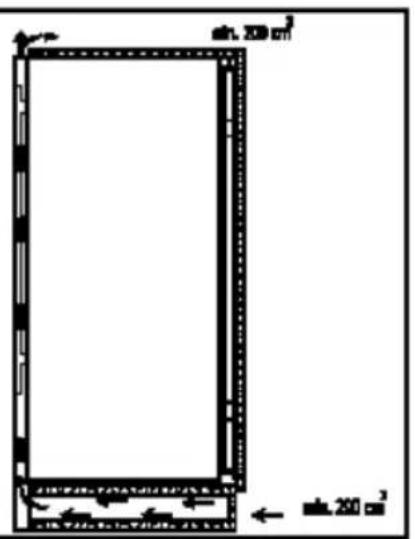

Figure B Figure C

Technical diagram of a cabinet with numbered components and directional arrows indicating assembly or movement.

Figure D

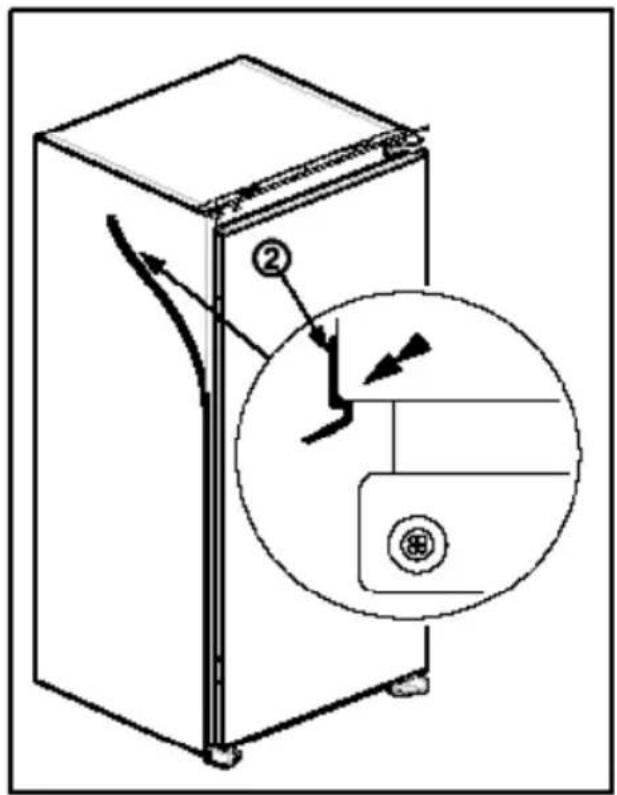

Diagram of a refrigerator with labeled parts and a magnified inset showing internal structure, likely illustrating appliance labeling or assembly.

Figure E

Technical diagram showing structural components and airflow directions in a cabinet, with numbered annotations indicating structural elements.

Figure F Figure G

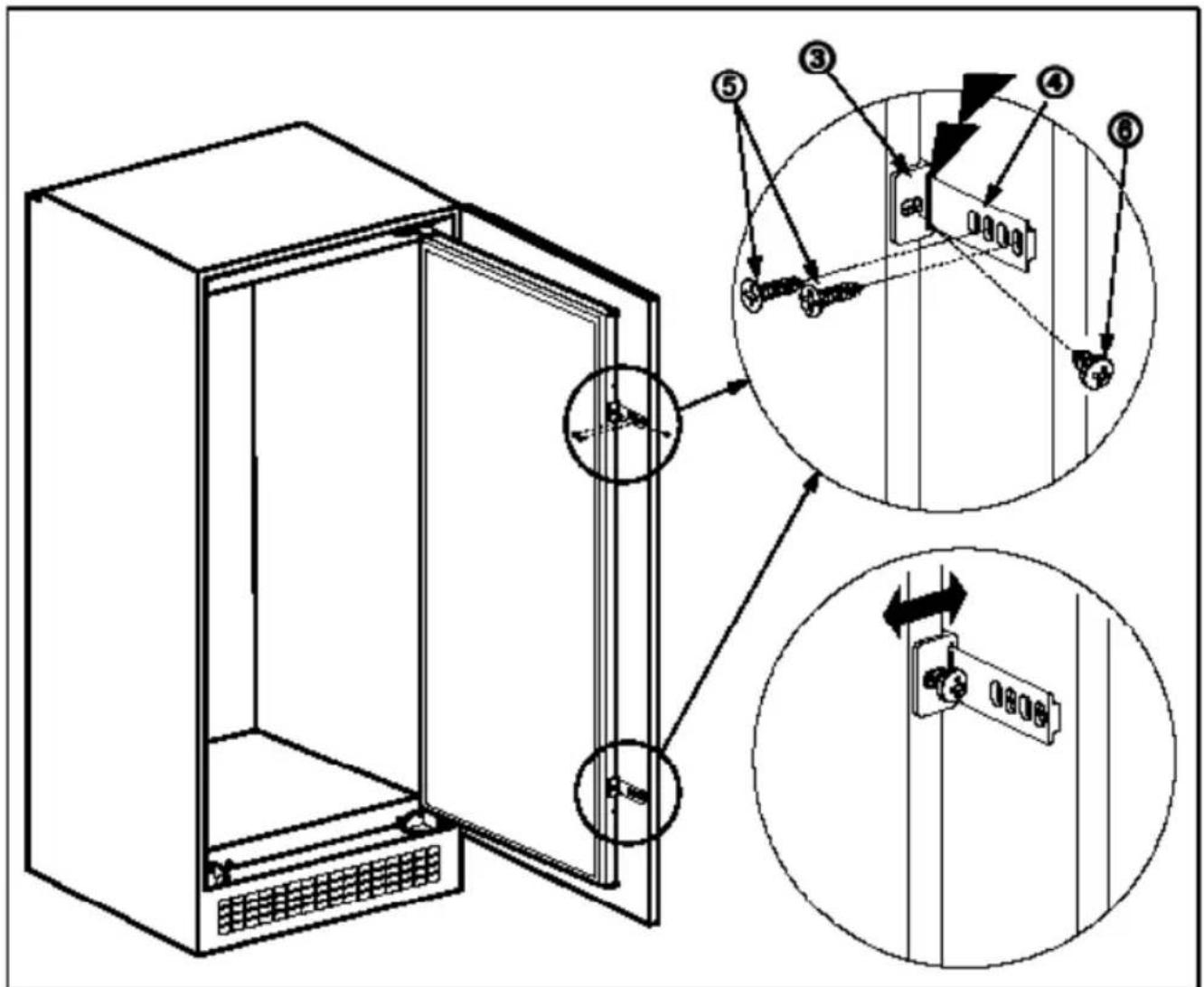

Technical diagram showing a cabinet with labeled components and assembly steps, including zoomed-in views of internal components.

Figure H

14

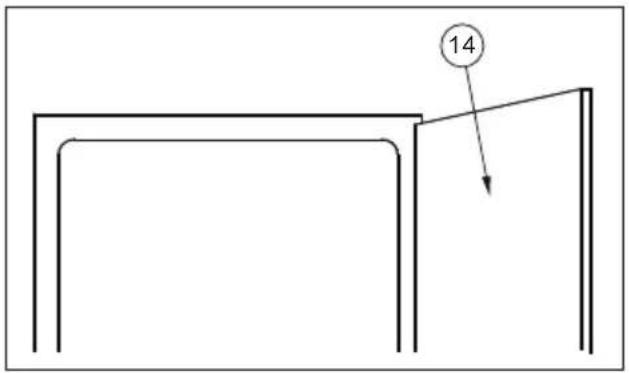

Figure J

17 15 a 16 c 18 b 14

Figure K

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)
