Product Type	USB-C Wireless HDMI Transmitter/Receiver Kit
Brand	IOGEAR
Model	Share Pro
Transmitter Connector	USB-C Male (Supports DP Alt Mode)
Receiver Connector	HDMI Male
Wireless Range	Up to 20 meters (40 feet) line-of-sight
Power	Via source USB port (500 mA minimum) or USB 5V power adapter
LED Indicators	Power (blue) and wireless signal (red) on transmitter and receiver
Supported Video Resolution	Up to 1080p (not specified, reasonable estimate)
Kit Contents	1 USB-C transmitter, 1 HDMI receiver, 1 USB-C extension cable, 1 micro USB cable, quick start guide, warranty card
System Requirements	Source with USB-C port supporting DP Alt Mode; display with HDMI port and powered USB-A port
Warranty	1 year limited
Transmitter Dimensions	Approximately 70 x 25 x 10 mm (estimate)
Receiver Dimensions	Approximately 60 x 25 x 10 mm (estimate)
Weight	Approximately 30 g each (estimate)
Maintenance	Clean with a soft, dry cloth. Do not use chemicals.
Operating Temperature	0°C to 40°C (estimate)
Compliance	FCC Class B, CE
Compatibility	Windows, macOS, Android devices with USB-C DP Alt Mode

Frequently Asked Questions - Share Pro IOGEAR

Which devices are compatible with the Share Pro?

The Share Pro requires a video source with a USB-C port supporting DP Alt Mode (DisplayPort). It is compatible with most modern laptops, tablets, and smartphones equipped with a USB-C port with video output.

How to connect the transmitter to the receiver?

Connect the transmitter to the USB-C port of your source. Connect the receiver to an HDMI port on your display. Power the receiver via a USB-A port or a power adapter. The two devices pair automatically in about 30 seconds.

What to do if no video appears on the screen?

Check that the source and display are powered on, that the HDMI source is correctly selected, and that connections are fully inserted. Try connecting the source directly to the display with an HDMI cable to test compatibility. Restart the transmitter and receiver by unplugging and re-plugging the USB power.

The video flickers or is unstable, what to do?

Ensure the transmitter and receiver are in direct line-of-sight, without obstacles, and within 20 meters. Avoid interference from other powerful wireless devices. Check HDMI connections. If the problem persists, contact IOGEAR technical support.

What is the maximum range of the Share Pro?

The wireless range can reach up to 20 meters (40 feet) under ideal conditions, with no obstacles and a direct line of sight between transmitter and receiver.

Can I use the Share Pro without external power?

Yes, the transmitter can be powered directly by the source's USB-C port if it provides sufficient power. The receiver requires power via a USB-A port or a 5V power adapter (500 mA minimum).

Does the Share Pro support 4K resolution?

The manual does not specify the maximum resolution, but the product is designed for standard use (likely up to 1080p). For higher resolutions, check the manufacturer's website.

How to clean the transmitter and receiver?

Use a soft, dry cloth to wipe the devices. Do not use solvents, abrasives, or harsh chemicals that could damage the connectors.

Is there a warranty for the Share Pro?

Yes, the product is covered by a one-year limited warranty. For more details and to register your product, visit IOGEAR's website at www.iogear.com/support/warranty.

Can I use a standard USB power adapter to power the receiver?

Yes, you can use a standard USB power adapter with an output of 5V and at least 500 mA. Connect it to the micro USB port of the receiver using the provided cable.

USER MANUAL Share Pro IOGEAR

Wireless HD Video Transmitter and Receiver Kit

1 x USB-C wireless transmitter
1 x HDMI wireless receiver
1 x HDMI cable extender
1 x USB-C cable extender
1 x USB-A male-to-USB micro power cable
1 x Quick Start Guide
1 x Warranty Card

System Requirements

1 USB-C source device that supports DP Alternate Mode
1 HDMI display device (HDTV, projector with HDMI port, etc.) with USB-A connector that carries power (and not used as a firmware upgrade port)

Note: In the case that there is no USB-A port that supplies power, please use an USB power supply with minimum 500mA.

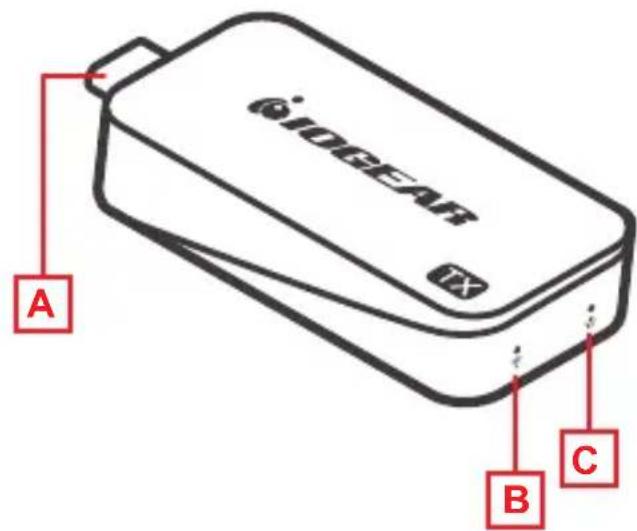

Transmitter

A. USB TYPE-C output male connector
B. Wireless signal indicator (Red LED)
C. Power indicator (Blue LED)

Receiver

D. HDMI input male connector
E. Wireless signal indicator (Red LED)
F. Power input
G. Power indicator (Blue LED)

STEP 1

Turn on both the video source and the display (TV or projector). Make sure that the input source on your display corresponds to the HDMI port that the transmitter is connected to.

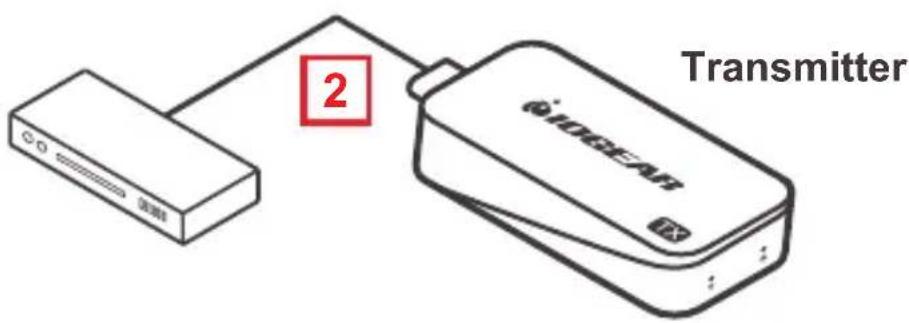

STEP 2

Insert the transmitter into the USB-C port of your video source device. Your USB-C port needs to support USB-C Alt mode or USB-C Connection Standard as this will also carry video signal. If you find that the transmitter will block any ports on your computer, please use the USB-C extender (included in this package) to free the adjacent ports.

STEP 3

Both power and wireless LEDs will light up solid and then the wireless LED will go out and come back on solid.

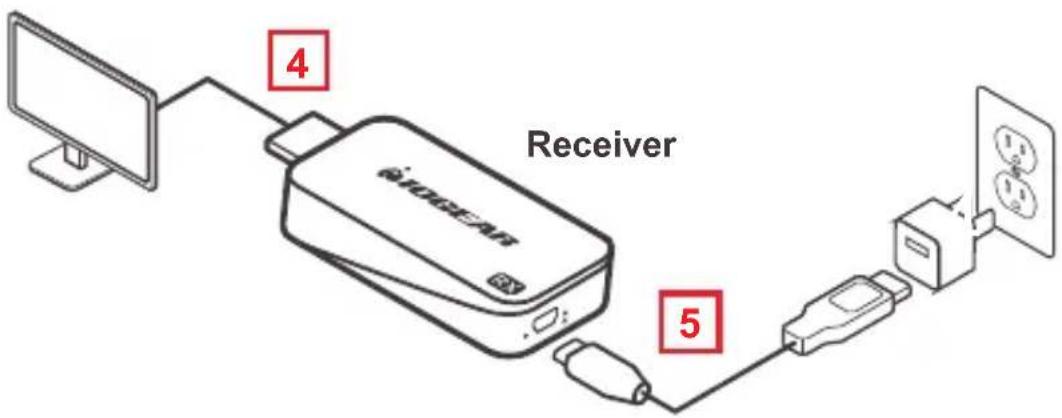

STEP 4

Insert the receiver into an HDMI input of your display (TV/projector) making sure the HDMI source input matches the port you plugged the receiver into.

STEP 5

Use one of the USB charging cables to connect to the micro USB port of the transmitter to a type USB-A port on the source device to obtain power. In a rare case that the source device has no USB port, please use a 5V USB power adapter with a minimum of 500mA output

STEP 6

The power LED (blue) will come on solid and a message will be displayed on your TV/projector stating it is waiting for connection. After approximately 30 seconds the wireless LED (red) on both the transmitter and the receiver will start to blink once every second. The transmitter wireless LED will become solid and the receiver red wireless LED will continue to blink every second, the connection is now established.

STEP 7

Video from your source device will now be duplicated on your TV/projector.

NOTE: We recommend to use this device for line-of-sight use only as it is designed as a short range device.

Q: Everything is connected, power LEDs are on for both devices, but no video on the video display.

A: 1. Make sure the video source device and video display are turned on and the transmitter is plugged in firmly and completely.

1. Check the HDMI cable connection at both sides of the receiver and display to make sure they are plugged in firmly and completely.

2. Check the video input selection on the video display device, make sure that the HDMI input port you selected is the same as the one you actually plugged in.

3. If still no video after some time, connect the video source device directly to the video display with an HDMI cable to make sure that there are no compatibility issues.

4. If the direct connection is working, reconnect everything and restart (unplug and then re-plug the USB power cables) both the transmitter and the receiver and make sure the power and wireless LEDs both light up on both the transmitter and the receiver.

5. The USB-C port on your device may not support USB-C Alternate Mode or USB-C Connection Standard.

Q: Video is flickering or not stable on the video display.

A: 1. Check the distance and environment; make sure no other wireless device with a strong signal is within close proximity.

1. Change the location of the transmitter and receiver to make sure the devices are within the allowed range and there are no obstacles in between, operating distance of up to 40 feet in ideal condition.

2. Check the HDMI cable connection at both sides on both the transmitter and receiver to make sure they are plugged in firmly.

If all of the above has been checked and there are still no video displayed, please contact IOGEAR Technical Support for further support.

Limited Warranty

Warranty Information

This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register

Important Product Information Product Model ____ Serial Number ____

Contact

WE'RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support

IOGEAR

iogear.custhelp.com

[e-mail]

www.iogear.com

Compliance Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CE Statement:

This device has been tested and found to comply with the following European Union directives: Electromagnetic Capability (2004/108/EC), Low Voltage (2006/95/EC) and R&TTED (1999/5/EC).
