Introduction Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.

About descriptions in these operating instructions - Pages to be referred to are indicated as “(

00)”. - The illustrations shown may differ from your unit. If you have any questions, visit: U.S.A.: http://shop.panasonic.com/support Canada: www.panasonic.ca/english/support Register online at http://shop.panasonic.com/support (U.S. customers only) Features The coreless direct drive eliminates cogging and achieves smooth rotation

The newly developed coreless direct drive motor can reduce minute vibration during rotation while maintaining high torque.

The high-precision motor control technology switches the drive mode depending on the operational status of the motor and thus enables high torque and stability. The tone arm with high-precision bearings achieves high initial- motion sensitivity

The tone arm pipe is light, highly rigid aluminum.

The use of traditional Technics gimbal suspension construction and high-precision bearings attains high initial-motion sensitivity. A turntable with high rigidity and improved vibration damping capacity

Reinforcing ribs on the back side of the aluminum die-cast platter and rubber coating for removing unnecessary resonance can deliver high rigidity and improved vibration damping capacity. Vibration-proof cabinet and insulators

The two-layered cabinet made of a combination of BMC and aluminum die-cast ensures high rigidity.

Special silicon rubber insulators providing excellent vibration damping capacity and long-term reliability can shut out external vibration and suppress howling noise. High-quality terminals

Gold-plated PHONO output terminals prevent degradation in sound quality.

The case has metal shielded interior to protect from external noise. Highly accurate turntable speed maintained with the pitch control

The digital control method is adopted to achieve constant pitch control.

The pitch variable range select button (×2) is provided. The pitch control with the range up to ±16 % is possible.Before use Getting started Playing back Maintenance English (05)

Getting started Putting the player together ................................................. 12

Adjusting the turntable startup/brake speed .......... 21

Warning Caution AC power supply cord

The power plug is the disconnecting device. Install this unit so that the power plug can be unplugged from the socket outlet immediately.

Ensure the earth pin on the power plug is securely connected to prevent electrical shock. - An apparatus with CLASS I construction shall be connected to a power socket outlet with a protective earthing connection. Unit

To reduce the risk of fire, electric shock or product damage, - Do not expose this unit to rain, moisture, dripping or splashing. - Do not place objects filled with liquids, such as vases, on this unit. - Use only the recommended accessories. - Do not remove covers. - Do not repair this unit by yourself. Refer servicing to qualified service personnel.Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below.Keep these operating instructions handy for future reference.1 Read these instructions.2 Keep these instructions.3 Heed all warnings.4 Follow all instructions.5 Do not use this apparatus near water.6 Clean only with dry cloth.7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11 Only use attachments/accessories specified by the manufacturer.12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.13 Unplug this apparatus during lightning storms or when unused for long periods of time.14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Unit

Do not place sources of naked flames, such as lighted candles, on this unit. Placement

To reduce the risk of fire, electric shock or product damage, - Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated. - Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items.

Keep your speakers at least 10 mm (

”) away from the system for proper ventilation.

Keep any IC card or magnetic card such as a credit card away from the turntable. - Otherwise the IC card or magnetic card may become unusable due to magnetic effect.Before use English (07)

THE FOLLOWING APPLIES ONLY IN THE U.S.A.FCC Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Responsible Party: Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Support Contact: http://www.panasonic.com/contactinfoThe following mark and symbols are located on bottom of the unit.Conforms to UL STD 60065.Certified to CAN/CSA STD C22.2 No.60065.THE FOLLOWING APPLIES ONLY IN CANADA.CAN ICES-3(B)/NMB-3(B) Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11 Only use attachments/accessories specified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13 Unplug this apparatus during lightning storms or when unused for long periods of time. 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Unit ≥ To reduce the risk of fire, electric shock or product damage, – Do not expose this unit to rain, moisture, dripping or splashing. – Do not place objects filled with liquids, such as vases, on this unit. – Use only the recommended accessories. – Do not remove covers. – Do not repair this unit by yourself. Refer servicing to qualified service personnel. – Do not place heavy items on this unit. AC power supply cord ≥ The power plug is the disconnecting device. Install this unit so that the power plug can be unplugged from the socket outlet immediately. Unit ≥ Do not place sources of naked flames, such as lighted candles, on this unit. ≥ Do not put any objects on this unit. This unit becomes hot while it is on. ≥ Do not touch the output terminals of the speakers with your hands or other objects while the speakers are in use. Depending on the conditions of use, doing so may expose you to high voltage. Placement ≥ To reduce the risk of fire, electric shock or product damage, – Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated. – Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items. ≥ More than one person is required to move or carry the unit. ≥ Ensure that the placement location is sturdy enough to accommodate the weight of this unit (> 15). ≥ Do not lift or carry this unit by holding any of its knobs. Doing so may cause this unit to fall, resulting in personal injury or malfunction of this unit. WARNING CAUTION Conforms to UL STD 60065. Certified to CAN/CSA STD C22.2 No.60065. THE FOLLOWING APPLIES ONLY IN THE U.S.A. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ≥ Reorient or relocate the receiving antenna. ≥ Increase the separation between the equipment and receiver. ≥ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ≥ Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible Party: Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Support Contact: http://www.panasonic.com/contactinfo

THE FOLLOWING APPLIES ONLY IN CANADA

CAN ICES-3(B)/NMB-3(B) Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. RISK

Accessories In order to prevent damage during shipping some of the equipment has been disassembled. Please check and identify the supplied accessories. Turntable (1 pc.) (TTV0027A) Turntable mat (1 pc.) (RGS0008) Dust cover (1 pc.) (TTPA0683) EP record adaptor (1 pc.) (TEKX077) Balance weight (1 pc.) (TYL0056) Auxiliary weight (1 pc.) (TKKH51441) Head shell (1 pc.) (TPBGA003) Overhang gauge (1 pc.) (RMR2210-W) Screw set for cartridge (1 set) (TTV0022)

The model numbers of the accessories are as of February 2017. They are subject to change without notice.

Keep the packaging materials after taking out the goods. You will need them when carrying the product for a long distance.

Follow the local regulations when disposing of the product.

Do not use any other AC power supply cord, PHONO cable and PHONO earth lead except the supplied one.

Keep the cartridge, auxiliary weight, nuts, screws and washers out of reach of children to prevent swallowing.English (10)

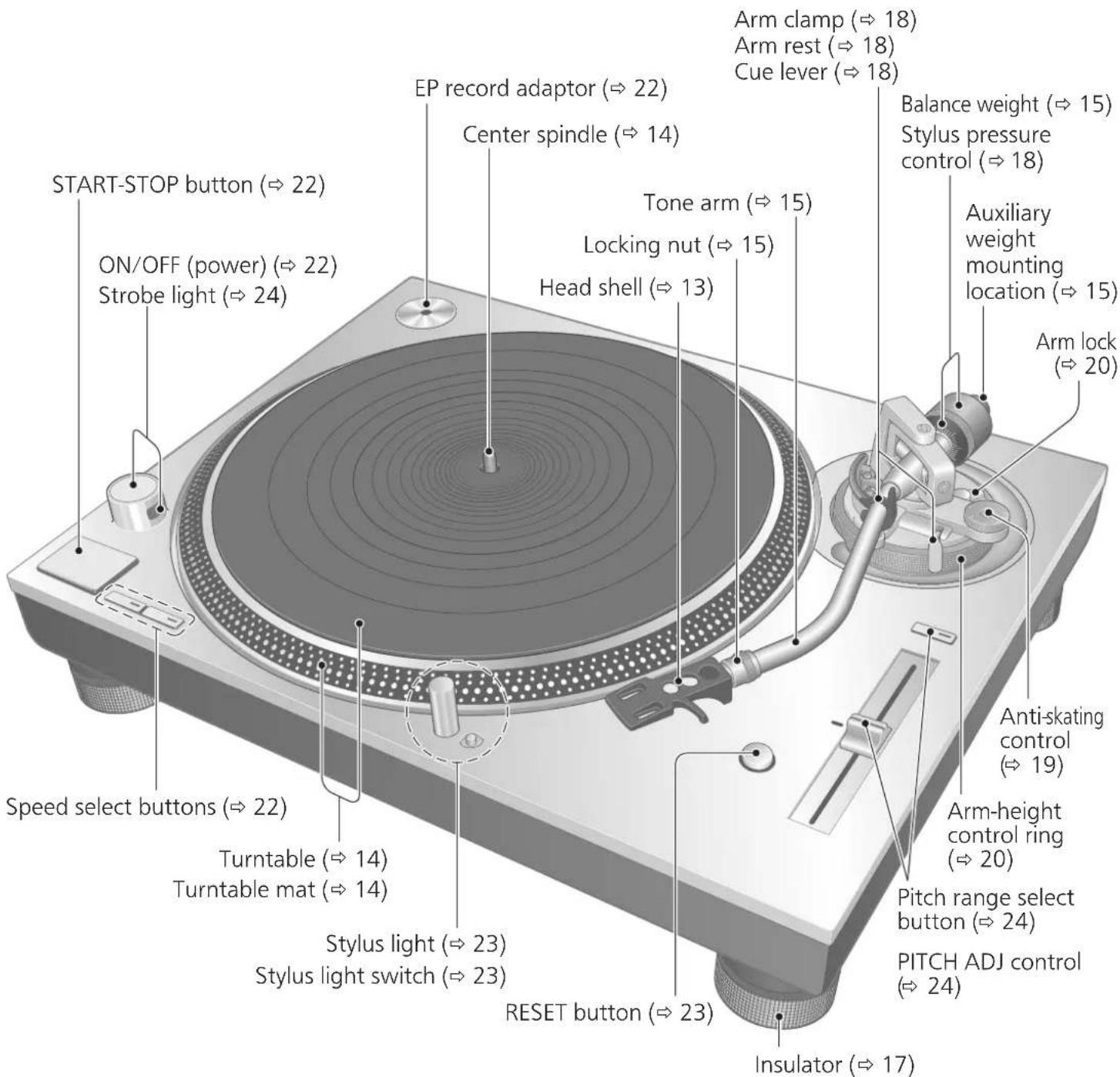

20) Anti- skating control

24) Auxiliary weight mounting location (

15) Numbers such as (

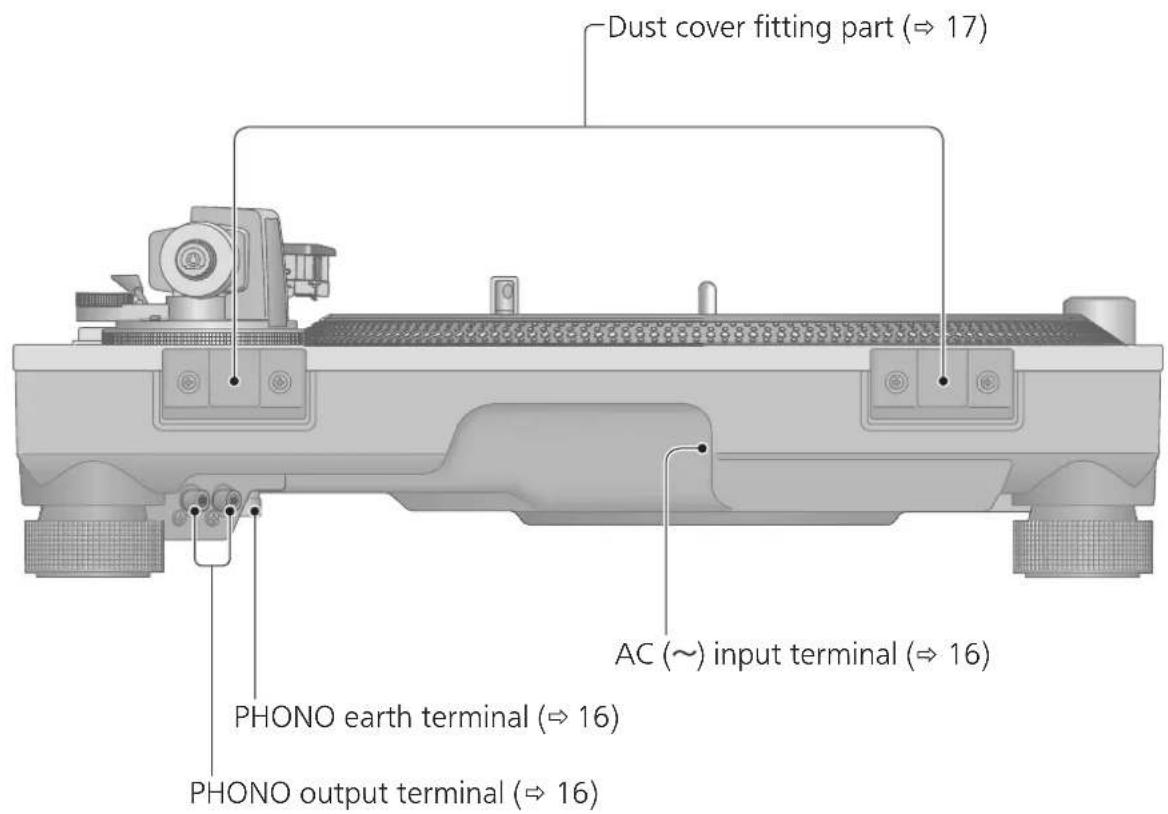

16) Dust cover fitting part (

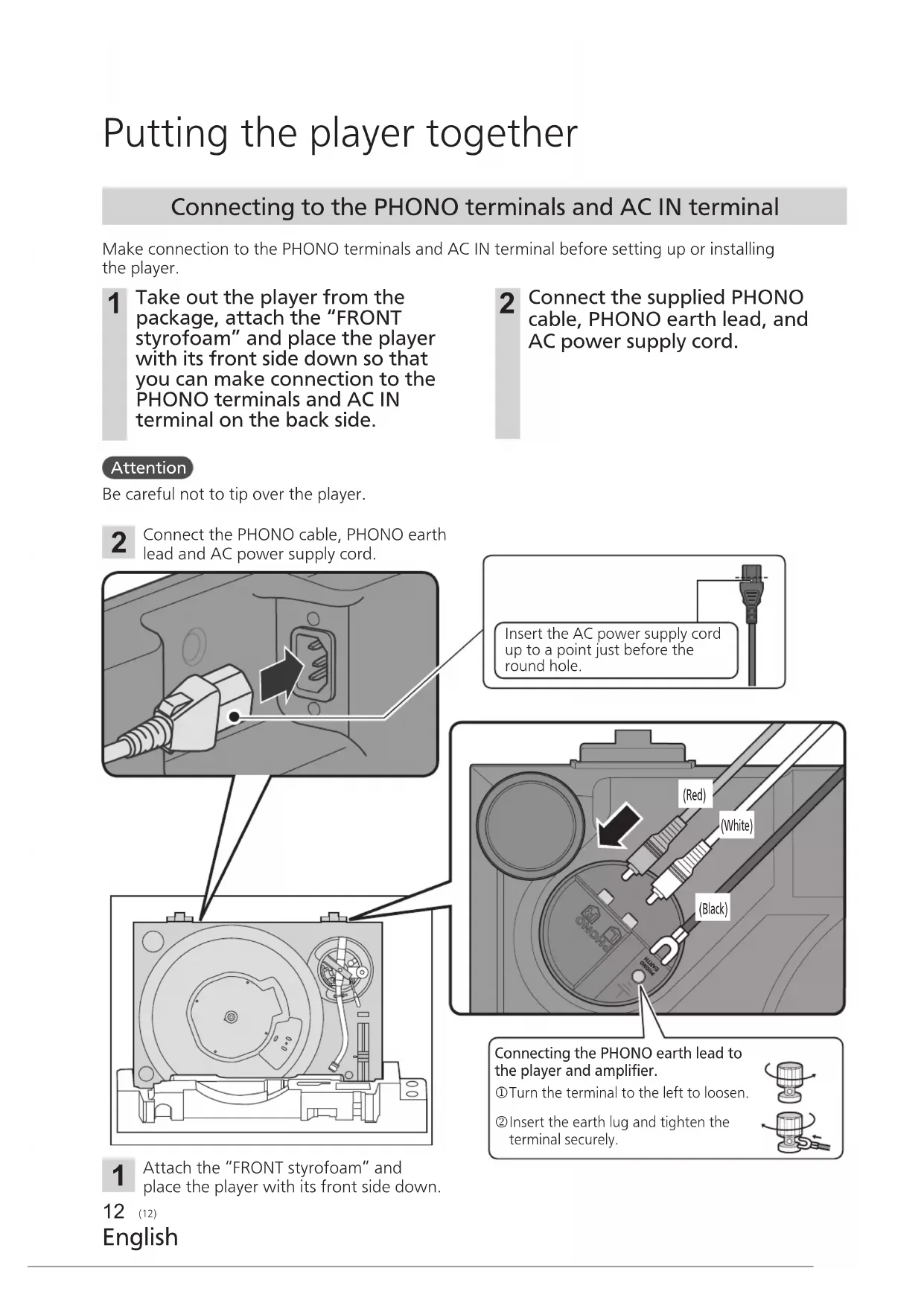

Putting the player together Connecting to the PHONO terminals and AC IN terminal

Take out the player from the package, attach the “FRONT styrofoam” and place the player with its front side down so that you can make connection to the PHONO terminals and AC IN terminal on the back side.

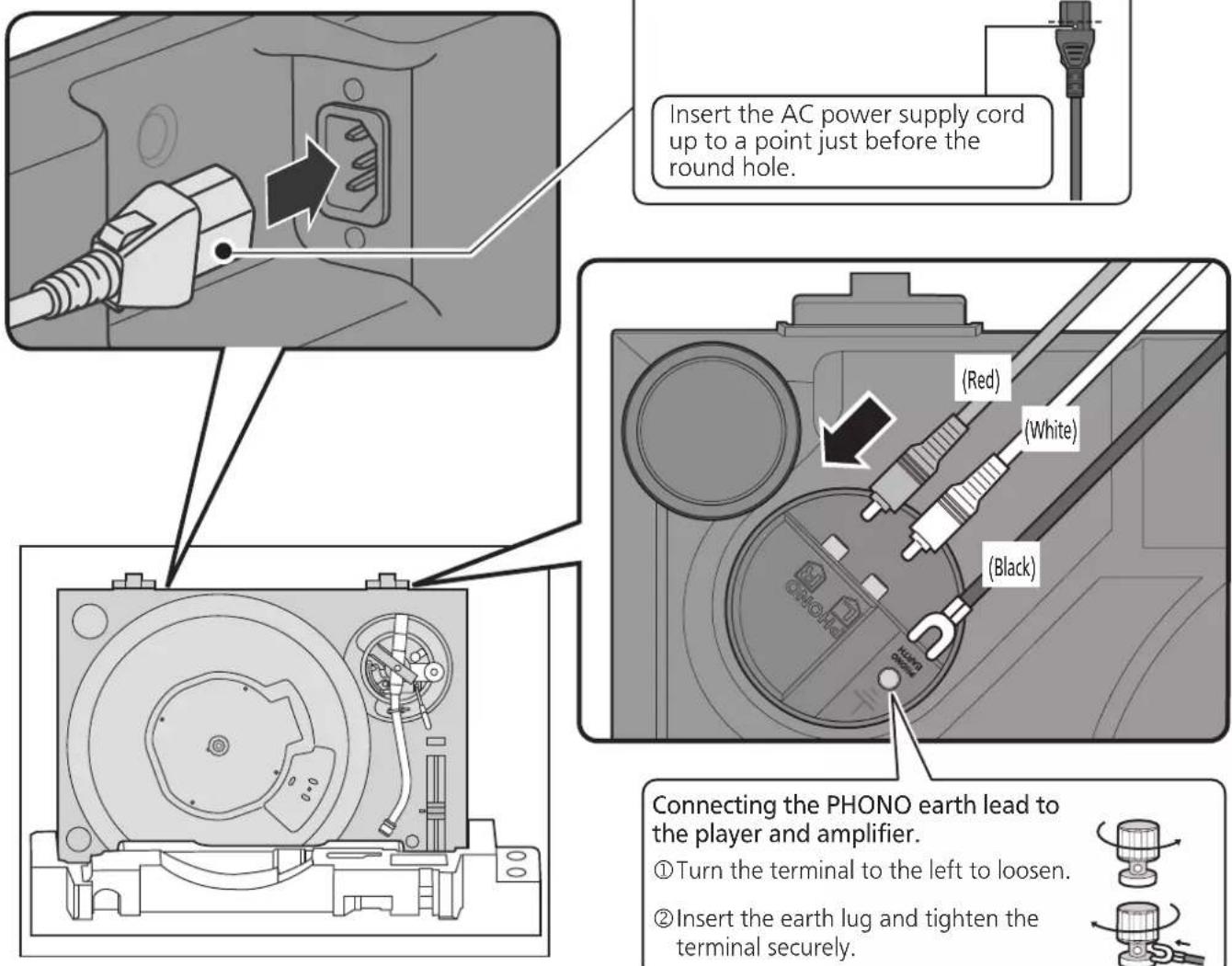

Connect the supplied PHONO cable, PHONO earth lead, and AC power supply cord. Connect the PHONO cable, PHONO earth lead and AC power supply cord. Attach the “FRONT styrofoam” and place the player with its front side down. Be careful not to tip over the player.Insert the AC power supply cord up to a point just before the round hole. Make connection to the PHONO terminals and AC IN terminal before setting up or installing the player.AttentionConnecting the PHONO earth lead to the player and amplifier.

Insert the earth lug and tighten the terminal securely.(Black)(White)(Red)Getting started English (13)

Attaching the cartridge

Fit the overhang gauge to the head shell.

Tighten the screw for cartridge. The overhang can be adjusted optimally. Screw for cartridgeOverhang gaugeHead shellHead shellLead wireCartridge Nuts StylusWashers(Lead wire) (Terminal) Red

R+ (Red)Green R- (Green)White L+ (White) Blue

Adjust the overhang. Use the included overhang gauge.

Move the cartridge to line the stylus tip up with the end of the gauge.

The cartridge should be parallel on the shell head when viewed from the top and side (the illustration is the top view).

Be careful not to allow the cartridge to slip out of place. Stylus tip

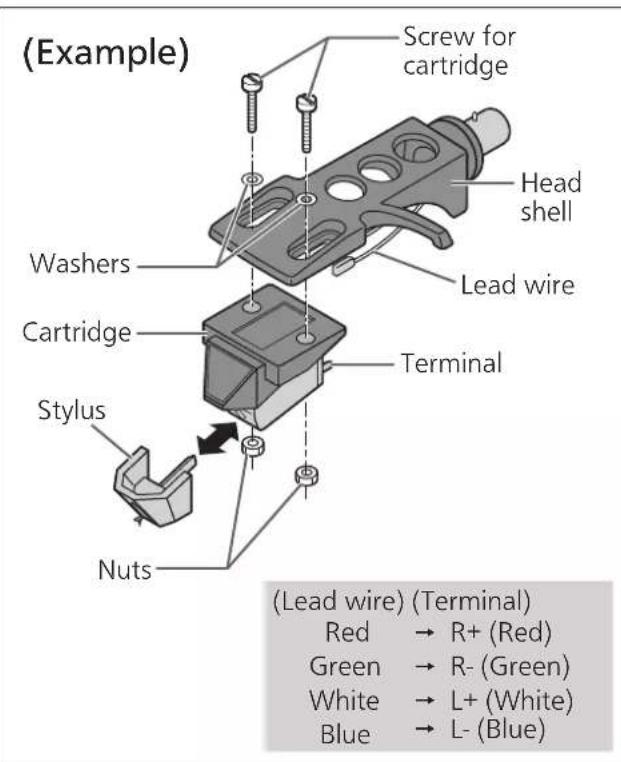

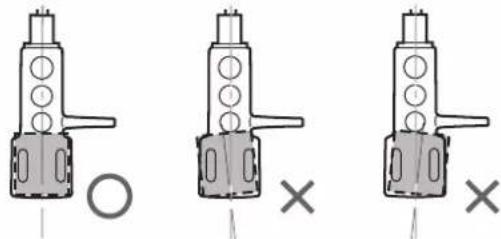

Attach a cartridge (store-bought) tentatively. Follow the cartridge’s instructions to correctly attach it to the head shell, and tighten the screws lightly.

If the mounting screws are included in the cartridge, use them.

When playing SP records, use a cartridge for SP records.

Be careful not to touch the stylus tip.English (14)

Putting the player together (continued) In order to prevent damage during shipping, some of the equipment has been disassembled. Put the player together in the following order. Attention

Do not connect the AC mains lead until set up is complete.

When fitting the turntable, prevent foreign material from getting in between the main unit and turntable.

Do not touch or scratch the board. Turntable mat Turntable Centre spindle Board Balance weight Head shell Handle carefully as this is heavy.

4Getting started English (15)

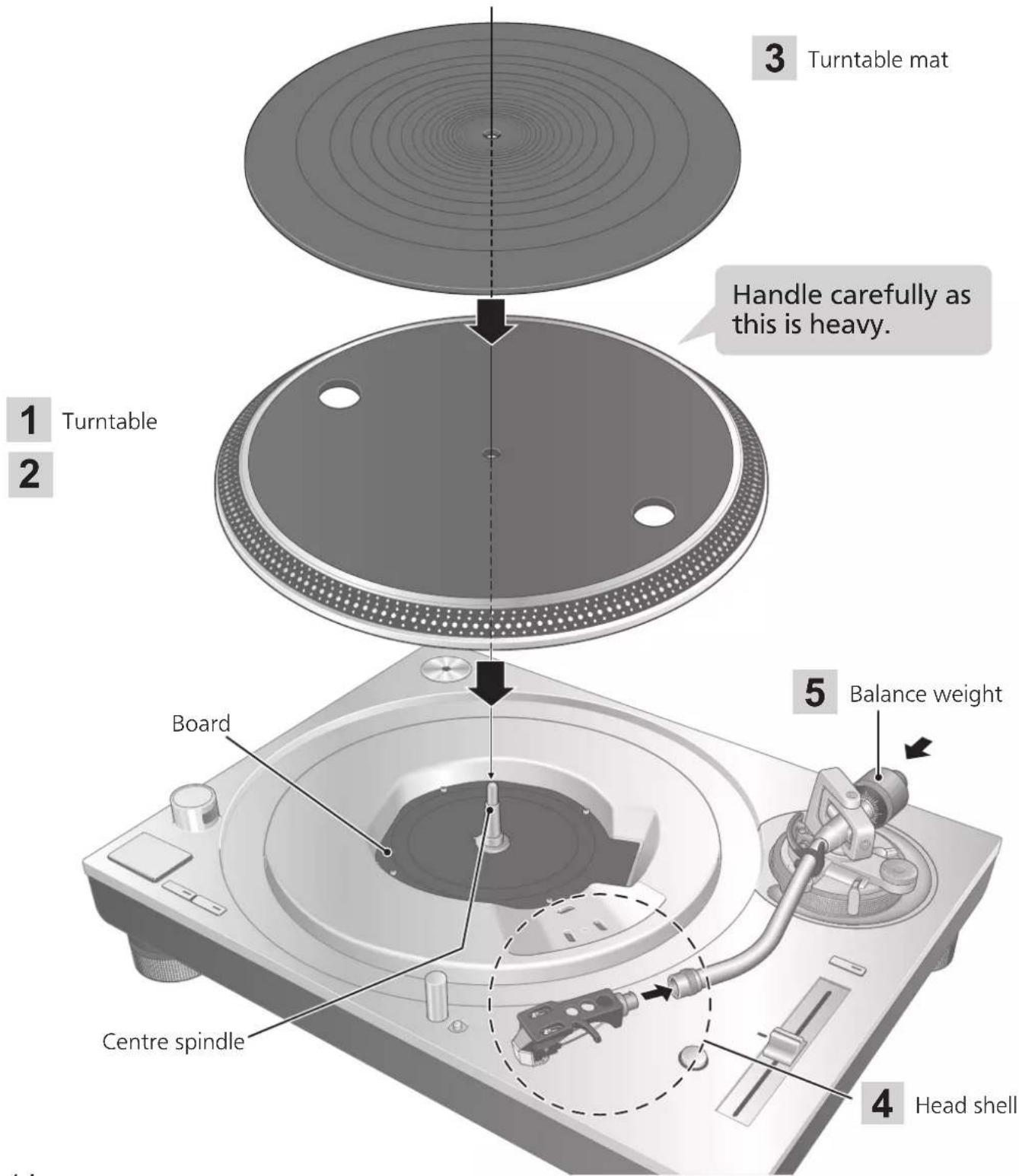

Fitting the turntable

Slowly set the turntable on the center spindle.

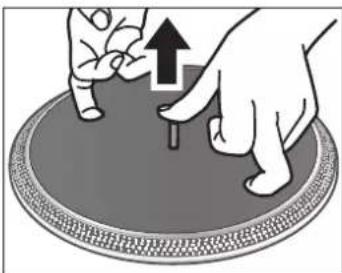

As shown in the figure on the right, set your fingers in the two holes on the turntable, hold the center spindle down and remove the turntable upward. Before fitting the turntable

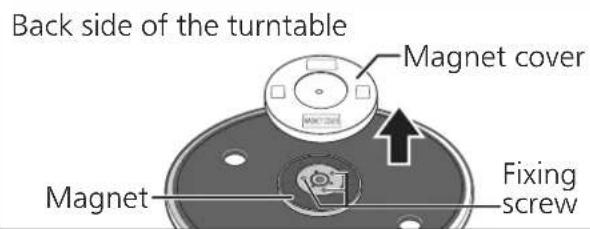

Remove the magnet cover from the turntable.

There is a magnet and its cover on the back side of the turntable. Remove the magnet cover before fitting to the main unit. Back side of the turntable Magnet cover Magnet Fixing screw Attention

Keep any magnetic-sensitive object such as a magnetic card and watch away from the magnet.

Prevent the turntable from hitting the main unit or falling off. Prevent dust or iron powder from adhering to the magnet on the back side.

Do not touch the fixing screws (three locations) of the turntable. The rating performance cannot be guaranteed if they are out of position. Attention

Be careful when handling the turntable, as it is heavy.

Keep your fingers from being caught.

Wipe off fingerprints or dirt with a soft cloth. Attaching the head shell

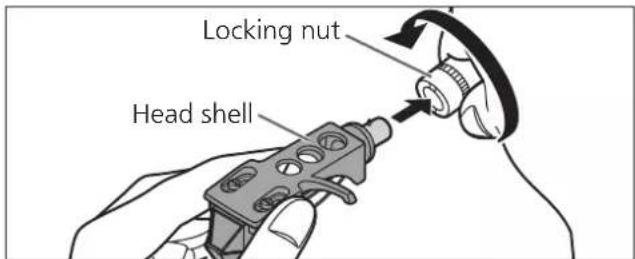

Fit the head shell with the cartridge into the tone arm. Keep the head shell horizontal and tighten the locking nut.

Be careful not to touch the stylus tip. Locking nutHead shell Attaching the balance weight

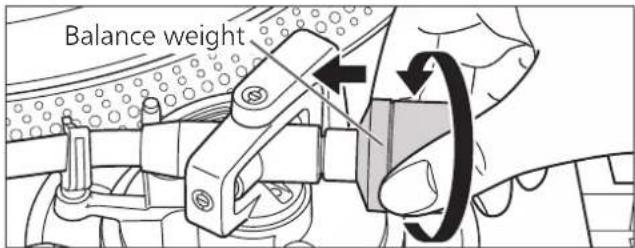

Attach the balance weight to the rear of the tone arm.

The inside of the balance weight is greased. Note

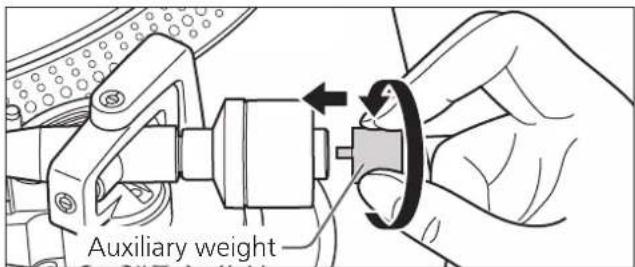

Attach the included auxiliary weight to the rear of the tone arm according to the weight of your cartridge. For adjustable cartridge weight ranges, see "Applicable cartridge weight range". (

Lay the turntable mat on the turntable.English (16)

Connecting to an integrated amplifier or component system Connections and installation

Turn off all units and disconnect the AC power supply cord from the outlet before making any connections.

Connect the AC power supply cord only after all other connections are completed.

Be sure to connect the PHONO earth lead. Otherwise mains hum may occur.

Refer also to the instruction manual of the connected device.

Connect the PHONO cable and PHONO earth lead to the PHONO input terminals of the connected equipment.

You will not have adequate volume or sound quality if the connected amplifier has no PHONO input terminals.

Connect the AC power supply cord.

Confirm the wattage of the AC outlet on the connected equipment before using it for this unit. (This unit consumes 11 W.) Note PHONOPHONOEARTH

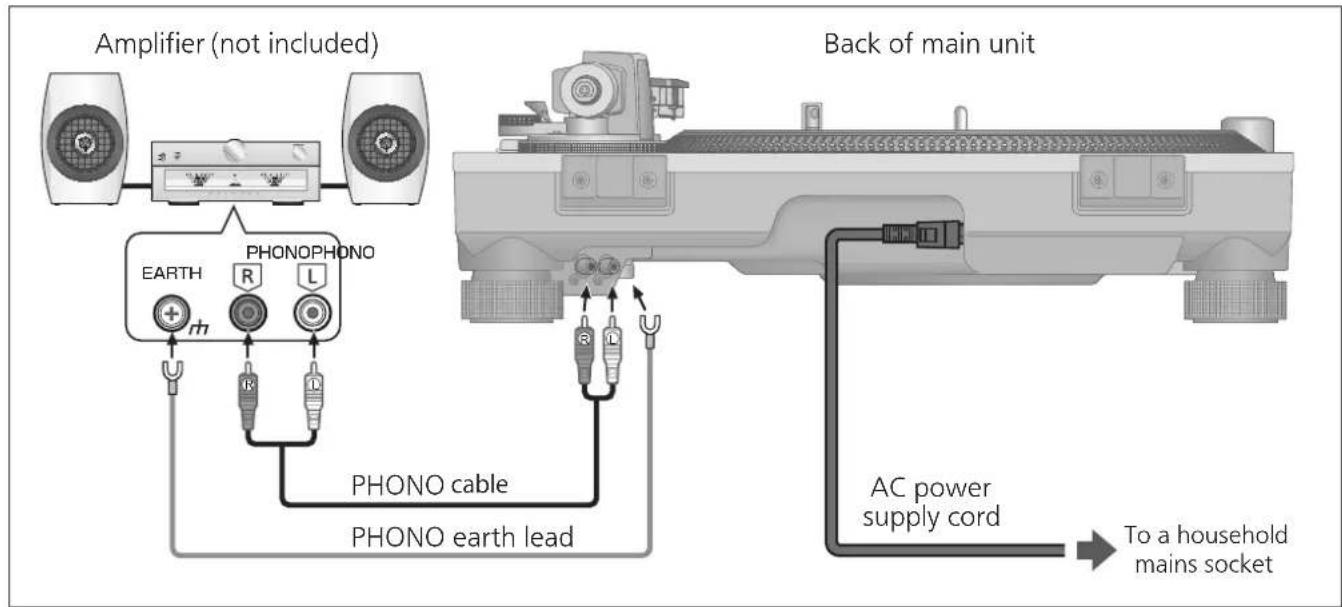

Amplifier(not included)Back of main unitPHONOcable AC power supply cordPHONO earth leadTo a household mains socket

Although the AC power switch is in the "OFF" position, the unit is not completely disconnected from the mains. Remove the plug from the main electrical outlet if you will not be using the unit for an extended period of time. Place the unit so the plug can be easily removed.Getting started English (17)

Installation Fit the dust cover Install the unit on a horizontal surface protected from vibrations. Keep this unit as far as possible from speakers.

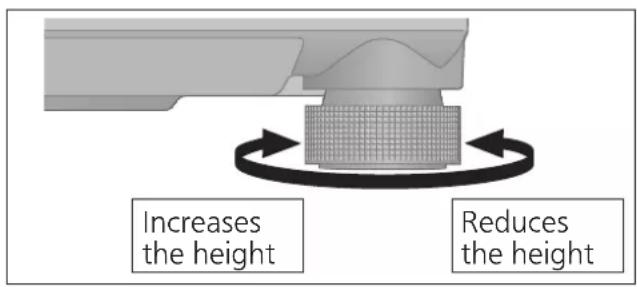

Adjusting the height to make the unit horizontal Raise the main unit to turn the insulators and adjust the height.

Clockwise: Reduces the height.

Anti-clockwise: Increases the height. Attention

Do not turn the insulators too far. Doing so may cause them to come off or damage them.

Notes for installation

Before you move the unit, remove all devices connected and turn off the power supply.

Ensure the unit is not exposed to direct sunlight, dust, humidity, and heat from a heating appliance.

This unit may pick up interference from a radio if there is one nearby. Keep the unit as far as possible from a radio.

Do not install the unit on a heat source.

Avoid a place with large temperature variations.

Avoid a place with frequent condensation.

Avoid an unstable place.

Do not put an object on the unit.

Do not install the unit in a confined space such as a book shelf.

Install the unit at a position well away from walls or other devices to ensure effective heat radiation from the inside of the unit.

Make sure that the material of the installation location is sufficiently strong to withstand the weight of this unit.

Note that the unit may be damaged by cigarette smoke or moisture from an ultrasonic humidifier.

Condensation Think of taking out a cold bottle from a refrigerator. If you leave it in a room for a while, dewdrops will form on the bottle surface. This phenomenon is called “condensation“.

Conditions causing condensation

Rapid temperature change (caused by moving from a warm place to a cold place or vice versa, rapid cooling or heating, or direct exposure to cooled air)

High humidity in a room with much steam, etc.

Condensation may damage the unit. If it has occurred, turn the unit off and leave it until it adapts to the ambient temperature (approximately 2 to 3 hours).

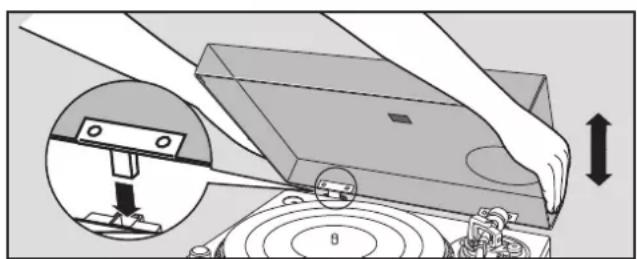

Hold the dust cover with both hands and insert it into the dust cover fitting parts (

To remove the dust cover, keep it open and lift it straight above. Attention

Return the tone arm to the arm rest and fix it with the arm clamp before you attach or detach the dust cover.

When inserting the dust cover, prevent the tip of the hinges from hitting and damaging the main unit. Reduces the height Increases the heightEnglish (18) Anti-skating controlArm clampArm restCue lever

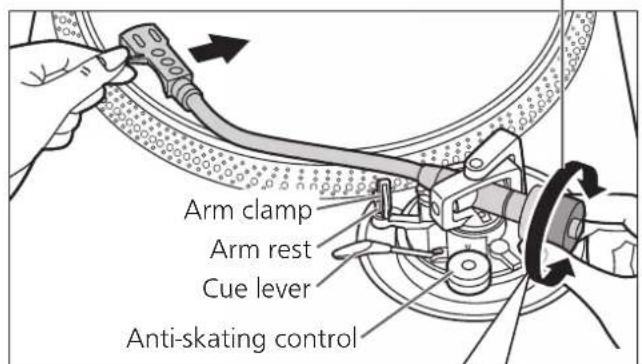

Free the tone arm from the arm rest and adjust horizontal balance by turning the balance weight. Hold the tone arm and turn the balance weight in the arrow direction to adjust the balance until the arm is approximately horizontal.

Take care not to allow the stylus tip to touch the turntable or main unit. Balance weightHold here to turn

Turn the stylus pressure control until “0“ comes to the center line of the rear of the tone arm.

Hold the balance weight still while doing this. Preparation

First, remove the dust cover.

Return the tone arm to the arm rest and fix it with the arm clamp. Horizontal balance Stylus pressure Preparation

First, remove the dust cover.

Remove the stylus cover, taking care not to damage the stylus, then release the arm clamp.

Lower the cue lever.

Turn the anti-skating control to “0”. Adjustment Balance weightArm clampCenter lineStylus pressure controlHold here to turnBalanced and the tone arm is parallel to the turntable.The balance weight is too far forward.The balance weight is too far back.

Refer to the user's guide for your stylus for the appropriate stylus pressure. NoteGetting started English (19)

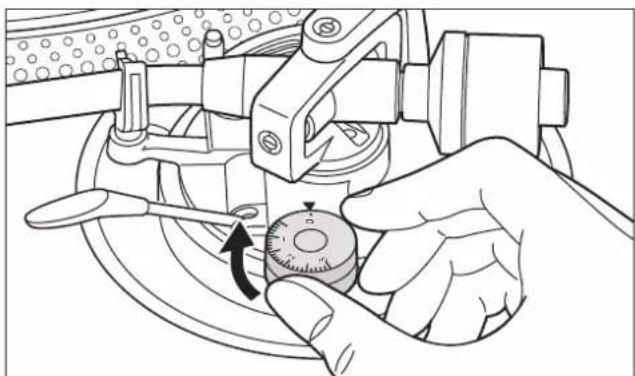

Turn the anti-skating control to adjust it to the same value as the stylus pressure control.

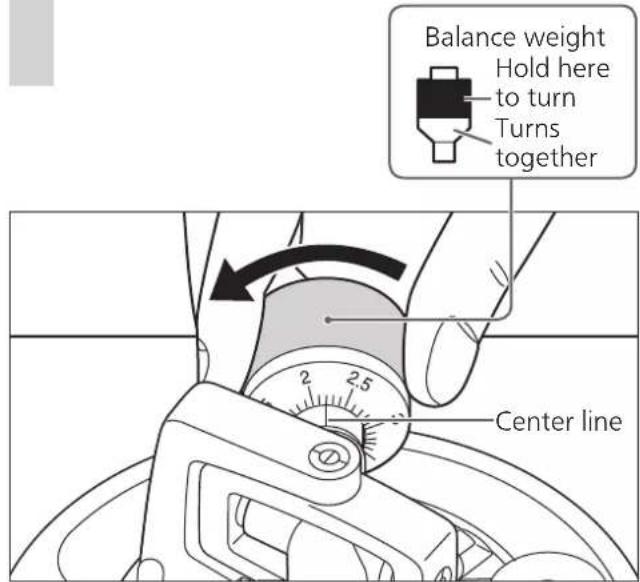

Turn the balance weight to adjust to the appropriate stylus pressure for the cartridge.

The stylus pressure control will turn together with the balance weight.

Turn until the center line points to the appropriate stylus pressure. Center line Balance weight Hold here to turn Turns together

and above, adjust anti-skating control to “3”. NoteEnglish (20)

Adjustment (continued)

Tone arm height Make this adjustment only if the cartridge you are using makes it necessary. Preparation

Put a record on the turntable.

Release the arm lock. Index line Arm-height control ring Cartridge height (H) in millimeters Height control position

Arm lock (Released) (Locked)

Use the chart below as reference to find the appropriate position mark for the height of your cartridge.

Turn the arm-height control ring to align the position mark with the index line. 0 to 6 mm are marked on the arm height control ring.

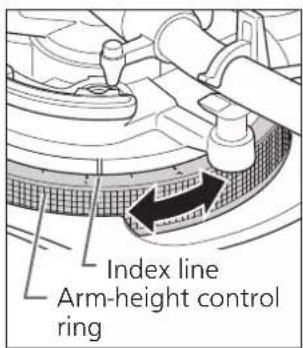

Adjust the height with the arm- height control ring. Adjust the arm height until the tone arm becomes parallel to the record. (For supplied head shell)

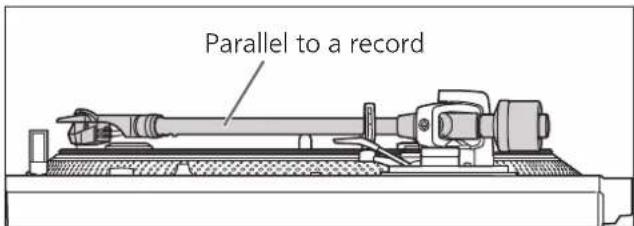

When you don't know the cartridge height (H) or when you don’t use the supplied head shell Remove the stylus cover, taking care not to damage the stylus, then release the arm clamp. Lower the cue lever, rest the stylus on the record and adjust the height control until the tone arm and record are parallel.

If the cartridge height (H) is too small to make them parallel to each other, add a “cartridge spacer” (not supplied).

After arm height adjustment is finished, lock the tone arm by turning the arm lock knob.

Be sure to turn the arm lock knob to the end as shown in the figure below. You may need to apply some force to do so. Parallel to a record Attention

Be careful not to damage the stylus tip.

Do not use the product with the arm lock released.

For finer adjustment, use a level (not included) to adjust the arm height so that the cartridge becomes parallel to a record.

GGetting started English (21)

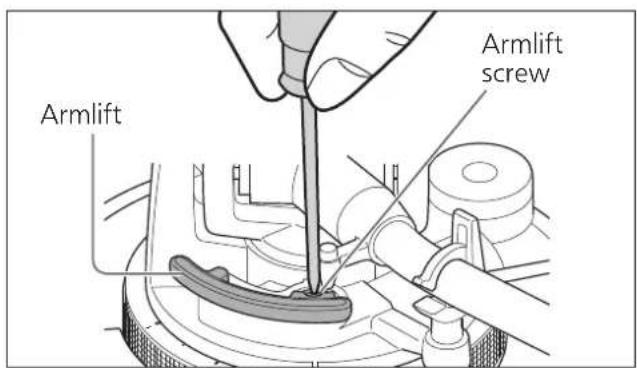

Armlift screw Armlift Armlift height Make an adjustment according to your cartridge if necessary. Preparation

Put a record on the turntable.

Remove the stylus cover, taking care not to damage the stylus, then release the arm clamp.

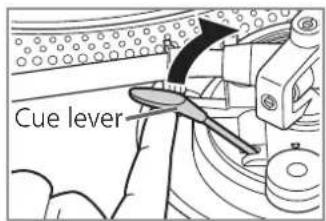

Lift the cue lever and move the tone arm over the record.

Check the armlift height (distance between the stylus tip and record surface). If adjustment is needed, go to step

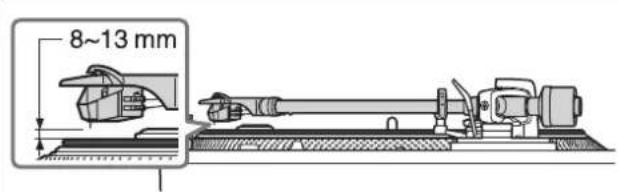

The armlift height is factory-adjusted to 8 to 13 mm

Return the tone arm to the arm rest and fix it with the arm clamp. Turn the adjustment screw.

Turning the screw clockwise lowers the armlift.

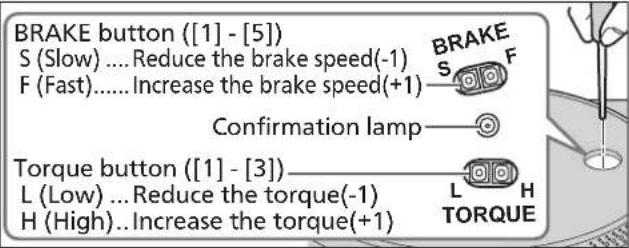

Press the center of the button lightly. Startup speed You can select from three options of the time for the turntable to reach the constant speed after [START-STOP] is pressed. Press the H button to increase the torque (the power required to rotate) and shorten the time to stabilize rotation. (The factory setting is [3]: highest.)

To change the setting, press the H or L torque button while the lamp is lit two seconds.

After you press the torque button, the confirmation lamp blinks the specified number of times showing the new setting, stays lit for two seconds and then goes off. Brake speed You can select from five options of the time for the turntable to stop after [START-STOP] is pressed. (You can change the brake power.) (The factory setting is [5]: fastest.)

To change the setting, press the F or S brake button while the lamp is lit two seconds.

After you press the brake button, the confirmation lamp blinks the specified number of times showing the new setting, stays lit for two seconds and then goes off. Confirmation lamp BRAKE button ([1] - [5]) S (Slow) ....Reduce the brake speed(-1) F (Fast) ......Increase the brake speed(+1) Torque button ([1] - [3]) L (Low) ...Reduce the torque(-1) H (High) ..Increase the torque(+1) (Blinks three times)(Blinks five times)(Lit two seconds)(Lit two seconds)( Blinks one time)( Blinks three times)( Lit two seconds)( Lit two seconds)(Off/end)(Off/end)Example) When the setting is [3].Example) When the setting is [5].Example) When the setting is [1].Example) When the setting is [3]. TORQUE

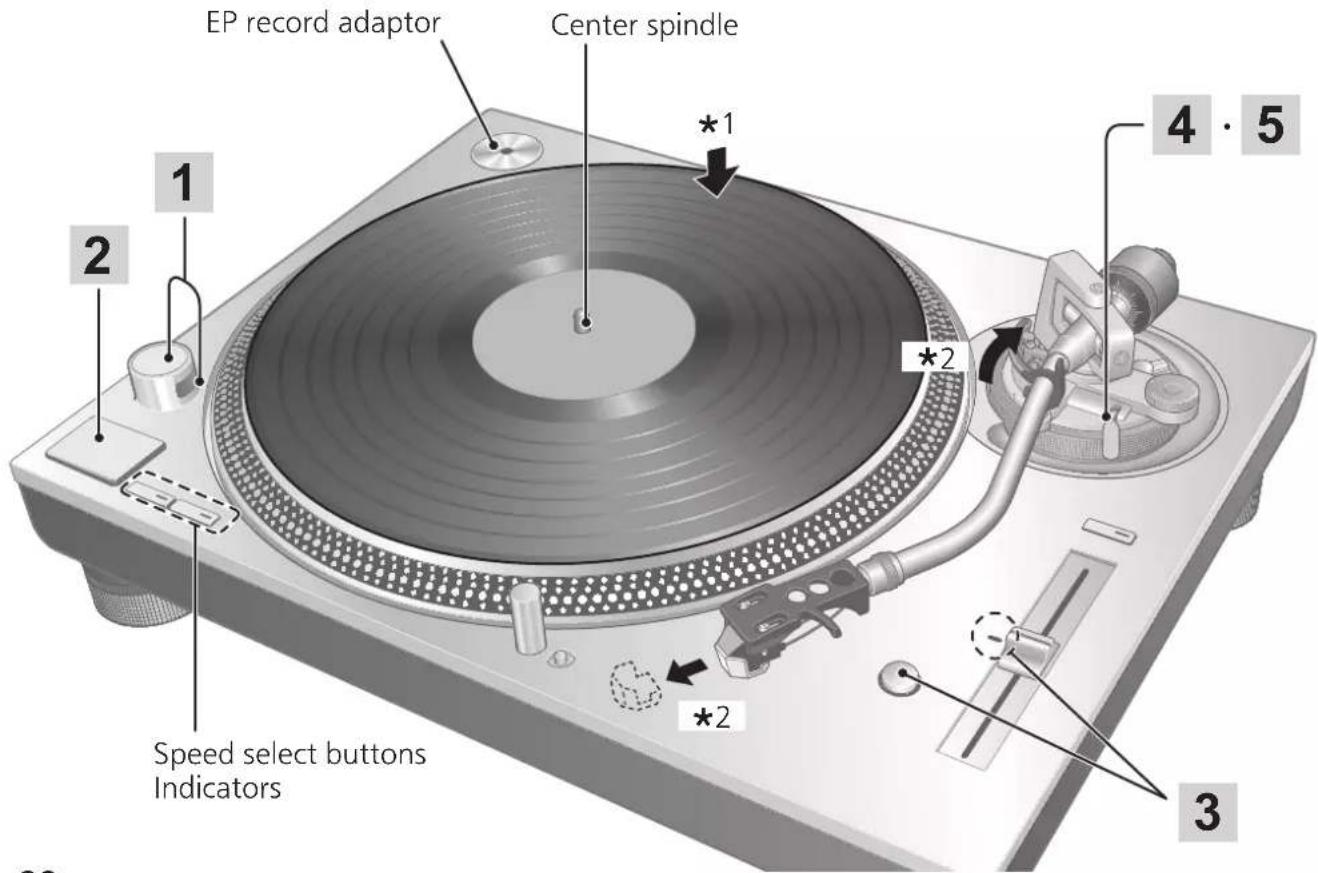

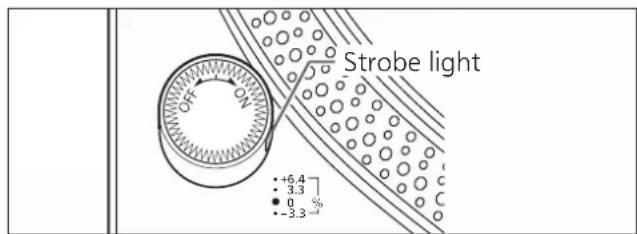

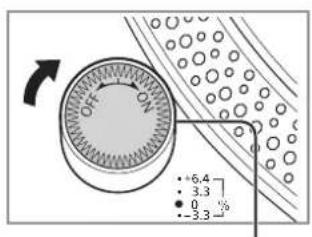

Turn [ON/OFF] to turn the unit on. The strobe light comes on. 33-1/3 rpm is automatically selected and the indicator [33] lights.

EP record adaptor Center spindle

1 Put a record (not included) on the turntable.

2 Take off the stylus cover and release the arm clamp.

Strobe light Indicator Attention Do not press [START-STOP] when the turntable is removed. If you have accidentally pressed [START-STOP].

The indicator of the speed select button ([33] or [45]) starts blinking.

If it is blinking, turn [ON/OFF] to turn the unit off, fit the turntable and then turn [ON/OFF] to turn the unit on.Playing back English (23)

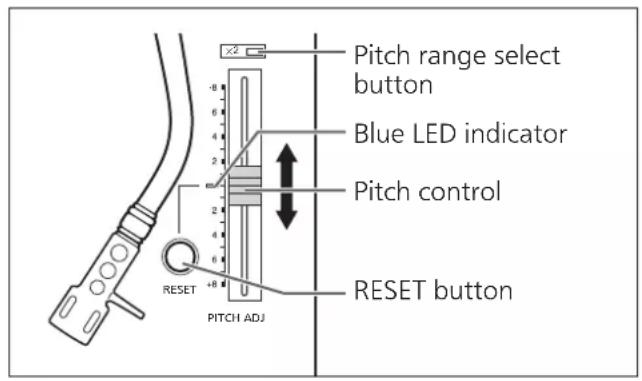

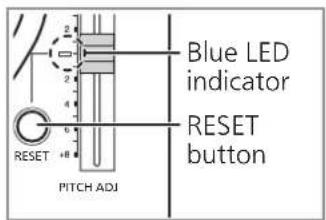

Press [RESET] to light the pitch control blue LED lamp. The unit plays at a preset pitch (33-1/3, 45 or 78 rpm) regardless of the [PITCH ADJ] position.

Lift the cue lever and move the tone arm over the record.

Lower the cue lever slowly. The tone arm moves down slowly. Play starts.

Fine adjustment to pitch (

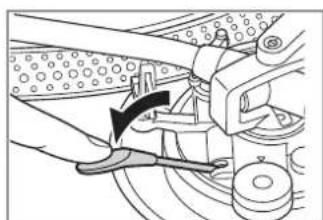

Lift the cue lever, return the tone arm to the arm rest and lower the cue lever.

Press [START-STOP]. The electronic brake gently stops the turntable.

Turn [ON/OFF] to turn the unit off.

Clamp the tone arm with the arm clamp.

Put the stylus cover back on (to protect the stylus tip).

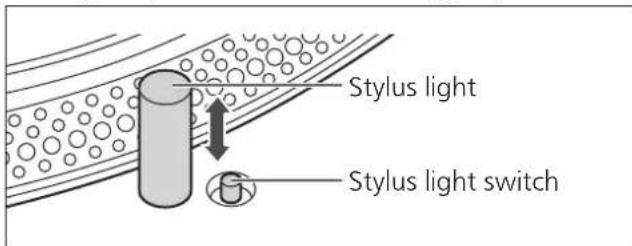

To light up the stylus The stylus tip is illuminated during play. Stylus lightStylus light switch Press the stylus light switch.

Press down the stylus light to turn off the light. Attention Press the stylus light switch firmly. If the switch is lightly pressed, the light may come on but not rise up.

When playing EP records

Fit the EP record adaptor over the center spindle.

When playing SP records

Press the speed select buttons [33] and [45] at the same time (78 rpm: [33] and [45] light).

When using a record stabilizer (not included)

See the instruction manual of the record stabilizer.

To temporarily stop play Lift the cue lever.

The stylus lifts off the record.

To start play again, lower the cue lever. PITCH ADJRESET RESET buttonBlue LED indicatorCue lever 23English (24) Pitch control (fine adjustment to pitch)

To measure pitch The four rows of strobe mirrors around the edge of the turntable can assist you in measuring pitch. The strobe mirrors are lit by the strobe light (blue LED) synchronizing with the precise frequency of digital control. Always use the blue LED to measure the pitch.

Press [RESET] to turn off the blue LED light.

Press the pitch range select button to select the pitch range.

[×2] light on: ±16 %

[×2] light off: ±8 %

While the turntable is revolving Slide [PITCH ADJ].

Pitch can be adjusted between approx. –8 % and +8 % or approx. –16 % and +16 % according to your selection.

The numbers represent approximate percentages for your adjustment. PITCH ADJ RESET

To reset pitch to the preset value Press [RESET]. The blue LED indicator lights and the pitch immediately returns to a preset value regardless of the [PITCH ADJ] position. (33-1/3, 45 or 78 rpm)

Blue LED off: Can be adjusted with [PITCH ADJ]. Attention +6.4 % change in pitch when stationary +3.3 % change in pitch when stationary Normal turntable speed (33-1/3, 45 or 78 r/min) when stationary -3.3 % change in pitch when stationaryStrobe mirrors 24Playing back Maintenance English (25) Maintenance

Care of the parts Thoroughly clean dust off the stylus and record.

Take off the head shell with the cartridge and clean the stylus using a soft brush. Brush from the base to the tip.

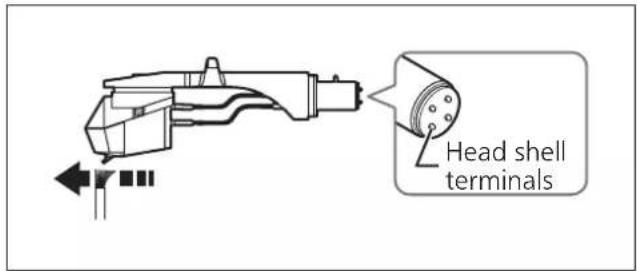

Use a record cleaner to keep your records clean. Head shell terminals Wipe the head shell terminals occasionally. Wipe the head shell terminals with a soft cloth and fit the head shell to the tone arm. Turn the amplifier volume down or turn the amplifier off before fitting or removing the head shell. Damage to your speakers can occur if the head shell is moved while the volume is turned up.

Cleaning the dust cover and cabinet Wipe the dust cover and cabinet with a soft cloth. Do not touch the board while cleaning. Otherwise, the player may fail. When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a soft cloth.

Do not use solvents including benzene, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior case to be deformed or the coating to come off.

Do not wipe the dust cover while playing a record. This can cause static electricity. This static can cause the tone arm to be attracted towards the dust cover.

WEEE symbol Disposal of the product outside the EU countries This symbol is valid within the EU only. Contact a local governmental office or your dealer to confirm a right manner of disposal.

Moving the unit Repackage the unit in the packaging it came in. Keep the packaging materials after taking out the goods. If you no longer have the packaging, do the following:

Take off the turntable and turntable mat and carefully wrap them.

Remove the head shell and balance weight from the tone arm and carefully wrap them.

Clamp the tone arm with the arm clamp and tape it in place.

Carefully wrap the main unit in a blanket or paper.

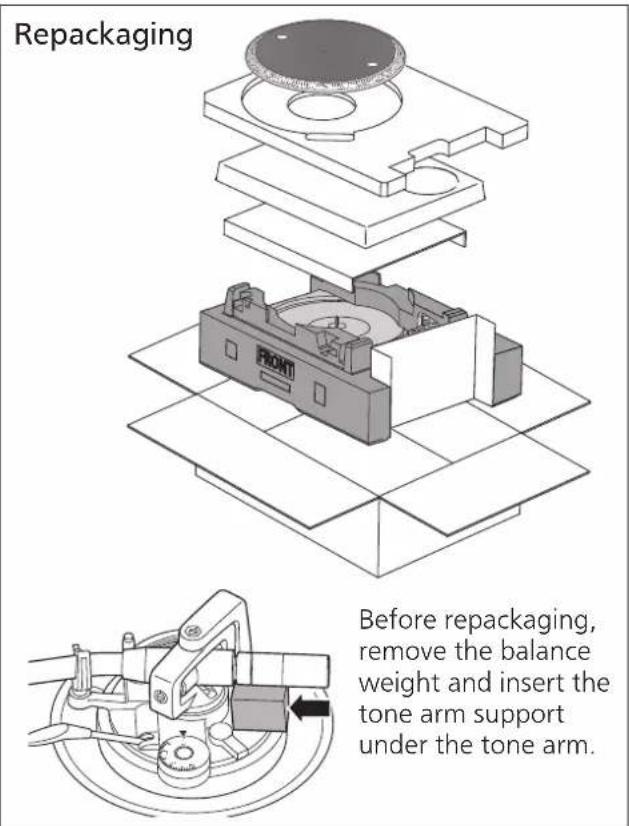

Before repackaging, remove the balance weight and insert the tone arm support under the tone arm. RepackagingEnglish (26) Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, contact your dealer. No power.

Is the AC power supply cord plugged in?

Plug the mains lead in firmly. (

16) There is power but no sound. Sound is weak.

Are connections to the amplifier/receiver’s PHONO terminals correct?

Connect the PHONO cables to the amplifier’s PHONO input terminals. (

16) Left and right sounds are reversed.

Are the stereo connection cable connections to the amplifier or receiver reversed?

Double check all connections. (

Are connections of the head shell's lead wires to the cartridge terminals correct?

Double check all connections. (

13) Humming is heard during play.

Are there other appliances or their AC power supply cord near the stereo connection cable?

Separate the appliances and their AC power supply cord from this unit.

Is the earth lead connected?

Make sure the earth lead is correctly connected. (

16) The Strobe light or the blue indicator blinks. Perform the following operation when the strobe light or the blue indicator blinks. The symptom may be improved.

Turn [ON/OFF] to OFF.

Pull out the power plug, wait for three seconds, and then insert the plug again.

Turn [ON/OFF] to ON and press [START-STOP] to rotate the turntable.

If the strobe light or the blue indicator blinks again, check which one is blinking and contact our service representative. Troubleshooting guide 26Maintenance English (27) Specifications General Power supply AC 120V, 60 Hz Power consumption 11 W (Power ON)

Operating temperature range 0 °C to +40 °C (+32 °F to +104 °F

(including a rubber sheet) Turntable speeds 33-1/3, 45 and 78 rpm Variable range pitch ±8 % and ±16 % Starting torque 2.2 k

-cm (1.91 lb-in) Build-up characteristics

(direct reading) Head shell weight Approx. 7.6

Applicable cartridge weight range (Without the auxiliary weight)

(including the head shell) (With the auxiliary weight)

(including the head shell) Head shell terminal lug

4-pin terminal lug Specifications are subject to change without notice. 27English (28) Others Limited Warranty (ONLY FOR U.S.A.) Limited Warranty (ON LY FOR U.S.A.) Others Limited Warranty (ON LY FOR U.S.A.) Technics Products – Limited Warranty Limited Warranty Coverage (For USA Only) If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold “as is”.Mail-In Service--Online Repair RequestOnline Repair RequestTo submit a new repair request and for quick repair status visit our Web Site at http://shop.panasonic.com/supportWhen shipping the unit, carefully pack, include all supplied accessories listed in the Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at http://shop.panasonic.com/support as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.Limited Warranty Limits and ExclusionsThis warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God. THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to: Consumer Affairs Department Panasonic Corporation of North America 661 Independence Pkwy Chesapeake, VA 23320 PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. As of December 2015 Product or Part Name Parts LaborTechnics Network Audio Amplifier3 (three) years3 (three) yearsTechnics Music ServerTechnics CD Stereo SystemTechnics Turntable System for all your Technics gear Go to http://shop.panasonic.com/support Get everything you need to get the most out of your Technics products Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal Care, Home Appliances, Headphones, Batteries, Backup Chargers & more… Customer Services Directory For Product Information, Operating Assistance, Parts, Owner’s Manuals, Dealer and Service info go to http://shop.panasonic.com/support For the hearing or speech impaired TTY: 1- 877-833-8855 User memo: The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

(32) ST-G30-SQT1222_mst.book 32 ページ ２０１６年２月２２日　月曜日　午後５時５２分 Others Limited Warranty (ONLY FOR U.S.A.) Limited Warranty (ON LY FOR U.S.A.) Others Limited Warranty (ON LY FOR U.S.A.) Technics Products – Limited Warranty Limited Warranty Coverage (For USA Only) If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor. During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold “as is”. Mail-In Service--Online Repair Request Online Repair Request To submit a new repair request and for quick repair status visit our Web Site at http://shop.panasonic.com/support When shipping the unit, carefully pack, include all supplied accessories listed in the Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at http://shop.panasonic.com/support as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty. IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE. Limited Warranty Limits and Exclusions This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God. THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”.THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.)ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:Consumer Affairs DepartmentPanasonic Corporation of North America661 Independence Pkwy Chesapeake, VA 23320PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. As of December 2015 Product or Part Name Parts Labor Technics Network Audio Amplifier 3 (three) years 3 (three) years Technics Music Server Technics CD Stereo System Technics Turntable System

for all your Technics gear Go to http://shop.panasonic.com/support Get everything you need to get the most out of your Technics products Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal Care, Home Appliances, Headphones, Batteries, Backup Chargers & more… Customer Services Directory For Product Information, Operating Assistance, Parts, Owner’s Manuals, Dealer and Service info go to http://shop.panasonic.com/support For the hearing or speech impaired TTY: 1- 877-833-8855 User memo: The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

(32) ST-G30-SQT1222_mst.book 32 ページ ２０１６年２月２２日　月曜日　午後５時５２分 Limited Warranty (ONLY FOR U.S.A.) Limited Warranty Coverage (For USA Only) Technics Products – Limited Warranty Others Limited Warranty (ONLY FOR U.S.A.) Limited Warranty (ON LY FOR U.S.A.) Others Limited Warranty (ON LY FOR U.S.A.) Technics Products – Limited Warranty Limited Warranty Coverage (For USA Only) If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor. During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold “as is”. Mail-In Service--Online Repair Request Online Repair Request To submit a new repair request and for quick repair status visit our Web Site at http://shop.panasonic.com/support When shipping the unit, carefully pack, include all supplied accessories listed in the Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at http://shop.panasonic.com/support as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty. IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE. Limited Warranty Limits and Exclusions This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God. THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to: Consumer Affairs Department Panasonic Corporation of North America 661 Independence Pkwy Chesapeake, VA 23320 PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. As of December 2015 Product or Part Name Parts Labor Technics Network Audio Amplifier 3 (three) years 3 (three) years Technics Music Server Technics CD Stereo System Technics Turntable System for all your Technics gear Go to http://shop.panasonic.com/support Get everything you need to get the most out of your Technics products Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal Care, Home Appliances, Headphones, Batteries, Backup Chargers & more… Customer Services Directory For Product Information, Operating Assistance, Parts, Owner’s Manuals, Dealer and Service info go to http://shop.panasonic.com/support For the hearing or speech impaired TTY: 1- 877-833-8855 User memo: The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc. This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Technics brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging. IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIREDLIMITATIONS AND EXCLUSIONSThis warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than an Authorized Servicer, or damage that is attributable to acts of God.Dry cell batteries are also excluded from coverage under this warranty.THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.) In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.WARRANTY SERVICEFor product operation, repairs and information assistance, please visit our Support page on:www.panasonic.ca/english/supportIF YOU SHIP THE PRODUCT TO A SERVICENTRECarefully pack and send prepaid, adequately insured and preferably in the original carton.Include details of the defect claimed, and proof of date of original purchase.Technics Network Audio Amplifier 3 (three) years parts and labourTechnics Music Server 3 (three) years parts and labourTechnics CD Stereo System 3 (three) years parts and labourTechnics Turntable System 3 (three) years parts and labour (33) ST-G30-SQT1222_mst.book 33 ページ ２０１６年２月２２日　月曜日　午後５時５２分 29Français
