IAN 59085 - Watch AURIOL - Free user manual and instructions

Product type	Wristwatch
Brand	Auriol
Model	IAN 59085
Model numbers	HG03036A (bright silver), HG03036B (bright rose gold with stones), HG03036C (bright silver with gemstones), HG03036D (bright yellow gold with gemstones)
Power source	1 button cell 1.5 V type SR626SW
Display type	Analogue (hands)
Water resistance	Resistant to rain, hand washing, shower, bathing, rinsing, swimming and diving (see manual for details)
Bracelet closure	Model B: deployant clasp; models A/C/D: slider with locking plate
Bracelet adjustment	Model B: interchangeable links; models A/C/D: adjustable slider
Main functions	Time display (hours, minutes, seconds)
Time setting	Via crown (pull and turn)
Care	Clean with a slightly damp, lint-free cloth; rinse with clear water if necessary
Package contents	1 watch, 1 pre-installed battery, 1 instruction manual; for model B: 2 spare links
Warranty	3 years from date of purchase
Wear parts	Battery (not covered by warranty)
Case material	Not specified (estimated: stainless steel or metal alloy)
Battery replacement	Have replaced by a specialist
Disposal	Do not dispose of with household waste; recycle according to local regulations

Frequently Asked Questions - IAN 59085 AURIOL

How to set the time on my Auriol IAN 59085 watch?

Pull the crown (2) to the unlock position (5). Turn it to set the hour and minute hands. Push the crown back in to restart the second hand.

What type of battery does the Auriol IAN 59085 watch use?

It uses a 1.5 V button cell battery of type SR626SW. It is recommended to have the battery replaced by a specialist.

Is the Auriol IAN 59085 watch water resistant?

Yes, it is resistant to rain, hand washing, showering, bathing, swimming and diving. However, water resistance is not permanent; it should be checked once a year.

How to adjust the bracelet of the watch (model HG03036B)?

Open the clasp (6) of the bracelet and that of the interchangeable link. Add or remove links to adjust the size, then close the clasp.

How to adjust the bracelet of models HG03036A/C/D?

Use a small screwdriver to open the locking plate (8) of the slider (7). Move the slider to the correct position, then press the locking plate to lock it.

What is the warranty period of the Auriol IAN 59085 watch?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not batteries or damage due to improper use.

How to clean my Auriol IAN 59085 watch?

Clean the exterior with a slightly damp, lint-free cloth. If necessary, rinse under running water and dry thoroughly.

What to do if my watch gets wet?

Water resistance is not a permanent property. If your watch has taken in water, contact an authorized repair service. Opening by an unauthorized person voids the warranty.

How to dispose of the watch and its battery?

Do not throw the watch or battery into household waste. Take them to an appropriate collection point (recycling center, store). The used battery must be recycled in accordance with directive 2006/66/EC.

Where to find the user manual for the Auriol IAN 59085 watch?

The manual is available for free download as a PDF on the website notice-facile.com or in the original packaging.

USER MANUAL IAN 59085 AURIOL

www.1idl-service.com WATO

WATCH

GB IE NI

WATCH

Operation and safety notes

DK

ARMBÅNDSUR

GB/IE/NI Operation and safety notes Page 5

DK Brugs- og sikkerhedsanvisninger Side 15
FR/BE Instructions d’utilisation et consignes de sécurité	Page 25
NL/BE Bedienings- en veiligheidsinstructies	Pagina	35
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 45

B
3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

C
HG03036B

1. 2. 6 6

D HG03036A/C/D 8 7

List of pictograms used ...... Page 6

Introduction Page 6

Intended use....Page 7

Description of parts....Page 7

Technical data Page 8

Scope of delivery Page 8

Before first use Page 8

Changing the battery....Page 9

Setting the time....Page 9

Water resistance Page 9

Adjusting the watch strap (HG03036B) ..... Page 10

Adjusting the watch strap (HG03036A/C/D) ..... Page 10

Cleaning and care ...... Page 11

Disposal....Page 11

Warranty Page 13

List of pictograms used

Direct current

Suitable for rain, washing hands, splashes

Suitable for showering, washing up, bathing

Suitable for swimming, snorkelling

Suitable for wind surfing, scuba diving

WATCH

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use.

Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended for consumer use only and must not be used in commercial areas.

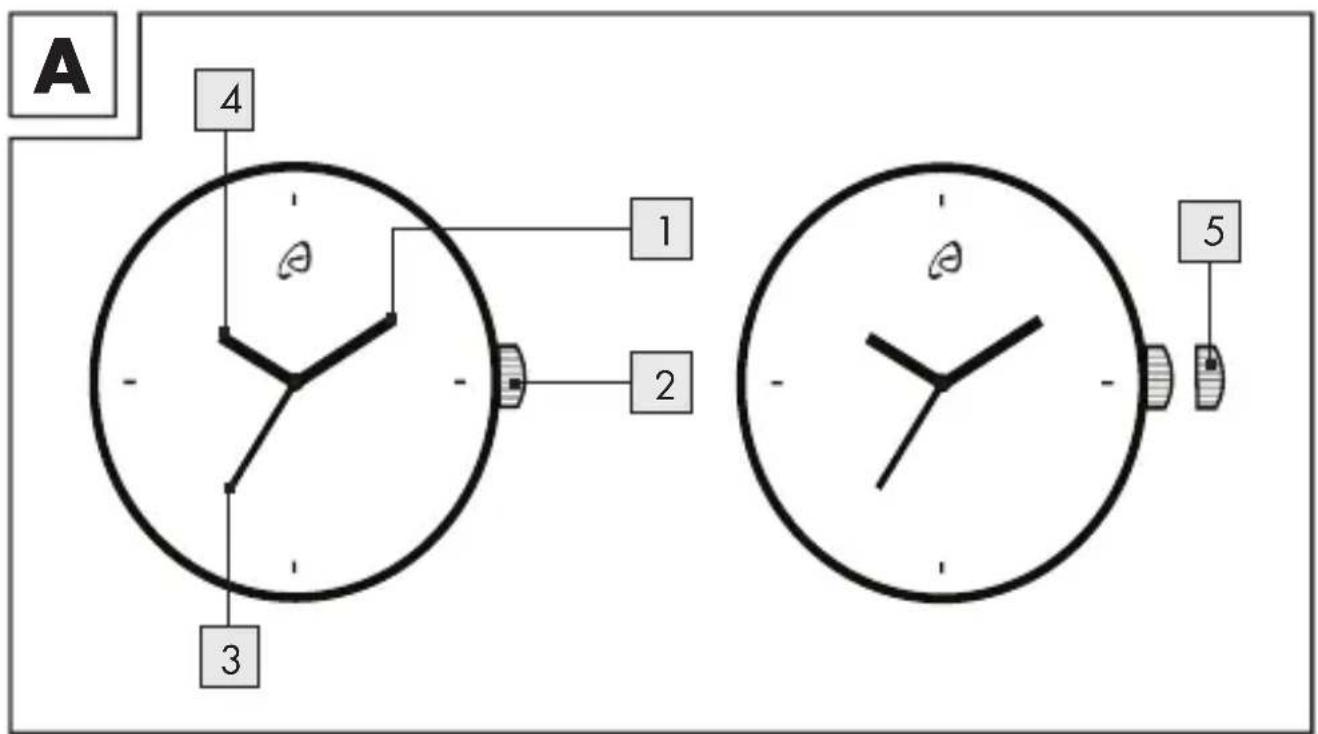

● Description of parts

1 Minute hand
2 Crown
3 Second hand
4 Hour hand
5 Unlock position
6 Fastener (for model HG03036B)
7 Slider (for model HG03036 A/C/D)
8 Locking plate (for model HG03036 A/C/D)

● Technical data

Battery: 1 x 1.5 V ---

Button cell (type SR626SW)

Model number:

HG03036A: Shiny silver

HG03036B: Shiny rose gold with stones

HG03036C: Shiny silver with stones

HG03036D: Shiny yellow gold with stones

- Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition.

1 Watch
■ 1 Battery (pre-installed)
■ 1 Set of instructions for use
For model HG03036B
- 2 spare changeable links (one of them pre-installed)

Before first use

■ Remove all packaging materials from the product.

● Changing the battery

Note: Have batteries changed in a specialist shop.

Setting the time

1. To set the time, pull the crown 2 out to the unlock position 5.
2. Turn the crown 2 to set the hour 4 and minute hands 1.
3. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

● Water resistance

Figure B shows the permissible areas of use. Please note that the water resistance is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the in-built sealing elements diminishes with daily use.

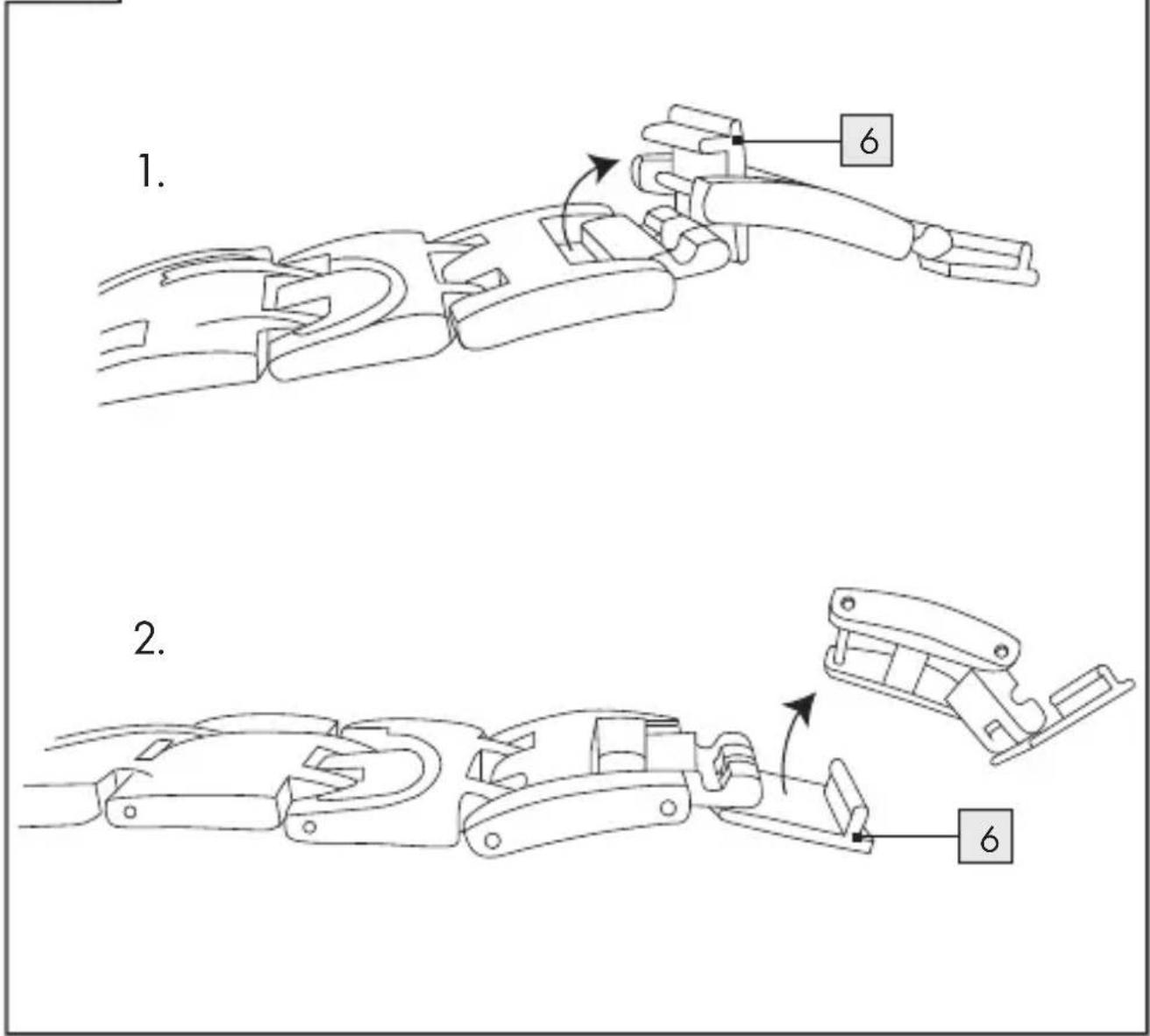

● Adjusting the watch strap (HG03036B)

See Fig. C:

To adjust the watch strap, 2 changeable links are included. Open the fastener 6 of the watch strap and the fastener 6 of the changeable link(s). Remove or add the changeable link(s). Close the fastener 6 of the watch strap.

● Adjusting the watch strap (HG03036A/C/D)

See Fig. D:

To adjust the circumference of the strap, use a small flat-head screwdriver (not included) to open the locking plate 8 of the slider 7 in the direction of the arrow.

After adjusting the right length, locate the slider 7 with the indent at the bottom matching the strap indent at the back. Then press down the locking plate 8.

● Cleaning and care

- Clean the product on the outside only with a soft, wet and clean cloth.

- Rinse the product under the running water if necessary. Dry thoroughly after rinse.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1 - 7: plastics / 20 - 22: paper and fibreboard / 80 - 98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product.

Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

CE
