K5737 - Watch Calypso - Free user manual and instructions

Product type	Digital watch
Brand	Calypso
Model	K5737
Power supply	Button cell (unspecified, standard type CR2016 or similar)
Display	Digital screen with EL backlight
Main functions	Time, date, day of week, daily alarm, alarm repeat (5 min), stopwatch 1/100 s, calendar, backlight, wake-up
Time format	12/24 hours
Stopwatch accuracy	1/100 second, measurement up to 23h59'59"
Wake-up	60-second ring, repeat after 5 min, permanent stop possible
Alarm	Adjustable daily ring, repeat every 5 minutes
Chime	Chime can be enabled/disabled in setting mode
Modes	Time, stopwatch, alarm, setting
Backlight	Activation by button C, duration 3 seconds
Water resistance	Not specified, avoid contact with water
Case material	Not specified (plastic or standard metal)
Care and cleaning	Soft cloth and clean water; avoid chemicals
Safety	Do not open the case, avoid violent shocks, extreme temperatures, strong electric fields
Recycling	Selective collection at approved points of sale (WEEE)
Dimensions	Not specified (standard digital watch size)
Weight	Not specified (approx. 30-50 g)

Frequently Asked Questions - K5737 Calypso

How to set the time on the Calypso K5737 watch?

Press B to enter setting mode. The seconds flash. Press D to reset seconds to zero. Use A to change selection (minutes, hours, date, month, day of week). Press D to increase values. Press B to exit setting.

How to switch between modes on the watch?

Press button B to cycle through time, stopwatch, alarm, and setting modes.

How to use the stopwatch?

In stopwatch mode, press D to start, press again to stop. Press A to reset. For a split time, press A while the stopwatch is running; the counter continues internally. Press A again to resume normal display.

How to set the alarm?

In alarm mode, the time flashes. Use D to set the hours (long press to fast forward). Press A to switch to minutes, then D to set them. Press B to return to setting mode.

How to enable or disable the alarm?

Hold A in time mode to display the alarm screen. Press D to enable/disable the alarm. Similarly, press B to enable/disable the chime.

How to turn on the backlight?

From any mode, press C to illuminate the screen for 3 seconds.

How to display the year with the calendar?

In time setting mode, hold D to see the year, month, and date displayed.

What to do if my alarm rings and I want to stop it?

Press D to stop it temporarily; it will ring again in 5 minutes. Press A to stop it permanently until the next day.

How to know if the alarm is enabled?

When the alarm is enabled, a symbol (usually a bell) appears on the screen in time mode. You can check by holding A.

How to maintain my Calypso K5737 watch?

Clean with a soft cloth and clean water. Avoid chemicals, violent shocks, extreme temperatures, and strong electric fields. Do not open the case. If water or condensation appears, have it checked immediately.

USER MANUAL K5737 Calypso

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO

IKMS063T (R)

DIGITAL

■ MANUAL DE INSTRUCCIONES 4
■ INSTRUCTION MANUAL 14
■ MANUEL D'INSTRUCTION 24
■ BETRIEBSANLEITUNG 34
■ MANUALE DI FUNZIONAMENTO 44
■ MANUALDEINSTRUÇÕES54

"A" "B" "C" M 12:30 04 D"

4

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO

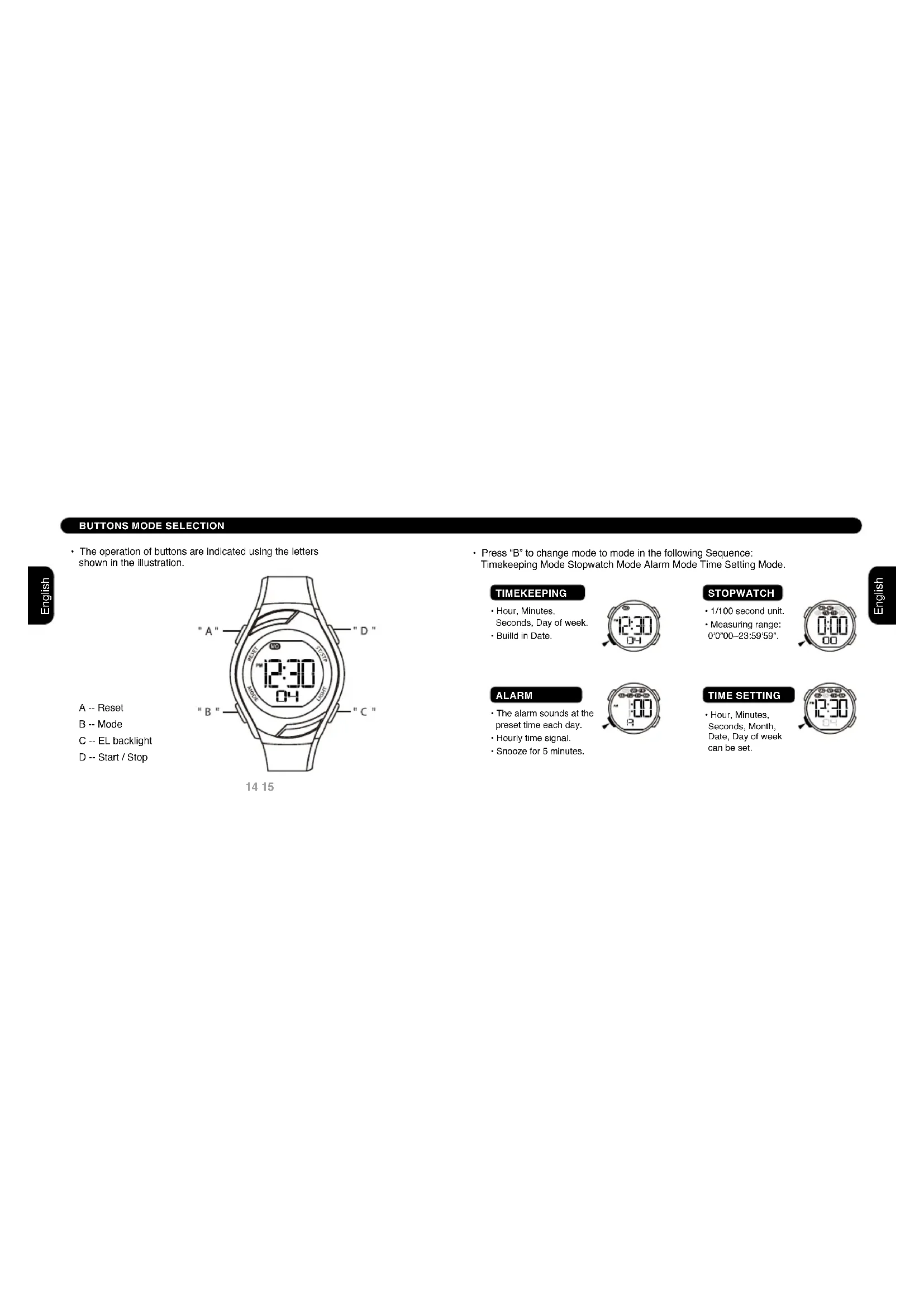

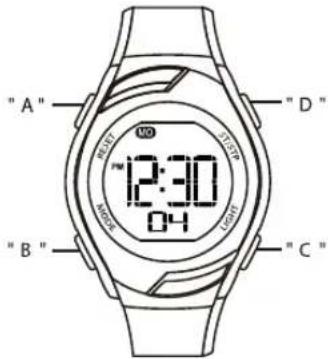

BUTTONS MODE SELECTION

- The operation of buttons are indicated using the letters shown in the illustration.

A -- Reset

B -- Mode

C -- EL backlight

D -- Start / Stop

"A" NO TM 12:30 04 "D" "B" "C"

14 15

- Press "B" to change mode to mode in the following Sequence: Timekeeping Mode Stopwatch Mode Alarm Mode Time Setting Mode.

TIMEKEEPING

• Hour, Minutes, Seconds, Day of week.
- Build in Date.

STOPWATCH

• 1/100 second unit.
  • Measuring range: 0'0"00\~23:59'59".

ALARM

• The alarm sounds at the
preset time each day.
• Hourly time signal.
- Snooze for 5 minutes.

TIME SETTING

• Hour, Minutes,
Seconds, Month, Date, Day of week can be set.

DISPLAY TIMEKEEPING

• The screen shown in below:

DAY OF WEEK MO WE FR SU TU TH SA PM AM 08:08 D 813 MINUTES HOUR SECONDS

BACKLIGHT

- The backlight that uses an EL (electroluminescent) cause the display to glow for easy reading in the dark.

Use EL Backlight

- In any mode, press "C" to illuminate the display about 3 seconds.

Display The Date

- In the timekeeping mode, press and hold "D" to display the date.

On/Off The Alarm

1. In the timekeeping mode, press and hold "A" display the alarm time.
2. Press "D" at the same time to on/off the alarm.

On/Off The Chime

1. In the timekeeping mode, press and hold "A" display the alarm time;
2. Press "B" at the same time to on/off the chime.

ALARMSTOPWATCH

A Lap Time Split Time

1. In the stopwatch mode, press "D" to start the stopwatch.
2. To stop the stopwatch by pressing "D" again.
3. Press "A" to reset the stopwatch.

1. In the stopwatch mode, press "D" to start the stopwatch.
2. Press "A" to display the split time, stopwatch timing continues internally.
3. Press "A" to clear the split time and to continue time measurement.
4. Repeat step 2 and 3, you can measure the multi split time.
5. Press "D" to stop the stopwatch.

Alarm Time Setting

1. In the alarm mode, the hour to flash
2. Press "D" to increase the hour, press and hold to increase at high speed.
3. Press "A" to select the minutes.
4. Press "D" to increase the minutes, press and hold to increase at high speed.
5. Press "B" to return the timekeeping mode, after you set.

Snooze

• The alarm sounds at preset time each day for about 60 seconds.
• Press "D" to break it, the alarm continue after 5 minutes.
• Press "A" to stop it.

TIME SETTING

1. In the time setting mode, the seconds to flash.
2. Press "D" to reset the seconds.
3. Press "A" change to the next selection.
4. Press "D" to increase the number, press and hold to increase at high speed.

1. Repeat step 3 and 4, the selection in the following sequence: Seconds Minutes Hour Date Month Day of week
2. Press "B" to return the timekeeping mode, after you set. • 12 / 24H formats can be selected, when hour setting.

CARE OF YOUR WATCH

1. This watch contains electronic components. Never attempt to open the case or remove the back cover.
2. Do not operate push buttons below the surface of the water while swimming or diving.
3. Should water or condensation appear in the watch, have the watch checked immediately. Corrosion of electronic parts can occur inside the case.
4. Avoid severe impact. The watch is designed to withstand impact under normal use. It is inadvisable to subject it to severe impact of rough usage.
5. Avoid exposing the watch to extreme temperature.
6. Clean the watch with soft cloth and clean water only. Avoid using chemicals.
7. Keep your watch away from the conditions of strong electric field and estatic electricity.

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your watch making products at any of our retail outlets or any other authorized collection's selective collection, processing, rating and recycling of these products helps to safeguarding the environment and protecting our health.

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO

BOUTONS CHOIX DU MODE

"A" "B" "C" 12:30 04 D"

24 25

Activer/Désactiver le carillon

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO

DRUCKKNÖPFE MODUSWAHL

"A" "D" "B" "C" hntung

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO

PULSANTI SELEZIONE MODALITÀ

"A" "B" "D" "C" 12:30 04

44 45

GIORNO DELLA SETTIMANA MO WE FR SU TU TH SA PM AM 00:00 ORA MINUTI D 89 SECOND1

LUCE QUADRANTE

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO

BOTÕES

"A" M 12:30 04 "D" "B" "C"

54 55

SELECÇÃO DE MODOS

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO
