SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury! This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

AVERTISSEMENT

IMPORTANT SAFETY INSTRUCTIONS ....3

MEANINGS OF SIGNAL WORDS ....3

SAFETY....3

GENERAL POWER TOOL SAFETY WARNINGS ....3

SPECIFIC SAFETY RULES AND SYMBOLS .....4

ASSEMBLY AND OPERATION....8

APPLICATIONS....8

INSTALLING AND REMOVING BITS ....8

HOW TO USE THE ROUTER 9

USING THE OPTIONAL ACCESSORIES .....11

MAINTENANCE AND INSPECTION....12

ACCESSORIES 12

STANDARD ACCESSORIES 12

OPTIONAL ACCESSORIES (sold separately) ....12

PARTS LIST......40

TABLE DES MATIÈRES

Français

Page Page

CONSIGNES DE SÉCURITÉ IMPORTANTES ...14

SIGNIFICATION DES MOTS D'AVERTISSEMENT....14

SÉCURITÉ 14

AVERTISSEMENTS DE SÉCURITÉ GÉNÉRAUX CONCERNANT LES OUTILS ÉLECTRIQUES ....14

REGLES DE SECURITE SPECIFIQUES ET SYMBOLES ....16

DOUBLE ISOLATION POUR UN FONCTIONNEMENT PLUS SUR......17

UTILISATION D'UN CORDON DE RALLONGE....18

DESCRIPTION FONCTIONNELLE .....19

NOM DES PARTIES ....19

SPECIFICATIONS 19

ASSEMBLAGE ET FONCTIONNEMENT....20

APPLICATIONS....20

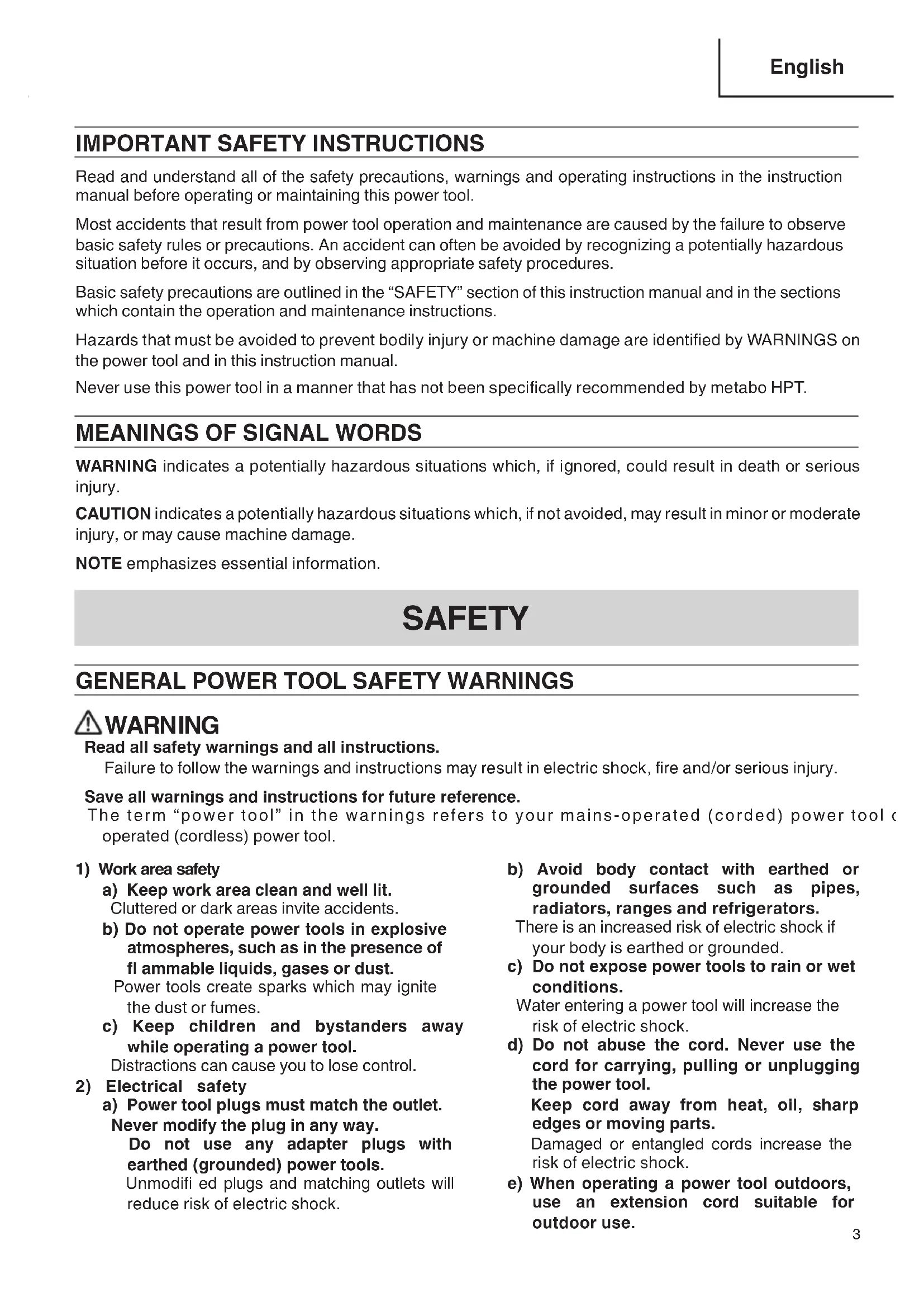

IMPORTANT SAFETY INSTRUCTIONS

Read and understand all of the safety precautions, warnings and operating instructions in the instruction manual before operating or maintaining this power tool.

Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “SAFETY” section of this instruction manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this instruction manual.

Never use this power tool in a manner that has not been specifically recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool (operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodifi ed plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

d u s tPowerstools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) o Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Hold power tool by insulated gripping surfaces, because the cutter may contact its own cord.

Cutting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator.

1. Use clamps or another practical way to secure and support the workpiece to a stable platform.

Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.

1. Always wear ear protectors when using the tool for extended periods.

Prolonged exposure to high intensity noise can cause hearing loss.

1. Handle the bits very carefully.

2. Check the bit carefully for cracks or damage before operation. Replace cracked or damaged bit immediately.

3. Avoid cutting nails. Inspect for and remove all nails from the workpiece before operation.

4. Hold the tool firmly with both hands.

5. Keep hands away from rotating parts.

6. Make sure the bit is not contacting the workpiece before the switch is turned on.

7. Before using the tool on an actual workpiece, let it run for a while. Watch for vibration or wobbling that could indicate improperly installed bit.

8. Be careful of the bit rotating direction and the feed direction.

9. Do not leave the tool running. Operate the tool only when hand-held.

10. Always switch off and wait for the bit to come to a complete stop before removing the tool from workpiece.

11. Do not touch the bit immediately after operation: it may be extremely hot and could burn your skin.

12. Always lead the power supply cord away from the tool towards the rear.

13. After changing the bits or making any adjustments, make sure the collet nut and any other adjustment devices are securely tightened.

Loose adjustment device can unexpectedly shift, causing loss of control, loose rotating components will be violently thrown.

1. Always wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

1. Defi nitions for symbols used on this tool

V..... volts

Hz...... hertz

A...... amperes

n。…… no load speed

W...... watt

☐ ...... Class II Construction

---/min ... revolutions or reciprocation per minute

\~ ...... Alternating current

To ensure safer operation of this power tool, metabo HPT has adopted a double insulation design. “Double insulation” means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Therefore, either the symbol “☐ or the words “Double insulation” appear on the power tool or on the nameplate.

Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments.

To keep the double insulation system effective, follow these precautions:

○ Only metabo HPT Authorized Service Center should disassemble or assemble this power tool, and only genuine metabo HPT replacement parts should be installed.

○ Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry moving thoroughly.

Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve.

USE OF EXTENSION CORD

Make sure your extension cord is in good condition. When using an extension cord, be sure to heavy enough to carry the current your product will draw.

An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.

MINIMUM GAGE FOR CORD SETS

	Total Length of Cord in Feet (Meter)
	0 – 25 26 – 50 51 – 100 101 – 150(0 – 7.6) (7.9 – 15.2) (15.5 – 30.5) (30.8 – 45.7)
Ampere rating AWG
More Not more than than
0 – 6 18 16 16 14
6 – 10 18 16 14 12
10 – 12	16 16	14 12
12 – 16	14 12	Not recommended

WARNING

Avoid electrical shock hazard. Never use this tool with a damaged or frayed electrical cord or extension cord.

Inspect all electrical cords regularly. Never use in or near water or in any environment where electric shock is possible.

SAVE THESE INSTRUCTIONS

AND

MAKE THEM AVAILABLE TO

OTHER USERS

AND

OWNERS OF THIS TOOL!

FUNCTIONAL DESCRIPTION

NOTE

The information contained in this instruction manual is designed to assist you in the safe operation and maintenance of the power tool.

Never operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this instruction manual may show details or attachments that differ from those on your own power tool.

NAME OF PARTS

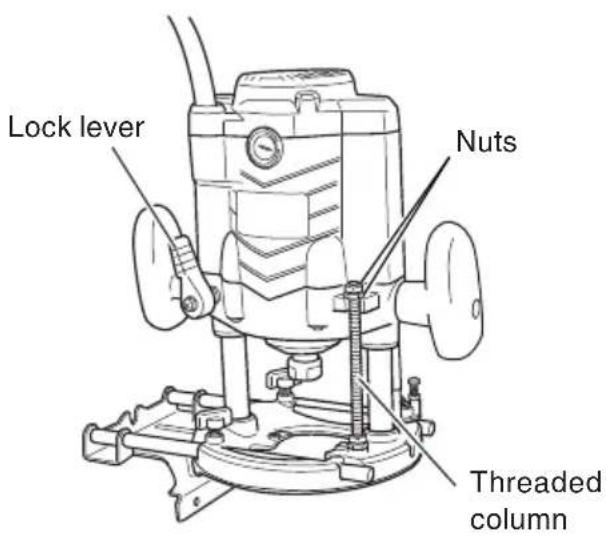

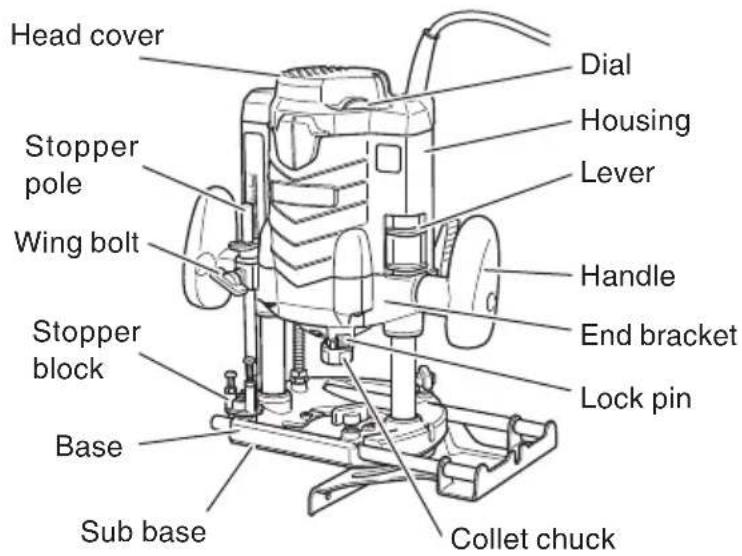

Head cover Dial Housing Stopper pole Lever Wing bolt Handle End bracket Lock pin Stopper block Base Sub base Collet chuck

Lock lever Nuts Threaded column

Fig. 1-1 Fig. 1-2

SPECIFICATIONS

Motor Single Phase, Series Commutator Motor
Power source Single Phase 120 V AC 60 Hz
Collet chuck capacity	1/2" (12.7 mm), 1/4" (6.35 mm)
Main body stroke 2 – 9/16" (65 mm)
Current 15 A
No-load speed 8,000/min – 22,000/min
Weight (without cord) 12.1 lbs (5.5 kg)

NOTE

Available bit: Straight bits, Flush trimming bits, Chamfering bits, Round-over bits, Rabbeting bits, Dovetail bits,

ASSEMBLY AND OPERATION

APPLICATIONS

○ Woodworking jobs centered on grooving and beveling.

For example, grooving beveling, cutting, copying, engraving, shape cutting, combinations and others.

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms to the power source requirements specified on the product nameplate.

2. Power switch

Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.

3. Extension cord

When the work area is far away from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

WARNING

Damaged cord must be replaced or repaired.

4. Check the receptacle

If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs.

If such a fautly receptacle is used, it may cause overheating, resulting in a serious hazard.

5. Confirming condition of the environment

Confirm that the work site is placed under appropriate conditions conforming to prescribed precautions.

6. Setting the attachment angle of the handle

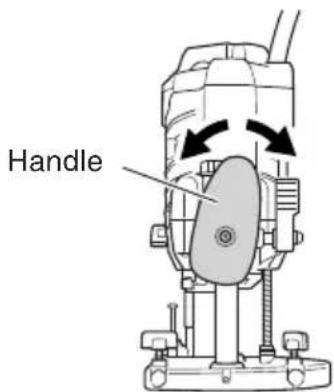

As Fig. 2 shows, the handle attachment angle can beset in three stages. Use a plus head screwdriver to loosen the machine screw attached to the handle, adjust the handle to the desired position and retighten the machine screw.

Handle

Fig. 2

INSTALLING AND REMOVING BITS

WARNING

Be sure to switch power OFF and disconnect the plug from the receptacle to avoid serious trouble.

1. Installing bits

(1) Clean and insert shank of bit into the collet chuck until shank bottoms, then back it out approximately 1/16" (approx. 2 mm).

(2) With the bit inserted and pressing the lock pin holding the armature shaft, use the 23 mm wrench to firmly tighten the collet chuck in a clockwise direction (viewed from under the router). (Fig. 3)

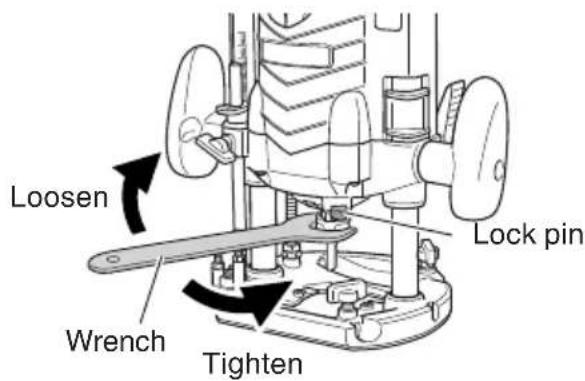

Loosen Wrench Tighten Lock pin

Fig. 3

(3) When using the 1/4" (6.35 mm) diameter shank bit, replace the equipped collet chuck with the one for 1/4" (6.35 mm) diameter shank bit which is provided as the standard accessory.

CAUTION

- Ensure that the collet chuck is firmly tightened after inserting a bit. Failure to do so will result in damage to the collet chuck.

• Ensure that the lock pin is not inserted into the armature shaft after tightening the collet chuck. Failure to do so will result in damage to the collet chuck, lock pin and armature shaft.
• Use only router bits of which the maximum speed, as indicated on the bit, does exceed the maximum speed of the router.

2. Removing bits

When removing the bits, do so by following the steps for installing bits in reverse order.

CAUTION

Ensure that the lock pin is not inserted into the armature shaft after tightening a bit. Failure to do so will result in damage to the collet chuck, lock pin and armature shaft.

HOW TO USE THE ROUTER

1. Adjusting depth of cut

(1) Use stopper pole to adjust depth of cut.
① Place the tool on a flat wood surface.
② Turn the stopper block so that section to which the cutting depth setting screw on a stopper block is not attached comes to the bottom of the stopper pole. Loosen wing bolt allowing the stopper pole to contact with stopper block.

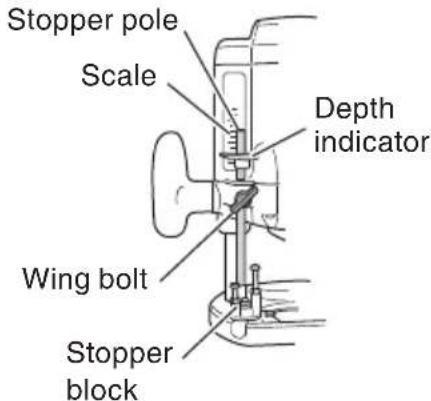

Stopper pole Scale Depth indicator Wing bolt Stopper block

Fig. 4

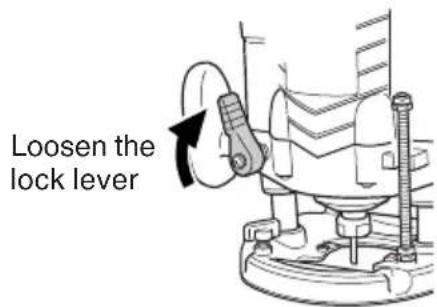

③ Loosen the lock lever and press the tool body until the bit just touches the flat surface. Tighten the lock lever at this point. (Fig. 5)

Loosen the lock lever

Fig. 5

④ Tighten wing bolt. Align the depth indicator with the "0" graduation of scale.
⑤ Loosen wing bolt, and raise until indicator aligns with the graduation representing the desired cutting depth. Tighten wing bolt.
⑥ Loosen the lock lever and press the tool body down until the stopper block to obtain the desired cutting depth.

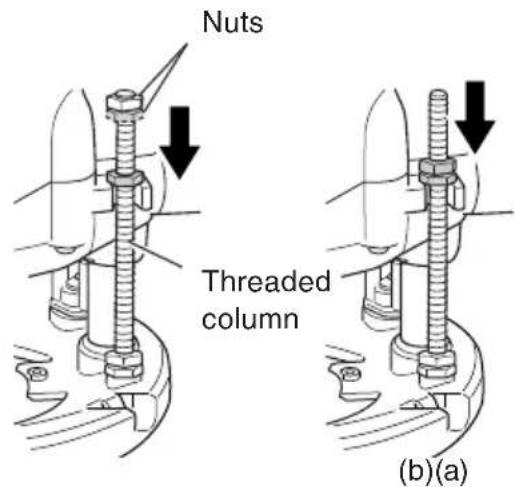

(2) As shown in Fig. 6 (a), loosening the two nuts on the threaded column and moving them down will allow you to move down to the end position of the bit when the lock lever was loosened. This is helpful when moving the router to align the bit with the cutting position. As shown in Fig. 6 (b), tighten the upper and lower nuts to secure the cutting depth.

Nuts Threaded column (b)(a)

Fig. 6

(3) When you are not using the scale to set the cutting depth, push up the stopper pole so that it is not in the way.

2. Stopper block (Fig. 7)

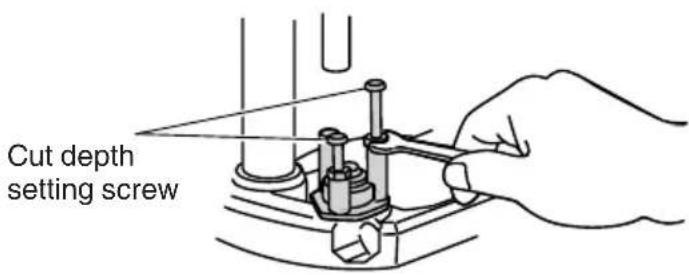

The 2 cut-depth setting screws attached to the stopper block can be adjusted to simultaneously set 3 different cutting depth. Use a wrench to tighten the nuts so that the cut-depth setting screws do not come loose at this time.

Cut depth setting screw

Fig. 7

3. Guiding the router

WARNING

Be sure to switch power OFF and disconnect the plug from the receptacle to avoid serious trouble.

(1) Template guide

Use the template guide when employing a template for producing a large quantity of identically shaped products.

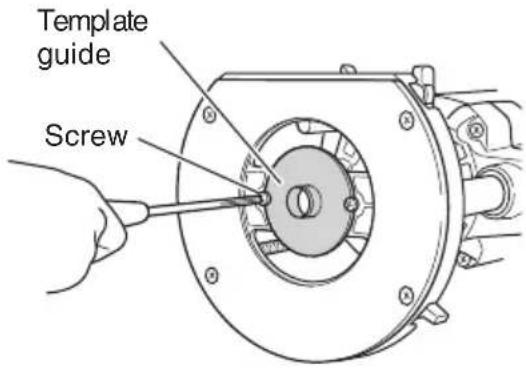

As shown in Fig. 8, secure the template guide to the base of the router with two accessory screws. At this time, ensure that the projection side of the template guide is facing the bottom surface of the base of the router.

Template guide Screw

Fig. 8

A template is a profi ling mold made of plywood or thin lumber. When making a template, pay particular attention to the matters cescribed blow and illustrated in Fig. 9.

Template guide Bit Template A

Fig. 9

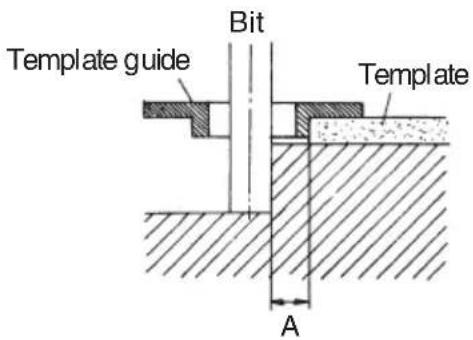

When using the router along the interior plane of the template, the dimensions of the finished product will be less than the dimensions of the template by an amount equal to dimension "A", the difference between the radius of the template guide and the radius of the bit. The reverse is true when using the router along the exterior of the template.

Secure the template to the workpiece. Feed the router in the manner that the template guide moves along the template as shown in Fig. 10.

Line drawing of hands operating a mechanical device on a workbench (no text or symbols)

Fig. 10

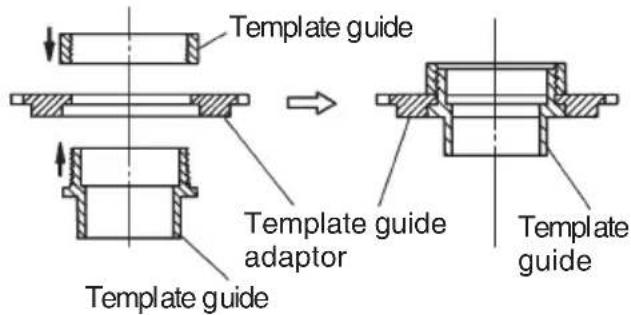

Template guide adaptor (Fig. 11)

If you are using a template guide adapter, it is possible to use template guides produced by other fi rms. The template guide adaptor, like the template guide, is attached to the base with two accessory screws. Attach template guides made by other fi rms to the template guide adaptor.

Template guide Template guide adaptor Template guide Template guide

Fig. 11

(2) Parallel guide (Fig. 12)

Use parallel guide for chamfering and groove cutting along the materials side.

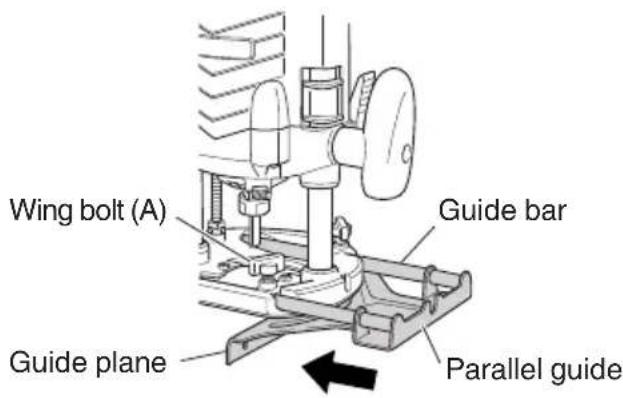

Wing bolt (A) Guide bar Guide plane Parallel guide

Fig. 12

① Insert the guide bar into the hole in the base, adjust the distance between the bit and the guide surface, and then firmly tighten the wing bolt (A) (standard accessories).

② As shown in Fig. 13, securely attach the bottom of the base to processed surface of the materials. Feed the router while keeping the guide plane on the surface of the materials.

Line drawing of hands operating a mechanical device with no visible text or symbols

Fig. 13

4. Adjusting the rotation speed

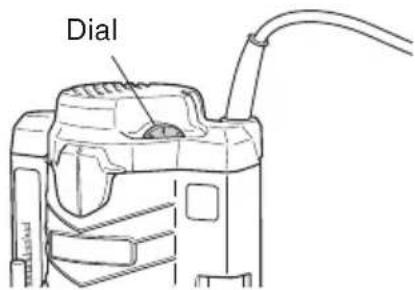

The M12VE has an electronic control system that allows stepless rpm changes. As shown in Fig. 14, dial position "1" is for minimum speed, and position "6" for maximum speed.

Dial

Fig. 14

5. Cutting

WARNING

● Wear eye protection when operating this tool.
- Keep your hands, face and other body parts away from the bits and any other rotating parts, while operating the tool.

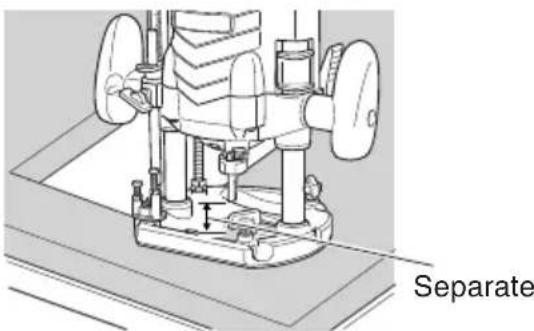

(1) As shown in Fig. 15, remove the bit from the work pieces and press the switch lever up to the ON position. Do not start cutting operation until the bit has reached full rotating speed.

Separate

Fig. 15

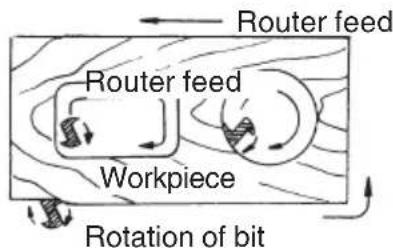

(2) The bit rotates clockwise (arrow direction indicated on the base). To obtain maximum cutting eff ectiveness, feed the router in conformance with the feed directions shown in Fig. 16.

Fig. 16

NOTE

f a worn bit is used to make deep grooves high pitched cutting noise may be produced.

Replacing the worn bit with a new one will eliminate the high pitched noise.

USING THE OPTIONAL ACCESSORIES

(1) Dust collector set

Connect the dust collector set cleaner to collect dust.

For installation methods, please refer to the handling instructions that came with the set.

(2) Fine adjustment knob

Connect the fine adjustment knob to adjust the depth of cut finely.

For installation methods, please refer to the handling instructions that came with the set.

NOTE

○ Moving the tool forward fast may cause a poor quality of cut, or damage to the bit or motor. Moving the tool forward too slowly may burn and mar the cut.

The proper feed rate will depend on the bit size, the kind of workpiece and depth of cut. Before beginning the cut on the actual workpiece, it is advisable to make a sample cut on a piece of scrap lumber. This will show exactly how the cut will look as well as enable you to check dimensions.

○ Abnormalities and overloads will trigger the overload protector, and stop operation. Remove the load immediately, and turn the power off, then on. The rotation speed should return to normal.
Do not use a power generator as the power source. It may cause the rotation speed to fluctuate.
When using the straight guide, be sure to install it on the right side in the feed direction. This will help to keep it flush with the side of the workpiece.

MAINTENANCE AND INSPECTION

WARNING

Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.

1. Inspecting the screws

Regularly inspect all screws and ensure that they are fully tightened. Should any of the screws be loosened, retighten them immediately.

WARNING

Using this router with loosened screw extremely dangerous.

2. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

3. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

4. Service parts list

CAUTION

Repair, modification and inspection of metabo HPT Power Tools must be carried out by a metabo HPT Authorized Service Center.

\$Hls Parts List will be helpful if presented with the tool to the metabo HPT Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS

metabo HPT Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

ACCESSORIES

WARNING

Always use only authorized metabo HPT replacement parts and accessories. Never use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool.

The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE

Accessories are subject to change without any obligation on the part of the metabo HPT.

STANDARD ACCESSORIES

(1) 1/4" Collect chuck (Code No. 323293) .... 1
(2) Template guide adaptor (Code No. 325224)......1
(3) Template guide (Code No. 956790) ...... 1
(4) Wing bolt (Code No. 301806) 2
(5) 23 mm Wrench (Code No. 323295) ...... 1
(6) Parallel guide ...... 1
(7) Case 1

OPTIONAL ACCESSORIES (sold separately)

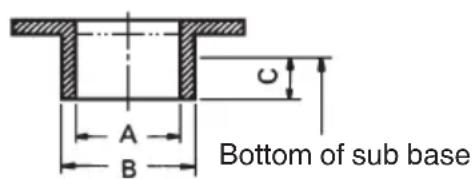

(1) Template guide

Bottom of sub base

Code No.	A B C
303 347	19/64"(7.5 mm)	3/8"(9.5 mm)	3/16"(4.5 mm)
303 348	5/16"(8 mm)	25/64"(10 mm)
303 349	23/64"(9 mm)	7/16"(11.1 mm)
303 350	25/64"(10 mm)	15/32"(12 mm)
303 351	27/64"(10.7 mm)	1/2"(12.7 mm)
303 352	15/32"(12 mm)	35/64"(14 mm)
303 353	35/64"(14 mm)	5/8"(16 mm)
956 790	21/32"(16.5 mm)	45/64"(18 mm)
956 932Z	47/64"(18.5 mm)	25/32"(20 mm)
303 354	57/64"(22.5 mm)	15/16"(24 mm)
956 933Z	1"(25.5 mm)	1-1/16"(27 mm)
956 934Z	1-1/8"(28.5 mm)	1-3/16"(30 mm)
303 355	1-33/64"(38.5 mm)	1-37/64"(40 mm)

(2) Dust collector set (Code No. 997466)

(3) Chuck sleeve (Code No. 956928Z)

3/8" (9.5 mm)

(4) Fine adjustment knob (Code No. 318304)

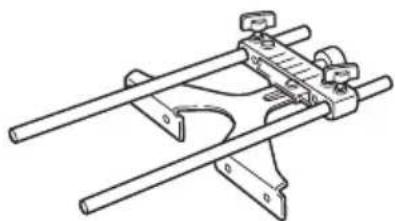

(5) Straight guide

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

NOTE

Specifications are subject to change without any obligation on the part of the metabo HPT.

CONSIGNES DE SÉCURITÉ IMPORTANTES

Mechanical assembly diagram showing a tool interacting with a base, no text or symbols present

Fig. 5

Mechanical assembly diagram showing a bolt being inserted into a housing (no text or symbols present)

(b)
Fig. 6

Line drawing of hands operating a mechanical device on a workbench (no text or symbols visible)

Fig. 10

Line drawing of hands assembling or adjusting a mechanical device (no text or symbols visible)

Fig. 13

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

REMARQUE

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols present)

Fig. 5

Line drawing of hands operating a power tool on a workbench (no text or symbols)

Fig. 10

Line drawing of hands operating a mechanical device with no visible text or symbols

Fig. 13

A B C Parte in base

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

NOTA

Exploded view diagram of a mechanical assembly with numbered components for identification

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

AVERTISSEMENT:

Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave,

Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10,

Mississauga, ON, L4V 1T6

806

Code No. C99182962 M

Printed in Malaysia
