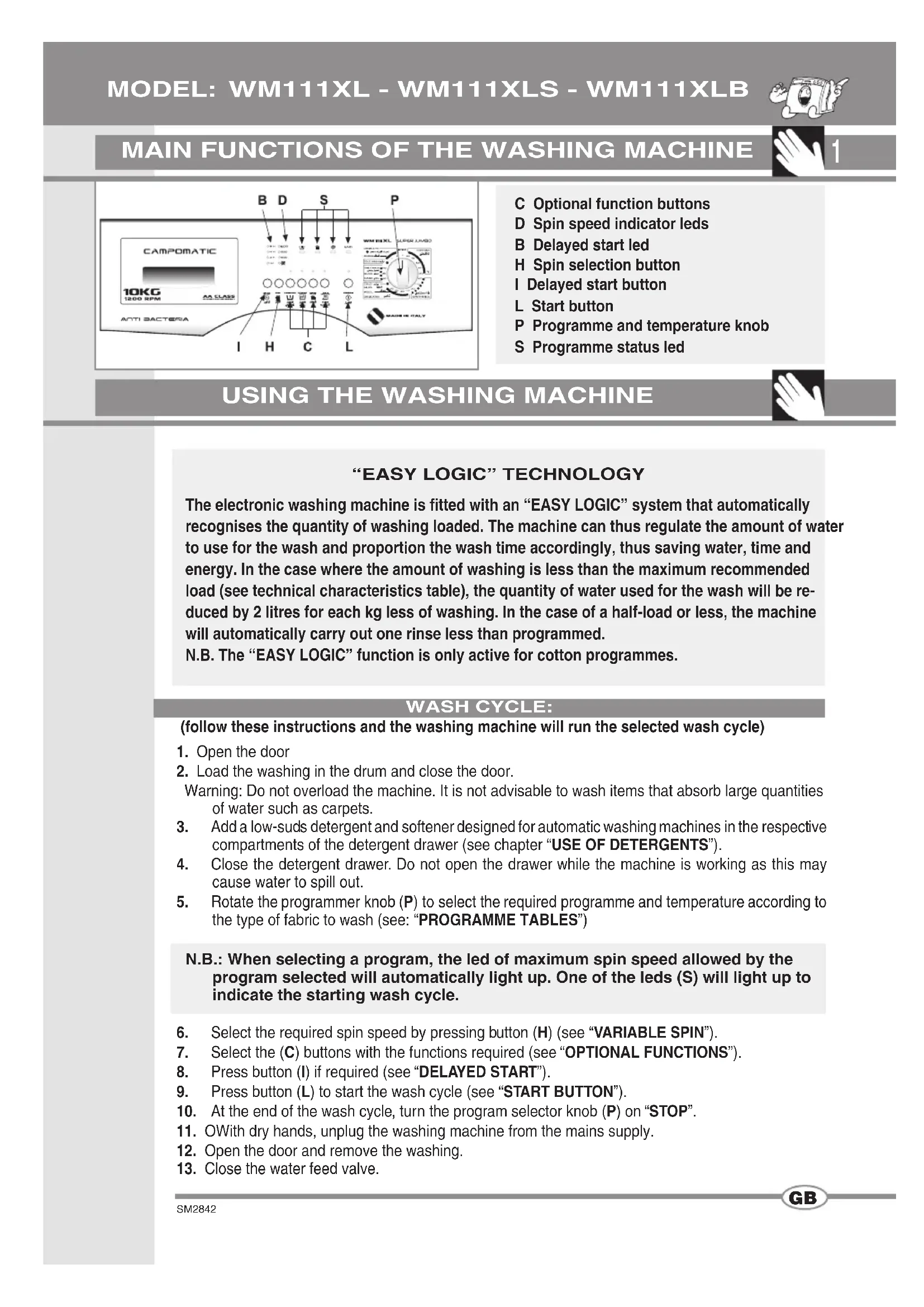

USER MANUAL WM111 Campomatic

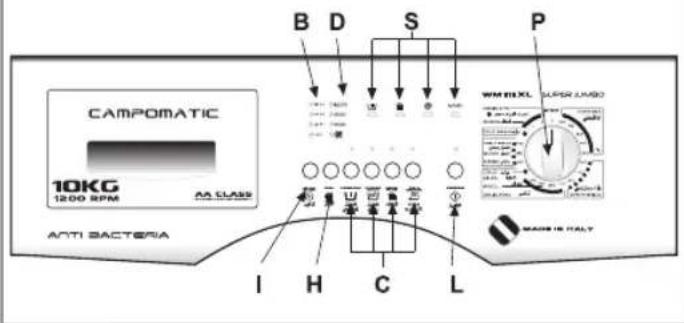

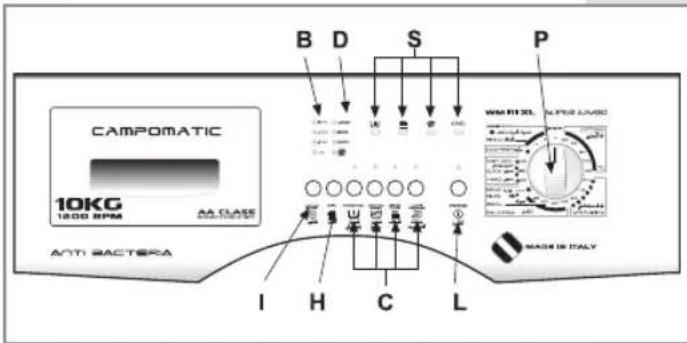

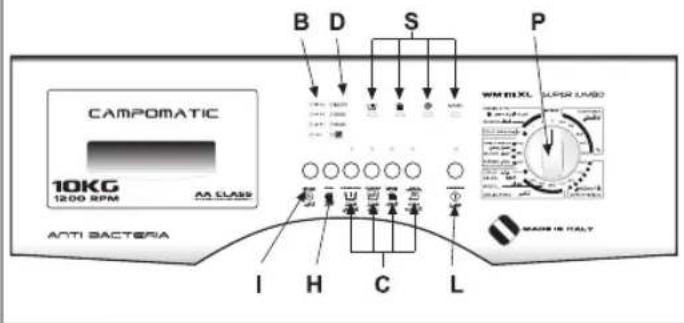

MAIN FUNCTIONS OF THE WASHING MACHINE

C Optional function buttons
D Spin speed indicator leads
B Delayed start led
H Spin selection button
I Delayed start button
L Start button
P Programme and temperature knob
S Programme status led

USING THE WASHING MACHINE

"EASY LOGIC" TECHNOLOGY

The electronic washing machine is fitted with an "EASY LOGIC" system that automatically recognises the quantity of washing loaded. The machine can thus regulate the amount of water to use for the wash and proportion the wash time accordingly, thus saving water, time and energy. In the case where the amount of washing is less than the maximum recommended load (see technical characteristics table), the quantity of water used for the wash will be reduced by 2 litres for each kg less of washing. In the case of a half-load or less, the machine will automatically carry out one rinse less than programmed.

N.B. The "EASY LOGIC" function is only active for cotton programmes.

WASH CYCLE:

(follow these instructions and the washing machine will run the selected wash cycle)

1. Open the door
2. Load the washing in the drum and close the door.

Warning: Do not overload the machine. It is not advisable to wash items that absorb large quantities of water such as carpets.

1. Add a low-suds detergent and softener designed for automatic washing machines in the respective compartments of the detergent drawer (see chapter "USE OF DETERGENTS").
2. Close the detergent drawer. Do not open the drawer while the machine is working as this may cause water to spill out.
3. Rotate the programmer knob (P) to select the required programme and temperature according to the type of fabric to wash (see: "PROGRAMME TABLES")

N.B.: When selecting a program, the led of maximum spin speed allowed by the program selected will automatically light up. One of the leds (S) will light up to indicate the starting wash cycle.

1. Select the required spin speed by pressing button (H) (see "VARIABLE SPIN").
2. Select the (C) buttons with the functions required (see "OPTIONAL FUNCTIONS").
3. Press button (I) if required (see "DELAYED START").
4. Press button (L) to start the wash cycle (see "START BUTTON").
5. At the end of the wash cycle, turn the program selector knob (P) on "STOP".
6. OWith dry hands, unplug the washing machine from the mains supply.
7. Open the door and remove the washing.
8. Close the water feed valve.

VARIABLE SPIN:

The machine offers a wide selection of spin speeds that can be selected beforehand according to the wash programme. To change the spin speed, simply press button (H) to select the required speed. The corresponding speed led will light-up each time the button is pressed. To exclude the spin, select the led corresponding to symbol , if present, or the writing "no-spin".

1200

800

NB. the maximum spin speed will vary according to the model and is indicated by the LEDs on the machine. The maximum spin speed that can be selected for each programme is indicated by the leds that light-up automatically when the wash programme is selected.

600

圆

SPIN LOAD IMBALANCECONTROL:

This washing machine is equipped with a special electronic control system for correctly balancing the wash load. Prior to each spin, the system ensures that the washing is evenly distributed in the drum. If the washing is not evenly distributed, the final spin speed is reduced, and if the load is very unbalanced, the spin is not effected.

DELAYED START:

The machine is fitted with a delayed start function. This allows the washing machine to be programmed to start the wash cycle up to 8 hours later. The delay in hours can be selected as follows: press the button to set a delay of 1, 2, 4, 8 hours. When the START button (L) is pressed, the selected led will flash or button (I) will light up (according to the model), signalling that the function has been activated. The machine will wait for the number of hours set to elapse and then start the wash cycle automatically.

START BUTTON:

After having carried out all the operations described in points 1 to 8 in the paragraph "WASHING CYCLE" press this button and the washing machine will begin its washing cycle. The relative LED will light up after 2-3 seconds, to indicate that the door is locked and the program has started.

PROGRAMMER KNOB "STOP":

The stop function resets the washing machine. If, for any reason, you want to change the wash programme or add more washing to the load during the wash cycle, simply place the programmer knob in position "STOP", then re-position the knob on the new programme and press the "START" button.

Warning!! only use this function if strictly necessary and then only if the programme to reset has been running for a few minutes. Before opening the door after a reset, wait 2 minutes for the locking mechanism to release.

OPTIONAL FUNCTIONS

If one of the following buttons is selected, the corresponding LED will switch on. But if it has been selected by mistake or you have changed your mind, simply press it again to cancel the selection.

PREWASH:

Press this button to run a short wash at a maximum temperature of 40^ of approximate duration 10 minutes. This function can only be used with the "COTTON" and "SYNTHETIC" programmes and DAILY

N.B. When using this function, remember to put some detergent in the prewash compartment too.

STRONG WASH:

Press the button and the machine will carry out a wash cycle at the set temperature but lasting longer.

The button is active with "COTTON" and "SYNTHETICS" programs.

PLUS RINSES:

The washing machine has been designed to reduce water consumption to a minimum. In very soft water areas, or in the case where detergent residues are noticed at the end of the wash cycle, pressing this button will add one more rinse to the programme.

ANTI-CREASE:

When this button is pressed, at the end of the wash cycle, the items loaded in the washing machine will continue to rotate for a further thirty minutes to reduce creasing. With this function, the working spin speed is 800 rpm.

NB. The use of this function depends on the type of programme selected. Consequently, if the wash programme does not include this function, the button cannot be enabled (see "PROGRAMME TABLE").

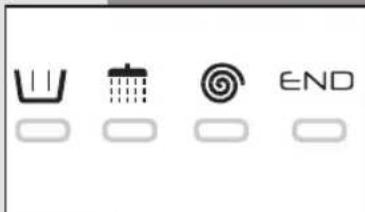

MONITORING THE WASH:

The figure alongside shows the 4 main functions of a wash cycle:

PREWASH - MAIN WASH, RINSES, SPIN, END.

During the cycle, each of these functions is highlighted by a led informing the user what the washing machine is doing at that moment.

After the spin phase, the corresponding led will stay lit for approximately 2 minutes; this is the time lapse necessary before the door can be opened. At this point, the "END" led will light-up.

PROGRAMME TABLES

PROGRAMMER KNOB	WASH TEMPERATURE	SYMBOL	FABRIC TYPE	Detergent compartment	BUTTONS ENABLED
COTTON	90°	90°	Heavily soiled white cotton fabrics with organic stains.	211
COTTON	75°	75°	Sheets, shirts, tablecloths, towels that are resistant and heavily soiled	211
COTTON*	60°	60°	For shirts, tablecloths, towels that are resistant and normally soiled	211
COTTON	40°	40°	White and coloured fabrics that are resistant and heavily soiled	211
COTTON	30°	30°	Delicate coloured fabrics that are lightly soiled	211
SYNTHETICS	60°	60°	Colourfast synthetic fabrics that are heavily soiled	211
SYNTHETICS	40°	40°	Delicate coloured synthetic fabrics that are lightly soiled	211
SYNTHETICS	30°	30°	Delicate coloured synthetic fabrics that are lightly soiled	211

FUNCTION ENABLED FUNCTION DISABLED

OPTIONAL WITH PRE-WASH BUTTON PRESSED

• Benchmark program for energy classification, in accordance with the EN 60456 standard, running at max. spin speed and with ≈ energetic wash button selected.

PROGRAMMER KNOB	WASH TEMPERATURE	SYMBOL	FABRIC TYPE	Detergent compartment	BUTTONS ENABLED
DELICATES	40°	40	Delicate cotton, viscous and mixed delicate fabrics	2 1	○	○	○	●
DELICATES	30°	30	Delicate cotton, viscous and mixed delicate fabrics	2 1	○	○	○	●
WOOL	40°	40	Machine washable wool	2 1	○	○	○	○
WOOL	30°	30	Machine washable wool	2 1	○	○	○	○
WOOL	COLD	—	Machine washable wool	2 1	○	○	○	○
DELICATES
HAND WASH	30°		Hand washable fabrics	2 1	○	○	○	○
QUICK WASH	35°	35	Fabrics in delicate cotton, viscse and mixed fibres, lightly soiled, lasts about 35/40 min.	2 1	○	○	○	○
DAILY WASH	40°	40	Fabrics in delicate cotton and coloured fabrics, lightly soiled and used daily	2 1	●	○	●	●
COLD WASH	COLD	—	Delicate fabrics	2 1	○	○	●	●
RINSES	—	—	To rinse and refresh the washing	2 1	○	○	●	○
DRAIN AND SPIN	—	—	Drain and final spin	2 1	○	○	○	●

FUNCTION ENABLED

FUNCTION DISABLED

OPTIONAL WITH PRE-WASH BUTTON PRESSED

CHARACTERISTIQUES TECHNIQUES

MODEL →		WM111XL - WM111XLS - WM111XLB
Dimensions:	Width cm.:	59.5
	Height cm.:	85.0
	Depth cm.:	59.0
Maximum recommended load:		10,0 kg
		4,5 kg
		2,5 kg
Max. spin: (rpm)		1200
Water pressure:		min. 0,05 MPa - max. 1 MPa
Max. absorbed power/Electrical connection		see rating plate
