Product type	Analog wristwatch
Brand	Zeades
Model	La Royale ZWA01278
Movement	Analog quartz
Power supply	Battery SR927SW, SR621SW or SR920SW depending on caliber
Battery life	Approximately 2 to 3 years
Main functions	Hours, minutes, seconds, date, day, chronograph (59min59s or 11h59min59s), dual time zone (depending on caliber)
Chronograph	Yes, with buttons A (start/stop) and B (reset), split possible
Date setting	Crown in position 1, counterclockwise rotation
Day setting	Crown in position 1 or 2 depending on caliber, slow clockwise rotation
Crystal	Mineral
Case	Stainless steel
Strap	Leather or metal depending on version
Water resistance	30 meters (3 ATM)
Case diameter	Approximately 40 mm
Case thickness	Approximately 10 mm
Weight	Approximately 80 grams
Warranty	2 years
Care	Avoid shocks, water, magnetic fields; clean with a soft cloth
Repairability	Battery replacement possible, adjustments by a professional recommended

Frequently Asked Questions - La Royale ZWA01278 Zeades

How to set the time on my Zeades La Royale watch?

Pull the crown out to the 2nd click. Turn it to set the hour and minute hands. Push the crown back to the normal position to start the second hand. Avoid setting the date between 9 PM and 1 AM.

How to set the date?

Pull the crown to the 1st click (intermediate position). Turn it counterclockwise to set the date. Then return the crown to the normal position.

How to use the chronograph?

Press button A to start and stop the chronograph. Press button B to reset the hands to zero. The chronograph measures up to 59 minutes 59 seconds or 11 hours 59 minutes 59 seconds depending on the caliber.

How to reset the chronograph after a battery change?

If the chronograph second hand does not return to zero, pull the crown to the 2nd click. Continuously press button A to advance it to the 12 o'clock position (zero). Then push the crown back in.

What to do if my watch stops working?

First check the battery condition. If the battery is drained, replace it with a new battery of the appropriate type (SR927SW, SR621SW or SR920SW). If the problem persists, contact customer service.

Can I swim with my Zeades La Royale watch?

This watch is water resistant up to 30 meters (3 ATM). It withstands splashes and light immersion, but is not suitable for swimming or diving.

How to set the day?

Depending on the caliber, pull the crown to position 1 or 2. Turn it very slowly clockwise to advance the day hand. Avoid setting the day between 11 PM and 3 AM.

Which battery to use for my Zeades La Royale watch?

The battery type depends on the caliber: SR927W for 24h and 12h chronographs, SR621SW for multifunction or multi-dial models, and SR920SW for the retrograde dual time zone movement.

How to set the dual time zone on my watch?

For equipped models (caliber GP52), pull the crown to the first position. Turn it counterclockwise to set the second time (24-hour display). Then return the crown.

How to maintain my Zeades watch?

Clean it regularly with a soft, dry cloth. Avoid shocks, exposure to strong magnetic fields, and extreme temperatures. Have the water resistance checked once a year if you wear it in a humid environment.

USER MANUAL La Royale ZWA01278 Zeades

Date position may be located at different position depends on models.

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.

*If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.

1. After the date has been set, push the crown back to the normal position.

24H CHRONO, TIME & DATE

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 59 minutes 59 seconds Battery: SR927W

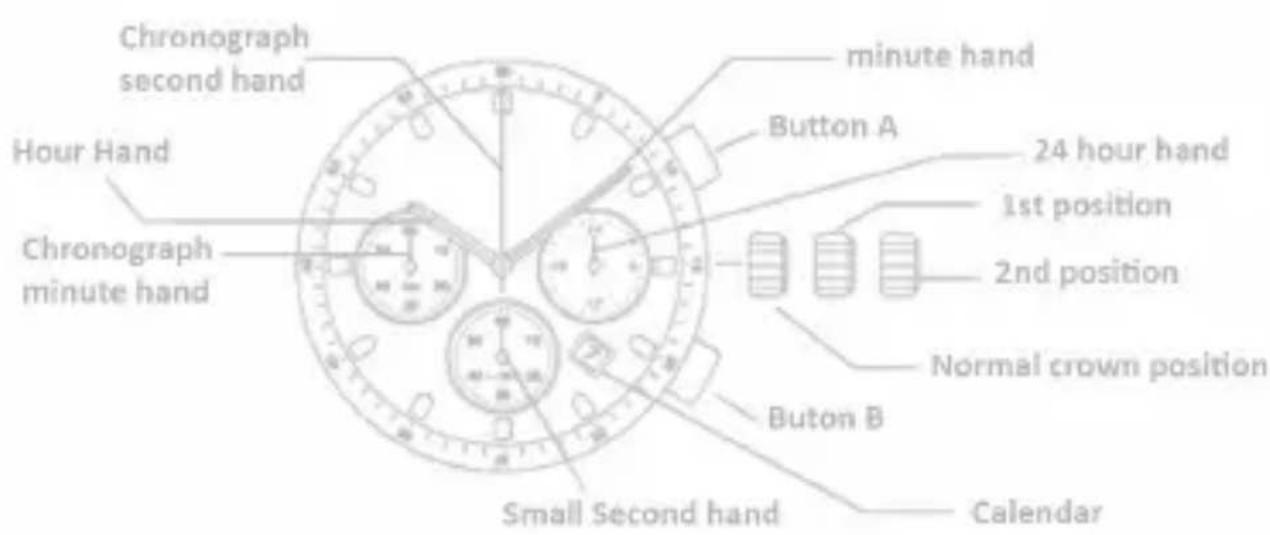

A/ DISPLAYS & BUTTONS

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.

*If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.

1. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 59 minutes 59 seconds after starting.

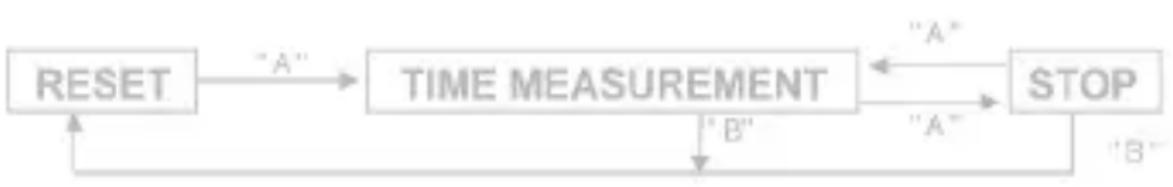

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand and chronograph minute hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The chronograph hand can be advanced rapidly by continuously pressing button «A».

3. Once the hand have been zeroed, return the crown

4. Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

12H CHRONO, TIME & DATE

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 11 hours 59 minutes 59 seconds. Battery: sr927w

A/ DISPLAYS & BUTTONS

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.

2. Turn the crown counter-clockwise to set the date.

3. If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.

4. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 11 hours 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 11 hours 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand, chronograph minute hand, and chronograph hour hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The Chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown to the normal position.

*Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

MULTIFUNCTIONS

Analog quarts watch designed with multi hands, to enhanced perfection. The hands, in the small displays, show day, date & 24 hour time. Battery: sr621sw

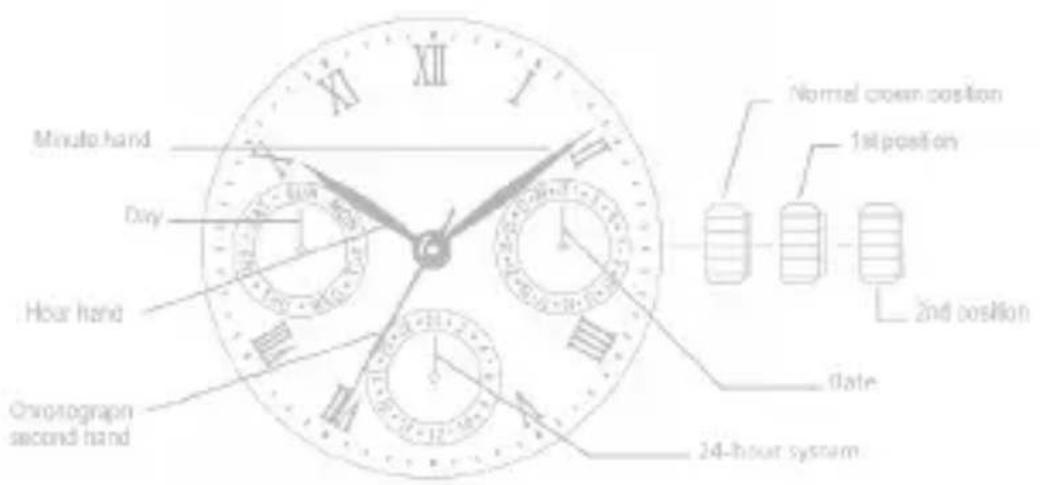

A/ DISPLAYS & BUTTONS

The three small dials are arranged in one of two kinds, depending on each model. All of them are operated similarly, however.

B/ SETTING THE DAY OF THE WEEK (9 O'CLOCK POSITION, CLOCKWISE)

Set the day by pulling out the crown to second click position and rotating it forward (to rotate the hour and minute hands clockwise).

If the day is set by rotating the crown backyard (rotating the hour and minute hands counter-clockwise), the date may not be changed.

Note: The day is changed during the period from about 0:00 AM to about 5:30 AM

C/ SETTING THE DATE (3 O'CLOCK POSITION, CLOCKWISE)

Quick change function : Pull the crown out to the first click position and set the date by rotating the crown backyard. If the date is set between 9:00 PM and 0:00 AM, the date will not change correctly.

D/ SETTING THE SECOND, MINUTE, HOUR, 24 HOUR, DAY

The second, minute, hour, 24-hour system, and day are set by the same operation.

Pull out the crown to the second click position when the second hand reaches the 12-o'clock position to stop the second hand there. Rotate the crown forward (to rotate the hour and minute hands clockwise) to set the day.

The day hand moves forward 1 step each time the 24-hour hand rotates a round. You cannot set the day by rotating the crown in reverse. After setting the day, set the hour and minute hands. Check a.m. or p.m. by the 24-hour hand.

When setting the minute hand, put it 4 or 5 minutes forward from the current time, and then return it to the current time.

After setting the time, push in the crown to the normal position, synchronizing with the time signal.

The second hand starts moving again at the time when the crown is pushed back.

Notes: (1) The day and date are changed during the period from 0:00 a.m. to 5:30 a.m. (2) The day and date hands rotate only forward.

E/SETTING PROCEDURE

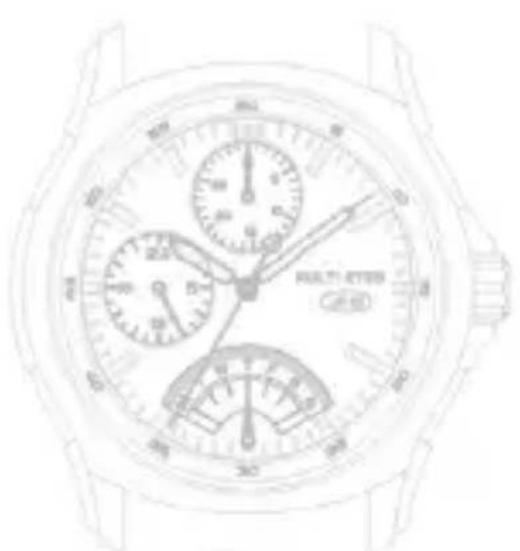

MULTI EYES WITH RETROGRADE DAY FUNCTION

Caliber No.JR00, JR10, JR20

Battery:SR621SW

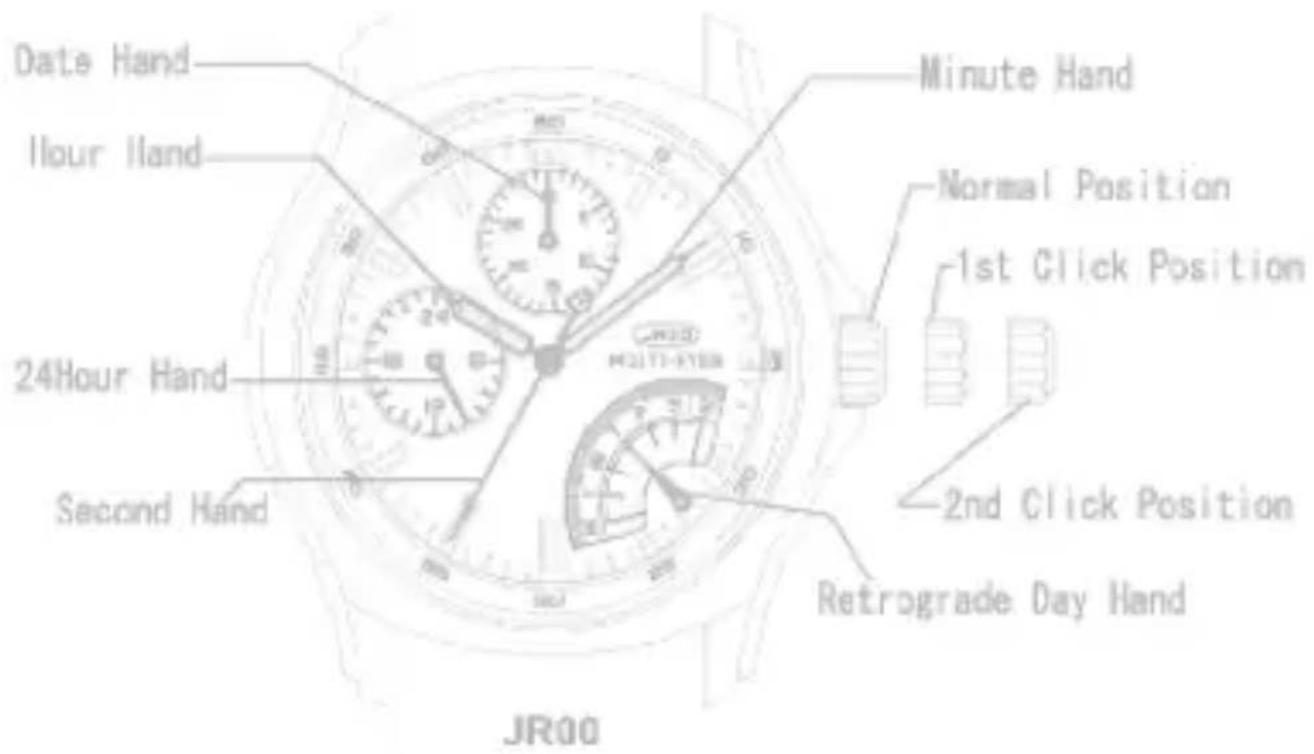

A/ DISPLAYS & BUTTONS

JR10

JR20

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Click Position.
2. Turn the crown to set hour and minute hands.

C/ SETTING THE DATE

• Please do not set the date between 9:00PM and 1:00AM

• Pull the crown out to the 1st Click Position.

• Turn the crown counter-clockwise to set the date
• After the date has been set, push the crown back to the normal position.

D/ SETTING THE DAY

• Please do not set the date between 11:00PM and 3:00AM

• Pull the crown out to the 1st Click Position.

• Turn the crown clockwise very slowly to set the day.

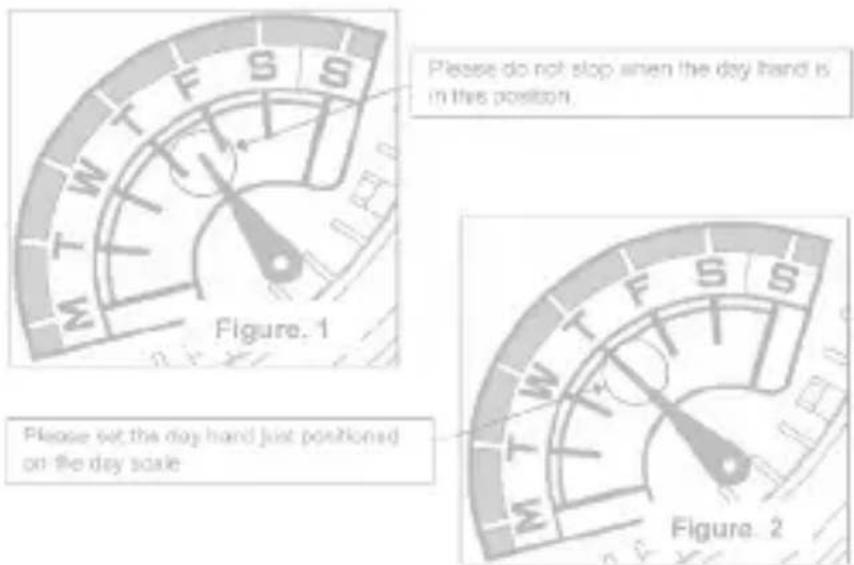

• Please do not stop when the hand is between the day like the following picture.

*If the day hand stops at a position like Fig.1, please turn the crown clockwise very slowly and stop soon after the day hand positioned like Fig.2.

1. After the day has been set, push the crown back to the normal position.

FLYBACK / DUAL TIME

Caliber No. GP52

Battery:SR920SW

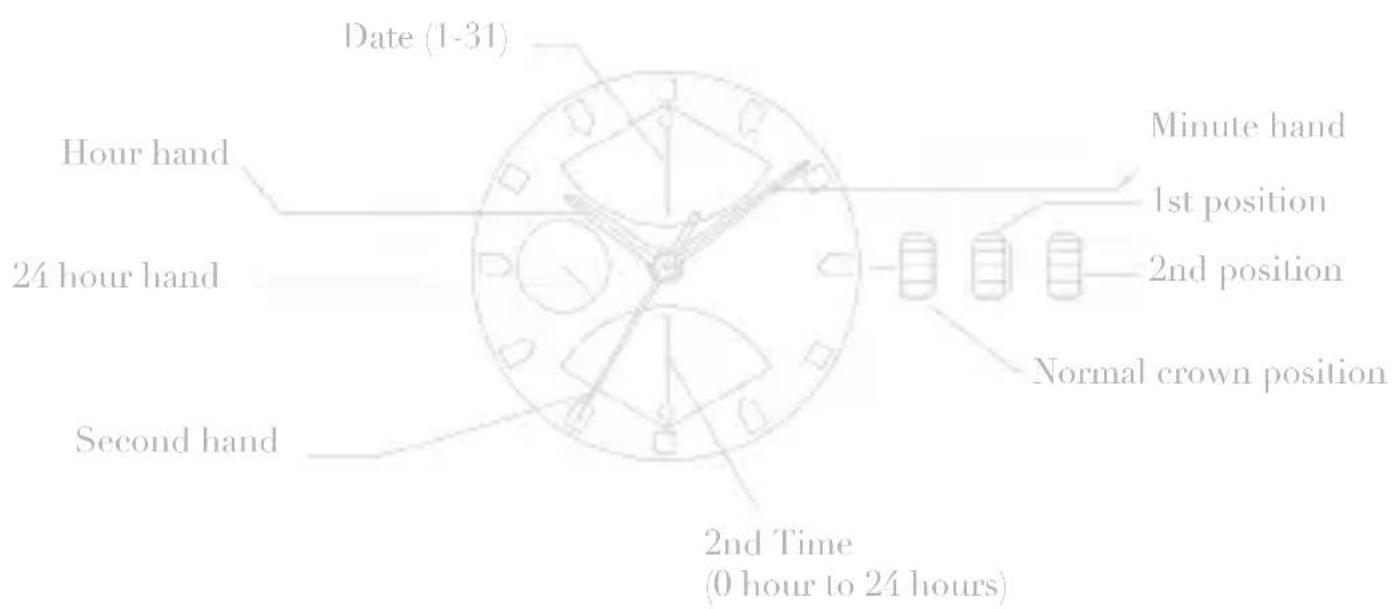

A/ DISPLAYS & BUTTONS

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.

2. Turn the crown clockwise to set the date.

3. If the date is set between the hours of around 9:00 PM and 2:00 AM, the date may not change the following day.

4. After the date has been set, push the crown back to the normal position.

D/ SETTING THE 2nd TIME (24 HOURS)

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the 2nd time (24H).
3. After the 2nd time (24H) has been set, push the crown back to the normal position.

Pour toute question concernant notre service après-vente, contactez /For any after-sale service inquiry, please contact:

[e-mail]

Collections and E-Shop

www.zeades.com

MANUEL D'UTILISATION

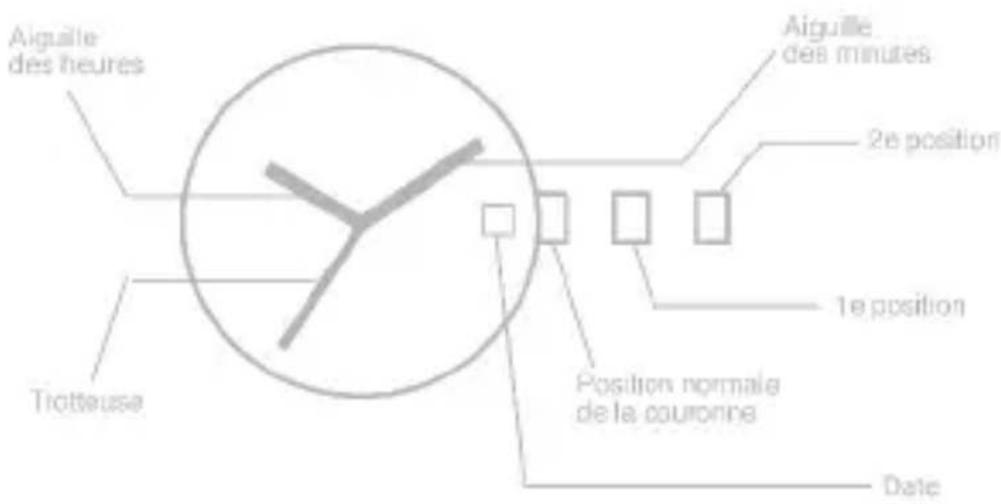

DATE & HEURE

A/ RÉGLAGE DE L'HEURE

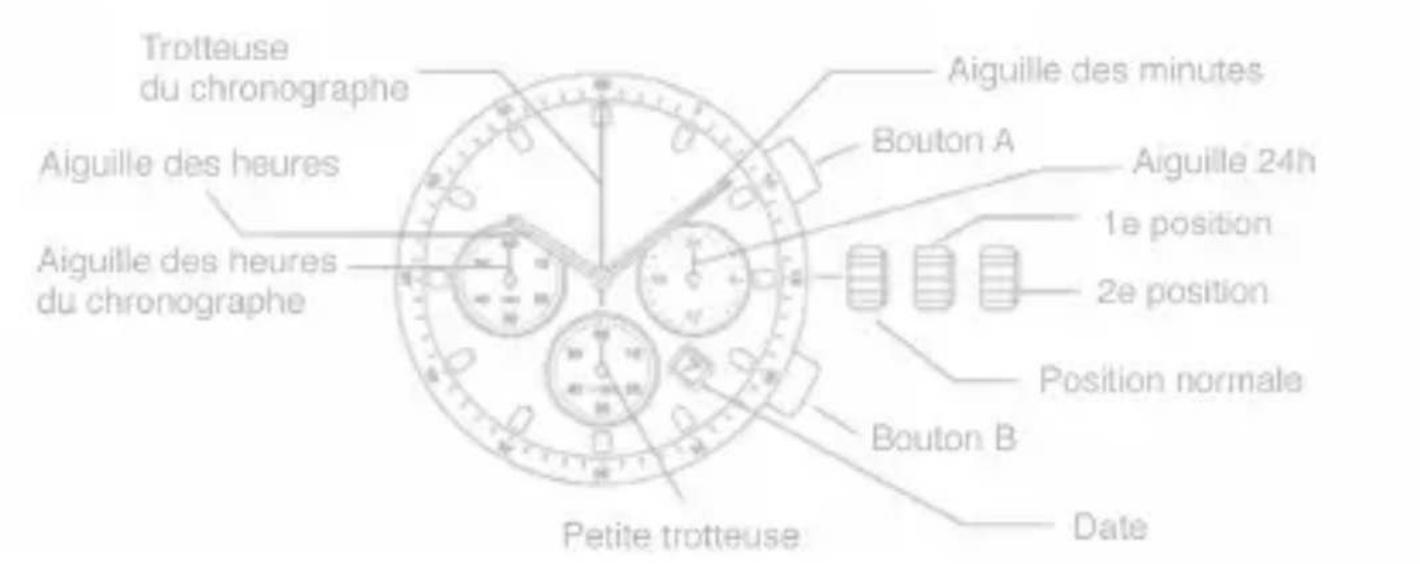

A/ INDICATIONS & BOUTONS

B/ RÉGLAGE DE L'IIEURE

A/INDICATIONS & BOUTONS

B/ RÉGLAGE DE L'HEURE

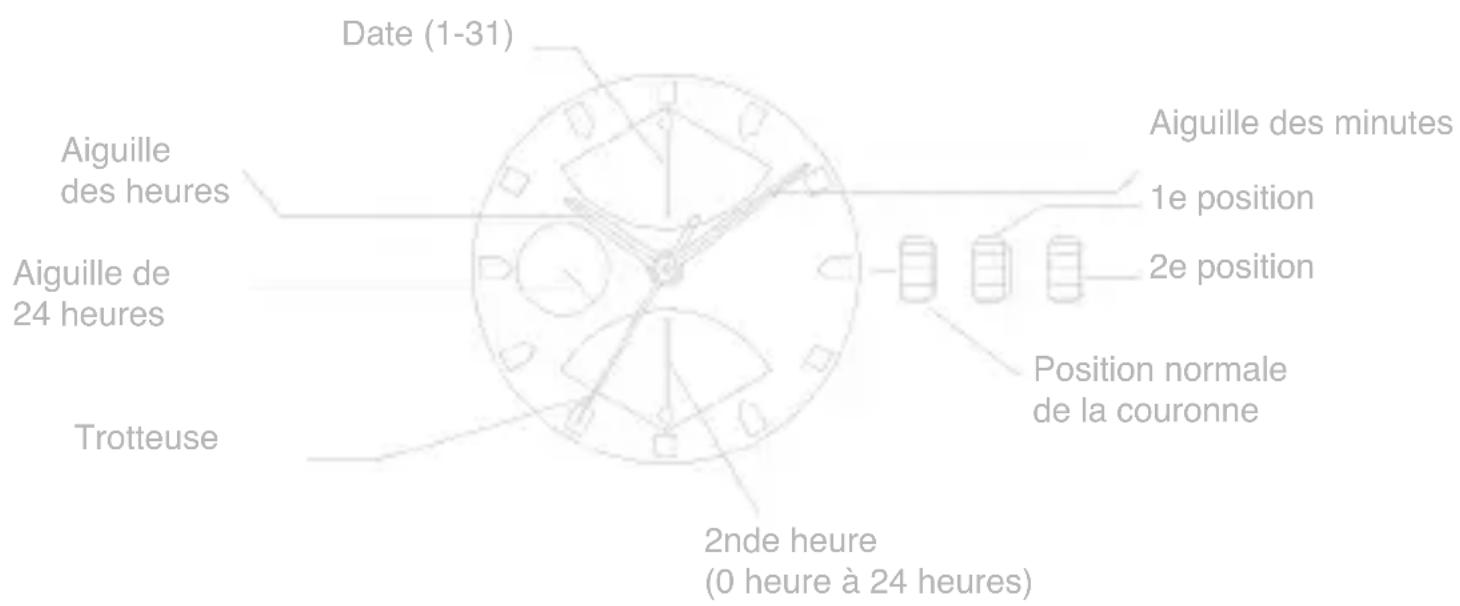

A/ INDICATIONS & BOUTONS
