Product Type	Analog quartz wristwatch
Brand	Zeades
Model	Air & Mer ZWA01301
Power	SR927W battery (replacement recommended every 2-3 years)
Movement	Quartz
Main Functions	Hours, minutes, seconds, date, chronograph 1/1 sec up to 59 min 59 s
Buttons	2 push buttons (A and B) for chronograph control
Crown	3 positions: normal, 1st click (date), 2nd click (time)
Case Dimensions	Approximately 42 mm diameter (estimate)
Approximate Weight	100 g
Glass Type	Mineral (estimate)
Water Resistance	Not specified, avoid any contact with water
Strap	Metal or leather (depending on version), standard width
Care and Cleaning	Clean with a soft, dry cloth; avoid chemicals
Safety	Do not use in water; do not open the case yourself
Spare Parts and Repairability	Battery and strap replaceable; repair by a watchmaker
After-Sales Service	[e-mail]

Frequently Asked Questions - Air & Mer ZWA01301 Zeades

How do I set the time on my Zeades Air & Mer watch?

Pull the crown to the 2nd click (time setting position). Turn the crown to set the hour and minute hands. Push the crown back to the normal position to start the second hand.

How do I set the date?

Pull the crown to the 1st click. Turn the crown counterclockwise to set the date. Caution: do not set the date between 9 PM and 1 AM to avoid switching issues.

How do I use the chronograph?

Press the button A to start and stop the chronograph. Press the button B to reset the chronograph hands to zero. The chronograph can measure up to 59 minutes 59 seconds.

What if the chronograph second hand does not return to zero?

Perform a reset: pull the crown to the 2nd click, press button A to place the second hand on zero (12 o'clock). Hold button A for fast advance. Push the crown back to the normal position.

Which battery does my watch use?

It uses a SR927W battery. When replacing, follow the chronograph reset instructions after changing the battery.

Is my watch waterproof?

The manual does not specify the degree of water resistance. It is recommended to avoid any contact with water to prevent damage to the movement.

How do I clean my watch?

Use a soft, dry cloth to clean the case and strap. Avoid chemicals, solvents, or ultrasonic cleaners.

What do the crown positions mean?

Normal position (pushed in): watch is running. 1st click: date setting. 2nd click: time setting (second hand stops).

How do I reset the watch after a long stop?

Pull the crown to the 2nd click, turn to set the time. Use a time signal to synchronize the watch by pushing the crown back in exactly at the right moment so that the second hand starts at the correct time.

Where can I get spare parts or after-sales service?

Contact after-sales service by email at [e-mail] for any questions about repairs or spare parts.

USER MANUAL Air & Mer ZWA01301 Zeades

Hour hand Second hand Minute hand 2nd position 1st position Normal crown position *Date

Date position may be located at different position depends on models.

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
   *If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

24H CHRONO, TIME & DATE—

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 59 minutes 59 seconds Battery : SR927W

A/ DISPLAYS & BUTTONS

Chronograph second hand hour Hand Chronograph minute hand Minute hand Button A 24 hour hand 1st position 2nd position Normal crown position Buton B Small Second hand Calendar

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
   *If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand and chronograph minute hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown

* Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

12H CHRONO, TIME & DATE—

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 11 hours 59 minutes 59 seconds. Battery : sr927w

A/ DISPLAYS & BUTTONS

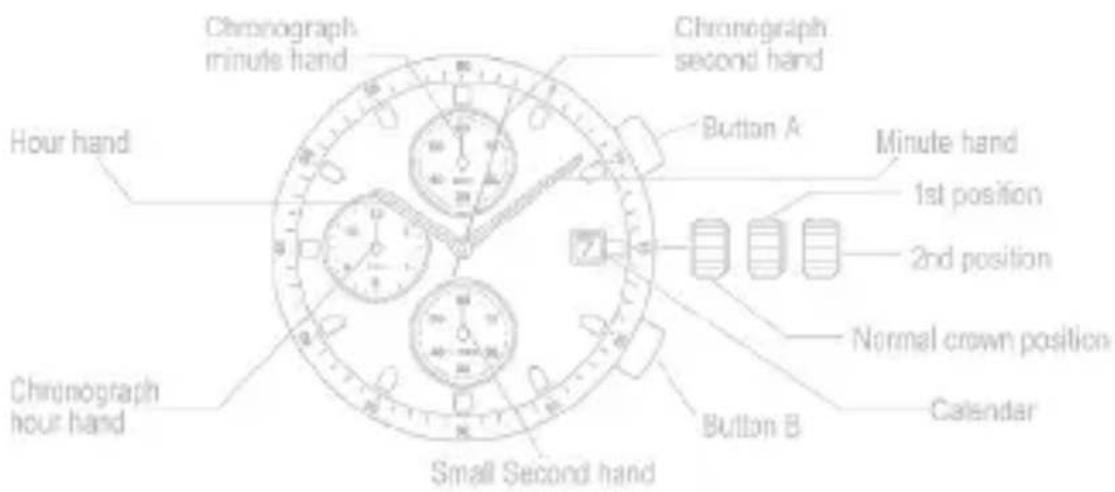

Chronograph minute hand Chronograph second hand Hour hand Button A Minute hand 1st position 2nd position Normal crown position Clockup hour hand Button B Calendar Small Second hand

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
   * If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 11 hours 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 11 hours 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand, chronograph minute hand, and chronograph hour hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The Chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown to the normal position.

* Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

MULTIFUNCTIONS

Analog quarts watch designed with multi hands, to enhanced perfection. The hands, in the small displays, show day, date & 24 hour time. Battery: sr621sw

A/ DISPLAYS & BUTTONS

Minute hand Day Hour hand Ochotograph second hand Normal crown position 1st position 2nd position Gate 24-hour system

The three small dials are arranged in one of two kinds, depending on each model. All of them are operated similarly, however.

B/ SETTING THE DAY OF THE WEEK (9 O'CLOCK POSITION, CLOCKWISE)

Set the day by pulling out the crown to second click position and rotating it forward (to rotate the hour and minute hands clockwise).

If the day is set by rotating the crown backyard (rotating the hour and minute hands counter-clockwise), the date may not be changed.

Note : The day is changed during the period from about 0:00 AM to about 5:30 AM

C/ SETTING THE DATE (3 O'CLOCK POSITION, CLOCKWISE)

Quick change function : Pull the crown out to the first click position and set the date by rotating the crown backyard. If the date is set between 9:00 PM and 0:00 AM, the date will not change correctly.

D/ SETTING THE SECOND, MINUTE, HOUR, 24 HOUR, DAY

The second, minute, hour, 24-hour system, and day are set by the same operation.

Pull out the crown to the second click position when the second hand reaches the 12-o'clock position to stop the second hand there. Rotate the crown forward (to rotate the hour and minute hands clockwise) to set the day.

The day hand moves forward 1 step each time the 24-hour hand rotates a round. You cannot set the day by rotating the crown in reverse. After setting the day, set the hour and minute hands. Check a.m. or p.m. by the 24-hour hand.

When setting the minute hand, put it 4 or 5 minutes forward from the current time, and then return it to the current time.

After setting the time, push in the crown to the normal position, synchronizing with the time signal.

The second hand starts moving again at the time when the crown is pushed back.

Notes : (1) The day and date are changed during the period from 0:00 a.m. to 5:30 a.m. (2) The day and date hands rotate only forward.

E/ SETTING PROCEDURE

MULTI EYES WITH RETROGRADE DAY FUNCTION \_\_\_\_

Caliber No. JR00, JR10, JR20

Battery: SR621SW

A/ DISPLAYS & BUTTONS

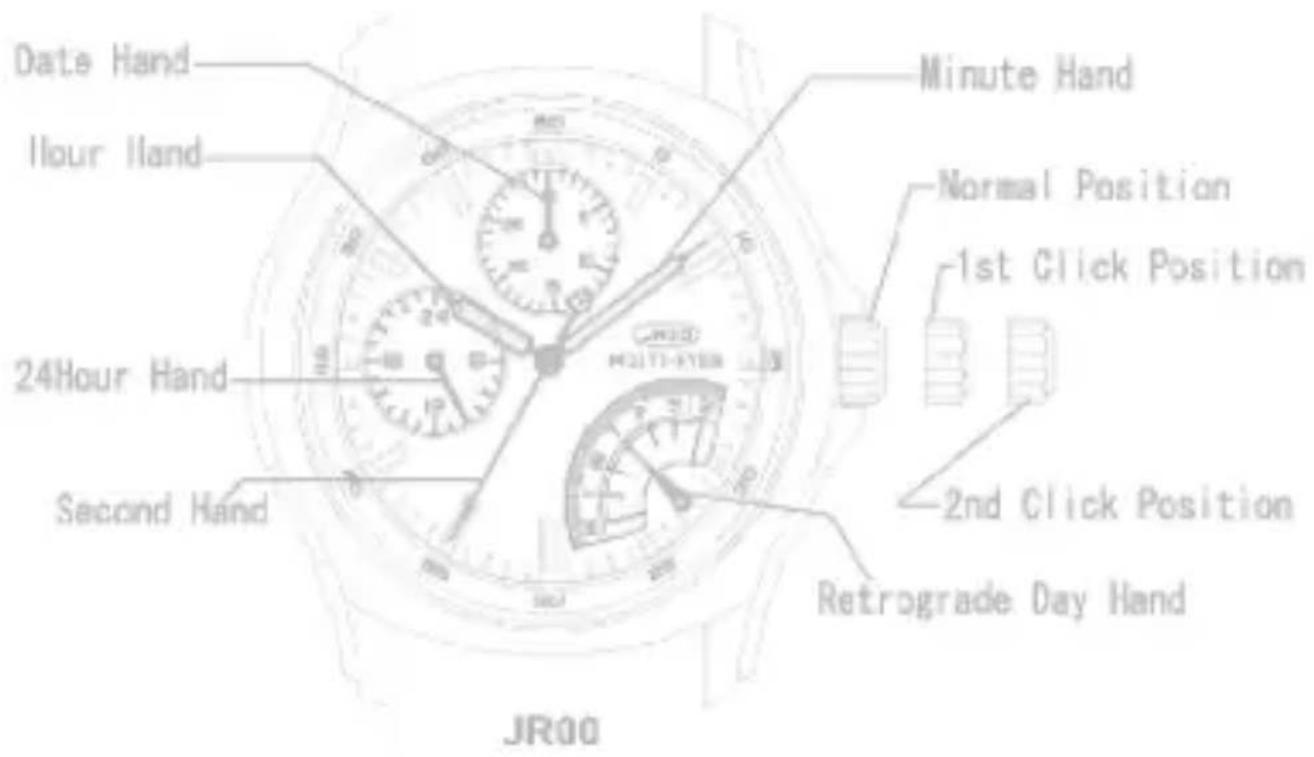

Date Hand Hour Hand 24Hour Hand Second Hand JR00 Minute Hand Normal Position 1st Click Position 2nd Click Position Retrograde Day Hand

MULTI-ETESO OFF-10

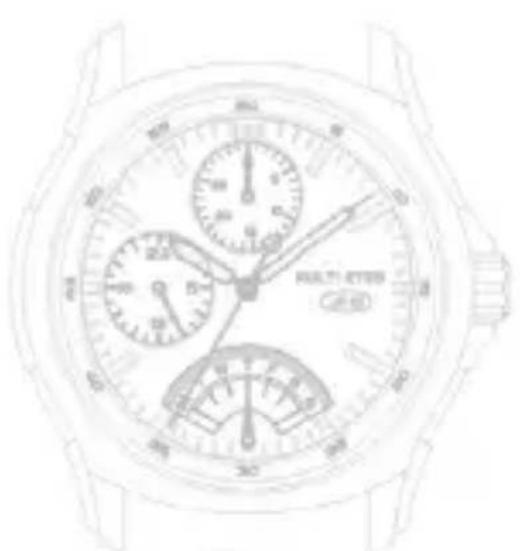

JR10

HALLI ETPEK 2000

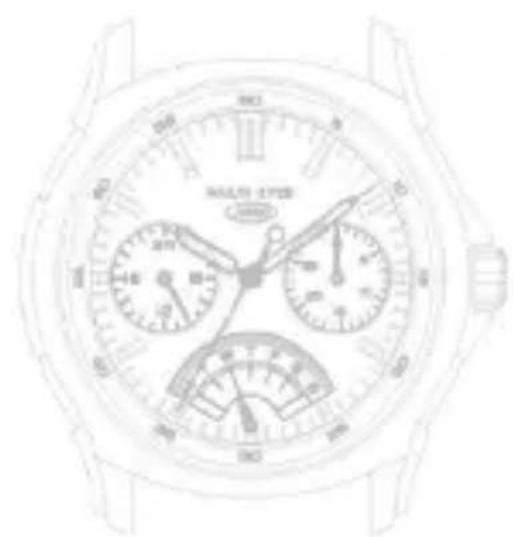

JR20

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Click Position.
2. Turn the crown to set hour and minute hands.

C/ SETTING THE DATE

* Please do not set the date between 9:00PM and 1:00AM

1. Pull the crown out to the 1st Click Position.
2. Turn the crown counter-clockwise to set the date
3. After the date has been set, push the crown back to the normal position.

D/ SETTING THE DAY

* Please do not set the date between 11:00PM and 3:00AM

1. Pull the crown out to the 1st Click Position.
2. Turn the crown clockwise very slowly to set the day.

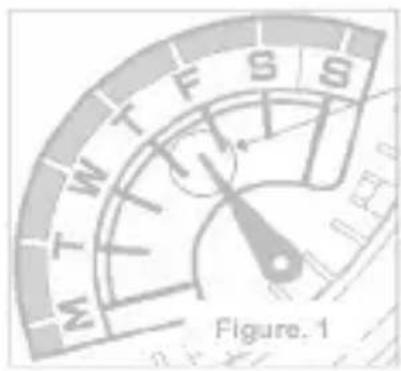

* Please do not stop when the hand is between the day like the following picture.

MTW T F S Figure. 1

Please do not stop when the day hand is in this position.
Please set the day hand just positioned on the day scale

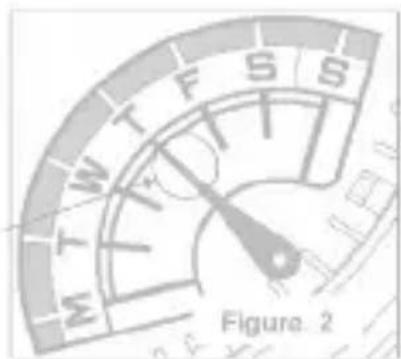

MTW T F S S Figure. 2

*If the day hand stops at a position like Fig.1, please turn the crown clockwise very slowly and stop soon after the day hand positioned like Fig.2.
3. After the day has been set, push the crown back to the normal position.

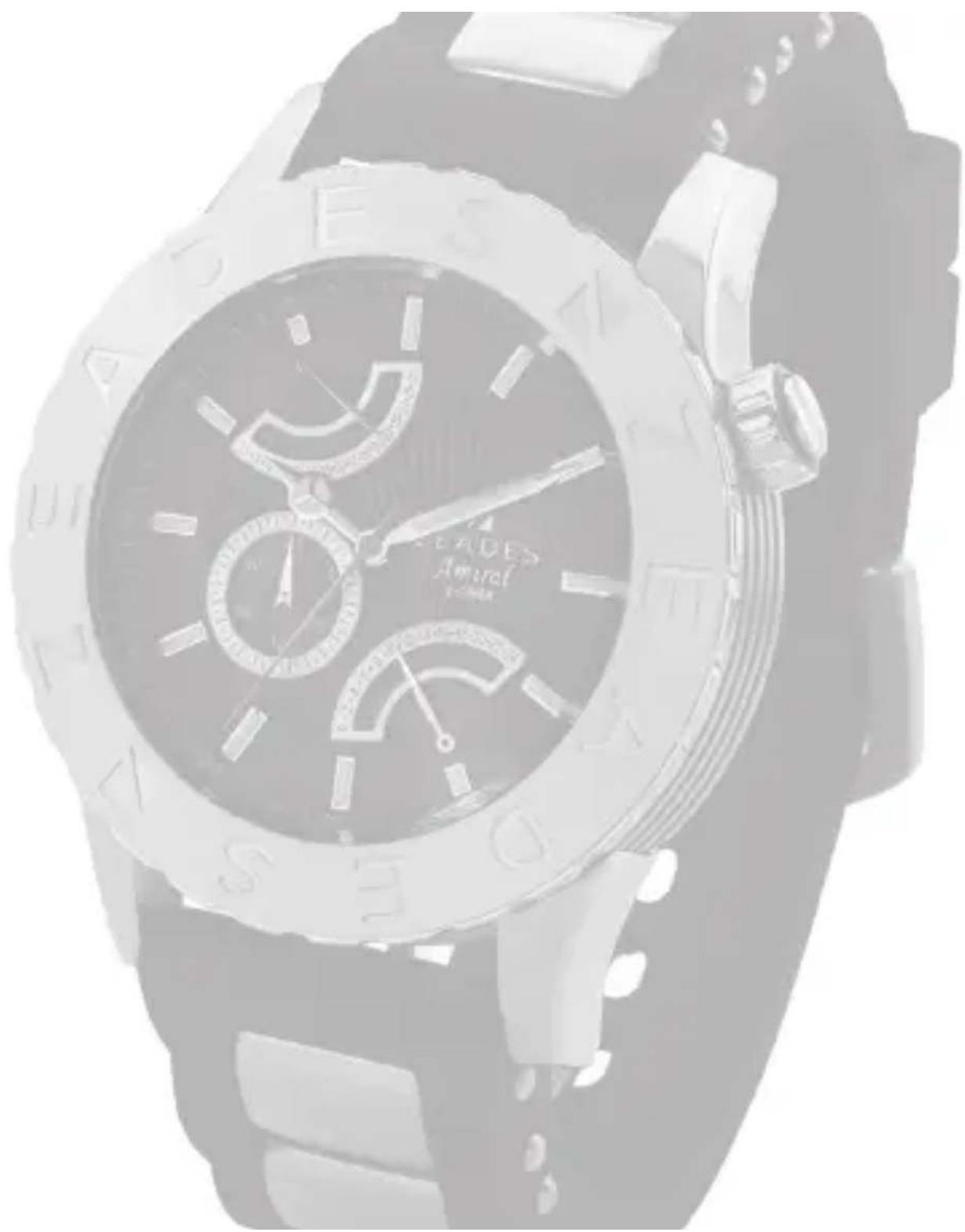

Close-up of a luxury wristwatch with dual dials and a watch face (no visible text or symbols)

FLYBACK / DUAL TIME

Caliber No. GP52

Battery: SR920SW

A/ DISPLAYS & BUTTONS

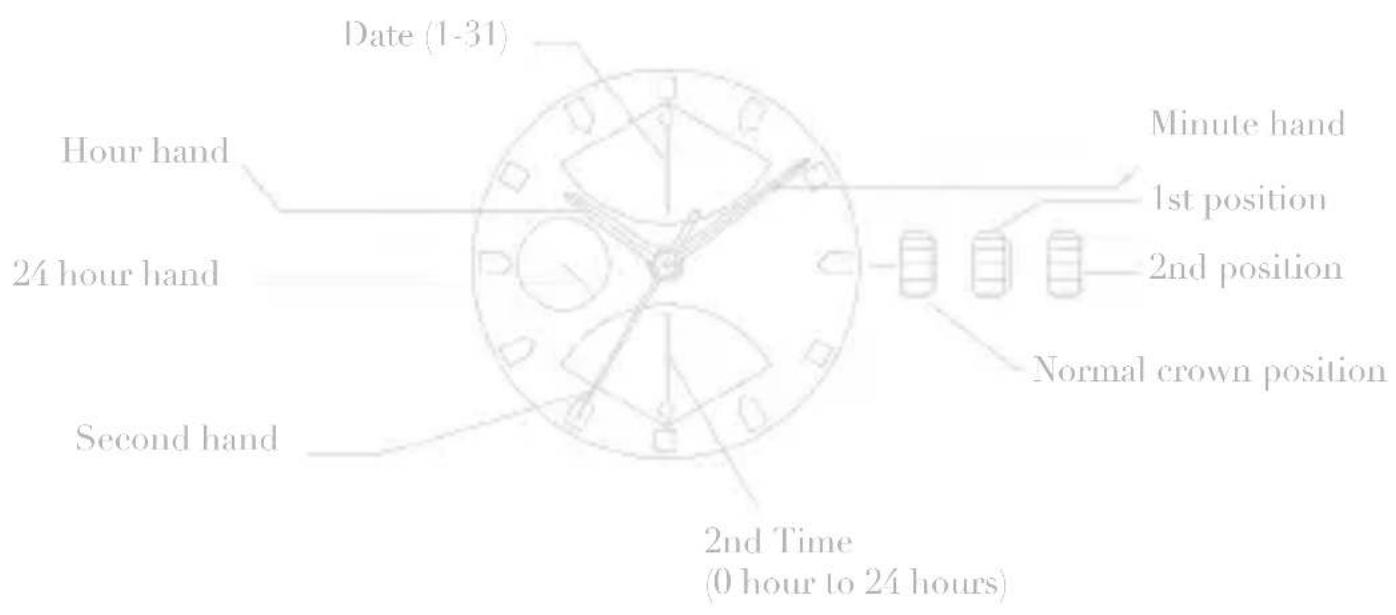

Date (1-31) Hour hand 24 hour hand Second hand Minute hand 1st position 2nd position Normal crown position 2nd Time (0 hour to 24 hours)

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown clockwise to set the date.
   * If the date is set between the hours of around 9:00 PM and 2:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

D/ SETTING THE 2nd TIME (24 HOURS)

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the 2nd time (24H).
3. After the 2nd time (24H) has been set, push the crown back to the normal position.

Pour toute question concernant notre service après-vente, contactez / For any after-sale service inquiry, please contact :

[e-mail]

Scanned text of contract clauses

Collections and E-Shop

www.zeades.com

MANUEL D'UTILISATION

DATE & HEURE

A/ RÉGLAGE DE L'HEURE

A/ INDICATIONS & BOUTONS

A/ INDICATIONS & BOUTONS

A/ INDICATIONS & BOUTONS

AIGUILLE DES MINUTES JOUR (DE LA SEMAINE) AIGUILLE DES HEURES TROTTEUSE XII XI XII POSITION NORMALE DE LA COURONNE 1° POSITION 2° POSITION DATE AIGUILLE 24 HEURES

B/ RÉGLAGE DU JOUR

MTW T F S S Figure. 1

M T F S S M T F S S Figure. 2

Close-up of a luxury wristwatch with dual dials and a watch face (no visible text or symbols)

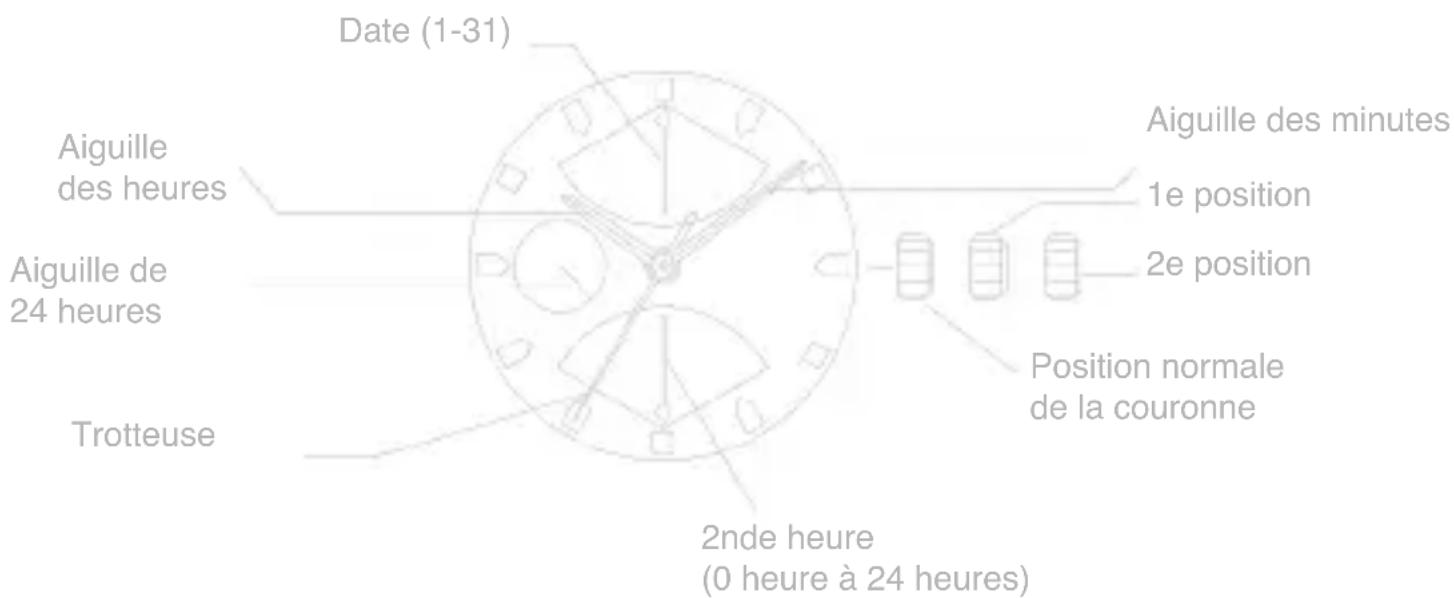

MOUVEMENT RETROGRADE DOUBLE FUSEAU —
