USER MANUAL WX175.9 WORX

Line drawing of two WORX electric drillers with visible branding and mounting base (no text or symbols on the drawings)

BRUSHLESS MOTOR

Lithium-Ion Brushless drill driverLithium-Ion Brushless hammer drill	EN	P07
Bürstenloser Lithium-Ionen-BohrschrauberBürstenloser Lithium-Ionen Akku-Schlagbohrschrauber	D	P14
Perceuse-visseuse sans brosse lithium-ionMarteau perforateur sans brosse avec batterie au lithium	F	P23
Trapano avvitatore brushless agli ioni di litioTrapano a percussione brushless agli ioni di litio	I	P32
Taladro sin escobillas con batería de ion-litioTaladradora de percusión sin escobillas de ion-litio	ES	P41
Lithium-ion borstelloze schroefboormachineLithium-ion borstelloze hamerboor	NL	P50
Bezszczotkowa wiertarko-wkretarka z bateria litowo-jonowaBeszczotkowa wiertarka z udarem zasilana baterią litowo-jonową	PL	P59
Lítiumionos, kefe nélküli motoros fúrógép/csavarhúzóLítium ionos szénkefe-mentes ütvefúró	HU	P67
Masina de gaurit cu motor fara perii si btaerie pe baza de litiu-ionMaşină de găurit cu motor fără perii, pe bază de litiu-ion	RO	P75
Vrtacka s bezkomutátorovým motorem a li-ion akumulátoremBezkomutátorová přiklepová vrtačka s lithium-ionovým akumulátorem	CZ	P84
Bezkomutátorová vrtacka napájaná lítiovo-iónovou batériouVrtacie kladivo napájané lítiovo-iónovou batériou	SK	P92
Berbequim com motor sem escovas a bateria de iões de lítioBerbequim-martelo com motor sem escovas a bateria de iões de lítio	PT	P100
Borstlös borrmaskin med litiumjonbatteriBorstlös hammarborr med litiumjonbatteri	SV	P109
Vrtalnik brez ščetk, z litijevim akumulatorjemUdarni vrtalnik z motorjem brez ščetk ter litijevim akumulatorjem	SL	P116

Technical line drawing of a handheld device with labeled component (no text or symbols beyond basic diagram)

Line drawing of a handheld vacuum cleaner with labeled component (11), no text or symbols present

A1 100% 0%

A2 ① ②

A3 No. 2017

A4 NO NO

B1 3 2 1

B2 1 2 3 1

C1

Line drawing of a person wearing a belt and pants, holding a handheld device (no text or symbols)

Line drawing of a hand-painted robotic vacuum cleaner with a screwdriver inserted, showing internal components and motion arrows (no text or symbols)

Line drawing of a handheld vacuum cleaner with internal components (no text or symbols)

D1 ↑ ↓

D2 ①

D3

E WORX

F1 WX175 : 1~18 WX373 : 1~22

F2 WX175 WX373

F3 WX373

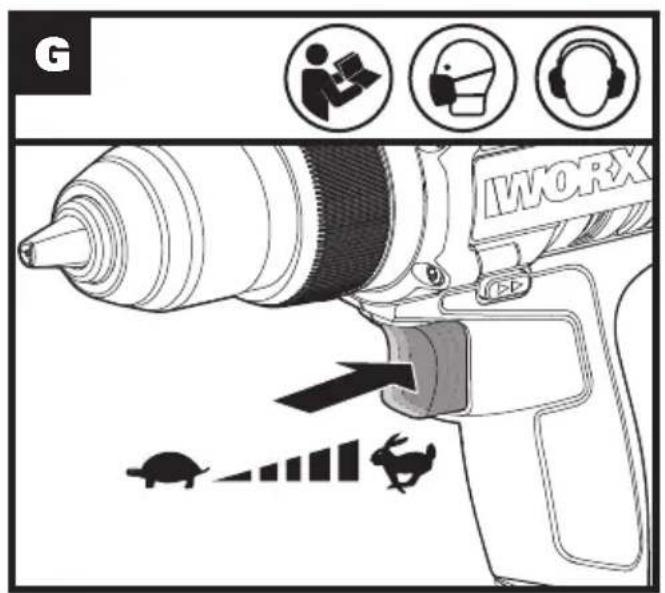

G WORX

PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, illustrations and

specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of

drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the

power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

DRILL SAFETY WARNINGS

1. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature (20°C ± 5°C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for

one type of battery pack may create a risk of fire when used with another battery pack.

o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.
t) Do not mix cells of different manufacture, capacity, size or type within a device.
u) Do not remove battery pack from its original packaging until required for use.
v) Observe the plus (+) and minus (-) marks on the battery and ensure correct use.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Warning
	Wear ear protection
	Wear eye protection
	Wear dust mask
	Wear protective gloves
	Do not expose to rain or water.
	Do not burn

Li-lon	Do not dispose of batteries, Return exhausted batteries to your local collection or recycling point.
	Hammer drilling
	Screwdriving
	Drilling
	Wood
	Metal
	Brick
	High speed
	Low speed

COMPONENT LIST

1.	CHUCK
2.	TORQUE ADJUSTMENT RING
3.	TWO-SPEED GEAR CONTROL
4.	FORWARD/REVERSE ROTATION CONTROL
5.	SOFT GRIP HANDLE
6.	BATTERY PACK *
7.	BELT HOOK
8.	BATTERY PACK RELEASE BUTTON*
9.	SIGHT LIGHT
10.	ON/OFF SWITCH

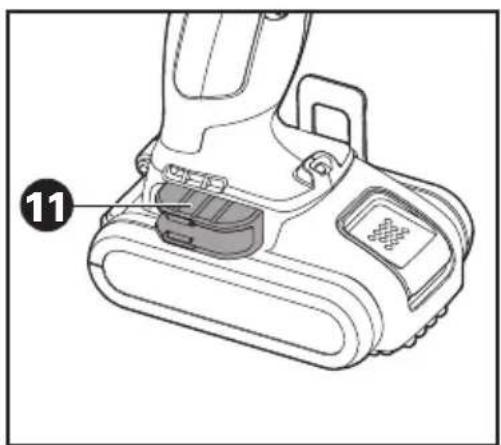

11.	BIT CLIP
12.	BATTERY CAPACITY INDICATOR* (ONLY FOR WX373 WX373.1 WX373.3 WX373.4 WX373.5 WX175 WX175.1)

* Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WX175 WX175.1 WX175.2 WX175.9 (1 - designation of machinery, representative of Battery-powered Drill)

WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9 (3- designation of machinery, representative of Hammer Drill)

		WX175WX175.2	WX175.1	WX175.9	WX373WX373.2WX373.3WX373.4WX373.5	WX373.1	WX373.9
Charger voltage 100-240V ~50/60Hz
Rated voltage 20V Max** ===
No load speed 0-600/0-2000/min
Impact rate / 0-9600/0-32000BPM
Number of clutch position		18+1 22+1+1
Max torque 60N.m
Chuck capacity 13mm
Max.drillingcapacity	Steel	13mm
	Wood	40mm
	Brickwork	/ 16mm
	Concrete	/ 13mm
Machine weight		1.55kg	1.83kg	1.19kg	1.58kg	1.85kg	1.21kg

** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

NOISE INFORMATION

A weighted sound pressure L	_pA : 72dB(A)
A weighted sound power L	_wA : 83dB(A)
K_PA & K_WA =3.0dB(A) 3.0dB(A)

Wear ear protection.

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 62841:

Drilling into metal	Vibration emission value a_h,D = 3.36 m/s^2
	Uncertainty K = 1.5m/s2
Impact drilling into concrete(WX373WX373.1WX373.2WX373.3WX373.4WX373.5WX373.9)	Vibration emission value a_h,ID = 8.43 m/s^2
	Uncertainty K = 1.5 m/s2

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.

The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.

WARNING: The vibration and noise emissions during actual use of the power tool can differ

from the declared value depending on the ways in which the tool is used especially what kind of workpiece is processed dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained.

The use of the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration and noise accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use

should also take account of all parts of the operating cycle such as the times when the tool is switched off

and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration and noise exposure risk.

Always use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration and noise accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

	WX175	WX175.1	WX175.2	WX175.9
Charger	1(WA3880) 1	1(WA3880) 1	1(WA3880)	/
Battery Pack	2(WA3551) 1	1(WA3553) 2	1(WA3550.1)	/
Double Ended Bit	1	1		1
Hook	1	1		1
Bit Clip	1	1		1

	WX373	WX373.1	WX378.2	WX373.3
Charger	1 (WA3880)	1(WA3880)	1(WA3880)	1 (WA3880)
Battery Pack	2(WA3551)	1(WA3553)	2(WA3550.1)	2(WA3553)
Double Ended Bit	1	1	1
Hook	1	1	1
Bit Clip	1	1	1

	WX373.4	WX373.5	WX373.9
Charger	1(WA3880)	1 (WA3880)	/
Battery Pack	1 (WA3641)	1(WA3551)1(WA3641)	/
Double Ended Bit	1	1	1
Hook	1	1	1
Bit Clip	1	1	1

We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE (FOR WX175 WX175.1 WX175.2 WX175.9)

The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic.

INTENDED USE (FOR WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9)

The machine is intended for impact drilling in brick, concrete and stone as well as for drilling in wood, metal and plastic.

ASSEMBLY AND OPERATION

ACTION	FIGURE
BEFORE OPERATION

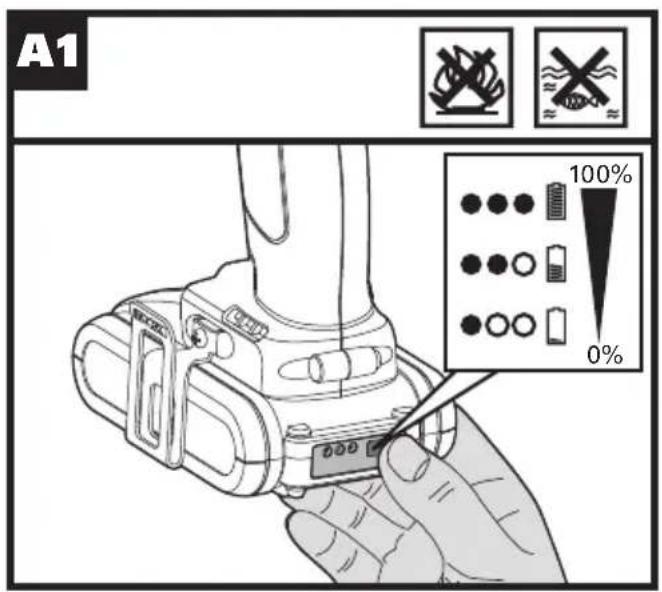

Checking the battery charge condition (Only for WX373 WX373.1 WX373.3 WX373.4 WX373.5 WX175 WX175.1)	See Fig. A1

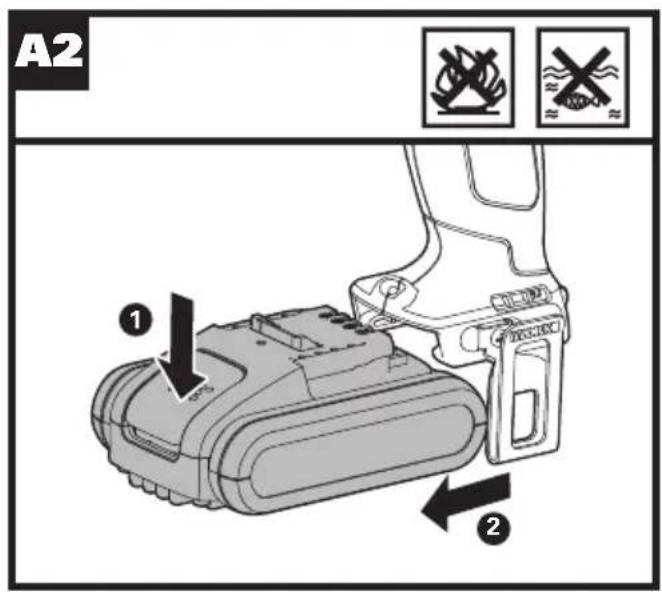

Removing the battery pack See Fig. A2

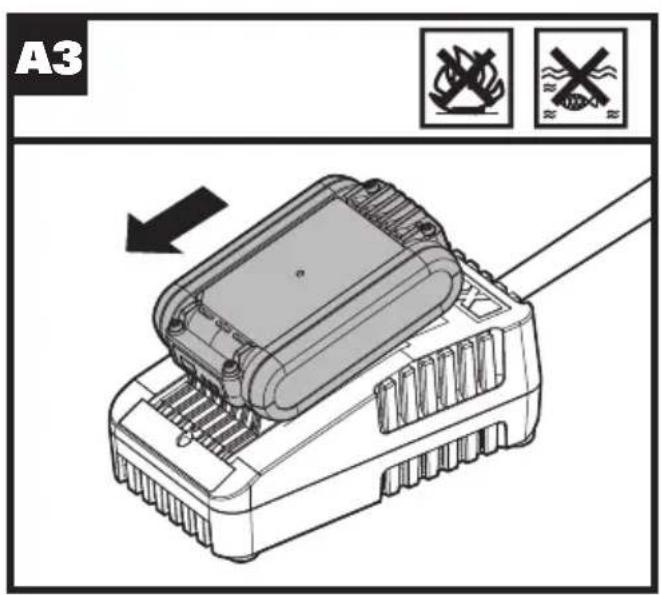

Charging the battery See Fig. A3

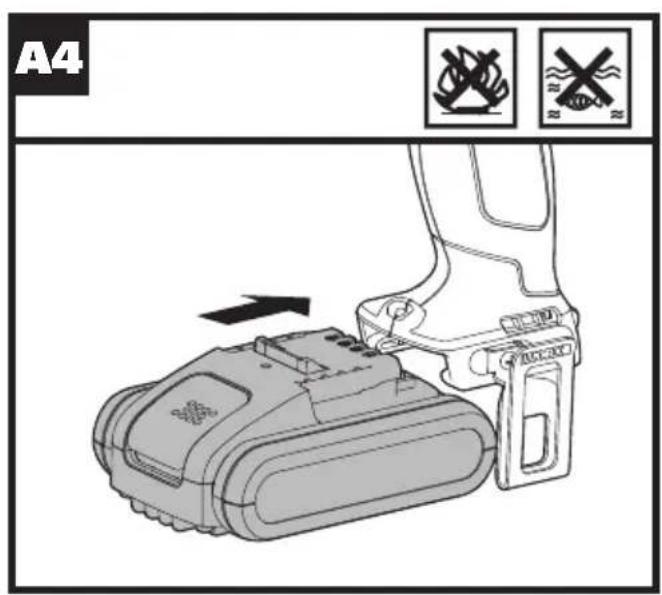

Installing the battery pack See Fig. A4
ASSEMBLY

CHUCK ADJUSTMENT

WARNING: Always lock off trigger switch and disconnect tool from power source when

changing accessories. Always ensure the bit is secure before starting the tool. Damage to the Chuck or a loose bit may cause possible personal injury.

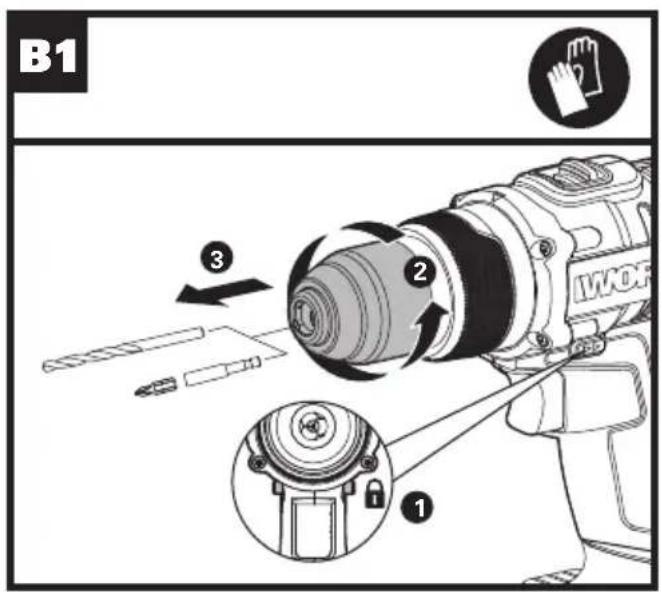

-- Removing the bits See Fig. B1

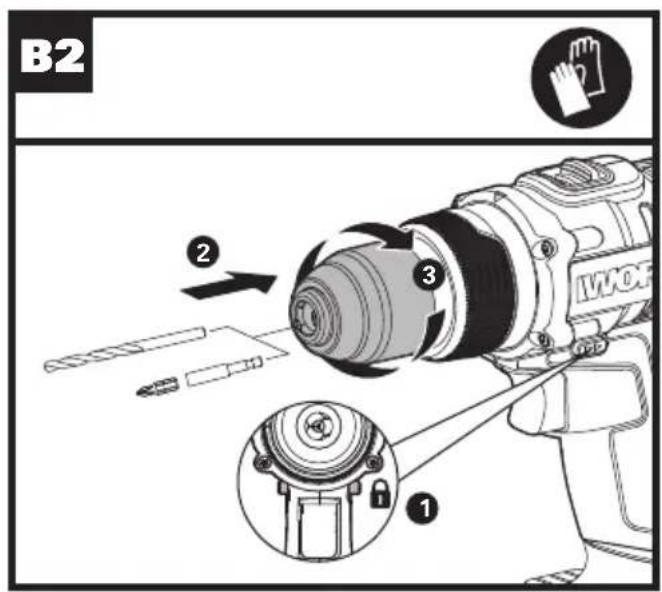

-- Inserting the bits See Fig. B2

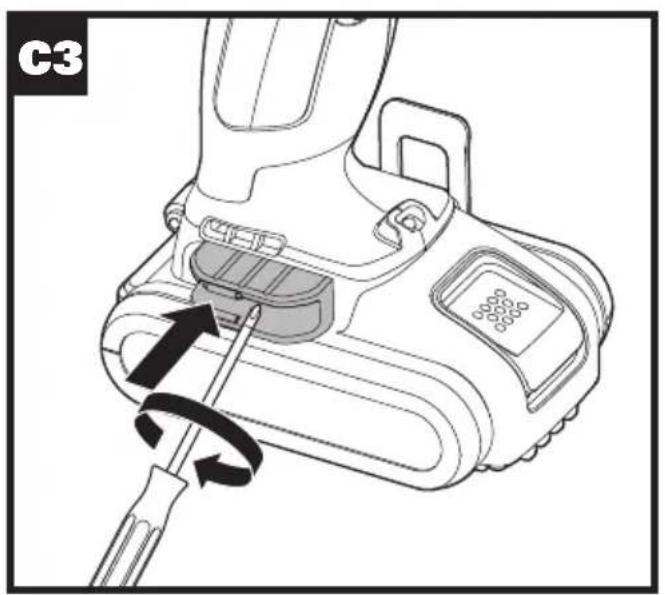

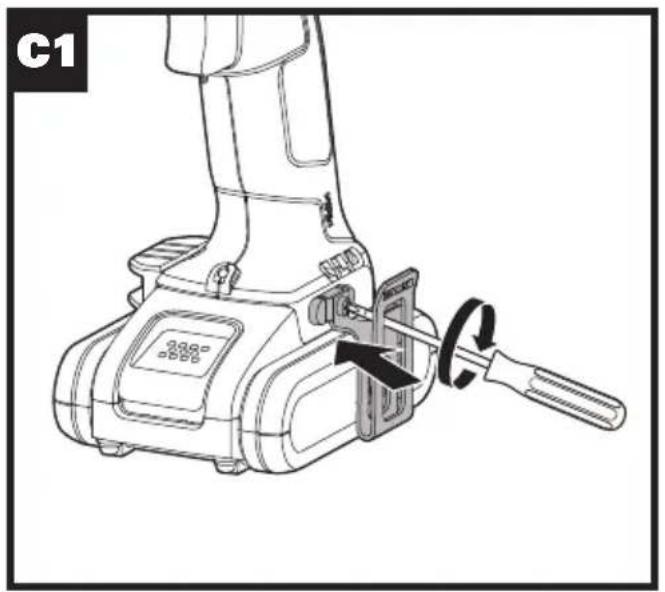

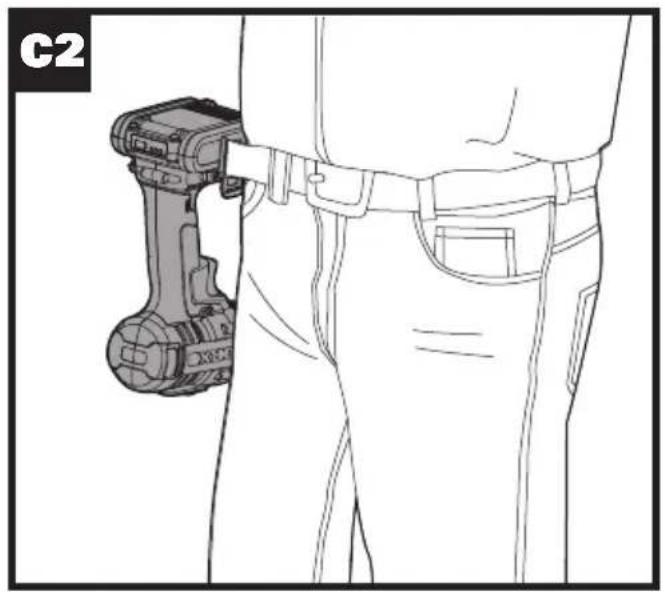

Assembling the belt hook and bit clip	See Fig. C1, C2, C3, C4
OPERATION

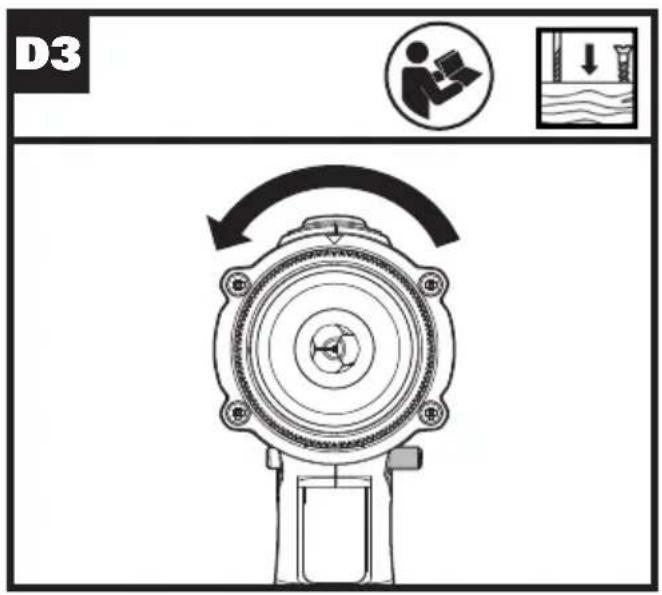

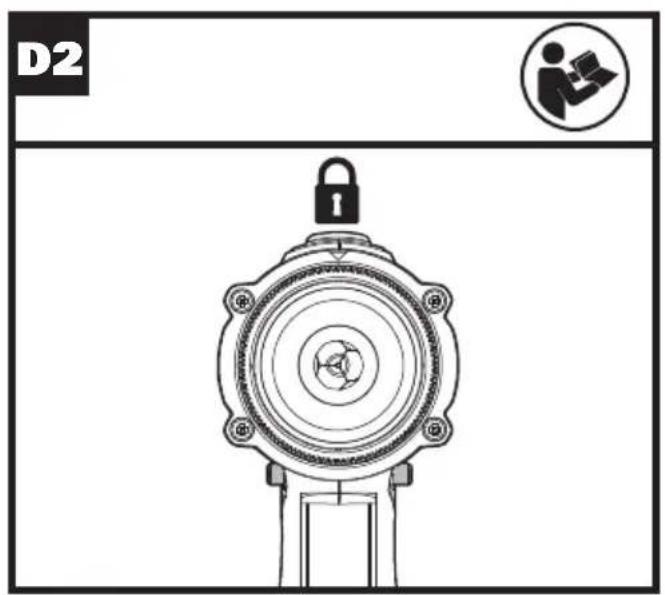

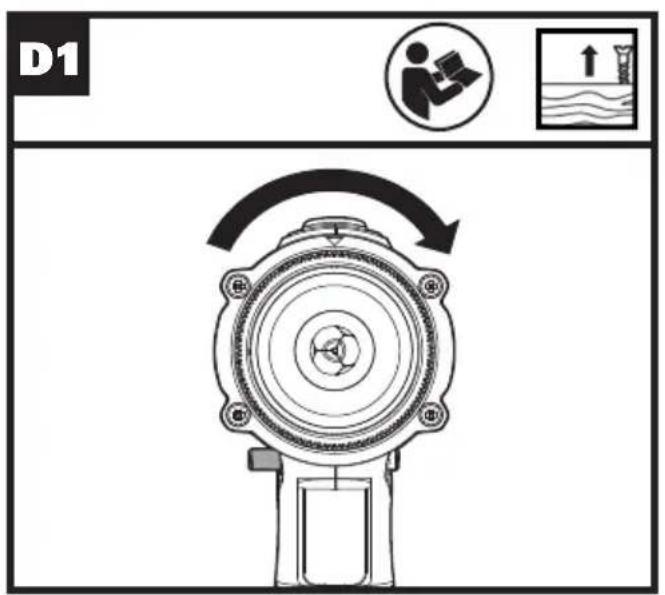

FORWARD/REVERSE ROTATION CONTROLWARNING: Never change the direction of rotation when the chuck is rotating, wait until it has stopped!	See Fig.D1, D2, D3

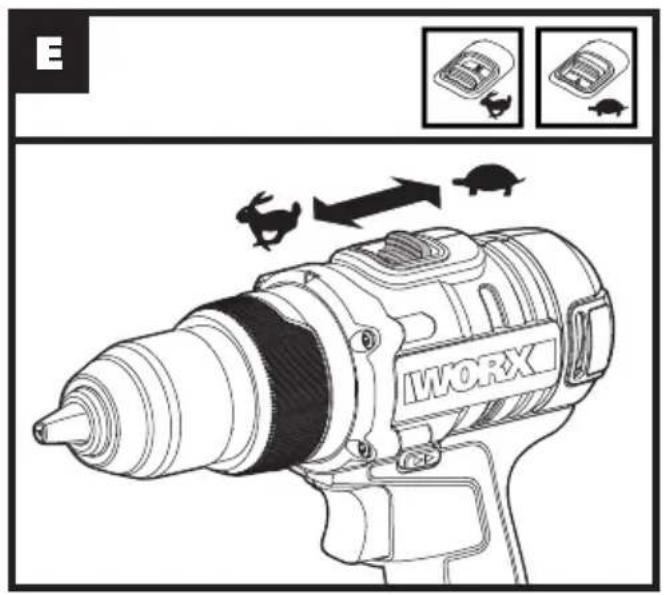

TWO-SPEED GEARCONTROL	See Fig. E

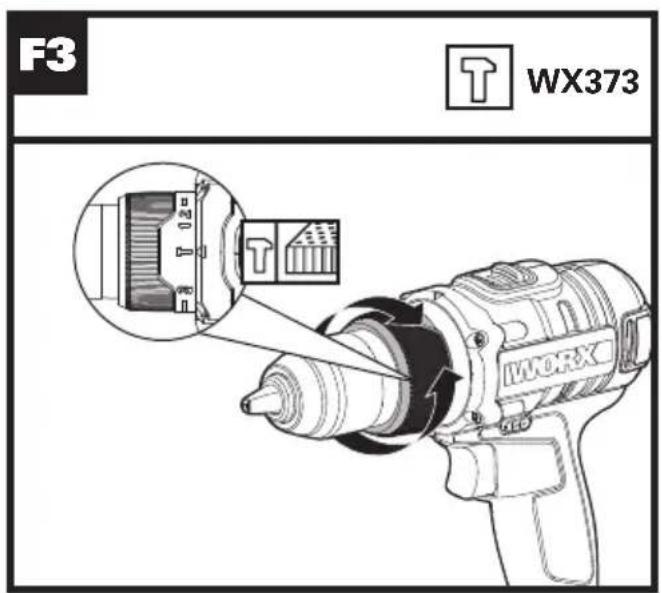

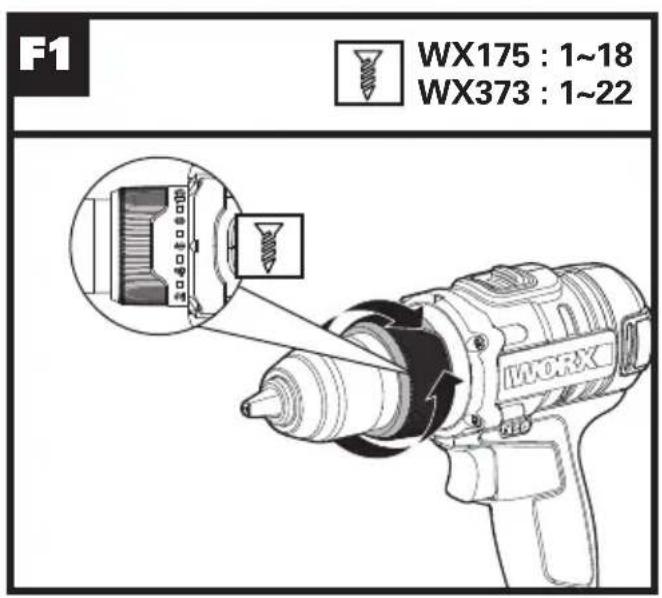

TORQUE ADJUSTMENT SCREWDRIVING, DRILLING, HAMMER DRILLING	See Fig. F1, F2, F3
OPERATING THE ON/OFF SWITCHWARNING: Do not operate for long periods at low speed because excess heat will be produced internally.	See Fig. G

LED LIGHT INDICATOR (See Fig. G)

Before operation, the LED light will be activated when the On/Off switch is slightly depressed, and will automatically turn off 20 seconds after the On/Off switch is released.

WARNING: To turn on the light, press the On/Off switch and make sure the Forward/

Reverse Rotation Control is on right/left position. The tool and battery are equipped with a protection system. When the LED Light is quickly flashing 60 seconds and turn off, the system will automatically cut off power to the tool to extend battery life. The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

• Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. In this situation, release the Trigger Switch on the tool and stop the application that caused the tool to become overloaded. Then pull the Trigger Switch again to restart.
  • Overheated: Under the condition above, if the tool does not start, the Tool and Battery are overheated. In this situation, let the Tool and Battery cool before pulling the Trigger Switch again.
• Low battery voltage: The remaining Battery capacity is too low and the tool will not operate. In this situation, remove and recharge the Battery.

PROBLEM SOLUTION

1. WHY DOES THE DRILL NOT TURN ON WHEN YOU PRESS THE SWITCH?

The Forward and Reverse Switch, which is on top of the trigger, is positioned in the lock function. Unlock the Forward and Reverse Switch putting it into the required rotation position. Push the trigger and the drill will start to rotate (See Fig. B).

2. THE DRILL STOPS BEFORE THE SCREW IS COMPLETELY TIGHTENED. WHY?

Verify the torque position of the Torque Adjustment Ring, you can find the Torque Adjustment Ring between the Chuck and the drill body. Position

1 is the lowest torque (screw driving force) and position 22 is the highest torque (screw driving force). Position 🔒 is for drill operation. Position 🔒 is for hammer drill operation. Regulate the Torque Adjustment Ring to a higher position to reach the best result (See Fig. E).

3. I CAN NOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY?

The battery can be inserted into the charger only in one direction. Turn the battery around until it can be inserted into the slot, the red LED Light should turn on when the battery is charging.

4. REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES

Charging time problems, as above, and having not used a Battery Pack for a prolonged time will reduce the Battery Pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the Battery Pack energy faster than lighter working conditions. Do not re-charge your Battery Pack below 0°C and above 45°C as this will affect performance.

MAINTENANCE

Remove the Battery Pack from the tool before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

FOR BATTERY TOOLS

The ambient temperature range for the use and storage of tool and battery is 0^ C- 45^ C. The recommended ambient temperature range for the charging system during charging is 0^ C- 40^ C.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your

local authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We, POSITEC Germany GmbH Grüner Weg 10, 50825 Cologne, Germany

Declare that the product, Description WORX Battery-powered Drill Type WX175 WX175.1 WX175.2 WX175.9 (1 - designation of machinery, representative of Battery-powered Drill) WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9 (3- designation of machinery, representative of Hammer Drill) Function Drilling

Complies with the following Directives, 2006/42/EC 2011/65/EU&(EU)2015/863 2014/30/EU

Standards conform to: EN 55014-1, EN 55014-2, EN 62841-1, EN 62841-2-1

The person authorized to compile the technical file, Name: Marcel Filz Address: POSITEC Germany GmbH Grüner Weg 10, 50825 Cologne, Germany

A# C E

2019/09/18 Allen Ding Deputy Chief Engineer, Testing & Certification Positec Technology (China) Co., Ltd. 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

Typ WX175 WX175.1 WX175.2 WX175.9 (1 -

WX373 WX373.1 WX373.2 WX373.3

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SÉCURITÉ DU PRODUIT AVERTISSEMENTS DE SÉCURITÉ GÉNÉRAUX POUR L'OUTIL

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

UTILISATION CONFORMÉMENT À LA DESTINATION DE L'APPAREIL(POUR WX175 WX175.1 WX175.2 WX175.9)

DÉCLARATION DE CONFORMITÉ

Nous,

POSITEC Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

Modèle WX175 WX175.1 WX175.2 WX175.9 (

WX373 WX373.1 WX373.2 WX373.3 WX373.4

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SICUREZZA DEL PRODOTTO AVVISI GENERALI PER LA SICUREZZA DEGLI UTENSILI A MOTORE

USO CONFORME ALLE NORME(PER WX175 WX175.1 WX175.2 WX175.9)

USO CONFORME ALLE NORME(PER WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9)

Codice WX175 WX175.1 WX175.2 WX175.9

WX373 WX373.1 WX373.2 WX373.3 WX373.4

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Modelo: WX175 WX175.1 WX175.2

WX373 WX373.1 WX373.2 WX373.3 WX373.4

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUCTVEILIGHEID ALGEMENE VEILIGHEIDSWAARSCHUWINGEN VOOR VERMOGENSMACHINE

VEILIGHEIDSWAARSCHUWINGEN VOOR BOOR

GEBRUIK VOLGENS BESTEMMING(VOOR WX175 WX175.1 WX175.2 WX175.9)

Type WX175 WX175.1 WX175.2 WX175.9 (

WX373 WX373.1 WX373.2 WX373.3

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPIECZEŃSTWO PRODUKTU OGÓLNE OSTRZEŻENIA DOTYCZĄCE BEZPIECZEŃSTWA PODCZAS PRACY Z ELEKTRONARZĘDZIAMI

UŻYCIE ZGODNE Z PRZEZNACZENIEM (DLA WX175 WX175.1 WX175.2 WX175.9)

RENDELTETÉS(MERT WX175 WX175.1 WX175.2 WX175.9)

RENDELTETÉS (MERT WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9)

WX373 WX373.1 WX373.2 WX373.3

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SECURITATEA PRODUSULUI AVERTISMENTE GENERALE DE SIGURANTĂ PENTRU UNELTE ELECTRICE

WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9 (3- denumirea echipamentului, reprezentând Ciocan perforator)

UTILIZARE CONFORM DESTINATIEI(PENTRU WX175 WX175.1 WX175.2 WX175.9)

UTILIZARE CONFORM DESTINATIEI(PENTRU WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9)

Tip: WX175 WX175.1 WX175.2 WX175.9

WX373 WX373.1 WX373.2 WX373.3

WX373.4 WX373.5 WX373.9 (3- denumirea echipamentului, reprezentând Ciocan perforator)

Functie: Găurire

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPEČNOST VÝROBKU OBECNÁ BEZPEČNOSTNÍ UPOZORNĚNÍ PRO ELEKTRICKÉ NÁSTROJE

ÚČEL POUŽITÍ(PRO WX175 WX175.1 WX175.2 WX175.9)

ÚČEL POUŽITÍ (PRO WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9)

WX373 WX373.1 WX373.2 WX373.3 WX373.4

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPEČNOST VÝROBKU VŠEOBECNÉ BEZPEČNOSTNÉ UPOZORNENIA

POUŽÍVANIE PODL'A URČENIA(PRE WX175 WX175.1 WX175.2 WX175.9)

POUŽÍVANIE PODL'A URČENIA(PRE WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9)

WX373 WX373.1 WX373.2 WX373.3 WX373.4

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SEGURANÇA DO PRODUTO AVISOS GÉRAIS DE SEGURANÇA DE FERRAMENTAS ELÉCTRICAS

12. INDICADOR DE CAPACIDADE DA BATERIA \* (APENAS PARA WX373 WX373.1 WX373.3 WX373.4 WX373.5 WX175 WX175.1)

WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9 (3- designação de máquinas, representantes do Martelo Perfurador)

ÂMBITO DE UTILIZAÇÃO (PARA WX175 WX175.1 WX175.2 WX175.9)

ÂMBITO DE UTILIZAÇÃO (PARA WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9)

Tipo WX175 WX175.1 WX175.2 WX175.9 (

WX373 WX373.1 WX373.2 WX373.3

WX373.4 WX373.5 WX373.9 (3- designação

de máquinas, representantes do Martelo Perfurador)

Função Perfuração

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSÄKERHET GENERELLA SÄKERHETSVARNINGAR FÖR ELVERKTYG

ÄNDAMÅLSENLIG ANVÄNDNING (FOR WX175 WX175.1 WX175.2 WX175.9)

ÄNDAMÅLSENLIG ANVÄNDNING (FOR WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9)

Typ WX175 WX175.1 WX175.2 WX175.9 (

WX373 WX373.1 WX373.2 WX373.3 WX373.4

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

VARNOST IZDELKA SPLOŠNA VARNOSTNA OPOZORILA

NAMEN UPORABE (ZA WX175 WX175.1 WX175.2 WX175.9)

Strojček je namenjen za vijačenje vijakov ter vrtanje v les, kovino ali plastiko.

NAMEN UPORABE (ZA WX373 WX373.1 WX373.2 WX373.3 WX373.4 WX373.5 WX373.9)

Vrsta izdelka WX175 WX175.1 WX175.2

WX175.9 ( 1 - zasnova naprave, predstavnik brezžičnih vrtalnikov)

WX373 WX373.1 WX373.2 WX373.3 WX373.4

WX373.5 WX373.9 (3- zasnova naprave, predstavnik udarnih vrtalnikov)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

WORX

you've got the power

www.worx.com

Copyright © 2020, Positec. All Rights Reserved.

AR01144511
