FTBH5 - Foot bath RIO - Free user manual and instructions

Product Type	Electric Foot Bath
Brand	Rio
Model	FTBH5
Power Supply	230 V~50 Hz, 500 W
Temperature Range	35°C to 48°C
Main Functions	Whirlpool massage, red light, vibration, foot reflexology, aromatherapy
Tank Capacity	Between min and max marks (not specified)
Timer	Automatic shut-off after 60 minutes
Material	Plastic
Maintenance and Cleaning	Clean with a damp cloth, do not immerse
Safety	Automatic shut-off, do not use if damaged, do not immerse, do not touch if leaking
Spare Parts and Repairability	No user-serviceable parts, contact customer service
General Information	Indoor use only, 2-year warranty upon registration
Weight	Approximately 2 kg (estimate)
Dimensions (L x W x H)	Approximately 40 x 30 x 20 cm (estimate)

Frequently Asked Questions - FTBH5 RIO

How to fill the FTBH5 foot bath?

Make sure the appliance is switched off and unplugged. If necessary, remove the splash guard. Fill the tank with hot water using a jug, between the min and max level marks indicated on the inner wall. Do not exceed the maximum level.

How to adjust the water temperature?

Press the temperature setting button. The screen shows the current temperature. Press multiple times to increase the temperature from 35°C to 48°C. Above 48°C, the display returns to 35°C. The appliance emits 2 beeps when the set temperature is reached.

How to use the whirlpool massage and red light?

Press the care button once to start the whirlpool massage. A second time to switch to red light, a third time for both combined, and a fourth time to stop.

How to use the vibration massage?

Press the vibration button to activate the treatment. Press again to stop.

How to use the foot reflexology massagers?

The manual rollers located at the bottom of the appliance can be operated manually to target specific reflexology points on your feet.

How to use the aromatherapy diffuser?

Remove the diffuser before filling with water. Unscrew the top part, place a few drops of essential oil on the small sponge, or put crushed herbs or rose petals in the compartment. Replace it and then fill with water.

What to do if the appliance does not heat up or does not work?

Check that the appliance is properly plugged in and that the water level is sufficient. If the problem persists, contact customer service at 01242 702345 or by email at [e-mail].

How to clean the foot bath?

After use, empty the water from the side (do not pour over the control panel). Rinse with clean water and wipe with a clean, damp cloth. Clean the diffuser separately with warm soapy water. Never immerse the appliance.

What are the important safety precautions?

Never immerse the appliance in water. Do not use if the cable or appliance is damaged. Do not stand in the appliance. Keep out of reach of children. Unplug before filling or cleaning. Stop use if pain or irritation occurs.

How to benefit from the 2-year warranty?

Register your product online at www.riobeauty.com/warranty_online.htm to benefit from a two-year warranty. Keep your proof of purchase.

USER MANUAL FTBH5 RIO

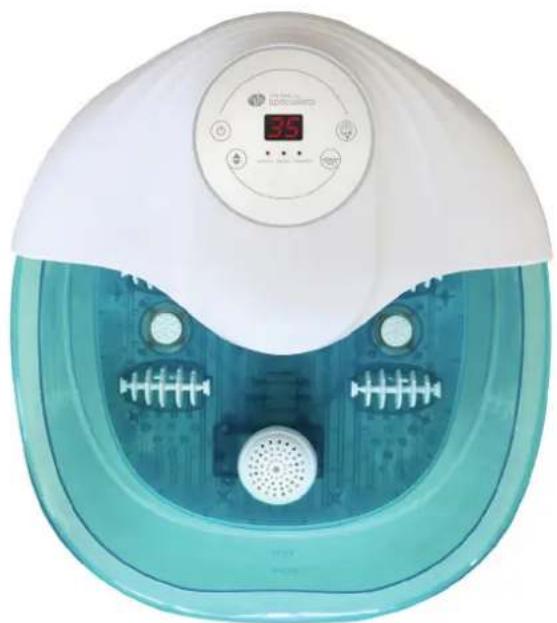

LUXURY FOOT BATH SPA & MASSAGER

the beauty specialists

ENGLISH 4

FRANÇAIS 8

DEUTSCH 12

NEDERLANDS 16

ESPANOL 20

PORTUGUES 24

ITALIANO 28

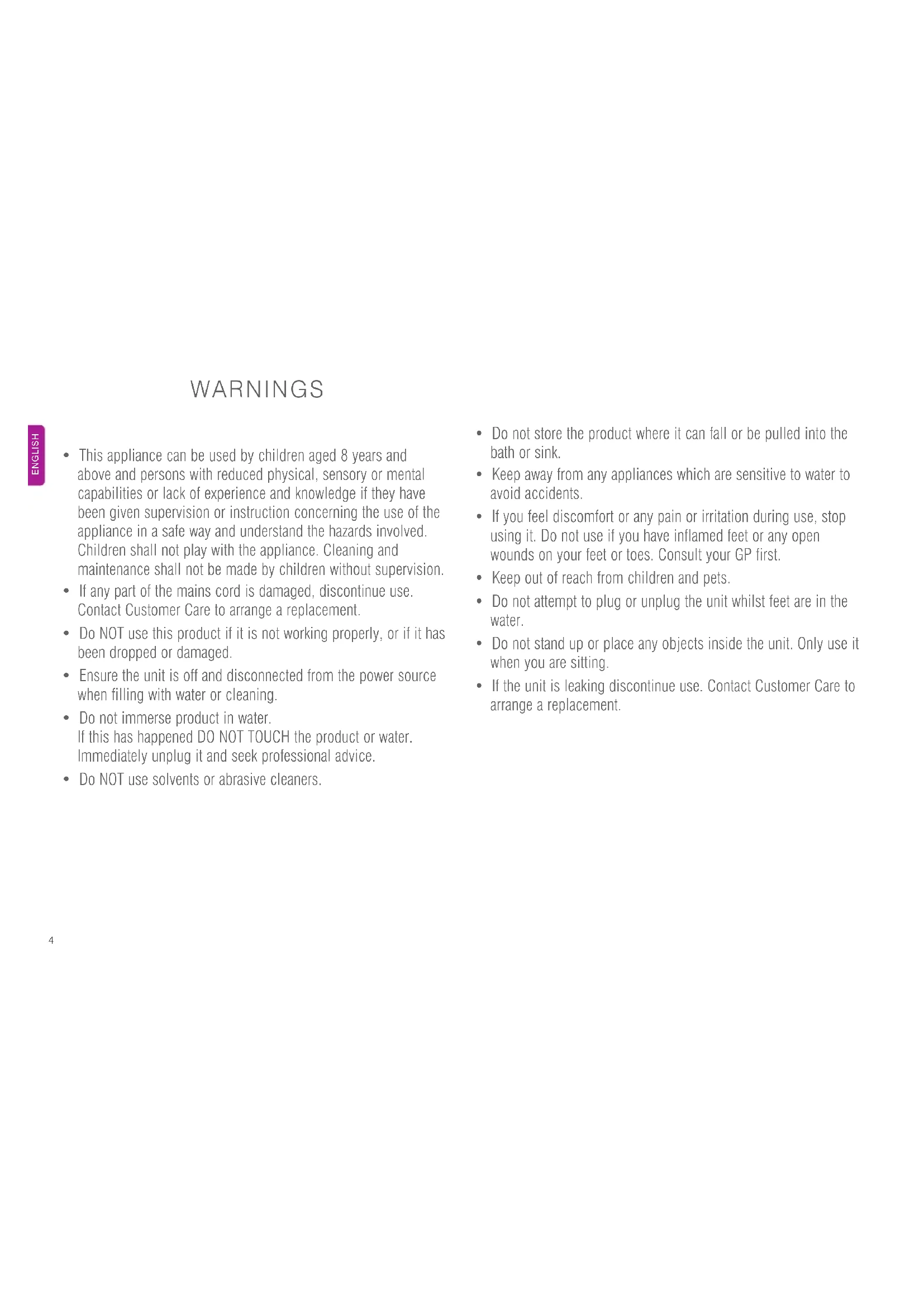

WARNING

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.
• If any part of the mains cord is damaged, discontinue use. Contact Customer Care to arrange a replacement.
• Do NOT use this product if it is not working properly, or if it has been dropped or damaged.
• Ensure the unit is off and disconnected from the power source when filling with water or cleaning.
• Do not immerse product in water. If this has happened DO NOT TOUCH the product or water. Immediately unplug it and seek professional advice.

• Do NOT use solvents or abrasive cleaners.

• Do not store the product where it can fall or be pulled into the bath or sink.

• Keep away from any appliances which are sensitive to water to avoid accidents.
• If you feel discomfort or any pain or irritation during use, stop using it. Do not use if you have inflamed feet or any open wounds on your feet or toes. Consult your GP first.
• Keep out of reach from children and pets.
• Do not attempt to plug or unplug the unit whilst feet are in the water.
• Do not stand up or place any objects inside the unit. Only use it when you are sitting.
• If the unit is leaking discontinue use. Contact Customer Care to arrange a replacement.

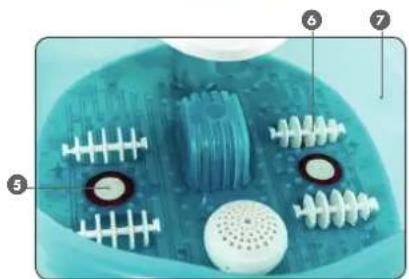

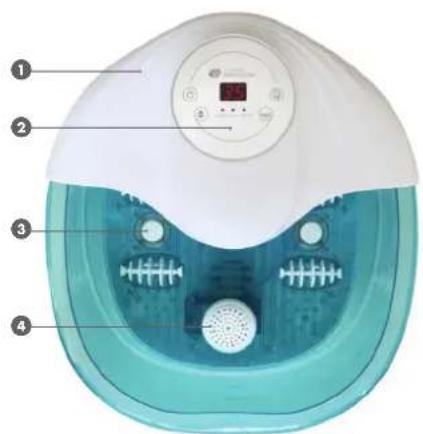

YOUR UNIT

Anti-splash cover
Control panel
Red light treatment
Aromatherapy diffuser

Hydrotherapy jets

Reflexology foot massagers

Water reservoir

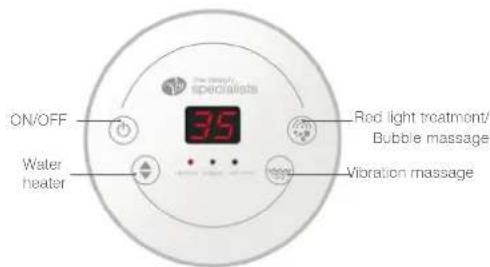

CONTROL PANEL

SETUP

Place on a steady surface before use and make sure the unit is switched OFF and unplugged.

Using a jug fill the water reservoir with warm water.

Ensure the water level is between the maximum and minimum water level marks indicated on the inner wall.

Plug into the mains. Place your feet in the water.

Press the button to turn the unit ON.

Note: The unit will automatically switch off after 60 minutes.

SETTING THE WATER TEMPERATURE

To heat the water, press the button. The display will automatically show the water temperature.

To increase temperature, repeatedly press the button. You can select between 35^ - 48^ and once you click past 48^ , the display will return to 35^ . The unit will beep twice when the water reaches the selected temperature.

To turn off the heating, switch off the power.

TREATMENTS

Bubble Massage & Red Light Treatments

To start the bubble massage treatment press the button once.

Pressing the button a second time changes the program to the red light treatment.

Pressing the button a third time combines the bubble massage and red light treatments.

Pressing a fourth time turns both treatments off.

Vibration Massage

To select the vibration treatment press the button. Pressing the button again turns off the treatment.

Reflexology foot massager

The manual rollers can be used to target specific reflexology points in your feet.

Aromatherapy diffuser

Remove the aromatherapy diffuser before filling with water. Twist off the top. Pour a few drops of your chosen oil(s) onto a small piece of sponge and place into the diffuser compartment, or place a crushed herbal bath bomb, fresh crushed herbs or rose petals directly into the diffuser compartment. Put the top back on and replace the diffuser - then fill with water.

AFTER USE

Turn the unit OFF and unplug from the mains.

Ensure the unit has completely cooled down. Carefully tilt over a sink

or bath and pour the water out from the side of the unit.

Important: Never pour water over the control panel.

CARE AND MAINTENANCE

• Do not use harsh or abrasive cleaners.
  After use, rinse out water and wipe with a clean, damp cloth, then dry.
• Remove the aromatherapy diffuser from the unit and clean with warm soapy water.
• Never immerse the entire unit in water.

STORAGE

• Ensure the unit is unplugged and cooled down.
• Store in a cool, dry place.

DISPOSAL

The Waste of Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill. This product is classed as Electrical or Electronic

equipment so please ensure that at the end of the life of this product it is disposed of in the correct manner in accordance with local authority requirements. It must NOT be disposed of with household waste.

CUSTOMER CARE

If you have any questions, or if you experience any difficulties please call our Caroline on: 01242 702345 or email us at: [e-mail]

To reorder additional accessories, please visit www.riobeauty.com or contact your local distributor.

GUARANTEE

To register your two year guarantee online, visit: www.riobeaulty.com/ warranty_online.htm

IMPORTANT INFORMATION

• Misuse of this product can cause harm.
• This product must only be used for its intended purpose as described in this user guide.
• There are no user serviceable parts inside the unit.
• Stop using the product if you experience pain or sensitivity during treatment and seek professional advice from your GP.
• There may be some liquid remaining inside the water reservoir prior to first use from the testing of the unit.
• Ensure the water is at a comfortable temperature before use. We advise to start at a low temperature and increase gradually.

SPECIFICATION

POWER INPUT AC 230V~50Hz 500W

READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND THEN RETAIN FOR FUTURE USE.

THIS PRODUCT IS FOR INDOOR USE ONLY.

THIS PRODUCT COMPLIES WITH CURRENT EU PRODUCT LEGISLATION.

AVERTISSEMENTS

DIT PRODUCT VOLDOET AAN DE HUIDIGE EUPRODUCTWETGEVING.

ADVERTENCIAS

Rio, Dezac and LUXURY FOOT BATH SPA AND MASSAGER

are trademarks of The Dezac Group Ltd

© The Dezac Group Ltd 2019

PO Box 17, Cheltenham Spa, England GL53 7ET

www.riobeauty.com

1-IN-FTBH5-EU/1.1
