POWX1179 - Drill PowerPlus - Free user manual and instructions

Product type	Rotary hammer (hammer drill)
Brand	PowerPlus
Model	POWX1179
Rated power	1600 W
Supply voltage	230-240 V ~ 50 Hz
No-load speed	630 min⁻¹
Drilling capacity (concrete)	40 mm
Impact frequency	3800 min⁻¹
Protection class	II (double insulation)
Cable length	3 m with VDE plug
Weight (approx.)	5.5 kg
Anti-vibration system	Yes (AVS)
Chuck type	SDS-max
Included accessories	Auxiliary handle, grease gun, flat wrench, SDS drill bit ∅18×320 mm, SDS point chisel 350 mm, SDS flat chisel 18×350 mm
Sound pressure level (LpA)	94 dB(A)
Sound power level (LwA)	105 dB(A)
Vibration (aw)	13.6 m/s² (K=1.5 m/s²)
Warranty	36 months

Frequently Asked Questions - POWX1179 PowerPlus

How to change an SDS-max bit?

To change a bit, first unplug the tool. Pull and hold the locking sleeve (collar) backward, then remove the old tool. Insert the new bit while turning slightly until it locks. Check the lock by pulling on it. Wear gloves as the tool may be hot after use.

What oil should I use for lubrication?

Use SAE 15W/40 oil or equivalent quality oil. Grease should be replaced after approximately 40 to 50 hours of use. To check the level, remove the oil reservoir cover with the supplied key. Be careful not to lose the rubber seal.

Can I drill metal or wood with this drill?

Yes, the POWX1179 rotary hammer is suitable for drilling without percussion in wood, metal, ceramic, and plastic. For these materials, use the drilling-only mode (without percussion) by turning the hammer/drill switch to the appropriate position.

What is the function of the different modes (drilling, percussion, hammer)?

The hammer/drill switch allows selection of three modes: drilling without percussion (for wood, metal, etc.), percussion drilling (for concrete, brick, stone), and hammering (for chiseling). The 'chisel rotation' mode allows adjusting the chisel position. Never use percussion mode with an SDS bit during normal drilling.

How to adjust the auxiliary handle?

For safety reasons, always use the auxiliary handle. Turn it counterclockwise to loosen, slide it onto the housing sleeve, then tighten by turning clockwise. Adjust the angle for a comfortable grip.

What to do if the tool does not start?

First check that the plug is properly connected and the socket works. Ensure the on/off button is not blocked. If the on/off indicator does not light, the cable or switch may be damaged. In this case, contact an authorized service center. Do not attempt to repair yourself.

How to clean and maintain the appliance?

Before any cleaning, unplug the tool. Clean the ventilation slots with a soft cloth to prevent overheating. For stubborn dirt, use a damp cloth with soapy water. Never use solvents like gasoline or alcohol. Lubricate SDS tools with grease before insertion.

What is the warranty period?

The warranty is 36 months from the date of purchase by the first user. It covers material and manufacturing defects, but not normal wear (brushes, bearings, bits) nor damage due to incorrect use. Keep your proof of purchase.

Can I use this drill for chiseling?

Yes, the POWX1179 is designed for light chiseling operations in concrete, brick, and stone. Select hammer mode (without rotation) and use a suitable chisel (included). Hold the tool firmly with both hands and let the machine's weight do the work.

How to reduce vibration?

The tool is equipped with the AVS anti-vibration system. To further reduce vibration, always use the auxiliary handle, maintain a firm but not too tight grip, and take regular breaks. Wear protective gloves and avoid pressing too hard on the tool.

USER MANUAL POWX1179 PowerPlus

Yellow PowerPlus power drill with black handle and metallic head (no visible text or symbols)

i

NL NEDERLANDS VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING

FR FRANÇAIS TRADUCTION DU MODE D'EMPLOI D'ORIGINE

EN ENGLISH ORIGINAL INSTRUCTION MANUAL

Close-up of hands using a drill bit to press or install a drill cap, with no visible text or symbols.

Fig 1

Close-up of a power tool with black and white components, showing rotational motion arrows (no text or symbols)

Fig 2

1 BEOOGD GEBRUIK 3
2 BESCHRIJVING (FIG. 1) 3
3 INHOUD VAN DE VERPAKKING 3
4 TOELICHTING VAN DE SYMBOLEN 3
5 ALGEMENE VEILIGHEIDSVOORSCHRIFTEN ....4
5.1 Werkplaats....4
5.2 Elektrische veiligheid ....4
5.3 Veiligheid van personen....4
5.4 Zorgvuldige omgang met en gebruik van elektrisch gereedschap....5
5.5 Service....5
6 AANVULLENDE VEILIGHEIDSVOORSCHRIFTEN 6
7 VOOR DE INBEDRIJFSTELLING 6
7.1 Gereedschappen inplaatsen en wisselen (Fig. 1)....6
7.2 SDS-max gereedschappen uitnemen....7
8 GEBRUIK 7
8.1 In-/uitschakelen....7
8.2 Hulphandgreep (Fig. 2)....7
8.3 Hameren/boren-schakelaar 7
8.4 Gebruik van de breekhamer 8
9 SMEERMIDDEL - OLIEPEIL 8
9.1 Olie vervangen....8
10 REINIGING EN ONDERHOUD 8
10.1 Reiniging 8
11 TECHNISCHE GEGEVENS 9
12 GELUID 9
13 SERVICEDIENST 9
14 OPSLAG....9
15 GARANTIE 10
16 MILIEU....10

BOORHAMER 1600 W

POWX1179

1 BEOOGD GEBRUIK

2 BESCHRIJVING (FIG. 1)

Three-panel image showing a circular device with a black control knob and directional arrows, no visible text or symbols.

Hameren/boren-modus:

08/04/2022, Lier - Belgium

Close-up of a mechanical component with a circular dial and central knob (no visible text or symbols)

Close-up of two circular mechanical components with control knobs and a switch, no visible text or symbols

Mode martelage :

17 DÉCLARATION DE CONFORMITÉ

VARO N.V. - Vic. Van Rompuy N.V. Joseph Van Instraat 9 - BE2500 Lier - BELGIQUE, déclare que :

08/04/2022, Lier - Belgium

1 INTENDED USE 3
2 DESCRIPTION(FIG.1) 3
3 PACKAGE CONTENT LIST....3
4 SYMBOLS 3
5 GENERAL POWER TOOL SAFETY WARNINGS .... 4
5.1 Work area 4
5.2 Electrical safety....4
5.3 Personal safety 4
5.4 Power tool use and care....5
5.5 Service....5
6 ADDITIONAL SAFETY INSTRUCTIONS FOR HAMMER DRILLS 5
7 BEFORE USING THE TOOL FOR THE FIRST TIME 6
7.1 Fitting and changing tools (Fig. 1)....6
7.2 Removing SDS-max tool....6
8 OPERATION....6
8.1 Switching ON/OFF....6
8.2 Handle attachment (Fig. 2)....6
8.3 Hammer / drill switch....6
8.4 How to use the demolition hammer 7
9 LUBRICATION - OIL LEVEL 8
9.1 Oil change 8
10 CLEANING AND MAINTENANCE....8
10.1 Cleaning....8
11 TECHNICAL DATA 8
12 NOISE....8
13 SERVICE DEPARTMENT....9
14 STORAGE 9
15 WARRANTY....9
16 ENVIRONMENT 10

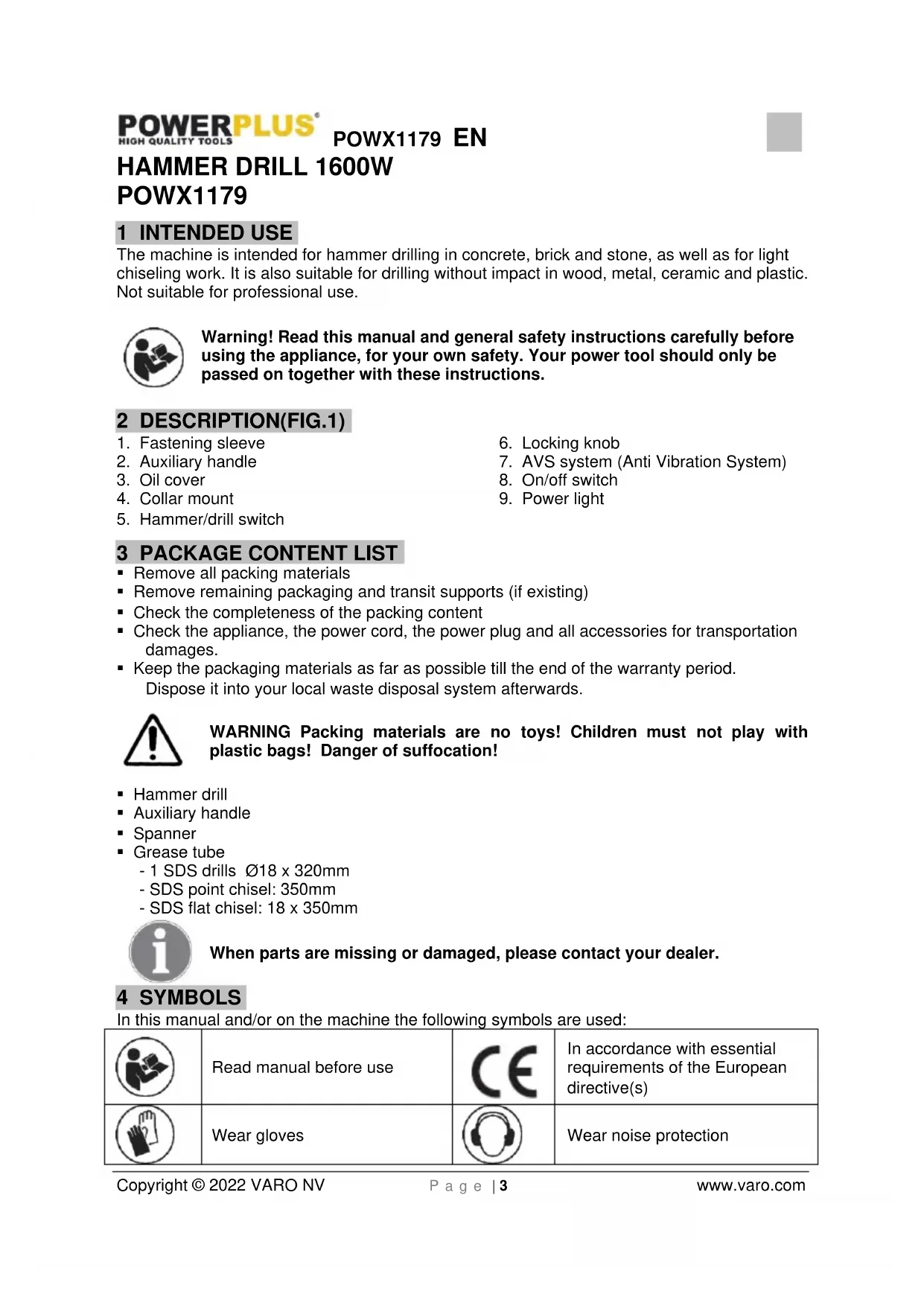

HAMMER DRILL 1600W

POWX1179

1 INTENDED USE

The machine is intended for hammer drilling in concrete, brick and stone, as well as for light chiseling work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. Not suitable for professional use.

Warning! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION(FIG.1)

1. Fastening sleeve
2. Auxiliary handle
3. Oil cover
4. Collar mount

5. Hammer/drill switch

6. Locking knob

7. AVS system (Anti Vibration System)
8. On/off switch
9. Power light

3 PACKAGE CONTENT LIST

■ Remove all packing materials
■ Remove remaining packaging and transit supports (if existing)
- Check the completeness of the packing content
- Check the appliance, the power cord, the power plug and all accessories for transportation damages.
- Keep the packaging materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

■ Hammer drill
■ Auxiliary handle
- Spanner
- Grease tube

• 1 SDS drills ∅18 x 320mm
• SDS point chisel: 350mm
• SDS flat chisel: 18 x 350mm

When parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

	Read manual before use		In accordance with essential requirements of the European directive(s)
	Wear gloves		Wear noise protection

Class II - The machine is double insulated; Earthing wire is therefore not necessary.

Always wear safety goggles

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

5.1 Work area

• Keep work area clean and well lit. Cluttered and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

5.3 Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.
• Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

5.4 Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or sticking of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to stick and are easier to control.
• Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could lead to a hazardous situation.

5.5 Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

6 ADDITIONAL SAFETY INSTRUCTIONS FOR HAMMER DRILLS

• Check the voltage (volt) marked on the rating plate.
• When using cable drums, run all the cable off the drum. Minimum conductor cross section: 1.0 ~mm^2 .
• When using the electric hammer drill outdoors, connect to the power supply with a type H07RN-F 3G 1.5 mm² extension cable and rain-water-protected plugs in proper working order.
  ■ Make sure of your footing on ladders and scaffolding when drilling free-handed.
• Use a line detector to localize lines in walls with concealed electric, water or gas lines. Avoid touching live components or conductors.
  ■ Wear ear muffs to protect your hearing. Loss of hearing can be a gradual process!
  ■ Wear goggles and use a dust mask on jobs generating dust.
  ■ Do not use in areas where there are vapours or flammable liquids.
  ■ Always pull the plug out of the socket before cleaning or making changes to the machine.
• Protect the power cable from damage. Oil and acid can damage the cable.
  ■ Never overload the machine
• Secure all workpieces sufficiently.

• Important! It is imperative to follow all national safety regulations concerning installation, operation and maintenance.

• Chisel bits and drill bits may be flung out of the machine accidentally and cause serious injury:
  ■ Before starting to work, always check that the chisel or drill bit is property locked in the chuck.

• Examine the chuck regularly for signs of wear or damage.
  ■ Never start up a hammer tool until it pressed against a workpiece (wall, ceiling, etc.).
• When you are finished, unplug the hammer drill from the electric supply and remove the chisel or drill bit from the machine.
• Always disconnect the hammer drill from the electric supply before you change a chisel or drill bit
• Protect your eyes and other workers from flying particles and splinters. Wear a helmet! Set up partition walls!
  ■ Wear work gloves to protect fingers from bruising and grazing.
• Vibrations can injure the hand-arm system. Keep exposure to vibrations as short as possible.
  ■ Always lead the mains cable away backwards from the device.
  ■ Store the device where it is inaccessible to children.
• When carrying out work, always hold the device with both hands and ensure that you have a stable standing position.

7 BEFORE USING THE TOOL FOR THE FIRST TIME

• Examine the place where the device is to be used for hidden electrical cables, gas and water pipes using a pipe finding device.
  ■ Before connecting to the mains, ensure care that the mains voltage corresponds to the details on the rating plate.

7.1 Fitting and changing tools (Fig. 1)

The device is equipped with a SDS-max attachment system.

• Clean tools and grease with a thin layer of machine grease before fitting.
  ■ Pull back fastening sleeve and hold.
• Push and rotate the dust-free tool into the tool holder as far as it will go. The tool will lock automatically.
• Check that it has locked by pulling the tool

7.2 Removing SDS-max tool

Pull back fastening sleeve, hold and remove tool.

Accessories can be hot after use. Don't touch the tip of accessory by hand! Please always use protective floves to remove accessory.

8 OPERATION

8.1 Switching ON/OFF

■ Switching on: Press the operating switch (8).
■ Switching off: Release the operating switch(8)

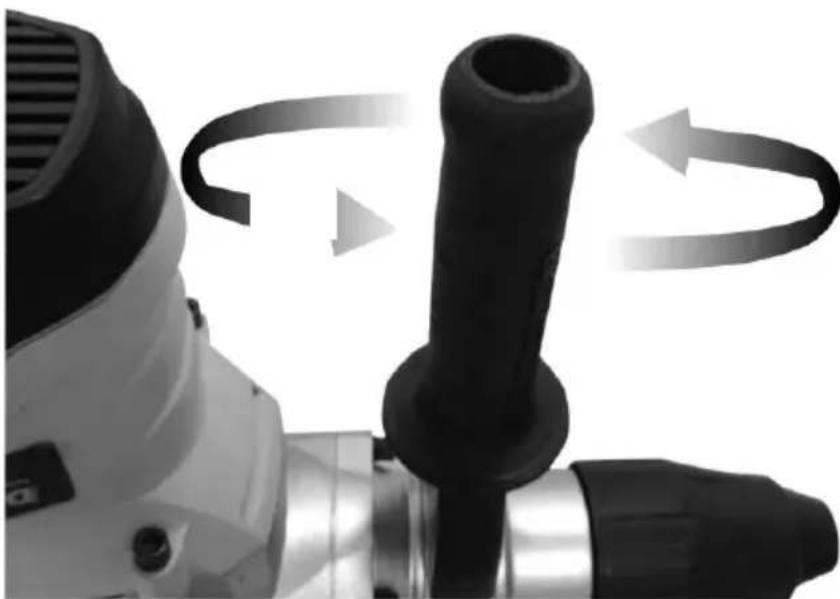

8.2 Handle attachment (Fig. 2)

For reasons of safety, only use the hammer drill with handle attachment. You will be able to obtain a safe body position when working by rotating the handle attachment. Loosen and turn the handle attachment in an ant-clockwise direction. Slip loop onto the neck of the housing tool and position the handle, then tighten the handle attachment.

8.3 Hammer / drill switch

- The hammer/drill switch can switch the drill, hammer and hammer/ drill functions.

- To set the function, please use below compounding of front and rear hammer/drill switch.

	Hammer/ drill mode:Drill in masonry, concrete and natural stone.Don’t use the hammer drill function for ceramic tile or others material can not withstand impact energy.
	Hammer mode:Hammer in masonry, concrete and natural stone.
	Chisel Rotation:Non-working position used only to rotate flat chisel into the desired position

Important! When hammer drilling you will require a low pressure. Too much pressure will place unnecessary load on the motor. Check the drill bits regularly. Re-sharpen or replace blunt drill bits.

Do not use a chuck with SDS connector in combination with the hammer/hammer drill function!

8.4 How to use the demolition hammer

1. After placing the tip of the tool on concrete surface, switch ON.
2. By utilizing the weight of the machine and by firmly holding the demolition hammer with both hands, one can effectively control the subsequent recoil motion.
3. Proceed at a moderate work-rate, the use of too much force will impair efficiency.

CAUTION After long time of use, the cylinder case becomes hot. Therefore, be careful not to burn your hands.

WARNING Don't apply big pressure to the machine. The hammer mechanism is activated by applying a slight pressure on the tool when the chisel bit is in contact with the work-piece.

9 LUBRICATION - OIL LEVEL

Check the grease level before using the machine.

The grease should be changed after around 40-50 hours of use.

Recommended grease: 25ml SAE 15W/40 or an alternative of the same quality.

9.1 Oil change

■ Before feeding grease, use the provided wrench to remove the grease gauge (3). Be careful not to lose the rubber packing attached below the grease gauge.
- Check the grease level once daily, confirming that grease is filled.
■ After feeding grease, securely clamp the grease gauge

Important: The waste grease must be disposed of in the appropriate collection point for waste grease.

10 CLEANING AND MAINTENANCE

Attention !Before performing any work on the equipment, pull the power plug.

10.1 Cleaning

• Keep the ventilation slots of the machine clean to prevent overheating of the engine.
• Regularly clean the machine housing with a soft cloth, preferably after each use.
• Keep the ventilation slots free from dust and dirt.
  ■ If the dirt does not come off use a soft cloth moistened with soapy water.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

11 TECHNICAL DATA

Rated Voltage	230-240 V
Rated Frequency	50 Hz
Rated Power	1600 W
Rotation speed	630 min^-1
Protection class	II
Drill capacity concrete	40 mm
Cable length	3 m + VDE plug

12 NOISE

Noise emission values measured according to relevant standard. (K=3)

Acoustic pressure level LpA 94 dB(A)

Acoustic power level LwA 105 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration)

13,6 m/s²

K = 1,5 ~m / s^2

13 SERVICE DEPARTMENT

• Damaged switches must be replaced by our after-sales service department.
• If the connecting cable (or mains plug) is damaged, it must be replaced by a particular connecting cable which is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician).

14 STORAGE

• Thoroughly clean the whole machine and its accessories.
• Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures.
• Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
• Don't keep it in plastic bags to avoid humidity build-up.

15 WARRANTY

• This product is warranted for a 36-month period effective from the date of purchase by the first user.
• This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

- You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

- Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

16 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

17 DECLARATION OF CONFORMITY

VARO N.V. - Vic. Van Rompuy N.V. Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

Product : Hammer Drill

Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU

2006/42/EC

2014/30/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60745-1:2009

EN60745-2-6:2010

EN55014-1:2017

EN55014-2:2015

EN IEC 61000-3-2 : 2019

EN61000-3-3:2013

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Philippe Vankerkhove

Regulatory Affairs – Compliance Manager

08/04/2022, Lier - Belgium

08/04/2022, Lier - Belgium

Close-up of a mechanical component with a circular dial and arrow indicator (no visible text or symbols)

Modo Martillo / Taladro:

08/04/2022, Lier - Belgium

Three-panel close-up of a mechanical component showing circular ports with switches and arrows, no visible text or symbols.

Regulatory Affairs – Compliance Manager

08/04/2022, Lier - Belgium

08/04/2022, Lier - Belgium

1 TILTENKT BRUK 3
2 BESKRIVELSE (FIG. 1)....3
3 PAKKENS INNHOLD 3
4 SYMBOLFORKLARING .... 4
5 GENERELLE SIKKERHETSADVARSLER 4
5.1 Arbeidsplassen 4
5.2 Elektrisk sikkerhet 4
5.3 Personsikkerhet....4
5.4 Vær nøyaktig og omhyggelig når du omgås elektroverktøy ....5
5.5 Service....5
6 SPESIELLE SIKKERHETSADVARSLER 5
7 F∅R IGANGSETTING....6
7.1 Innsetting og utskifting av verktøy (Fig. 1)....6
7.2 Trekke ut SDS-verktøy....6
8 DRIFT 6
8.1 Start/stopp....6
8.2 Hjelpehåndtak (Fig. 2)....6
8.3 Bor/hammerbryter....7
8.4 Bruke meiselhammeren....7
9 SM∅RING - OLJESTAND....8
9.1 Oljeskift....8
10 RENGJ∅RING OG VEDLIKEHOLD 8
10.1 Rengjøring....8
11 TEKNISKE DATA....8
12 ST∅Y 8
13 SERVICEAVDELING....9
14 OPPBEVARING 9
15 GARANTI....9
16 MILJ∅ 9

BORHAMMER 1600 W

POWX1179

1 TILTENKT BRUK

8.3 Bor/hammerbryter

08/04/2022, Lier - Belgium

Close-up of a mechanical component with a circular dial and central knob (no visible text or symbols)

Close-up of a mechanical component with a circular dial and control knob (no visible text or symbols)

Close-up of a mechanical knob or dial with a black handle and circular head, no visible text or symbols.

Hammer/ boretilstand:

08/04/2022, Lier - Belgium

3 FÖRPACKNINGSINNEHÅLL

Close-up of a mechanical component with a circular dial and central knob (no visible text or symbols)

Close-up of a mechanical valve component with a black switch and circular dial (no visible text or symbols)

Close-up of a mechanical knob or dial with a black circular dial and a central knob, mounted on a metallic frame (no visible text or symbols)

Mejselrotation:

08/04/2022, Lier - Belgium

08/04/2022, Lier - Belgium

Close-up of a mechanical knob or dial with a black handle and circular head (no visible text or symbols)

08/04/2022, Lier - Belgium

1 NAMJENA 3
2 OPIS (SL. 1) 3
3 POPIS SADRŽAJA PAKETA 3
4 SIMBOLI 4
5 OPĆA UPOZORENJA O SIGURNOSTI RUKOVANJA ELEKTRIČNIM ALATIMA 4
5.1 Radno mjesto....4
5.2 Električna sigurnost....4
5.3 Osobna sigurnost .... 5
5.4 Uporaba i održavanje električnog alata 5
5.5 Servis....5
6 POSEBNA SIGURNOSNA UPOZORENJA 6
7 PRIJE POČETKA RADA 6
7.1 Postavljanje i zamjena alata (sl. 1)....6
7.2 Vađenje SDS-max alata....6
8 UPOTREBA....7
8.1 Uključivanje/Isključivanje....7
8.2 Nastavak za držanje (sl. 2)....7
8.3 Sklopka vibracija / bušenje....7
8.4 Način uporabe hidrauličkog čekića za rušenje 8
9 PODMAZIVANJE-RAZINA ULJA....8
9.1 Promjena ulja 8
10 ČIŠĆENJE I ODRŽAVANJE 8
10.1 Čišćenje....8
11 TEHNIČKI PODACI 9
12 BUKA....9
13 SERVIS....9
14 SKLADIŠTENJE....9
15 JAMSTVO....10
16 OKOLIŠ 10

UDARNA BUŠILICA 1600 W POWX1179

1 NAMJENA

Uređaj je predviđen za vibracijsko bušenje u betonu, cigli i kamenu, kao i za lagane poslove rezbarenja. Također je prikladan i za bušenje bez vibracija u drvetu, metalu, keramici i plastici. Nije prikladno za profesionalnu uporabu.

UPOZORENJE! Prije uporabe alata, a radi vaše vlastite sigurnosti pažljivo pročitajte ovaj priručnik i opće upute o sigurnosti. Ove upute čine sastavni dio opreme električnog alata, pa i u slučaju prodaje drugom vlasniku.

2 OPIS (SL. 1)

1. Prsten za pritezanje
2. Pomoćna ručka
3. Poklopac za ulje
4. Držač prstena

5. Sklopka čekić/bušilica

6. Gumb za blokadu

7. AVS sustav (anti vibracijski sustav)
8. Sklopka za uključivanje/isključivanje
9. Indikator napajanja

3 POPIS SADRŽAJA PAKETA

Close-up of a mechanical component with a circular dial and central knob (no visible text or symbols)

Close-up of a mechanical component with a circular dial and a switch (no visible text or symbols)

Close-up of a mechanical knob or dial with a black handle and circular head, no visible text or symbols.

Vibracijsko bušenje:

Bušite zidove, beton i prirodni kamen.

Ne koristite funkciju vibracijskog bušenja za keramičke pločice ili druge materijale koji ne mogu izdržati udarnu energiju.

Vibracija:

Bušite zidove, beton i prirodni kamen.

Rotacija dlijeta:

Close-up of a mechanical component with a circular dial and a black handle (no visible text or symbols)

Udarni režim / režim bušenja

Bušenje u ozidu, betonu i prirodnom kamenu.

Ne koristite funkciju udarnog bušenja za keramičke pločice ili za druge materijale koji ne mogu da izdrže udarnu energiju.

Close-up of a mechanical component with a circular dial and directional arrow (no visible text or symbols)

Udarni režim:

Bušenje u ozidu, betonu i prirodnom kamenu.

Close-up of a mechanical knob or dial with a black handle and circular head, no visible text or symbols.

Rotacija dleta:

Neradni položaj se koristi samo da bi se pljosnato dleto okrenulo u željeni položaj.

08/04/2022, Lier - Belgium

1 ZAMÝŠLENÉ POUŽITÍ ......3

2 POPIS (OBR. 1)....3

3 SEZNAM OBSAHU BALENÍ....3

4 SYMBOLY 4

5 OBECNÁ BEZPEČNOSTNÍ UPOZORNĚNÍ PRO ELEKTRICKÉ NÁSTROJE ....4

VRTACÍ KLADIVO 1600 W POWX1179

1 ZAMÝŠLENÉ POUŽITÍ

Close-up of a mechanical component with a circular dial and central knob (no visible text or symbols)

Close-up of a mechanical component with a circular dial and handle (no visible text or symbols)

Příklepový režim:

Close-up of a mechanical component with a circular dial and central knob (no visible text or symbols)

Otočení dláta:

08/04/2022, Lier - Belgium

1 ZAMÝŠL'ANÉ POUŽITIE....3
2 POPIS (OBR. 1)....3
3 OBSAH BALENIA....3
4 SYMBOLY 4
5 VŠEOBECNÉ BEZPEČNOSTNÉ VAROVANIA PRE ELEKTRICKÉ NÁRADIE....4
5.1 Pracovná plocha 4
5.2 Elektrická bezpečnost'......4
5.3 Osobná bezpečnost'......5
5.4 Používanie elektrického náradia a starostlivost' oň....5
5.5 Servis....6
6 DOPLNKOVÉ BEZPEČNOSTNÉ POKYNY PRE VŘTACIE KLADIVÁ 6
7 PRED ZAČATÍM PRÁCE 6
7.1 Uchytenie a výmena nástrojov (obr. 1)....6
7.2 Vybratie nástroja SDS-max....7
8 PREVÁDZKA....7
8.1 Zapnutie / vypnutie ....7
8.2 Prídavná rukovát' (obr. 2)....7
8.3 Prepínač kladiva/ vítačky 7
8.4 Ako používat' demolačné kladivo....8
9 MAZANIE - HLADINA OLEJA 8
9.1 Výmena oleja....8
10 ČISTENIE A ÚDRŽBA 8
10.1 Čistenie....8
11 TECHNICKÉ ÚDAJE....9
12 HLUK 9
13 SERVISNÁ SLUŽBA....9
14 SKLADOVANIE 9
15 ZÁRUKA....10

16 ŽIVOTNÉ PROSTREDIE....10
17 VYHLÁSENIE O ZHODE 11

VŘTACIE KLADIVO 1600 W POWX1179

1 ZAMÝŠL'ANÉ POUŽITIE

08/04/2022, Lier - Belgium

1 PREDVIDENA UPORABA 3
2 OPIS (SLIKA 1)....3
3 SEZNAM VSEBINE PAKETA 3
4 SIMBOLI 4
5 SPLOŠNA VARNOSTNA OPOZORILA ZA ELEKTRIČNO ORODJE 4
5.1 Delovno mesto....4
5.2 Električna varnost....4
5.3 Osebna varnost....5
5.4 Uporaba in nega električnega orodja....5
5.5 Servisiranje 5
6 DODATNA VARNOSTNA NAVODILA ZA UDARNE VRTALNIKE 6
7 PRED PRVO UPORABO ORODJA....6
7.1 Namestitev in menjava nastavkov (slika 1)....6
7.2 Odstranite nastavka SDS max....7
8 UPORABA....7
8.1 Vklop/izklop orodja 7
8.2 Namestite ročaja (slika 2)....7
8.3 Stikalo za dolbenje/vrtanje....7
8.4 Uporaba rušilnega kladiva....8
9 MAZANJE – NIVO OLJA 8
9.1 Menjava olja....8
10 ČIŠČENJE IN VZDRŽEVANJE....8
10.1 Čiščenje....8
11 TEHNIČNI PODATKI....9
12 HRUP....9
13 SERVISNI ODDELEK 9
14 SHRANJEVANJE....9
15 GARANCIJA....10
16 OKOLJE 10

UDARNI VRTALNIK 1600 W POWX1179

1 PREDVIDENA UPORABA

08/04/2022, Lier - Belgium

1 UTILIZARE PREVĂZUTĂ 3

2 DESCRIERE (FIG. 1)....3

3 CONTINUTUL PACHETULUI 3

4 SIMBOLURI 4

5 AVERTISMENTE GENERALE DE SIGURANTĂ PRIVIND APARATELE ELECTRICE ....4

5.1 Zona de lucru 4

08/04/2022, Lier - Belgium

Close-up of a mechanical valve or knob component with no visible text or symbols

Close-up of two mechanical control buttons with arrows indicating direction (no text or symbols visible)

08/04/2022, Lier - Belgium

08/04/2022, Lier - Belgium

Open black plastic toolbox containing a yellow and black drill bit with tools (no visible text or labels)

varo

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

©copyright by varo

VARO - VIC. VAN ROMPUY nv

JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM
