USER MANUAL GSR 18V55 Professional BOSCH

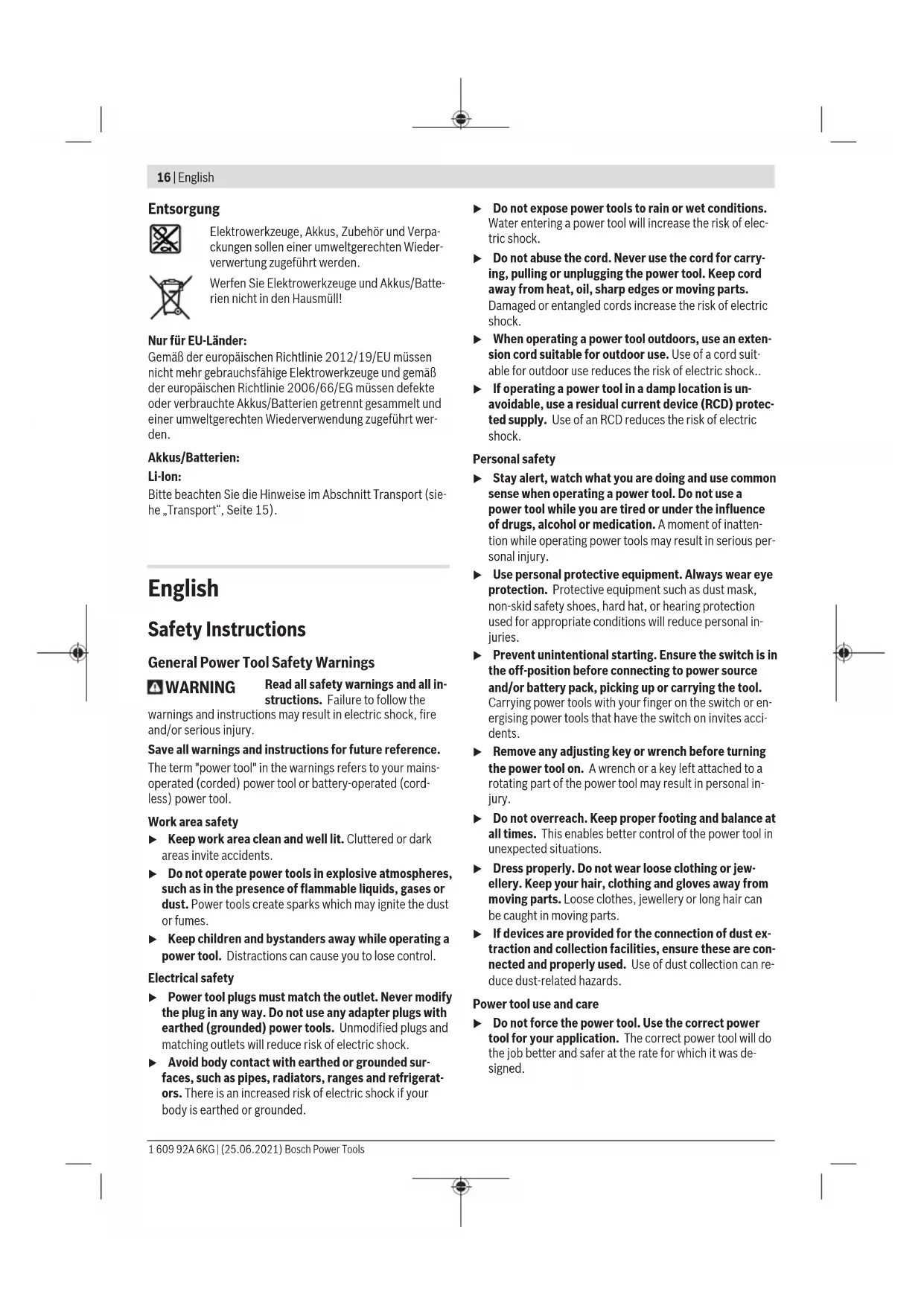

(6) Rechargeable battery release button

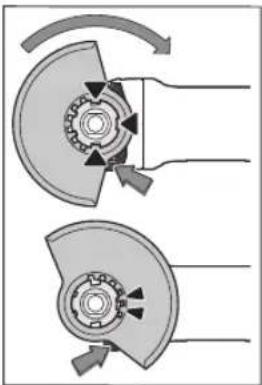

(7) Auxiliary handle (insulated gripping surface) (8) Protective guard for grinding (9) Mounting flange (10) Grinding disc (11) Clamping nut (12) Protective guard for cutting

(14) Handle (insulated gripping surface) (15) Grinding spindle (16) Hand guard

(17) Rubber sanding pad

(22) Extraction guard for cutting with cutting guides

(23) Diamond cutting disc

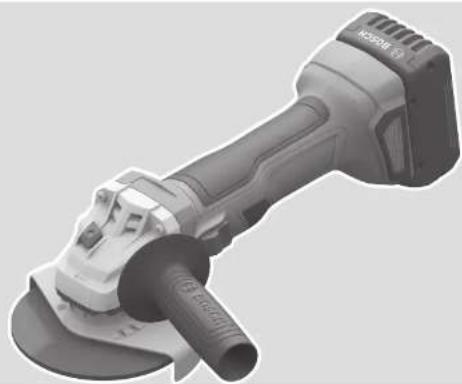

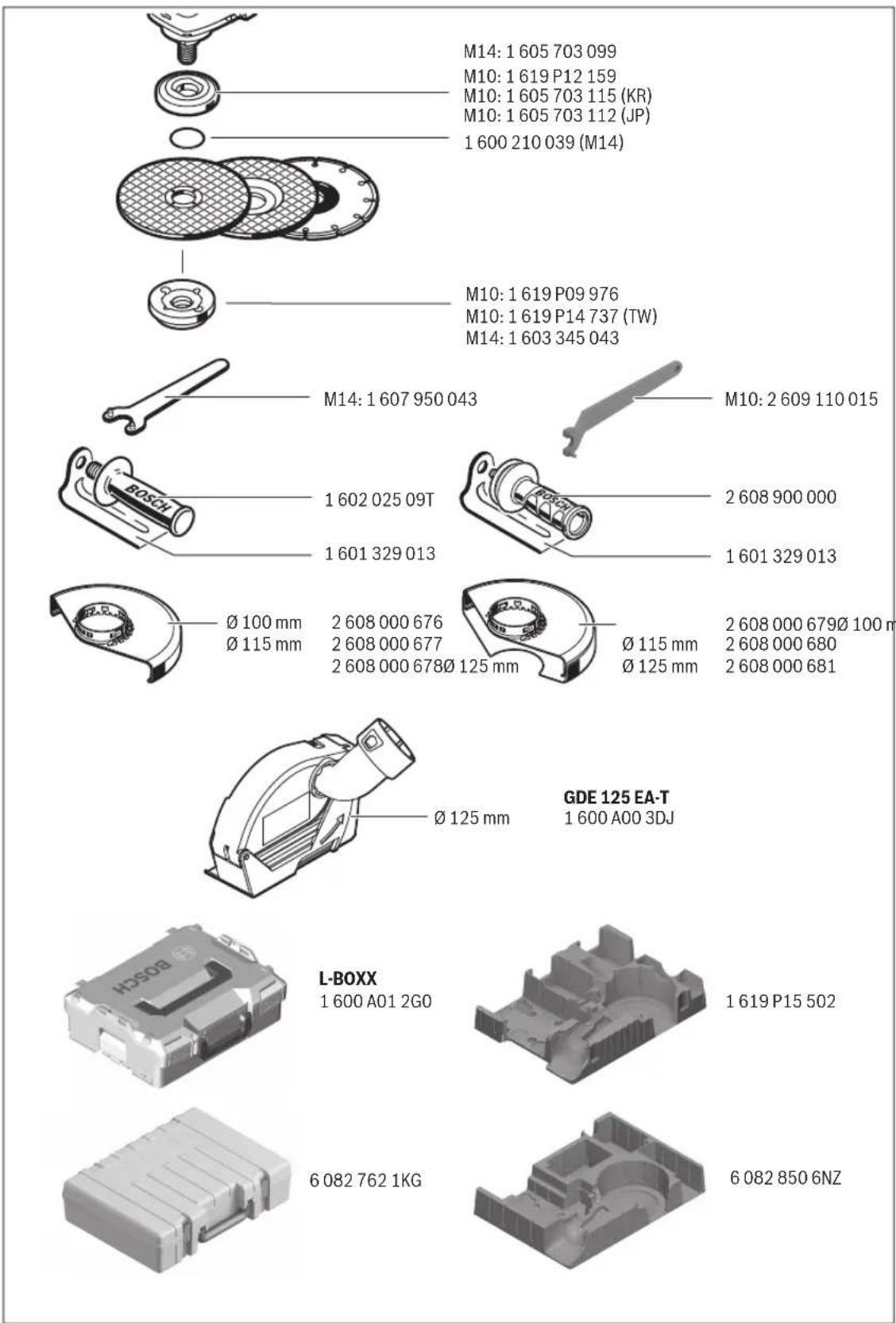

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Angle grinder GWS 18V-7 GWS 18V-7 GWS 18V-7 Article number 3 601 JH9 0B. 3 601 JH9 001 3 601 JH9 002 Rated voltage V= 18 18 18 Rated speed

Max. grinding disc diameter mm 100 115 125 Grinding spindle thread M 10 M 14 M 14 Max. thread length of grinding spindle mm 22 22 22 Restart protection ● ● ● Run-out brake – – – Soft start ● ● ● Weight according to EPTA-Procedure 01:2014

– with low-vibration auxiliary handle kg 2.2–2.9 2.3–3.1 2.3–3.1 – with standard auxiliary handle kg 2.0–2.8 2.2–2.9 2.2–2.9 Recommended ambient temperature during charging °C 0 to +35 0 to +35 0 to +35 Permitted ambient temperature during operation

Measured at 20−25°C with rechargeable batteryProCORE18V 12.0Ah. B) Depends on battery in use C) Limited performance at temperatures <0°C Noise/Vibration Information Noise emission values determined according to EN60745-2-3. Typically, the A-weighted sound pressure level of the power tool is 80dB(A). Uncertainty K=3dB. The noise level when working can exceed the volume stated. Wear hearing pro- tection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN60745-2-3: Surface grinding (roughing):

The vibration level given in these instructions has been measured in accordance with a standardised measuring pro- cedure and may be used to compare power tools. It can also be used for a preliminary estimation of exposure to vibra- tion. The stated vibration level applies to the main applications of the power tool. However, if the power tool is used for differ- ent applications, with different application tools or poorly maintained, the vibration level may differ. This can signific- antly increase the exposure to vibration over the total work- ing period. To estimate the exposure to vibration accurately, the times when the tool is switched off or when it is running but not ac- tually being used should also be taken into account. This can significantly reduce the exposure to vibration over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and application tools, keeping the hands warm, and organising workflows correctly. Fitting Charging the battery u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. 1 609 92A 6KG | (25.06.2021) Bosch Power ToolsEnglish | 21 Note: The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery. The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool is switched off by means of a protective circuit: The application tool no longer rotates. u Do not continue to press the On/Off switch after the power tool has automatically switched off. The battery can be damaged. Follow the instructions on correct disposal. Removing the Battery The battery (5) is equipped with two locking levels to pre- vent the battery from falling out if the battery release button (6) is pressed unintentionally. As long as the battery is inser- ted in the power tool, it is held in position by means of a spring. To remove the battery (5), press the release button (6) and pull the battery out of the power tool. Do not use force to do this. Battery charge indicator The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the power tool is not in operation. Press the button for the battery charge indicator or to show the state of charge. This is also possible when the bat- tery is removed. If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced. Battery model GBA 18V... LEDs Capacity 3× continuous green light 60−100% 2× continuous green light 30−60% 1× continuous green light 5−30% 1× flashing green light 0−5% Battery model ProCORE18V... LEDs Capacity 5× continuous green light 80−100% 4× continuous green light 60−80% LEDs Capacity 3× continuous green light 40−60% 2× continuous green light 20−40% 1× continuous green light 5−20% 1× flashing green light 0−5% Fitting Protective Equipment u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. Note: If the grinding disc breaks during operation or the holding fixtures on the protective guard/power tool become damaged, the power tool must be sent to the after-sales ser- vice immediately; see the "After-Sales Service and Applica- tion Service" section for addresses. Protective guard for grinding Place the protective guard (8) onto the holder on the power tool until the coding cams of the protective guard are aligned with the holder. When doing so, press and hold the unlocking lever (1). Press the protective guard (8) onto the spindle collar un- til the shoulder of the pro- tective guard is sitting on the flange of the power tool and rotate the protective guard until it audibly clicks into place. Adjust the position of the protective guard (8) to meet the requirements of the operation. To do this, push the unlock- ing lever (1) upward and rotate the protective guard (8) into the required position. u Always position the protective guard(8) such that the two cams on the unlocking lever(1) engage in the corresponding openings on the protective guard(8). u Adjust the protective guard (8) such that sparking in the direction of the operator is prevented. u The protective guard (8) must only be adjustable while the unlocking lever (1) is actuated. Otherwise, the power tool must not be used any more under any circumstances and must be sent to the after-sales ser- vice. Note: The coding cams on the protective guard (8) ensure that only a protective guard that is suitable for the power tool can be fitted. Protective guard for cutting u Always use the protective guard for cutting (12) when cutting with bonded abrasives. u Provide sufficient dust extraction when cutting stone. Bosch Power Tools 1 609 92A 6KG | (25.06.2021)22 | English The protective guard for cutting (12) is fitted in the same way as the protective guard for grinding (8). Extraction guard for cutting with a guide block The extraction guard for cutting with a guide block (22) is fit- ted in the same way as the protective guard for grinding (8). Side handle u Do not operate your power tool without the side handle (7). Screw the side handle (7) on the left or right of the machine head depending on how your are working. Low-vibration auxiliary handle The low-vibration auxiliary handle reduces vibration, enabling the tool to be used safely and more comfort- ably. u Do not make any alterations of any kind to the auxili- ary handle. Do not continue to use a damaged auxiliary handle. Hand guard u Always fit the hand guard (16) when working with the rubber sanding plate (17) or with the cup brush/disc brush/flap disc. Attach the hand guard (16) to the side handle (7). Fitting the Abrasive Tools u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. u Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while work- ing. Clean the grinding spindle (15) and all the parts to be fitted. Lock the grinding spindle with the spindle lock button (3) before clamping and releasing the abrasive tools. u Do not press the spindle lock button while the grind- ing spindle is moving. The power tool may become dam- aged if you do this. Grinding/Cutting Disc Pay attention to the dimensions of the grinding tools. The mounting hole diameter must fit the mounting flange without play. Do not use reducers or adapters. When using diamond cutting discs, pay attention that the direction-of-rotation arrow on the diamond cutting disc and the direction of rotation of the machine (see direction-of-ro- tation arrow on the machine head) agree. See graphics page for the mounting sequence. To fasten the grinding/cutting disc, screw on the clamping nut (11) and tighten with the two-hole spanner. u After fitting the abrasive tool, check that the abrasive tool is fitted correctly and can turn freely before switching on the power tool. Make sure that the abras- ive tool does not brush against the protective guard or other parts. Mounting flange for grinding spindle M 14: A plastic part (O-ring) is fitted around the cent- ring collar in the mounting flange (9). If the O- ring is missing or damaged, the mounting flange (9) must be replaced before operation can resume. Flap disc u Always fit the hand guard (16) when working with the flap disc. Rubber Sanding Pad u Always fit the hand guard (16) when working with the rubber sanding pad (17). See the graphics page for fitting instructions. Slide the rubber sanding pad (17) onto the grinding spindle (15). Press the sanding sheet (18) firmly onto the underside of the rubber sanding pad (17). Screw on the round nut (19) and tighten with a two-pin spanner. Cup brush/disc brush u Always fit the hand guard (16) when working with the cup brush or disc brush. See the graphics page for fitting instructions. The cup brush/disc brush must be screwed onto the grinding spindle until it rests firmly against the grinding spindle flange at the end of the grinding spindle thread. Tighten the cup brush/disc brush with an open-ended spanner. Approved abrasive tools You can use all the abrasive tools mentioned in these operat- ing instructions. The permissible speed [min

] or the circumferential speed [m/s] of the abrasive tools used must at least match the val- ues given in the table. It is therefore important to observe the permissible rota- tional/circumferential speed on the label of the abrasive tool. max. [mm] [mm] D b d [min

www.bosch-pt.com/serviceaddresses

GWS 18V-7 GWS 18V-7 GWS 18V-7

www.bosch-pt.com/serviceaddresses

GWS 18V-7 GWS 18V-7 GWS 18V-7

GWS 18V-7 GWS 18V-7 GWS 18V-7

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Angle grinder Article number

• Robert Bosch Power Tools GmbH (PT/ECS) 70538 Stuttgart GERMANY Henk Becker Chairman of Executive Management Helmut Heinzelmann Head of Product Certification Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY Stuttgart, 16.11.2020 Bosch Power Tools 1 609 92A 6KG | (25.06.2021)IV 1 609 92A 6KG | (25.06.2021) Bosch Power Toolsi Declaration of Conformity Angle grinder Article number GWS 18V-7 GWS 18V-7 3 601 JH9 001 3 601 JH9 002 We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations lis- ted below and are in conformity with the following standards. Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom The Supply of Machinery (Safety) Regulations 2008 The Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 EN 60745-1:2009+A11:2010 EN 60745-2-3:2011+A2:2013+ A11:2014+A12:2014+A13:2015 EN 55014-1:2017+A11:2020 EN 55014-2:2015 EN IEC 63000:2018 Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom Vonjy Rajakoba Managing Director - Bosch UK Martin Sibley Head of Sales Operations and Aftersales Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany Place of issue: Uxbridge Date of issue: 11/05/2021 Bosch Power Tools 1 609 92A 6KG | (25.06.2021)
