USER MANUAL DO7110S DOMO

Close-up of a purple and white steam iron with a glossy finish, no visible text or symbols.

DO7110S

Handleiding Strijkijzer met stoomgenerator

Mode d'emploi Fer à repasser avec centrale vapeur

Gebrauchsanleitung Bügeleisen mit dampfgenerator

Instruction booklet Iron with steam generator

Manual de instrucciones Plancha con Generador de vapor

Istruzioni per l'uso Ferro da stiro con caldaia a vapore

Návod k použití Žehlička s parním generátorem

Návod na použitie Žehlička s parným generátorom

Two symbolic icons: a warning triangle with an exclamation mark and an open book (no text or labels)

Technical diagram of a washing machine with numbered parts for identification

CONTROLEPANEEL

Line drawing of a portable air conditioner with a hand operating the top panel (no text or symbols)

Top-down schematic of an oval-shaped mechanical or electrical component with internal circular features and a central hub (no text or symbols)

Prohibition sign depicting a trash bin crossed with a crossed-out line, indicating no waste or discharge.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a washing machine with numbered parts for identification

11 13 14 15 12 16

AVANT LA PREMIÈRE UTILISATION

Line drawing of a portable air conditioner with handle and control panel (no text or symbols)

Top-down schematic of a mechanical or electrical component with no visible text, numbers, or symbols.

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a washing machine with numbered parts for identification

11 13 14 15 12 16

Line drawing of a portable air conditioner with a hand operating the top panel (no text or symbols)

Top-down schematic of an oval-shaped mechanical or electrical component with internal circular features and a central hub (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

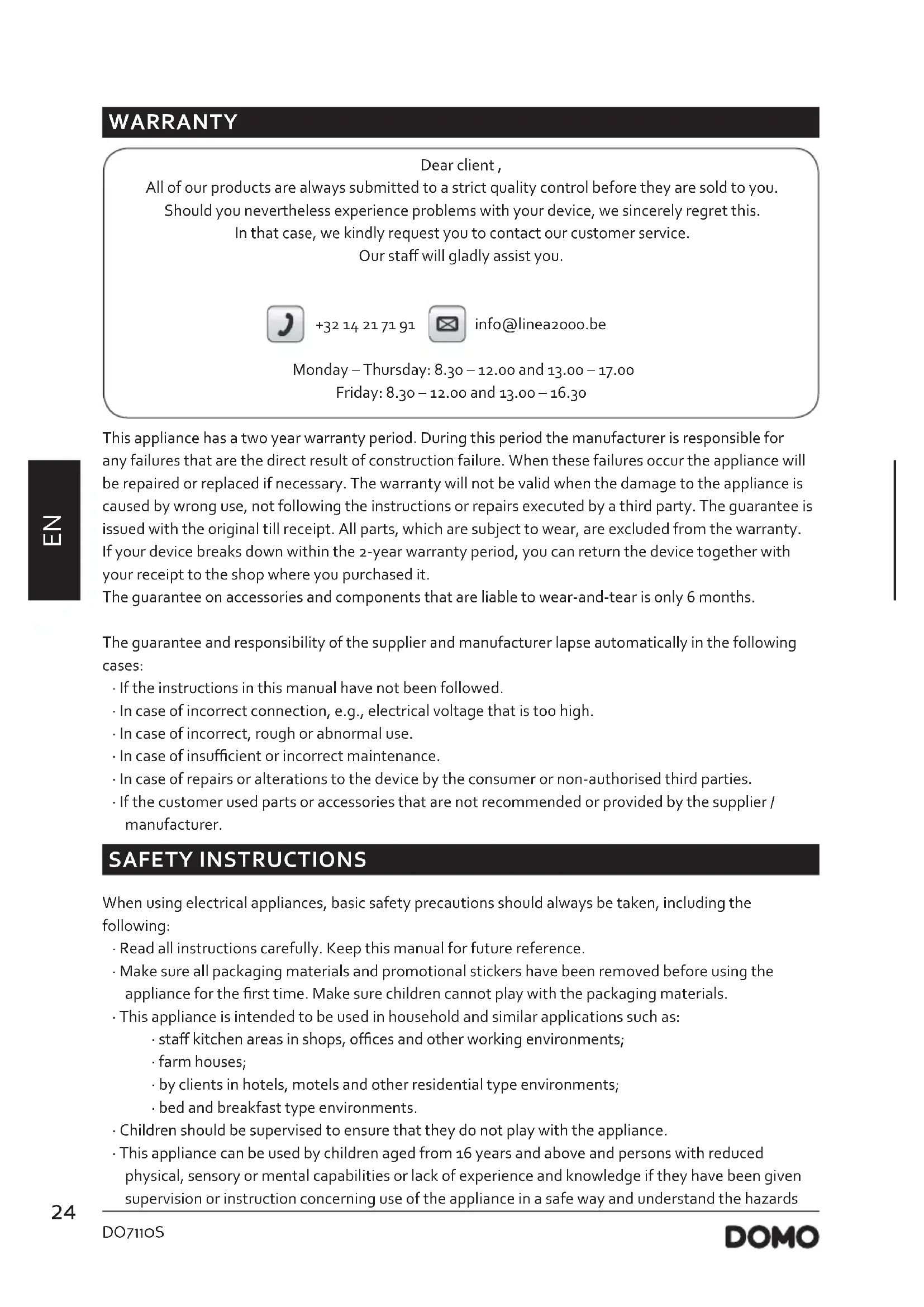

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.
  · This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• The iron must not be left unattended while it is connected to the supply mains.

- The filling aperture must not be opened during use. Follow the instructions of this booklet for safe refilling.

The iron must be used and rested on a flat, stable surface and resistant to heat and hot steam.

- The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking. Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

The surface(s) marked with this symbol are liable to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

• Do not use or store this appliance outdoors.
• Do not move the iron while in use or when still hot. Allow to cool before moving the iron or before maintenance.
• Do not use this appliance for other than intended use.
• Do not fill the water reservoir with any other liquid than water.
• Do not use the steam function of the iron without water in the reservoir. This might cause damage to the iron.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Only use the utensils delivered with the appliance.

To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Do not operate the appliance with wet hands.
• Unwrap the cord completely to prevent overheating of the cord.
• Do not let the power supply cord touch hot surfaces.
• Only fill the water reservoir with no other liquid than water.
• Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
• Make sure the appliance has cooled down before opening the boiler for cleaning. Make sure the bolt of the boiler is correctly and well fixed onto the appliance after maintenance.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.
  · SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

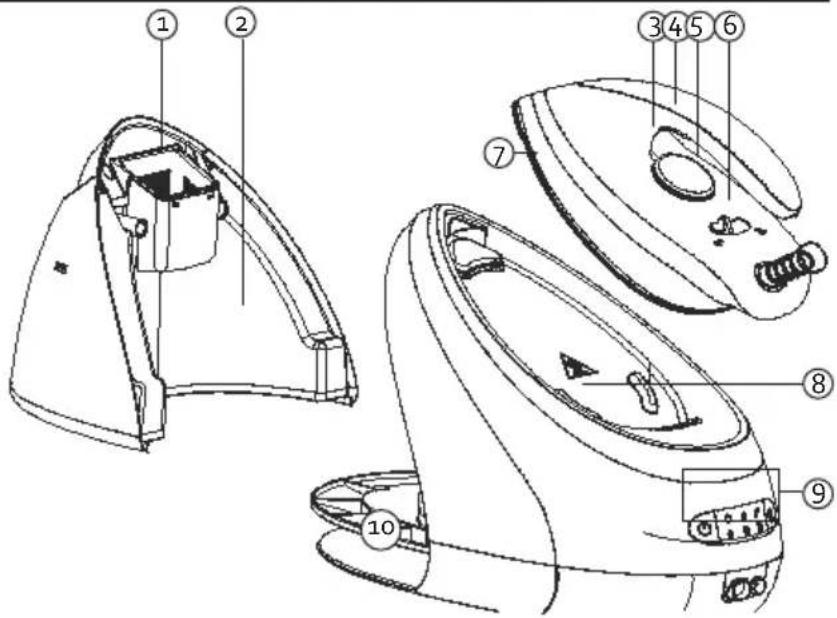

PARTS

1. Filling opening
2. Water tank
3. Temperature indication light
4. Steam release button
5. Temperature dial
6. Carry lock
7. Soleplate
8. Thermal insulation pads
9. Control Panel
10. Cord storage

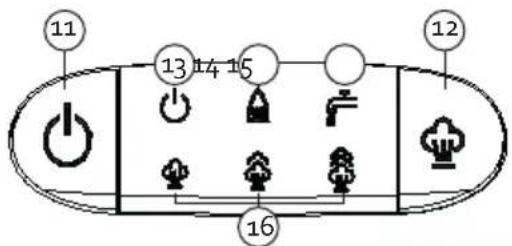

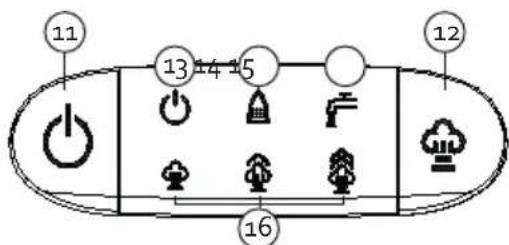

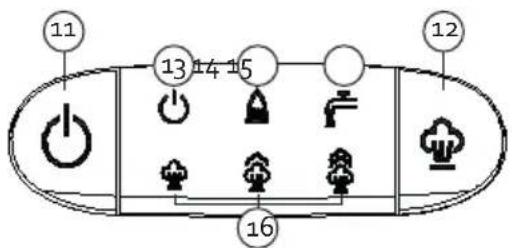

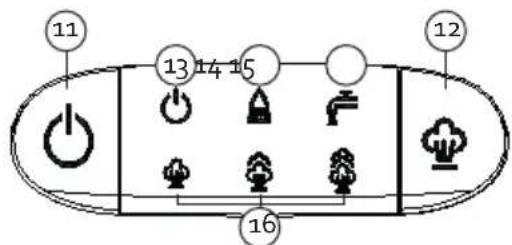

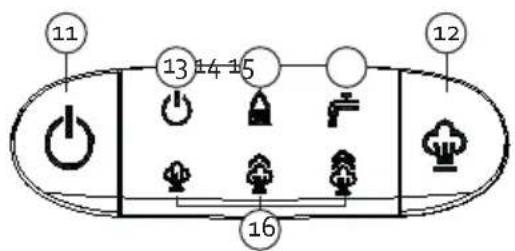

CONTROL PANEL

1. On/off button
2. Steam selection button
3. On/off indication light
4. Descale indication light
5. Water level indication light
6. Steam indication light

Technical diagram of a washing machine with numbered parts for identification

11 13 14 15 12 16

BEFORE THE FIRST USE

1. Remove any stickers or protective foil from the soleplate.
2. Heat up the iron until the maximum temperature and iron on a damp cloth during a couple of minutes to remove any possible residues from the soleplate. Iron according to the instructions in the section «Steam ironing».

Caution:

• During the first use it is normal that a specific odeur escapes from the appliance. This odeur will disappear after a while.
• Some particles may come out of the soleplate during the first use. This is normal. The particles are harmless and will disappear after a while.
• When turning on the appliance, the steam generator may produce a pumping sound. This is normal. This sound indicates that water is pumped into the steam generator.
• While the soleplate is heating up, some steam will be released automatically. This is also normal and will last for about 3 seconds.

USE

This steam generator offers 2 options: dry ironing or steam ironing. Follow the instructions below. Also carefully read the ironing tips at the end of this section before using the appliance.

DRY IRONING

1. Place the iron on the thermal insulation pads of the steam generator.
2. Put the plug into the outlet and press the on/off button. The on/off indication light will start flashing.
3. Select the desired temperature with the temperature dial, according to the kind of fabric that needs to be ironed. The temperature indicator will light up and the iron will start heating up.
4. When the temperature indicator goes out, the selected temperature has been reached. You can now start ironing.
   Caution: Never touch the hot soleplate!

STEAM IRONING

Caution: do not plug in the appliance yet at this point.

1. Take the water reservoir of the steam generator by the handle and pull the water tank out of the generator. Fill the water tank with water. Make sure that you do not exceed the maximum level (1.8 L). Use only mains water or 50 % mains water and 50 % de-mineralised water if you have hard water.
2. Place the water tank back into the steam generator. Caution: if the reservoir is not replaced properly, the machine will not produce any steam.
3. Put the plug into the outlet and press the on/off button. Set the temperature dial to the desired temperature, according to the kind of fabric, and the temperature indicator will light up.
4. The water in the water reservoir will heat up and after a few minutes the temperature light will go out. This means that the steam generator has reached the correct temperature.
5. Selection of the amount of steam is done with the steam selection button. The steam indication light of the amount selected will light up blue. If the appliance is still heating up, the light will flash.
6. To iron with steam, press the steam button on the inside of the iron's handle. A continuous flow of steam will come out of the sole. When you release the button, you will iron dry, without steam.
7. Use a steam boost to get rid of stubborn wrinkles. Press the steam button twice in rapid succession. There is a 15-second wait in order to use the steam boost a 2nd time. Please note: the steam amount must be set to medium or high. Select this amount with the steam selection button.
8. Please note:

· Do not touch the hot sole of the iron!

· Never aim steam at people!

1. After ironing, press and hold the on-off button for a few seconds to turn the appliance off. All indications lights will turn off. Remove the plug from the socket. Allow the appliance to cool completely.

2. If you have do not use the steam button or the buttons on the control panel for 10 minutes, the appliance will turn off automatically. This is a safety feature in case you forget to turn the iron off.

IRONING TABLE

Use the dial to select the correct temperature for the correct material.

Symbol Fabric Temperature dial
	synthetic fabric/silk	70●
	wool	100●●
	cotton linnen	140●●●170MAX
	This symbol means that the article can not be ironed!

IRONING TIPS

• Always check first if there is a label on the garment with instructions for ironing. If this is the case, then always follow these instructions.
• The iron heats up faster than it cools down. Therefore, always iron the garments that require the lowest temperature first, like synthetic fabrics.

• If a fabric contains several types of fibres, always choose the lowest temperature to iron the combination of these fibres.

• Silk and other shiny fabrics should be ironed inside-out.

• Velvet and other fabrics that easily become shiny should be ironing with slight pressure, in one direction. Always keep the iron moving.
• Never iron over zippers or other metal objects in a garment. This can damage the soleplate. Always iron around such objects.

Caution: if you iron woollen fabrics, the fabric may become shiny. That is why you should turn the garment inside-out for ironing.

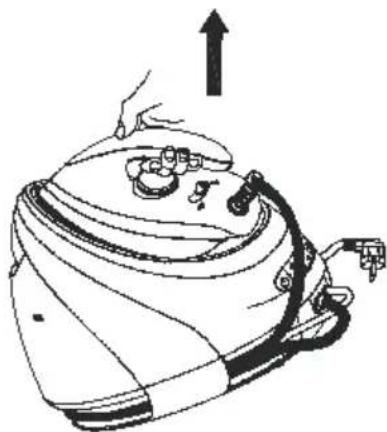

CARRY LOCK

1. Put the iron on the thermal insulation pads.
2. Slide the carry lock to the closed lock icon.

1. You can now carry the iron by the handle.

Line drawing of a hand operating a device with an upward arrow indicating motion (no text or symbols)

1. To iron, slide the carry lock to the open lock icon.

CLEANING AND MAINTENANCE

1. Unplug the appliance and let it cool down before cleaning it.
2. Wipe residues from the soleplate with a damp cloth or with a non-abrasive (liquid) cleaner. Caution: Do not use any chemical, steel, wooden or abrasive cleaners to scrape the soleplate.
3. Clean the upper part of the iron with a soft, damp cloth.
4. Wipe the water drops on the steam generator and the thermal insulation pads with a dry cloth.
5. When not using the steam generator for a long time, pour out the water from the water tank and place the iron on the thermal insulation pads to store the appliance.
6. Store the steam hose and the power cord in the storage area provided.

CAUTION: Only use tap water (or 50% tap water and 50% demineralized water in case of hard water) in your steam generator. Careful: De-scaled or de-mineralised water must never be used on its own, but must be combined with tap water. In case of use of a "softener" and/or perfumed water, brown stains could emerge, which would cause damage to the steam chamber.

DESCALING

When the indicator light of the de-scale button lights up, the appliance must be de-scaled.

1. Allow the appliance to cool down completely before de-scaling.

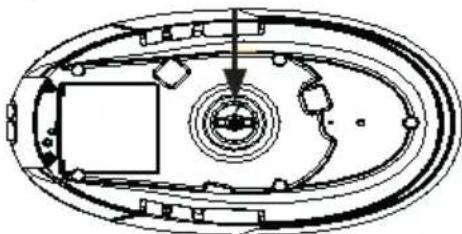

2. Remove the water reservoir. Rotate the appliance and open the lid for de-scaling at the bottom of the appliance.

Tip: use a towel to open the cap.

Top-down schematic of an oval-shaped mechanical or electrical component with internal concentric rings and no visible text or symbols.

1. Place the appliance on a collection container and let the water flow away.
2. Fill the appliance with water through the opening on the bottom. Rinse the inside thoroughly. Let the water flow away.
3. Replace the de-scaling lid and tighten it.
4. Replace the water reservoir in the appliance. Place the iron on the thermal isolation cushions. You

may now continue to iron or else store the appliance.

Note: when turning on the appliance, it'll take a few seconds before the indication light goes out. The appliance must pump up water from the water tank in to the iron first.

ENVIRONMENTAL GUIDELINES

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Technical diagram of a washing machine with numbered parts for identification

11 13 14 15 12 16

Line drawing of a portable air conditioner with a hand operating the top panel and a black upward arrow indicating motion (no text or symbols)

Top-down schematic of a mechanical or electrical component with concentric circles and internal components (no text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a washing machine with numbered parts for identification

11 13 14 15 12 16

PRIMA DELL'USO

Line drawing of a portable air conditioner with handle and control panel (no text or symbols)

Top-down schematic of an oval-shaped mechanical or electrical component with internal components and a central circular feature (no text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a steam iron with numbered parts for identification

11 13 14 15 12 16

PŘED PRVNÍM POUŽITÍM

Line drawing of a hand operating a portable air conditioner with attached cables and buttons (no text or symbols)

Top-down schematic of an oval-shaped mechanical or electrical component with internal components and a central hub (no text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign depicting a trash bin crossed with crossed lines, indicating no waste or discharge.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a washing machine with numbered parts for identification

11 13 14 15 12 16

PRED PRVÝM POUŽITÍM

Line drawing of a portable air conditioner with handle and control panel (no text or symbols)

Top-down schematic of an oval-shaped mechanical or electrical component with internal components and a central hub (no text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Four-panel image showing different food items: milk bottles, rolled food sheets, a glass pitcher with black handle, and a dark container (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
