USER MANUAL SL20 Cube Eurom
CE - verklaring Hierbij verklaart Eurom – Kokosstraat 20 – 8281 JC – Genemuiden - NL dat de EUROM Slanghaspel, type SL20 Cube voldoet aan en is in overeenstemming met onderstaande richtlijnen en normen: Machine richtlijn 2006/42/EC EN ISO 12100:2010 RoHS 2011/65/EU&(EU)2015/863 Genemuiden, 12-11-2020 W.J. Bakker, alg. dir.7 Thank you Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning. To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment. Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too. We wish you a lot of fun with the SL20 Cube! Eurom Kokosstraat 20 8281 JC Genemuiden (NL) info@eurom.nl www.eurom.nl This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.
Introduction The EUROM SL20 Cube hose reel is intended for household use such as the spraying of gardens, car washing, etc. You must therefore not use it for other purposes. The reel is produced from high quality materials and parts. It is equipped with a: stop-where-you-want-system: it is simple to roll out the hose to any desired length (possibly with an extension) and lock it, and then roll the hose up again automatically safe-return-system: the hose rolls up at a speed that prevents the end whipping around dangerously. The hose on the EUROM SL20 Cube is 20 metres long. The mounting bracket can be used to fasten the reel to a wall. The fact that the reel can revolve 180° in relation to the wall means that a minimum amount of space is required.8 Technical details Length of hose 20 m Hose material PVC Housing material

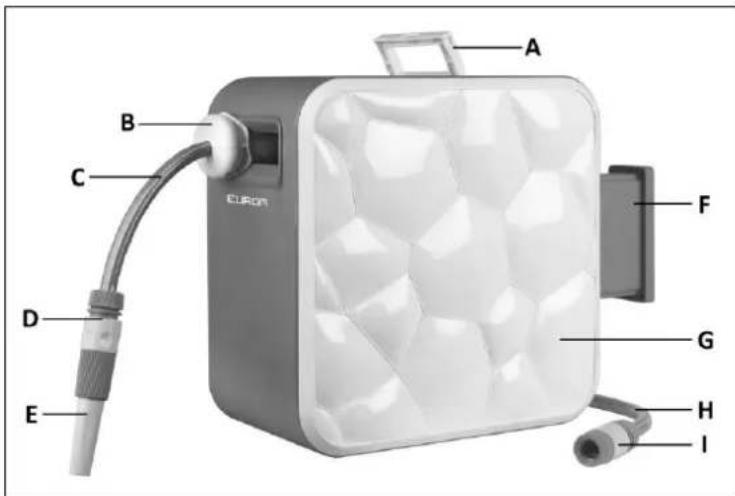

Description A. Handle B. Hose stopper C. Hose D. Quick coupling hose/nozzle E. Nozzle F. Wall support G. Housing H. Water inlet hose
1. Select a suitable place for the reel: on a sturdy wall at around 80 cm above the
ground and near a tap. You must be able to fit the full length of the bolts firmly into the wall.
2. Secure the wall support vertically on the wall. Drill 4 suitable holes in the wall,
insert the plugs supplied and attach the wall support to the wall with the screws. (The wall support can also be secured to another surface as long as it is strong enough to bear the reel. The materials supplied are suitable for a brick wall.)

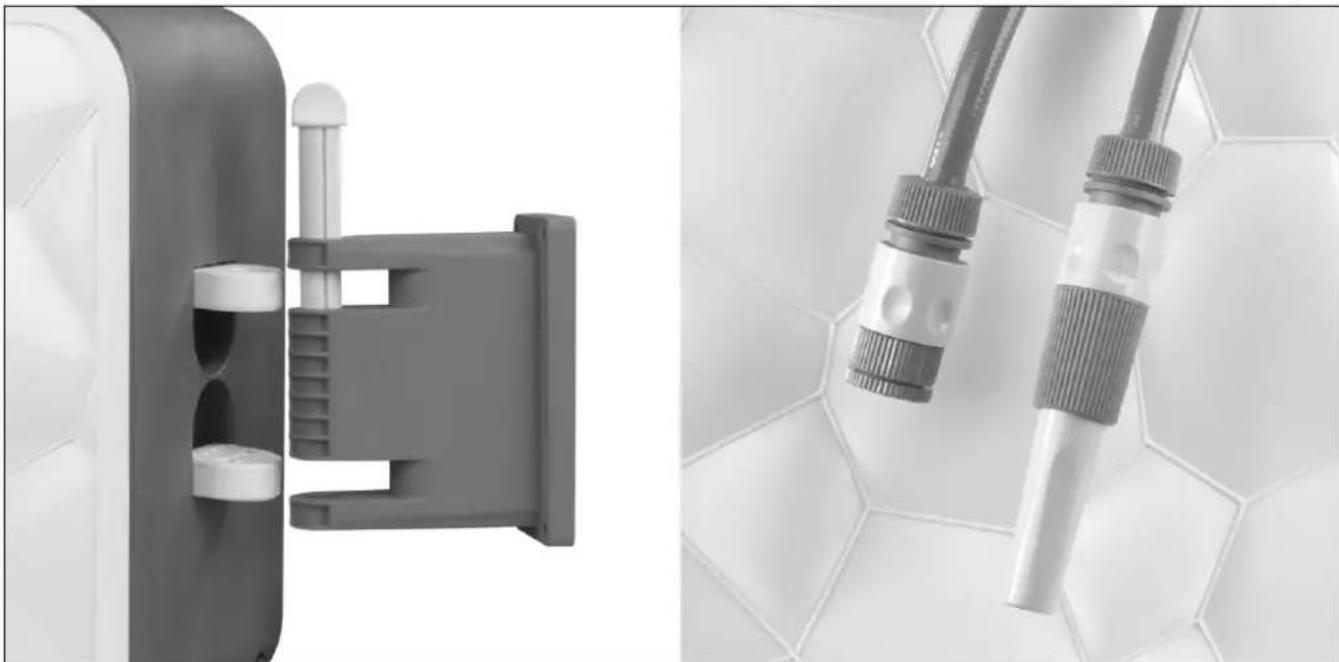

3. Now, you can hang the reel in the support. For that, insert the pin supplied
through the reel and support, see diagram.9
