USER MANUAL Arctis 1 Wireless STEELSERIES

PRODUCT INFORMATION GUIDE

CONTENTS

Welcome 2

SteelSeries Engine 3

Product overview 5

Setup

Wireless Setup 7

Wired Setup 8

Charging 9

Power On/Off 10

Pairing 11

Microphone 12

Multimedia Control 13

Translations

Espanol 14

简体中文 16

繁體中文 18

日本語 20

韩国兒 23

Deutsch 25

Pycckn 27

Francais 30

Italiano 32

Portugués 34

1J6yso 37

Regulatory 40

WELCOME TO ARCTIS

Your new headset is the result of our unyielding pursuit of perfection for over 15 years. We poured our hearts into creating the best possible gaming headset by pushing the boundaries of sound quality, mic clarity, comfort, and style. Arctis is our glory; now go chase yours.

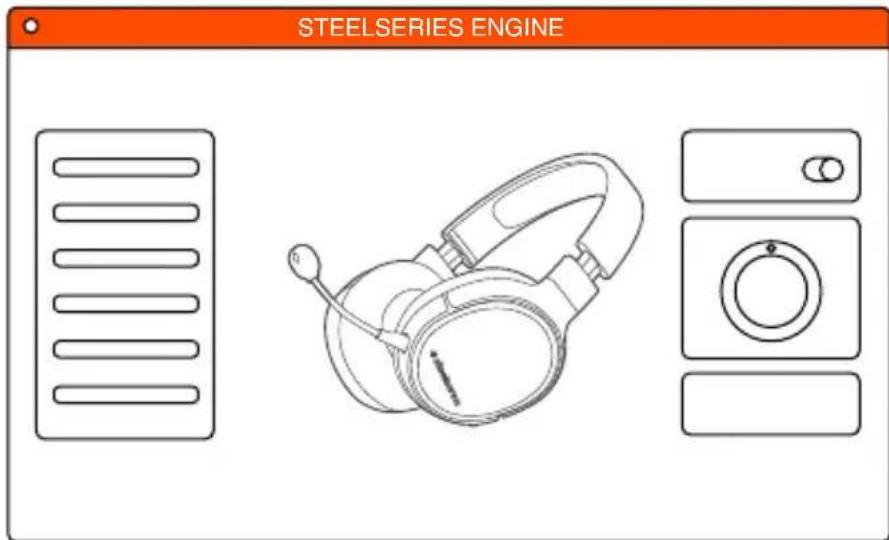

STEELSERIES ENGINE

Download SteelSeries Engine to customize your audio settings and to integrate with Engine Apps (like Discord): steelseries.com/engine

PACKAGE CONTENTS

Arctis 1 Wireless Headset

USB-C Wireless Dongle

USB Charging Cable

USB-C to USB-A Adapter Cable

ClearCast Microphone

SYSTEM REQUIREMENTS // COMPATIBILITY

PC

Playstation 4

Nintendo Switch

Android (with USB-C)

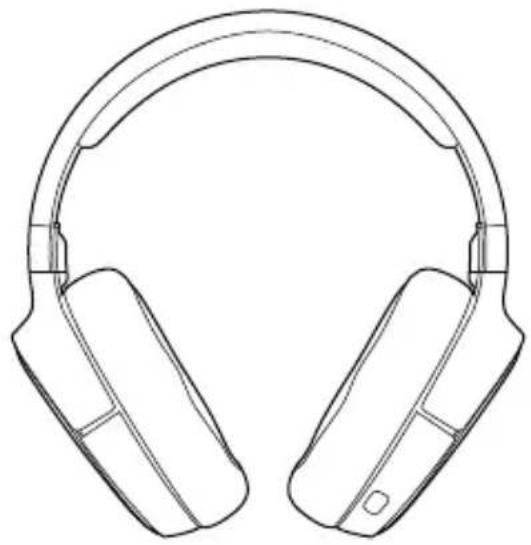

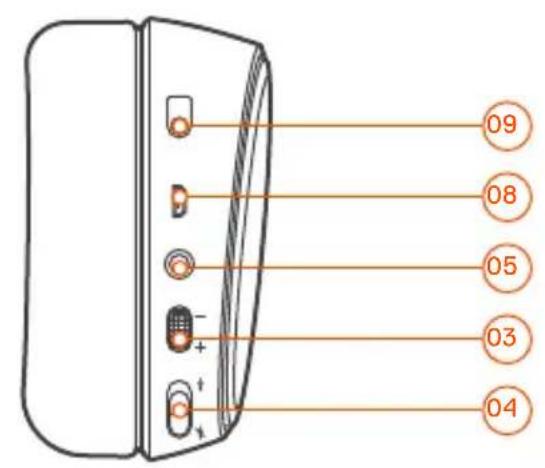

PRODUCT OVERVIEW

01 ClearCast Microphone
02 Airweave Ear Cushions*
03 Volume Wheel
04 Microphone Mute Switch
05 3.5 mm Audio Jack

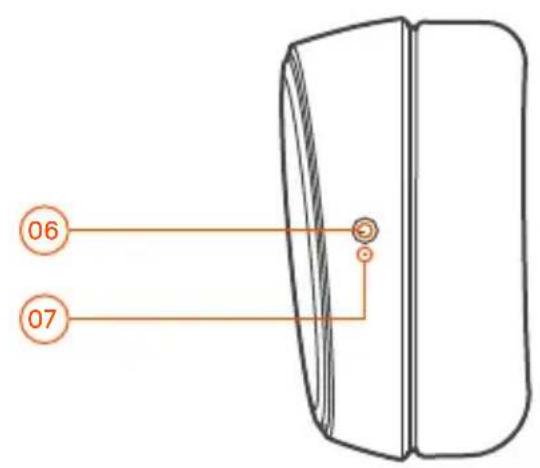

06PowerButton
07 Power LED
08 Micro-USB Jack for charging and firmware updates
09 Microphone Jack
10 USB-C wireless Dongle
11 Micro-USB charging Cable
12 USB-C to USB-A Adapter Cable
13 3.5mm Audio Cable

• Find accessories and replacement parts at steelseries.com/gaming-accessories

SETUP

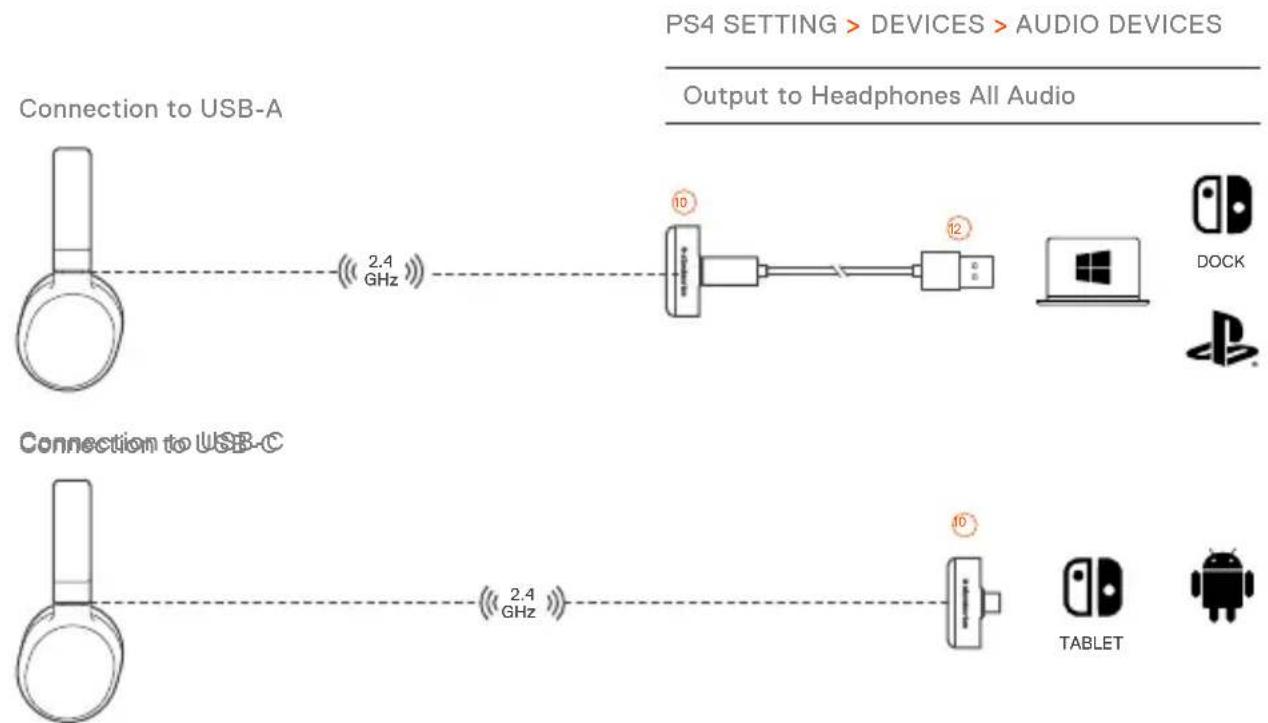

WIRELESS SETUP

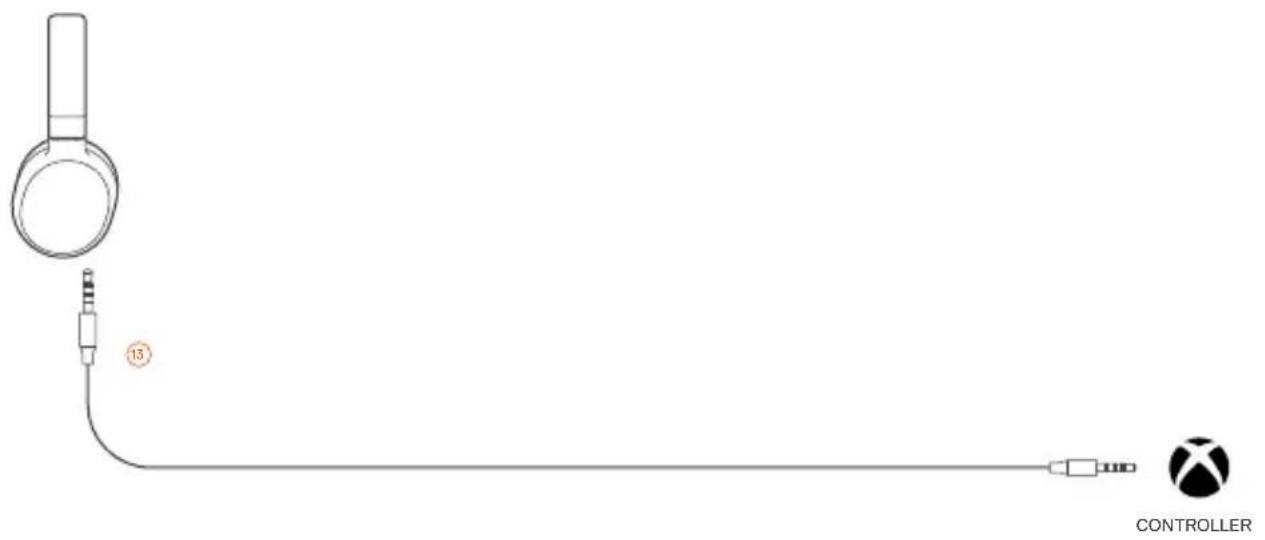

WIRED SETUP

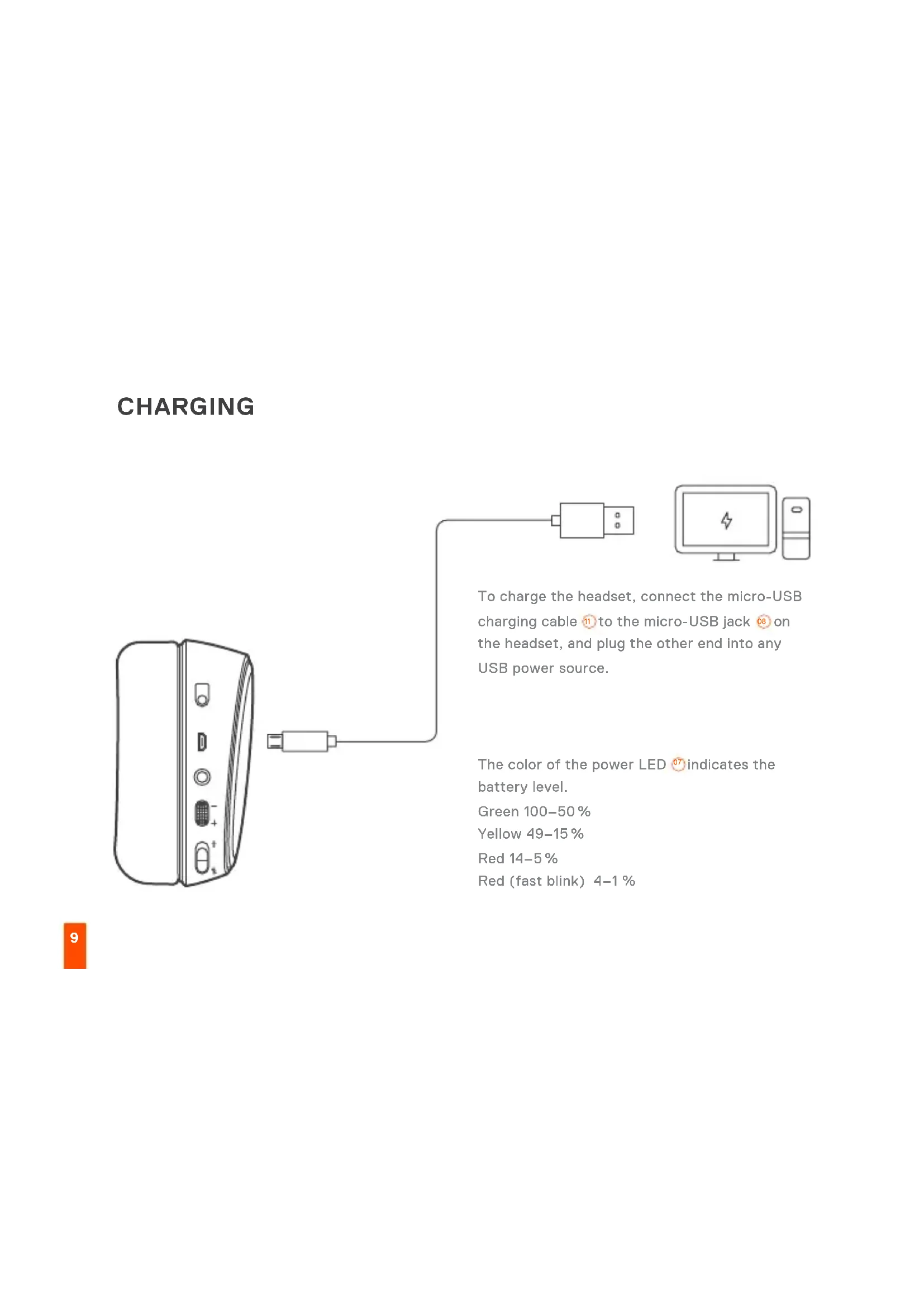

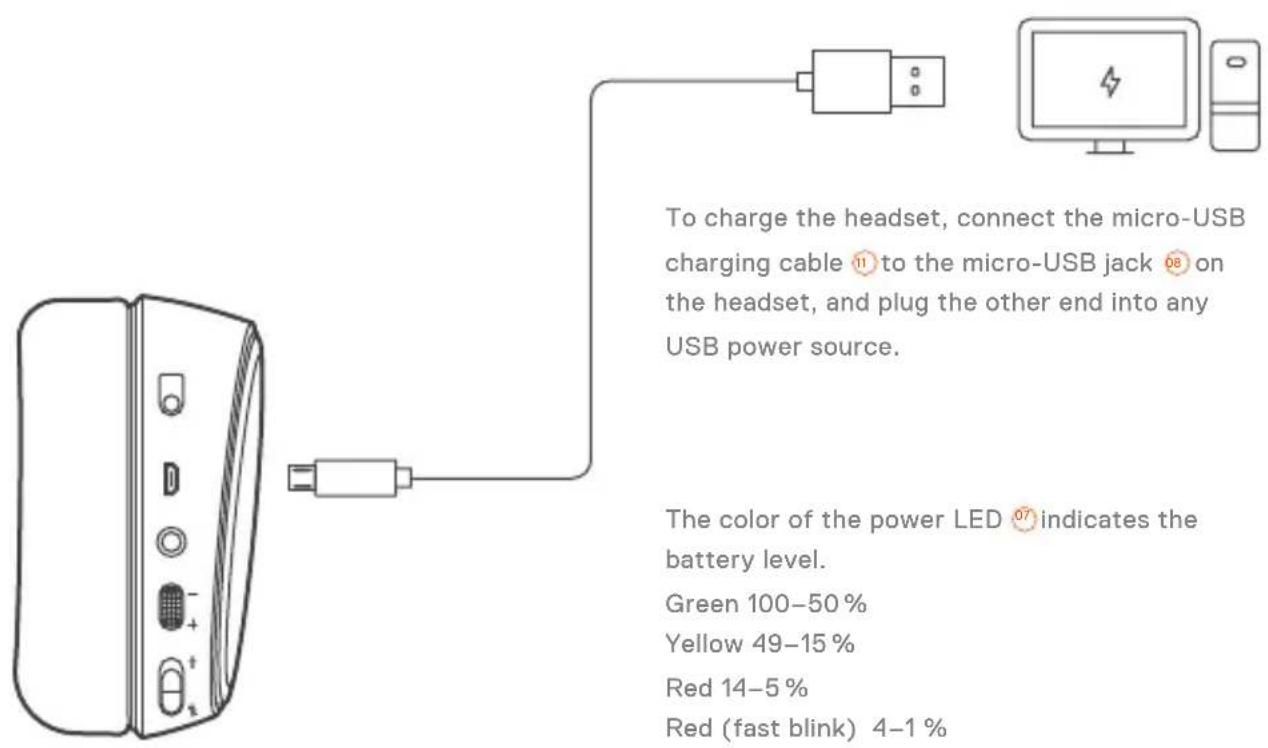

CHARGING

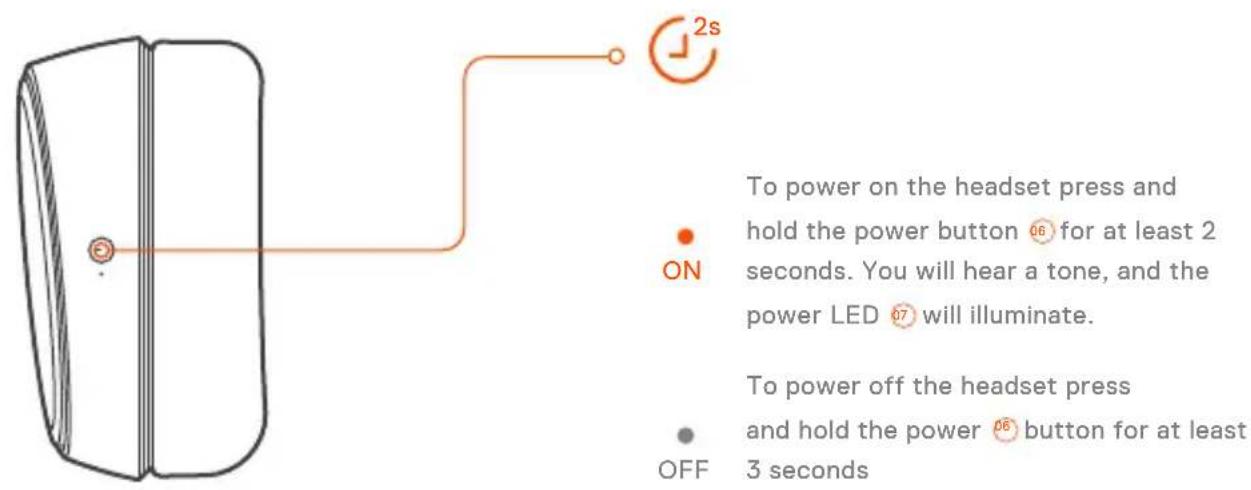

POWER ON/OFF

PAIRING

Note: The headset is already paired with the transmitter out of the box

01 Connect the USB-C wireless dongle to a Windows PC with SteelSeries Engine installed
02 Initiate wireless dongle pairing from Engine
03 With the headset off, press and hold the power button for 6 seconds
04 You will hear a tone when the pairing is completed

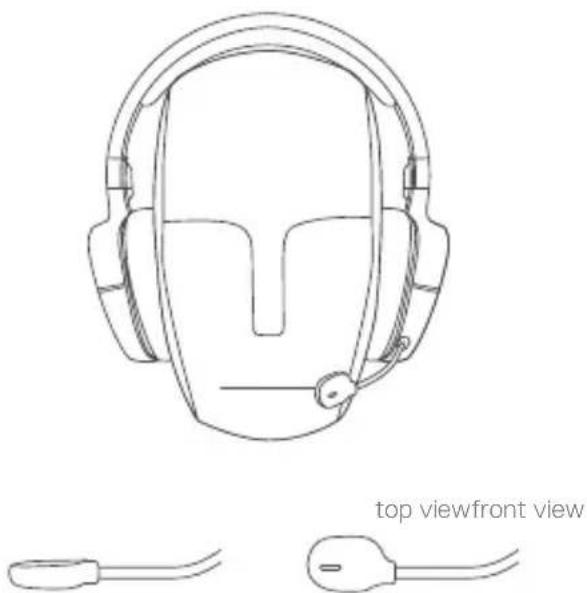

MICROPHONE

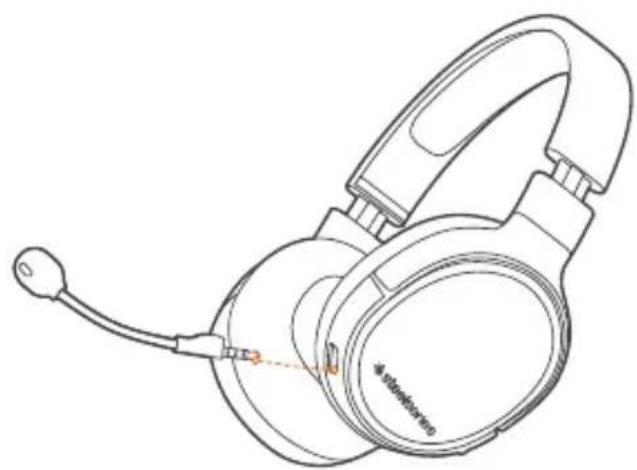

Microphone attachment

Position the microphone close to the corner of your mouth with the flat surface facing you

MULTIMEDIA CONTROL

Answer/end voice call

single·pressPowerButton 66

Play/pause music

single·pressPowerButton66

Next track

double...pressPowerButton 06

Previous track

triple...pressPowerButton

ESPÁNOL

Cable adaptor USB-C a USB-A

Micrófono ClearCast

Headset Arctis 1 Wireless

Drahtloser USB-C-Dongle

USB-Ladekabel

BbIXoDnIyHsHnKOB Bceaydno

IopKJIuOHeHneK USB-C

HACTPOIKA IPOBOIDHOIPOKJIIOUOHENIA

3APRAKA

ДяЗapядкн rapнтурь подкючп Te Ka6eNB Mnkpo-USB K rHe3dny HayshNKOB Mnkpo-USB, a pyro erO KoheC - K JIO6OMy nCTOuHnky nHTaHn USB.

UBeTnHnKaTopaNTaHn80Noka3bIBaet yPoBHe 3apra6aTapen.

3eNeHb1 100-50%

Kentby 49-15%

Kpacnb1 14-5%

KpacbHb（6bIcTpmoMuraet）4-1%

BKNIOUOHE/HbIKIOUOHEHNE NHTAHN

ДяВКЛЮЧЕнЯ rapHNTypbI HaKMITE n ydeprKINBaIte KHOKNy NITaHnA 6 KaK mHmym2 cekynbl. BbyucbluHTe 3ByKOBOI cnHaI, 3aROPNTc HNDNKATOp NITaHnA 07.

VUE D'ENSEMBLE DU PRODUIT

Dongle wireless USB-C

Juswseis support.steelseries.com

gulucu 1jpu

01

02 p

03 2

04 aiee

053.5

06

07 LED

08 2JUSB

09 1Jy

10JUUSUB-C

11 USB

12 USB-C USB-A

13 3.5

• Cjouj Eusl Ulluusj k jgge Uusj Jsteelseries.com/gaming-accessories

J

USB-A

$$ \mathrm {E} \Delta \Delta \mathrm {P S} 4 > \mathrm {U} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} \mathrm {I} $$

$$ \mathrm {p e} \in \cup \mathrm {w a l e} \mathrm {e} \mathrm {c a s e} \cup \mathrm {w a g g i n} $$

$$ U _ {1} = \frac {1}{2} U _ {2} + \frac {1}{2} U _ {3} + \frac {1}{2} U _ {4} + U S B - C $$

$$ \mathrm {L} _ {\mathrm {i n}} \mathrm {L} _ {\mathrm {o u t}} \mathrm {L} _ {\mathrm {o u t}} \mathrm {L} _ {\mathrm {o u t}} $$

山

UeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUae UeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUeUUe

UuUuUuUuUuLED 07 uuuuuu

$$ 100 - 50\% $$

$$ 49 - 15\% $$

$$ 14 - 5\% $$

$$ 4 - 1 \% $$

1J 1

JU 08

1

$$ \widehat {C} g \widehat {C} s $$

1. a,b = 2,

111 11

JUUB-CCU 10USS

1

JUepe 1 Jep EUs jUe6

U

1

$$ \therefore \lim _ {x \to 0} \frac {\sin^ {2} x}{\cos^ {2} x + 1} = \frac {1}{3} $$

e Jpalsej g jg jgs glb y

$$ \therefore \angle A C B = 1 8 0 ^ {\circ} $$

$$ w _ {i j} = \frac {1}{2} w _ {i j} w _ {j k} $$

U

1. i.i.e. 2. JSTT

s s s s s s s s s s s s s s s s s s s s

Ue UuU 06

Ue Uo Uo Uo Uo 06

REGULATORY

Europe - EU Declaration of Conformity

Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC
Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.
The full text of the EU declaration of conformity is available at the following internet address https://steelseries.com/
Operating Temperature: 0 to +40 °C
SteelSeries ApS, hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for all of products.
Frequency bands and Powers (Headset and Transceiver)
a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz
b. Maximum radio-frequency power transmitted in the
frequency band(s) in which the radio equipment operates:
-EIRP: n/4-DQPSK: 5.35 dBm (Headset ANT 1)
EIRP: n/4-DQPSK: 4.26 dBm (Headset ANT 2)
-EIRP: n/4-DQPSK: 9.32 dBm (Transceiver)
c. Software Version: V1.06

UK Declaration of Conformity

Hereby, SteelSeries ApS, declares that the following equipment which is compliance with Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 issued by the Department for Business, Energy& Industrial Strategy.

The full text of the UK declaration of conformity is available at the following internet address: www.steelseries.com

TURKEY ROHS COMPLIANCE

Republic of Turkey: In conformity with the EEE Regulation

This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Safety Guideline for Lithium Battery

This battery must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

"CAUTION!" Risk of explosion if battery pack is not replace by same type as specified by the manufacturer.

Please keep follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard.

1. The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.

2. Please keep this battery pack away from fire and high heat sources due to explosion might happen. Do not place your battery pack close to any heater or hot location.

3. This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.
4. This battery pack shall not be exposed to moisture, dripping or splashing.
5. If any electrolyte flow out of this battery pack when touch the user's eyes and skin, please seek medical advice immediately.

"MISE EN GARDE!"

RISQUE D'EXPLOSION SI LE BLOC-PILES N'EST PAS REMPLACÉ PAR LE MÈME TYPE QUE SPÉCIFIÉ PAR LE FABRICANT.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement:

The device has been evaluated to meet general RF exposure requirement, the device can be used in portable exposure condition without restriction.

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Headset FCC ID: ZHK-HS00021

Transceiver FCC ID: ZHK-HS00021TX

Industry Canada Statement:

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1) this device may not cause interference, and
2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.

The County Code Selection feature is disabled for products marketed in the US/ Canada.

The appliance must not be exposed to splashes or drops of water and it should not be used as a support for any object filled with liquid, such as a vase.

Radiation Exposure Statement:

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

More information and support from https://steelseries.com/

Product Name

Wireless Headset (無線耳機/無線耳机)

Complies with IMDA Standards DA 106032

Singapore approval (IMDA)

Custom Union Compliance. (Russia / Belarus / Kazakhstan)

Direct Current

ACMA Compliance (Australia/New-Zealand)

Malaysia Approval (SIRIM)
