10331 - Coffee machine KORONA - Free user manual and instructions

Brand	KORONA
Model	10331
Product type	Coffee machine (drip coffee maker)
Capacity	10 cups (water tank with level indicator)
Carafe material	Glass
Main functions	Automatic brewing, keep warm, auto shut-off after 40 minutes
Power supply	Mains connection (voltage suitable for outlet)
Filter type	Disposable paper filter or permanent filter
Safety	Hot surfaces indicated, auto shut-off, do not immerse in water
Cleaning and maintenance	Clean after each use, descale regularly with mild descaling agent
Warranty	2 years against material and workmanship defects
Customer service	KORONA Service, Am Steinbach 9, 59872 Meschede-Enste, Germany - Tel. [phone] - Email [e-mail]
Country of manufacture	Germany (brand)
Dimensions (approx.)	Approx. 25 cm x 20 cm x 30 cm (estimated)
Weight (approx.)	Approx. 1.5 kg (estimated)
Power consumption	Approx. 1000 W (estimated)

Frequently Asked Questions - 10331 KORONA

How to descale my Korona 10331 coffee machine?

Use a mild descaling agent suitable for coffee machines. Follow the descaling agent manufacturer's instructions. After descaling, rinse the appliance by running clear water as indicated in the 'Before first use' section.

Can I use a permanent filter instead of a paper filter?

Yes, you can use the provided permanent filter. In this case, do not insert a paper filter. The permanent filter must be cleaned after each use.

What to do if my machine does not turn on?

Check that the appliance is correctly plugged in and that the power outlet is working. Make sure the carafe is properly placed on the hot plate, as a safety switch may prevent operation if the carafe is missing.

Does the machine shut off automatically?

Yes, the machine turns off automatically after 40 minutes for safety reasons. The keep warm function is also deactivated at that time.

Can I make tea in this machine?

No, this appliance is designed only for coffee preparation. Use for other liquids may damage the appliance and poses a risk of burns.

How to clean the glass carafe?

Wash the carafe with warm soapy water. Rinse thoroughly. Do not immerse it in water and do not put it in the dishwasher if the manual advises against it.

What does the indicator light mean?

The light turns on when the appliance is in operation and turns off automatically after the auto shut-off. It also indicates that the coffee is kept warm.

Can I interrupt the brewing cycle?

Yes, you can interrupt the cycle by pressing the on/off button. If you remove the carafe, the dripping process stops and automatically resumes if you replace it within 30 seconds.

What type of ground coffee to use?

Use ground coffee for drip coffee maker. The amount depends on your taste; adjust the dose according to the number of cups desired. Do not exceed the max water level.

Where can I find spare parts?

Contact KORONA customer service by email at [e-mail] or by phone at 02933 90284-80. They can direct you to compatible spare parts.

USER MANUAL 10331 KORONA

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

incorrect use.

to the user.

voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

An electric appliance is not a toy!

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by

years.

cleaning.

avoid any damage to the appliance.

to trip when in use. Do not allow the cord to hang over sharp edges.

Do not use the appliance,

repair the appliance yourself.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

immediately after operation. Only use the handle. Danger of serious burns!

operation, hot steam evaporates. Danger of serious burns!

spilling. Danger of serious burns!

before cleaning.

Instruction Manual

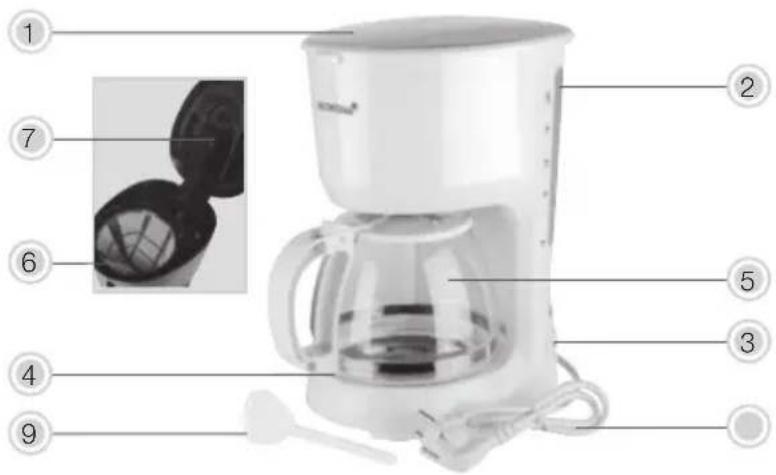

Product Description

1.Appliance lid
2. Water tank with water level indicator

1. Hot plate
2. Carafe
3. Filter holder + permanent filter
4. Water outlet

Before First Use

times without coffee. After that your coffee maker is ready for operation.

Note: After each rinse cycle, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Operation

Brewing Coffee

Using a Paper Filter

1. Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
2. Open the appliance lid (1) and fill the water tank (2) with cold, fresh tap water. The markings on the water tank (2)

slightly down.

Note: When using a paper filter, remove the permanent filter from the filter holder before inserting the paper filter.

the amount of coffee!

into the appliance

switched on again the appliance will continue with the brewing process.

Note: If you wish to have a cup of coffee before the brewing cycle is completed, remove the carafe (5) from the can. Due to the automatic drip stop, dripping will automatically cease. Put the carafe (5) back within 30 seconds, and the process will automatically resume.

1. After the brewing cycle is completed (no more water is dripping through the filter), the carafe (5) can be removed. When serving coffee do not remove the lid in order to preserve the proper

after serving. The hotplate (4) will automatically cycle on and off to maintain the ideal serving temperature as long as the coffee maker is switched on.

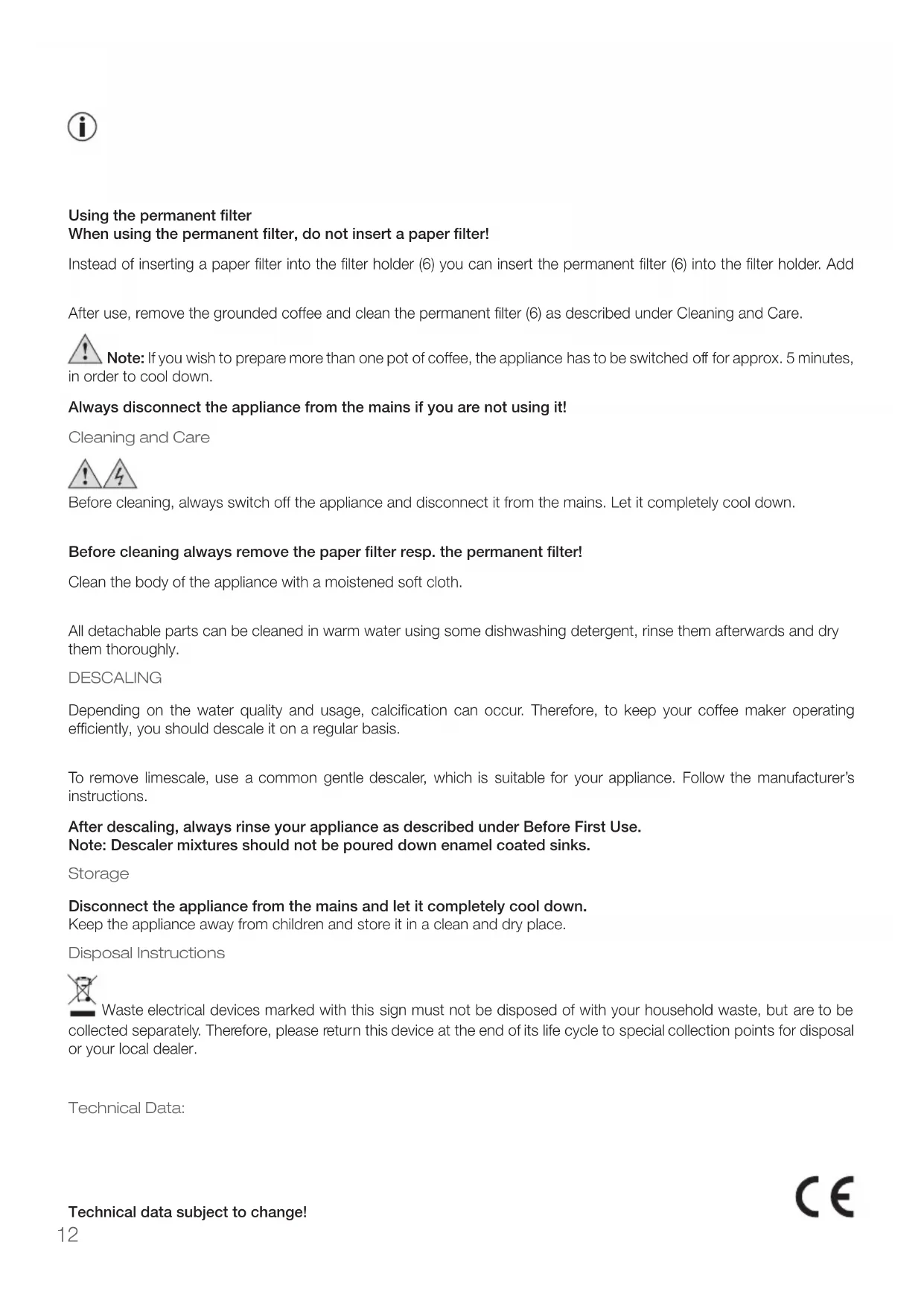

Using the permanent filter

When using the permanent filter, do not insert a paper filter!

Instead of inserting a paper filter into the filter holder (6) you can insert the permanent filter (6) into the filter holder. Add

After use, remove the grounded coffee and clean the permanent filter (6) as described under Cleaning and Care.

Note: If you wish to prepare more than one pot of coffee, the appliance has to be switched off for approx. 5 minutes, or order to cool down.

Always disconnect the appliance from the mains if you are not using it!

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Before cleaning always remove the paper filter resp. the permanent filter!

Clean the body of the appliance with a moistened soft cloth.

All detachable parts can be cleaned in warm water using some dishwashing detergent, rinse them afterwards and dry them thoroughly.

DESCALING

Depending on the water quality and usage, calcification can occur. Therefore, to keep your coffee maker operating efficiently, you should descale it on a regular basis.

To remove limescale, use a common gentle descaler, which is suitable for your appliance. Follow the manufacturer's instructions.

After descending, always rinse your appliance as described under Before First Use. Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

Disconnect the appliance from the mains and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be directed separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal to your local dealer.

Technical Data:

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
