EVUD426 - Fridge Everglades - Free user manual and instructions
Find the device manual for free EVUD426 Everglades in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Combined refrigerator-freezer |
| Brand | Everglades |
| Model | EVUD426 |
| Climate category | SN (10°C to 32°C), N (16°C to 32°C), ST (16°C to 38°C), T (16°C to 43°C) |
| Power supply | 220-240 V ~ 50 Hz, single-phase |
| Refrigerant | R600a (isobutane), flammable gas |
| Defrost type | Automatic for refrigerator compartment, manual for freezer |
| Interior lighting | LED, 220-240 V, max 1.5 W |
| Adjustable feet | Yes, at the front |
| Door reversal | Possible, change from right to left |
| Water dispenser | Yes, integrated in the door, capacity 2.5 L max |
| Child safety | Yes, water dispenser lock |

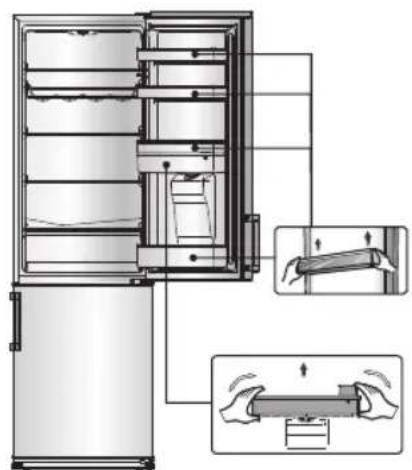

| Number of refrigerator shelves | 3 (removable) |
| Vegetable crisper | 1 drawer with lid |
| Ice cube tray | Yes, included |

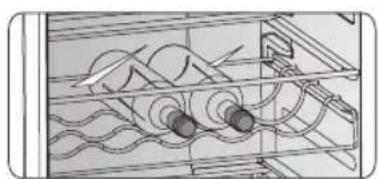

| Bottle storage | Yes, optional |
| Energy class | Not specified (estimated: A+ to A++) |
| Approximate weight | 70 kg |
| Approximate dimensions (H x W x D) | 180 cm x 60 cm x 65 cm |
Frequently Asked Questions - EVUD426 Everglades
How to adjust the refrigerator temperature?
The temperature selector is located at the top of the refrigerator compartment. Turn it counterclockwise to turn on the appliance. Settings range from 1 (highest temperature) to 7 (coldest temperature). For normal use, choose a setting of 2, 3 or 4. Position 0 turns off the appliance.

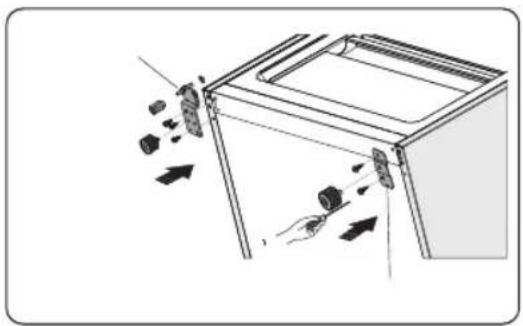

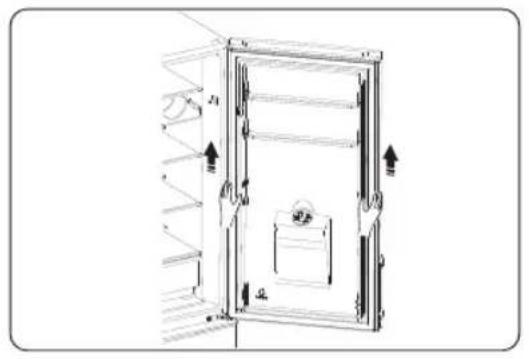

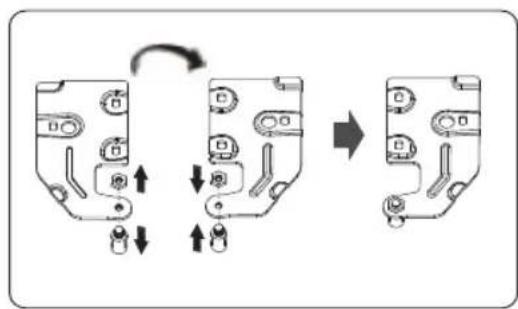

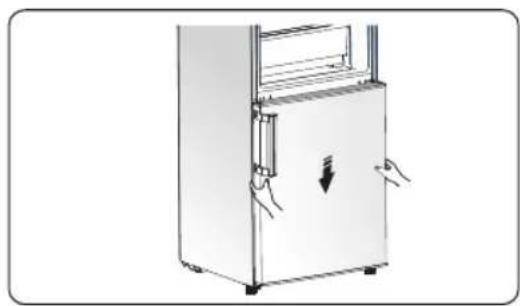

How to reverse the door opening direction?

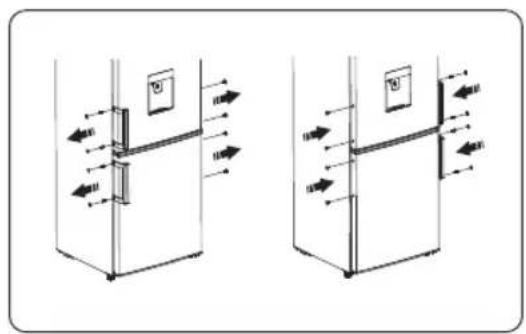

Unplug the appliance before any operation. Remove the doors by unscrewing the top, middle and bottom hinges. Move the hinge pins to the other side. Use the provided parts (left hinge). Follow the steps in the manual starting with the top door. Once reversed, the handles must be moved if necessary.
What to do if the appliance does not cool properly?
Check that the plug is properly connected and the fuse has not blown. Make sure the ambient temperature is not too low. Verify that the doors close properly and that there is enough space around the appliance (at least 50-70 mm at the rear). If the problem persists, contact a qualified technician.
How to clean the inside of the refrigerator?
Unplug the appliance. Clean the inside with a soft cloth soaked in warm water mixed with a little baking soda. Rinse with clean water and dry thoroughly. Do not use abrasive products, solvents or metal objects. For door seals, use a mild detergent and warm water.
How to use the water dispenser?

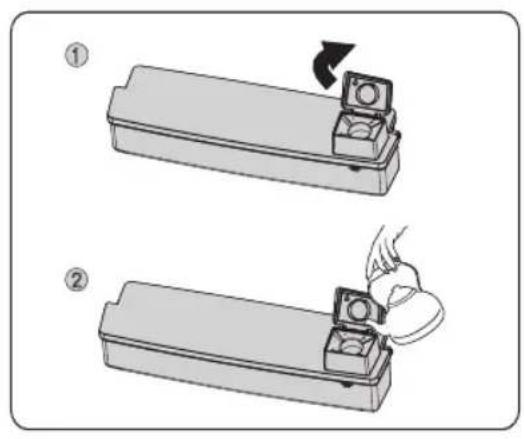

Ensure the lock is engaged (left side). Fill the water tank up to 2.5 L max via the internal cover. Do not use other drinks (milk, juice, sodas). To dispense, place a glass under the spout and press gently. Do not force too much to avoid leaks.
How to defrost the freezer?
Remove all food and the ice cube tray. Set the temperature selector to 0 (off) and leave the door open. To speed up, place a bowl of hot water (about 50°C) in the compartment. Scrape the ice with a plastic spatula. Do not use sharp objects or a hair dryer. Wipe up water and dry before restarting.
The appliance makes an abnormal noise, what to do?
Some noises are normal: gurgling, clicking before compressor start, ventilation. Check that the appliance is level and not touching the wall. Make sure bottles or containers inside are not rolling. If the noise persists or is unusual, contact a professional.
How to replace the LED bulb?
Do not replace the bulb yourself. Contact a qualified technician. To access, switch off the appliance (position 0), unplug. Press the bulb cover and slide it backward. Unscrew the screw and remove the seat. Replace with an LED bulb of 220-240 V, max 1.5 W. Reassemble everything.
What foods should not be frozen?
Do not freeze carbonated or fizzy drinks (risk of explosion). Never refreeze thawed food. Avoid putting hot food directly. Frozen foods can burn the mouth if consumed immediately. Wrap food in aluminum foil or cellophane.
How to save energy with this refrigerator?

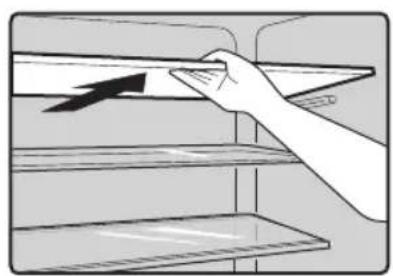

Do not leave the door open too long. Keep the appliance away from heat sources (direct sunlight, radiator). Set the temperature to the minimum necessary (2-4). Do not put hot food. Ensure good ventilation around the appliance. Place the shelves as indicated to optimize air circulation.
User questions about EVUD426 Everglades
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Fridge in PDF format for free! Find your manual EVUD426 - Everglades and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EVUD426 by Everglades.
USER MANUAL EVUD426 Everglades
OFF (UITGESCHAKELD):
Compartment de condensation 2)
Safety and warning information
.
| Additional parts (in the plastic bag) | ||
*
*
*
