USER MANUAL ASM250R BESTRON

2004/108/EC 2006/95/EC.

White Chocolate Smoothie

Zutaten:

CONDITIONS DE GARANTIE

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for reference.
• Use this appliance solely in accordance with these instructions.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
- Make sure that you always use an earthed wall socket to connect the appliance.
Always remove the plug from the socket when the appliance is not in use.
- Remove the plug from the wall socket by pulling the plug, not the power cord.
- Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
Certain parts of the appliance may get hot. Do not touch these parts to prevent burning yourself.
- To prevent the risk of fire the appliance needs space to allow it to loose heat. Make sure that it has sufficient space around, and that it makes no contact with flammable material. Do not cover the appliance. Also make sure that the air vents are not covered or blocked.
- Never use the appliance when it is close to flammable materials.
- Make sure that the appliance, the power cord or the plug do not make contact with heat sources, such as a hot hob or naked flame.
- Make sure that the appliance, the power cord and plug do not make contact with water.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors.
• Place the appliance on a flat, stable surface.
• Never allow the power cord to hang over the edge of the draining board, worktop or table.
• Make sure that your hands are dry before touching the appliance, cable or plug.
• Never use the appliance in a humid room.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, as well as before cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.
• Never use the appliance with boiling liquids.
• Do not switch on the appliance while it is empty.
• Never use the the appliance for longer than 60 seconds. Switch it off and wait a few minutes to allow it to cool before continuing use.
• Do not fill the mixing cups above the maximum level. The maximum capacity of each cup is 600ml .
• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately and do not use the appliance any more.
• Clean the appliance thoroughly after use (see 'Cleaning and maintenance').
• Never immerse the appliance, the plug or the power cord in water or other liquid.
  This appliance may not be used through an external timer or by means of a remote control.

THE ENVIRONMENT

• Dispos of packaging material, such as plastic and boxes, in the appropriate waste containers.

When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

• The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.
• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

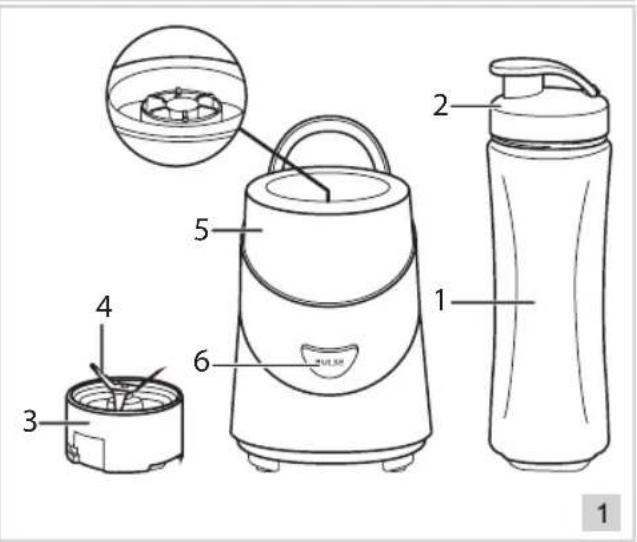

OPERATION - General

The Smoothie Maker is intended only for domestic use, not for professional use.

1. Mixing cup
2. Screw cap
3. Blade unit
4. Blades
5. Motor unit
6. Puls button

OPERATION - Before use for the first time

1. Take the appliance out of the packaging.
2. Clean the appliance (see 'Cleaning and maintenance').

OPERATION - Use

1. Cut the solid ingredients such as fruit etc into pieces.
2. Fill the mixing cup with this and add the liquid such as milk, yoghurt, juice etc, where relevant (maximum 600ml).
3. Place the blade unit (3) on the mixing cup (1).
4. Place the mixing cup with the blade unit upside down on the motor unit (5) and turn the mixing cup counterclockwise until it's locked.

The Smoothie Maker is fitted with a safeguard. The Smoothie Maker cannot be switched on if the mixing cup is not correctly fitted to the motor unit.

1. Put the plug into the wall socket. Switch on the appliance (6).

The smoothness of the mixture increases with longer blending times (maximum of 60 seconds).

1. Let go of the button (6) when the desired mixing result is reached and wait until the blender's knives have come to a complete standstill.
2. Turn the mixing cup clockwise and remove it from the motor unit. Now remove the blade unit and place the cap (2) on it.

CLEANING AND MAINTENANCE

The components of this device are not suitable for the dishwasher!

Clean the appliance and the loose parts thoroughly after each use:

1. Remove the plug from the wall socket.
2. Clean the mixing cup, blade unit and cap in warm soapy water. Rinse the parts with ample water and dry them thoroughly. Be careful with the cutting blades.
3. Clean the motor unit with a damp cloth, if necessary moistened with a couple of drops of washing-up liquid. After cleaning, dry the motor unit thoroughly.

4. Store the Smoothie Maker.
   Clean the mixing cup after each use.

5. Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

6. Do not immerse the motor unit in water, or in other liquids.
7. Do not leave the mixing cup to soak in soapy water for too long.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.
2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).
3. All claims submitted under warranty must be accompanied by the original bill of sale.
4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.
5. The warranty is issued solely to the first purchaser and cannot be transferred.
6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.
b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.
c. Connection to a mains voltage other than the voltage specified on the type plate.
d. Unauthorized modifications.
e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.
b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.
2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.
3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.
4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department: www.bestron.com/service

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC

R. Neyman

Quality control

RECIPES

Peach - Banana - Smoothie

Ingredients:

• 1 banana, medium-sized
  3 half peaches, cooled, canned
  100 ml Grapefruit juice, cooled
  1 EL lemon juice
• Mint to decorate

Preparation:

Peel the banana and puree them together with the peaches and grapefruit juice in the Smoothie Maker. Flavour the smoothie with the lemon juice and garnish it with some mint.

Watermelon - Smoothie

Ingredients:

150 g Melon (Watermelon), seedless and in pieces
- 65 ml milk
30g yoghurt
1 / 2 EL soft sugar
1 ball vanilla ice cream

Preparation:

Puree the melon, yoghurt, milk and sugar in the Smoothie Maker. Add the ice cream and mix it for a few minutes until the smoothie is foamy.

White Chocolate Smoothie

Ingredients:

• 75 ml milk
  15 g white chocolate
  3 apricots
  1 ball chocolate ice cream

Preparation:

Warm the milk in a pan, but don't boil it. Remove the pan from the hot plate and mix the white chocolate together till it is dissolved.Leave it to cool and stir it now and then. Put the chocolate milk for 3 hours in the fridge.Wash and stone the apricots.Cut the apricots in pieces and puree them togheter with the chocolate milk and ice cream in the smoothie maker.

Pineapple - Smoothie

Ingredients:

1 cup pineapple yoghurt
150 ml milk (cooled)
- Crushed ice
- 1 / 2 EL lemon juice
- 3 slices pineapple (canned)
- Pineapple juice

Preparation:

Fill the mixing cup with pineapple juice till the "300 ml" grade mark. Add the yoghurt, lemon juice and pineapple slices. Add the crushed ice till the "600 ml" grade mark. Place the mixing cup on the motor unit and mix everything very good.

Apple-Smoothie

Ingredients:

90g apple compote
1 EL apple juice
125gkefir
1 EL lemon juice
1 EL brown suger
- 12 TL cinnamon
Hazelnut syrup

Preparation:

Fill the mixing cup with hazelnut syrup till the "300 ml" grade mark. Add the apple compote, kefir, lemon juice, sugar and cinnamon. Place the mixing cup on the motor unit and mix everything very good.

Coffee - Smoothie

Ingredients:

Coffee
1 EL brown sugar
- ½ banana
- 1 / 2 vanilla pod
1 EL almonds
1 TL maple syrup
3 ice cubes
- Mint leaves

Preparation:

Dissolve the sugar in the coffee. Put it for 30 minutes in the fridge. Fill the mixing cup with coffee till the "300 ml" grade mark. Add the banana, vanilla, almonds and syrup. Add the crushed ice till the "600 ml" grade mark. Place the mixing cup on the motor unit and mix everything very good.

Cherry - coconut - Smoothie

Ingredients:

• 300 g fresh cherries or 250 g canned
  2 EL coconut syrup
  1 lime

Preparation:

Stone the fresh cherries and cool them very good. Fill the mixing cup with coconut syrup till the "300 ml" grade mark. Add the cherries and lime juice. Place the mixing cup on the motor unit and mix everything very good.

Mango - Banana - Smoothie

Ingredients:

14 mango
- 1/4 banana
- 65 ml orange juice
125 ml yoghurt
- 1 / 4 EL honey
Crushed Ice

Preparation:

Cut the mango and banana into pieces. Fill the mixing cup with orange juice till the 300ml grade mark. Add the mango, banana, yoghurt and honey. Add the crushed ice till the 600ml grade mark. Place the mixing cup on the motor unit and mix everything very good.
