USER MANUAL STB 201 Vario MIELE

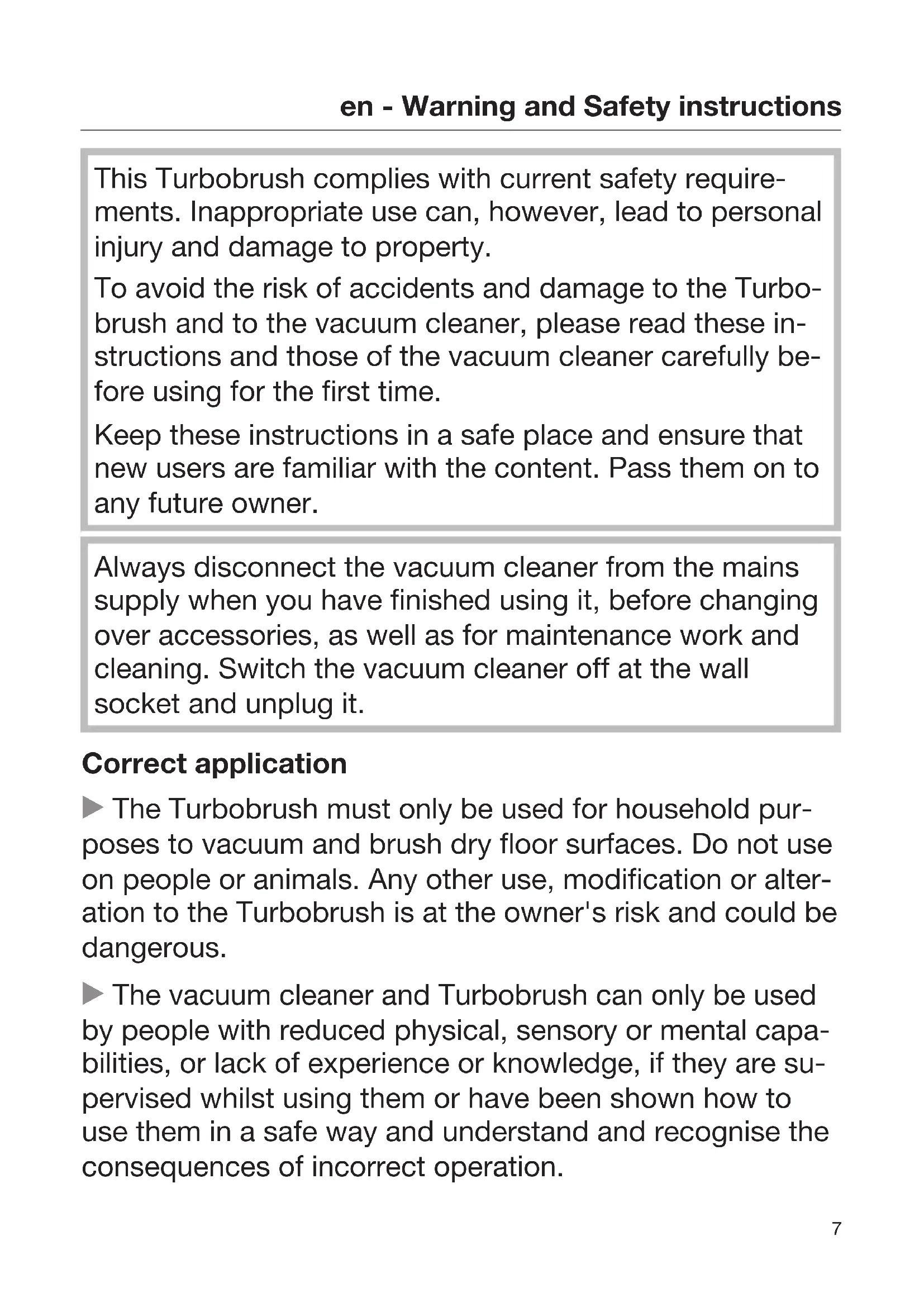

This Turbobrush complies with current safety require‐ ments. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the Turbo‐ brush and to the vacuum cleaner, please read these in‐ structions and those of the vacuum cleaner carefully be‐ fore using for the first time. Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future owner. Always disconnect the vacuum cleaner from the mains supply when you have finished using it, before changing over accessories, as well as for maintenance work and cleaning. Switch the vacuum cleaner off at the wall socket and unplug it. Correct application The Turbobrush must only be used for household pur‐ poses to vacuum and brush dry floor surfaces. Do not use on people or animals. Any other use, modification or alter‐ ation to the Turbobrush is at the owner's risk and could be dangerous. The vacuum cleaner and Turbobrush can only be used by people with reduced physical, sensory or mental capa‐ bilities, or lack of experience or knowledge, if they are su‐ pervised whilst using them or have been shown how to use them in a safe way and understand and recognise the consequences of incorrect operation.en - Warning and Safety instructions

Safety with children Children under 8 years of age must be kept away from the vacuum cleaner and Turbobrush unless they are con‐ stantly supervised. Children 8 years and older may only use the vacuum cleaner and Turbobrush unsupervised if they have been shown how to use them safely and recognise and under‐ stand the consequences of incorrect operation. Children must not be allowed to clean or maintain the vacuum cleaner and Turbobrush unsupervised. Please supervise children in the vicinity of the vacuum cleaner and Turbobrush and do not let them play with them. Technical safety Before using the Turbobrush, check for any visible signs of damage. Do not use a damaged Turbobrush. Do not immerse the Turbobrush in water. Clean all parts with a dry or slightly damp cloth only. Correct use Switch the vacuum cleaner off immediately during pau‐ ses to avoid danger. Never touch the roller brush while it is rotating. Do not use the Turbobrush at head level. Long hair, ties, scarves, etc. could become entangled in the roller brush.en - Warning and Safety instructions

Keep the Turbobrush away from curtains, clothing, etc. as these could be vacuumed in and become entangled in the roller brush. Do not vacuum up any inflammable or combustible liq‐ uids or gases and do not vacuum in areas where such substances are stored. Do not vacuum any surfaces where there is a danger of items being sucked up or becoming entangled in the roller brush. Do not use the vacuum cleaner to vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or sham‐ pooed rugs or carpets are completely dry before attempt‐ ing to vacuum. Do not vacuum up anything which has been burning or is still glowing e.g. cigarettes, ashes or coal, whether glow‐ ing or apparently extinguished. Miele cannot be held liable for damage caused by incor‐ rect use or operation or by non-compliance with these Warning and Safety instructions.en

Illustrations The illustrations referred to in the text are shown on the fold-out pages at the end of these operating instruc‐ tions. Turbobrush features The Turbobrush is operated by the suc‐ tion power of the vacuum cleaner. It has a rotating roller brush which is very effective at picking up thread, hairs and fluff. Four rollers maintain the brush 1.5 mm away from the floor. Recommended use The Turbobrush should not be used for vacuuming deep-pile rugs and carpets or valuable hand-knot‐ ted rugs and carpets, e.g. Persian and oriental rugs etc. There is a dan‐ ger of the threads being pulled out. Do not use the Turbobrush to clean highly textured or uneven floors. The brush might come into contact with the floor and cause damage. The Turbobrush is particularly suitable for vacuuming thread and hair from cut pile carpeting. The standard floorhead or one of the Miele floorbrushes should be used for cleaning hard floors. It is also important to observe the flooring manufacturer's cleaning and care instructions. Using the Turbobrush To achieve the best effect, pass the Turbobrush slowly backwards and forwards over the carpet or floor co‐ vering. For carpets with fringes always draw the Turbobrush from the carpet across the fringe towards the rest of the floor. Fitting the Turbobrush Model STB 205 (dia. 01) This Turbobrush is intended for use with Miele vacuum cleaners. Instead of the usual floor attachment, fit the Turbobrush to the suction tube by twisting it to the left and right. En‐ sure that the locking device engages. Model STB 201 Vario (dia. 02) This Turbobrush has an adjustable con‐ nector. It can be used on any suction tube with a diameter of between 30 and 38 mm. The Turbobrush should, howev‐ er, only be used with the vacuum clean‐ er set to its highest power setting. Open the air inlet valve (dia. 03) The brush is operated by the suction power of the vacuum cleaner. With deeper, dense pile carpets the roller brush may rotate more slowly. This is caused by the carpet pile creating a seal around the mouth of the Turbo‐ brush and hindering the flow of air. This will affect how well the carpet is brush‐ ed. To increase the airflow, open the air inlet valve (left hand illustration).en

In all other situations the air inlet valve should be closed, to benefit from the full suction power. Close the air inlet valve (right hand il‐ lustration). Maintenance Always disconnect the vacuum cleaner from the electrical supply for cleaning and maintenance work on the Turbobrush. Switch off at the wall socket and remove the plug. Removing threads and hairs (dia. 04 - 06) Cut any threads or hairs that have become entangled on the roller brush with a pair of scissors (dia. 04). Then run the vacuum cleaner to vac‐ uum up the bits. For more obstinate tangles or block‐ ages inside the Turbobrush, the cover can be opened. Any large particles can then be easily removed. Using a coin undo the roller cover on both sides and then remove the co‐ ver (dia. 05). Remove any dirt in the brush com‐ partment interior and from the roller brush. Replace the cover and secure it (dia. 06).nl - Veiligheidsinstructies en waarschuwingen

This turborbrush complies with current safety require‐ ments. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the Turbo‐ brush and to the vacuum cleaner, please read these in‐ structions and those of the vacuum cleaner carefully be‐ fore using for the first time. They contain important infor‐ mation on safety, operation and maintenance. Keep these operating instructions in a safe place and pass them on to any future user. Always disconnect the vacuum cleaner from the power supply when you have finished using it, before changing over accessories, as well as for maintenance work and cleaning. Turn the vacuum cleaner off and unplug it.

READ THESE INSTRUCTIONS COMPLETELY BEFORE

USING THIS ACCESSORY FOR THE FIRST TIME. KEEP

THESE OPERATING INSTRUCTIONS FOR FUTURE

REFERENCE. Correct use The Turbobrush must only be used for household pur‐ poses to vacuum and brush dry floor surfaces. Do not use on people or animals. Any other use, modification or alter‐ ation to the brush is at the owner's risk and could be dan‐ gerous.en-US - IMPORTANT SAFETY INSTRUCTIONS

Persons which lack physical, sensory or mental abilities or experience with the vacuum cleaner and Turbobrush should not use it without supervision or instruction by a re‐ sponsible person. Safety with children Children must be kept away from the vacuum cleaner and Turbobrush unless they are constantly supervised. Do not allow the vacuum cleaner to be used as a toy. Close attention is necessary when used near children. Technical safety Befor e using the Turbobrush, check for any visible signs of damage. Do not use a damaged appliance or damaged accessories. Do not immerse the Turbobrush in water. Clean all parts with a dry or slightly damp cloth only. Proper use Switch the vacuum cleaner off immediately during paus‐ es to avoid danger. Never touch the roller brush while it is rotating. Do not use the Turbobrush at head level. Keep the Turbobrush away from curtains, clothing, etc. as these could be vacuumed in and become entangled in the roller brush.en-US - IMPORTANT SAFETY INSTRUCTIONS

Do not vacuum up any inflammable or combustible liq‐ uids or gases and do not vacuum in areas where such substances are stored. Do not vacuum any surfaces where there is a danger of items being sucked up or becoming entangled in the roller brush. Do not use the vacuum cleaner to vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or sham‐ pooed rugs or carpets are completely dry before attempt‐ ing to vacuum. Do not vacuum up anything which has been burning or is still glowing, e.g., cigarettes, ashes or hot ash, whether glowing or apparently extinguished. SAVE THESE INSTRUCTIONSen-US

References to illustrations The illustrations referred to in the text are shown on the fold-out pages at the end of these Operating Instruc‐ tions. Turbobrush features The Turbobrush is operated by the suc‐ tion power of the vacuum cleaner.It has a rotating roller brush which is very ef‐ fective at picking up thread, hairs and fluff. Four rollers maintain the brush 1/16" (1.5 mm) away from the floor. Recommended use The Turbobrush should not be used for vacuuming deep-pile rugs and carpets or valuable hand-knot‐ ted rugs and carpets, e.g. Persian and oriental rugs, etc. There is a danger of the threads being pulled out. Do not use the Turbobrush to clean highly variable or uneven floors. The brush might come into contact with the floor and cause damage. The Turbobrush is particularly suitable for vacuuming thread and hair from short pile carpeting. The standard floorhead or one of the Miele floorbrushes should be used for cleaning hard floors. It is also important to observe the flooring manufacturer's cleaning and care instructions. Fitting the Turbobrush Model STB 205 (Fig. 01) This Turbobrush is intended for use with Miele vacuum cleaners. Instead of the usual floor attachment, fit the Turbobrush to the suction wands, turning it clockwise or coun‐ ter-clockwise until it clicks into positi‐ on. Model STB 201 Vario (Fig. 02) This Turbobrush has an adjustable adapter, enabling it it be used with non- Miele vacuum cleaners. The adapter fits suction wands with a diameter of be‐ tween 1 1/4" and 1 1/2" (30 and 38 mm). Only use the Turbobrush with high performance vacuum cleaners. Opening the air inlet valve (Fig. 03) The brush is operated by the suction power of the vacuum cleaner. With deeper, dense pile carpets the roller brush may rotate more slowly. This is caused by the carpet pile creating a seal around the mouth of the Turbo‐ brush and hindering the flow of air. This will affect how well the carpet is brush‐ ed. To increase the airflow, open the air inlet valve (left hand illustration). In all other situations the air inlet valve should be closed, to benefit from the full suction power. Close the air inlet valve (right hand il‐ lustration).en-US

Maintenance Always disconnect the vacuum cleaner from the electrical supply for cleaning and maintenance work on the Turbobrush. Switch off at the wall socket and remove the plug. Removing threads and hairs (Fig. 04 - 06)

ith a pair of scissors (Fig. 04), cut any threads or hairs that have beco‐ me entangled on the roller brush. Then run the vacuum cleaner to vac‐ uum up the bits. For more tangles or blockages inside the Turbobrush, the cover can be opened. Any large particles can then be easily removed. Unlock the roller cover on both sides with a coin and remove the roller co‐ ver (Fig. 05). Remove any dirt from the interior and from the roller brush. Replace and engage the roller cover (Fig. 06).安全上のご注意
