USER MANUAL STB 101 TURBO MINI MIELE

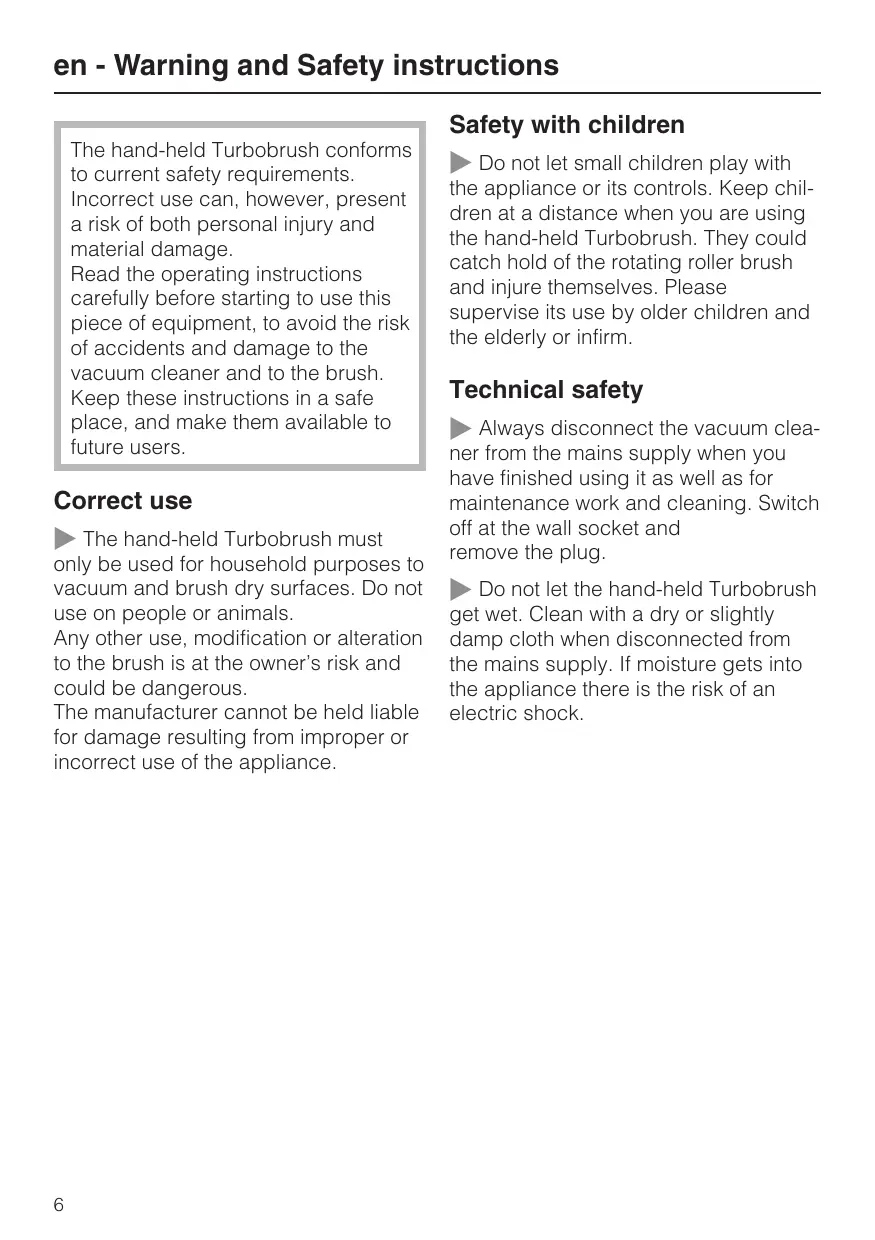

en - Warning and Safety instructions Safety with children The hand-held Turbobrush conforms to current safety requirements. Incorrect use can, however, present a risk of both personal injury and material damage. Read the operating instructions carefully before starting to use this piece of equipment, to avoid the risk of accidents and damage to the vacuum cleaner and to the brush. Keep these instructions in a safe place, and make them available to future users.

~ The hand-held Turbobrush must only be used for household purposes to vacuum and brush dry surfaces. Do not use on people or animals.

Any other use, modification or alteration to the brush is at the owner’s risk and could be dangerous. The manufacturer cannot be held liable for damage resulting from improper or incorrect use of the appliance.

~ Do not let small children play with

the appliance or its controls. Keep children at a distance when you are using the hand-held Turbobrush. They could catch hold of the rotating roller brush and injure themselves. Please supervise its use by older children and the elderly or infirm.

~ Always disconnect the vacuum cleaner from the mains supply when you have finished using it as well as for maintenance work and cleaning. Switch off at the wall socket and remove the plug.

~ Do not let the hand-held Turbobrush get wet. Clean with a dry or slightly damp cloth when disconnected from the mains supply. If moisture gets into the appliance there is the risk of an electric shock.

en - Warning and Safety instructions

~ Never touch the roller brush while it

is rotating. Danger of injury.

~ Do not use the hand-held Turbobrush at head level. Long hair, ties, scarves etc. could be vacuumed in and become entangled in the roller brush.

~ Keep the hand-held Turbobrush away from curtains, clothing etc, as these could be vacuumed in and become entangled in the roller brush. ~ Switch the vacuum cleaner off immediately during pauses to avoid danger. ~ Do not vacuum up any inflammable or combustible liquids or gases and do not vacuum in areas where such substances are stored. ~ Do not vacuum any surfaces where there is a danger of items being vacuumed up or becoming entangled in the roller brush.

~ Do not vacuum up items which are

heavy, hard or have sharp edges. They could block the hand-held Turbobrush and the vacuum cleaner and cause damage.

~ Do not vacuum up ashes or coal,

whether glowing or apparently extinguished. The hand-held Turbobrush and the vacuum cleaner might catch fire.

Disposing of an old appliance

~ Make appropriate arrangements for its safe disposal.

The manufacturer cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.

~ Do not vacuum up any water, liquid or damp dirt. This will cause major faults and could seriously impair the functioning and electrical safety of the vacuum cleaner and the hand-held

Turbobrush. Danger of electric shock! Wait until any freshly cleaned or shampooed carpets or floor coverings are completely dry before vacuuming.

Using the hand-held Turbobrush The hand-held Turbobrush is intended for vacuuming upholstery, mattresses, car seats, carpeted stairs and other areas inaccessible to the standard Turbobrush. It is also important to observe the textile manufacturer’s cleaning and care instructions. The following should not be vacuumed using the hand-held Turbobrush – Hard surfaces, such as furniture doors, wooden and stone flooring etc. Direct contact by the Turbobrush could damage such surfaces or even the Turbobrush itself. – Carpets such saxony with very long-pile, berber and sheepskin rugs, and valuable hand-knotted carpets, e.g. Persian and similar. There is a danger of the threads being pulled out. If in doubt, contact the carpet manufacturer/retailer.

Using the hand-held Turbobrush

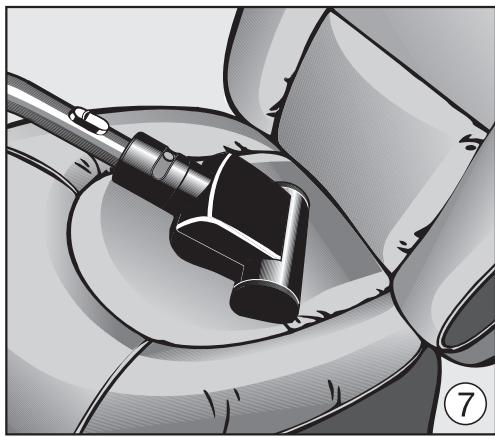

^ The hand-held Turbobrush is fitted directly to either the hand-piece or, as required, to the suction tube. ^ To achieve the best effect, pass the hand-held Turbobrush slowly backwards and forwards over the carpet or surface being cleaned.

en - Cleaning and care

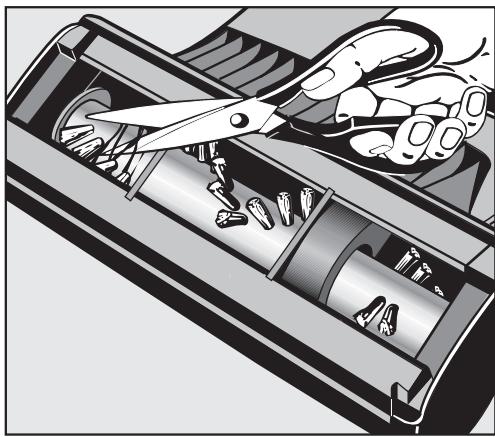

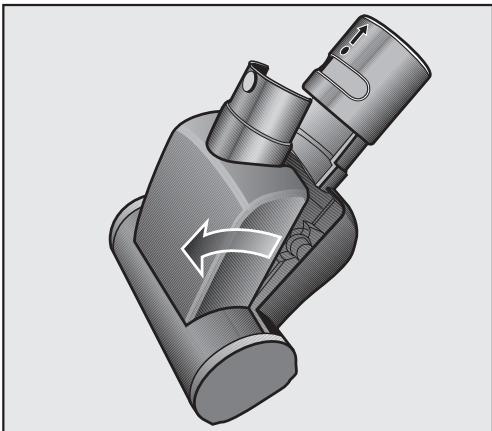

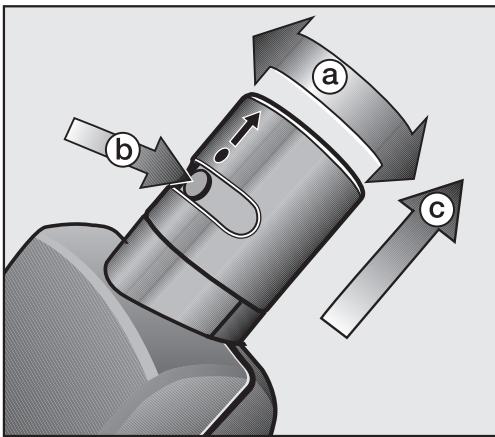

,Always disconnect the vacuum cleaner from the electrical supply for cleaning or maintenance work on the hand-held Turbobrush. Switch off at the wall socket and remove the plug. Removing threads and hairs ^ Cut any threads or hairs that have become entangled on the roller brush with a pair of scissors. Then run the vacuum cleaner to vacuum up the bits. For more obstinate tangles or blockages inside the hand-held Turbobrush, the cover can be opened. Any large particles inside it can then be easily removed. ^ Turn the grip so that the release button is in the middle of the guide (illustration a). ^ Press the release button (illustation b) and pull the grip out from the hand-held Turbobrush as far as possible (illustration c). ^ Lift the upper part of the casing as far as it will and remove any debris from the inside of the casing and from the roller brush. ^ Close the casing and push the grip back into position until it clicks into place over the release button.

en - USA - Important Safety Instructions

Child Safety The Miele Turbobrush complies with all legal safety requirements. Improper use can cause both personal injury and property damage. Before using the appliance, read the Operating Instructions carefully. They give information on the safety, operation and care of the appliance. Keep these instructions in a safe place for future reference.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE Correct usage

~ Do not allow the vacuum cleaner to be used as a toy.

~ Exercise extreme caution when

using near children. Moving parts and suction can cause injury.

~ Before connecting the Turbobrush

to the vacuum cleaner, make sure the vacuum cleaner is turned off and disconnected from the electrical outlet.

~ Do not unplug vacuum by pulling on

cord. To unplug, grasp the plug, not the cord

~ The hand-held Turbobrush must only be used for household purposes to vacuum and brush dry floor surfaces.

~ Turn off all controls before unplug-

~ Do not use on people or on

~ Do not immerse the hand-held Tur-

~ The manufacturer cannot accept responsibility for damage or injury when this appliance is used in a manner inconsistent with its designed purpose, or if the instructions in this manual are not followed. Use only as described in this manual.

~ This appliance is intended strictly for household use only.

bobrush into any liquid. Clean only with a dry cloth or slightly damp cloth to avoid any moisture getting into the vacuum cleaner, which could lead to the danger of an electric shock.

Disposing of an old appliance

~ Do not touch the brush roller while it is rotating.

~ Before discarding an old appliance,

~ Do not use the hand-held Turbobrush at head level. Long hair, ties, scarves etc. could be sucked in and become entangled in the brush roller.

~ Keep hair, loose clothing, curtains, fingers and all parts of the body away from openings and moving parts. ~ Turn off all controls before unplugging. Unplug from the outlet when not in use and before servicing. ~ Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

the power cord should be removed.

Unplug the vacuum. Cut the power cord off the appliance as close to the vacuum as possible and cut the plug off the cord. The plug cut from the cord should be disabled and properly discarded. Under no circumstance should this plug be inserted into a socket (electric shock hazard.)

The manufacturer cannot be held liable for damage or injury caused by non-compliance with these Important Safety instructions.

~ Do not use the hand-held Turbobrush on surfaces that can unravel or be sucked in.

~ Do not vacuum up liquids or damp dirt. This will cause damage and seriously impair the functioning and electrical safety of the vacuum cleaner and could create a risk of electric shock. Freshly shampooed carpets or upholstery should be completely dry before they are vacuumed up. ~ Do not vacuum up items which are heavy, hard or have sharp edges. ~ Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes, to avoid the risk of fire.

The hand-held Turbobrush is intended for vacuuming upholstery, mattresses, car seats, carpeted stairs and other areas inaccessible to the standard Floor Turbobrush. Follow the manufacturer’s care and maintenance instructions for approved handheld Turbobrush applications. Do not use the handheld Turbobrush on the following surfaces – hard surfaces such as wood or stone flooring, or wooden furniture. Using the Hand Turbobrush on these surfaces can damage them or the Turbobrush itself. – handmade or knitted items or surfaces with long, loose threads, and on any fabric that can unravel.

Using the Hand Turbobrush

^ The Hand Turbobrush can be placed on the end of the suction wand or directly on the hand grip; whichever is more convenient. ^ For best results, slowly push, then pull the Turbobrush across the surface you are cleaning.

en - USA - Maintenance and care

,Always turn off the vacuum cleaner and disconnect the plug from the electrical supply before cleaning or servicing the Turbobrush or vacuum. Removing threads and hairs wrapped around the roller: ^ Cut any threads or hairs that have become entangled on the brush roller with a pair of scissors. The cut pieces will be drawn in by the suction power of the vacuum cleaner the next time it is used. More obstinate tangles or blockages can be removed after opening the Turbobrush roller cover. Any large particles which have been drawn in can then be removed. ^ Turn the grip so that the release button is in the middle of the guide (illustration a). ^ Press in the locking ring b and pull the wand until it separates from the Hand Turbobrush c. ^ Lift the upper part of the casing as far as it will go, and remove any debris from the inside of the casing and from the brush roller. ^ Close the casing and push the grip back into position until it clicks into place over the release button.
