Brand	UNOLD
Model	86430
Product type	Fan heater
Maximum power	2000 W (High level)
Voltage	220–240 V~, 50 Hz
Power levels	1000 W (Low) / 2000 W (High)
Heating type	Ceramic (PTC)
Oscillation	70° (swiveling)
Timer	1 to 8 hours, adjustable in 60-minute steps
Temperature range	10 °C to 35 °C
Filter	Removable and washable (water < 30 °C)
Remote control	Included (CR2025 battery)
Weight	Approx. 2.3 kg
Cord length	Approx. 145 cm
Protection class	II
Safety	Tip-over shut-off, overheat protection (>70 °C)
Minimum room area	Greater than 4 m²
Housing material	Plastic
Included accessories	User manual, remote control
Maintenance	Clean the filter with warm water (<30 °C) and vacuum the ventilation grilles

Frequently Asked Questions - 86430 UNOLD

How to turn on the device?

Set the main switch on the back to « I », then press the ON/OFF button. A short beep sounds.

How to set the desired temperature?

Use the « + » and « - » keys on the panel or remote control to set the temperature between 10 °C and 35 °C. The set temperature is maintained automatically.

How to use the timer?

Press the Timer button repeatedly to select a duration from 1 to 8 hours (in 60-minute increments). Once the time has elapsed, the device turns off automatically.

How to activate oscillation?

Press the Oscillation button (pivot symbol) to activate the movement at 70°. Press again to lock the device in a fixed position.

What to do if the device turns off suddenly?

This may be due to the overheat protection. Turn off the device, unplug it, and let it cool down for at least 30 minutes. Check that the grilles are not blocked and the filter is not clogged.

How to clean the filter?

Open the filter cover, remove the filter and wash it with warm water (30 °C maximum). Let it dry completely before putting it back.

Can I use the device in a bathroom?

No, for safety reasons, the device must not be used near sinks, bathtubs, or in damp rooms due to the risk of electric shock.

The remote control does not work, what to do?

Check that the CR2025 button cell battery is correctly inserted and not depleted. Replace it if necessary. Make sure to point the remote control at the device during settings.

What is the warranty period?

The warranty is 24 months for domestic use (12 months for professional use) from the date of purchase, covering manufacturing defects. It applies in Germany and Austria.

How to recycle the device at end of life?

Do not dispose of the device with household waste. Take it to a recycling center or collection point for electrical and electronic equipment (crossed-out wheelie bin symbol). Used batteries must be removed and recycled separately.

USER MANUAL 86430 UNOLD

White and black industrial air purifier unit with 'UNOID' branding (no visible text on device body)

Bedienungsanleitung

Instructions for use | Notice d'utilisation Gebruiksaanwijzing | Istruzioni per l'uso Instrucciones de uso | Instrukcja obsługi

Modell 86430

Dieses Produkt ist nur für Innenräume und nicht für den Dauergebrauch geeignet. This product is only suitable for well insulated spaces or occasional use. Seulement adapté pour les intérieurs. Ne convient pas pour une utilisation continue. Adatto solo per interni. Non adatto per l'uso continuo. Alleen geschikt voor interieurs. Niet geschikt voor continu gebruik. Solo adecuado para interiores. No adecuado para uso continuo. Pasuje tylko do wnętrz. Nie nadaje się do ciągłego użytkowania.

INHALTSVERZEICHNIS

Instructions for use Model 86430

Technical Specifications....18

Explanation of the symbols.... 18

For your safety....18

Tilt protection....21

The ideal location....22

Remote control/battery replacement ..... 22

Before the first use 23

Display/control panel....23

Operation....24

Cleaning and care....26

Overheating protection circuit 26

Guarantee Conditions....27

Waste Disposal/Environmental Protection .... 27

Service 17

Kiepbeveiliging....41

Maße: Ca. 18,0 x 18,0 x 43,0 cm (L/B/H)

Simple 3D illustration of a cylindrical object with a black top and white body, emitting red motion arrows (no text or symbols)

Diagram showing two rectangular components with internal square cutouts and a separate circular component (no text or symbols)

Hand inserting a black strip into a white air purifier unit (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Dimensions: Approx. 18.0 x 18.0 x 43.0 cm (L/W/H)

Power cord: Approx. 145 cm

Weight: Approx. 2.3 kg

Housing: Plastic

Degree of

protection: II

Features: PTC ceramic heating element, removable and washable filter, 70° oscillating (swing function), overheating protection circuit, 8-hour timer, ON/OFF switch

Accessories: Operating instructions, remote control unit

Equipment features, technology, colours and design are subject to change without notice.

EXPLANATION OF THE SYMBOLS

This symbol indicates potential hazards that may result in injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

This symbol warns that the appliance must not be covered with objects.

FOR YOUR SAFETY

General safety instructions

Please read the following instructions and keep them on hand for later reference.

1. Children of less than 3 years should be kept away unless continuously supervised.

2. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

4. Children shall not play with the appliance.
5. Cleaning and user maintenance must not be performed by children, unless they are older than 8 years and are supervised.
6. Keep the appliance and the power cord out of the reach of children under 8 years.
7. CAUTION – parts of this product can become very hot and cause burn injuries! Particular caution is required if children or persons at risk are present.
8. Only connect the appliance to an AC power supply with voltage corresponding to the voltage specified on the rating plate.
9. Do not operate this appliance with an external timer or remote control system.
10. Never immerse the appliance or the power cord in water or other liquids - life-threatening danger!
11. Do not open the motor housing under any circumstances, there is danger of electric shock!
12. The appliance is intended for household use only, or for similar areas of use, such as,

■ kitchenettes in businesses, offices or other workplaces,
■ for use by guests in hotels, motels or other lodgings,
■ in private guest houses or holiday homes.

1. Check the appliance, the plug and the power cord regularly for wear or damage. In the event of damage to the power cord cable or other parts, please send the appliance or the power cord to our customer service organisation for inspection and repair. Unauthorised repairs can result in serious hazards for the user and void the warranty.

2. To avoid damage, do not use the appliance with accessories of other manufacturers or brands.

3. Unplug the mains plug from the electrical outlet after use and before cleaning. Never leave the appliance unattended when the mains plug is plugged in.
4. We assume no liability for damage that occurs due to improper operation, power failure, frost, poor insulation or if the heating capacity is incorrectly selected for the size of the room.

Safety instructions for set-up and operation of the appliance

1. The appliance is only suitable for indoor use, in dry closed spaces.

2. Do not operate the appliance in garages, woodsheds or similar spaces.

3. Only place the appliance on a suitable, level, heat-resistant substrate.

4. Ensure that the power cord is laid out in such a manner that there is no possibility of stumbling over it.

5. To avoid damage to the cord, never wrap the power cord around the appliance.

6. To avoid damage to the cord, always unplug the mains plug from the electrical outlet by grasping the plug, never pull the power cord to unplug the appliance.

7. Ensure that the electrical outlet used is easily accessible, in order to unplug the appliance in an emergency.

8. To avoid damage to the power cord, ensure that it is not pinched or pulled over corners.

9. If possible, do not use an extension cord. If you must use an extension cord, completely unwind the extension cord and comply with the power limits of the respective extension cord.

10. The appliance is very hot during and after operation, consequently ensure that the power cord cannot touch hot appliance parts.

11. Never place the appliance directly under an electrical outlet.

12. For safety reasons, the appliance must not be used in the vicinity of sinks, bathtubs, or water connections.

13. Never touch the appliance with wet or moist hands - life-threatening danger due to electric shock!

14. For safety reasons do not use the appliance for the following purposes:

■ For defrosting iced-up vehicle windows/heating vehicle interiors
■ For animal breeding or animal husbandry applications
■ Commercial use

1. Maintain a safety distance (at least 1 meter) to other objects, such as furniture, curtains, etc. and ensure that air can flow in and out unhindered.

2. Do not use the appliance to dry laundry - fire hazard.

3. Never leave the house when the appliance is switched on. Do not allow the appliance to run unattended.

4. Injuries can occur due to escaping hot air. Consequently always keep children away from the appliance.
5. To exclude the possibility of overheating the room, only rooms that are larger than 4 square meters should be heated.
6. Do not stick any objects in the appliance openings, this can result in electric shock.
7. Do to use any highly flammable substances or sprays, for example, in the vicinity of the appliance - fire hazard!
8. When it is not in use, only store the appliance in closed, dry interior spaces.
9. Ensure that dust does not accumulate on the appliance and clean it regularly.
10. This product is only suitable for well-insulated rooms or for occasional use.

The appliance is very hot during and after operation - danger of burn injuries!

Do not use timers or other external switch-on / switch-off systems to operate the appliance. Use of such items could unintentionally reset the overheating protection circuit and cause a fire hazard.

To prevent overheating and the associated fire hazard, never cover the appliance during operation.

Do not operate the appliance in the vicinity of sinks, bathtubs or other containers filled with water. Never open the housing of the appliance. This can result in electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

TILT PROTECTION

White cylindrical object with a black body and red arrow indicating rotation (no text or symbols)

The tilt protection switches the appliance off immediately, as soon as the appliance tilts to a position where safe operation is in jeopardy.

THE IDEAL LOCATION

1. Maintain an adequate safety distance (at least 1 meter) to other objects, such as furniture, curtains, etc.
2. Only place the appliance in operation in a vertical position.
3. Ensure that air can flow in and out unhindered - do not, under any circumstances, cover the air inlets of the appliance.
4. Only place the appliance on a solid and level substrate. Do not place the appliance on soft surfaces (sofa, bed) because the appliance can tip over.
5. In addition, ensure that the appliance is not set up on deep-pile carpets or in dusty environments.
6. For safety reasons, the appliance must not be used in the vicinity of sinks, bathtubs, or water connections.
7. Never place the appliance directly under an electrical outlet, and ensure that the power socket used is easily accessible at all times.
8. Check whether the power cord is routed in such a manner that no one can stumble over it.
9. The power cord should not touch any housing parts, this could cause the cable to melt.

Be aware that the appliance can become very hot - fire hazard! Particularly ensure that children are kept away from the appliance.

REMOTE CONTROL/BATTERY REPLACEMENT

Diagram showing a rectangular object with internal components and an arrow indicating rotation (no text or symbols)

1. Carefully pull the cover of the battery compartment out of the remote control unit.

2. Insert the battery into the intended holder.

3. If you want to insert a different battery, ensure that you use a CR2025 button cell battery.
4. Carefully slide the cover back into the remote control unit.
5. If you adjust the appliance with the remote control unit, ensure that you hold it in the direction of the fan heater while you are making the settings.
6. The designations of the buttons on the remote control unit are identical to those of the buttons on the appliance. Please comply with the instructions in this regard in the chapter, "Preparing the appliance for operation".

BEFORE THE FIRST USE

1. Remove all packaging materials and any transport guards and stickers (not the type plate or the serial number!). Keep the packaging material away from children. Choke hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.
2. Inspect the appliance for damage. If there is visible damage, do not operate the appliance; instead, contact our customer service department.
3. Comply with all instructions that are specified in the chapter, "The ideal location", and find a suitable location.
4. When you use the appliance for the first time, or if it has not been operated for an extended period of time, a slight odour can occur.

DISPLAY/CONTROL PANEL

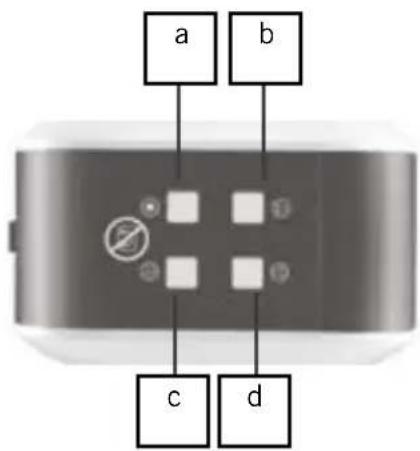

Control panel:

a Button - Fan/High/Low (heating capacity)
b Button - Timer
c ON/OFF button
d Button - Oscillation/Swing function

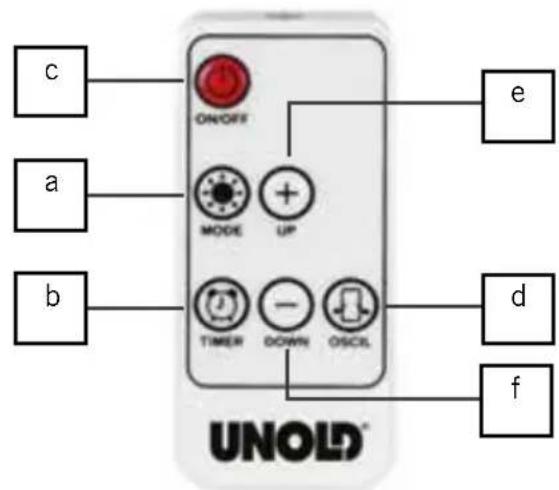

Remote Control only

Button + Temperature

Button - Temperature

c a b ON/OFF MODE UP TIMER DOWN OSCIL e d f UNOLD™

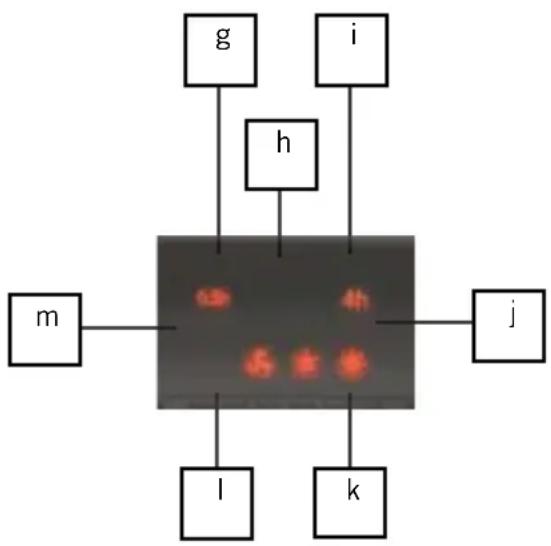

Display:

g Indicator lamp Oscillation

h/m ^ C / h Temperature / Hour display

i Indicator lamp Fan operation

j Indicator lamp - low heating capacity

k Indicator lamp - high heating capacity

| Indicator lamp Timer

OPERATION

1. Comply with all safety instructions and safety regulations.
2. Ensure that you have selected a safe location.
3. Plug the mains plug of the appliance into an electrical outlet (220–240 V \~ 50 Hz).
4. Place the main switch on the rear of the appliance on "I"
5. The appliance is now in standby mode, only the ON/OFF button active.
6. Press the ON/OFF button. A short signal tone will sound.
7. Caution: The following explanations apply for adjustment on the control panel itself, and via the remote control unit. The button designation is identical in each case.

Heating capacity

1. You can select from two heating capacities:

■ “Low” level for low capacity (approx. 1,000 watt)
■ “High” level for high capacity (approx. 2,000 watt)

1. Note: It takes a few moments until the higher capacity is completely active.

2. Use the 📄 button to select the desired capacity. The respective indicator lamp shows the level at which the appliance is operating.

3. The appliance heats until the desired temperature is reached, then the heating switches off. The heater will switch on again as soon as the room temperature drops below the set temperature.

Fan operation

Level “ ✧” for the fan function (cool air)

1. Attention: If the appliance was previously on heating operation, the outflowing air will still be warm initially. Depending on the previous heating capacity it can take some time until the appliance provides cool air.

Oscillation function / swing function

1. With this function it is possible to distribute the air flow over a larger area, because the appliance swings back and forth in a specific radius.
2. The oscillation function can be switched on in every mode. To do this, select the 📐 button. If you want to stop the appliance in a specific position, press the button again.
3. Switch off the oscillation function before you switch off the appliance.

Timer

1. Via the Timer button you can select the desired runtime of the appliance. This is possible in the range 1 to 8 hours in increments of 60 minutes. Press the „Timer“ button until the selected time is illuminated. After this time elapses the appliance switches off automatically. If you do not make a time setting, the appliance will run continuously.

Selecting the temperature

1. Use the “+” and “-” buttons on the remote control to select the desired temperature in a range between 10 and 35°C.
2. The selected temperature is shown in the display.
3. The appliance shows the current room temperature, the set temperature will be maintained automatically.

Switching off

1. To switch off the appliance, press the ON/OFF button, switch the main switch on the rear of the appliance to "O" and unplug the plug from the electrical outlet.
2. Important note: The appliance has an automatic switch-off with cooling mode. If the appliance was running in heating mode, it takes about 30 seconds for the appliance to turn off after pressing the ON / OFF button.

Be aware that the appliance can become very hot – danger of burns! Particularly ensure that children are kept away from the appliance.

CLEANING AND CARE

Switch off the appliance.

Unplug the plug from the electrical outlet.

Allow the appliance to cool completely.

1. Never use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants.
2. To clean the filter, open the filter cover. Remove the filter and clean it with warm water that must not be hotter than 30^ C.
3. Allow the filter to dry completely, before you reinsert it. Then carefully close the filter cover.
4. You can remove dust in the appliance if you carefully hold a vacuum cleaner against the air outlet grille or air inlet grille.
5. Store the fan heater in a dry, safe place so that it is protected from dust, shocks, heat and moisture.

Hand inserting a black strip into a white air conditioner unit (no text or symbols visible)

OVERHEATING PROTECTION CIRCUIT

1. The appliance is equipped with an overheating protection circuit that switches the appliance off when it is heated over 70^ C.
2. If the overheating protection circuit has been tripped, switch the appliance off, unplug the plug from the electrical outlet and let the appliance cool for at least 30 minutes.
3. Eliminate the cause of the overheating, (e.g. excessive dust in the appliance, air outlet grille is covered) and start up the appliance again.
4. If after eliminating the cause, you still cannot switch the appliance back on, or if the overheating protection circuit switches on without an apparent reason, contact our customer service organisation.

GUARANTEE CONDITIONS

We grant a warranty of 24 months for this UNOLD brand appliance - 12 months for commercial use - from the date of purchase, covering damage that is demonstrably due to factory defects when used as intended. Within the warranty period, we will remedy material and manufacturing defects at our discretion by repair or exchange. Our warranty services apply exclusively to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. Please send appliances for which you seek removal of defects, together with a copy of the machine-generated proof of purchase that shows the date of purchase along with a description of the fault, to our customer service department using suitable packaging. On our website https://unold.de/pages/rucksendungen, you can print out a return slip (only for return shipments from Germany and Austria). All types of damage attributable to wear and tear, improper handling and non-compliance with the maintenance and care instructions are excluded from the warranty. The warranty claim is void if repairs or interventions on the appliance are carried out by a third party. This manufacturer's warranty does not limit your statutory rights or your claims against the seller or dealer under the purchase contract in accordance with the provisions of the German Civil Code (BGB). Your statutory rights as a consumer, in particular your rights to warranty and the statutory claims for defects in accordance with Sections 437 et seqq. BGB, remain unaffected.

UNOLD AG, Mannheimer Straße 4, D-68766 Hockenheim

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a highquality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible, we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. There is a legal requirement to dispose of waste electrical and electronic equipment (WEEE) as well as batteries and accumulators separately from household waste. You can recognise this waste equipment by the crossed-out wheeled bin symbol (WEEE symbol). Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

Symbol of a trash bin with no text or labels, featuring a crossed-out box and a solid black rectangle below (no readable text or symbols)

UN38.3

NOTICE D'UTILISATION MODÈLE 86430

SPÉCIFICATION TECHNIQUE

Dimensions : Env. 18,0 x 18,0 x 43,0 cm (L / l / h)

Warning symbols including exclamation, smoke, and no-prohibited sign

Simple illustration of a cylindrical object with a red ribbon, no text or symbols present.

CONDITIONS DE GARANTIE

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

UN38.3

Diagram showing a rectangular component being cut with an arrow and a separate view of a mechanical part (no text or symbols)

Hand inserting a black cable into a white industrial device (no visible text or symbols)

OVERVERHITTINGSBEVEILIGING

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a solid rectangle below (no readable text or symbols)

UN38.3

Misure: Circa 18,0 x 18,0 x 43,0 cm (lung./largh./alt.)

Cavo di

Simple 3D illustration of a cylindrical object with a red arrow pointing to its side (no text or symbols)

Diagram showing a rectangular component being cut with an arrow indicating rotation (no text or symbols)

Hand inserting a black strip into a white air conditioner unit (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Medidas: Aprox. 18,0 x 18,0 x 43,0 cm (L/An/Al)

Cable: Aprox. 145 cm

Peso: Aprox. 2,3 kg

Carcasa: Plástico

Diagram showing two rectangular components with internal square cutouts and a separate circular component (no text or symbols)

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or disposal (no text present)

Warning symbols including exclamation, warning sign, and no-prohibited document

Simple illustration of a cylindrical object with a red arrow pointing to its side (no text or symbols)

Hand inserting a black cable into a white cylindrical device (no text or symbols visible)

Producer: Pak Ko Batteries Factory Ltd.

Battery type: Lithium manganese dioxide button cell CR2025

Rechargeable: no

Place of production: Unit 11, 9/F, Block A, Hoi Luen Industrial Centre, No 55 Hoi Yuen Road, Kwun Tong, 999077 Kowloon Hong Kong

Date of production: 202402

Weight: 2.4 g

Capacity: 150 mAh

Chemical composition: Contains the following substances, among others: Manganese dioxide (CAS no. 1313-13-9) - 31.00 % lithium (CAS no. 7439-93-2) - 2.20 % graphite (CAS no. 7782-42-5) - 3.00 % 1,2-propylene carbonate (cyclic) (CAS no. 108-32-7) - 2.50 % Lithium perchlorate (CAS no. 7791-03-9) - 0.50 % Ethylene glycol dimethyl ether (CAS no. 110-71-4) - 2.18 % Iron (CAS no. 7439-89-6) - 58.62 % Note on the amount of lithium: The total amount of lithium is 0.048 g per cell.

The battery does not contain mercury, cadmium or lead in concentrations prohibited by EU Battery Regulation 2023/1542.

Hazardous substances: Lithium perchlorate: Reactive, oxidising Ethylene glycol dimethyl ether (EGDME): Toxic to reproduction, highly volatile Manganese dioxide: Reactive on skin/eye contact, toxic by inhalation

The substances are in a permanently incorporated form or as a component of the electrolyte and are not released during normal use. Special care must be taken in the event of damage or leakage. In case of damage to the battery:

• Avoid contact with leaking material
• Rinse eyes and skin immediately with water, remove contaminated clothing
• Ventilate the area well
• Do not clean without suitable protective equipment
• Dispose of in accordance with the applicable local regulations

Fire extinguishing agents Small fire: dry chemicals, soda ash, lime or sand, large fire: dry sand, dry chemicals, soda ash or lime or withdraw from the area and let the fire burn. Remove containers from the fire area if this is possible without risk. Unsuitable extinguishing agents: Water or foam Critical raw materials: Lithium (CAS 7439-93-2) Graphite (CAS 7782-42-5)

The chemical composition is based on information from the manufacturer's safety data sheet and typical material classifications for batteries of this type.

Lieu de production : Unit 11, 9/F, Block A, Hoi Luen Industrial Center, No 55 Hoi Yuen Road, Kwun Tong, 999077 Kowloon Hong Kong

Producent: Pak Ko Batteries Factory Ltd.

Producent: Pak Ko Batteries Factory Ltd.
