USER MANUAL Pelèr 4 OLIMPIA SPLENDID

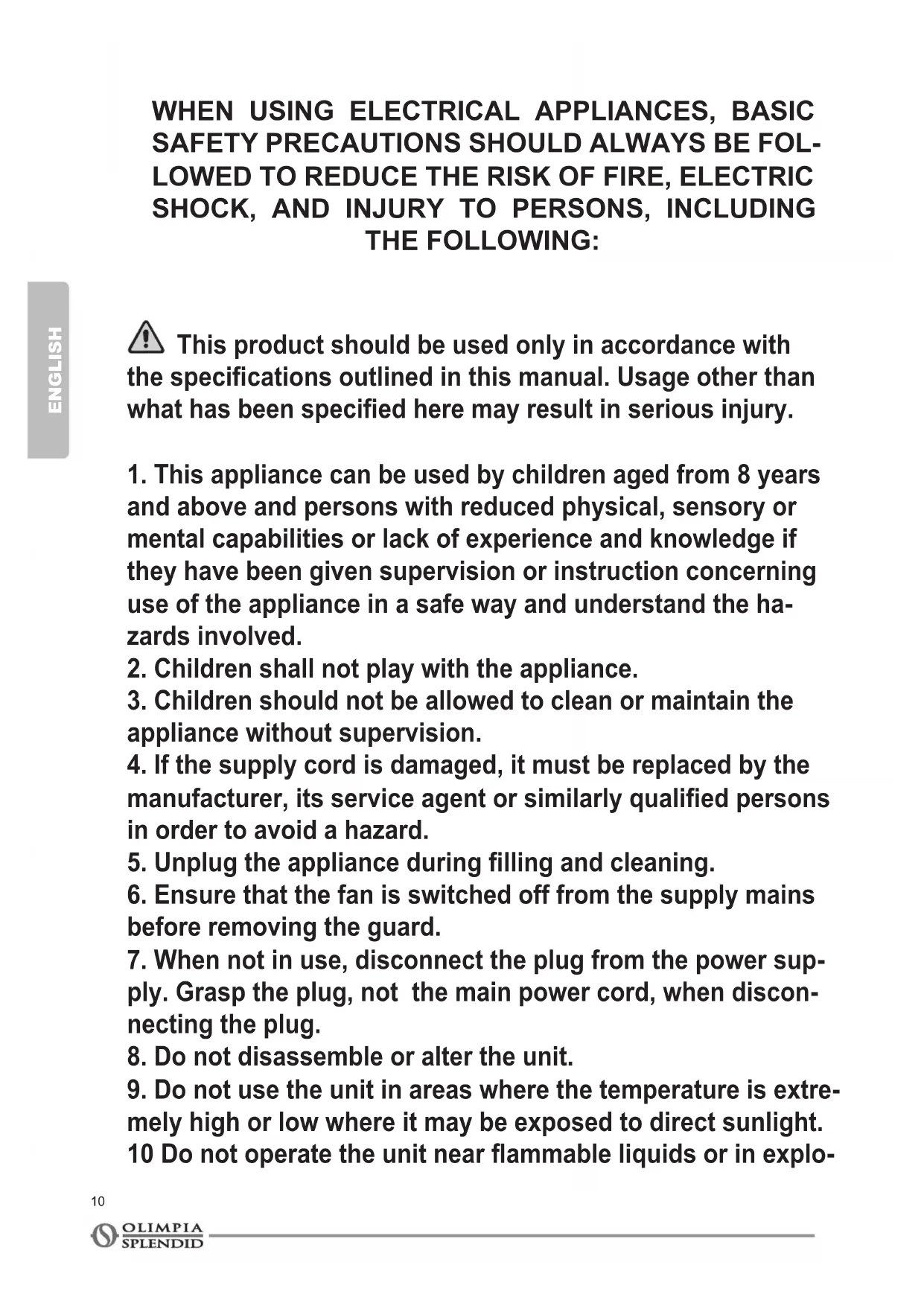

WHEN USING ELECTRICAL APPLIANCES, BASIC

SHOCK, AND INJURY TO PERSONS, INCLUDING

THE FOLLOWING: This product should be used only in accordance with the specications outlined in this manual. Usage other than what has been specied here may result in serious injury.

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the ha- zards involved.

2. Children shall not play with the appliance.

3. Children should not be allowed to clean or maintain the

appliance without supervision.

4. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

5. Unplug the appliance during lling and cleaning.

6. Ensure that the fan is switched off from the supply mains

before removing the guard.

7. When not in use, disconnect the plug from the power sup-

ply. Grasp the plug, not the main power cord, when discon- necting the plug.

8. Do not disassemble or alter the unit.

9. Do not use the unit in areas where the temperature is extre-

mely high or low where it may be exposed to direct sunlight. 10 Do not operate the unit near ammable liquids or in explo-11 PELER 4 ENGLISH sive atmospheres.

11. Do not put heavy objects on the unit; this may cause da-

mage or malfunctions on the unit.

12. Since the unit has the humidifying function, please do

not use it for a long time in an airtight place (such as a small closed room) to avoid too much humidity.

13. Change the water frequently to keep it clean.

14. This unit must be operated in a vertical position.

15. This unit shall not be exposed to dripping or splashing

16. Do not install the unit in a conned space, such as a bo-

okcase or built-in cabinet 17.Switch OFF and unplug the unit before lling with water. Make sure the water is below the MAX water level line.

18. Switch OFF and unplug the unit before cleaning and

maintenance. 19 The unit should not be adjusted or repaired by anyone except specialized technicians. 20.To reduce the risk of re or electric shock, do not use this fan with any speed control device.12 ENGLISH

MAIN FEATURES AND OPERATING

Cooler function 0.5,1,2,4 hours timing Low level water protection Three fan speeds: high, mid, low Automatic horizontal oscillation Maximum speed is the default conguration when the machine is turned on Safety power off function, when air lter is removed Air ionizer.

APPEARANCE AND FUNCTIONS

A.Control panel B. Flap C. Protection grid D. Front housing E. Rear housing F. Power cord and Plug G. Water tank H. Base

REMOTE CONTROL Before rst using, install battery (not included)

A. Mode Button B. Power Botton C. Cool Button D. Timer Button PRE-OPERATING INSTRUCTION Select a rm, level, at location at least 15cm from any wall or object for proper air ow. Place the air-cooler appliance on a water-resistant surface, as water can damage furniture and some ooring. Do not place the unit directly on carpets, towels, blankets or other absorbent surfaces. We will not accept responsibility for damage caused by water spillage FILLING To use the Cooling function, water must be added to the water tank. Open the tank and pour in cool, clean water. E. Ion Button F. Swing Button G. Speed Button draw out water tank pour water Cap for water draining14 ENGLISH Please pay attention when adding water to: Unplug the appliance Before relling, remove any remaining water Use only clean water Fill the water tank slowly Pay attention to the front water level display window to not exceed the maximum level. OPERATING INSTRUCTIONS POWER button

1. Connect the plug into the power outlet, a beep tone will be heard.

2. Press the POWER button, the FAN indicator and HIGH speed indicator will turn on with

beep tone. The unit will operate in the strongest air of normal mode.

3. Press it again to shut off, the unit stops.

MODE button Press the MODE button, the NATURE indicator will turn on. Press POWER button 2 times to turn to the SLEEP mode; press Power button 3 times to turn to the “normal” mode again. HIGH speed+ SLEEP mode: In HIGH speed mode, press SLEEP mode, Press the SLEEP button when SPEED mode is to set SLEEP mode with HIGH wind speed. Both HIGH and SLEEP indicators will be on. The wind speed will automatically change as follows: HIGH and MED during the rst half hour, MED during the second half hour, LOW speed for one hour and then STOP. MED speed + SLEEP mode: Press the SLEEP button when SPEED mode is MED to set SLEEP mode with MED wind spe- ed. Both MED and SLEEP indicators will be on. The wind speed will automatically change as follows: MED and LOW during the rst half hour, LOW speed for half an hour and then STOP. LOW speed + SLEEP mode: Press the SLEEP button when SPEED mode is LOW to set SLEEP mode with LOW speed. Both LOW and SLEEP indicators will be on. LOW wind comes out 10 seconds and stops 5 seconds alternately every 15 seconds until power off. Note: To avoid overcooling, do not adjust the direction the wind to the human body.

HIGH speed+ NATURE mode: Press the NATURE button when SPEED mode is HIGH to set NATURE mode with HIGH speed. Both HIGH and NATURE indicators will be on. The wind speed will automatically change with time as follows: HIGH, MED and LOW, alternatively. MED speed + NATURE mode: Press the NATURE button when SPEED mode is MED to set NATURE mode with MED spe- ed. Both MED and NATURE indicators will be on. The wind speed will automatically change15 PELER 4 ENGLISH with time as follows: MED and LOW, alternatively. LOW speed + NATURE mode: Press the NATURE button when SPEED mode is LOW to set NATURE mode with LOW spe- ed. Both LOW and NATURE indicators will be on. The wind speed will automatically change with time as follows: LOW and MED, alternatively SPEED button

1. When the POWER button is pressed, HIGH speed indicator “HIGH” will be on and the

strongest wind comes out.

2. Press the SPEED button once, the MED speed indicator “MED” will be on and the mild

3. Now Press the SPEED again, the LOW speed indicator “LOW” will be on and the weak

wind comes out. SWING button Press “SWING ”button to turn oscillation function on or off. TIMER button

1. Press the “TIMER” button to adjust timer setting. Every press adds 30 minutes up to 7.5

hours. The set period is indicated on the display.

2. To clear timer mode, press “TIMER” button 16 times (one more press after reaching 7.5

hours); the “TIMER” indicator will be off. COOL button

1. Press COOL button, If the water reach the level, the “COOL” indicator will be on and the

pump starts to work.

2. After about 3 minutes, the comfortable cool wind with moisture comes out.

3. Press it again to shut off. The COOL indicator turns off then fresh and dry wind comes out.

1. If press the COOL button when water is under low level or no water, the alarm will sound

after 90 seconds, and COOL indicator will continue to blink about 10 seconds. After 10 se- conds, the alarm sound stops and COOL indicator will also turn off.

2. The unit can be used without water as normal electrical fan. In this situation, please keep

the COOL button in OFF mode. ION button Press the ION button, the ION indicator will be on and the ionizer will start to work, the ne- gative ion will come out with the wind blowing. NOTE - At rst use, the appliance may have a slight odor - At each re-starting, the appliance may have water condensate on the grid16 ENGLISH DAILY MAINTENANCE Disconnect the appliance from the power supply. Check that the fan is switched off Remove the air lter, clean it with detergent (not petrol, alcohol, gas oil or similar products) and dry it. Remove the water cloth, clean it with detergent (not petrol, alcohol, gas oil or similar products) and dry it. Drain the water contained in the tank and clean it with a wet cloth or brush. Clean the body of the unit with a dry cloth. Do not use a wet cloth or any water jet because it could affect the safety of the appliance and its appropriate working. Reinstall water cloth. Reinstall the air lter.

END OF SEASON STORAGE

Follow the daily maintenance suggestions to clean lters and water cloth. Ensure the air lter and the water cloth are dry, ensure that the water tank contains no ac- cumulated water. Pack the unit in its original carton and store in a cool, dry location.17 PELER 4 ENGLISH DISPOSAL This symbol on the product or its packaging indicates that the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling electric and electronic appliances. Your contribution to the correct disposal of this product protects the environment and the health of your fellow men. Health and the environment are endangered by incorrect disposal. Further information about the recycling of this product can be obtained from your local town hall, your refuse collection service, or in the store at which you bought the product. This regulation is valid only in EU member states SPECIFICATIONS For the technical data listed below, consult the characteristic data plate applied to the product. Voltage (V) 220-240 V~ FREQUENCY (Hz) 50 Hz
