Sicherheit 2

Safety information ....3

en Instructions for use ....30

Please keep this instruction manual for future reference.

When passing the vacuum cleaner on to a third party, also pass on this instruction manual.

Intended use

This appliance is intended for domestic use only and not for commercial use. Only use this vacuum cleaner in accordance with the information provided in this instruction manual. The manufacturer shall not accept any responsibility for damage caused by improper use or incorrect operation.

You must therefore note the following points.

The vacuum cleaner must only be operated with:

■ Original replacement parts, accessories or special accessories
In order to avoid invalidating the warranty, we recommend that you operate your appliance using only original filter bags.

In order to prevent injuries and damage, the vacuum cleaner must not be used for:

■ Vacuuming persons or animals.
■ Vacuumingup:

• Small creatures (e.g. flies, spiders, etc.).
• Hazardous, sharp-edged, hot or red-hot substances.
• Damp or liquid substances.
• Highly flammable or explosive substances and gases.
• Ash, soot from tiled stoves and central heating systems.
• Toner dust from printers and copiers.

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.

■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and they have understood the potential dangers of using the appliance.

■ Children must never play with the appliance.
■ Cleaning and user maintenance must never be carried out by children without supervision.

■ Plastic bags and films must be kept out of Instructions on disposal the reach of children and disposed of.

= There is a risk of suffocation.

Proper use

■ The vacuum cleaner must only be connected and operated as specified on the rating plate.

■ Never vacuum without the dust bag or dust container, motor protection or exhaust filter.

= This may damage the appliance.

■ Avoid vacuuming close to your head when using nozzles and tubes.

= There is a risk of injury.

■ When vacuuming stairs, the appliance must always be positioned below the user.

■ Do not use the power cord or the hose to carry or transport the vacuum cleaner.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person, in order to prevent injury.

■ Fully extend the power cord when using the vacuum cleaner continuously for several hours.

■ When disconnecting the appliance from the mains, pull the plug itself to remove it; do not pull on the power cord.

■ Do not pull the power cord over sharp edges or allow it to become trapped.

■ Pull out the mains plug before carrying out any work on the vacuum cleaner.

■ Do not operate the vacuum cleaner if it is damaged. Unplug the appliance from the mains if a fault is detected.

■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.

■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.

■ Do not pour flammable substances or substances containing alcohol onto the filters (dust bag, motor protection filter, exhaust filter, etc.).

■ The vacuum cleaner is not suitable for use on construction sites.

= Vacuuming up building rubble may damage the appliance.

■ Switch off the appliance when it is not in use.

At the end of its service life, the appliance should immediately be rendered unusable, then disposed of in an appropriate manner.

Please note

- The mains socket must be protected by at least a 16-amp fuse.

If a fuse is tripped when you switch on the vacuum cleaner, this may be because other electrical appliances which have a high connected load are connected to the same power circuit at the same time.

To prevent the fuse from blowing, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can therefore be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

■ Oldappliances

Old appliances still contain many valuable materials. You should therefore take appliances that have reached the end of their service life to your retailer or recycling centre so that they can be recycled. For current disposal methods, enquire at a retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are manufactured from environmentally friendly materials. Provided they do not contain substances that are not permitted in household waste, you can dispose of them with your normal household waste.

fr

Simple line drawing of an open book with a right-pointing arrow on the right page (no text or symbols)

Gerätebeschreibung

powerSensor Technology\*

Congratulations on your purchase of the Siemens Q8.0 vacuum cleaner.

This instruction manual describes various Q8.0 models, which means that some of the equipment features and functions described may not apply to your model. You should only use original Siemens accessories, which have been specially developed for your vacuum cleaner, in order to achieve the best possible vacuuming results.

Please keep this instruction manual for future reference. When passing the vacuum cleaner on to a third party, also pass on this instruction manual.

Fold out the picture pages.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Your vacuum cleaner

1 Adjustable floor nozzle* (For the same functions, the appearance of the nozzle may differ from the picture)
2 Hard-floor nozzle*
3 TURBO-UNIVERSAL® brush for floors*
4 Telescopic tube with adjusting sleeve (and accessory connection)*
5 Telescopic tube with sliding switch (and accessory connection)*
6 Crevice nozzle
7 Accessories holder
8 Upholstery nozzle
9 Hard furnishings brush (for fitting on the upholstery nozzle)*
10 Flexible hose
11 Hose handle
12 Dust bag change indicator
13 Power rotary control and on/off switch
14 Exhaust filter
15 Parking aid
16 Power cord
17 Rear flap
18 Carrying handle
19 Dust bag compartment lid
20 Storage aid (on the underside of the appliance)
21 Dust bag
22 Motor protection filter*

Replacement parts and special accessories

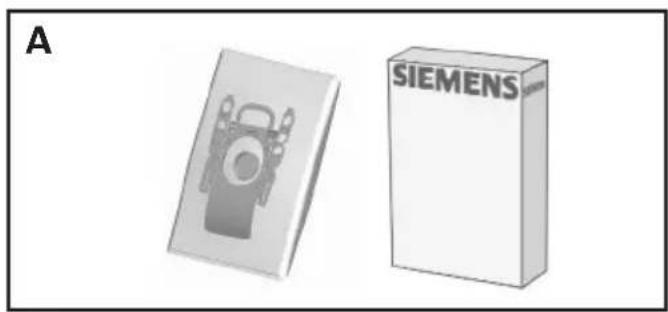

A Replacement filter pack

Filter type GXXL (VZ41AFGXXL)

For optimum performance, and for appliances with powerSensor technology*, we recommend using GXXLplus type replacement bags (VZ4GXXLP2).

Contents: 4 dust bags with lock

1 micro-hygiene filter

By using original dust bags, you can ensure that your appliance always works at its optimum power level.

• High cleaning power
• Excellent filtration and hygiene
• Longer life of the appliance
• High stability and tensile strength
• Up to 50% longer service life

http://www.dust-bag-siemens.com

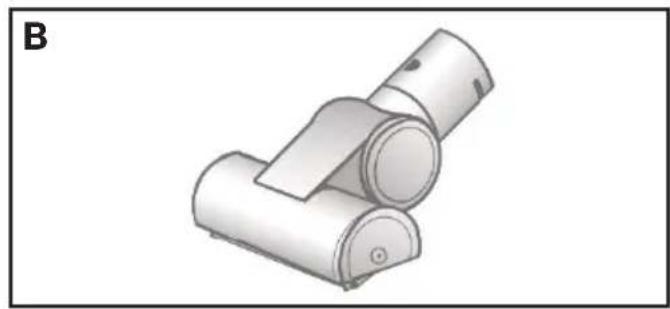

B TURBO-UNIVERSAL® brush for upholstery VZ46001

All-in-one brushing and vacuuming of upholstered furniture, mattresses, car seats, etc. Especially suitable for picking up pet hair. The brush roller is driven by the suction air flow through the vacuum cleaner.

No separate electric connection is needed.

C TURBO-UNIVERSAL® brush for floors VZ102TBB

All-in-one brushing and vacuuming of rugs and carpets as well as all hard floor coverings. Especially suitable for picking up pet hair. The brush roller is driven by the suction air flow through the vacuum cleaner.

No separate electric connection is needed.

D Hard-floor nozzle VZ123HD

For vacuuming hard floors (parquet, tiles, terracotta, etc.)

with extra-soft natural hair bristles

E Hard-floor nozzle VZ124HD

Innovative "soft & roll" hard-floor nozzle:

2 rotating brush rollers made from natural hair.

Coarse dirt is not pushed away.

Before using your appliance for the first time

Fig. 1

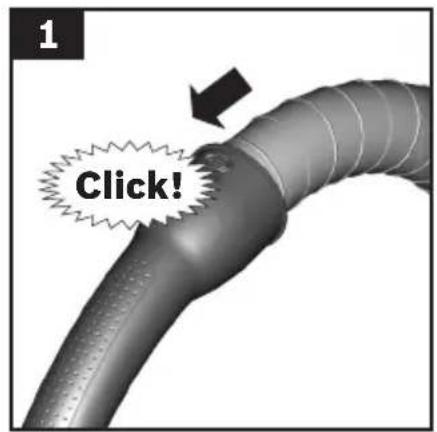

- Push the handle onto the flexible hose and lock it in place.

Initial use

Fig. 2

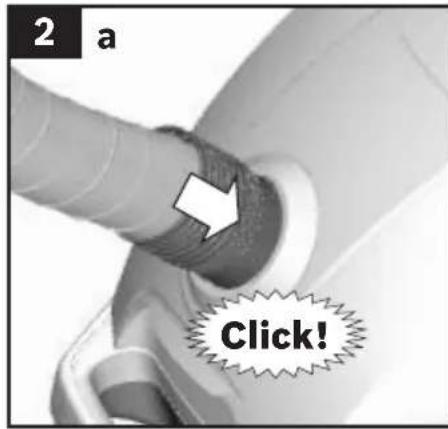

a) Push the flexible hose adapter into the air intake opening in the lid until it locks in place.

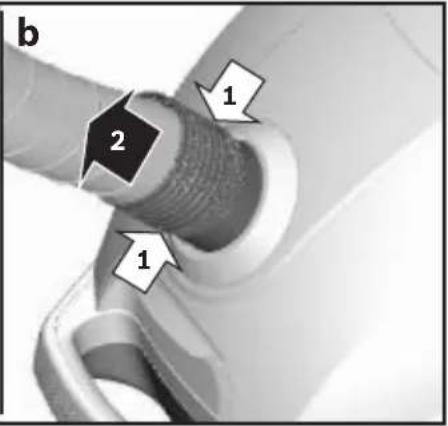

b) To remove the flexible hose, press the two catches together and pull out the hose.

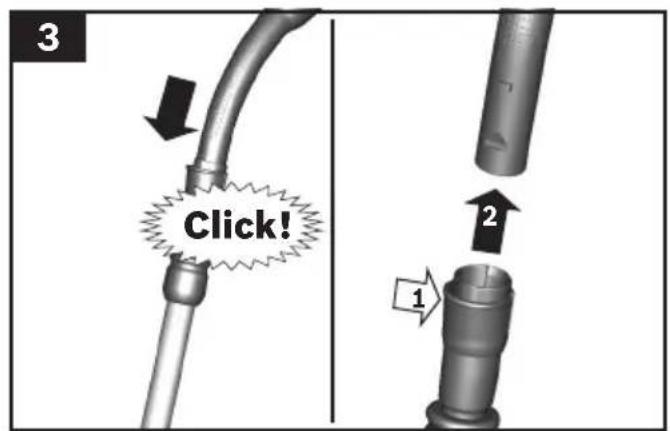

Fig. 3

• Push the handle into the telescopic tube until it locks into place.
• To release the connection, press the locking collar and pull out the telescopic tube.

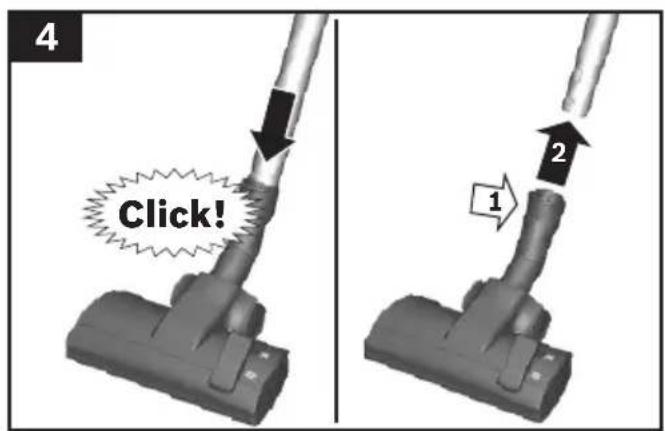

Fig. 4

• Push the telescopic tube into the connecting piece of the floor nozzle until it locks in place.
• To release the connection, press the locking collar and pull out the telescopic tube.

Fig. 5\*

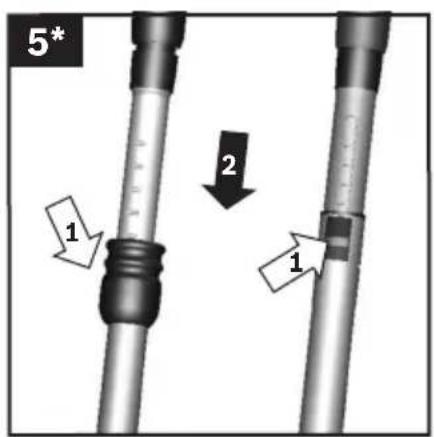

Unlock the telescopic tube by moving the sliding switch or adjusting sleeve in the direction of the arrow, and adjust to the desired length.

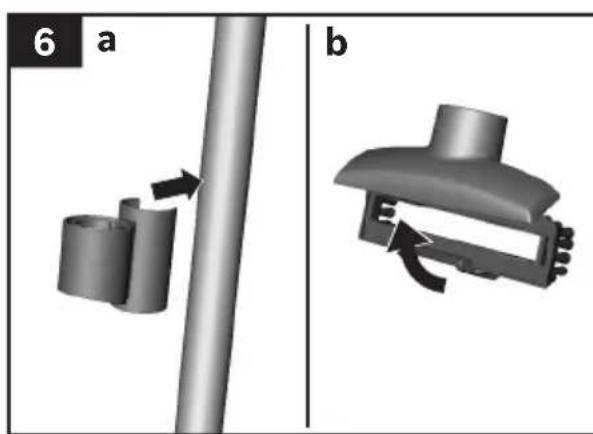

Fig. 6

a) Place the accessories holder in the required position on the telescopic tube.
b) Put the hard furnishings brush on the upholstery nozzle and lock it in place.
c) Use some pressure to insert the upholstery nozzle with hard furnishings brush and the crevice nozzle into the accessories holder from above or below.

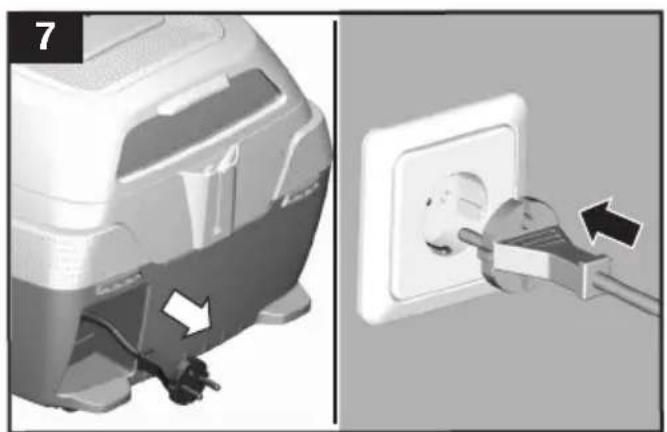

Fig. 7

- Holding the power cord by the plug, pull it out to the required length and insert the plug into the mains socket.

! If using the appliance for longer than 30 minutes, pull out the power cord completely.

= Risk of overheating and subsequent damage.

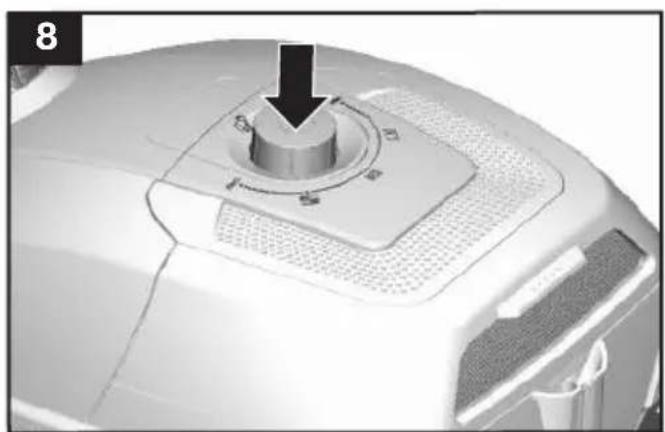

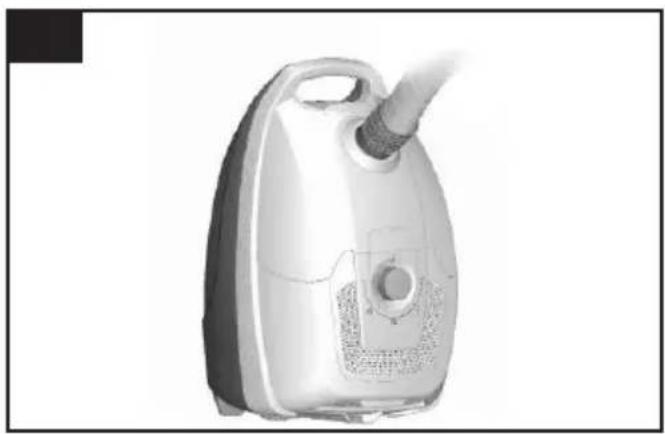

Fig. 8 Switching on and off

To switch the vacuum cleaner on or off, press the rotary control.

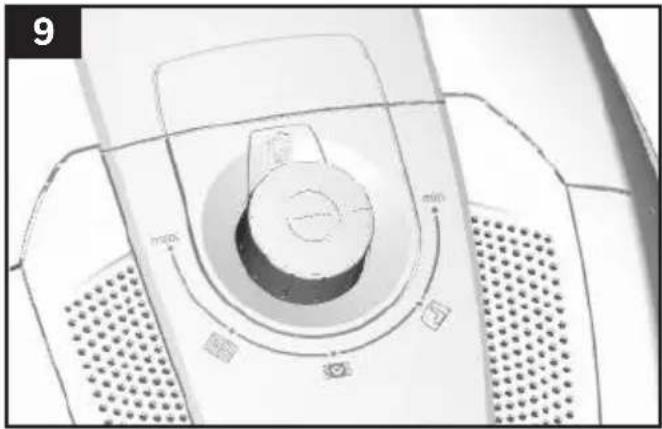

Fig. 9 Controlling the suction level

Turn the rotary control to infinitely adjust the suction level to the level required.

min - For vacuuming curtains and delicate textiles

For vacuuming upholstered furniture and cushions

For vacuuming delicate rugs und for daily vacuuming of lightly soiled floors

For vacuuming durable floor coverings

max - For vacuuming hard floors and heavily soiled rugs and carpets

Vacuuming

Caution:

- Floor nozzles are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). You must therefore check the underside of the floor nozzle at regular intervals. Worn undersides of floor nozzles may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor nozzles.

* Depending on model

Fig. 10

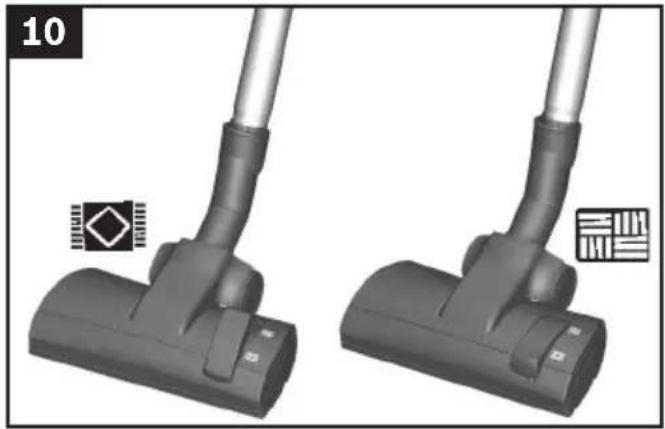

Set the adjustable floor nozzle:

■ Rugs and carpets =>

■ Hard floors/parquet =>

Fig. 11\* Vacuuming with accessories

Attach the nozzles to the suction pipe or handle as required:

a) Crevice nozzle for vacuuming crevices and corners, etc.
b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.

c) Upholstery nozzle with attachable hard furnishings brush for vacuuming window frames, cupboards, cornicing, etc.

●After use, reinsert the crevice nozzle and upholstery nozzle into the accessories holder.

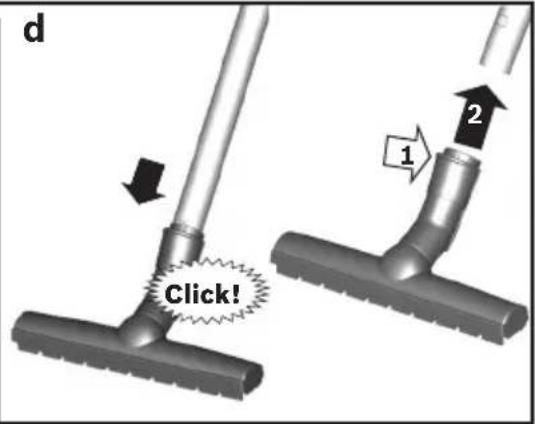

d) Hard-floornozzle

For vacuuming hard floor coverings (tiles, parquet, etc.)

- Push the telescopic tube into the connecting piece of the hard-floor nozzle until it locks in place.

●To release the connection, press the locking collar and pull out the telescopic tube.

Fig. 12

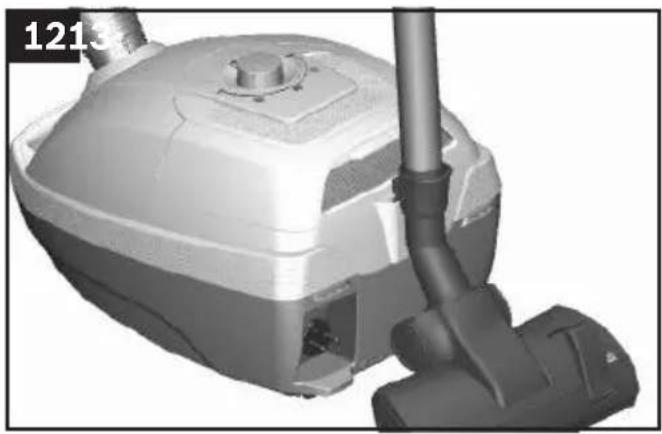

- You can use the parking aid on the back of the vacuum cleaner if you want to stop vacuuming for a short time.

●After switching off the appliance, slide the hook on the floor nozzle into the recess on the back of the appliance.

Fig. 13

To overcome obstacles, e.g. steps, the appliance can also be carried by the handle on the appliance body.

After using the appliance

Fig. 14

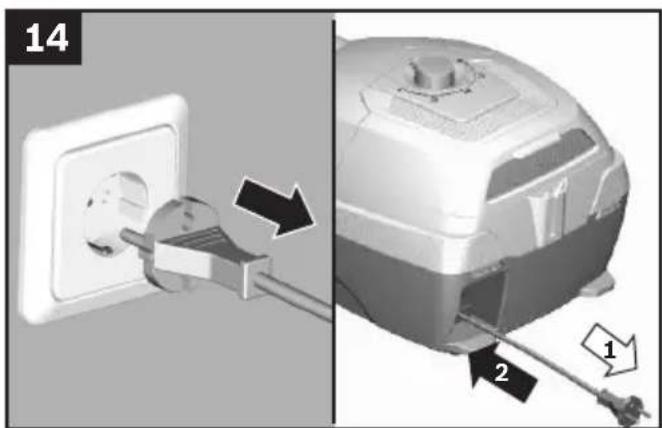

•Pull out the mains plug.

- Briefly pull on the power cord and release it (the cable retracts automatically).

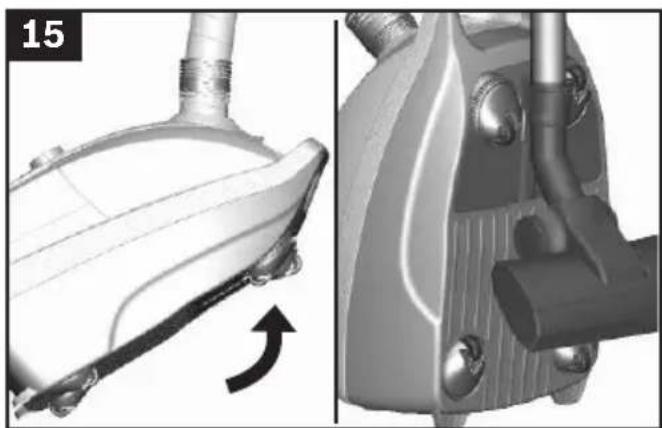

Fig. 15

●To store or transport the appliance, you can use the storage aid on the underside of the appliance.

- Stand the appliance upright on its end. Slide the hook on the floor nozzle into the recess on the underside of the appliance.

powerSensor technology\*

If your appliance is fitted with powerSensor technology*, this automatically ensures that the appliance is always working at its optimum power level. In conjunction with using original dust bags, this ensures minimal dust bag use and additional energy savings.

powerSensor technology is always activated automatically, and does not need to be activated by the user.

GXXLplus type replacement bags (VZ4GXXLP2) are required to guarantee the optimum performance of the powerSensor technology.

Changing the filter

Caution: Always switch off the appliance before

- changing the filter.

Replacing the dust bag

Fig. 16

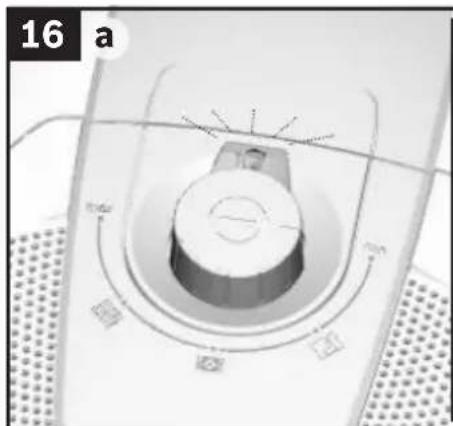

a) If the dust bag change indicator lights up continuously when the nozzle is lifted from the floor and the highest power setting has been selected, the dust bag must be changed, even though it may not yet be full. In this case, it needs to be changed due to the type of dust which has been vacuumed.

The nozzle, suction pipe and flexible hose must not be blocked, even if this does not trigger the dust bag change indicator.

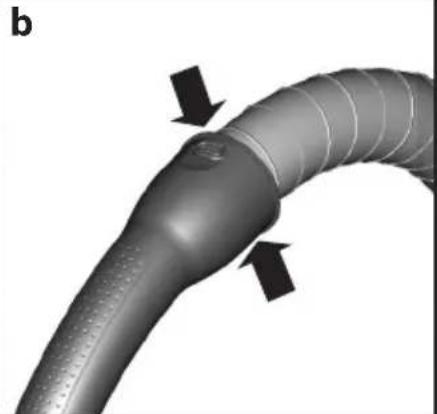

b) The handle can easily be detached from the hose to remove blockages.

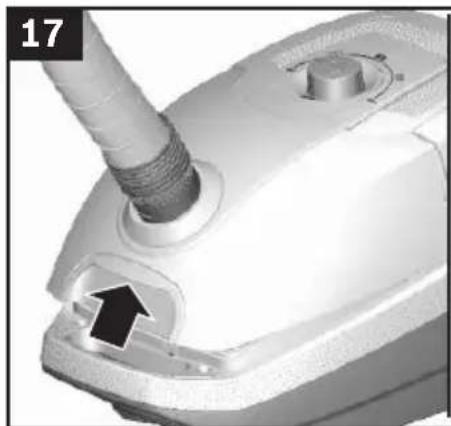

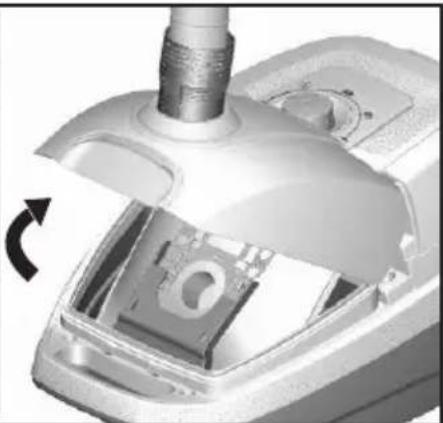

Fig. 17 Opening the lid

- Open the lid by moving the locking lever in the direction of the arrow.

Fig. 18

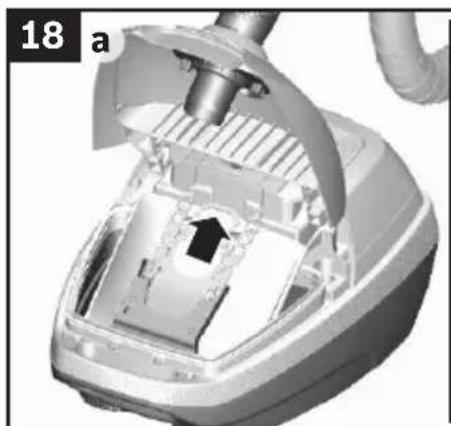

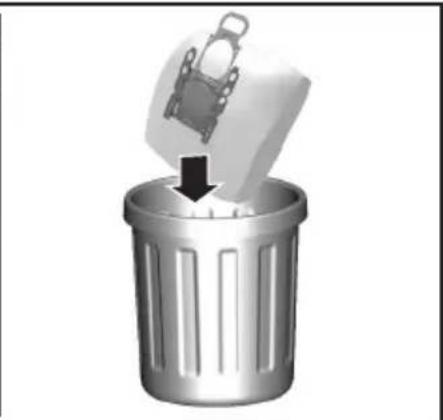

a) Close the dust bag by pulling on the locking tab, and remove the bag.

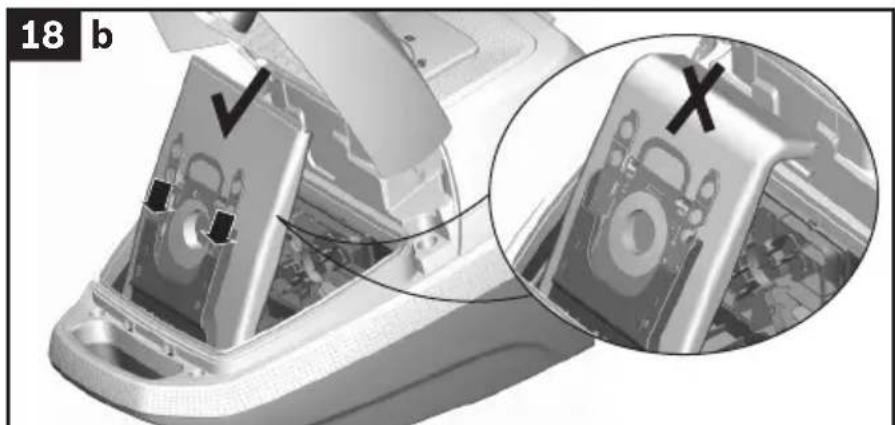

b) Push the new dust bag into the holder until it clicks into place. When doing so, leave the dust bag folded as it was when removed from the packaging. Do not crease or kink the dust bag, and ensure that it is not pinched when the lid is closed.

Caution: The lid will only close if a dust bag has

- been inserted.

Motor protection filter

Caution: The vacuum must not be operated without

the motor protection filter.

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by tapping out the dirt and rinsing.

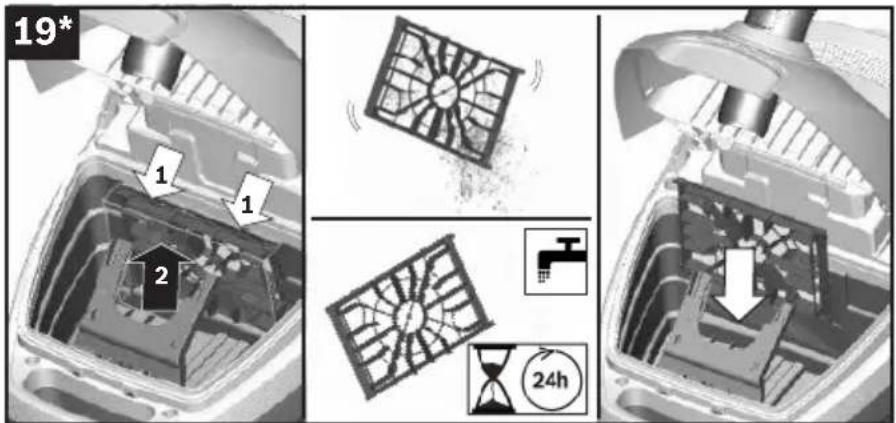

Fig. 19\*

Open the dust bag compartment lid. Fig. 17
- Release the motor protection filter by pulling on the side tabs and pull it out in the direction of the arrow.
●Clean the motor protection filter by tapping out the dirt.
- if it is very dirty, the motor protection filter should be rinsed.

The filter must then be left to dry for at least 24 hours.

After cleaning, refit the motor protection filter into the appliance and lock it in place at the top. Close the dust bag compartment lid.

Exhaust filter

The exhaust filter must be cleaned or replaced at least once a year.

Replacing the micro-hygiene exhaust filter (Ultra Air II hygiene filter)

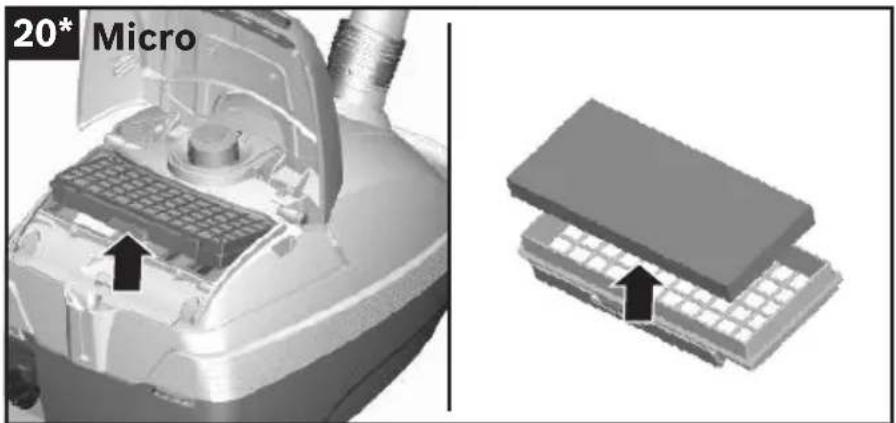

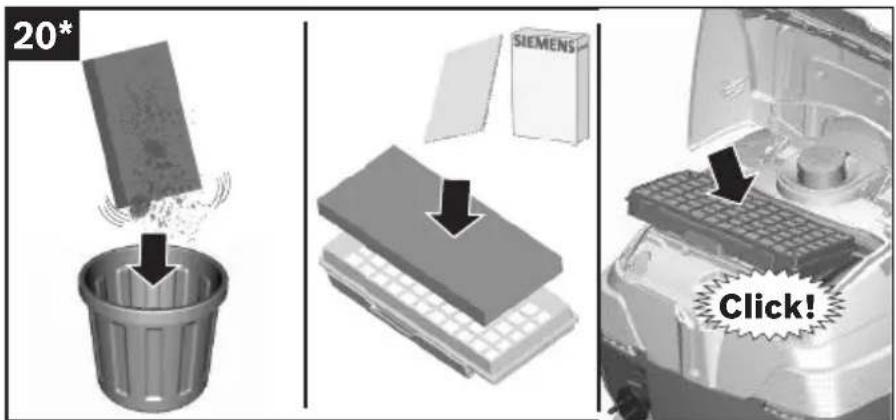

Fig. 20\*

• Open the rear flap.
• Unlock the filter holder by moving the locking tab in the direction of the arrow.
• Remove the foam filter* from the filter holder and tap it out.

Replace the old micro-hygiene filter with a new one. (This is included in the filter pack when you purchase original dust bags).

Insert the foam filter into the filter holder.

- Insert the filter holder into the appliance and lock it in place.

Cleaning the HEPA exhaust filter (Ultra HEPA hygiene filter)

The HEPA filter is designed so that it does not need to be replaced, provided the appliance is used as intended in the household.

To ensure that the vacuum cleaner is working at its optimum power level, the HEPA filter should be rinsed out after one year. The filtering action of the filter remains intact, even if the filter surface becomes discoloured.

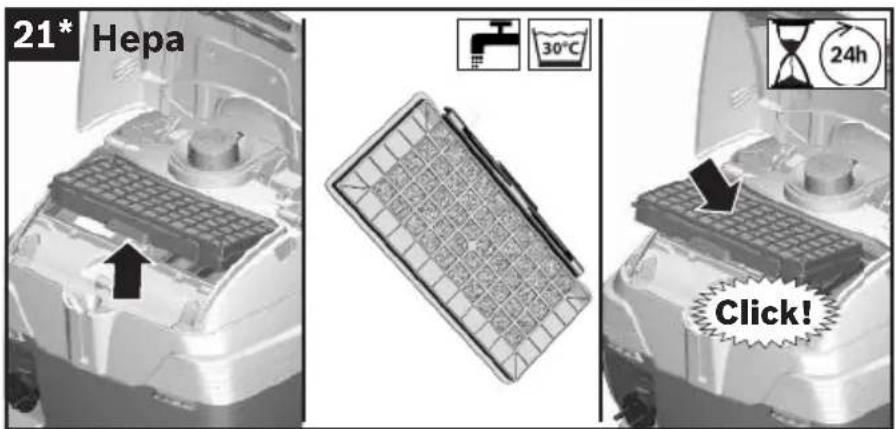

Fig. 21\*

- Open the rear flap.

Unlock the HEPA filter by moving the locking tab in the direction of the arrow, and remove it from the appliance.
Tap out the filter unit and rinse it under running water.

Alternatively, the unit can be cleaned in a washing machine at max. 30 °C using a gentle programme and the lowest spin speed.

TIP: To protect other laundry items, put the filter unit into a laundry bag.

Once the HEPA filter has dried completely (at least 24 hours), insert it back into the appliance and lock it in place.
- Close the rear flap.

After vacuuming fine dust particles (e.g. gypsum, cement, etc.), clean the motor protection filter by tapping it out or, if necessary, replace the motor protection filter and exhaust filter.

Care

Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the vacuum cleaner. The vacuum cleaner and plastic accessories can be cleaned with an ordinary plastic cleaner.

Do not use abrasive materials, glass-cleaning agents or all-purpose cleaning products. Never immerse the vacuum cleaner in water.

The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.

Subject to technical modifications.

fr

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

powerSensor Technology\*

Simple line drawing of an open book with a right-handled arrow indicating rotation (no text or symbols)

Beskrivelse

powerSensor Technology\*

Simple line drawing of an open book with a right-handled arrow indicating rotation (no text or symbols)

powerSensor Technology\*

Rengjøre hepa-utblåsingsfilter (Ultra HEPA hygienefilter)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Produktbeskrivning

Simple line drawing of an open book with a right-handled arrow indicating rotation (no text or symbols)

Laitteen kuvaus

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Περιγραφή συσκευής

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Cihaz açıklaması

Simple line drawing of an open book with a right-pointing arrow on the right page (no text or symbols)

Opis urządzenia

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

A készülék leírása

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Описание на уреда

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

وصف الجهاز

Jebel Ali Free Zone – Dubai

Tel.:[phone]

mailto:[e-mail]

www.siemens-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati i ri perball Prokuroris se

Pergjithshme

Hyrja C Kati 10

Tirana

Tel.: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.com.au

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajewo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.siemens-home.bg

www.siemens-home.com/ch

CY Cyprus, Kúπρος

BSH Ikiakes Syskeves-Service

39, Arh. Makaariou III Str.

2407 Egomi/Nikosia (Lefkosia)

Tel.: [phone]

Fax: [phone]

mailto:bsh.service.cyprus@

cytanet.com.cy

+ 7 snt/min (alv 23%)

+ 17 snt/min (alv 23%)

FR France

BSH Electroménager S.A.S.

50 rue Ardoin – BP 47

93401 Saint-Ouen cedex

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit: www.siemens-home.co.uk or call

Tel.: [phone]*

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:siemens.hk.service@

bshg.com

www.siemens-home.com.hk

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel:. [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.siemens-home.com/hr

www.siemens-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]

Fax: [phone]

www.siemens-home.com/ie

IL Israel, בַרְבָר

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.co.il

IN India, Bhārat, भारत

BSH Customer Service

Front Office

Shop No.4, Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road,

Andheri East

Mumbai 400 093

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.:[phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon, لبنان

Tehaco s.a.r.l

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh 1202 2040

Tel.:[phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax:[phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

www.siemens-home.com/lu

LV Latvija, Latvia

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

Fax: [phone]

mailto:[e-mail]

www.servisacentrs.k

MD Moldova

S.R.L. „Rialto-Studio“

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

MK Macedonia, Makedonia

GORENEC

Jane Sandanski 69 lok. 3

1000 Skopje

Tel.: [phone]

Mobil: 070 697 463

mailto:[e-mail]

MT Malta

A plan Limited

The Atrium

Mriehel by Pass

BKR3000 Birkirkara

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

NL Nederland, Netherlands

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.:[phone]

Fax:[phone]

mailto:[e-mail]

PL Polska, Poland

www.siemens-home.com/pt

*(PT 0,10 €/min., Mobile 0,25 €/min)

RO România, Romania

BSH Electrocasnice srl.

Sos. Bucuresti-Ploiesti,

nr. 19-21, sect.1

13682 Bucuresti

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/ro

RU Russia, Россия

Union Industrial Building

Block A, #01-03

577177 Singapore

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

www.siemens-home.com/sk

TR Türkiye, Turke y

BSH Ev Aletleri Sanayi

ve Ticaret A.S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/tr

US United States of America

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA, 92614

Tel.: [phone] toll-free

Fax: [phone]

mailto:siemens-usa-questions@

bshg.com

www.siemens-home.com

XK Kosovo

NTP GAMA

Rruga Mag Prishtine-Ferizaj

70000 Ferizaj

Tel.: [phone]

Tel.: [phone]

mailto:a_service@

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 ^4

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.siemens-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.:[phone]

Fax:[phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

de

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

fr

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

pt

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

Technical diagram of a vacuum cleaner with numbered parts and exploded views of the device's internal structure.

Two 3D printing machines, one with a camera icon and the other Siemens logo (no text or symbols on the devices themselves)

3D rendering of a mechanical component with two cylindrical parts and a curved top section, labeled 'B' in the corner (no text or symbols on the object itself)

3D rendered image of a gray mechanical component with a protruding pipe fitting (no text or symbols visible)

3D rendered X-shaped pipe fitting with textured ends, labeled 'D' in top-left corner (no other text or symbols)

3D rendered image of a black mechanical component with a lever, no visible text or symbols

1 Click!

2 a Click!

b 1 2 1

3 Click! 1 2

4 Click! 1 2

5* 1 2 1

Mechanical assembly diagram showing a lever mechanism and a close-up of a component with directional arrows (no text or symbols)

Mechanical assembly diagram showing a threaded component inserted into a shaft with directional arrows indicating movement (no text or symbols)

Two-panel image showing a device with a plug inserted into a socket and a close-up of the socket being inserted (no text or symbols visible)

Close-up of a mechanical component with a black arrow pointing to a circular feature on top (no text or symbols visible)

Technical diagram of a mechanical component with labeled parts (min, max) and no readable text or symbols beyond labels

Two black-and-white photos of a vacuum cleaner's handle and lever, showing mechanical components and a small inset image with symbols (no text or labels)

Close-up of a mechanical component with a curved tip and arrow indicating a process (no text or symbols)

Diagram of a vacuum cleaner with a lever and base, showing mechanical components (no text or symbols)

Close-up of a vacuum cleaner's tip and base component with an arrow indicating insertion (no text or symbols)

d Click! 1 2

3D rendered image of a white vacuum cleaner with attached pipe and valve (no text or symbols visible)

Exterior view of a white industrial vacuum cleaner with handle and ventilation slots (no text or symbols visible)

14 2 1

Mechanical component assembly diagram showing a valve and housing with a curved arrow indicating rotation (no text or symbols)

Close-up of a mechanical component with a central cylindrical part and surrounding grooves (no visible text or symbols)

3D rendered diagram of a curved pipe or duct with two black arrows pointing to a specific feature (no text or symbols present)

Close-up of a white industrial machine component with a threaded tube and a black arrow pointing to a small opening (no visible text or symbols)

Close-up of a white industrial machine with a cylindrical component inserted, showing internal components and a rotation arrow (no text or symbols visible)

3D rendered mechanical component with internal structure and pipe connection (no visible text or symbols)

Metal trash bin with a plastic bag emerging from its top, symbolizing disposal or recycling (no text or symbols present)

18 b

19* 1 1 2 24h

20* Micro

20* SIEMENS Click!

21* Hepa 30°C 24h Click!
