Product type	Bluetooth phone adapter
Brand	Cobra
Model	PhoneLynx BT215
Power supply	110/120 V AC adapter
Connectivity	Bluetooth
Cell phone compatibility	Any Bluetooth phone with code 0000
Number of pairable phones	Up to 2 (via buttons BT215-1 and BT215-2)
LED indicators	Solid red, flashing blue (1x/s, 1x/4s, fast), solid blue
Audio tones	Two short beeps (pairing successful), three short beeps (out of range), one short beep followed by a long one (power)
Main functions	Make and receive cellular calls via a landline phone
Wall mount	Yes, via built-in hook (screws not included)
Warranty	1 year (US and Canada)
Country of manufacture	China

Frequently Asked Questions - PhoneLynx BT215 COBRA

How do I pair the PhoneLynx with my cell phone?

Press and hold one of the buttons for 3 seconds until the blue LED flashes once per second. On your phone, search for a new Bluetooth device and select 'PhoneLynx BT215-1' or 'BT215-2'. Enter the code 0000 when prompted. Pairing is successful when you hear two short beeps.

How do I make a call with the PhoneLynx?

Pick up your landline phone connected to the PhoneLynx. You will hear a dial tone. Dial the number as usual. The call will be routed through your paired cell phone.

What does a rapidly flashing blue LED mean?

This indicates that the paired cell phone is out of range, Bluetooth is turned off on the cell phone, or re-pairing is in progress.

Can I connect two cell phones at the same time?

Yes, the PhoneLynx BT215 has two buttons to pair two different phones. Use button 1 for the first and button 2 for the second. To call on line 2, dial 2 before the number.

What if pairing fails?

Make sure the PhoneLynx is powered on and the blue LED flashes once per second. Check that your phone's Bluetooth is enabled and you are nearby. Reset pairing by pressing and holding the button for 3 seconds.

How to use call waiting?

Press the 'Flash' key on your landline phone to switch between calls.

Does the PhoneLynx work with a landline?

No, never connect the PhoneLynx directly to the wall phone line. Plug it only between your landline phone and the wall jack.

What are the status indicators?

Solid red: no phone paired. Flashing blue 1x/s: discovery mode. Flashing blue 1x/4s: paired and ready. Rapidly flashing blue: phone out of range. Solid blue: call in progress.

How to mount the PhoneLynx on the wall?

Use the built-in hook on the back. Drill two holes and insert screws (not included). Hang the device. You can also place it flat on its rubber feet.

What if the device does not turn on?

Check that the power adapter is plugged into a 110/120 V outlet and that the plug is inserted into the PhoneLynx. If the LEDs do not light up, try another outlet. Contact customer support if the problem persists.

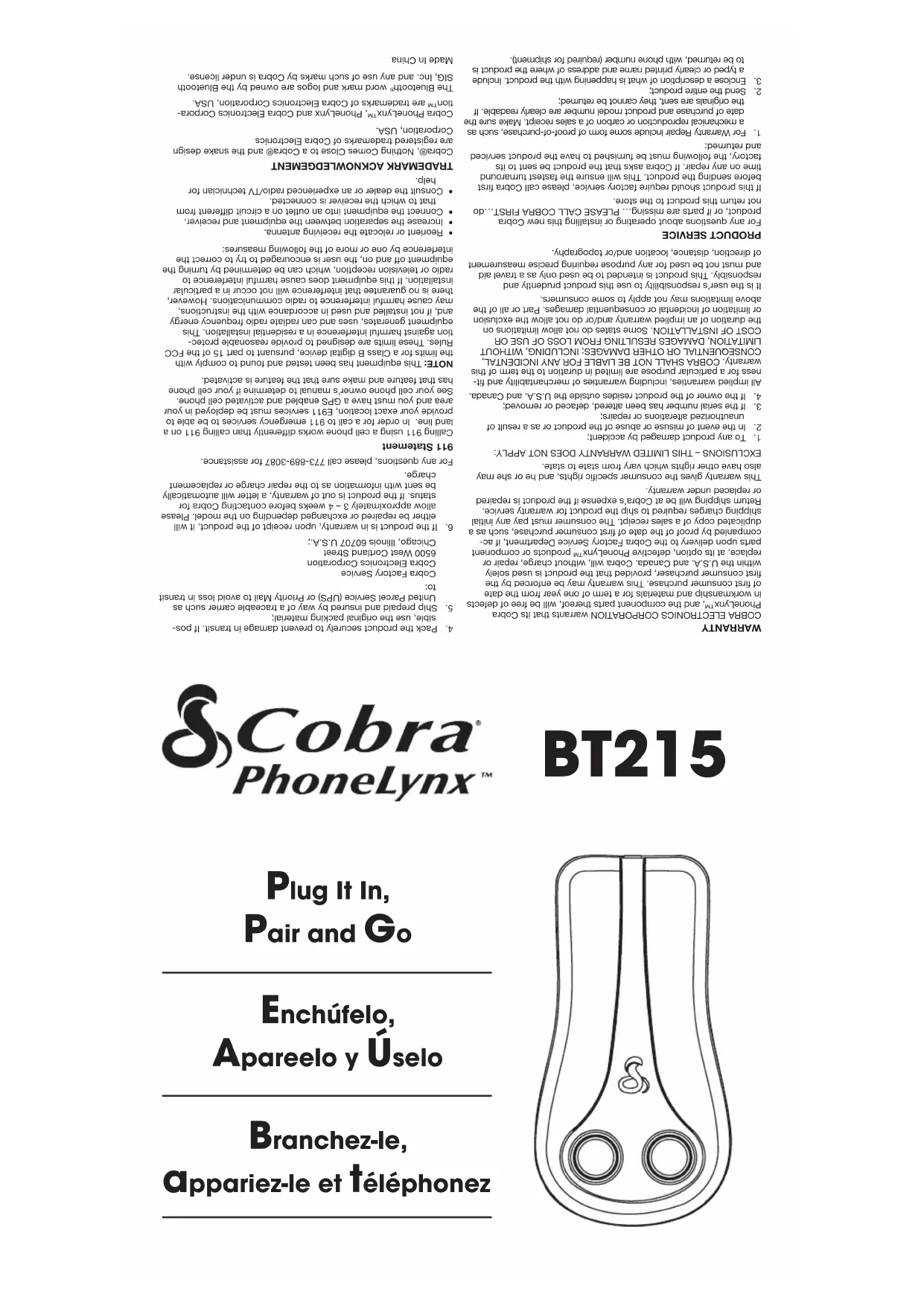

USER MANUAL PhoneLynx BT215 COBRA

Peppepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepe pe

A'S'N 2020g sioulll ooe

0000

Cooonnnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne

oeonnnnne

04

Hsuee u sssoi pioae o iie W Aoud no (Sdn) aoeespeed peun

se yons nee e qene eno Jem npnsui pue preedd diS

Paeepnnppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppe

eeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppe

HOSSSOSHNOHNNSNNSNNNNNNNNNNNNNN

ONHNOHNNSNNSNNNSNNSNNS

AANNNN NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

epenepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepe pe

peowoeoepoeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppe

sieda Jo sounnepe paouyneun

peepedespsponpdoe pessaepeoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoeepoe

aeppepepeeppepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepe pe

P

eeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppeeppe

CNOONNNNNEA

ANVHVM

PhoneLynx

BT215

Plug It In,

Pair and Go

Enchufelo,
Apareelo y Uselo

1. Plug the power adapter plug (1) into the power port of the PhoneLynx (2).
2. Plug the power adapter cord into a 110/120-volt household wall outlet.
3. Plug the phone line (3) coming from the phone, not from the wall jack, into the transmitter.

/WARNING Never connect the PhoneLynx to the telephone company land line. Only your home/office phone should connect to the PhoneLynx.

1. When the unit is first powered on, the transmitter will beep twice and both buttons will be illuminated in red.

Keep away from 2.4 GHZ wireless home phones to avoid potential interference. Keep a reasonable distance between the base and PhoneLynx.

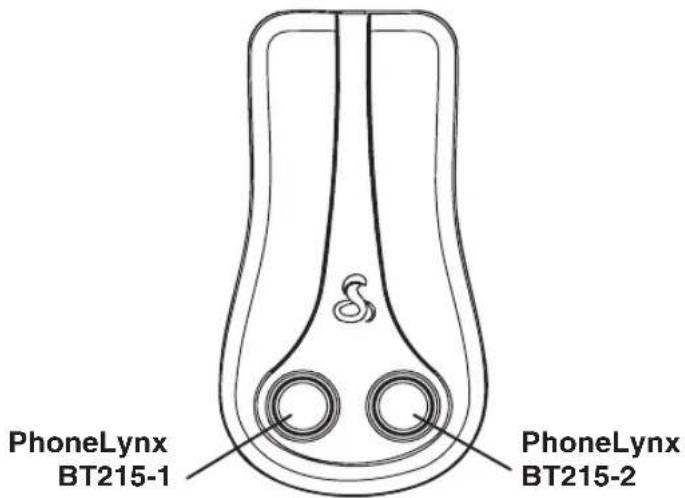

Pair with Cell Phone

1. Hold in either one of the buttons for three seconds. The LED for that button will begin to blink with a blue light once per second. This indicates the PhoneLynx is waiting to pair with your cell phone via Bluetooth® wireless technology.

1. Search for a new Bluetooth-enabled device on your cell phone.
2. When your cell phone finds the device, it will read "PhoneLynx BT215-1" or "PhoneLynx BT215-2," depending on what button was pushed.
3. When prompted for a password on your cell phone, enter "0000" in the password field.
4. When your cell phone is paired, the PhoneLynx will beep twice and the blue LED will slowly blink once every four seconds. The system is now ready.

NOTE: To add another cell phone, push the other button and repeat the pairing procedure.

Go

1. Make and receive calls on your home/office phone just as you normally would. You will hear a dial tone provided by the PhoneLynx when picking up the receiver.

2. The PhoneLynx can be mounted on the wall using the built-in hook (1) (screws and hardware not provided) or can be placed flat to rest on the rubber feet (2).

PhoneLynx™ Status Indicators

Solid Red - When first powered on, the unit will beep twice and both buttons will be illuminated with red LEDs. The red LEDs indicate that a phone has not been paired with the PhoneLynx before.

Blinking Blue Once a Second - Indicates PhoneLynx is in discovery mode and waiting to pair with a Bluetooth cell phone.

Blinking Blue Once Every Four Seconds - Phone is paired and ready for incoming and outgoing calls.

Blinking Blue Rapidly - Indicates paired phone is out of range, Bluetooth is off on cell phone or re-pairing is in progress.

Solid Blue - A call is in process.

Two Beeps - Pairing is complete.

Three Beeps - Phone out of range or turned off.

One Short Beep Followed by One Long Beep - Wall adapter connected or power restored.

HINTS

• If two cell phones are connected, dial #2 (on your home phone) and the number to dial out on the cell phone connected to PhoneLynx BT215-2.
• Use the "Flash" key on your home/office phone to switch between call waiting calls on your cell phone.

Customer Assistance

Should there be any problems with this product, or further information is needed on its features, please refer to this manual. For further assistance after reading this manual, Cobra Electronics offers the following customer assistance services:

FOR ASSISTANCE IN THE U.S.A.

• Automated Help Desk (English only) 24 hours a day, 7 days a week at 773-889-3087 (phone).
• Customer Assistance Operators (English and Spanish) 8:00 a.m. to 5:30 p.m. Central Time, Mon. through Fri. (except holidays) at 773-889-3087 (phone).
• Questions (English and Spanish) Faxes can be received at 773-622-2269 (fax).
• Technical Assistance (English only) www.cobra.com (on-line: Frequently Asked Questions).
  Technical Assistance (English and Spanish) [e-mail] (e-mail).

Manufactured Under License 6778824, 7024189, 7069006 and 7190954.

SERVICIO AL PRODUCTO

Cobra Factory Service

Cobra Electronics Corporation

6500 West Cortland Street

Chicago, Illinois 60707 U.S.A.

RÉPARATION DU PRODUIT
